Overview

CNJCPTECH FD-series force sensors provide multi-directional load feedback for robotics, testing and industrial measurement. FD01-2, FD03, FD10-3 and FD13-1-2 measure three forces along X, Y and Z; FD18 measures six axes, combining Fx, Fy and Fz with Tx, Ty and Tz torque. Choose the model, load range and mounting geometry that match your equipment rather than treating every selection as the same sensor.

Features

Three-axis force models in cylindrical, flanged and compact block housings.
FD18 six-axis force/torque selections for combined force and moment measurement.
Model-specific ranges from 5 N low-force blocks to 5000 N planar sensors.
Bridge-signal output for integration with compatible excitation and signal conditioning.
IP66 protection for the listed three-force models; IP65 for FD18.
Mechanical drawings and load-direction diagrams for fixture planning.

Configuration Guide

Model	Axes	Offered ranges	Housing / geometry
FD01-2	X, Y, Z forces	50, 100, 200 N per axis	Steel cylindrical body, Ø46 mm reference
FD03	X, Y, Z forces	200, 500, 1000 N per axis	Steel flanged body, Ø96 mm flange reference
FD10-3	X, Y, Z forces	5, 10, 20, 50 N per axis	Aluminum 40 × 40 × 20 mm block
FD13-1-2	X, Y, Z forces	1000, 2000, 5000 N per axis	Aluminum planar body, 120 × 120 mm reference footprint
FD18	Fx, Fy, Fz + Tx, Ty, Tz	50 N / 2 N·m; 200 N / 5 N·m; 500 N / 10 N·m	Aluminum circular body, Ø80 × 28 mm overall reference

Three-axis selections measure forces, not three additional torque channels. Only the FD18 selections provide six-axis force/torque measurement. Range values identify the selected channel capacities; account for simultaneous loading and fixture moments when sizing a measurement system.

Specifications

FD01-2

Axes	Three forces: X, Y, Z
Offered ranges	50, 100 or 200 N per axis
Material	Stainless steel or alloy steel
Ingress protection	IP66
Sensitivity	1.0 mV/V ±10%
Zero balance	±2% FS
Nonlinearity / hysteresis	1.0% FS each
Repeatability	0.20% FS
Cross-talk	0.50% FS
Sensitivity / zero temperature drift	0.50 / 0.05% FS per 10 °C
Input / output resistance	700 ±10 Ω each
Insulation resistance	≥5000 MΩ at 100 VDC
Excitation / maximum	5–10 V / 15 V
Compensated / operating temperature	−10 to +40 °C / −20 to +80 °C
Safe / ultimate overload	120 / 150% FS
Cable	Ø6 mm × 3 m
Drawing size	Ø46 mm body; option image identifies 49 mm overall height; drawing has 40 / 46 mm section callouts. Use exact drawing for mounting

FD03

Axes	Three forces: X, Y, Z
Offered ranges	200, 500 or 1000 N per axis
Material	Stainless steel or alloy steel
Ingress protection	IP66
Sensitivity	1.0 mV/V ±10%
Zero balance	±2% FS
Nonlinearity	≤0.1% FS
Hysteresis	≤0.2% FS
Repeatability	≤0.1% FS
Sensitivity / zero temperature drift	0.1% FS per 10 °C each
Input / output resistance	350 Ω or 700 Ω configuration, ±10 Ω
Insulation resistance	≥5000 MΩ at 100 VDC
Excitation / maximum	5–12 V / 15 V
Compensated / operating temperature	−10 to +60 °C / −20 to +80 °C
Safe / ultimate overload	120 / 150% FS
Drawing size	Ø96 mm flanges; 65 mm overall height; Ø66 mm central body

FD10-3

Axes	Three forces: X, Y, Z
Offered ranges	5, 10, 20 or 50 N per axis
Material	Aluminum alloy
Ingress protection	IP66
Sensitivity	1 mV/V
Zero output	0.05 mV/V
Cross-talk	X→Y 0.5%; Y→X 0.5%; Z→X/Y 1%; X/Y→Z 1% FS
Hysteresis / repeatability	≤0.1% FS each
Sensitivity / zero temperature drift	0.05% FS/K each
Input / output resistance	350 ±5 Ω each
Insulation resistance	5 GΩ
Excitation / maximum	2.5–5 V / 10 V
Compensated / operating temperature	−20 to +60 °C / −20 to +70 °C
Safe / ultimate overload	150 / 150% FS
Drawing size	40 × 40 × 20 mm overall; 18 mm body callout; 4 × M3 through mounting holes

FD13-1-2

Axes	Three forces: X, Y, Z
Offered ranges	1000, 2000 or 5000 N per axis
Material	Aluminum alloy
Ingress protection	IP66
Sensitivity	0.5 mV/V
Zero output	0.05 mV/V
Cross-talk	1% FS
Hysteresis / repeatability	≤0.1% FS each
Sensitivity / zero temperature drift	0.01 / 0.02% FS/K
Input / output resistance	780 / 700 Ω
Insulation resistance	5 GΩ
Excitation / maximum	1–10 V / 10 V
Compensated / operating temperature	−10 to +70 °C / −10 to +85 °C
Safe / ultimate overload	150 / 150% FS
Drawing footprint	120 × 120 mm; use the drawing for hole patterns and thickness details

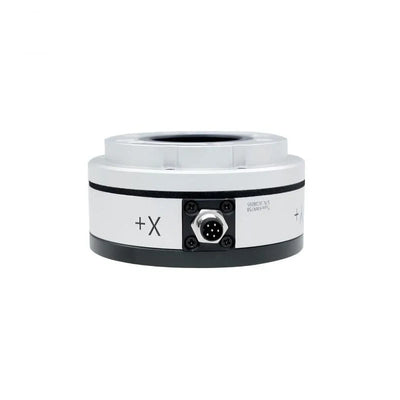

FD18

Axes	Six: Fx, Fy, Fz and Tx, Ty, Tz
Offered force / torque pairs	50 N / 2 N·m; 200 N / 5 N·m; 500 N / 10 N·m
Material	Aluminum alloy
Ingress protection	IP65
Nonlinearity	0.2% FS
Accuracy	0.3% FS
Coupling accuracy	1.5% FS
Repeatability	0.2% FS
Resolution	0.1% FS
Zero drift	0.1% FS / 30 min
Zero temperature drift	0.2% FS / 10 °C
Input / output resistance	350 Ω each
Output	mV bridge signal
Excitation	5–15 VDC
Storage / operating temperature	−20 to +75 °C / 0 to +40 °C
Operating humidity	20–80% RH
Ultimate overload	300% FS
Drawing dimensions	Ø80 mm overall diameter and 28 mm height; Ø63 mm section and Ø50 / Ø31.5 H7 locating references

FS means full scale. Values apply to the named model, not to the entire family. Safe and ultimate overload ratings are limits rather than normal working loads. Match excitation, calibration sensitivity, conditioning and controller input to the selected sensor.

Signal Conditioning and Installation

The bridge wiring reference identifies red EXC+, black EXC−, green SIG+ and white SIG−, with a separate shield. Multi-axis installations require the appropriate channel wiring and conditioning arrangement for the selected model; verify its connector pinout before applying power. FD18 provides mV bridge signals, rather than an integrated RS485 interface.

Analog amplifiers, transmitters, multichannel acquisition units and displays shown in the conditioning diagram are separately configured equipment. Their analog-voltage, current, serial or network output choices do not establish built-in output interfaces on every sensor. Align the load surface and X/Y/Z directions with the test fixture, secure the base through the designated mounting holes, and avoid unintended side loads or cable tension. Use each model's drawing for exact hole patterns, threads and locating tolerances.

Applications

Robot end-effectors and contact-force feedback with suitable mechanical adapters.
Multi-directional force measurement in laboratory and industrial test fixtures.
Assembly, pushing, pulling and contact-load monitoring within the selected range.
Low-force testing with FD10-3 or higher-load fixtures with FD13-1-2.
Combined force and torque research using FD18.

What's Included

1 × CNJCPTECH sensor in the selected model and range, with its fitted cable/connection arrangement.

External signal conditioners, displays, acquisition systems, robot arms, fixtures and mounting adapters are not included. Family and conditioning illustrations help identify compatible system components; they do not constitute a bundled package.
