Overview

The Kpower DM090W is a PWM servo motor for RC models and position-controlled mechanisms in water-exposed equipment. It combines metal gears, a potentiometer position sensor and an IP67-rated plastic case. At 6 V, it delivers 10.5 kg·cm stall torque and a no-load speed of 0.08 s/60°. Its 4.8–8.4 V operating range and 40.7 × 19.8 × 37.7 mm dimensions support electrical and mechanical integration planning.

Features

Metal gear transmission driven by a DC brushed motor.
PWM control with potentiometer position feedback and a working frequency of 50–333 Hz.
IP67-rated plastic housing with two ball bearings (2BB).

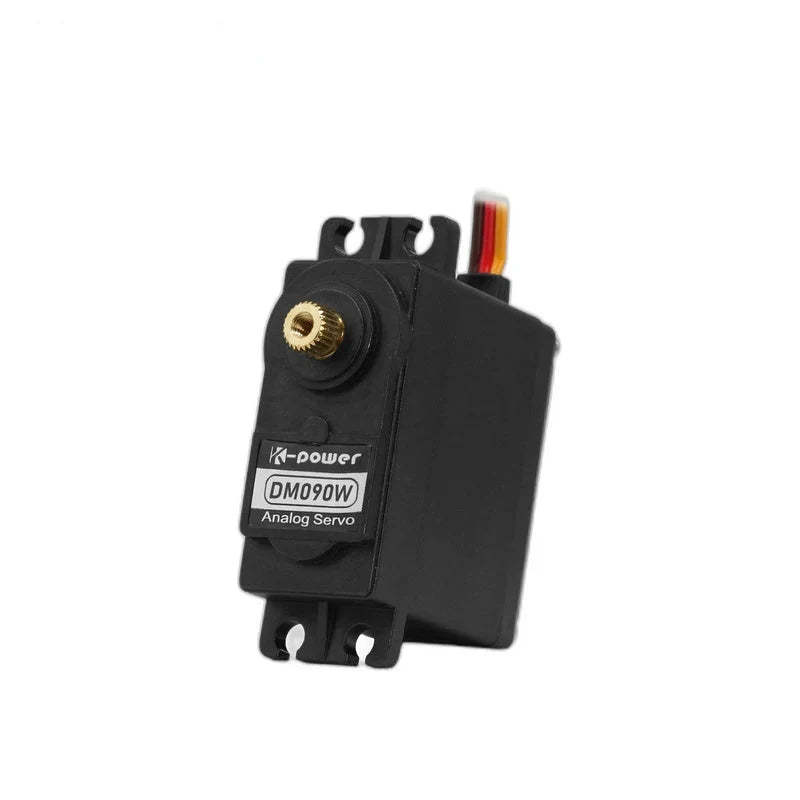

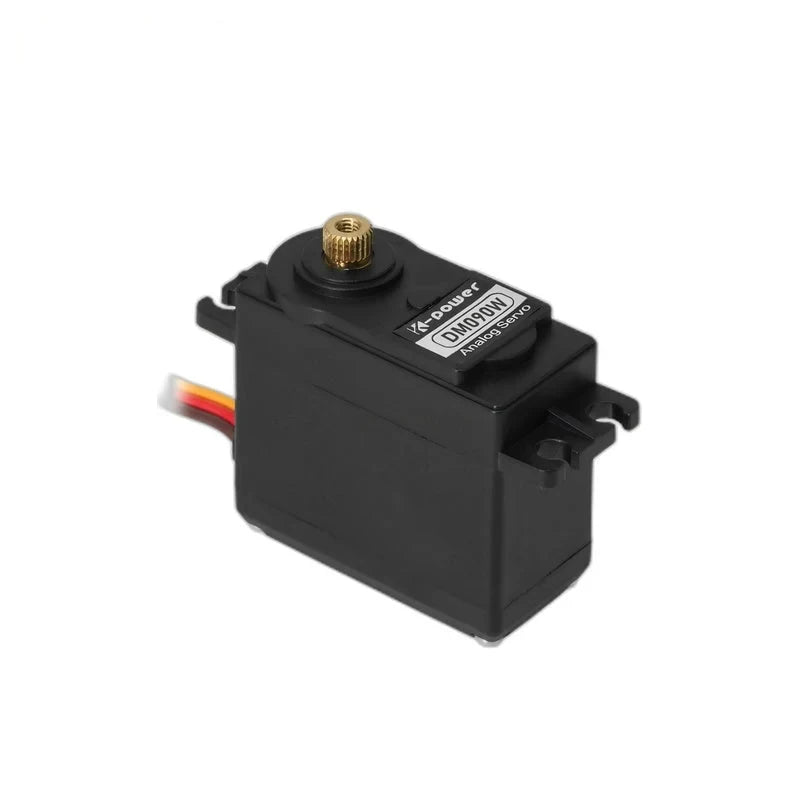

25T, Ø6 mm horn spline; the output shaft has a central threaded hole.

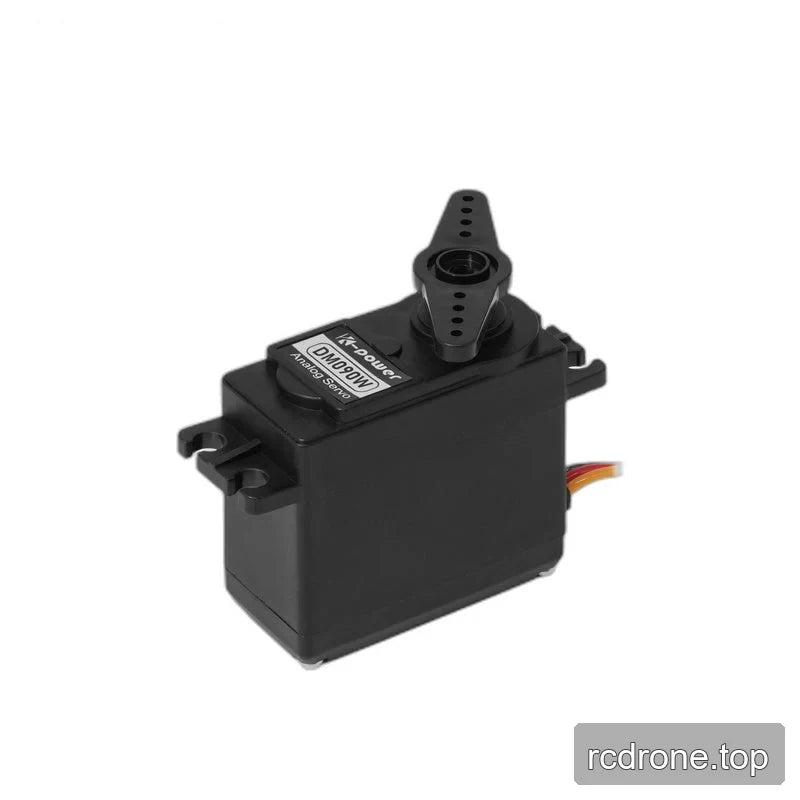

Slotted mounting tabs for securing the servo to a mounting structure.
120°/180° travel angle range, customizable.

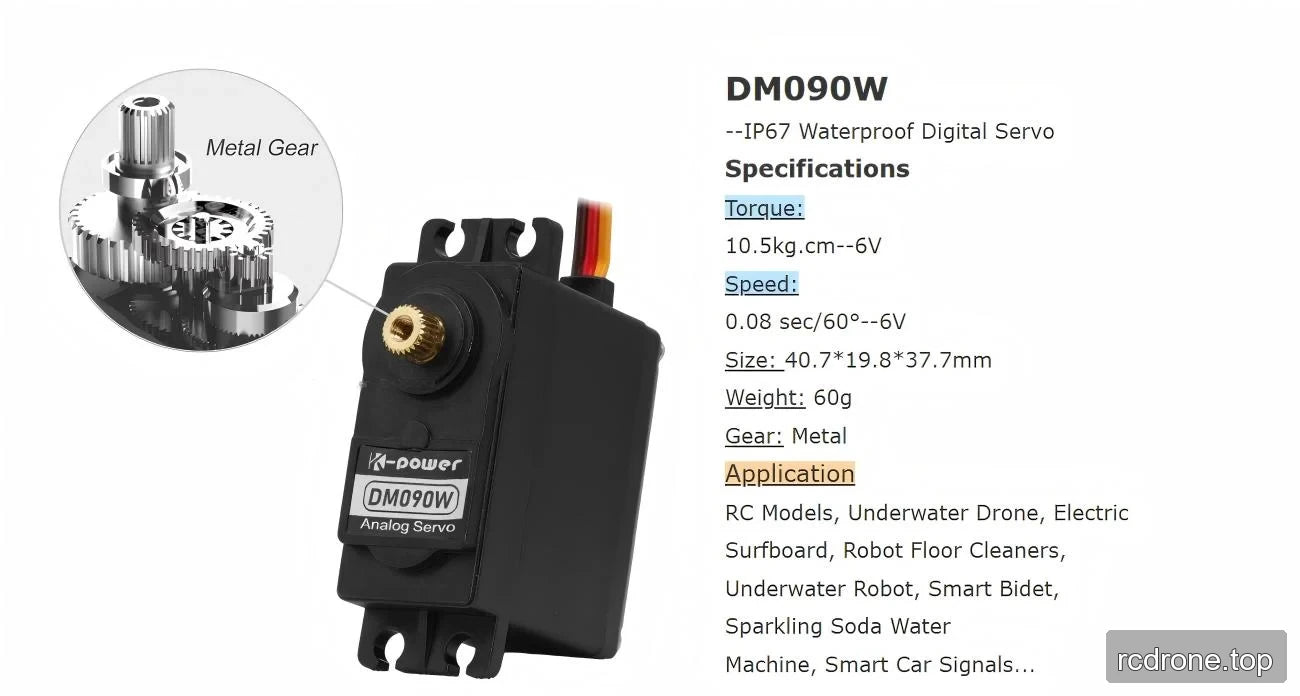

Specifications

Parameter	DM090W
Stall torque	10.5 kg·cm at 6 V
Rated torque	2.5 kg
No-load speed	0.08 s/60° at 6 V
Weight	60 g
Dimensions	40.7 × 19.8 × 37.7 mm
Travel angle range	120°/180° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø6 mm
Gear material	Metal
Motor	DC brushed
Protocol	PWM
No-load current	1800 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP67
Output and mounting details	Splined output shaft with a central threaded hole; slotted mounting tabs

Applications

RC models: actuate positioning linkages using PWM control, with 0.08 s/60° no-load movement at 6 V.
Underwater drones and underwater robots: position mechanisms in water-exposed assemblies using the IP67-rated housing. The IP rating does not establish a continuous-submersion depth or duration.
Electric surfboards: actuate position-controlled mechanisms where the IP67-rated enclosure is relevant to water exposure.
Robot floor cleaners and smart bidets: move positioning mechanisms using potentiometer feedback and a water-resistant enclosure.
Sparkling soda water machines: drive controlled-position mechanisms with PWM input and metal gears.
Smart car signals: move signal-positioning mechanisms using PWM control and potentiometer feedback.
