Kpower HBL830 Digital Brushless Servo, 25T, 0.05 s/60° at 7.4 V for RC Car Steering

Kpower

$181.00 USD

বিক্রয় বিক্রি হয়ে গেছে

ট্যাক্স অন্তর্ভুক্ত. শিপিং চেকআউটের সময় গণনা করা হবে।

Version HBL830

পরিমাণ

সম্পূর্ণ বিবরণ দেখুন

Overview

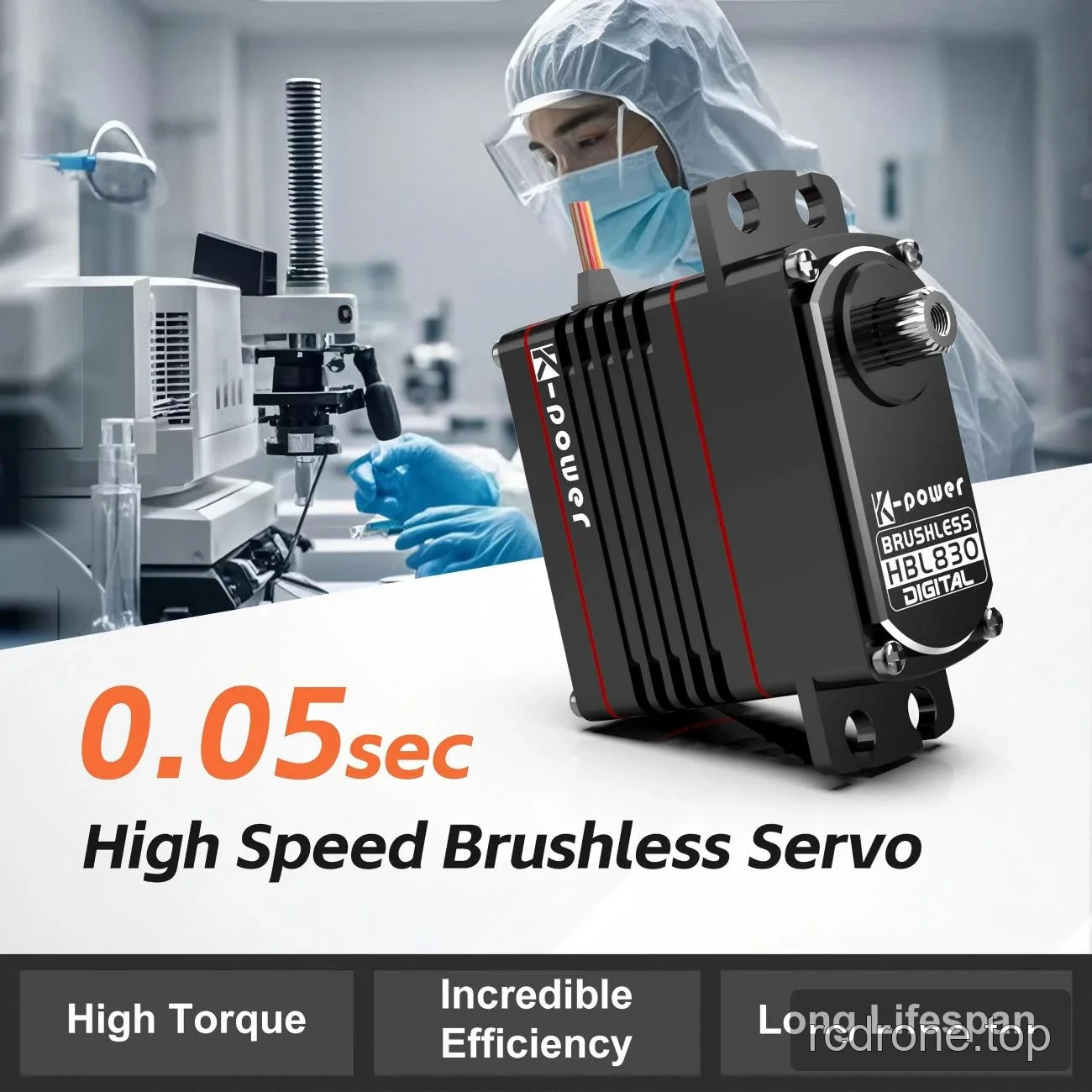

The Kpower HBL830 is a digital brushless servo for RC car steering, model-aircraft control and laboratory automation. Its no-load speed is 0.05 ± 0.01 s/60° at 7.4 V, supporting applications that need quick linkage movement. A 25T, 5.9 mm output spline, metal gearing and dual ball bearings provide key mechanical selection details, while a 300 mm lead helps with installation planning.

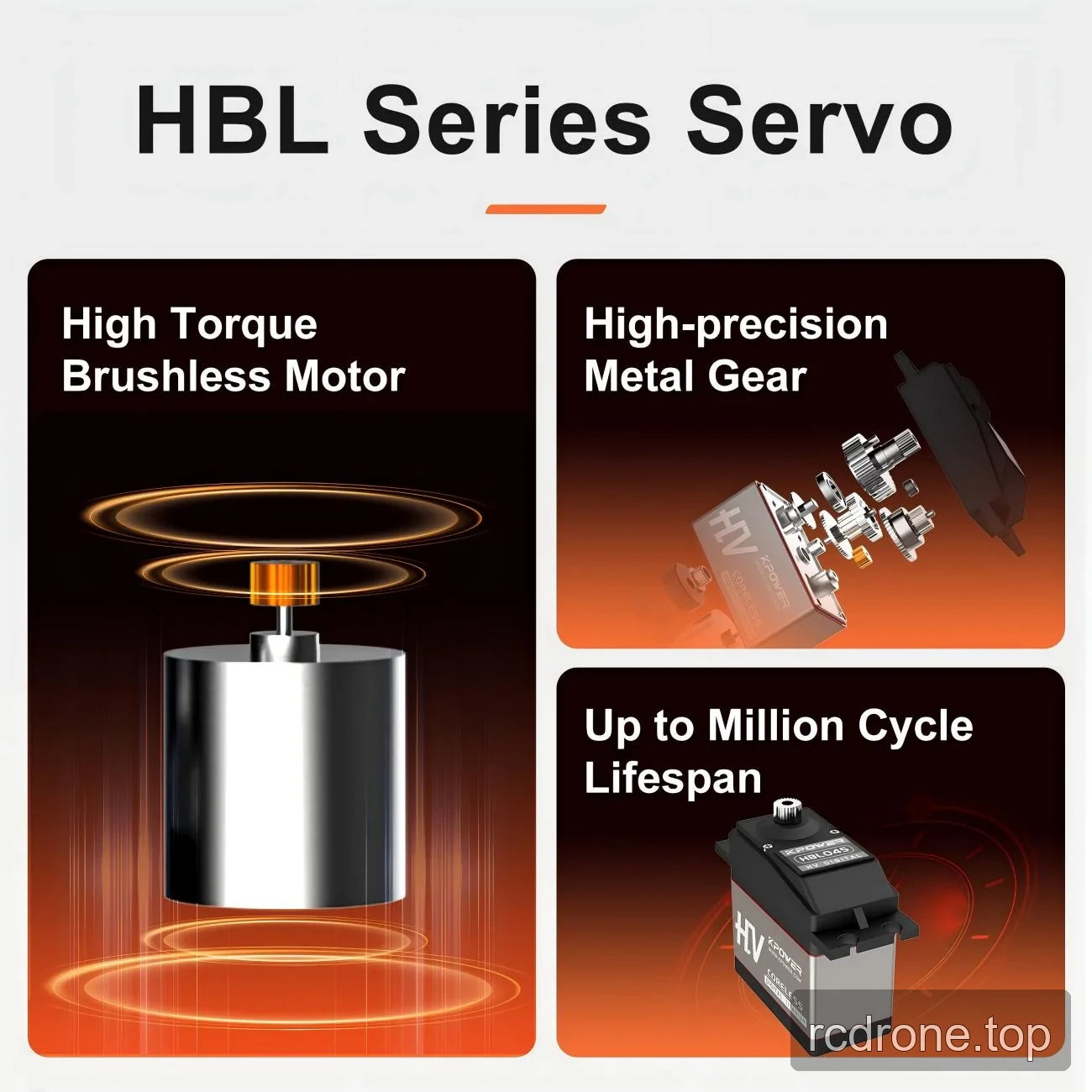

Features

Digital control with a brushless motor.

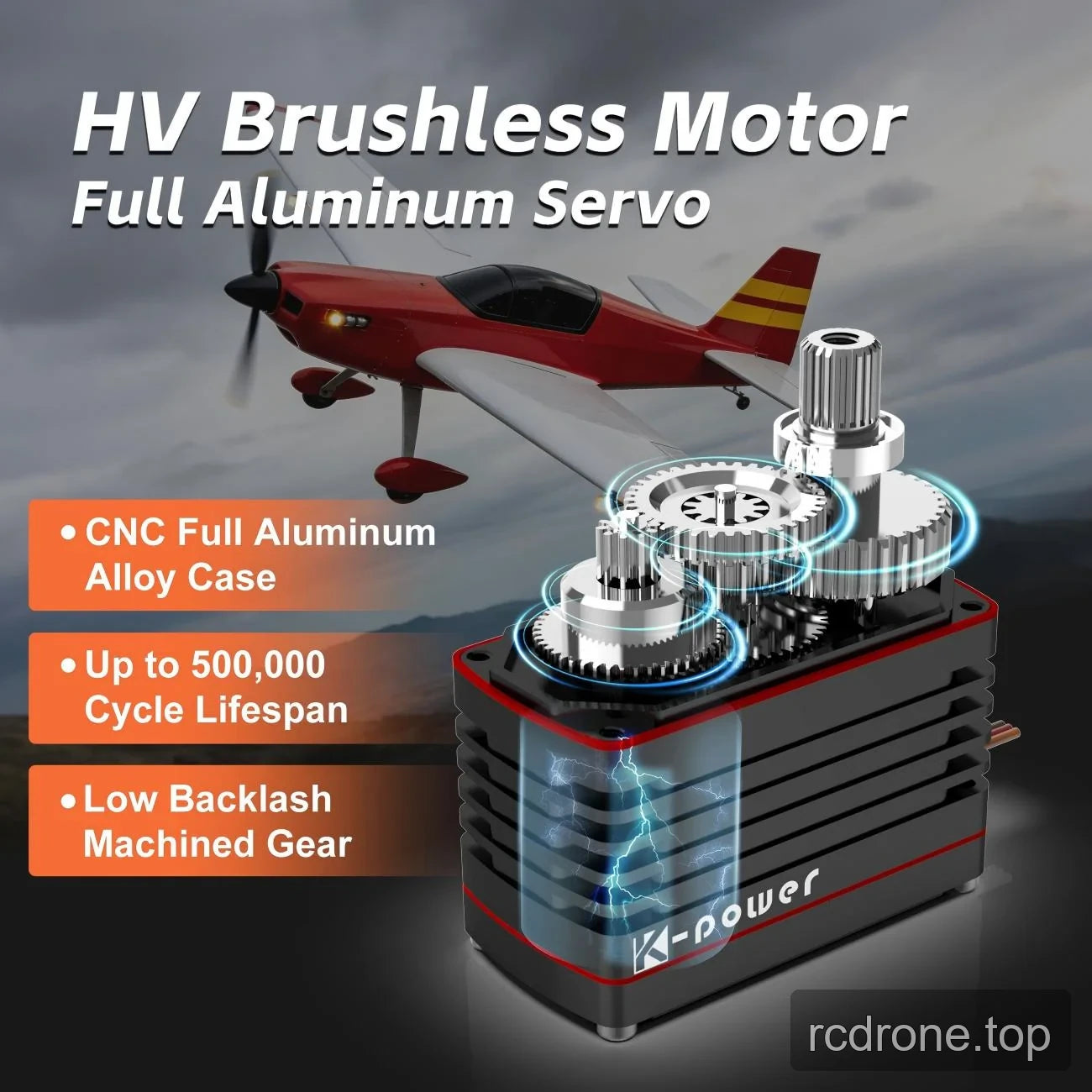

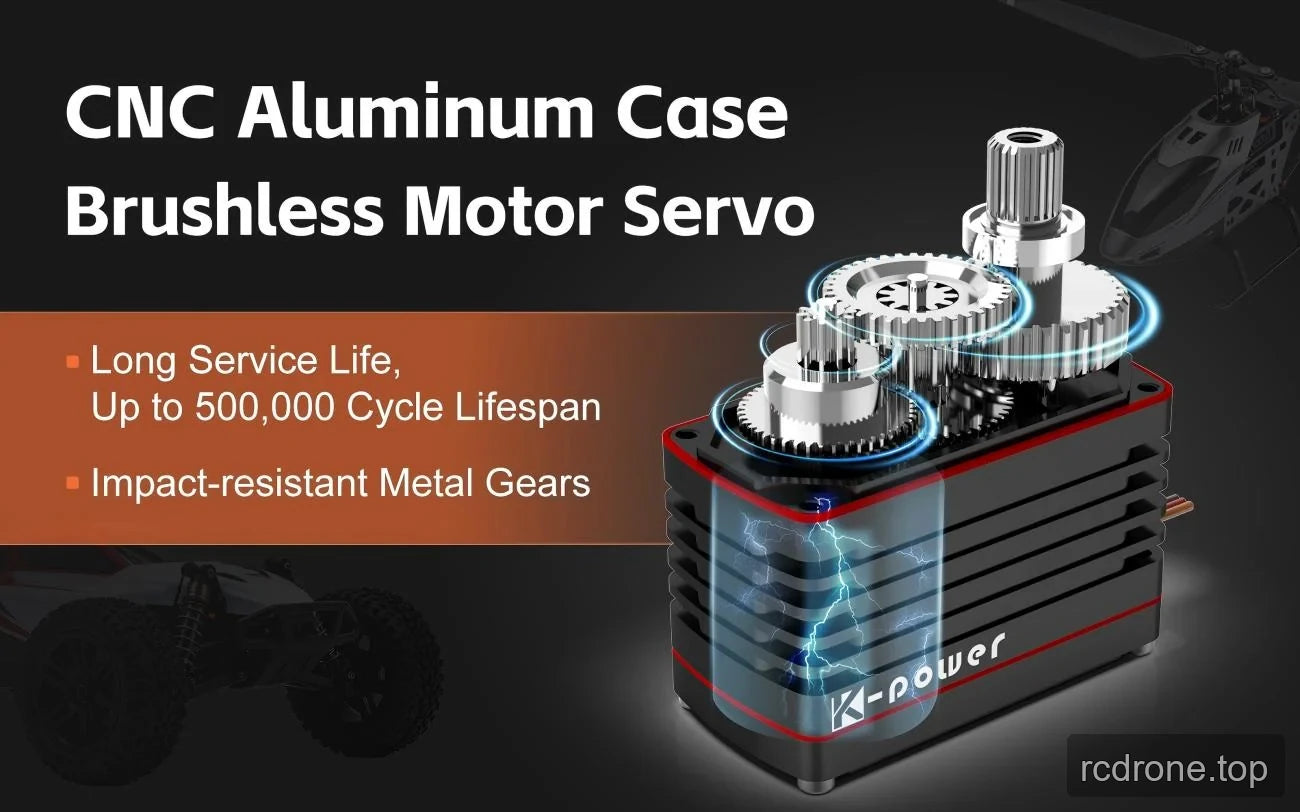

Low-backlash machined metal gears.
7075 aluminum case.

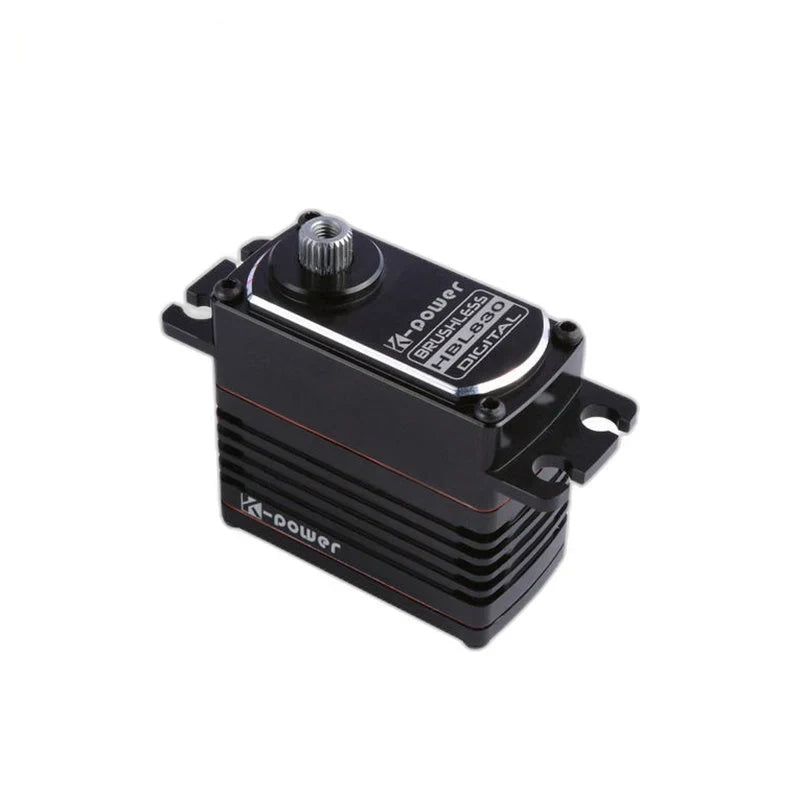

Dual ball bearings and a 25T output spline with a 5.9 mm diameter.
Potentiometer position sensing, with magnetic encoder customization supported.

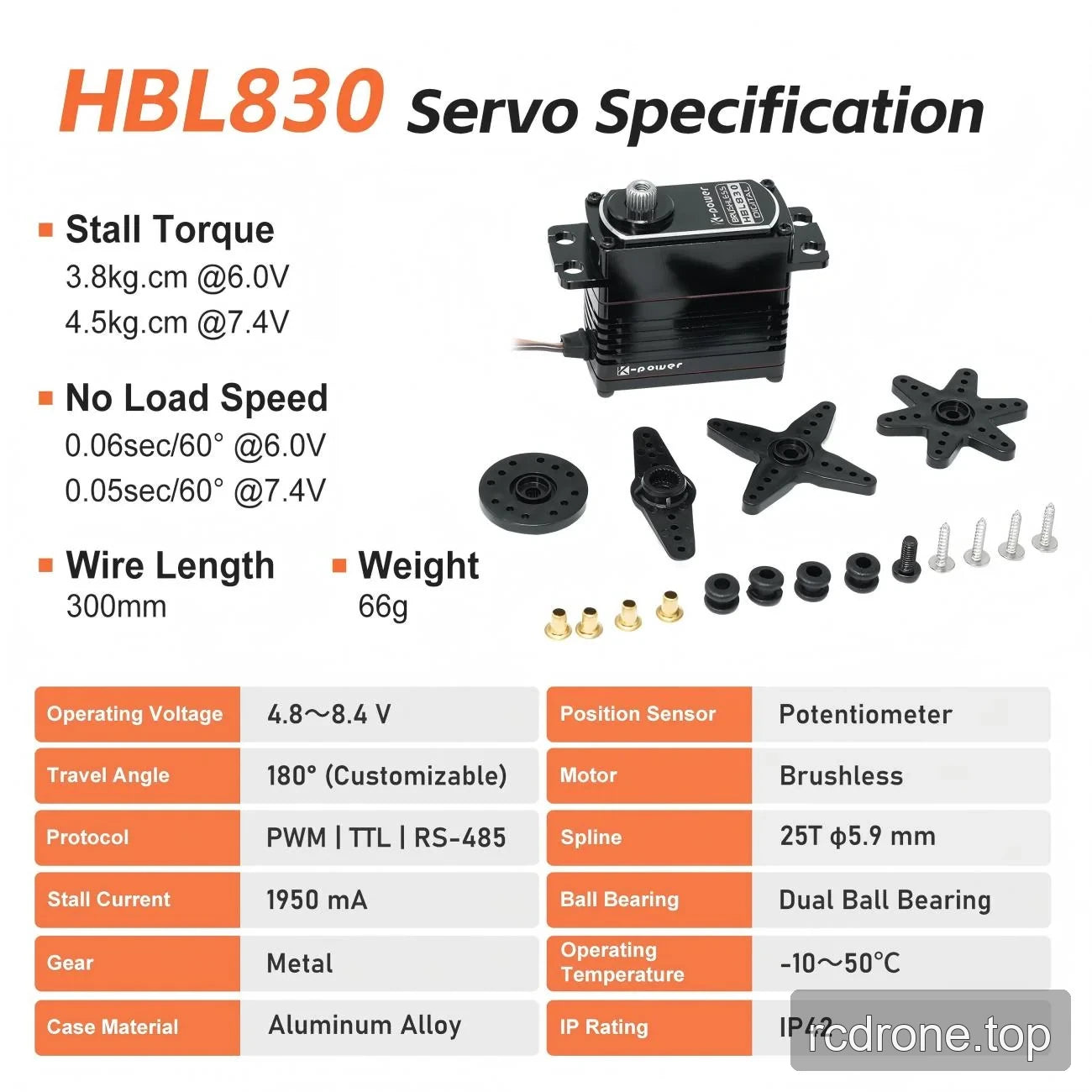

Specifications

Construction and Control

Parameter	Value
Brand	Kpower
Model / version	HBL830
Servo type	Digital brushless servo
Motor type	Brushless
Gear material	Aluminum alloy
Gear construction	Low-backlash machined metal gears
Case material	7075 aluminum
Bearings	Dual ball bearings
Output spline	25T, 5.9 mm diameter
Position sensor	Potentiometer
Position-sensor customization	Magnetic encoder customization supported
Listed control protocols	PWM, TTL and RS-485; discuss the required control type with the supplier
Signal range	900–2100 μs
Dead band	3 μs
Refresh frequency	50–333 Hz
Dimensions	40 × 20 × 38 mm
Weight	65 g ± 1 g
Wire gauge and insulation	22 AWG PVC

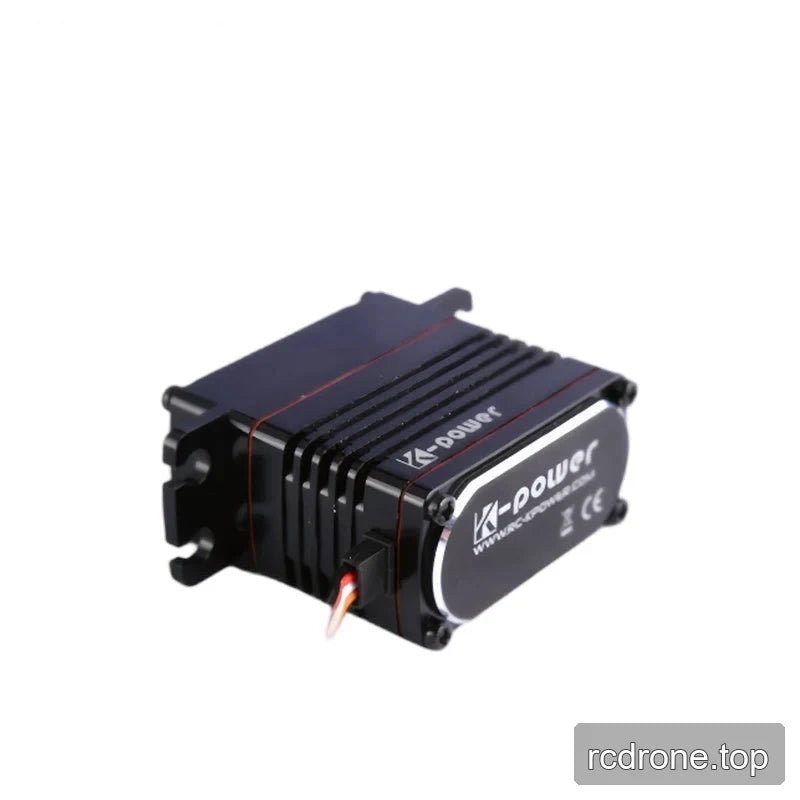

Wire length	300 mm
Operating temperature	−10 to +50 °C
Ingress protection rating	IP42

Voltage-Dependent Performance

Parameter	At 6.0 V	At 7.4 V
No-load speed	0.06 ± 0.01 s/60°	0.05 ± 0.01 s/60°
No-load current	350 ± 30 mA	400 ± 30 mA
Stall current	1600 ± 40 mA	1900 ± 50 mA

An additional stall-current specification is 1950 mA, without a stated supply voltage or test condition.

Customization Requirements

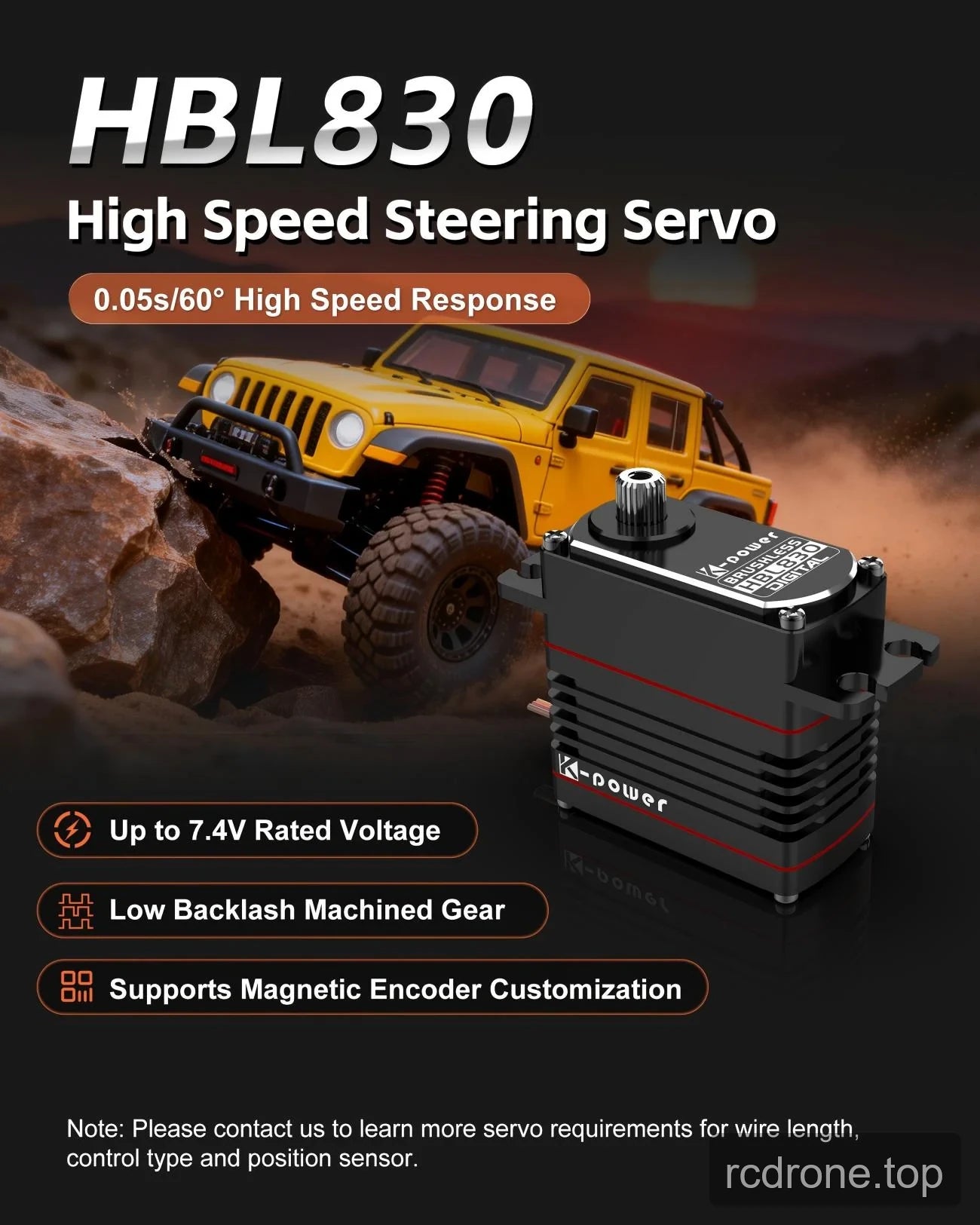

Discuss required wire length, control type and position sensor with the supplier. Magnetic encoder customization is supported; the specified standard position sensor is a potentiometer.

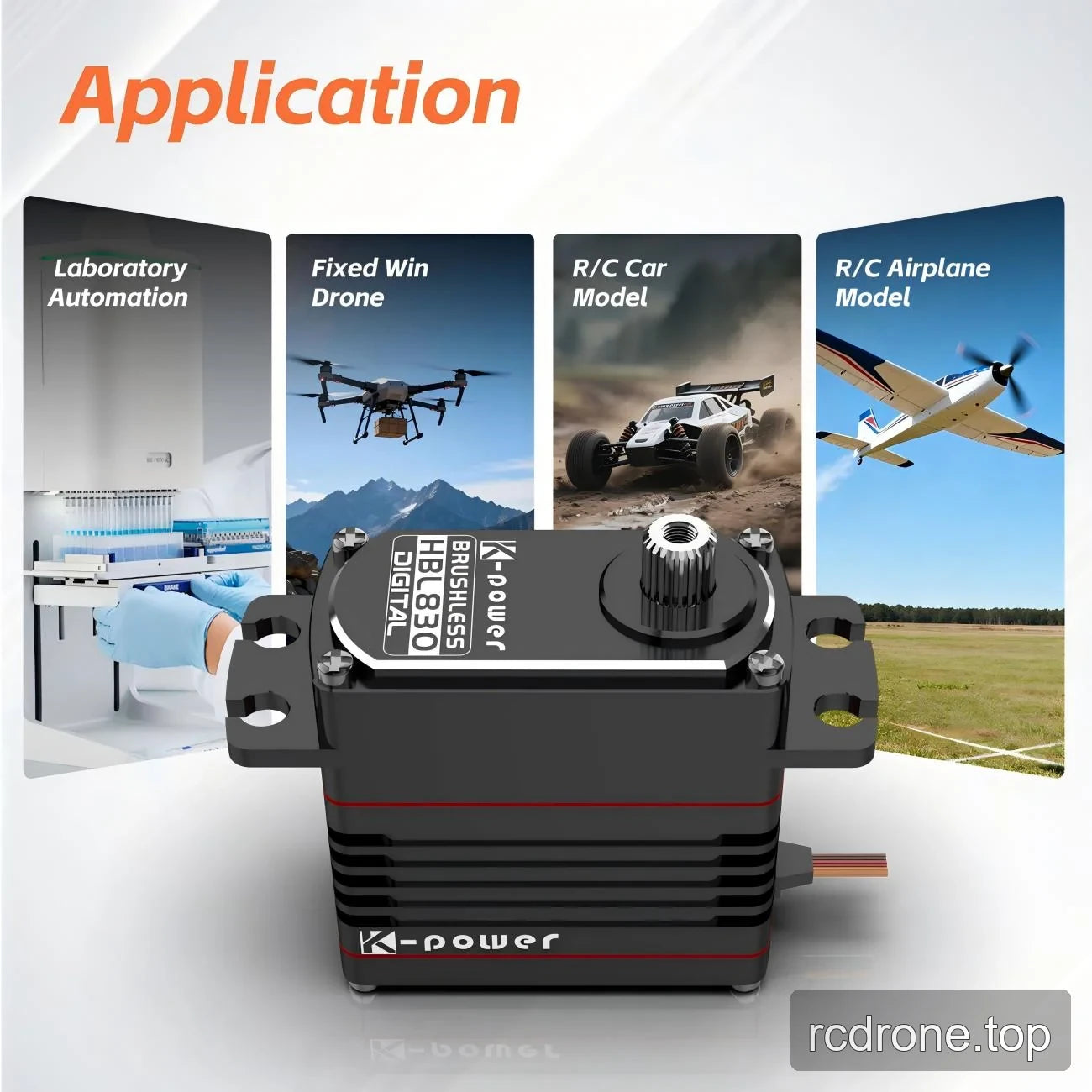

Applications

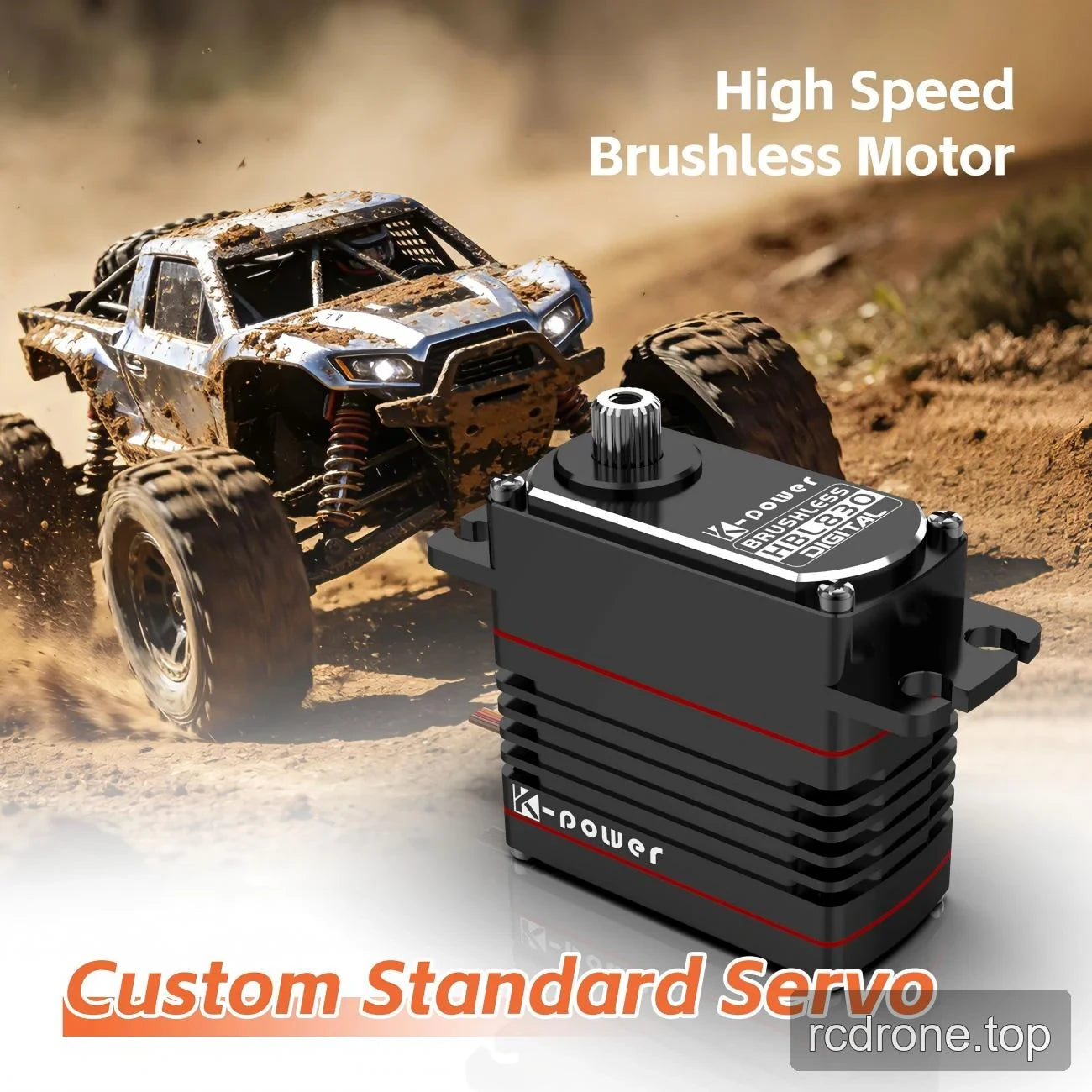

RC car and off-road vehicle steering: The 0.05 ± 0.01 s/60° no-load speed at 7.4 V supports quick steering-linkage movement, while the 25T output provides a defined horn connection.
RC airplane control linkages: Use the digital brushless servo to actuate model-aircraft control mechanisms, with multiple horn shapes available for different linkage arrangements.
Laboratory automation: Drive small positioning linkages using potentiometer feedback and low-backlash machined gears.
Drone mechanism actuation: Operate servo-driven linkages where the specified mechanical dimensions, spline and control requirements suit the mechanism.

What's Included

Kpower HBL830 servo.
Four servo horns: one round disc, one two-arm horn, one four-arm horn and one six-arm horn.
Four black mounting grommets.
Four brass-colored mounting eyelets.
Four silver-colored mounting screws.
One black machine screw.
