Overview

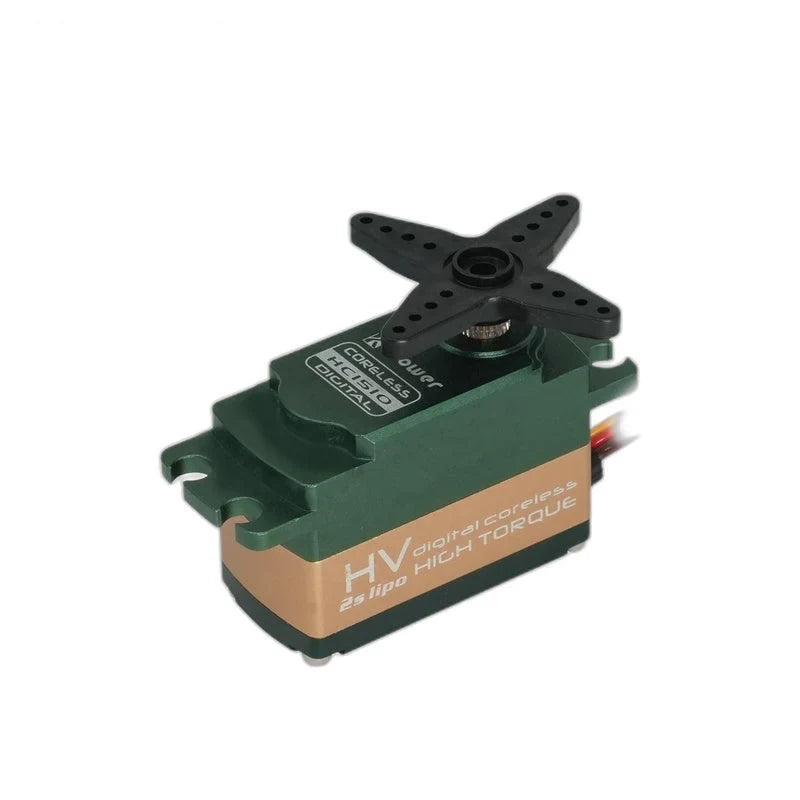

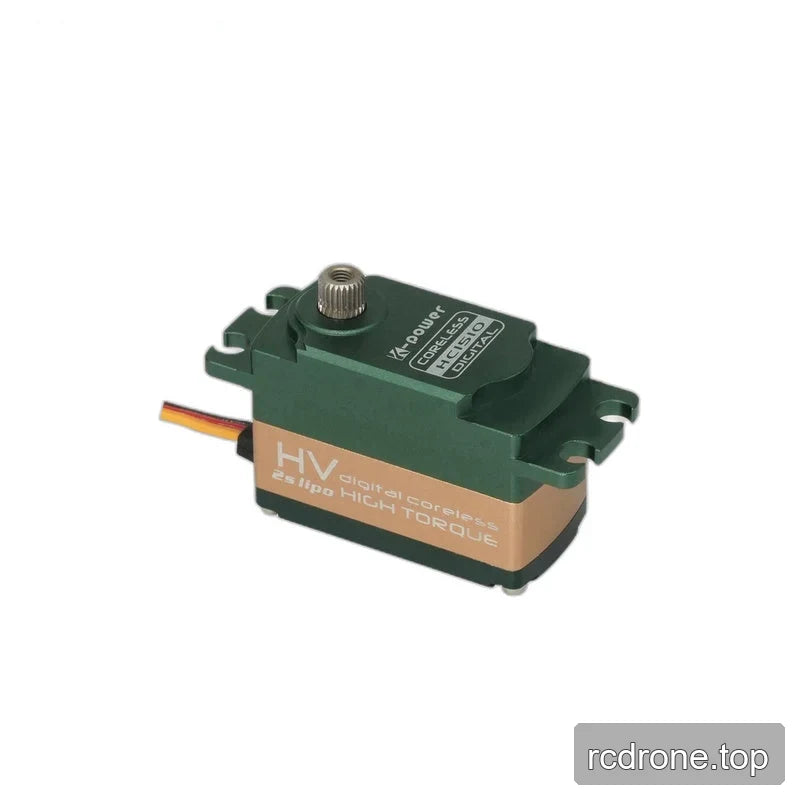

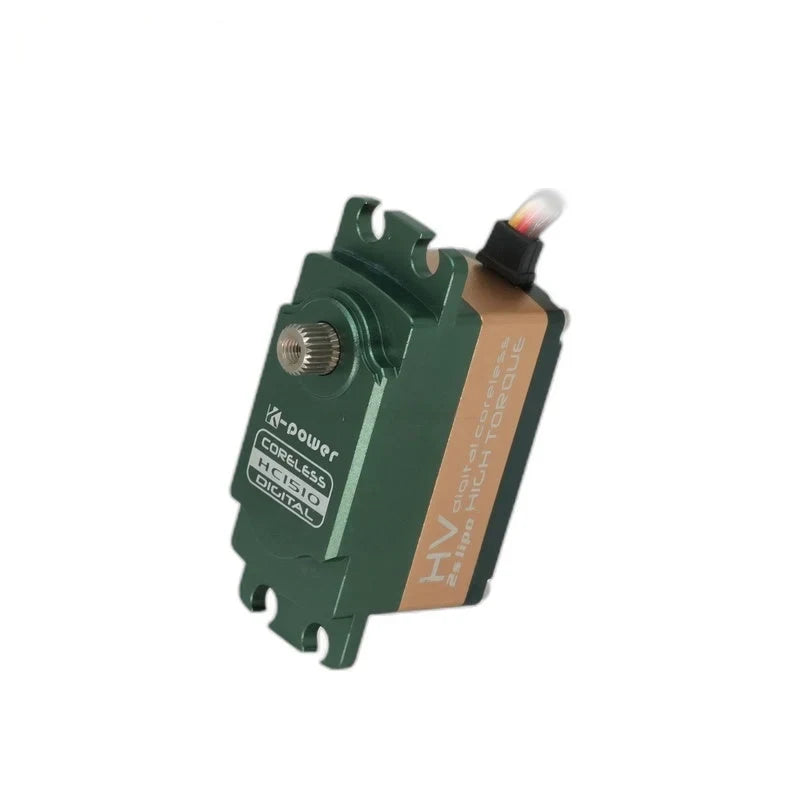

The Kpower HC1510 is a low-profile coreless digital servo for RC car steering, robot joints and compact instrument mechanisms. Its metal gears and aluminum-alloy case combine with a 40.6 × 20 × 28.4 mm body and 60 g weight for space-conscious installations. Operating voltage is 4.8–8.4 V, with specified movement speeds of 0.12 s/60° at 6.0 V and 0.11 s/60° at 7.4 V.
Features
- Coreless motor with digital servo control.

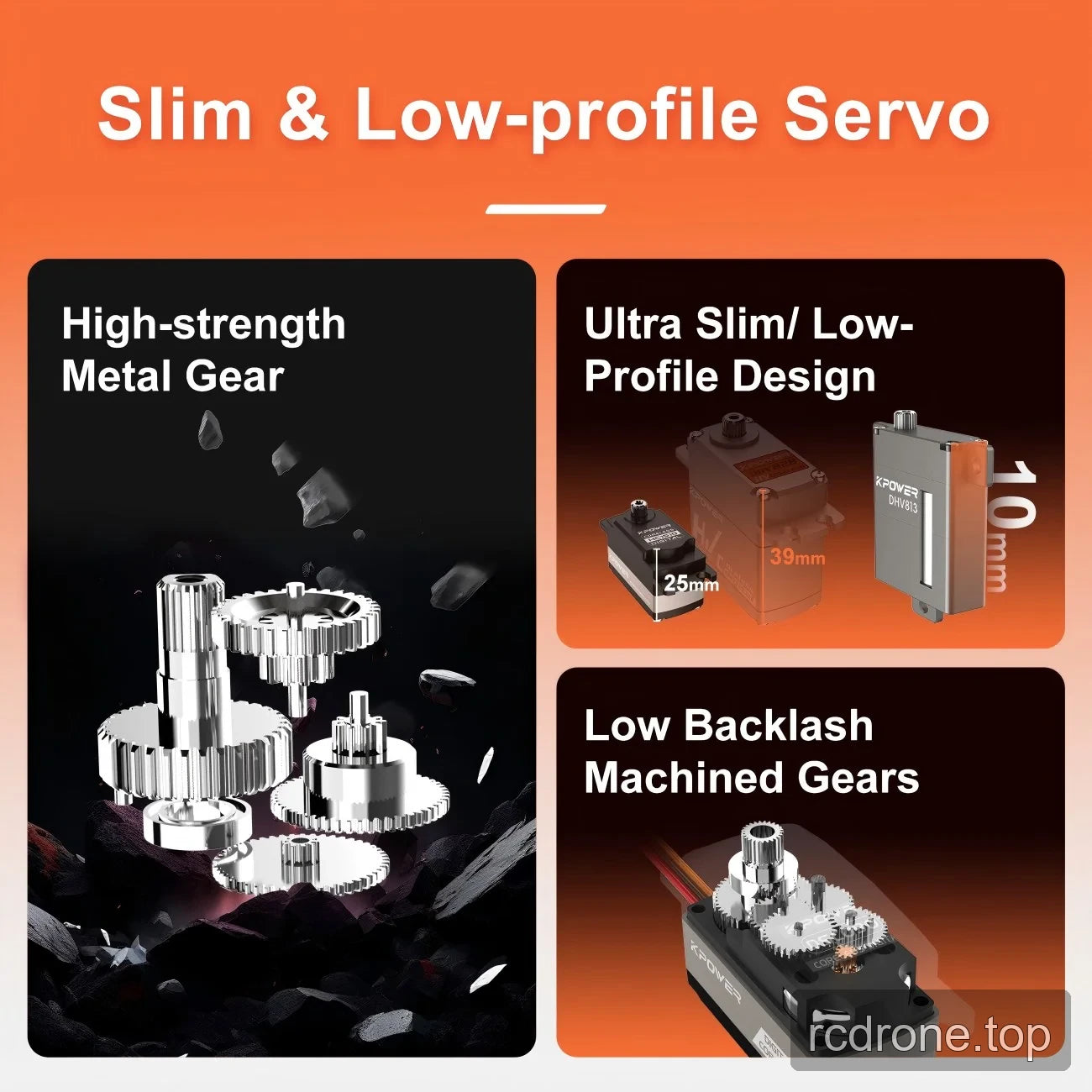

- Low-profile aluminum-alloy case and metal gears.
- Potentiometer position sensing with a 3 µs dead band.
- 25T, Ø6 mm horn spline and two ball bearings.
- 120° travel angle, with customization indicated.

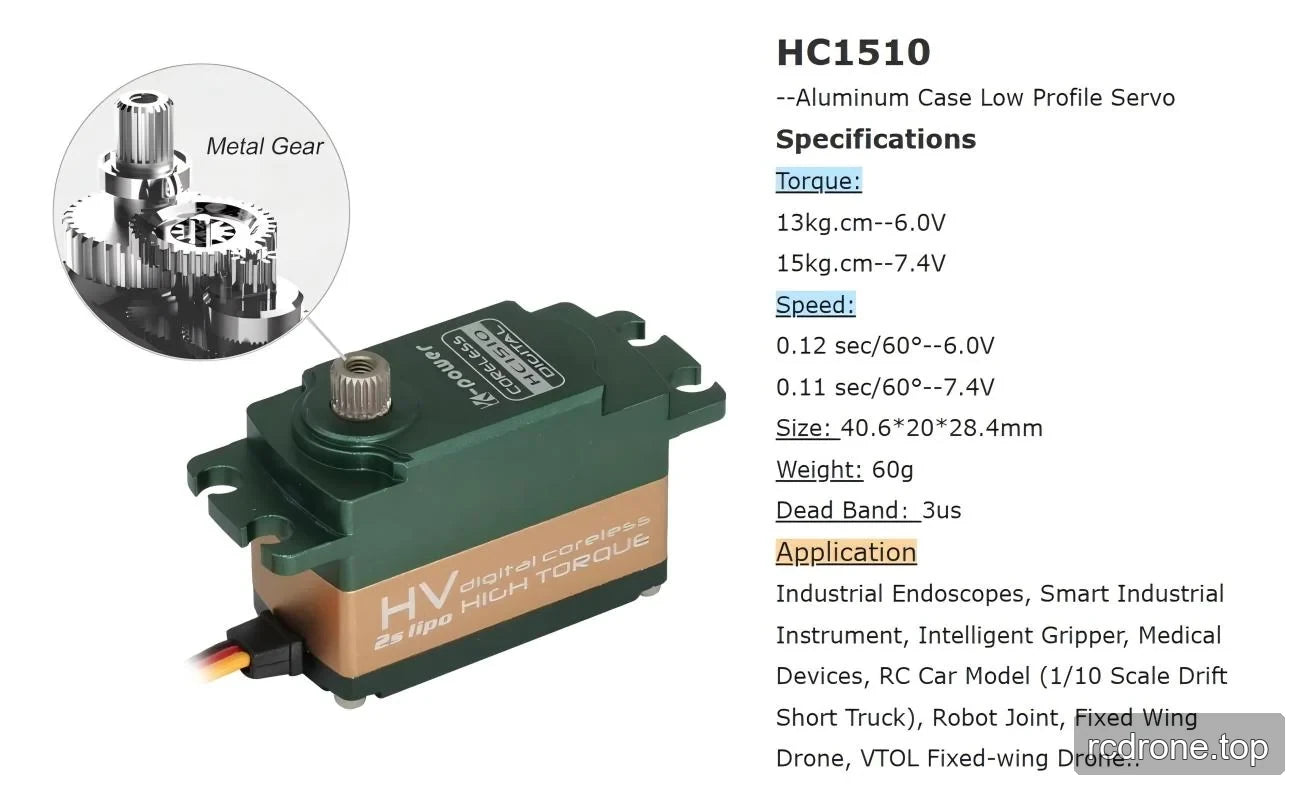

Specifications
| Parameter | HC1510 specification |
|---|---|
| Motor | Coreless motor |
| Servo type | Digital, low-profile |
| Operating voltage | 4.8–8.4 V |
| No-load speed | 0.11 s/60° |
| Speed at 6.0 V | 0.12 s/60° |
| Speed at 7.4 V | 0.11 s/60° |
| Weight | 60 g |
| Dimensions | 40.6 × 20 × 28.4 mm |
| Travel angle range | 120°; customizable |
| Horn gear spline | 25T, Ø6 mm |
| Gear material | Metal |
| Protocols listed | PWM, TTL, RS-485 |
| No-load current | 5000 mA |
| Position sensor | Potentiometer |
| Dead band | 3 µs |
| Case material | Aluminum alloy |
| Ball bearings | 2BB |

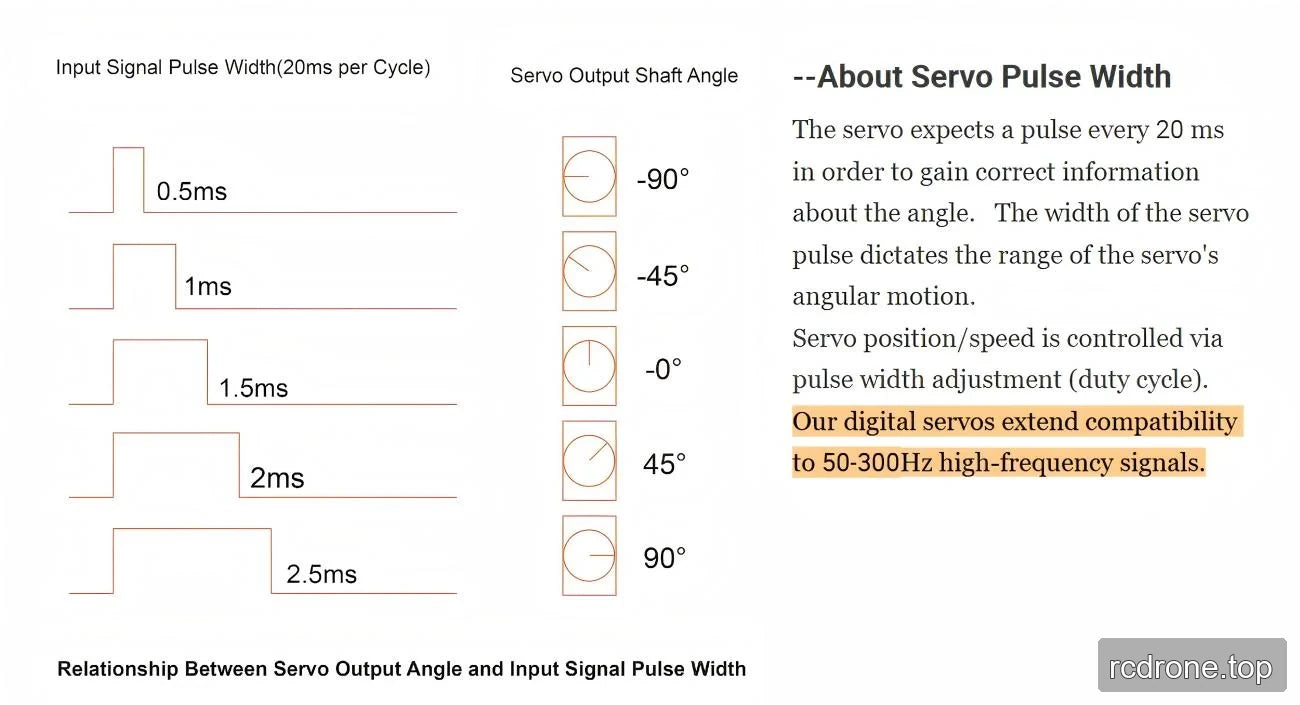

| Working frequency | 50–333 Hz |
| Operating temperature | −10 to 50 °C |
| IP rating | IP42 |
Voltage-Specific Torque
| Parameter | Operating voltage | Value |
|---|---|---|
| Torque | 6.0 V | 13 kg·cm |
| Torque | 7.4 V | 15 kg·cm |
Applications
- RC car steering: Low-profile installation in RC car models, including the listed “1/10 Scale Drift Short Truck” application, where compact dimensions help with packaging.
- Robot joints and intelligent grippers: Position-controlled movement using potentiometer feedback, with a 120° travel range for limited-angle mechanisms.
- Industrial endoscopes and smart industrial instruments: Compact mechanism actuation where the 40.6 × 20 × 28.4 mm body helps fit a servo into constrained assemblies.
- Medical-device mechanisms: Compact actuation in device assemblies that call for a low-profile servo.
- Fixed-wing and VTOL fixed-wing drones: Control-linkage actuation using a 60 g servo with voltage-specific movement speeds for mechanism selection.
Documents
- Kpower HC1510 Drawing — Drawing (PDF)
- Kpower Servo 3 — Manual (PDF)
- OCServo OCS 351CAN Drawing — Ocservo Ocs 351 Can Drawing (PDF)
Product Videos
Visual Details
Product Video
Features and Design
Specifications and Performance

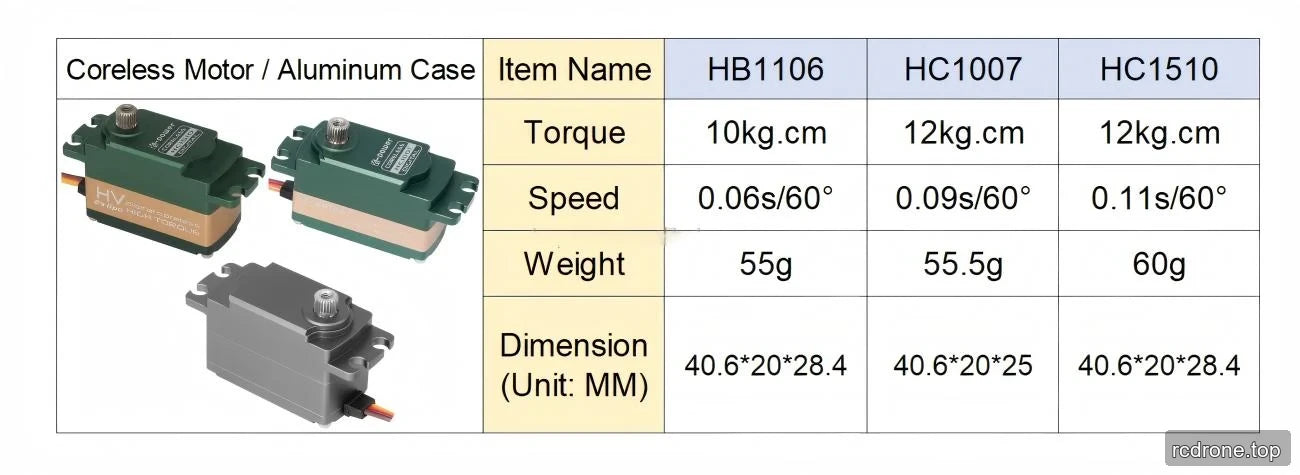

Options and Model Comparison
