Overview

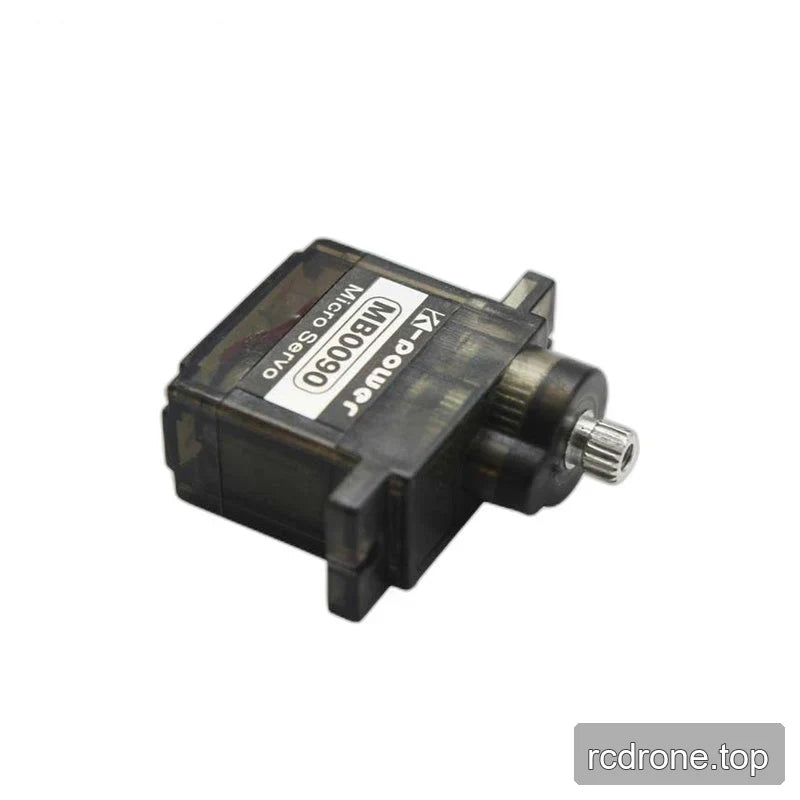

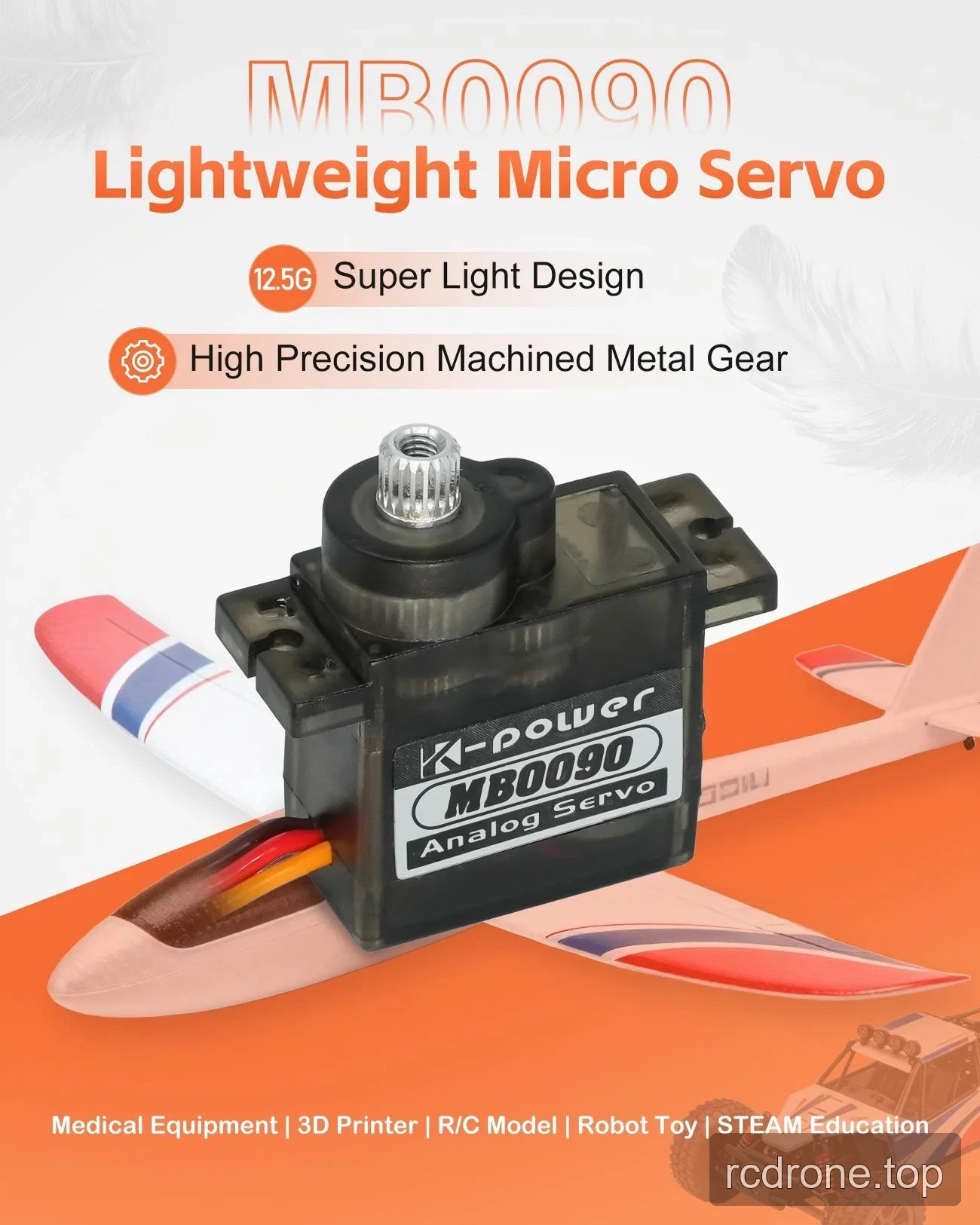

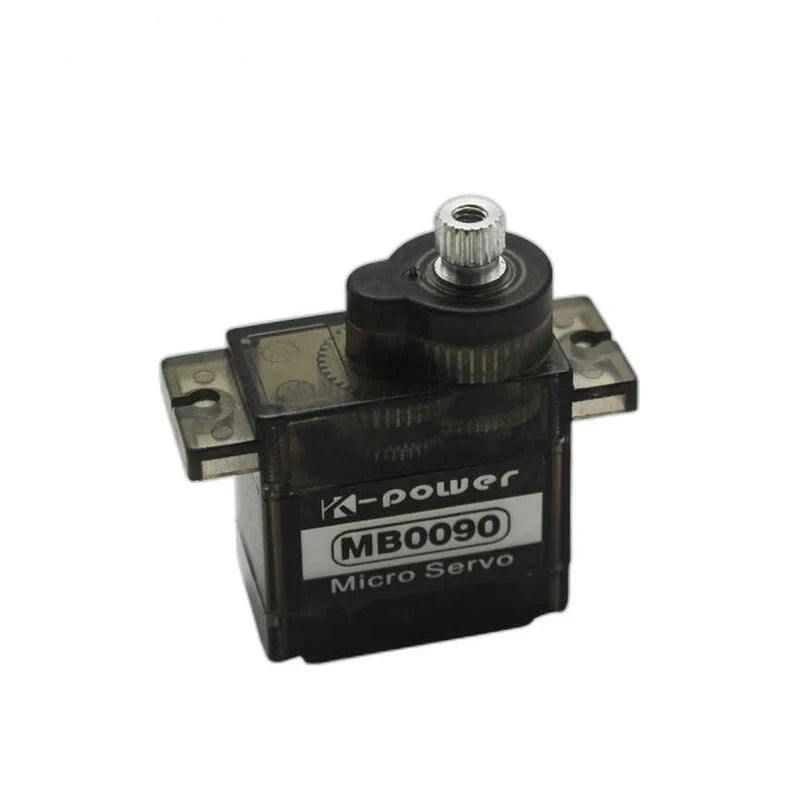

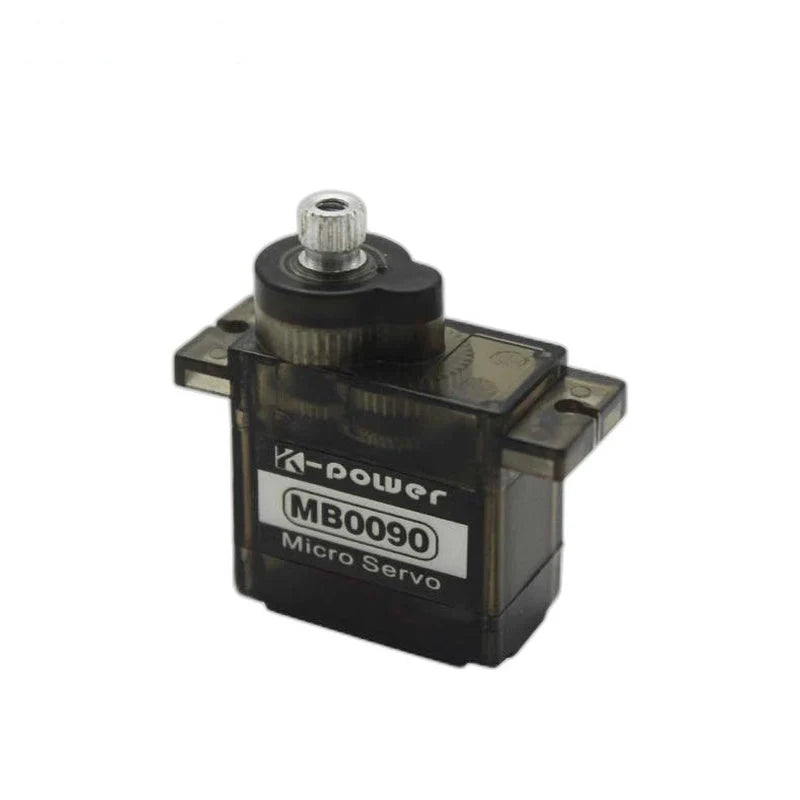

The Kpower MB0090 is an analog micro servo motor for RC models, fixed-wing model aircraft, robot toys and educational mechanisms. Standard PWM control supports positioning tasks, while its precision-machined metal gear train and plastic housing combine geared actuation with a weight of 12.5 g ± 1 g. A 25T, 4.8 mm output spline provides the mechanical connection for suitable servo horns and linkages.

Features

Analog servo with standard PWM control.

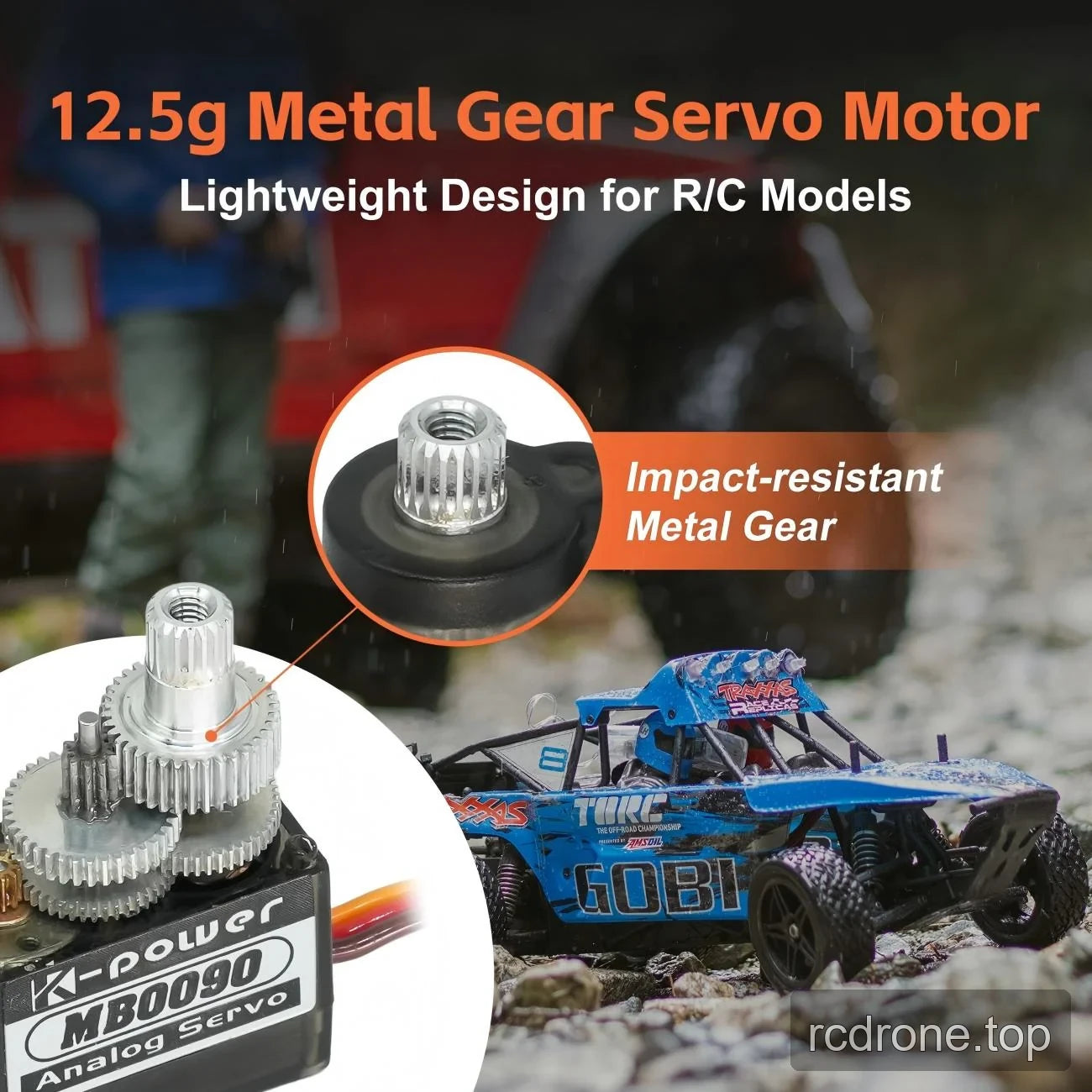

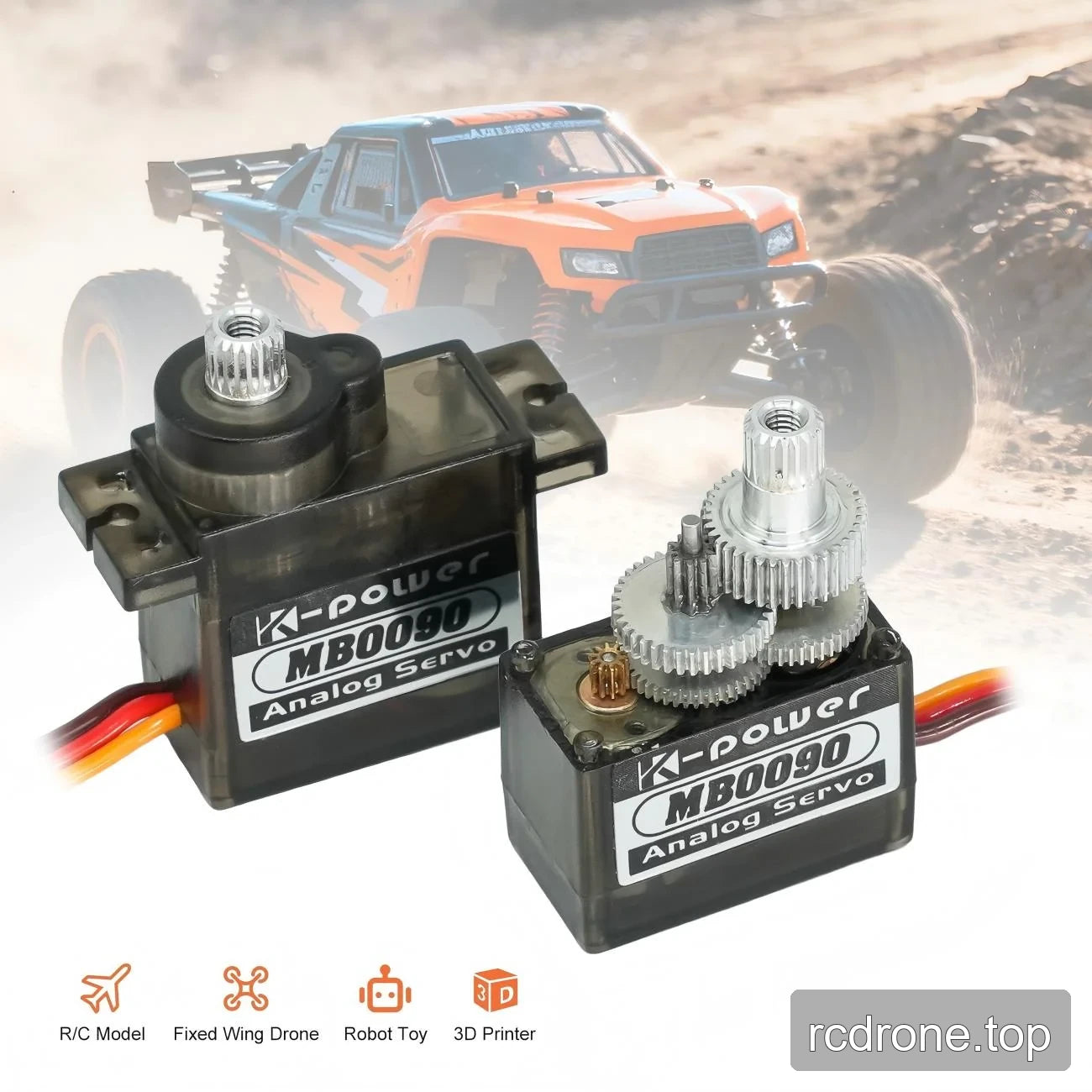

Precision-machined, multi-stage metal gear train with impact-resistant gearing.
Plastic housing and lightweight micro-servo construction.
Brushed DC motor and potentiometer position sensor.
One ball bearing supporting the output assembly.

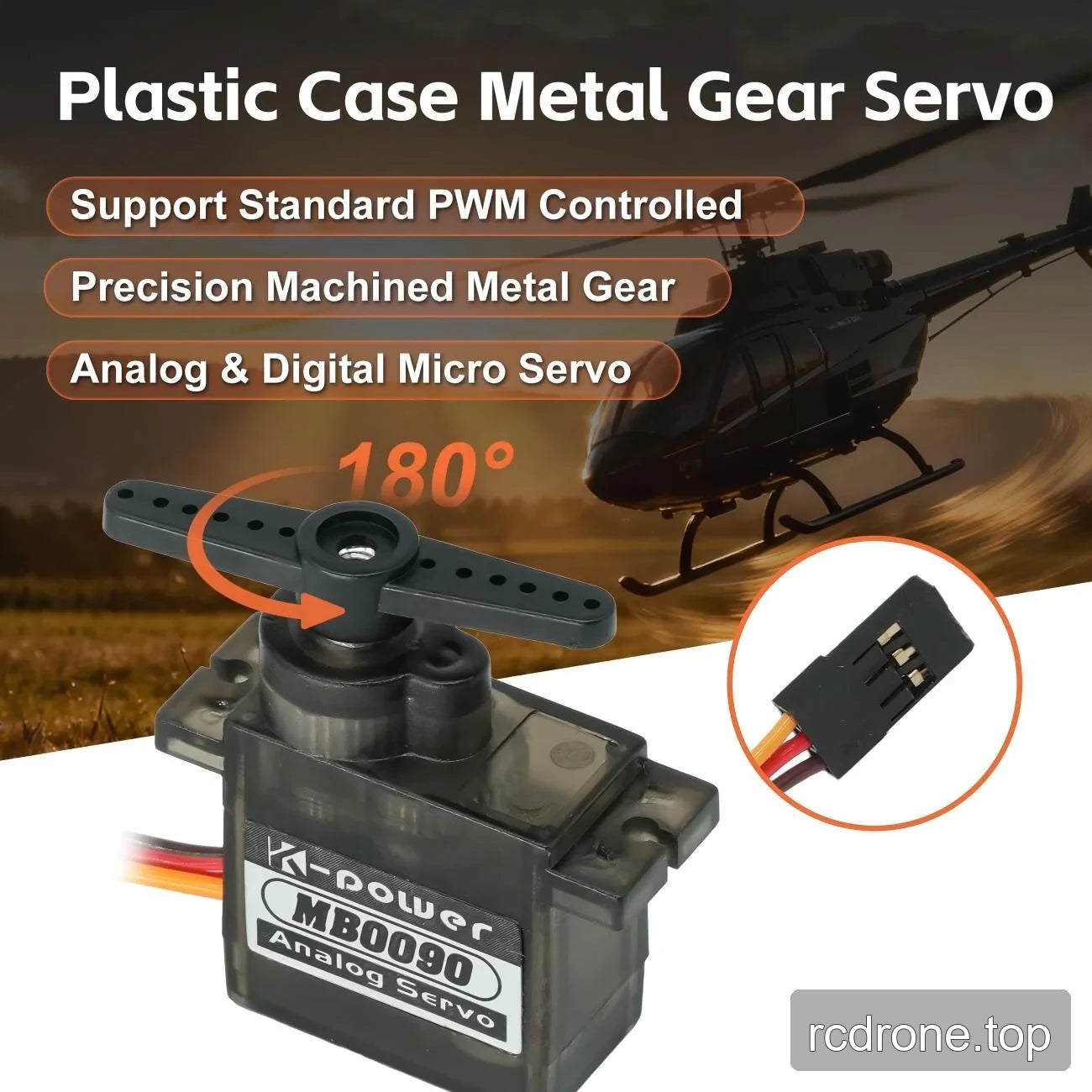

Three-contact lead connector with orange, red and brown wires.

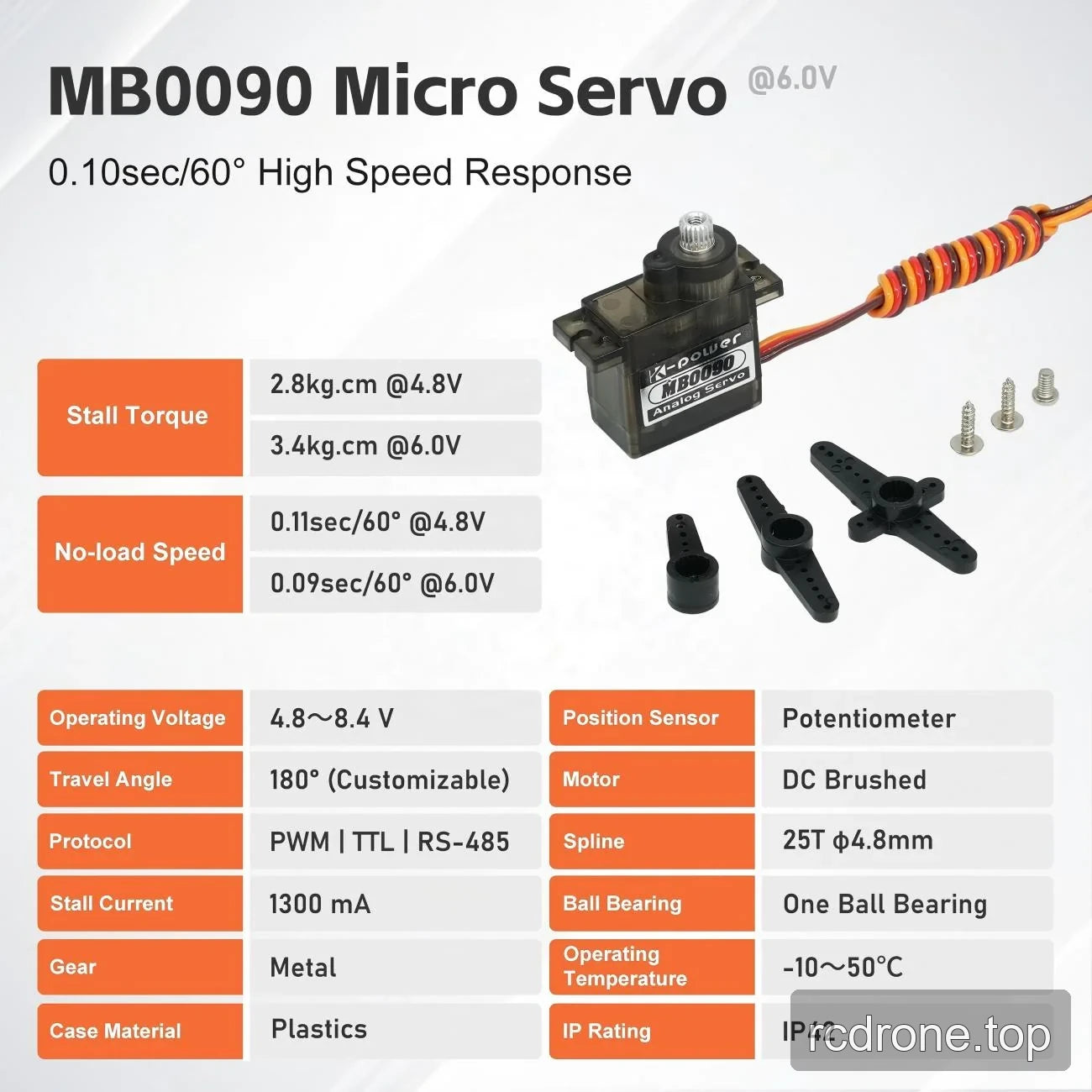

Specifications

Parameter	Value
Brand / model	Kpower MB0090
Servo type	Analog micro servo
Control interface	Standard PWM
Gear material	Aluminum alloy; metal gear train
Case material	Plastic
Motor type	Brushed DC; core motor
Position sensor	Potentiometer
Signal range	900–2100 μs
Dead band	6 μs
Refresh frequency	50–333 Hz
Operating temperature	−10 to +50 °C
Weight	12.5 g ± 1 g
Wire specification	30 AWG PVC
Connector	Three contacts; orange, red and brown wires
Output spline	25T, 4.8 mm diameter
Ball bearings	1
Listed ingress-protection rating	IP42

Voltage-Dependent Electrical Data

Parameter	At 4.8 V	At 6.0 V
No-load current	200 ± 30 mA	300 ± 30 mA

No-load speed at 4.8 V: 0.11 ± 0.01 s/60°.

Applications

RC models and fixed-wing model aircraft: Position control linkages using standard PWM commands and a lightweight servo mechanism.
Robot toys and STEAM education: Build moving joints and demonstrate servo positioning with potentiometer feedback and geared output.
3D-printer mechanisms: Actuate auxiliary positioning linkages using PWM control and a horn matched to the 25T, 4.8 mm output spline.
Medical-equipment mechanism development: Provide geared positioning for prototype mechanisms using analog PWM control.

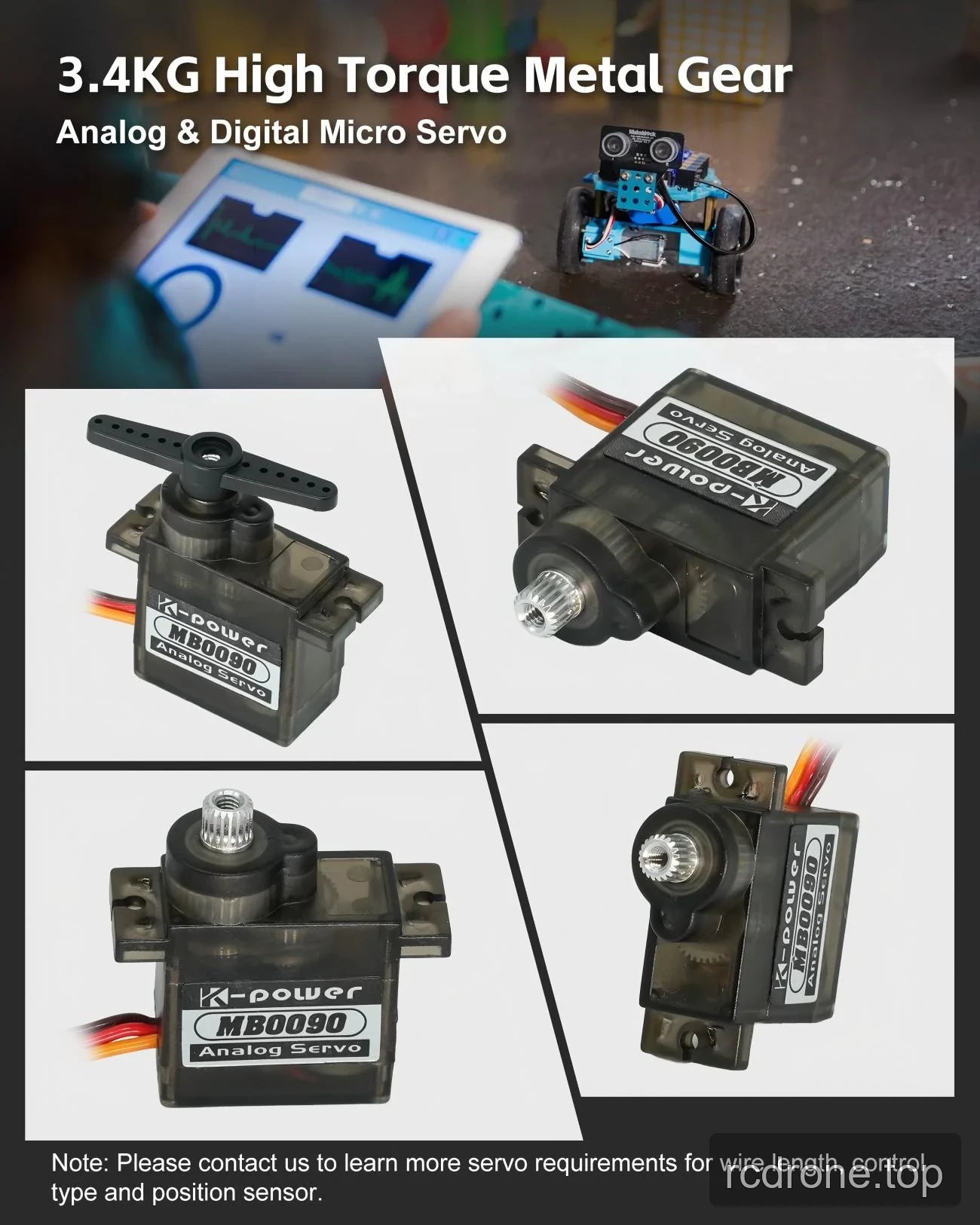

Installation and Selection

Confirm wire length, control-type requirements and position-sensor requirements with the supplier before integration. Match the servo horn to the 25T, 4.8 mm output spline.
