Overview

The Kpower P0080 is an 8 g PWM micro servo for small RC models, educational robot kits and compact positioning mechanisms. Its coreless motor, POM gears and potentiometer feedback are housed in a plastic case measuring 23 × 12 × 23.6 mm. Operating from 4.8–8.4 V, it provides voltage-dependent torque and speed specifications for selecting an actuator for lightweight steering, control linkages and robotic movement.

Features

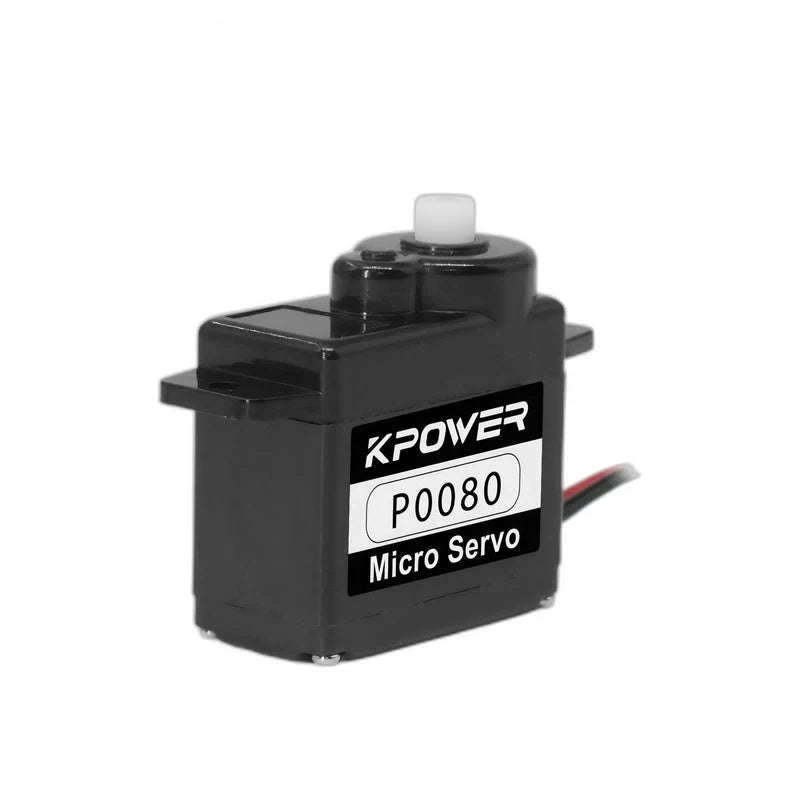

Compact, lightweight construction with an 8 g weight and plastic housing.

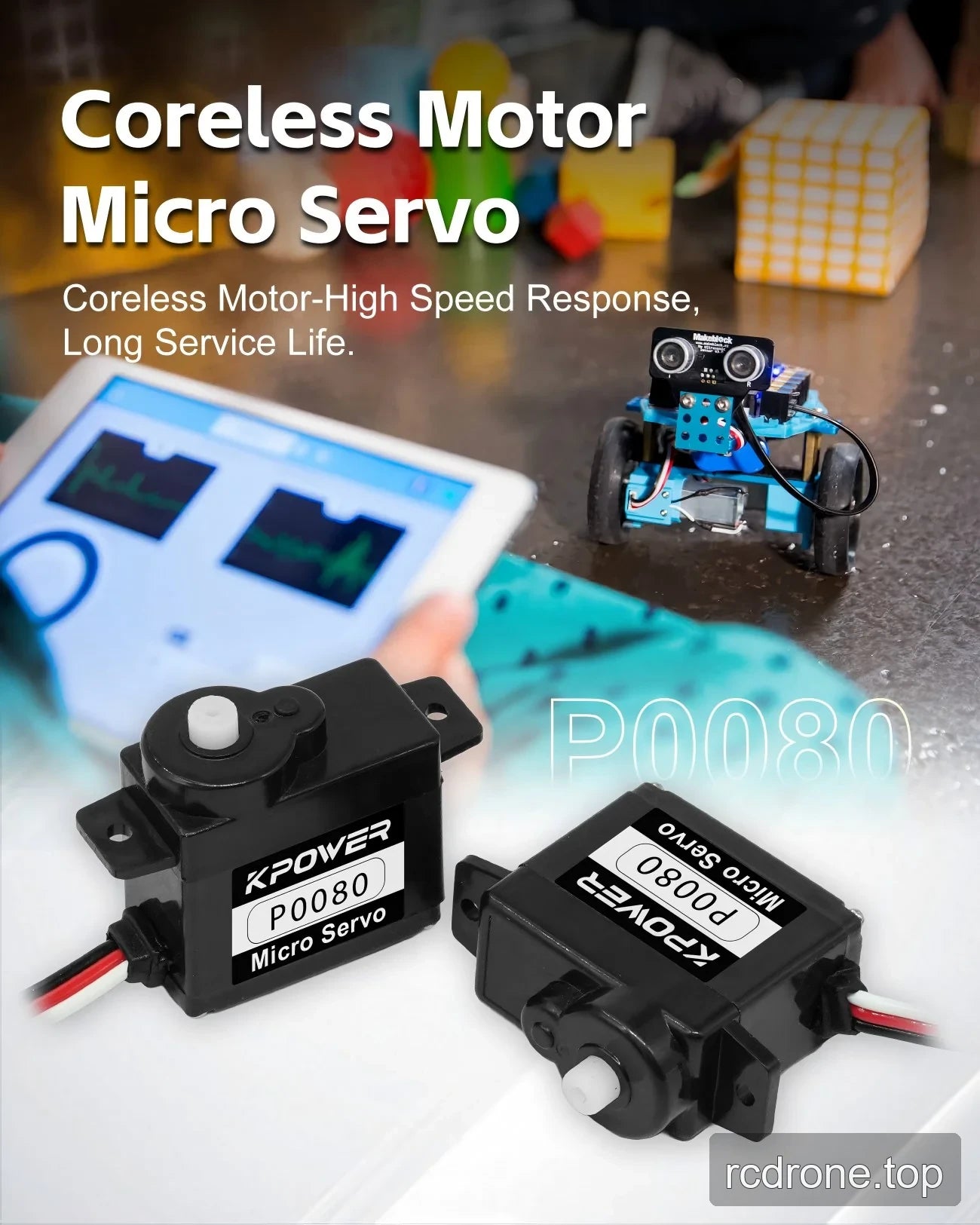

Coreless motor with potentiometer position feedback.
POM plastic gears described as low noise, with dual ball bearings.
Standard PWM control with a three-position connector and black, red and white three-wire lead.

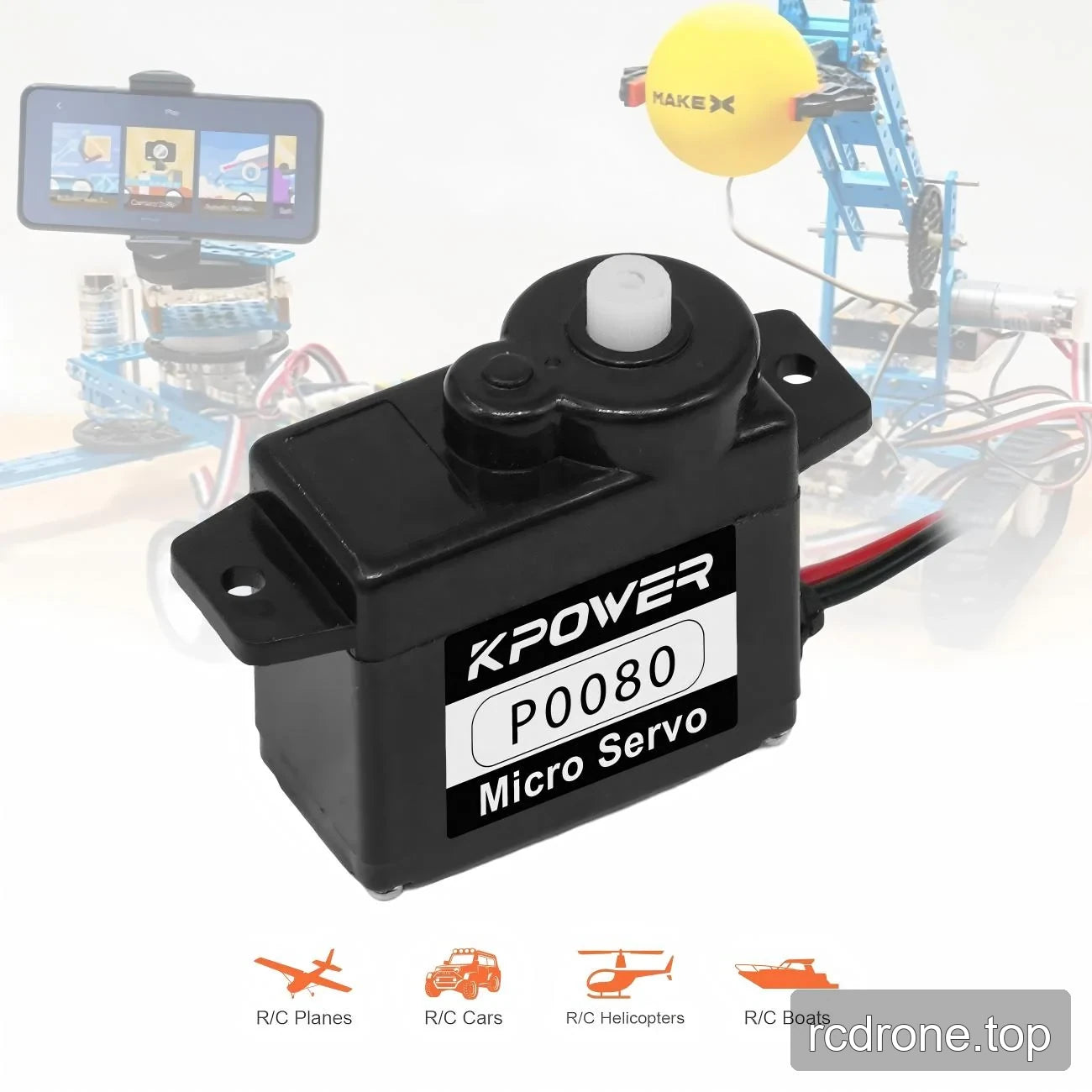

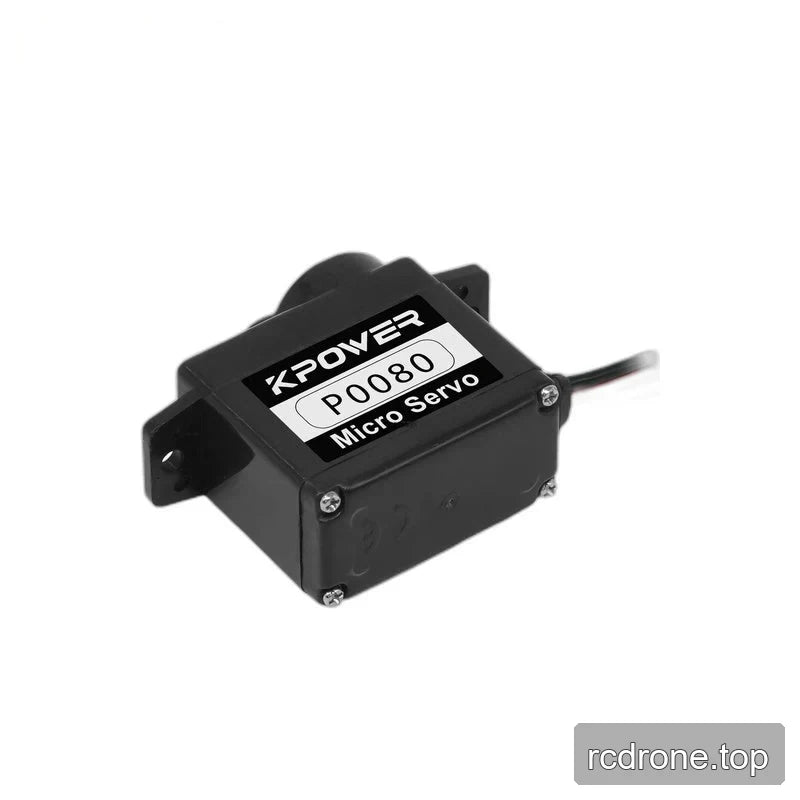

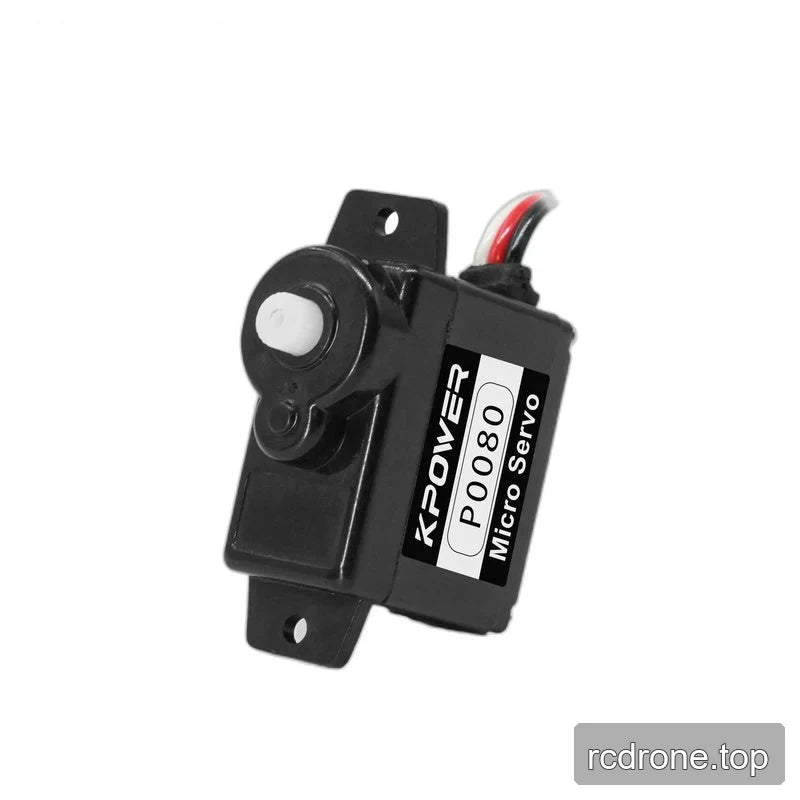

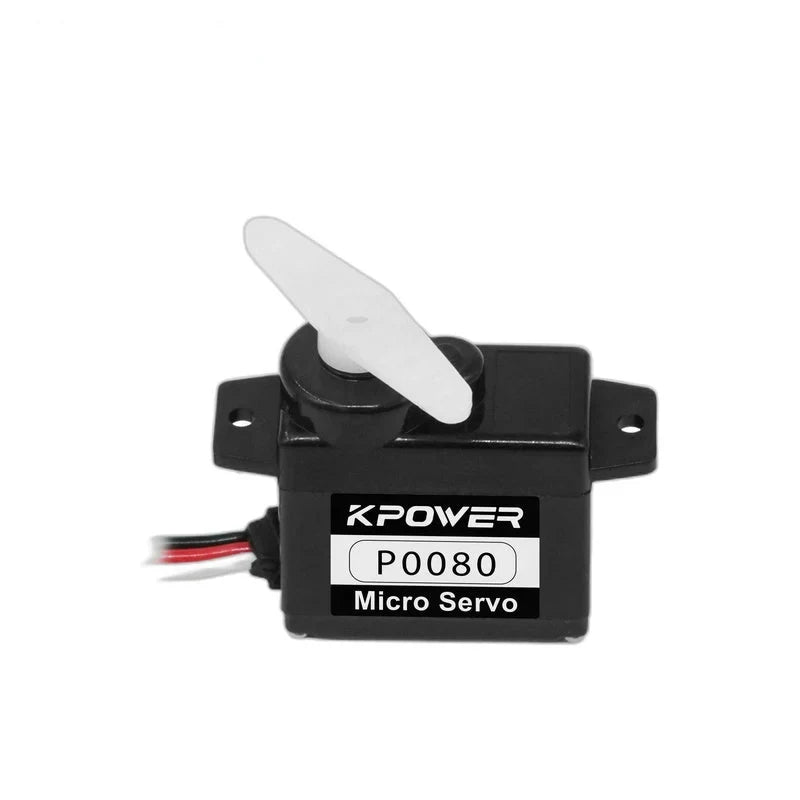

Mounting tabs with holes at both ends of the housing.

Specifications

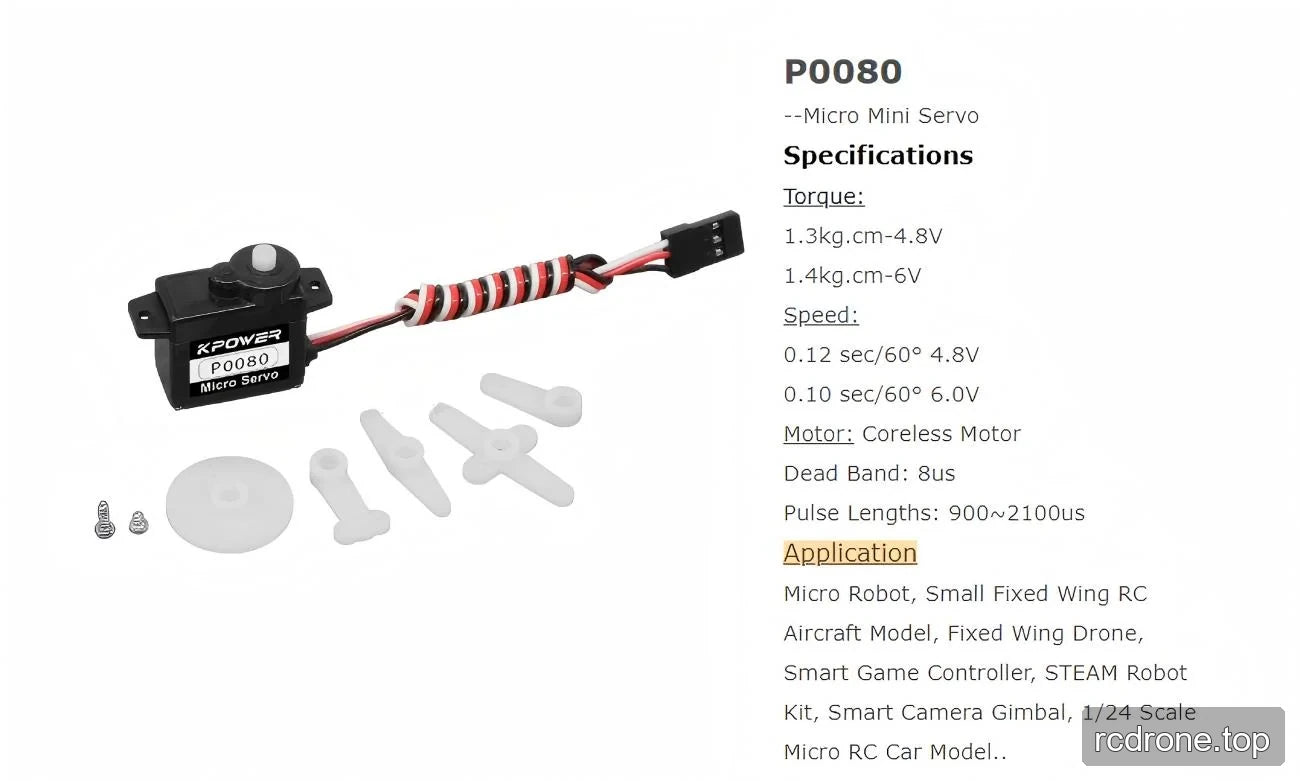

Torque and Speed by Supply Voltage

Parameter	At 4.8 V	At 6.0 V
Stall torque	1.3 kg·cm	1.4 kg·cm
No-load speed	0.12 s/60°	0.10 s/60°

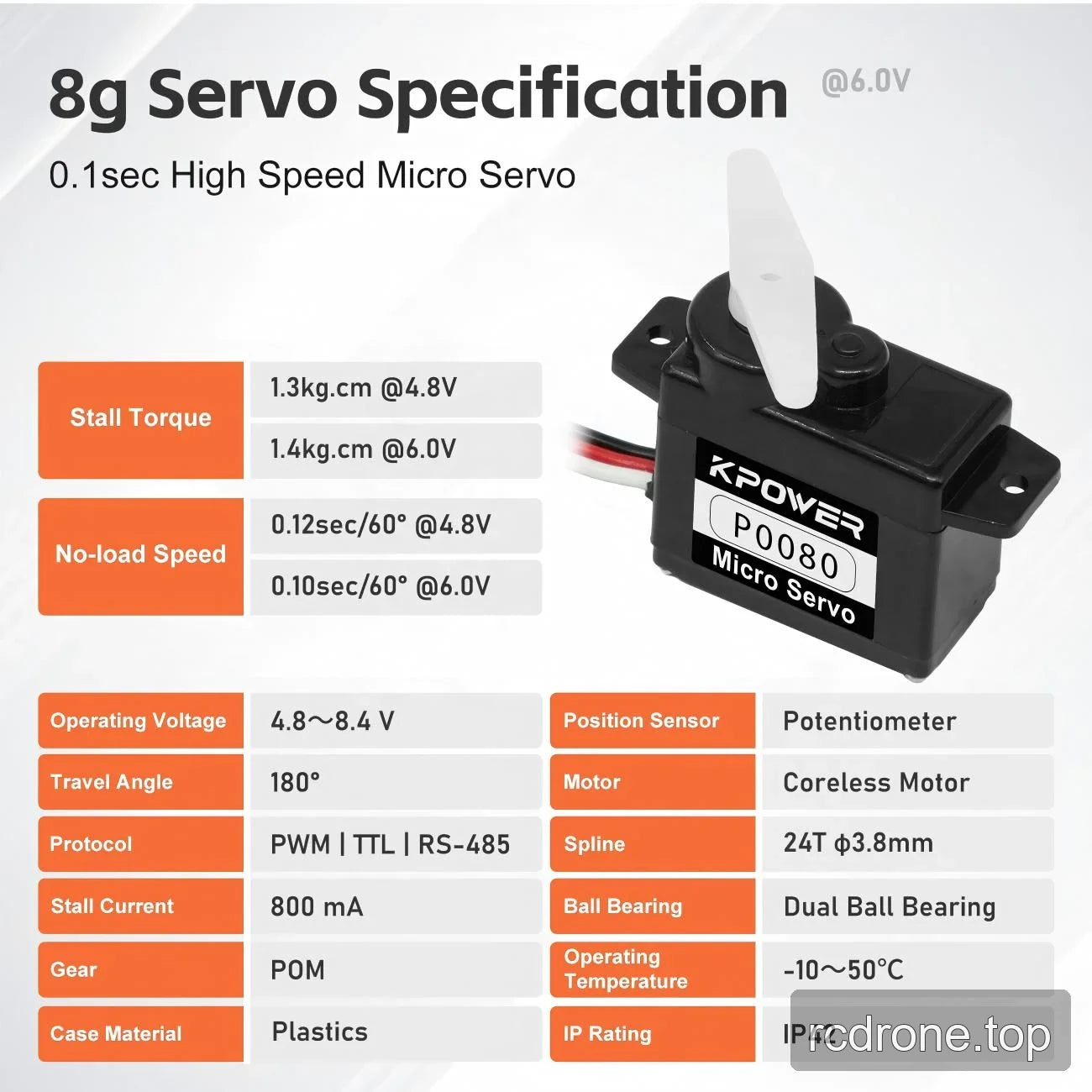

Electrical, Mechanical and Environmental Specifications

Parameter	Value
Brand / model	Kpower P0080
Product type	Micro servo
Operating voltage	4.8–8.4 V
Weight	8 g
Dimensions	23 × 12 × 23.6 mm (0.91 × 0.47 × 0.93 in)
Control protocol	PWM
Working frequency	50–333 Hz
Control pulse length	900–2100 µs
Dead band	8 µs
No-load current	800 mA
Stall current	800 mA
Motor	Coreless motor
Position sensor	Potentiometer
Gear material	POM
Case material	Plastic
Ball bearings	2BB — dual ball bearings
Lead and connector	Black, red and white three-wire lead with a black three-position connector
Mounting	Housing tabs with mounting holes at both ends
Operating temperature	−10 to 50 °C
IP rating	IP42

Applications

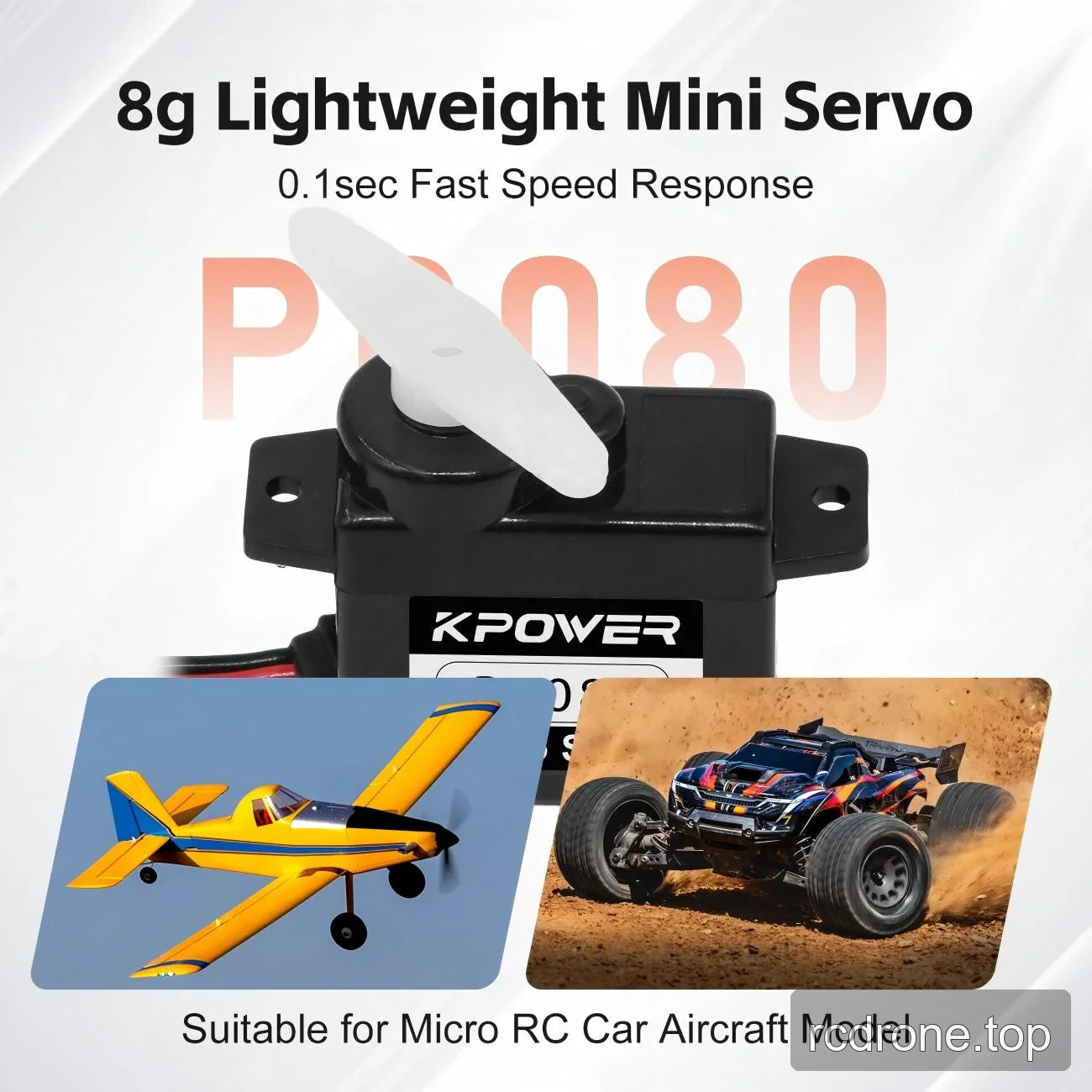

Micro RC cars: Actuate steering linkages in compact models, including 1/24-scale cars, using the small housing and 8 g construction.
RC aircraft: Move control linkages in small fixed-wing airplanes, fixed-wing drones and helicopters where a lightweight PWM servo is required.
RC boats: Operate compact steering or control linkages through PWM commands.

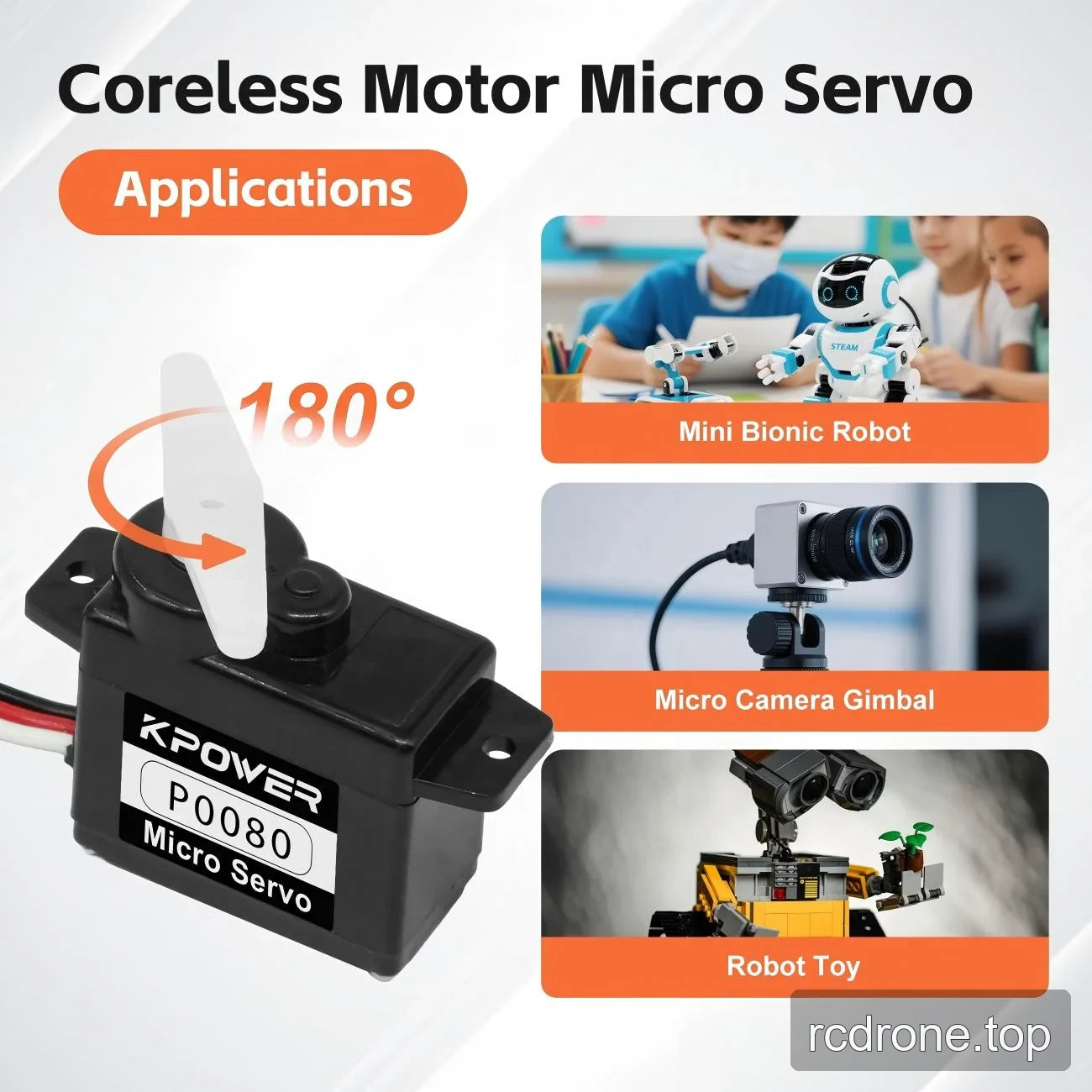

Educational robotics: Add controlled movement to Arduino robot kits, STEAM kits, small wheeled robots, micro robots, mini bionic robots and robot toys using potentiometer position feedback.
Camera positioning: Actuate lightweight positioning mechanisms in micro and smart camera gimbals with the compact coreless-motor design.
Smart game controllers: Add PWM-controlled mechanical movement to compact interactive mechanisms.

Integration Requirements

Use a supply within the 4.8–8.4 V operating range and observe the specified PWM pulse and frequency ranges. Discuss any required wire length, control type or position-sensor requirements with the supplier before selecting a customized configuration.
