SkyRC FuriaX Hyper Agile 1/10 Sensored Brushless Drift Motor 10.5T 3880KV or 13.5T 3050KV
SkyRC FuriaX Hyper Agile 1/10 Sensored Brushless Drift Motor 10.5T 3880KV or 13.5T 3050KV
SkyRC
āĻĒāĻŋāĻāĻāĻĒā§āĻ° āĻāĻĒāĻ˛āĻā§āĻ¯āĻ¤āĻž āĻ˛ā§āĻĄ āĻāĻ°āĻž āĻ¯āĻžāĻ¯āĻŧāĻ¨āĻŋ
Overview

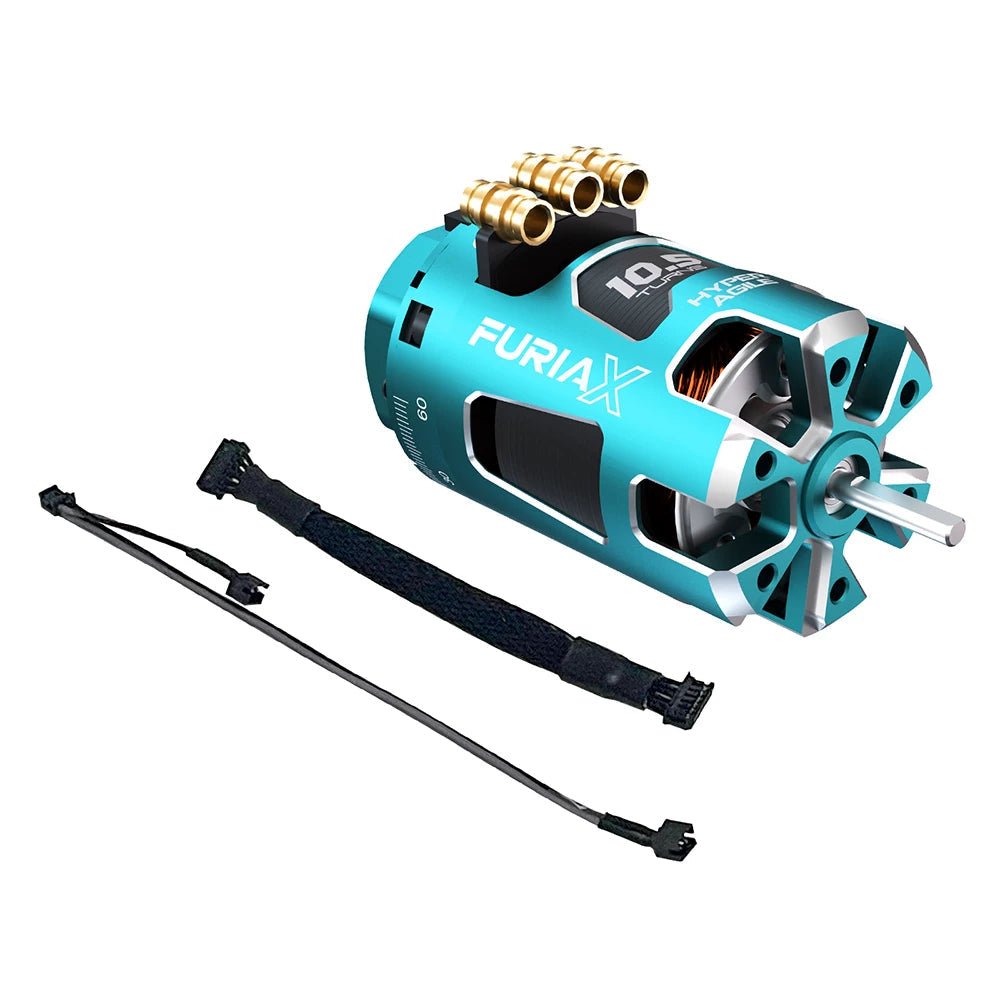

The SkyRC FuriaX Hyper Agile is a 1/10 sensored brushless drift motor designed for smooth, predictable control and consistent output during RC drifting. Two turn options are available to match different driving styles: 10.5T for higher punch and 13.5T for smoother, consistent power delivery.
Key Features
- 6-pin sensored system for precise rotor position detection, stable low-RPM control, and seamless throttle feel
- Bottom-mounted built-in cooling fan for continuous active cooling during long drift sessions
- Dual-orientation, gold-plated terminals for reliable low-resistance connection and cleaner wiring layouts
- Modular, fully rebuildable design for easier disassembly and service of housing, stator, windings, and bearings using standard RC tools
- Designed to fit 1/10 drift chassis with M3 screws, 25.2 mm mounting pattern, and 3.175 mm shaft
- Heat-resistant rotor rated to 200°C
For wiring, setup, or variant selection help, contact https://rcdrone.top/ or email [email protected].
Specifications
| Application | 1/10 sensored brushless motor for drifting |

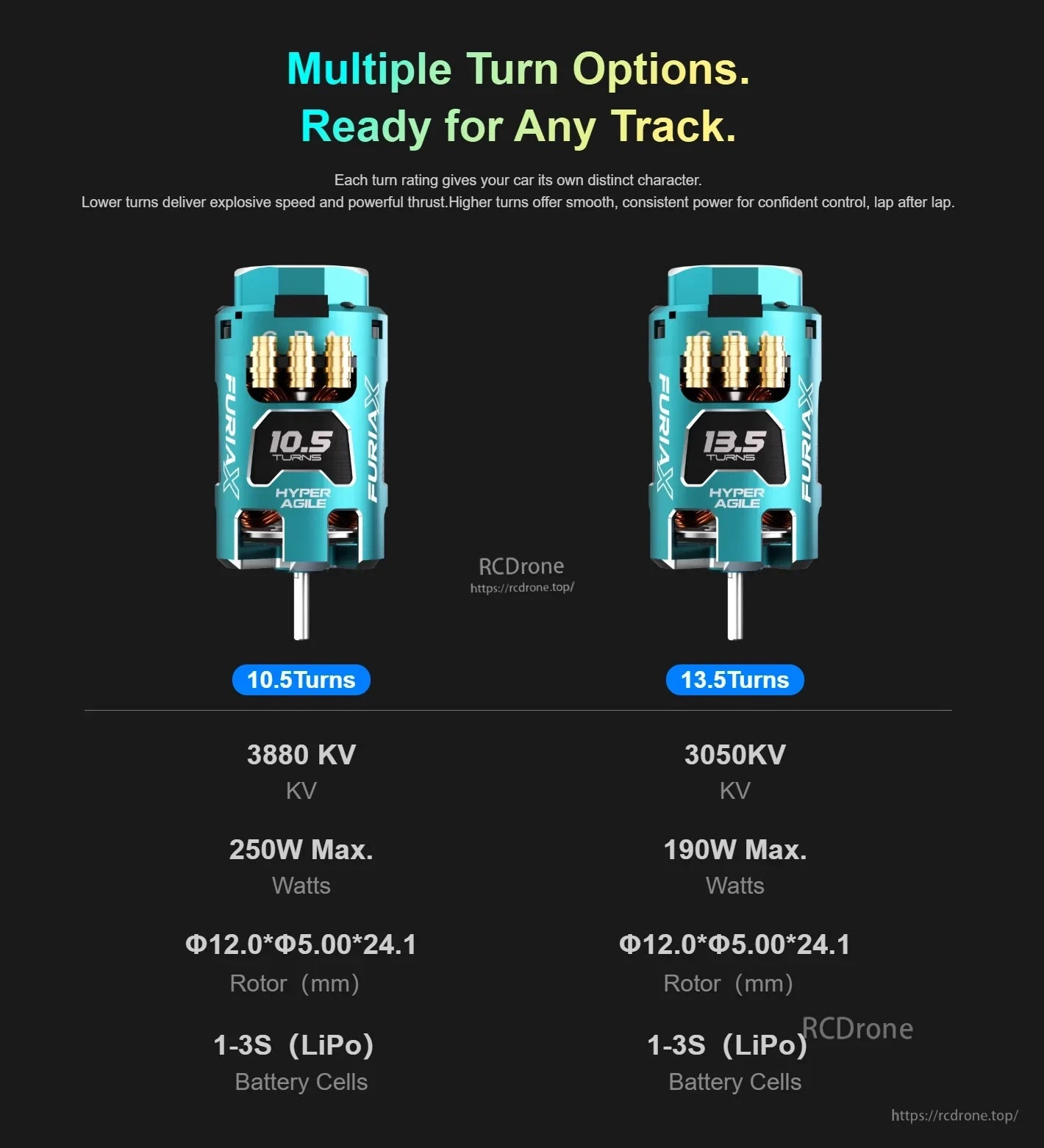

| Available turns | 10.5T / 13.5T |
| KV (10.5T) | 3880 KV |
| KV (13.5T) | 3050KV |
| Max power (10.5T) | 250W Max. |
| Max power (13.5T) | 190W Max. |
| Battery cells | 1-3S (LiPo) |
| Rotor | Phi12.0*Phi5.00*24.1 (mm) |

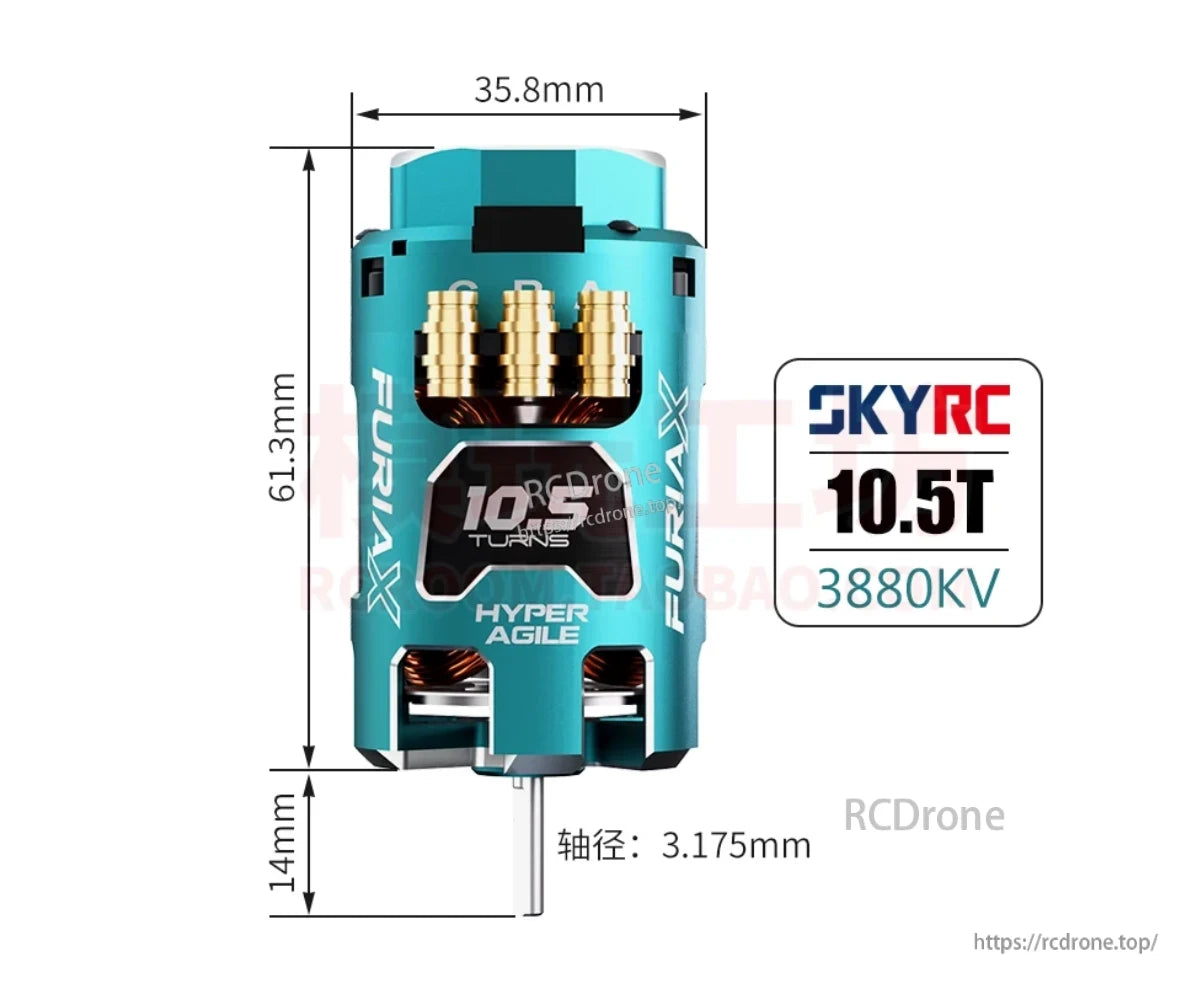

| Motor size | 35.8 x 61.3mm |
| Weight (10.5T) | 173g Âą 5g |
| Weight (13.5T) | 175g Âą 5g |
| Mounting | M3 screws, 25.2 mm mounting pattern |
| Shaft diameter | 3.175 mm |
| Cooling fan input voltage range | 3.5V~9V |
| Cooling fan RPM @ Voltage | 19,000-21,000 @ 6.0V; 22,000-24,000 @ 8.4V |
| Operating temperature | -10°C-80°C |
| Operating humidity | 20%-80% (non-condensing) |
| Storage temperature | 0°C-50°C |
| Storage humidity | 30%-60% (non-condensing) |
| Rotor heat resistance | 200°C |
Options

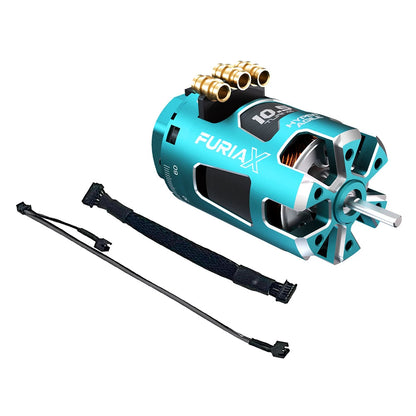

- 10.5Turns 3880 KV Motor

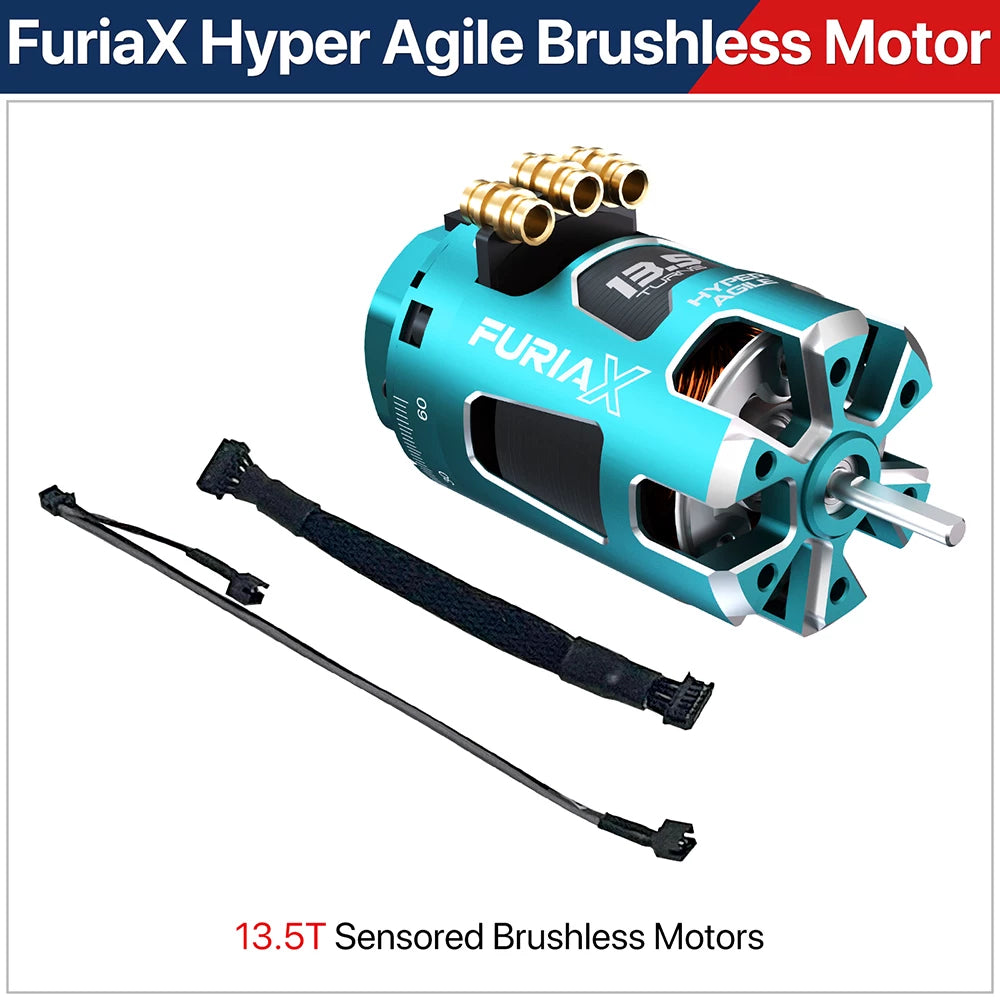

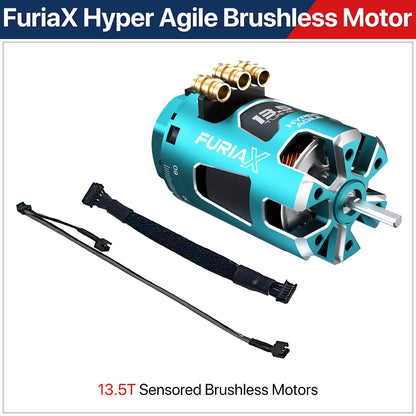

- 13.5Turns 3050KV Motor
- TS160 Pro V2 ESC
What's Included
- 1-to-2 fan Y-cable (fan adapter)
Applications
- 1/10 RC drift cars and drift chassis setups requiring a sensored brushless motor
Details

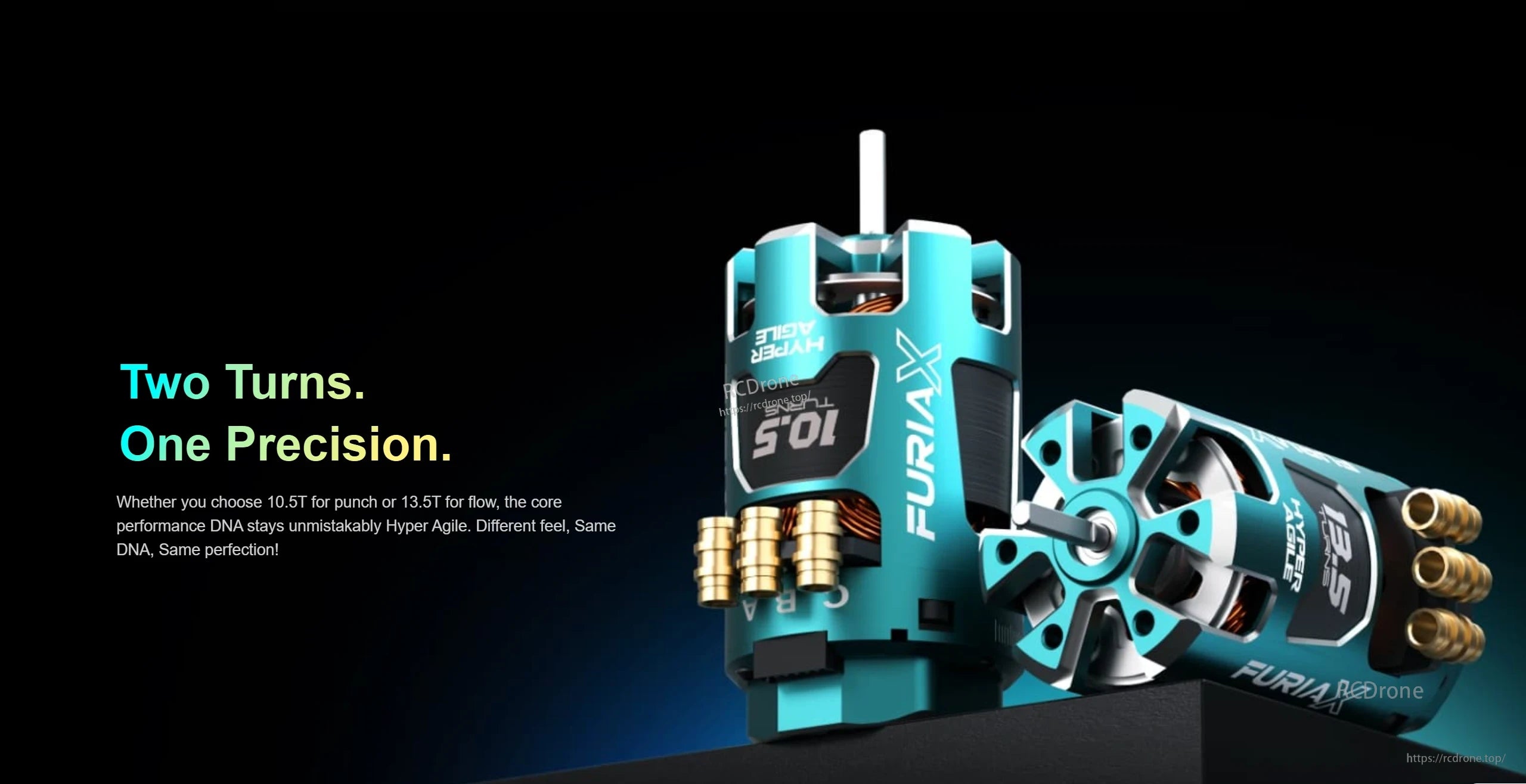

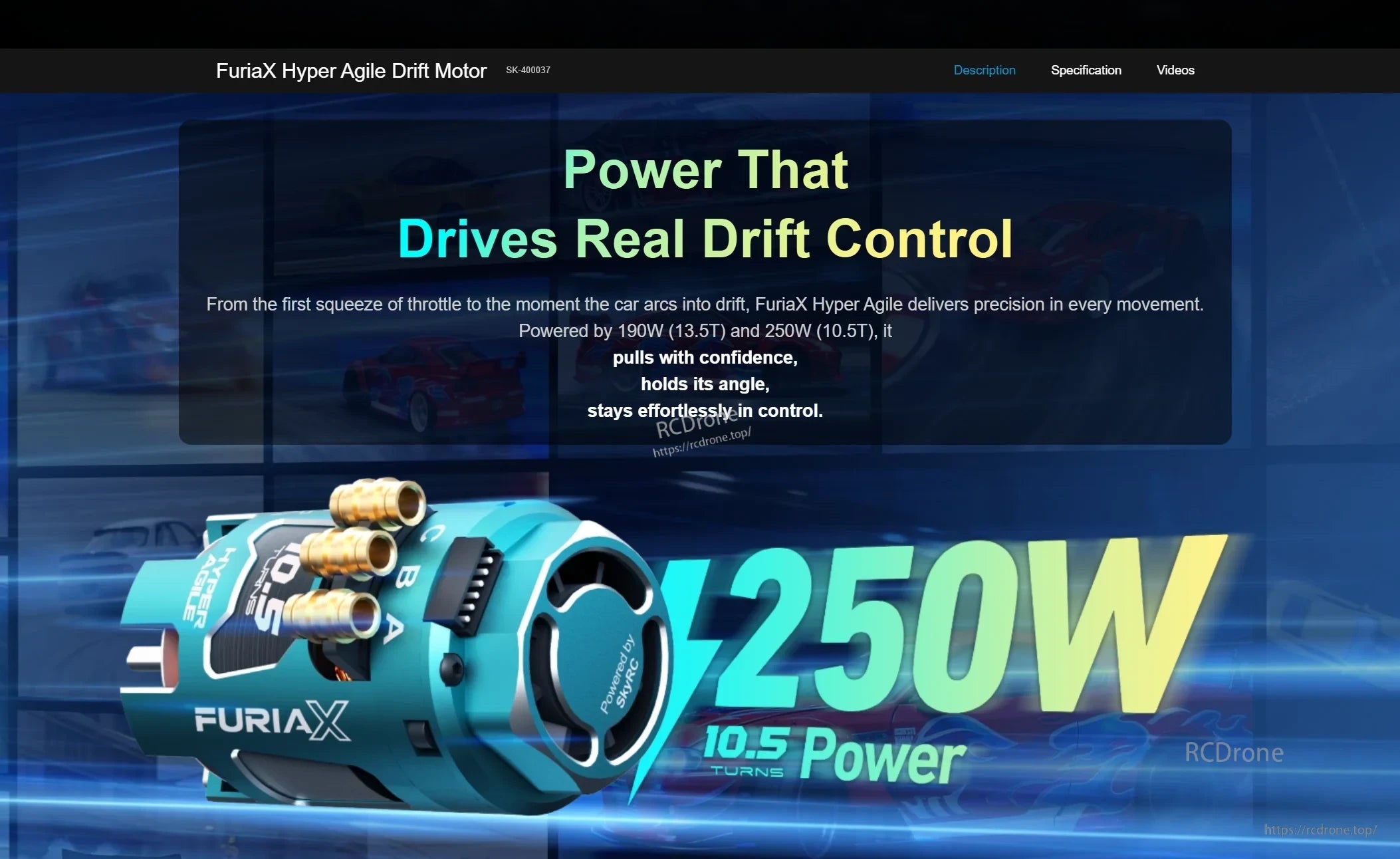

Choose 10.5T for more punch or 13.5T for smoother, consistent drift power delivery.

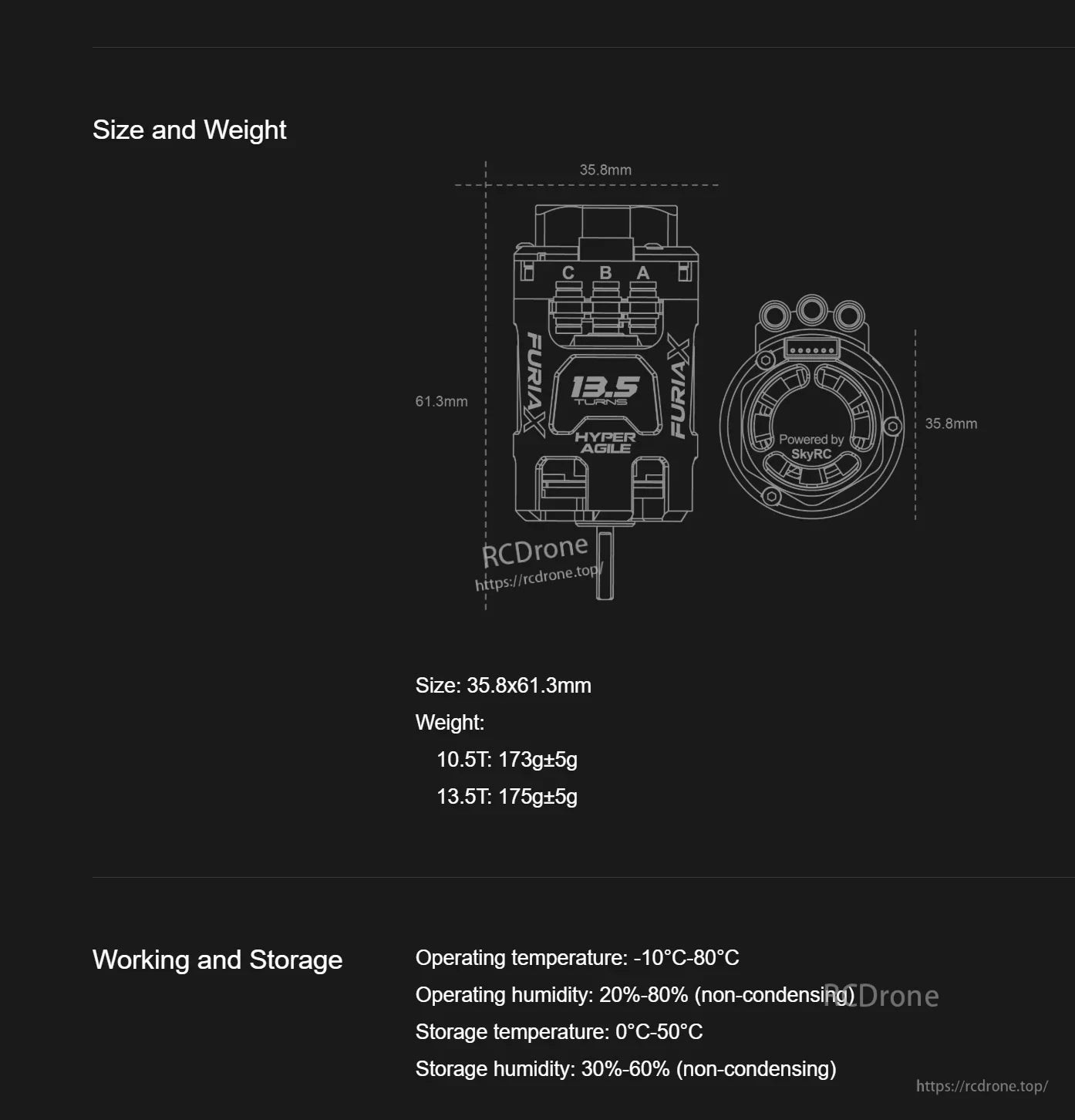

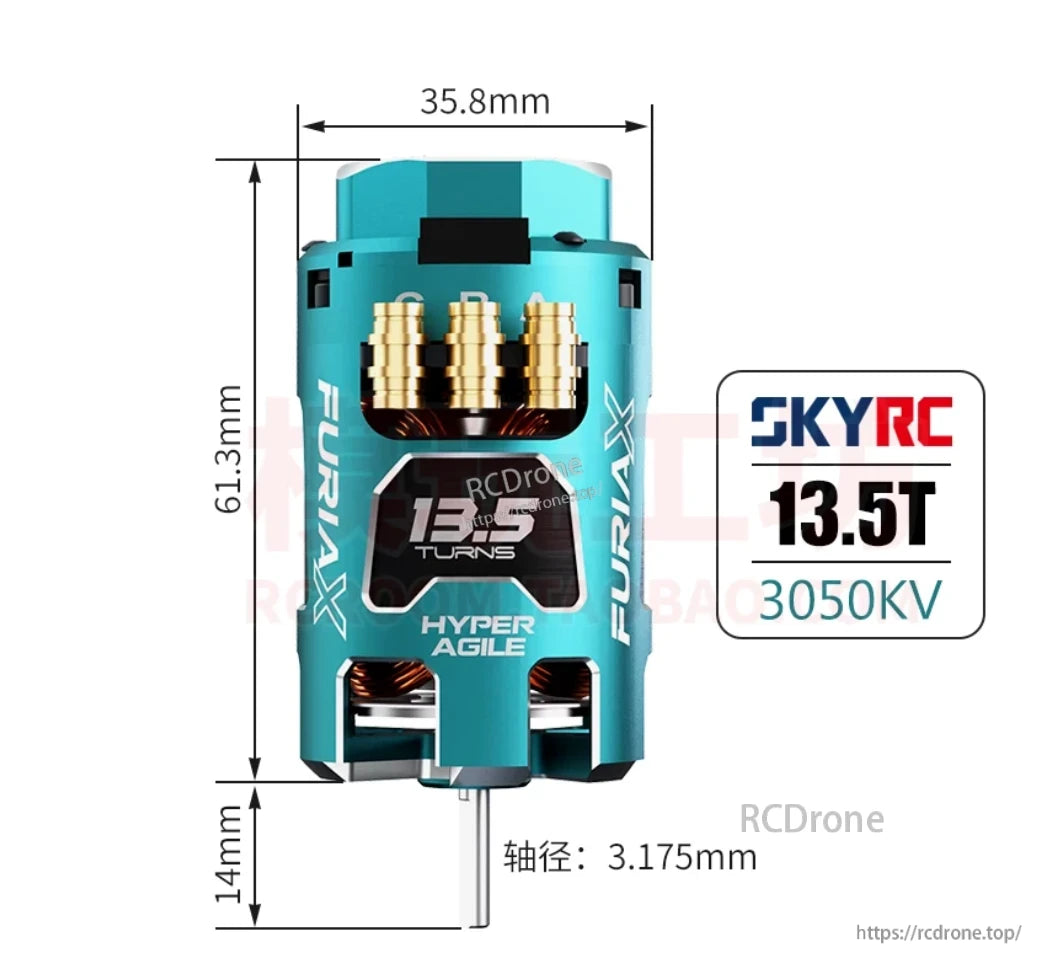

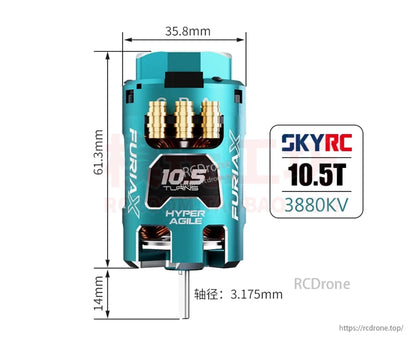

Motor dimensions and weight make it an easy match for most 1/10 drift chassis layouts.

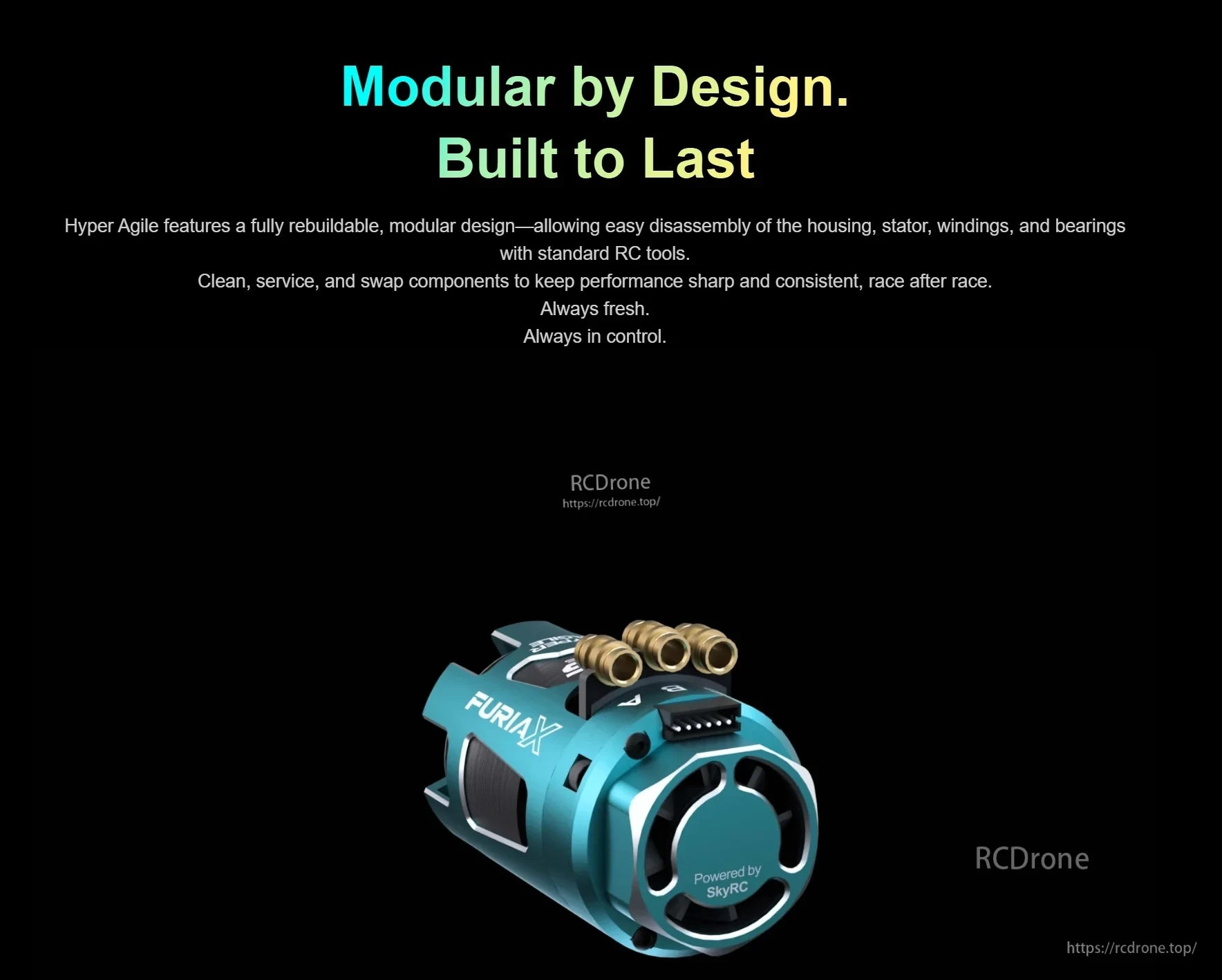

A modular, fully rebuildable design helps simplify maintenance and long-term service.

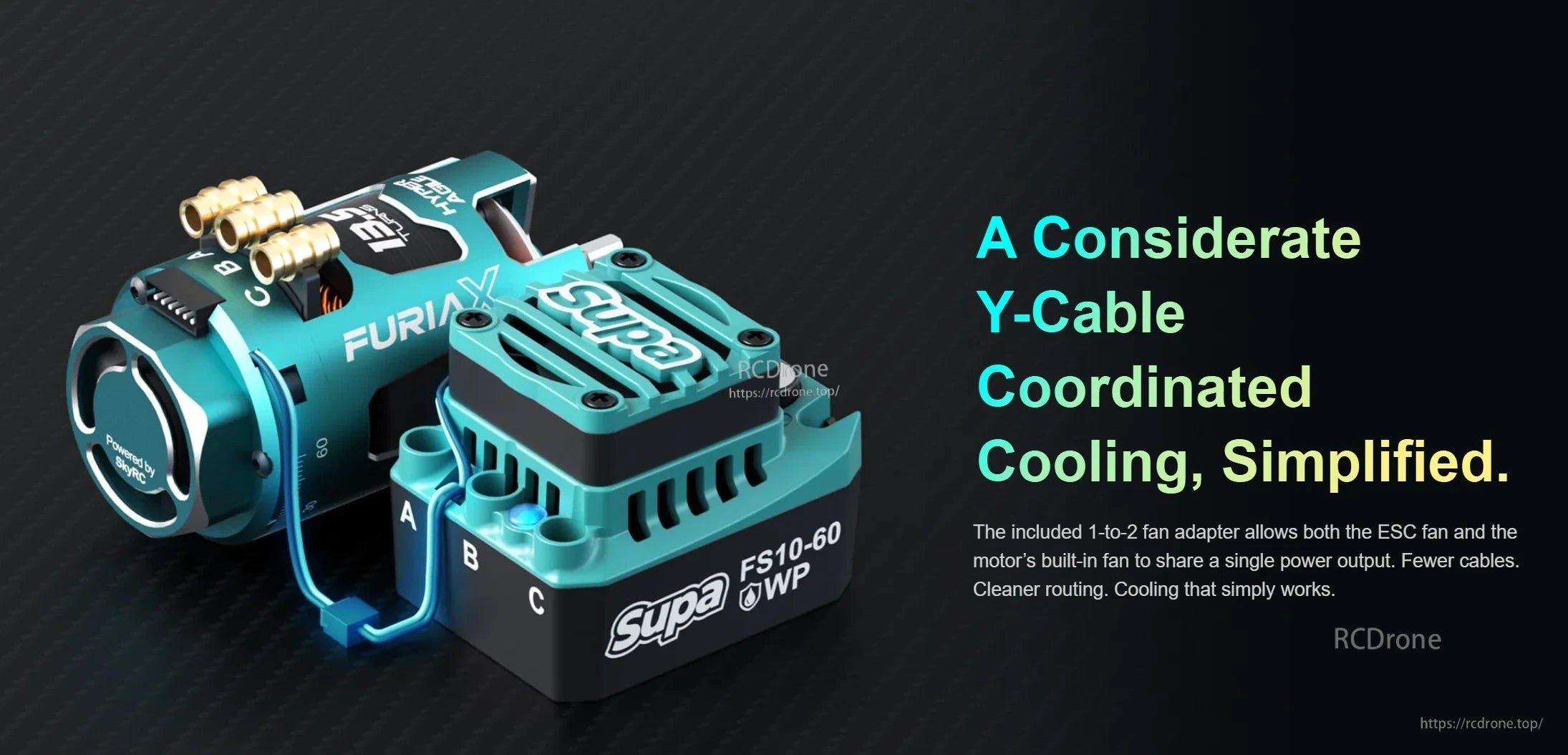

The included 1-to-2 fan Y-cable helps run the motor fan and ESC fan together for simplified wiring.

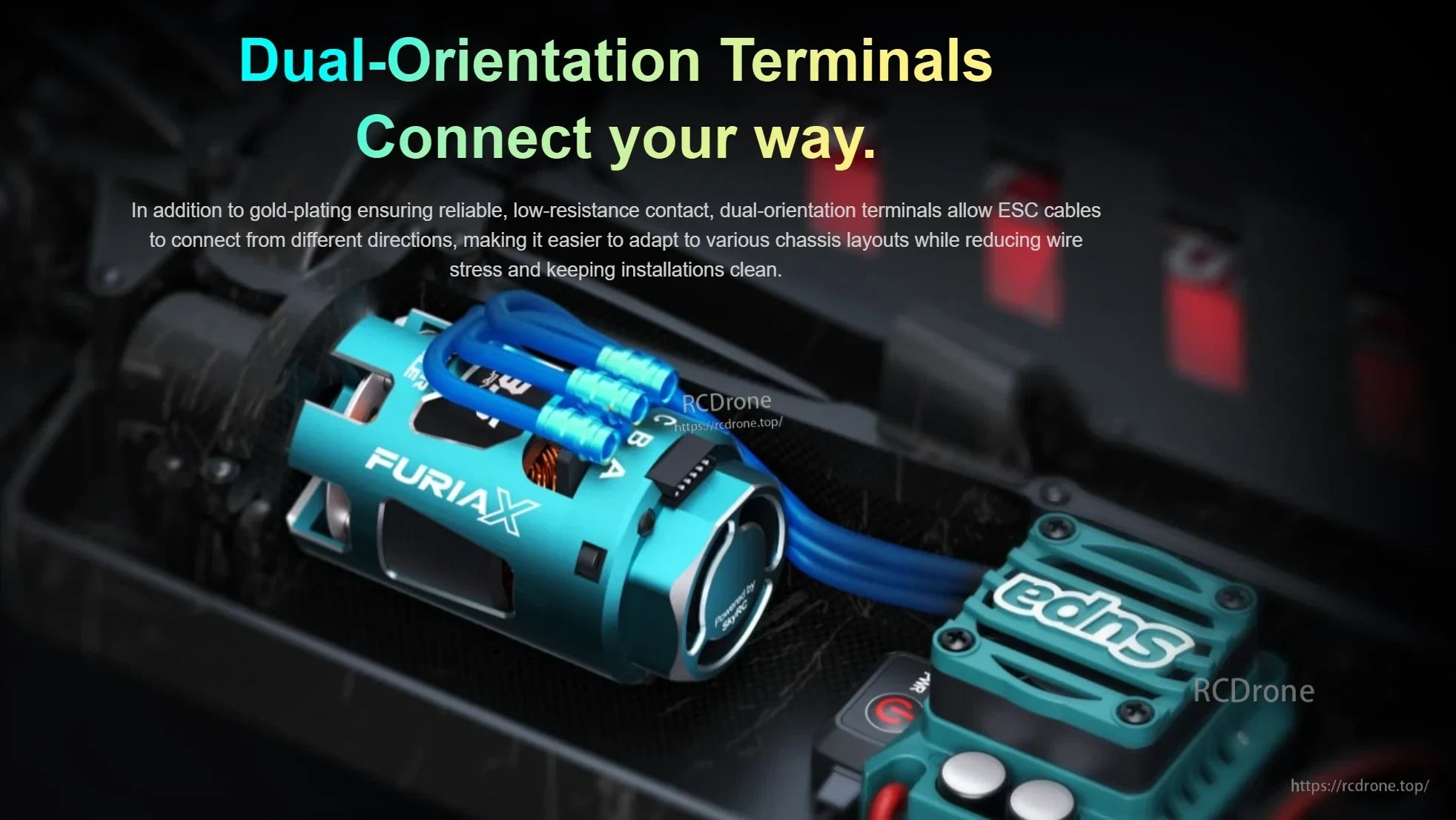

Dual-orientation gold-plated terminals make it easier to route ESC wires cleanly in tight drift builds.

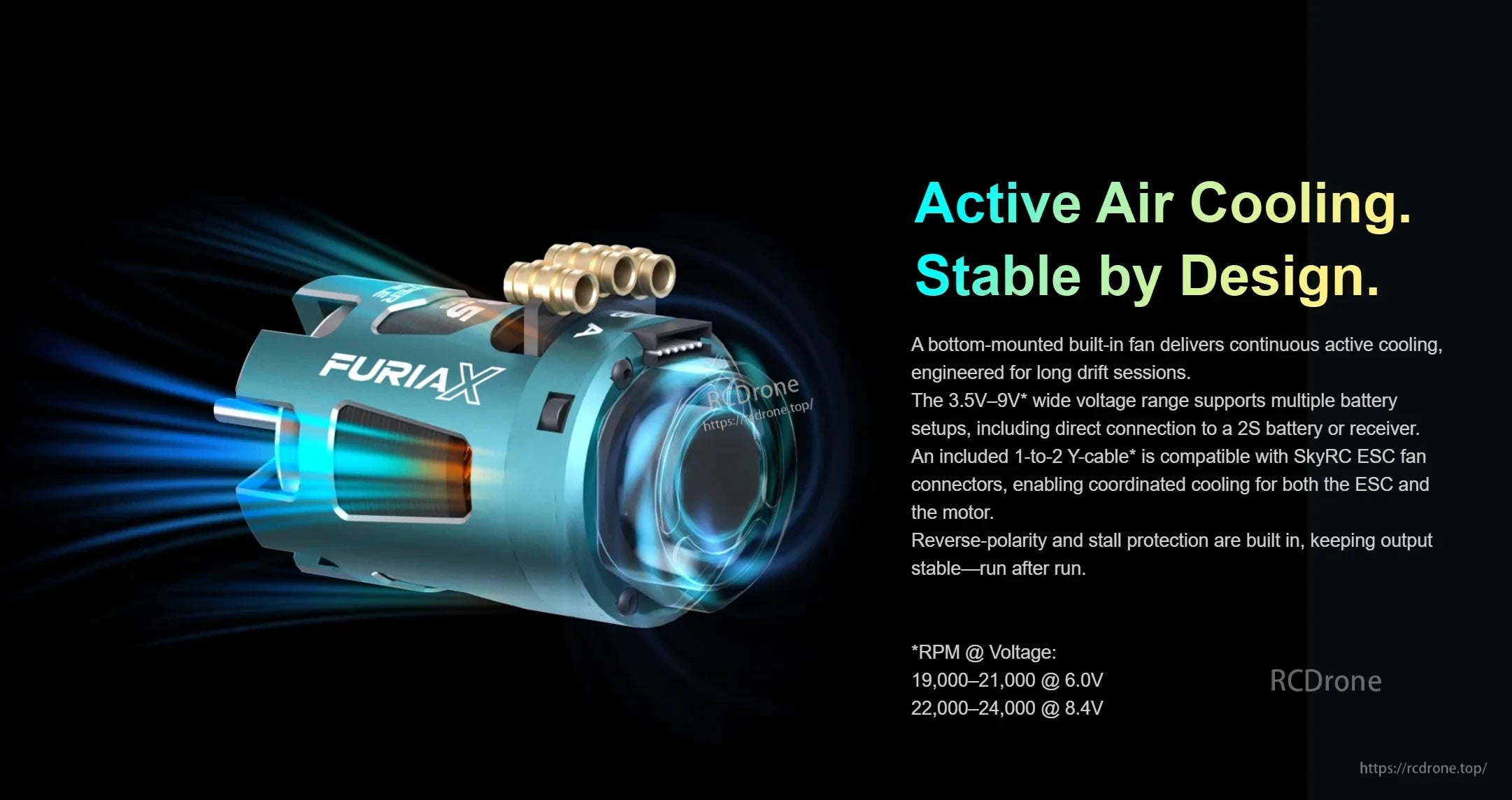

Bottom-mounted active cooling is designed to keep output consistent during longer drift sessions.

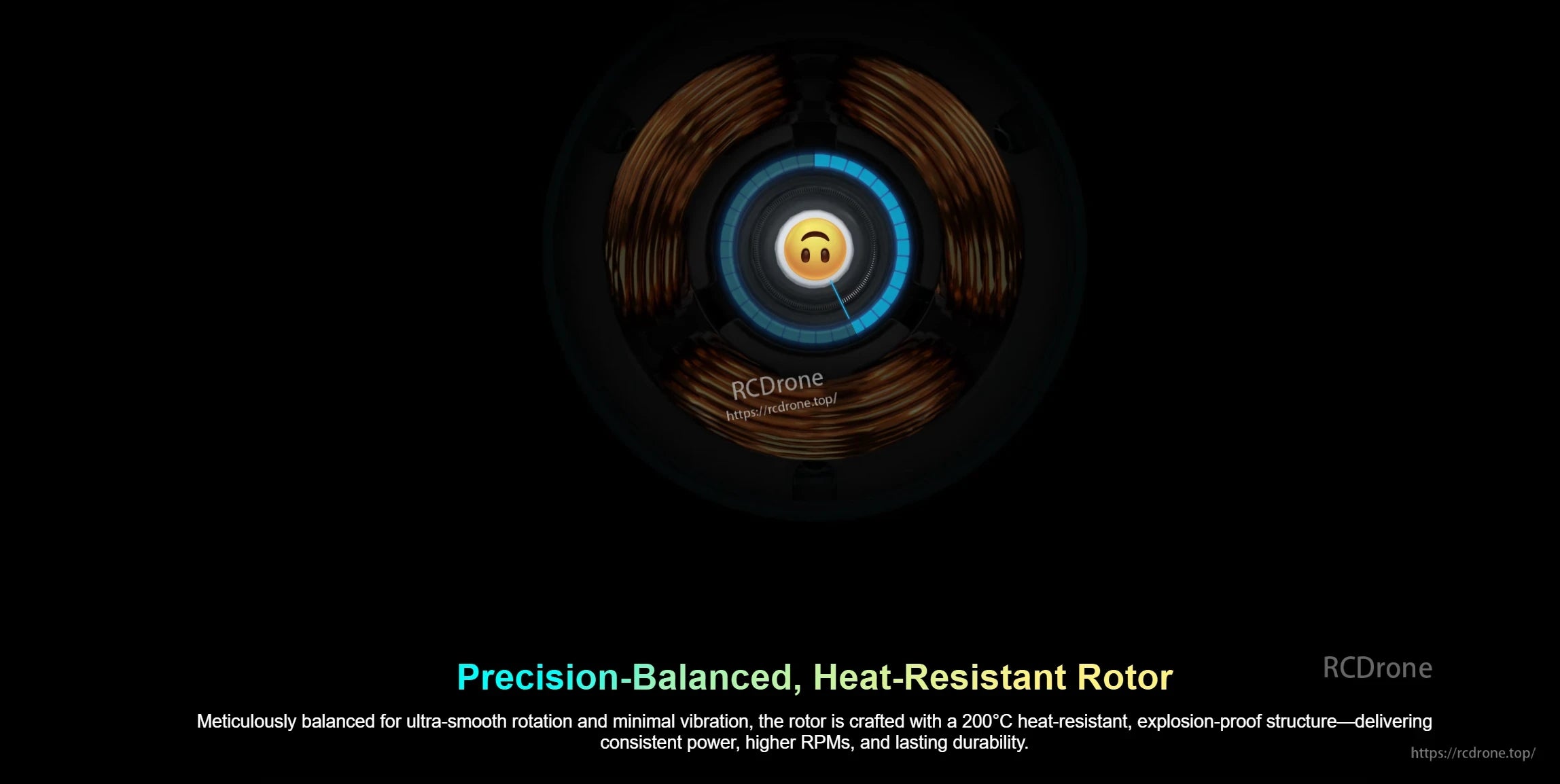

A heat-resistant, precision-balanced rotor is rated to 200°C for stable performance under load.

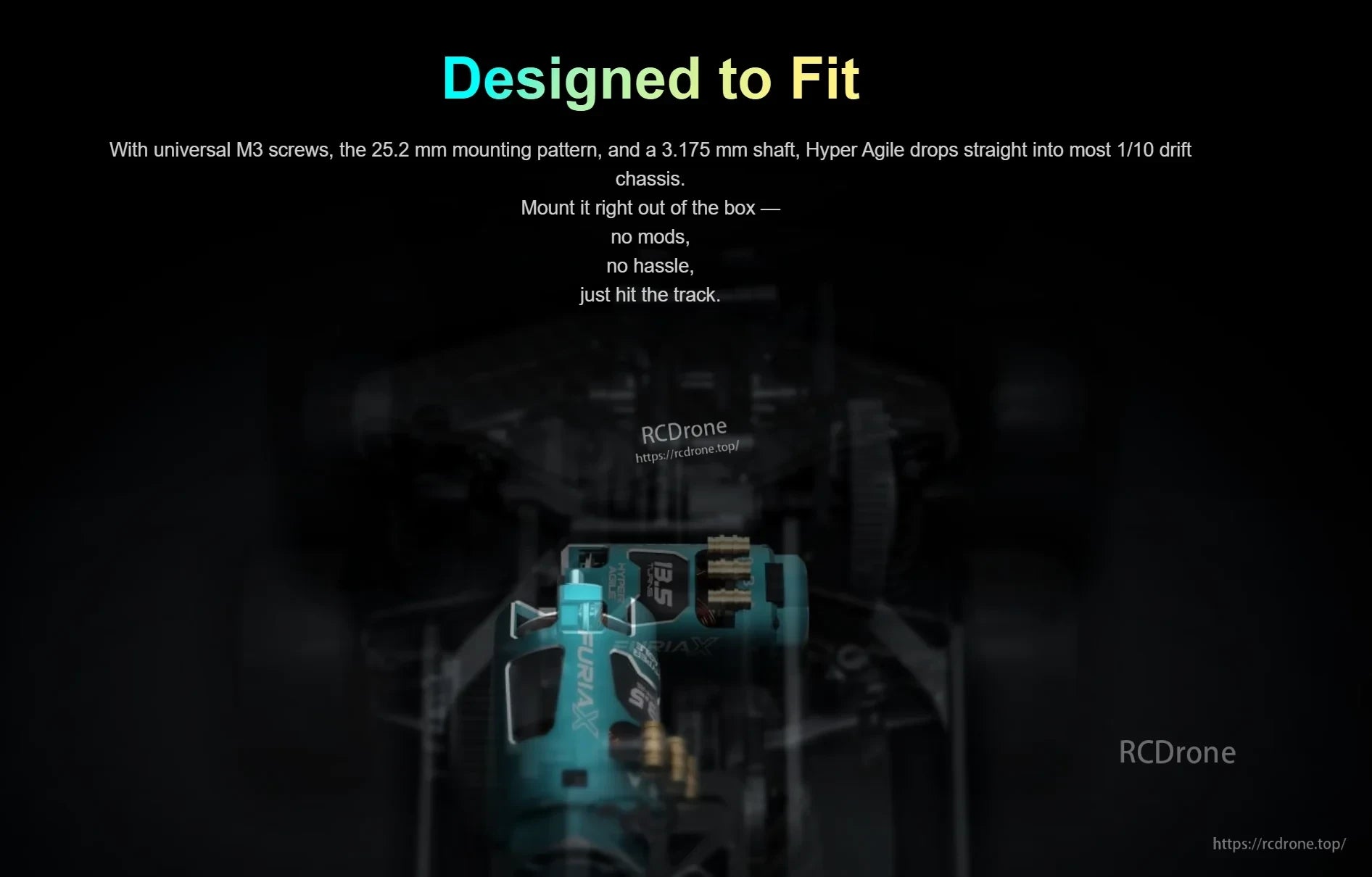

Standard 25.2 mm mounting and a 3.175 mm shaft are suited to common 1/10 drift motor mounts and pinions.

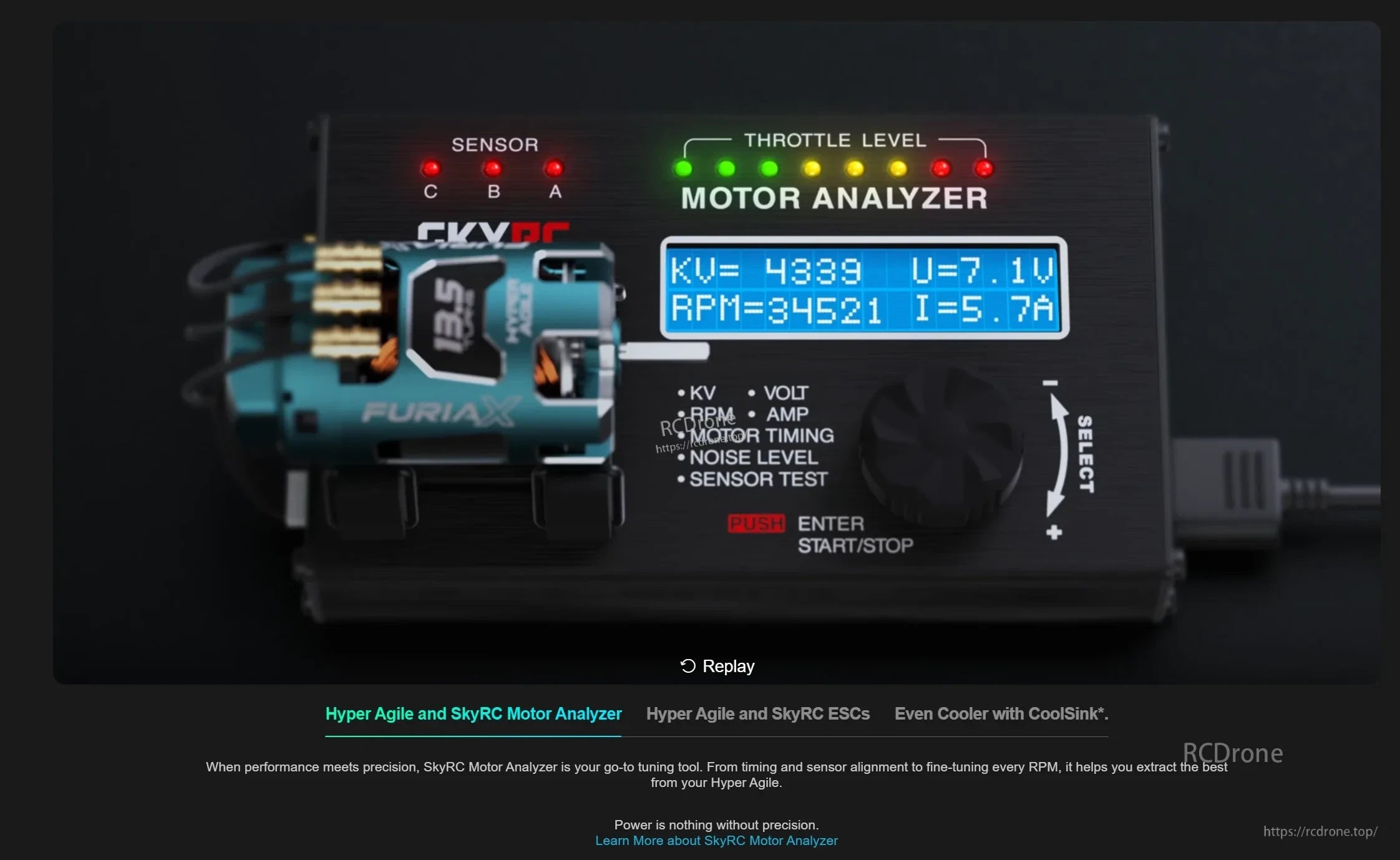

Pairing with a motor analyzer helps verify sensor operation and dial in setup with measurable KV and RPM data.
