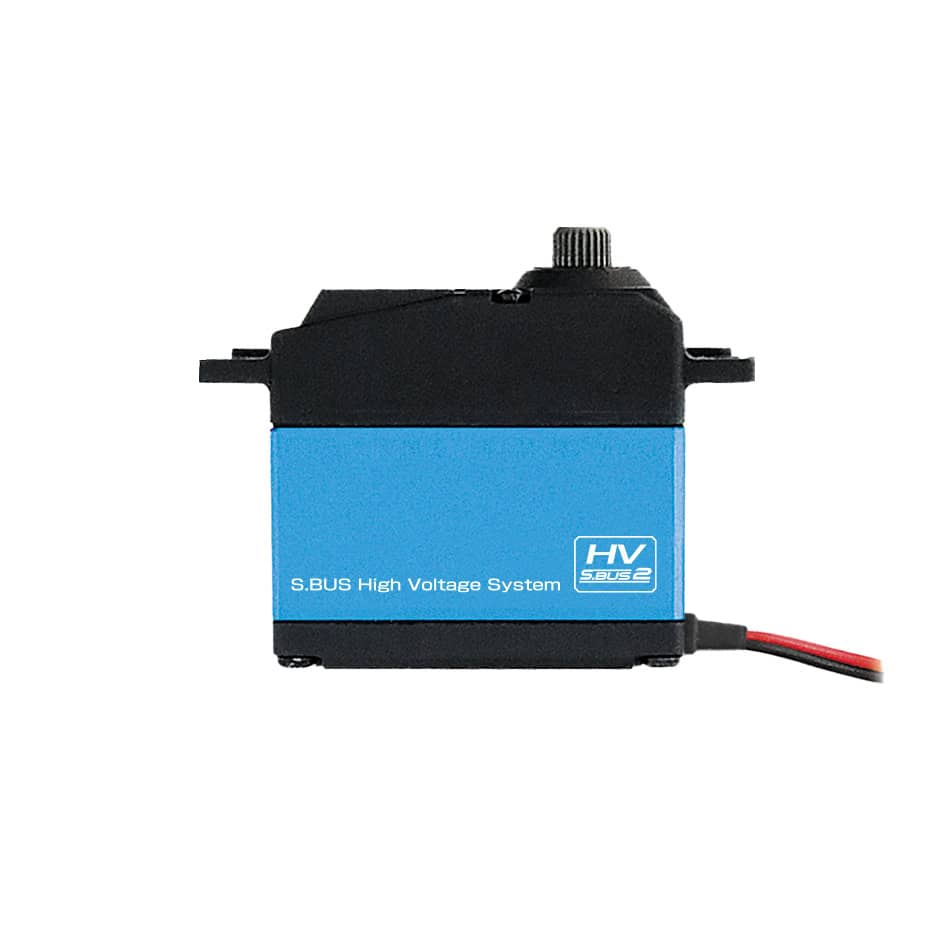

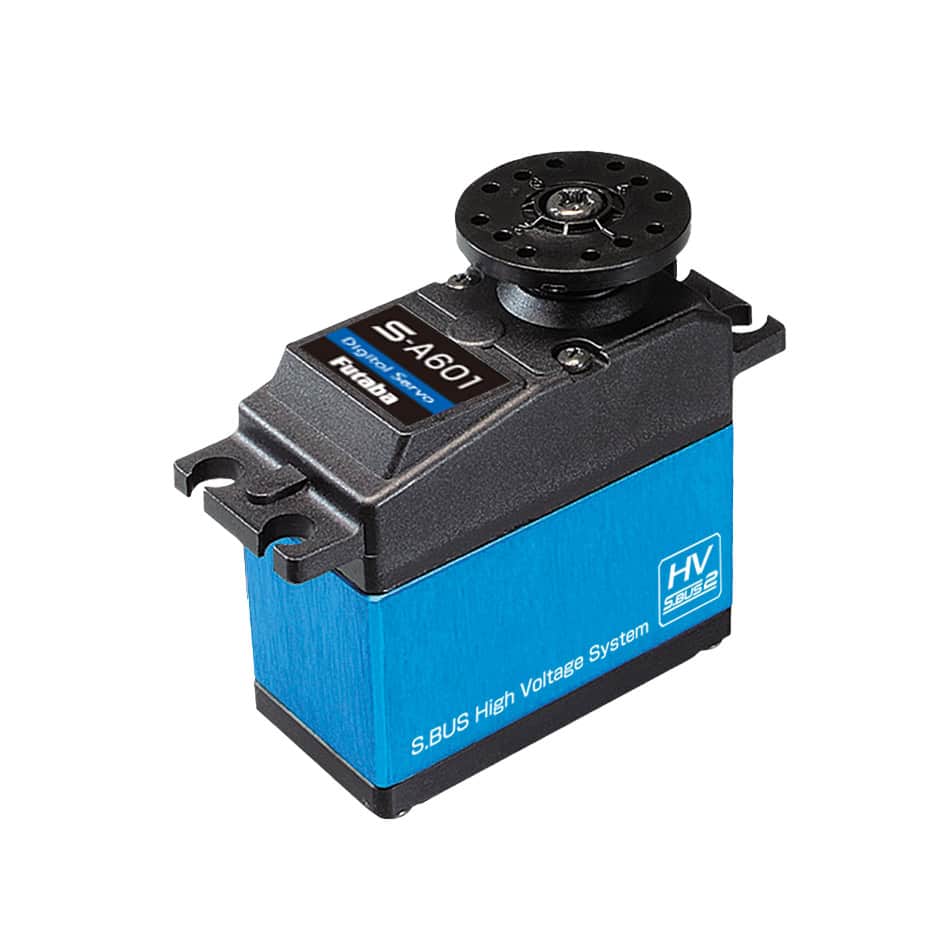

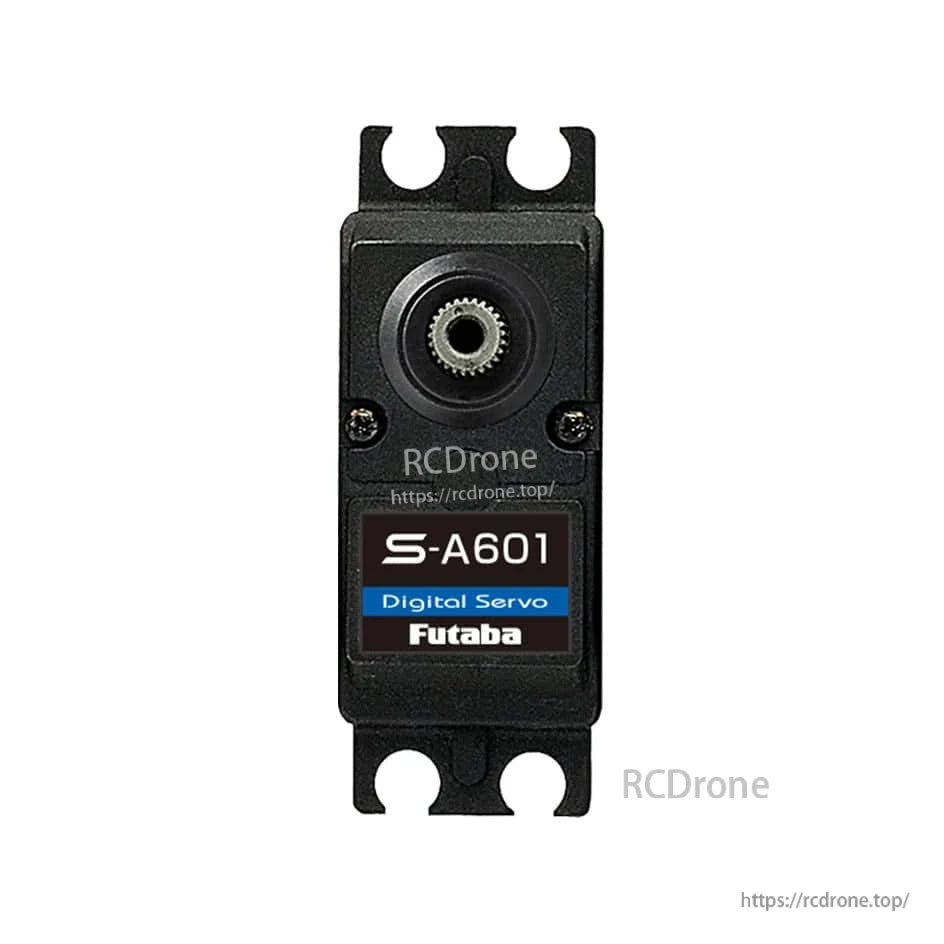

Futaba S-A601 S.Bus2 High-Voltage Airplane Servo, Coreless Digital Standard Servo, DC 4.8-8.4V
Futaba S-A601 S.Bus2 High-Voltage Airplane Servo, Coreless Digital Standard Servo, DC 4.8-8.4V
Futaba
নিয়মিত দাম
$217.99 USD
নিয়মিত দাম
বিক্রয় মূল্য
$217.99 USD
একক দাম
per
Taxes included.
শিপিং চেকআউটের সময় গণনা করা হয়।
পিকআপের উপলভ্যতা লোড করা যায়নি
Overview
The Futaba S-A601 is an S.Bus2 high-voltage airplane servo designed for RC airplane control surfaces, featuring a high-torque coreless digital design.
Key Features
- S.Bus and S.Bus2 support
- Digital, high-voltage (HV) servo
- Coreless motor
- Servo size: Standard
- Note: NO DRY BATTERY USE
Specifications
| Model | S-A601 |
| Type | High Torque Coreless Digital Servo |
| Part No. | 01102412-3 |
| Speed | 0.12 sec/60° at 6.6V; 0.11 sec/60° at 7.4V |
| Torque | 36.8 kgf/cm at 6.6V; 511 ozf/in at 6.6V; 41.0 kgf/cm at 7.4V; 569.4 ozf/in at 7.4V |
| Size | 40.5 mm x 21 mm x 37.4 mm (1.59 in x 0.83 in x 1.47 in) |
| Weight | 74 g (2.61 oz) |
| Rated Voltage | DC 6.0V-7.4V |
| Operating Voltage | DC 4.8-8.4V |
| Listed weight (additional information) | 6 oz |
| Listed dimensions (additional information) | 3 x 2.5 x 1.5 in |
| Features (additional information) | S.Bus, S.Bus2, Digital, HV |
| Hobby (additional information) | Airplane |
| Product (additional information) | Servo |
| Servo Size (additional information) | Standard |
Applications
- RC airplane control surface actuation where S.Bus/S.Bus2 and HV operation are required
Support
For pre-sales compatibility questions or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.
