VCI SPARK 1202 7500KV/11000KV Motor (2pcs) for Micro RC Multirotor Builds, 1.5mm Shaft
VCI SPARK 1202 7500KV/11000KV Motor (2pcs) for Micro RC Multirotor Builds, 1.5mm Shaft
VCI
নিয়মিত দাম
$36.50 USD
নিয়মিত দাম
বিক্রয় মূল্য
$36.50 USD
একক দাম
per
Taxes included.
শিপিং চেকআউটের সময় গণনা করা হয়।
পিকআপের উপলভ্যতা লোড করা যায়নি
Overview
VCI SPARK 1202 is a compact motor set (2pcs) offered in two KV options (7500KV or 11000KV) for small RC multirotor builds where size, weight, and responsive throttle matter. Select the KV option to match the intended battery voltage and propeller setup.
Key Features
- Two KV options: 7500KV or 11000KV
- Compact 1202 size with lightweight design (3.9 g incl. cable per motor)
- N52SH arc magnets
- 4x M2 mounting pattern
- Includes pre-soldered silicone wires (28AWG, 50 mm)
Specifications
| Parameter | SPARK 1202-7500KV | SPARK 1202-11000KV |
|---|---|---|
| KV | 7500KV | 11000KV |
| Configuration | 9S12P | 9S12P |
| Stator size | Dia 12 x L2 mm | Dia 12 x L2 mm |
| Motor dimensions | Dia 15.3 x L14.4 mm | Dia 15.3 x L14.4 mm |
| Internal resistance | 365 mOhm | 210 mOhm |
| Rated voltage | 3S (12V) | 2S (8V) |
| Peak current | 6.96A | 9.14A |
| Max instantaneous power | 83.52W | 73.12W |
| Idle current (10V) | 0.4A | 1.0A |
| Magnets | N52SH arc | N52SH arc |
| Shaft diameter | Dia 1.5 mm | Dia 1.5 mm |
| Shaft length | 4.9 mm | 4.9 mm |
| Wire | 28AWG, 50 mm | 28AWG, 50 mm |
| Weight (incl. cable) | 3.9 g | 3.9 g |
| Mounting | 4x M2 holes; reference circles Dia 5 mm and Dia 9 mm | |

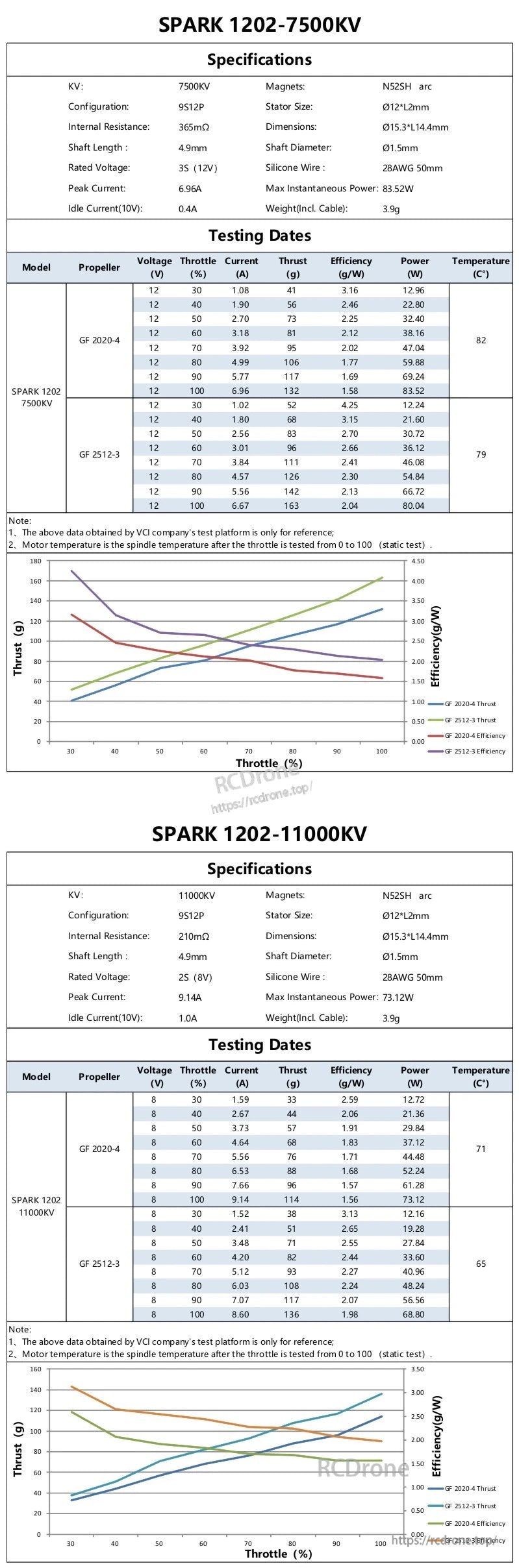

Test Data (Reference)
- SPARK 1202-7500KV @ 12V, GF 2020-4: up to 132 g thrust at 100% throttle (83.52 W), temperature 82C
- SPARK 1202-7500KV @ 12V, GF 2512-3: up to 163 g thrust at 100% throttle (80.04 W), temperature 79C
- SPARK 1202-11000KV @ 8V, GF 2020-4: up to 114 g thrust at 100% throttle (73.12 W), temperature 71C
- SPARK 1202-11000KV @ 8V, GF 2512-3: up to 136 g thrust at 100% throttle (68.80 W), temperature 65C
Test values are provided for reference, based on static testing from 0 to 100% throttle with spindle temperature measurement.

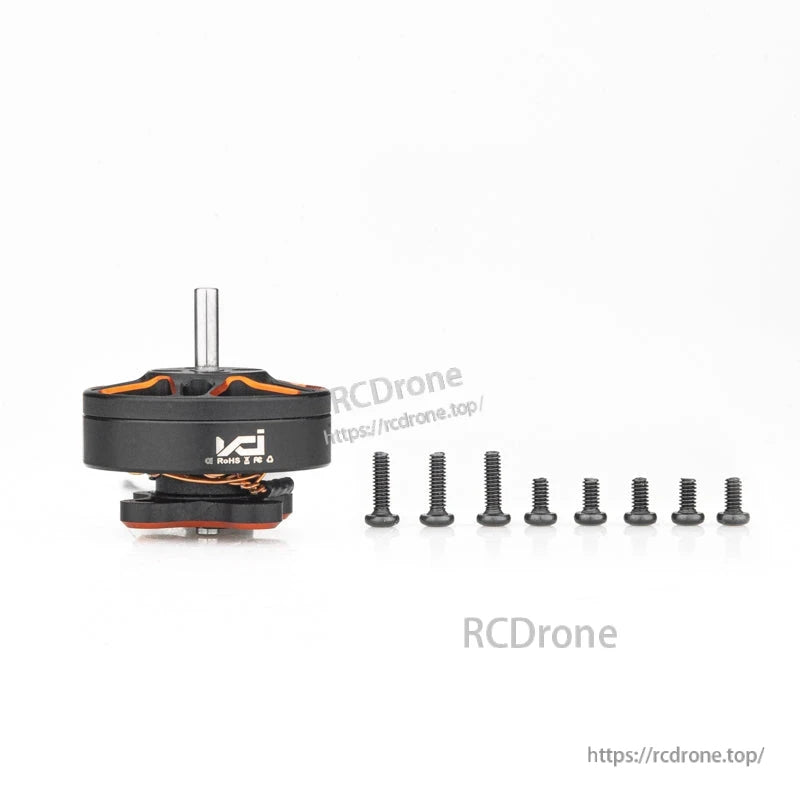

What's Included
- VCI SPARK 1202 motor x 2
Applications
- Compact RC multirotor / micro quad builds requiring a 1202-size motor
- Spare or replacement motor for compatible setups using a 1.5 mm shaft
For selection help between 7500KV and 11000KV, or to confirm fitment for a specific frame/prop setup, contact [email protected] or visit https://rcdrone.top/.
Details

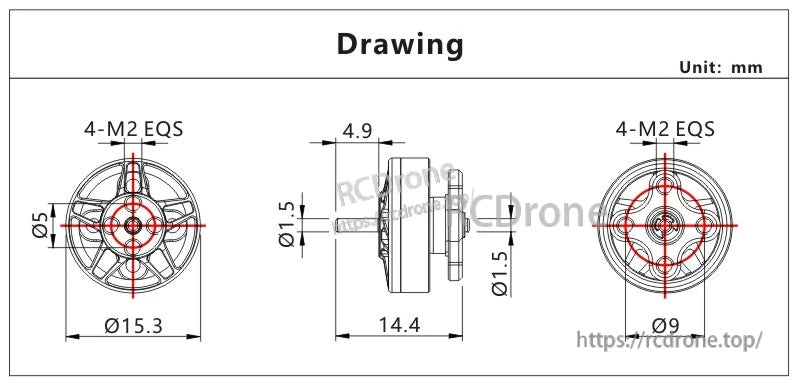

Compact 1202-size layout uses a 4×M2 mounting pattern with a 15.3 mm motor diameter and 14.4 mm overall length for micro builds.
