Overview

This DC power supply provides 19.0V output at 2.37A via a DC 5.5*2.5 connector for Jetson Orin NX SUPER, Jetson Orin Nano SUPER, Jetson Xavier NX, and Jetson TX2-NX (SUB). It is designed to deliver stable power for high-load scenarios such as edge AI computing, robotics development, and deep learning workloads.

Key Features

Supported Jetson boards: Jetson Orin Nano SUPER (Official version/SUB version), Jetson Orin NX SUPER (SUB version), Jetson Xavier NX (Official version/SUB version), Jetson TX2-NX SUB
Not supported: Jetson AGX Orin (Power is not sufficient), Jetson Nano B01 (Interfaces are inconsistent)
Output: 19V/2.37A (rated output power 45.03W; label shows 45.0W)
Safety protection: over-voltage protection, over-current protection, short-circuit protection, and current fuse protection (fuse protection at the AC end)
Connector & cable: DC 5.5*2.5 metal connector; 2.5m line length design (power adapter + power cable); card tail buffer position (bending without breaking)
Power selection note (from testing text): system power consumption can reach nearly 25W when multiple CPU/GPU/camera/display components work simultaneously; rated power 45W helps ensure stable operation

For compatibility questions (for example, confirming the exact plug type for your region), contact support at https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Brand (label)	GW-POWER
Product type (label)	AC ADAPTOR / AC ADAPTER
Model (label)	GW48W-190237M3
Rated input voltage	100-240Vac
Working range	90-264Vac
Rated input frequency	50/60Hz
Rated input current	1.2A Max.
No-load power consumption	0.1W maximum at input voltage 115V and 230V
Primary current protection	Provide fuse protection at the AC end
DC output voltage	19.0V
Rated load current	2.37A
Rated output power	45.03W
Output power (label)	45.0W
Interface model	DC5.5*2.5
DC connector size (detail callout)	Outer diameter 5.5mm; inner diameter 2.5mm
Polarity	Center positive
Line length	2.5m (Power adapter + power cable)
Working temperature	0°C-40°C
Storage temperature	-20°C-80°C
Protection	Over-voltage, over-current, short-circuit protection
Certifications (summary table)	GS, CE, UL, CUL, FCC, CCC, UKCA Certification
Regional safety certifications (table)	CCC (China) – MEET – GB4943.1 GS (Germany) – MEET – EN 62368-1 CE (Europe) – MEET – EN 62368-1 UL (United States) – MEET – UL 62368-1 CUL (Canada) – MEET – CAN/CSA C22 2 NO.62368-1-14 FCC (United States) – MEET – FCC PART15 UKCA (United Kingdom) – MEET – BS EN62368-1
Adapter dimensions (Unit: mm)	100.50±1.0 x 46.20±1.0 x 32.20±1.0
DC cable drawing notes (Unit: mm)	1500±50; 90±10; DC plug: 5.5±0.1; 12±0.5; 2.5±0.1
EU plug drawing	1500±45mm; VDE H05VV-F 3G 0.75mm2 300/500V; 60.7±1.2; 16A 250V
US plug drawing	1500±45mm; (UL) E88265-C; SVT 105C; 3x18AWG (0.824mm2); 300V VW-1; 19.7-21.41; 15.9-18.23; 6.3±0.07
Label markings (visible)	cULus LISTED (E509174); UKCA; FCC; CE; CCC; Level VI; Made in China; 2442

What's Included

Power adapter (Length: 150CM)
AC power cable (Length: 100CM)

Applications

Powering Jetson Orin NX SUPER / Orin Nano SUPER / Xavier NX / TX2-NX development boards
Robot development
Intelligent edge computing
Deep learning training setups requiring stable DC input power

Details

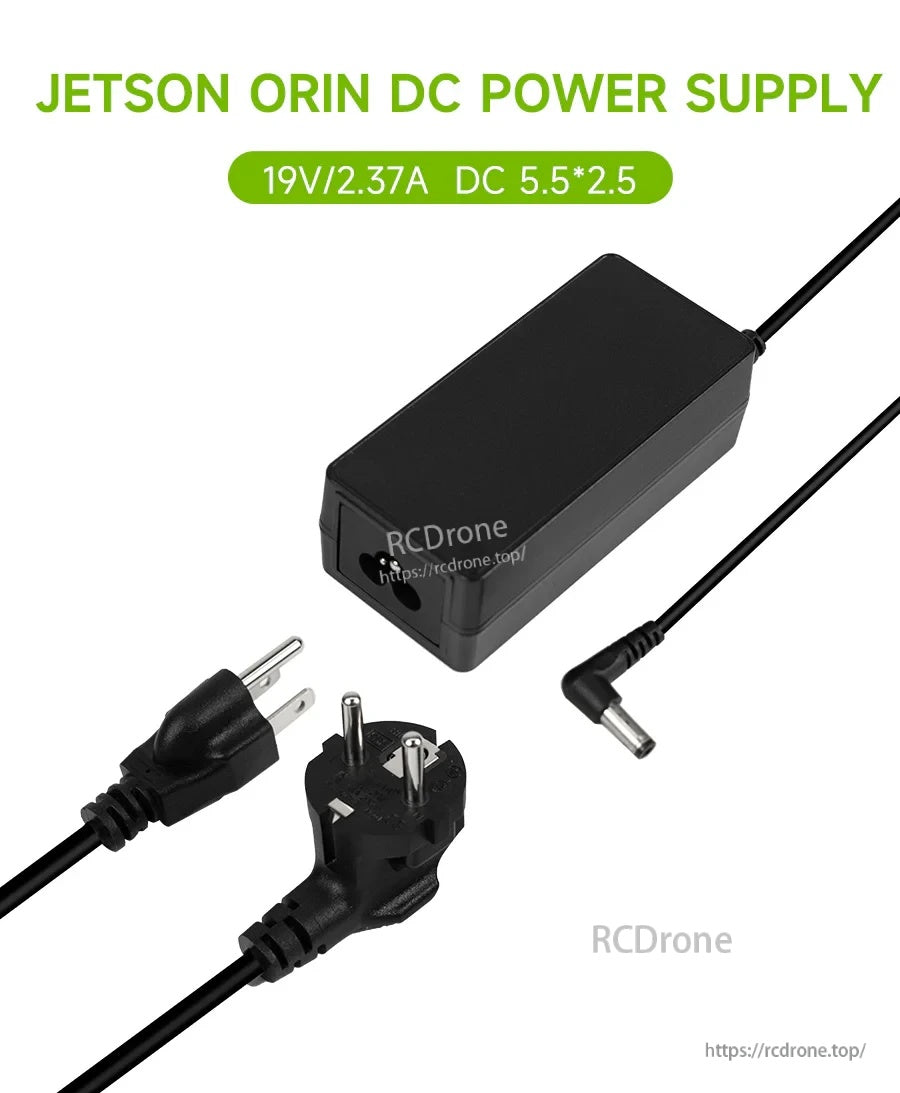

GW-POWER 19V 2.37A DC power supply with DC 5.5×2.5 plug and AC cords for Jetson boards

Power Jetson Orin and Xavier series boards with a stable 19V/2.37A adapter using a DC 5.5×2.5 center-positive connector.

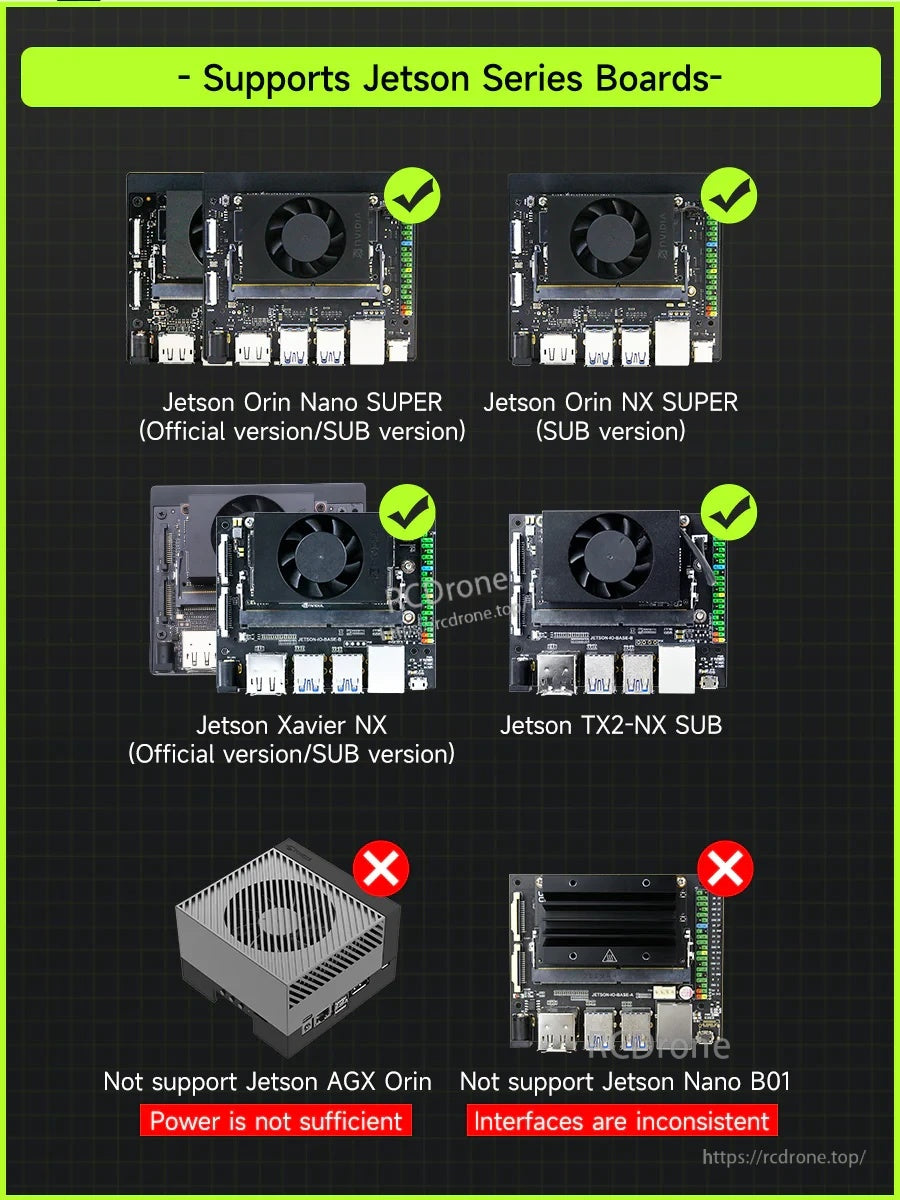

Supported Jetson boards list for 19V 2.37A adapter: Orin Nano SUPER, Orin NX SUPER, Xavier NX, TX2-NX; not AGX Orin/Nano B01

Compatibility covers Jetson Orin Nano SUPER, Orin NX SUPER, Xavier NX, and TX2‑NX, while Jetson AGX Orin and Jetson Nano B01 are excluded.

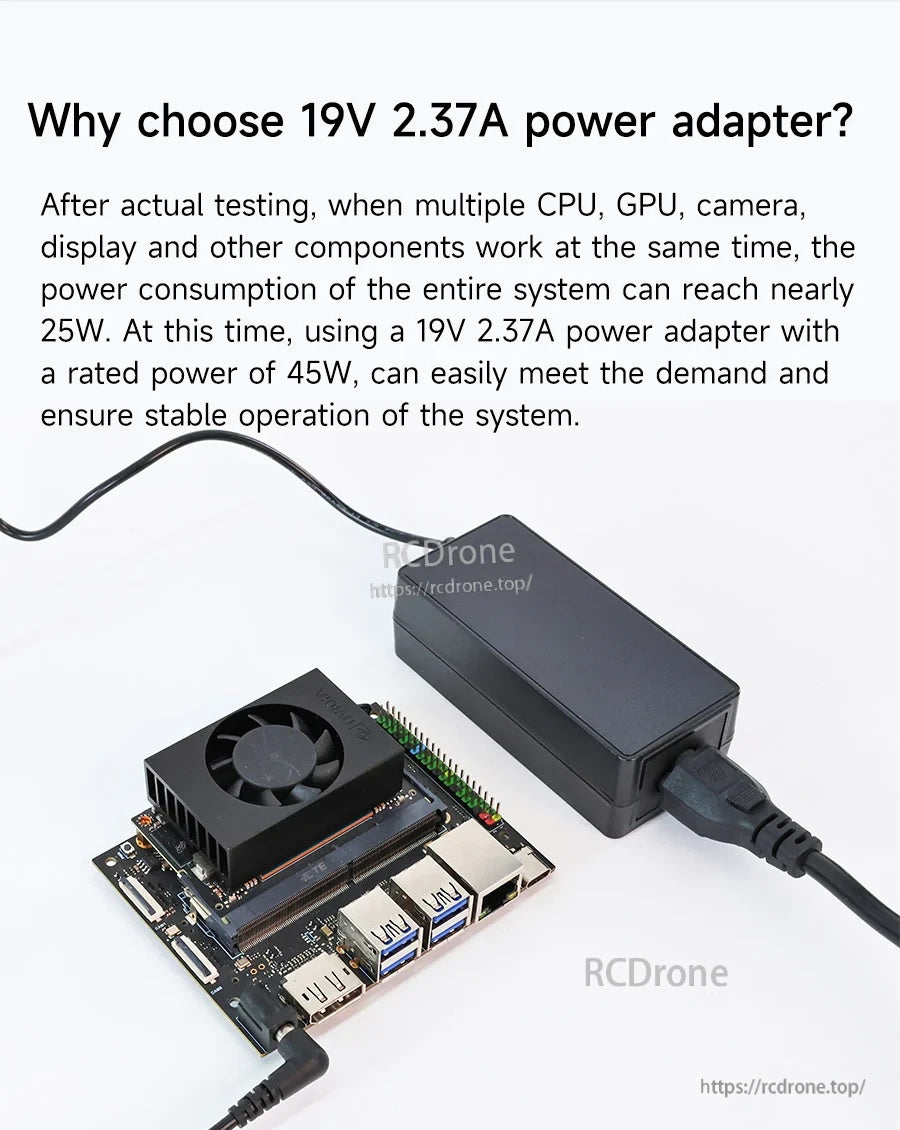

19V 2.37A power adapter connected to a Jetson dev board, with note about 45W rated output for stable operation

A 45W-rated output helps maintain steady power when CPU, GPU, camera, and display loads run at the same time.

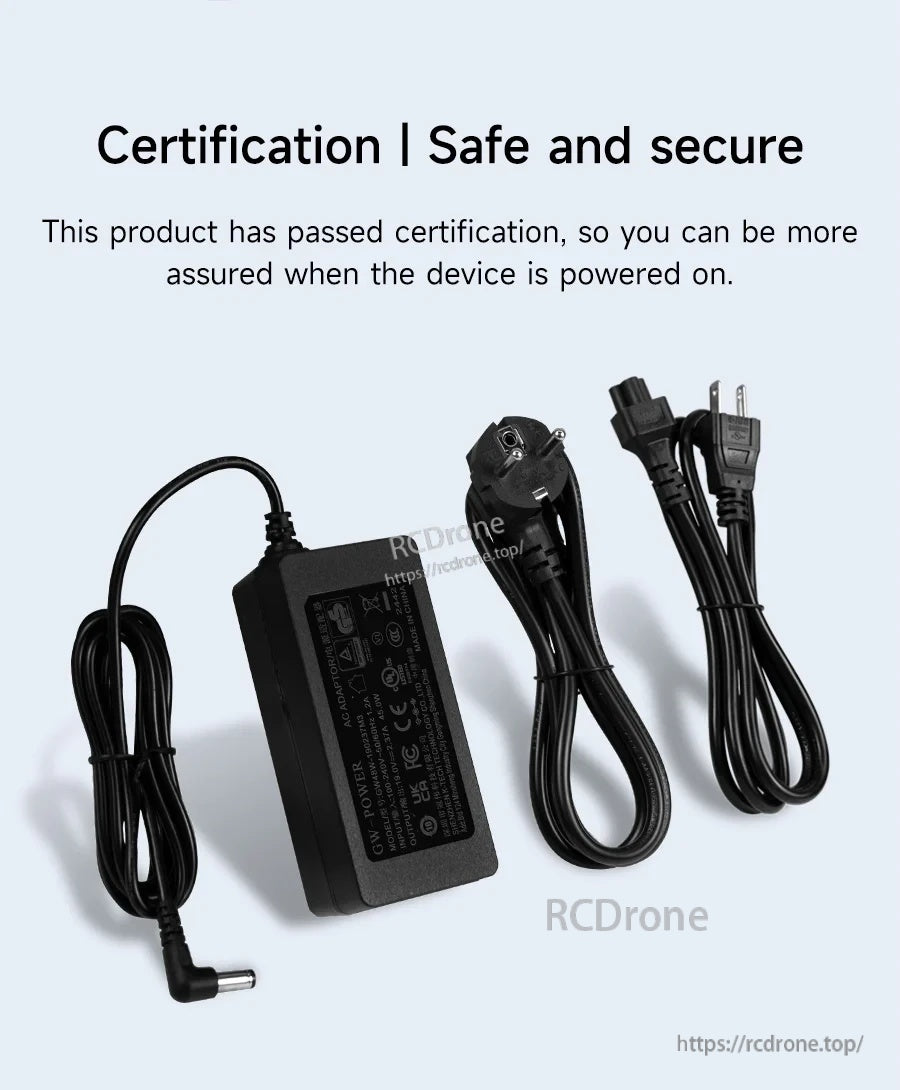

GW-POWER 19V 2.37A AC adapter set with power brick and AC power cords, highlighting certified safe operation

Built-in safety and compliance support dependable power delivery for long development and testing sessions.

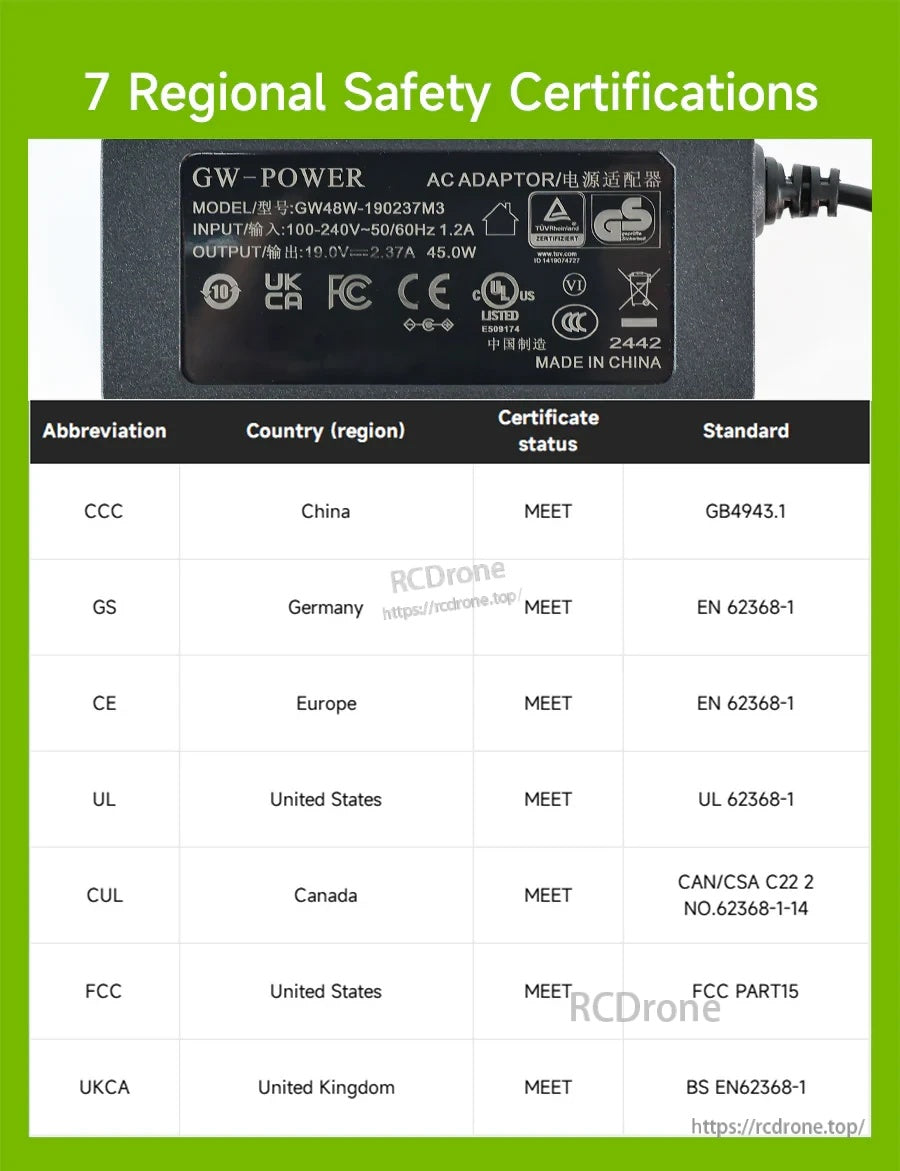

GW-POWER adapter label and table of 7 regional safety certifications: CCC, GS, CE, UL, CUL, FCC, UKCA

Regional certification coverage includes CCC, GS, CE, UL/CUL, FCC, and UKCA for broader deployment needs.

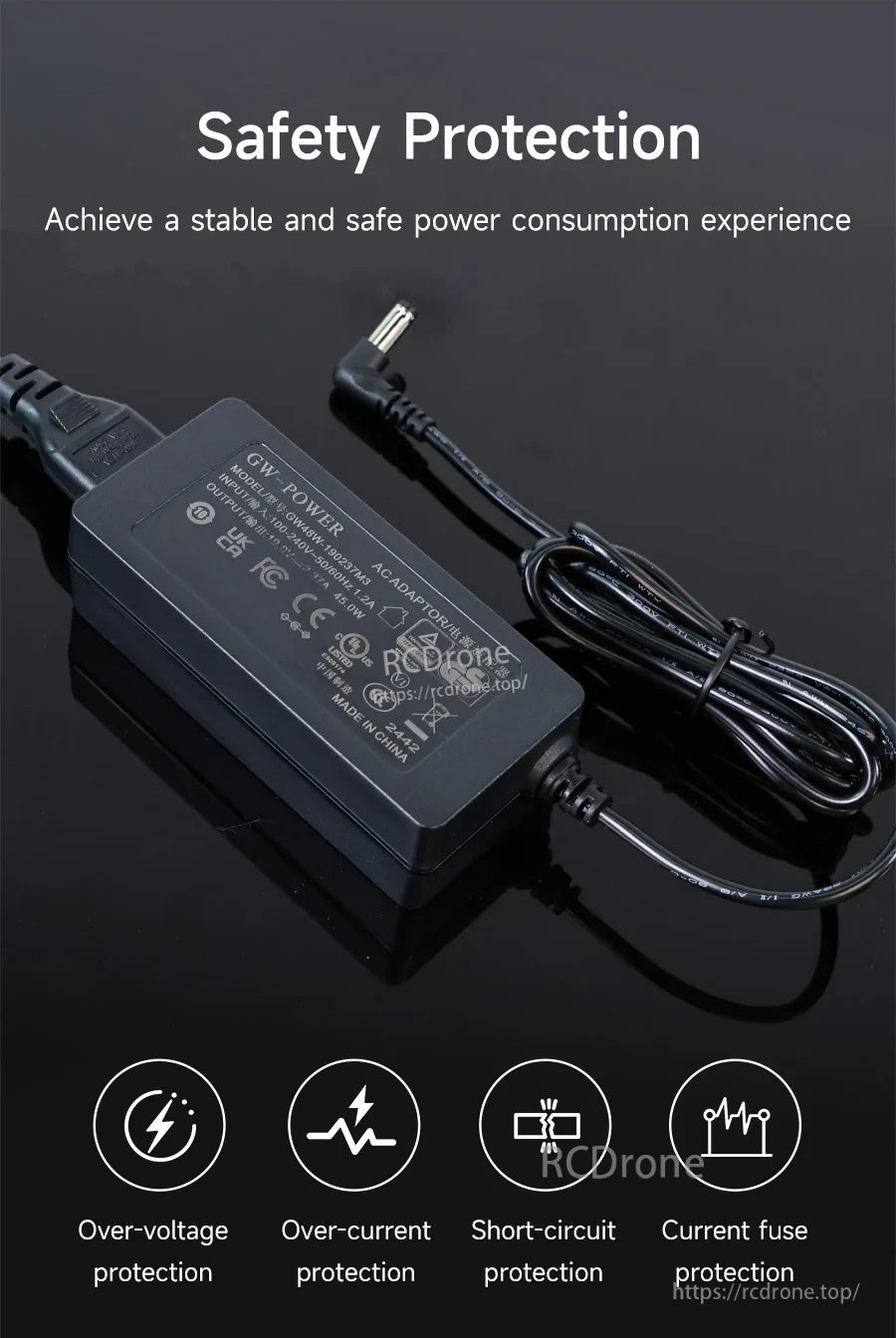

GW-POWER power adapter with icons for over-voltage, over-current, short-circuit, and current-fuse protection

Multiple protection features—over-voltage, over-current, short-circuit, and AC-end fuse protection—add an extra layer of reliability.

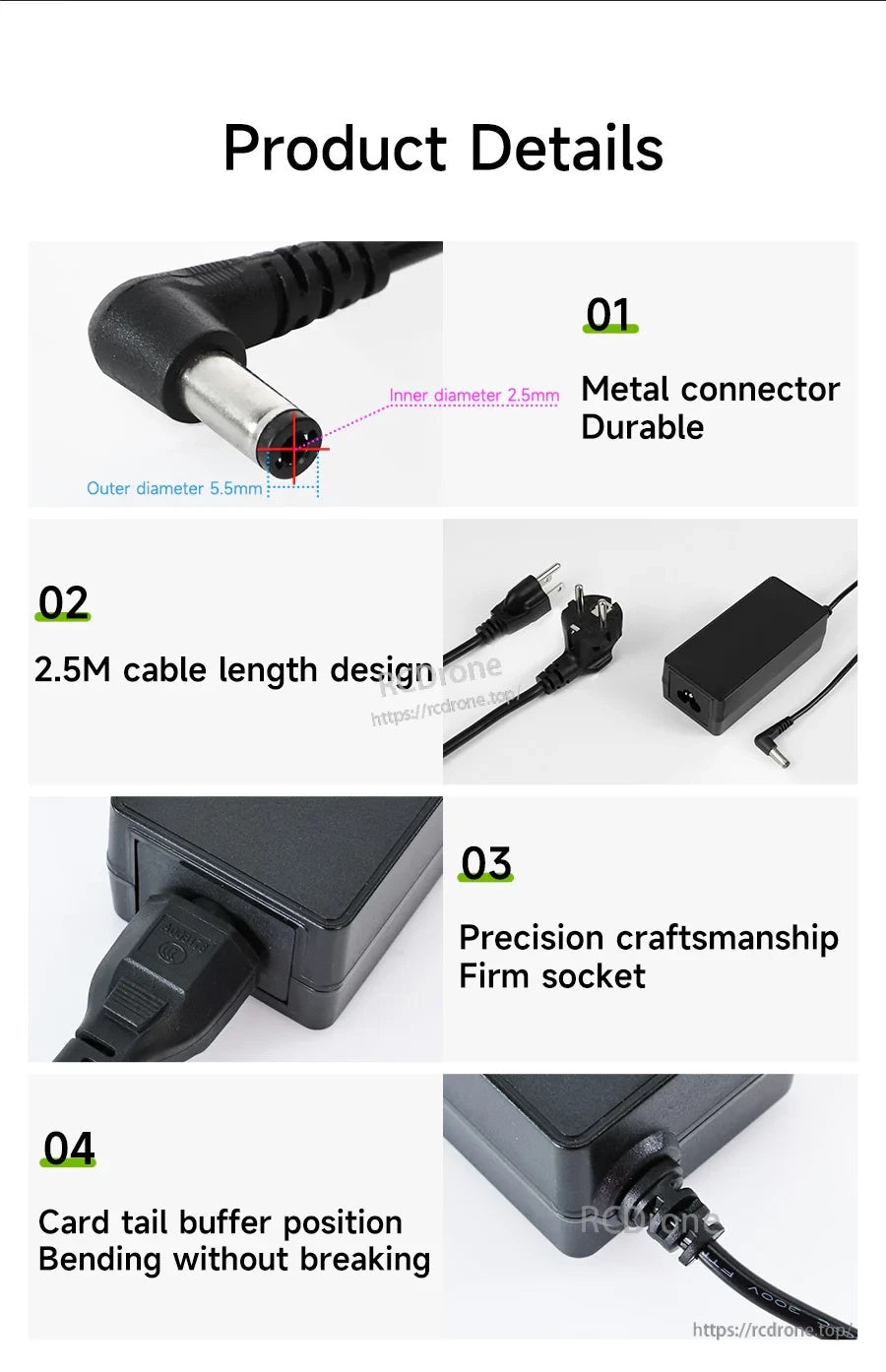

Product details: DC 5.5×2.5mm metal connector, 2.5m cable length, firm socket fit, and strain-relief tail buffer

Durable metal DC plug, extended 2.5 m cable length, and reinforced strain relief are designed for frequent bench use.

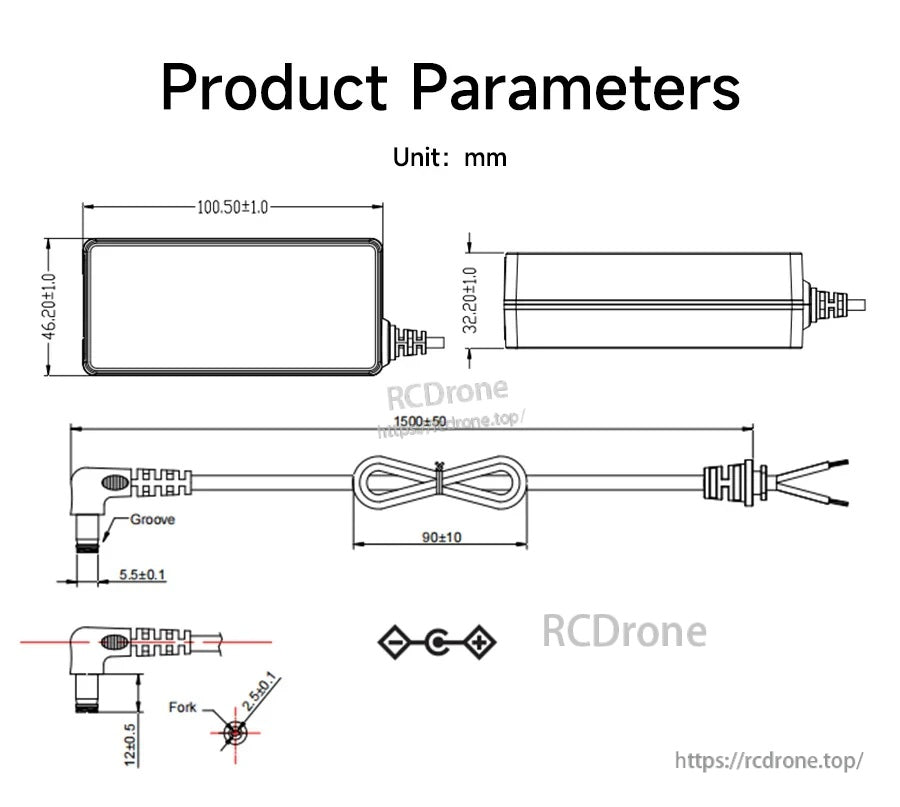

Dimension drawing for the power supply and cable, including DC plug measurements and center-positive polarity symbol

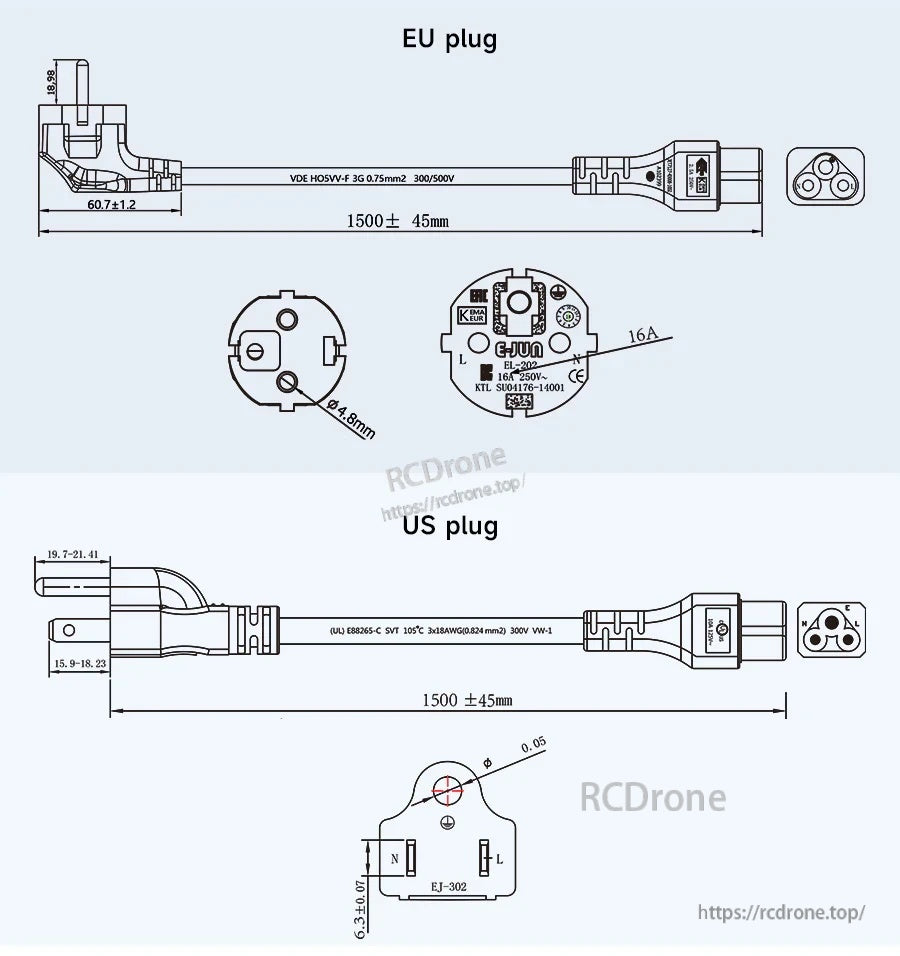

EU plug and US plug power cord dimension drawings, each with 1500±45mm cable length

Select the AC power cord type for your region, with separate EU and US plug options.

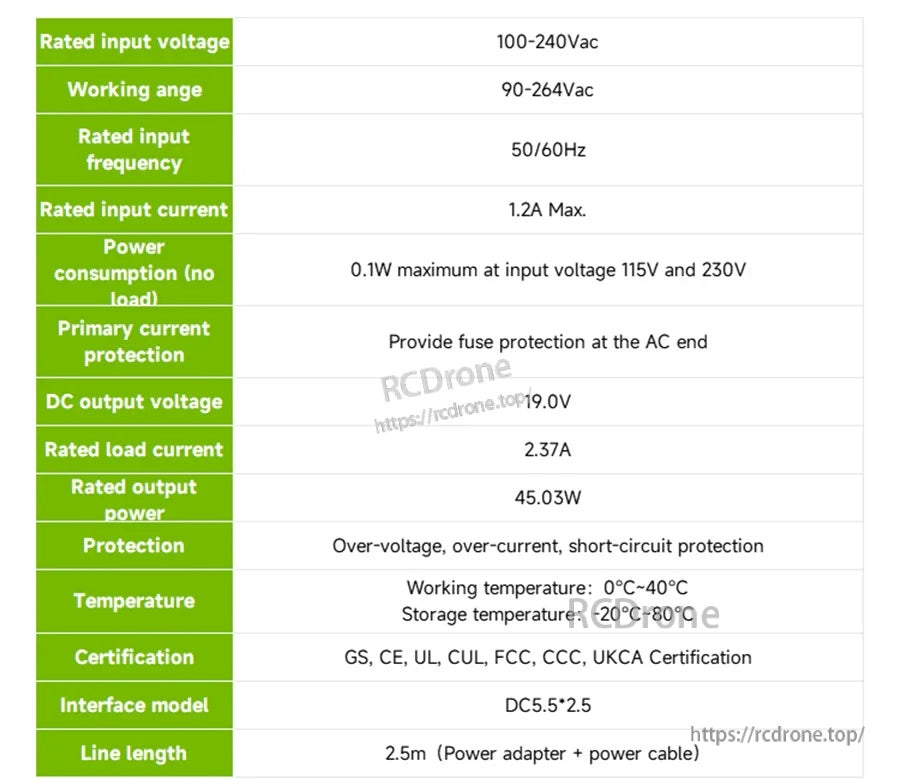

Specification table for 19V 2.37A adapter: 100–240Vac input, 45.03W output, protections, temperatures, 2.5m line

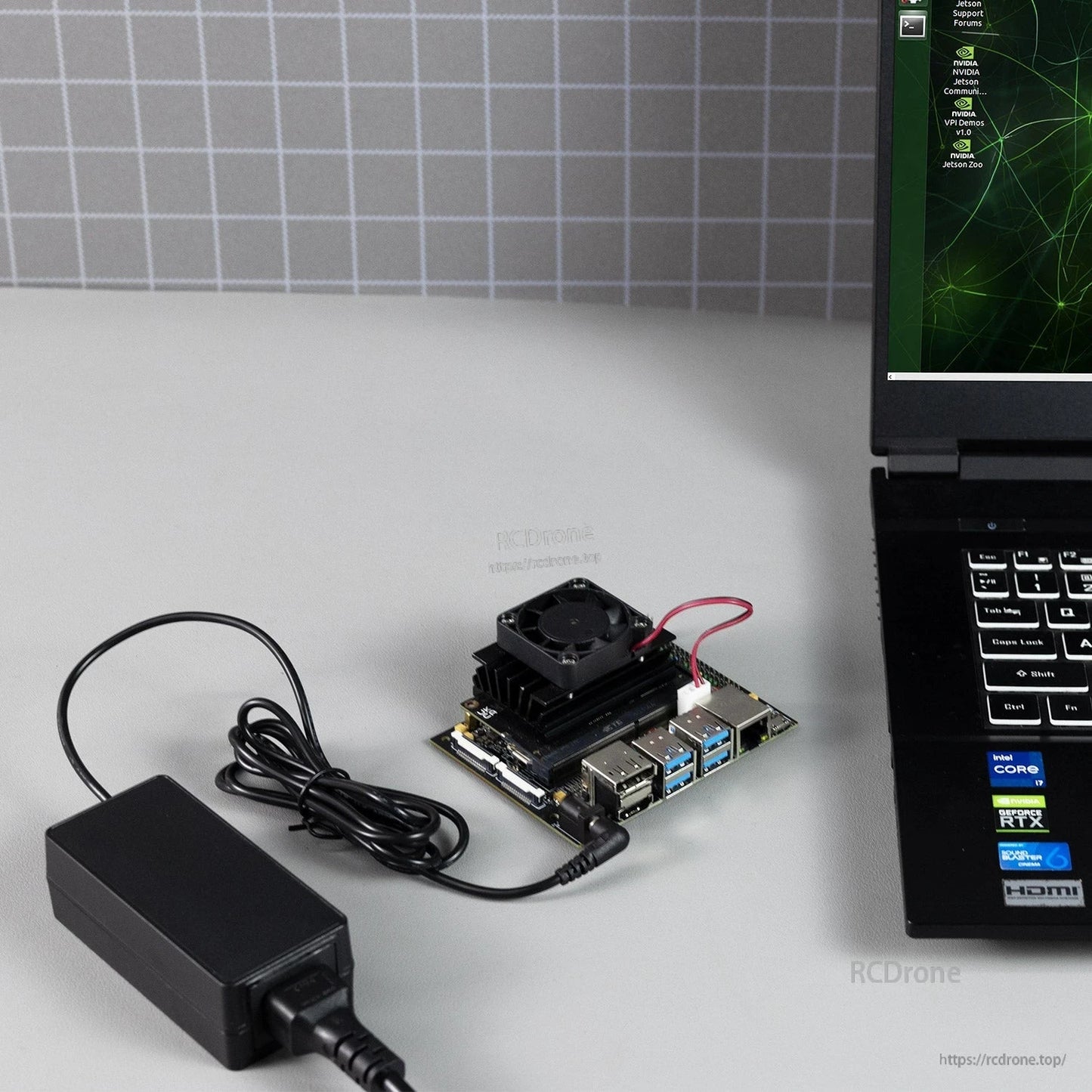

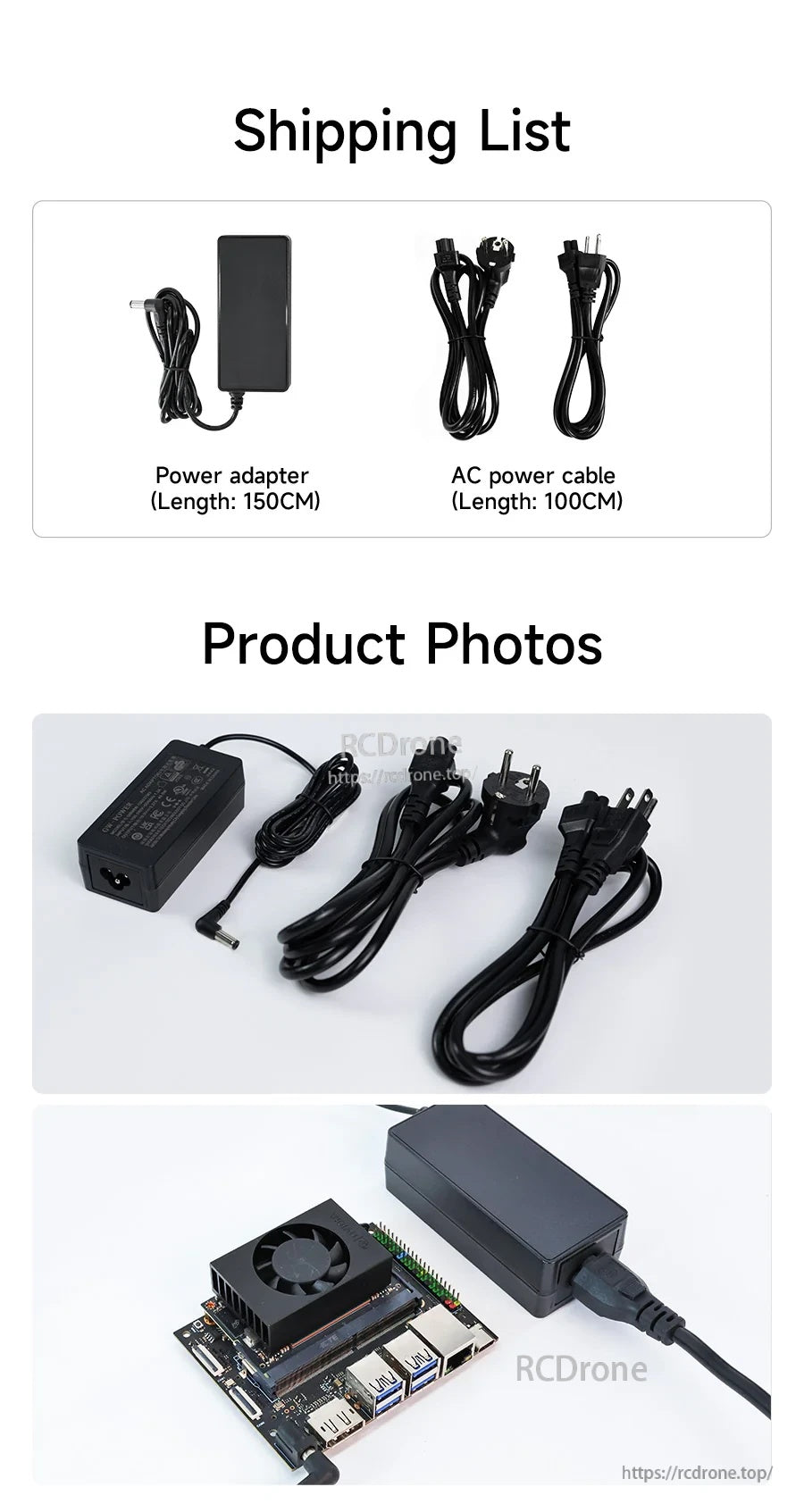

Shipping list includes power adapter and AC power cable, plus additional product photos with Jetson board connection

In the box: the power adapter and an AC power cable, ready to connect to supported Jetson platforms.
