FrSky X14RS 24CH ETHOS RC Transmitter, TD-ISRM RS 900M/2.4G Dual-Band, 3in Touchscreen

FrSky

$466.99 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

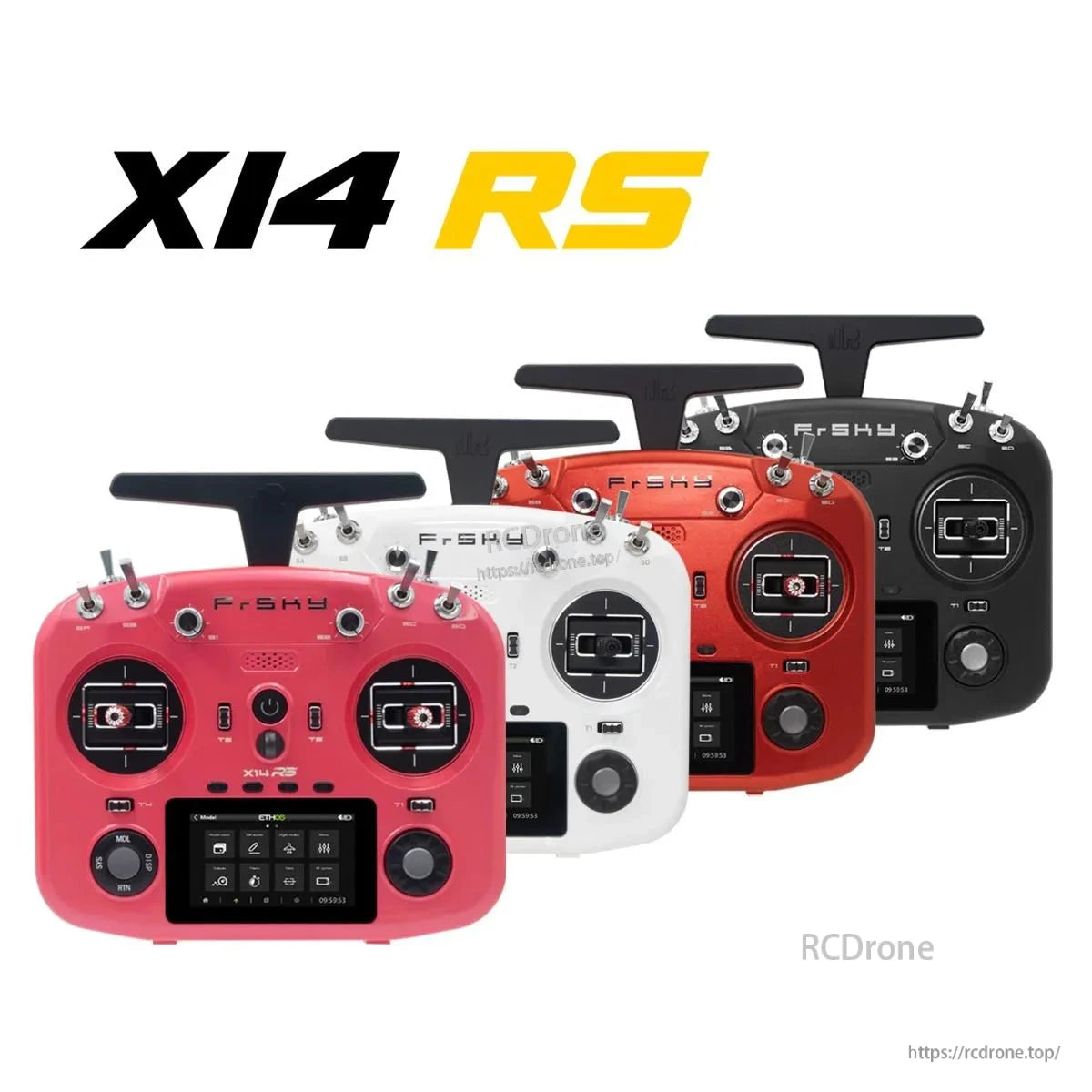

Color Black[03010280] Porcelain White[03010284] Pink[03010283] Ruby Red[03010286]

Mode Mode 1 (right hand throttle) Mode 2 (left hand throttle)

Version FCC(Non-EU) LBT(EU)

Cantidad

Ver todos los detalles

Overview

The FrSky X14RS is an ETHOS RC transmitter featuring the TD-ISRM RS built-in RF module for dual-band 900M/2.4G operation and multiple RF mode combinations. It supports protocols including ACCST D16 / ACCESS / TW / TD, and can work under ACCESS 2.4G and R9 modes simultaneously with the same module for redundancy via SBUS IN/OUT (ACCESS 2.4G receiver + R9 receiver).

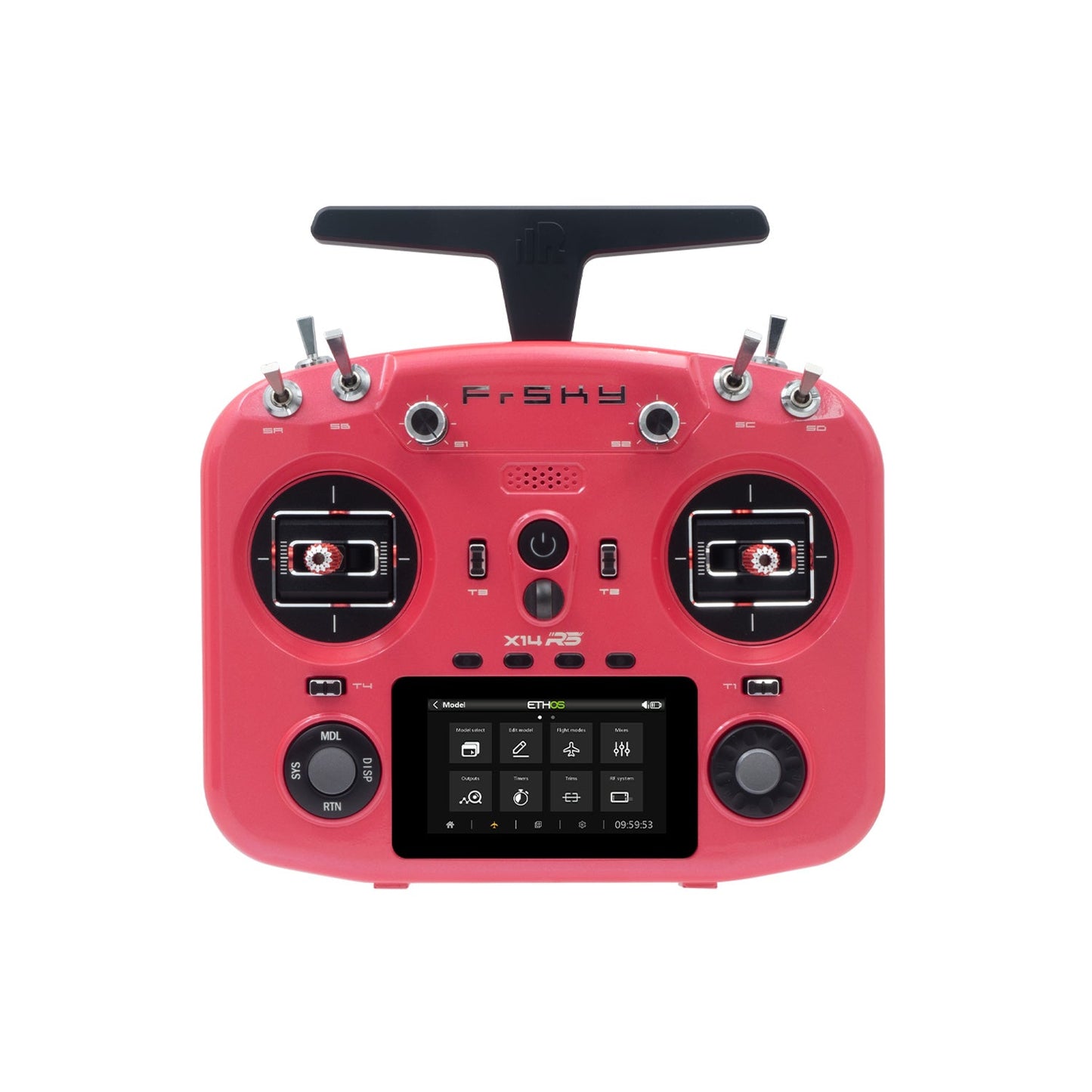

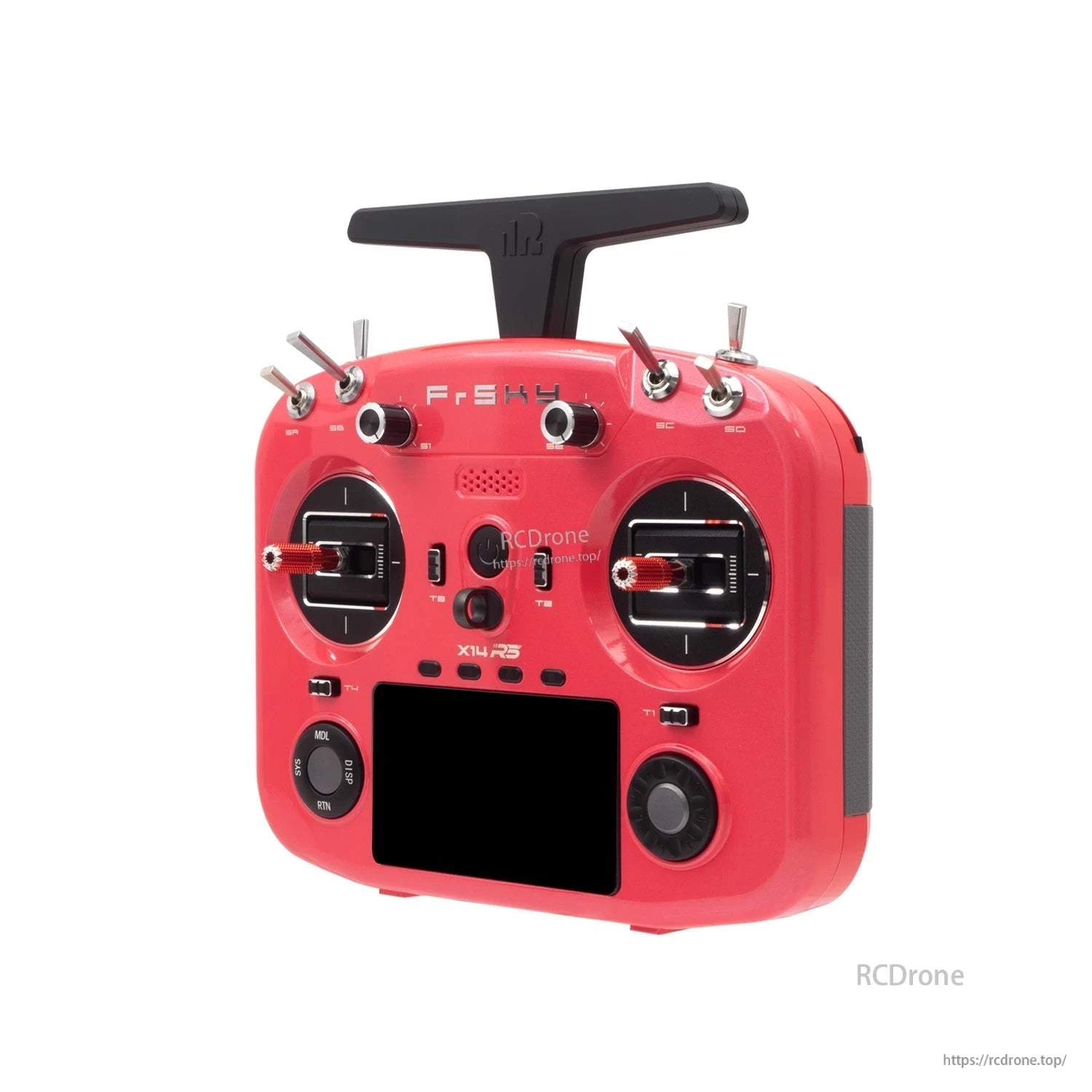

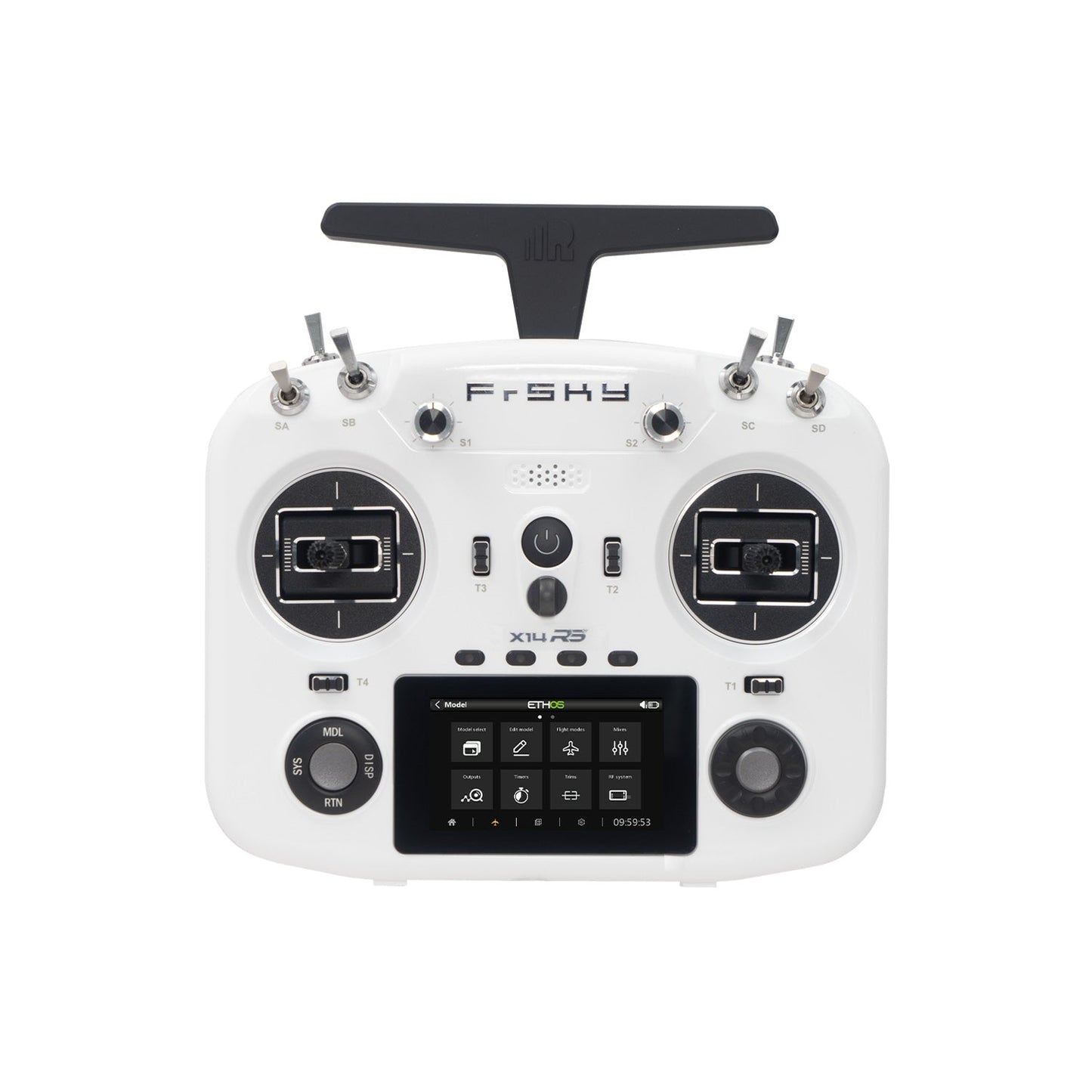

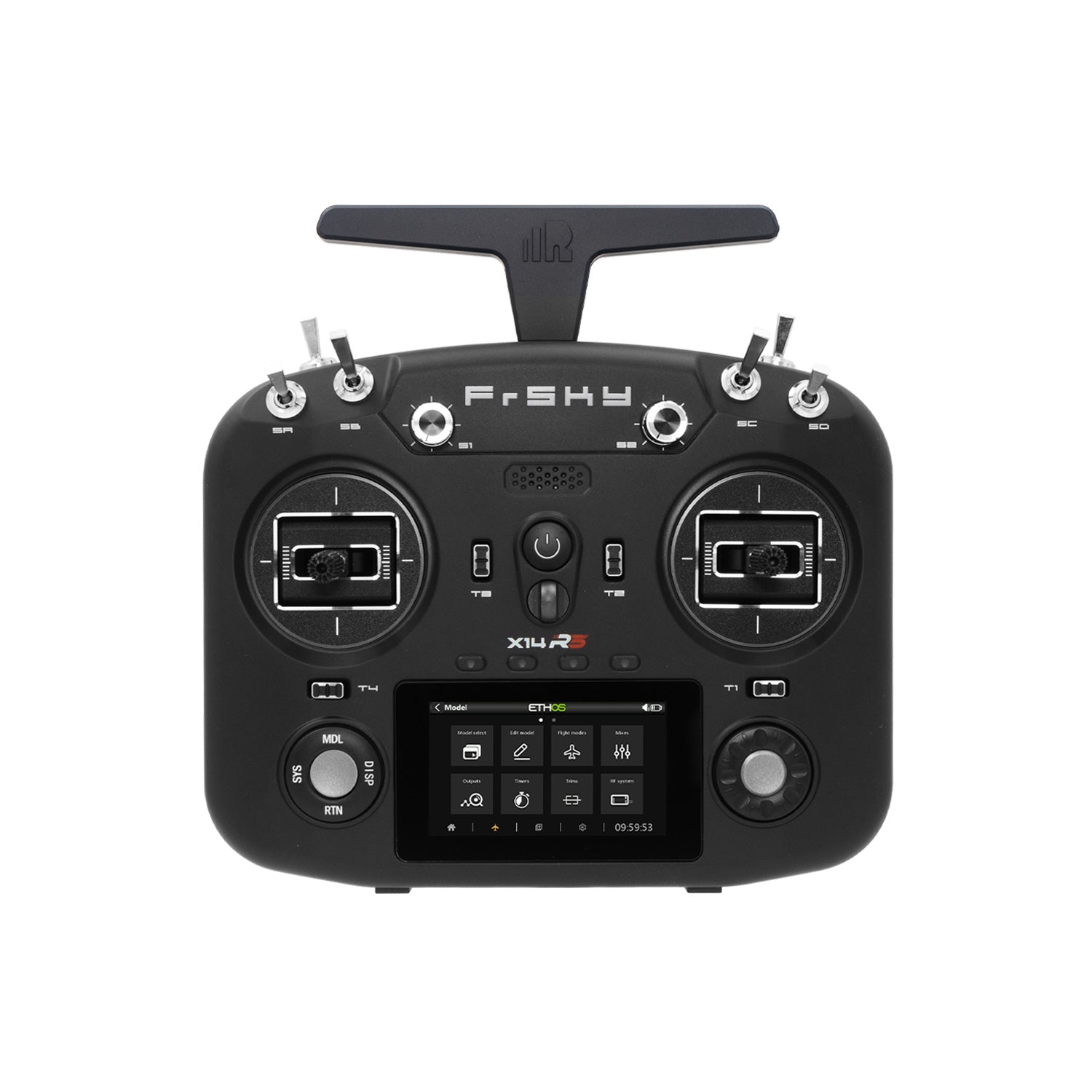

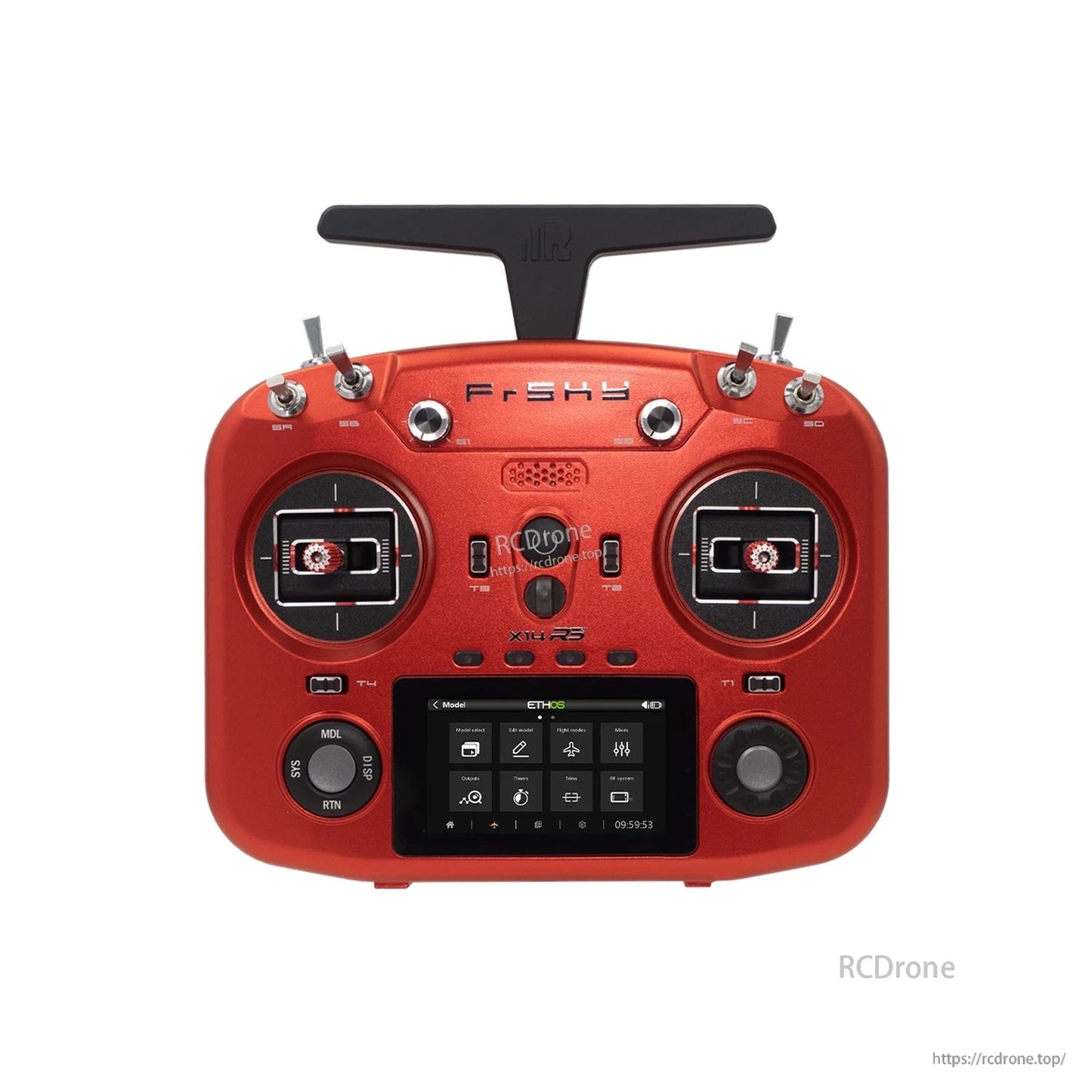

The compact X14-series form factor focuses on portability and ergonomics, with easy-to-reach top switches/sliders and a 3" 640x360 color TFT touchscreen. Control is delivered through MC18 all-CNC hall-sensor gimbals (10 ball-bearing) with a default 60° travel angle and optional adjustment to 45° on the Y-axis using a travel limiter tool (required).

Key Features

Built-in TD-ISRM RS dual-band internal RF module (900M/2.4G)
RF modes: 900M/2.4G Dual Band TD Mode; Dual 2.4G TW Mode; ACCESS 2.4G & ACCESS R9 Modes; 2.4G ACCST D16 Mode
Up to 24 channels
3" 640x360 color TFT touchscreen display
MC18 all-CNC high-precision hall-sensor gimbals with 10 ball-bearing; adjustable 45° / 60° stick travel (additional travel limiter tool required)
M4 all-around spiked anti-slip stick ends
Built-in 6-axis gyroscope sensor (motion control)
Haptic vibration alerts and voice speech outputs
Lite type external module bay
Built-in flash storage and TF card slot for storage extension
USB Type-C for data transmission and charging; supports 2S battery charging (Type-C)
High-speed PARA wireless training system (Bluetooth) and wired trainer function (DSC)

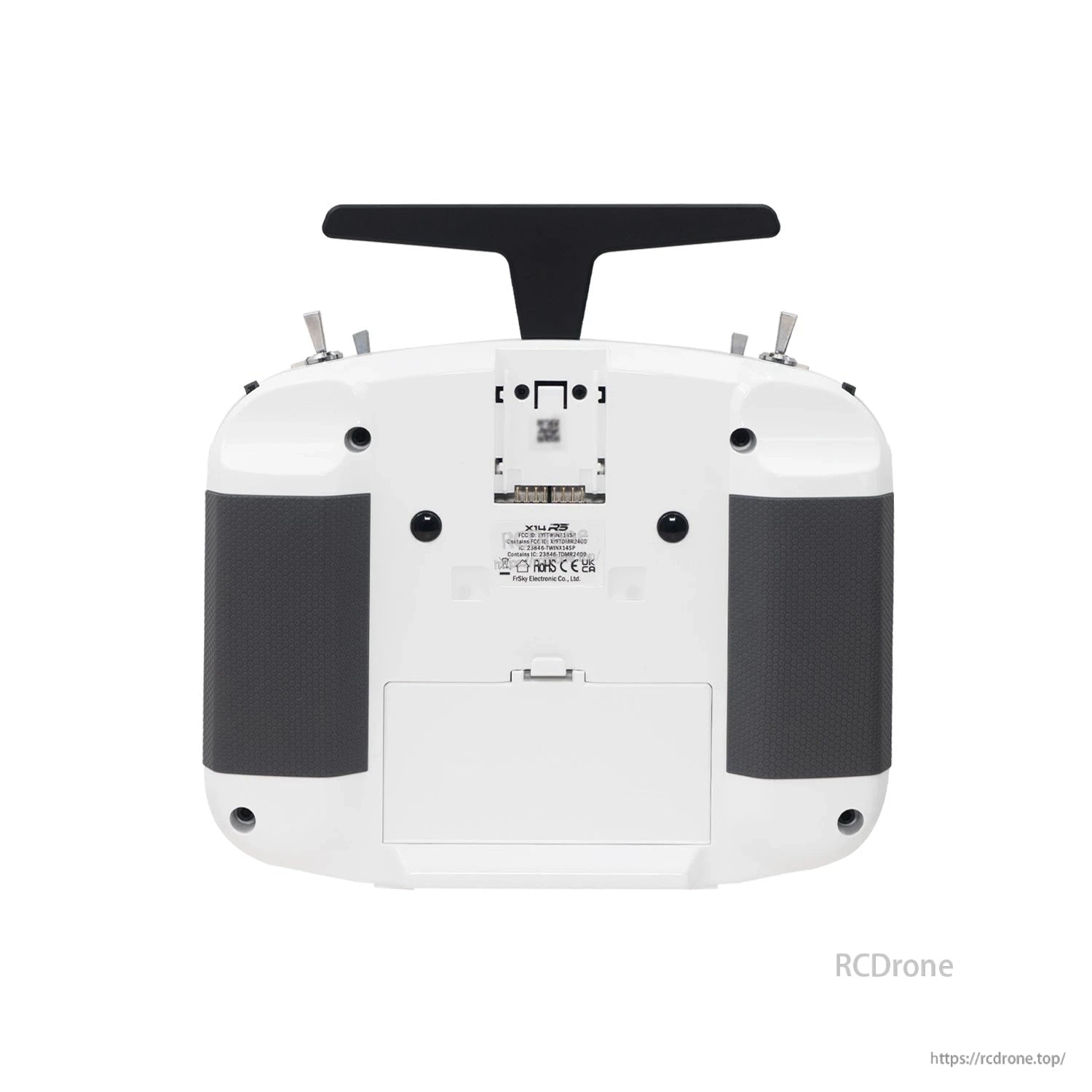

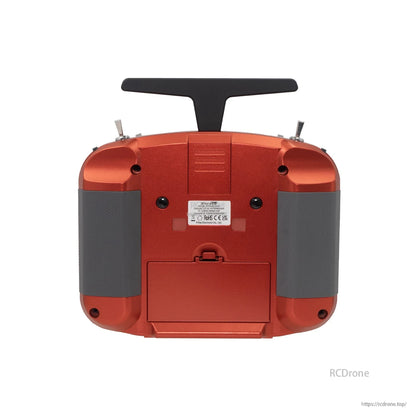

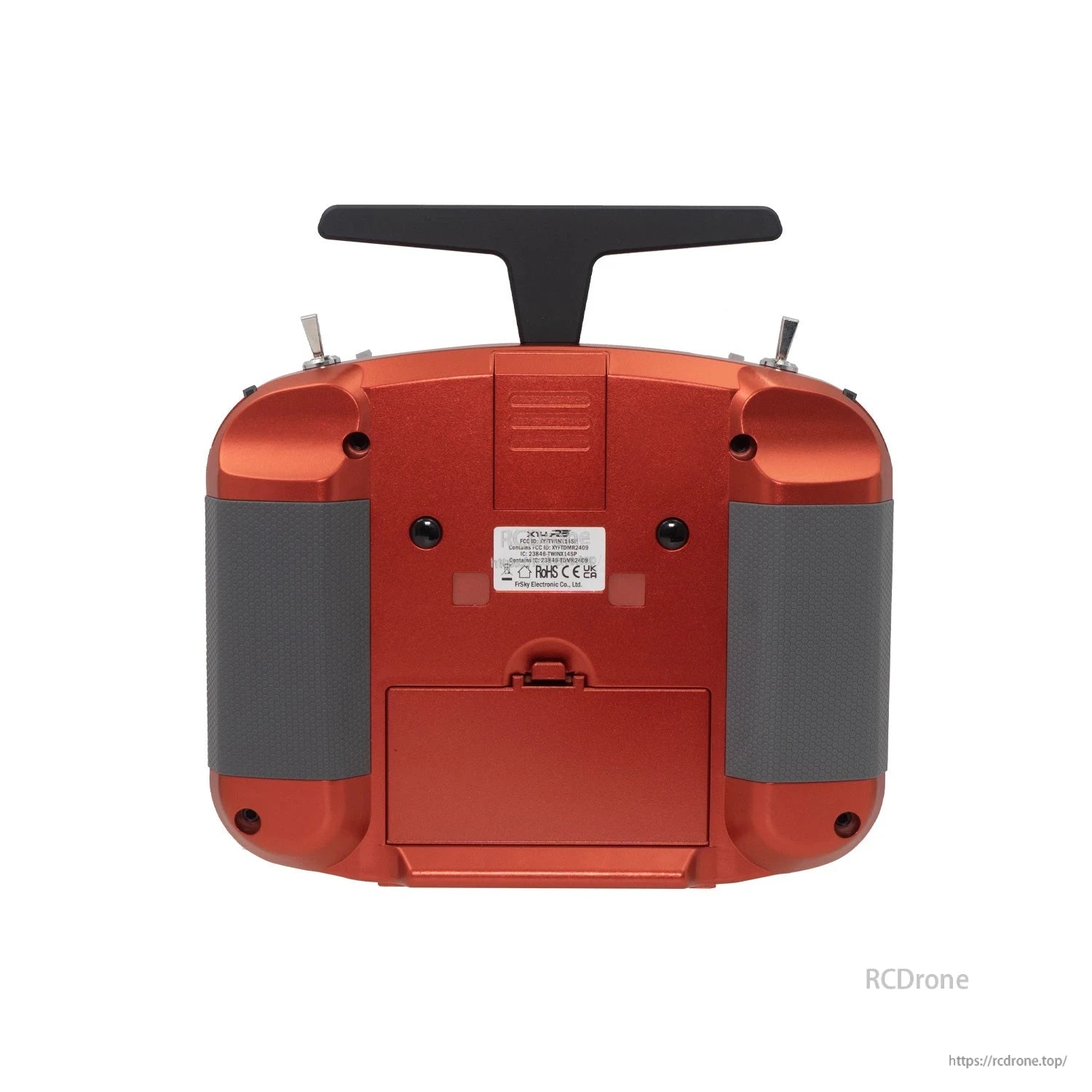

Attachable and foldable rear structure supports an optional CNC aluminum backshell stand holder

For configuration and after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

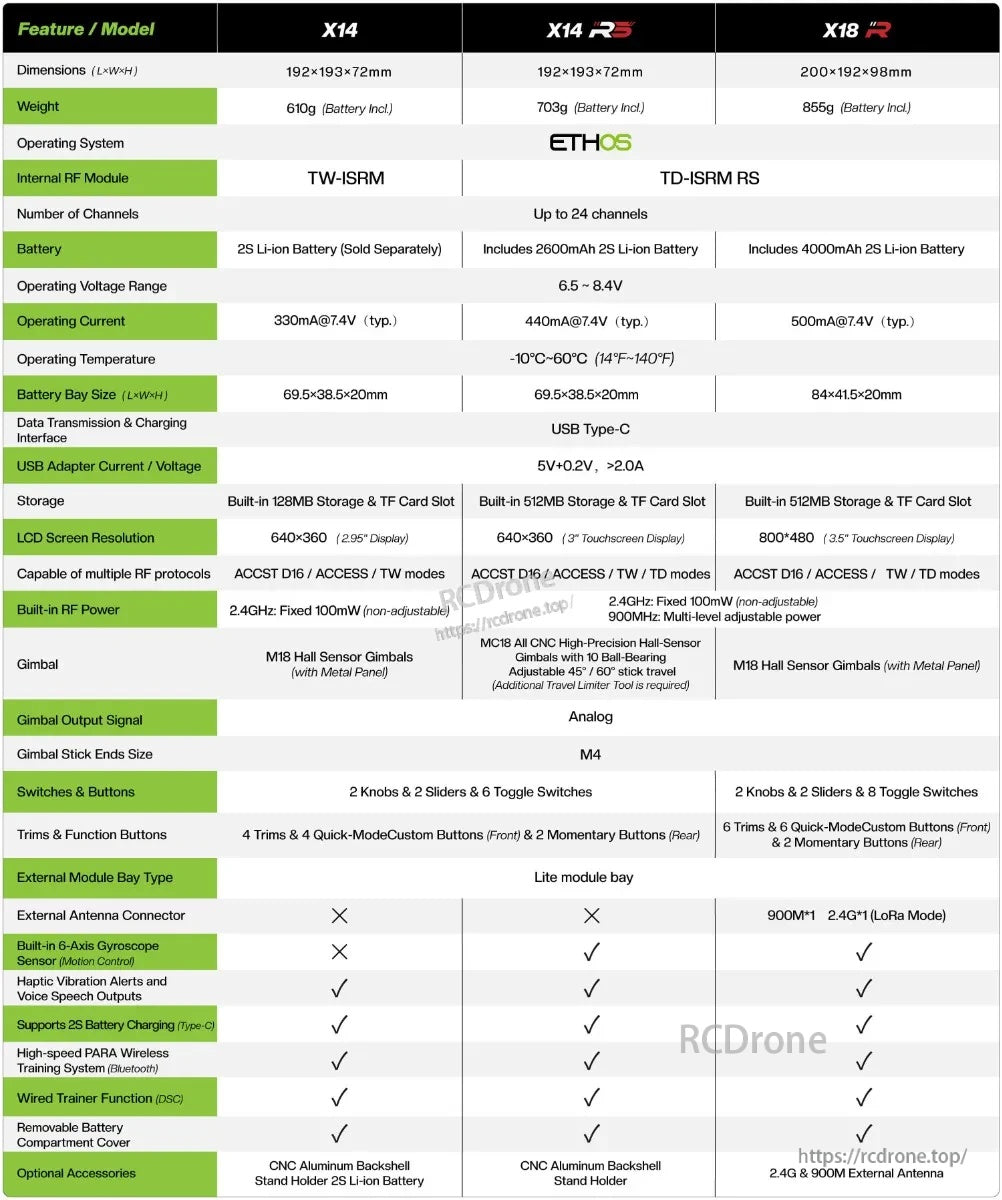

Specifications

Model	X14RS
Dimensions (L x W x H)	192 x 193 x 72 mm
Weight	703 g (battery included)
Operating System	ETHOS
Internal RF Module	TD-ISRM RS
RF Power	2.4 GHz: Fixed 100 mW (non-adjustable); 900 MHz: Multi-level adjustable power
Compatible RF Protocols / Modes	ACCST D16 / ACCESS / TW / TD modes
Number of Channels	Up to 24 channels
Display	3" color TFT touchscreen
Display Resolution	640 x 360
Operating Voltage Range	6.5 V to 8.4 V (2S Li-battery)
Operating Current	440 mA @ 7.4 V (typ.)
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Built-in Storage	512 MB flash storage + TF card slot
Battery	Includes 2600 mAh 2S Li-ion battery
Battery Bay Size (L x W x H)	69.5 x 38.5 x 20 mm
Data Transmission & Charging Interface	USB Type-C
USB Adapter Voltage / Current	5 V + 0.2 V, >= 2.0 A
Gimbals	MC18 all-CNC high-precision hall-sensor gimbals, 10 ball-bearing
Gimbal Stick Travel	Adjustable 45° / 60° (additional travel limiter tool required)
Gimbal Output Signal	Analog
Stick End Thread	M4
Switches & Buttons	2 knobs, 2 sliders, 6 toggle switches
Trims & Function Buttons	4 trims; 4 quick-mode custom buttons (front); 2 momentary buttons (rear)
External Module Bay Type	Lite module bay
External Antenna Connector	No

What’s Included

FrSky X14RS transmitter
2600 mAh 2S Li-ion battery

Applications

RC aircraft and gliders (including setups requiring redundant receiver backup via ACCESS 2.4G + R9)
RC models using ACCST D16 / ACCESS / TW / TD modes
Wireless or wired training setups (PARA wireless training / DSC trainer)
