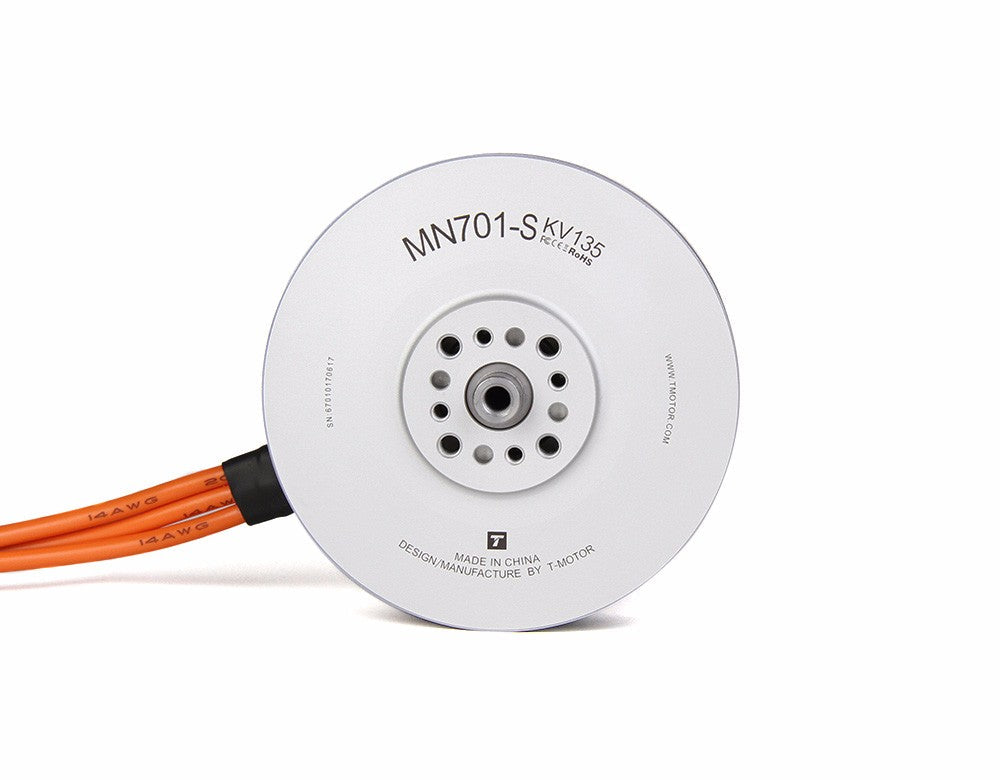

  • Top view of T-Motor MN701-S KV135 brushless motor with centered mounting hub and orange 14AWG leads
  • Silver T-Motor brushless drone motor with flat round housing, central bearing hub, and three orange wires

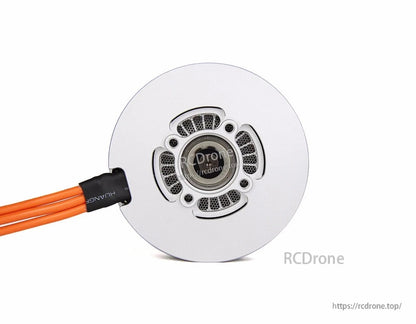

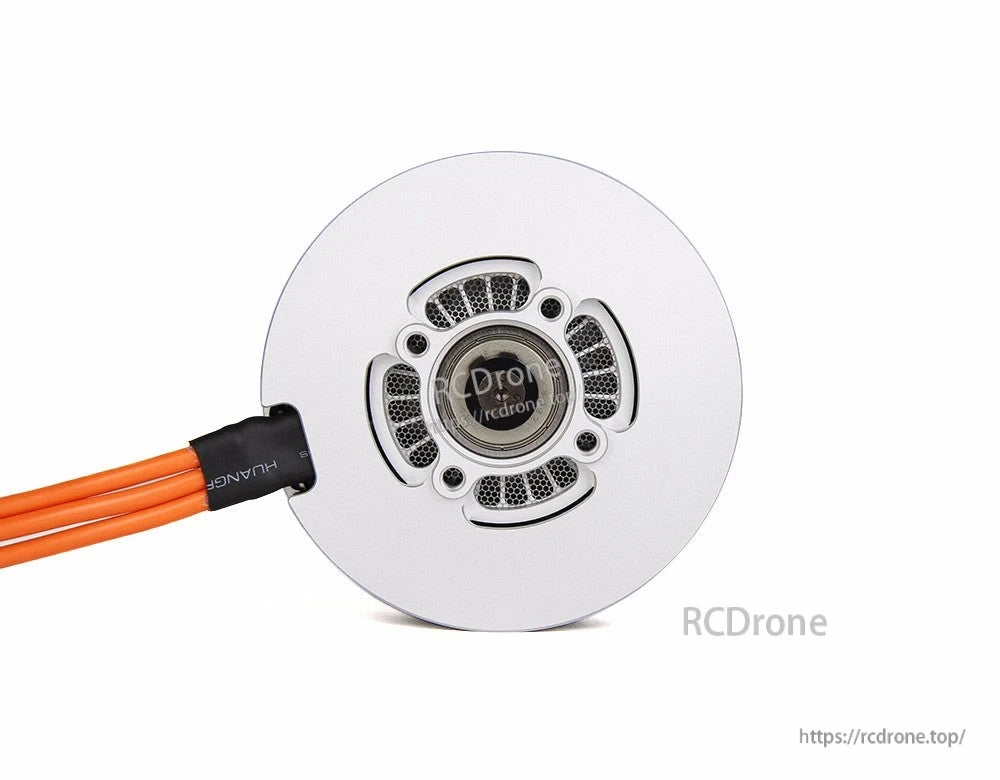

  • Round silver T-Motor brushless motor with vented housing and three orange power wires

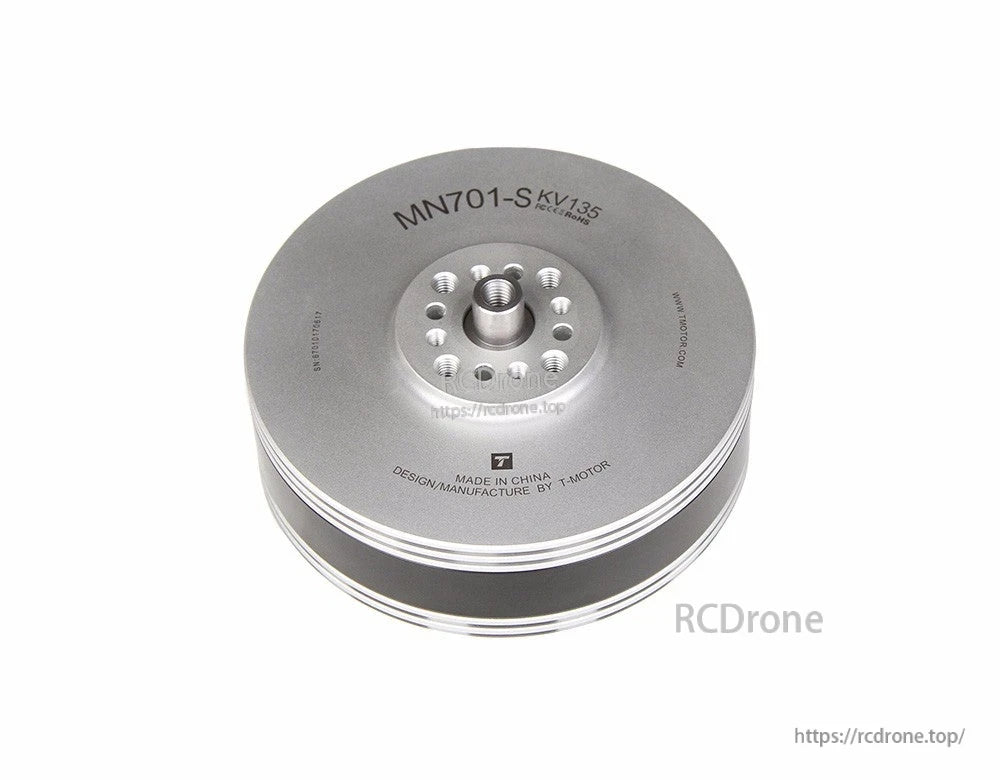

  • T-Motor MN701-S KV135 brushless drone motor top view with silver housing and multi-hole mounting hub

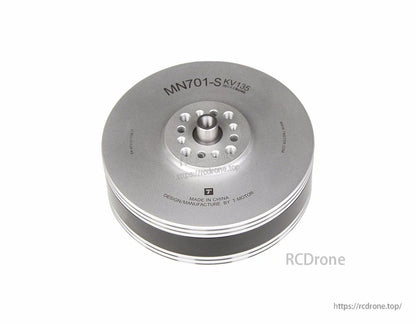

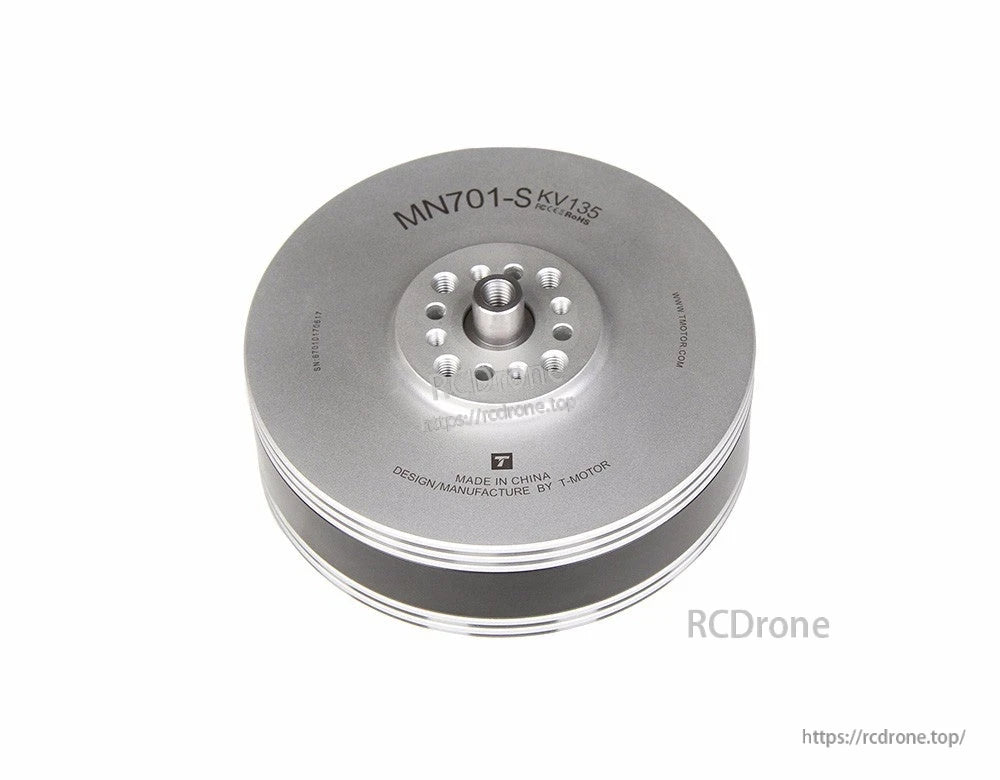

  • T-Motor MN701-S KV135 brushless drone motor top view with metal mounting hub and bolt holes
  • T-Motor MN701-S KV135 brushless outrunner motor with silver housing, mounting holes, and orange leads

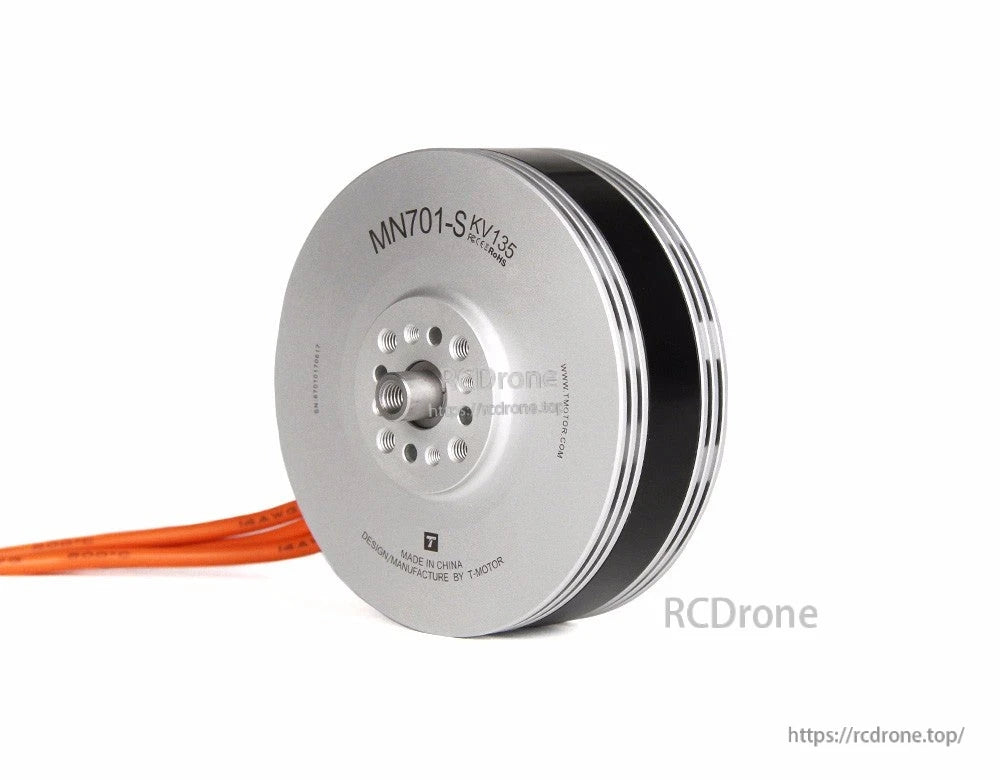

  • T-Motor MN701-S KV135 brushless outrunner motor with silver housing, front mount holes and orange leads

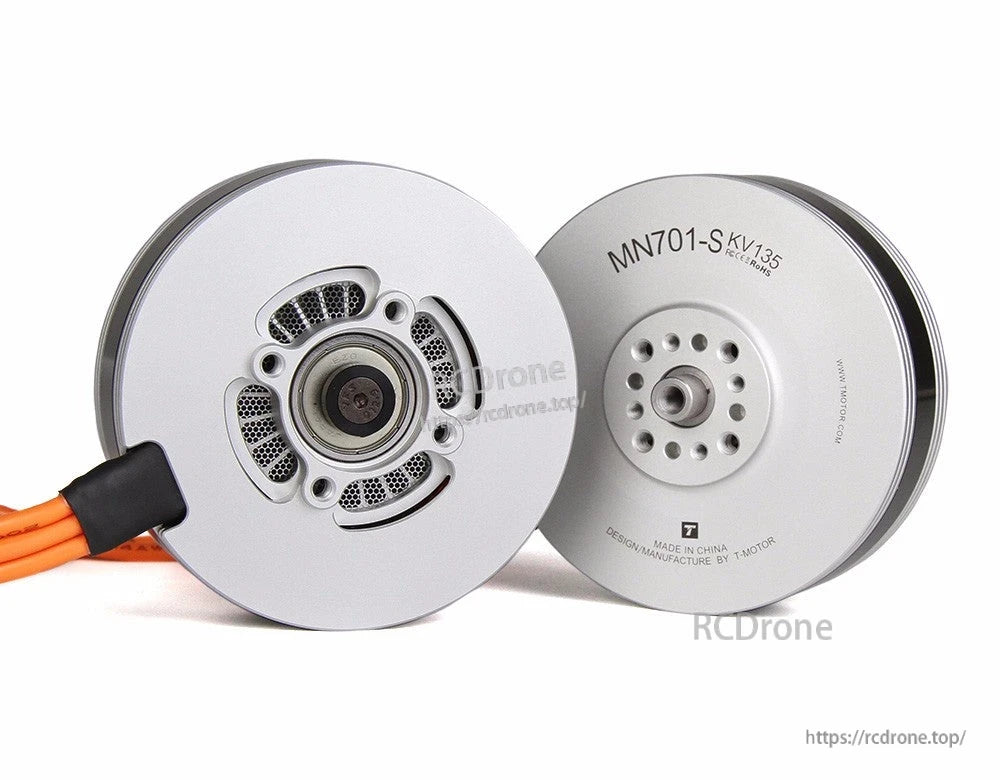

  • T-Motor MN701-S KV135 brushless drone motor, silver housing with mounting holes and orange leads
  • T-Motor MN701-S KV135 brushless drone motor in silver, showing front vented face and rear mounting holes
1 10

T-Motor MN701-S KV135 UAV Motor Set (2PCS) IP45 Brushless Motor for Multirotor/VTOL/Fixed Wing

T-Motor MN701-S KV135 UAV Motor Set (2PCS) IP45 Brushless Motor for Multirotor/VTOL/Fixed Wing

T-MOTOR

$615.97 USD
$615.97 USD
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Ver todos los detalles

Overview

The T-Motor Navigator MN701-S KV135 is a brushless UAV motor designed for multirotor, VTOL, and fixed-wing platforms. It features IP45 protection (dust-resistant, waterproof, anti-corrosion) and a cooling structure using a centrifugal fan, grid-shaped inlet holes, and a finned motor base for improved heat dissipation.

Key Features

  • Max thrust: 9.7 kg (9.7+ thrust stated)
  • Cooling design: heat dissipation performs 15% better than ordinary motors
  • Manual winding with special varnished wires of high temperature resistance
  • High-temperature resistant magnets for heat and overload resistance
  • IP45 protection grade: Waterproof, dust-resistant, anti-corrosion
  • Locking method: T-shape shaft secured with a circlip and a screw to help prevent rotor looseness under high RPM
  • 8 mm steel shaft and big bearings for impact resistance, stability, and lifetime
  • Curved magnet design: helps improve motor performance by 5%+
  • MTBF: about 1000 hours

Specifications

Brand T-Motor
Series Navigator
Model MN701-S
KV 135
Protection grade IP45
Max thrust 9.7 kg (9.7+ thrust stated)
Heat dissipation improvement 15% better than ordinary motors
Performance improvement (magnetic circuit) 5%+
Shaft 8 mm steel shaft
MTBF About 1000 hours

Applications

  • Multirotors, VTOL, fixed-wing UAVs
  • Aerial photography (general use)
  • Cargo drones, tethered platforms, mapping, and inspection

What’s Included

  • 2x T-Motor MN701-S KV135 brushless motor (2PCS/SET)
  • 1x Hardware pack

Matching Guide

  • T-MOTOR G26*8.5 Prop

For pre-sales compatibility checks and bulk orders, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

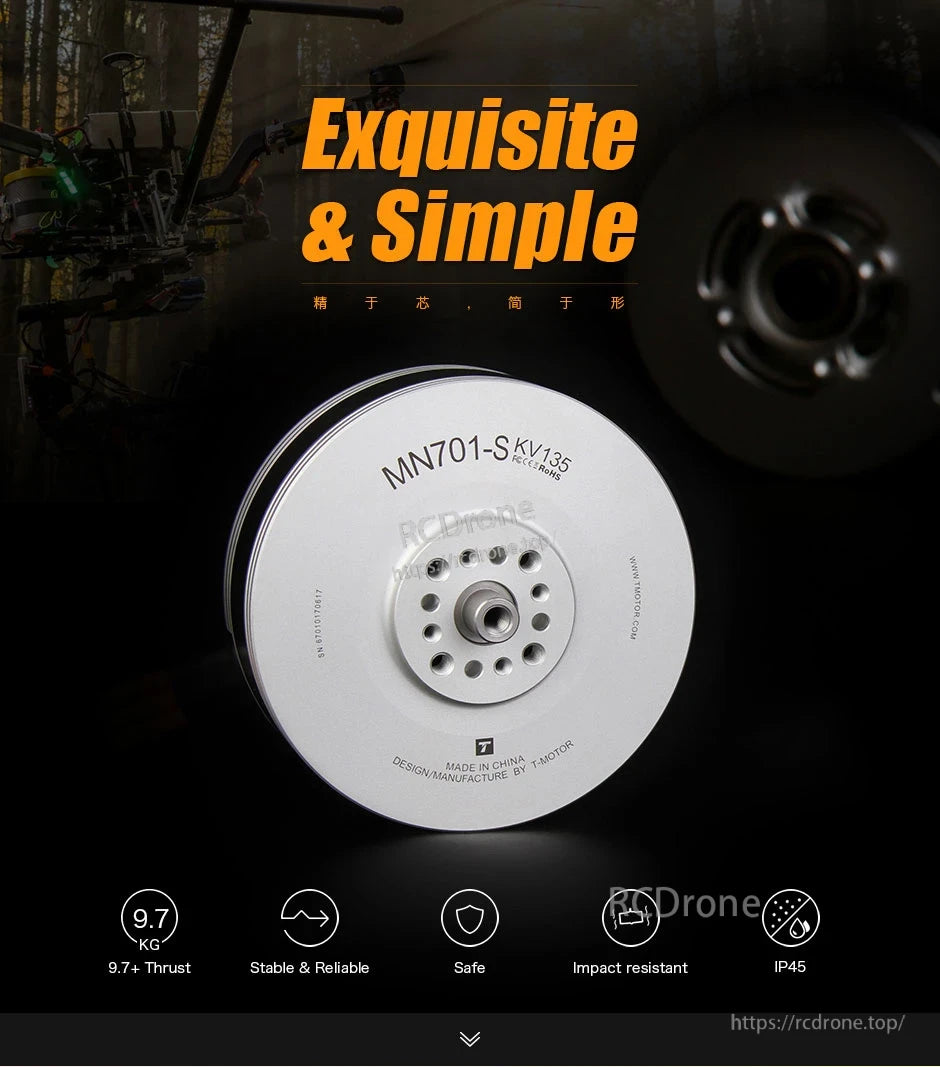

T-Motor MN701-S KV135 motor front view with silver housing, mounting holes, and IP45 rating icons

The T-Motor MN701-S KV135 motor has a clean, simple mounting face and an IP45 rating for added protection in outdoor setups.

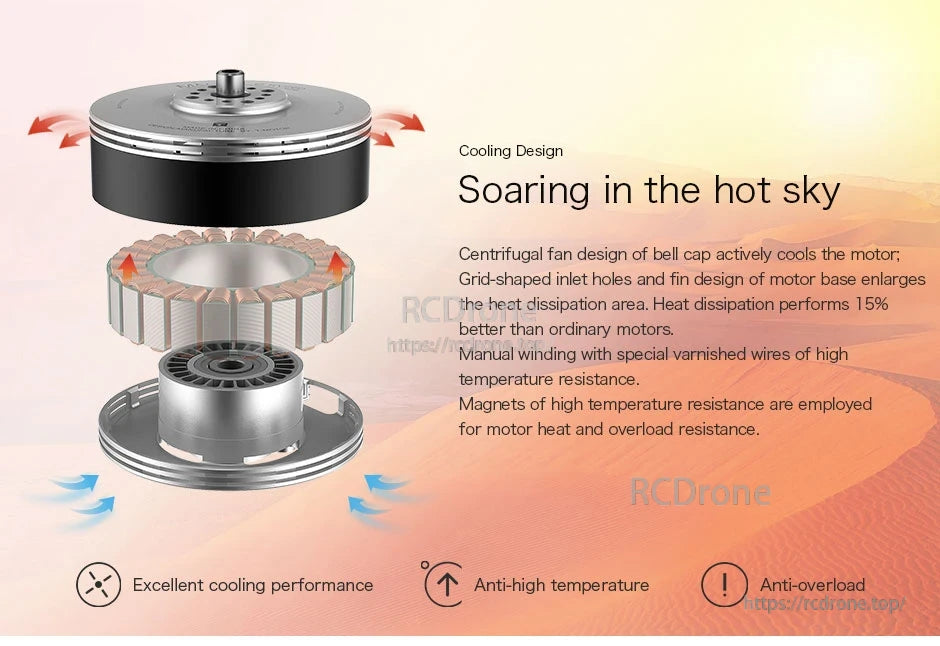

Exploded view of a T-Motor showing centrifugal fan bell cap, grid inlet holes, and finned base for cooling

The T-Motor features a cooling-focused construction with a centrifugal fan bell cap, grid-style inlet holes, and finned motor base to help dissipate heat.

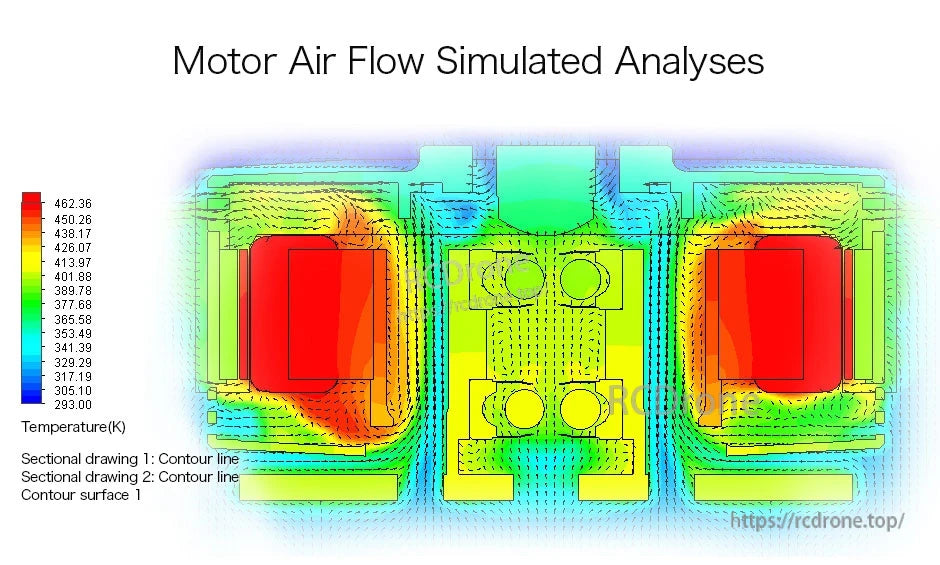

T-Motor, Motor airflow and temperature simulation diagram with heat map scale in Kelvin and contour lines

A motor airflow simulation map visualizes heat distribution and air path patterns using a Kelvin temperature scale.

T-Motor MN701S motor infographic showing IP45 protection grade with waterproof, dust-resistant, and anti-corrosion icons

T-Motor MN701S motor protection is listed as IP45 with waterproof, dust-resistant, and anti-corrosion design features.

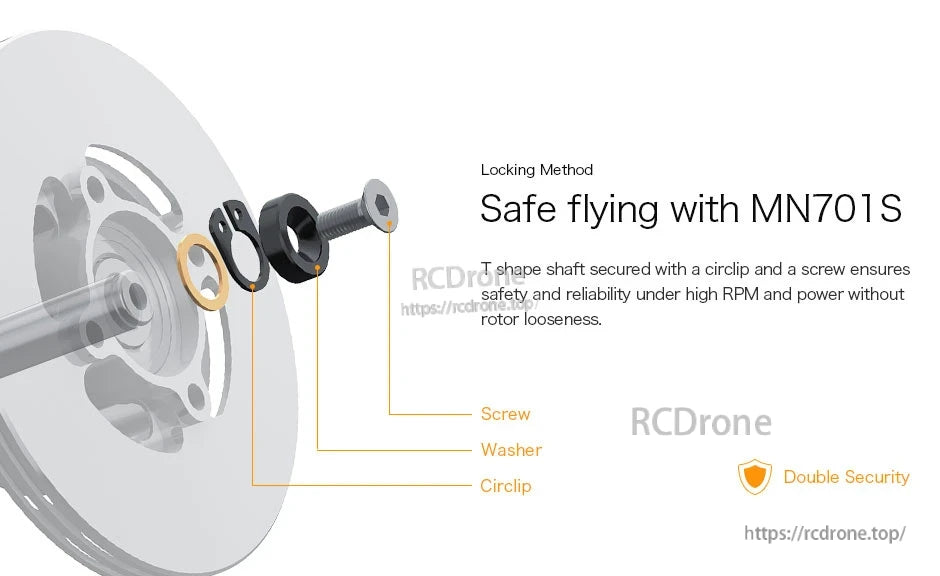

T-Motor, Exploded view of MN701S motor shaft locking method with screw, washer, and circlip for secure rotor retention

The MN701S uses a T‑shape shaft locking method with a circlip, washer, and screw to help keep the rotor securely fastened.

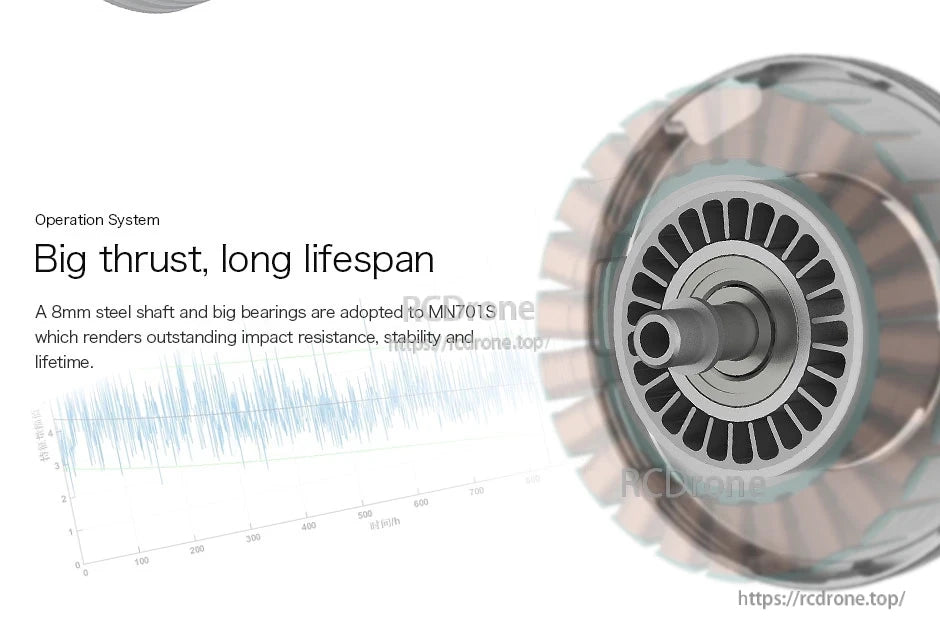

Cutaway view of T-Motor MN701S showing 8mm steel shaft and large bearing design for durability

The MN701S uses an 8mm steel shaft and large bearings to support stable operation and extended service life.

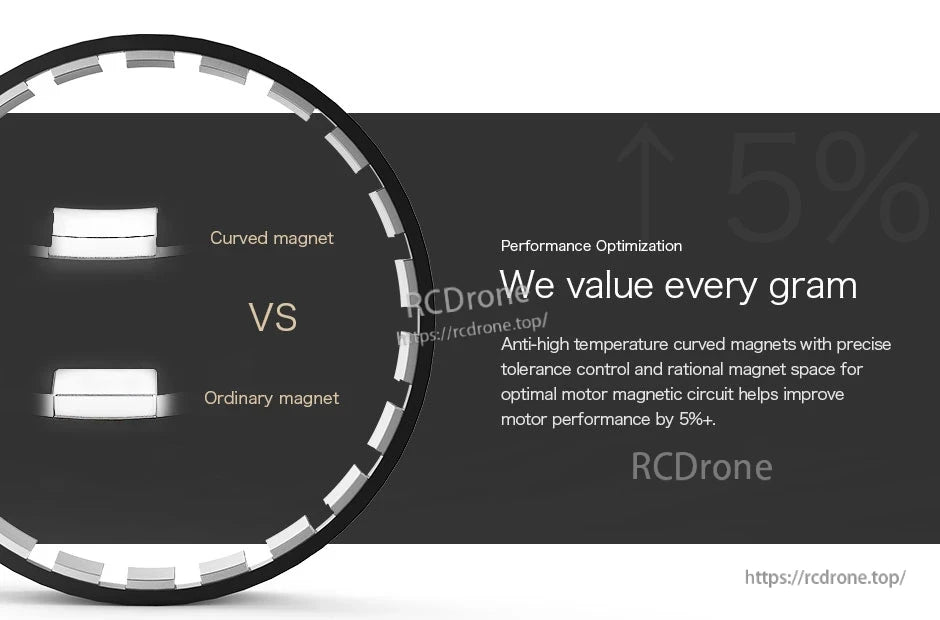

T-Motor graphic comparing curved magnets vs ordinary magnets, noting performance optimization and 5%+ improvement

T-Motor uses curved magnets with precise tolerance control to optimize the magnetic circuit for a claimed 5%+ performance improvement.

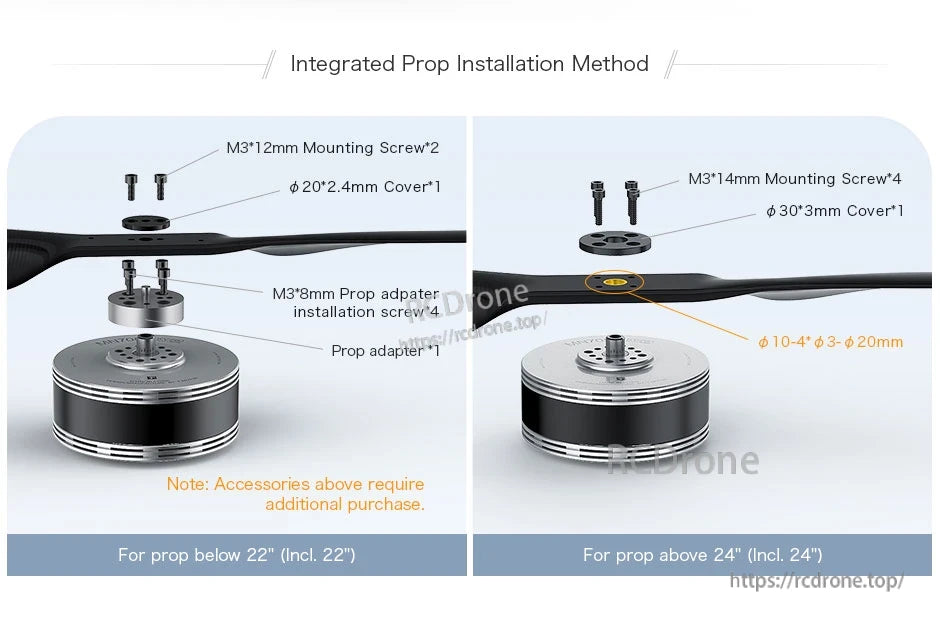

T-Motor, Integrated prop installation method diagram with prop adapter, covers, and M3 mounting screws for different prop sizes

Integrated prop mounting uses a prop adapter with M3 screws and different cover sizes depending on prop diameter (below 22" or above 24").

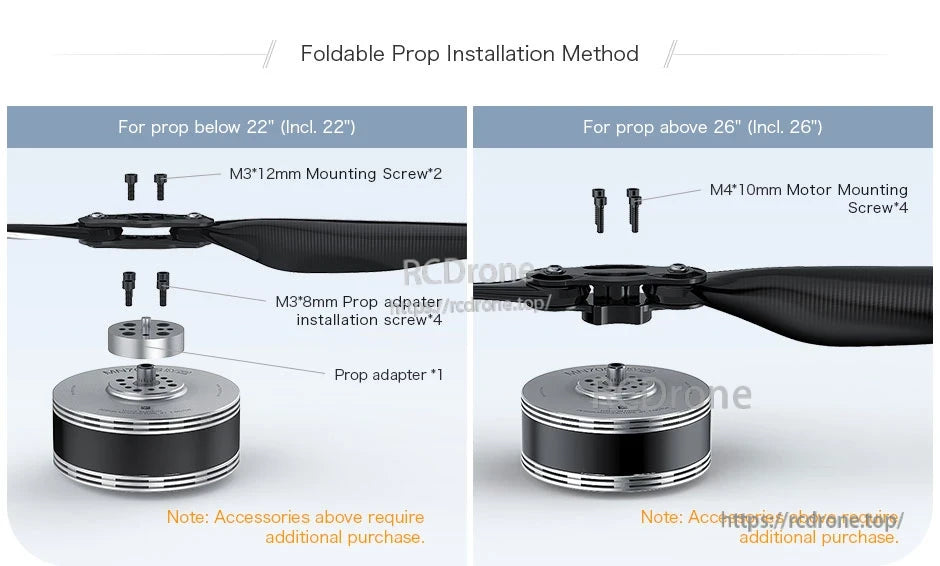

T-Motor foldable prop installation guide showing M3 and M4 mounting screws and optional prop adapter for different prop sizes

Foldable prop installation uses different mounting screws depending on prop size, with an optional prop adapter and M3 hardware for 22-inch and smaller props and M4 screws for 26-inch and larger props.

T-Motor MN701-S KV135 brushless drone motors with ALPHA 80A HV FOC ESC and wiring leads

T-Motor MN701-S KV135 motors pair with the ALPHA 80A HV FOC ESC for a clean, straightforward power setup.
