X-A12XL-14S
MODULAR Propulsion System
X-A12XL-14S
MOTOR
14S FOC 200A
ESC
PFZ4918P
PROPELLER
X-A12XL-14S Recommendations
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter

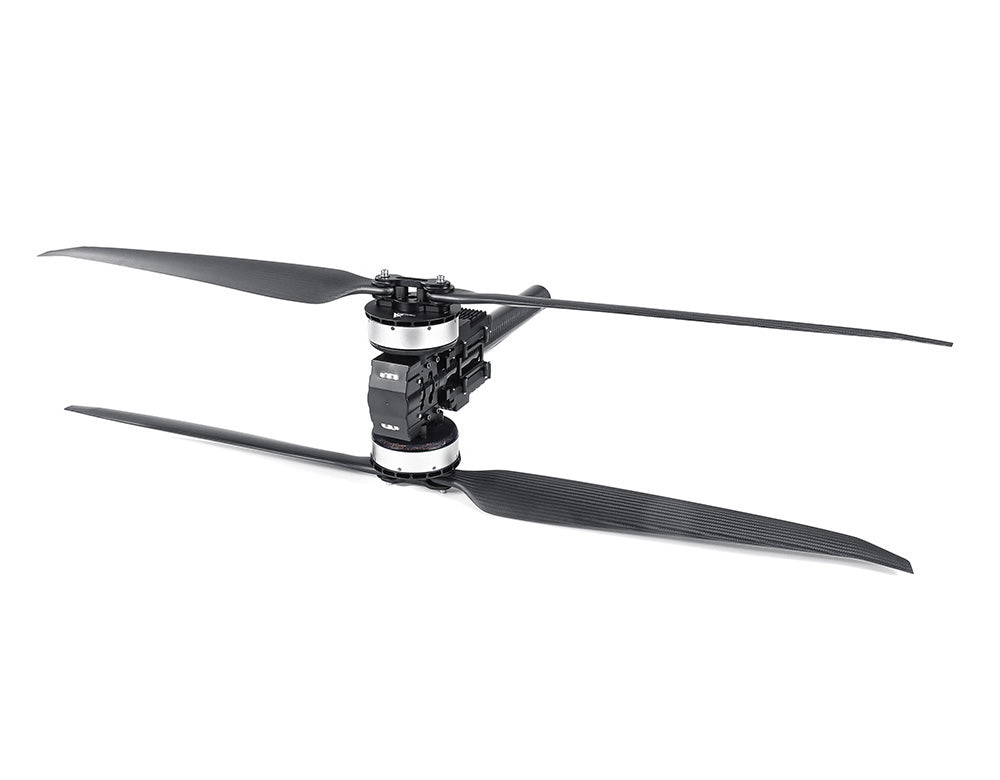

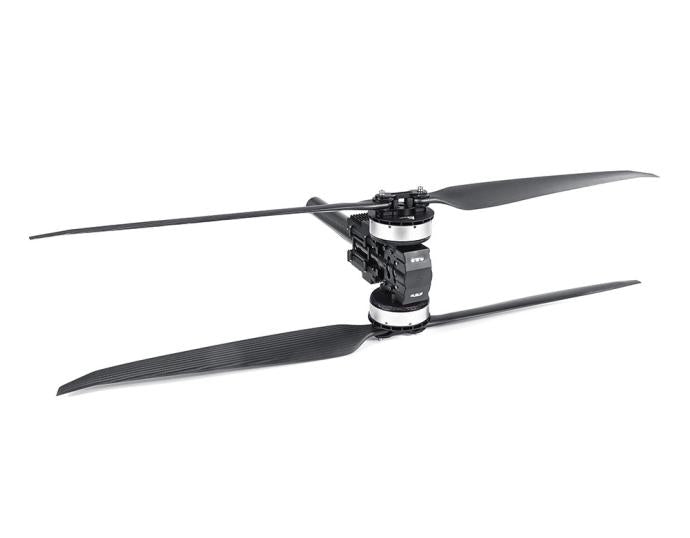

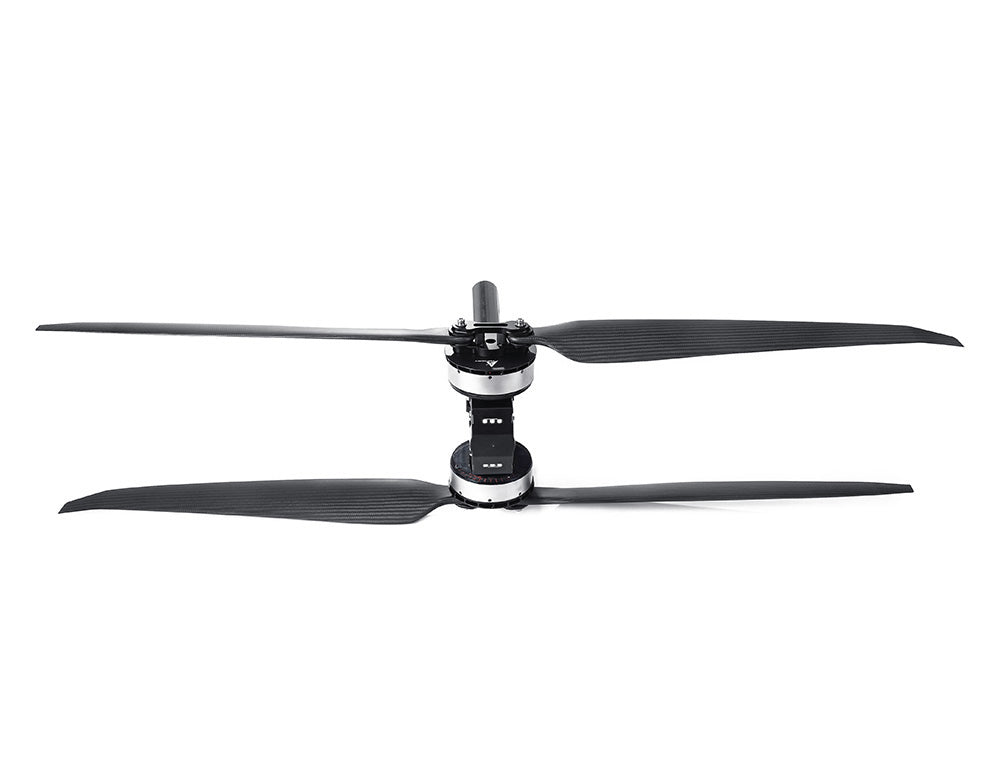

T-Motor X-A12XL 14S UAV Coaxial Modular Propulsion System
T-Motor X-A12XL 14S UAV Coaxial Modular Propulsion System
T-MOTOR
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
por
Impuestos incluidos.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Specifications
Technical Drawing
Specification
| Model No. | X-A12XL KV77 | Tube size | 50mm |
| Setup | X-A12XL-14S (Motor)+14S FOC 200A (ESC) +PFZ4918P (Prop) |
Wire material, wire gauge, color |
Power wires: 10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 12~14S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 30~35kg | Weight | 5170±2%g (incl. Wires+prop) |
| Efficiency at rated thrust | 7.4g/W (32kg) | IP | IPX6 |
| Max. thrust | 69.7kg | Recommended ambient temperature |
-20～55℃ |
| Motor specs. | |||
| Stator size | 111*22mm | KV | 77 |
| ESC specs. | |||
| Throttle range | 1100~1940us | Max. voltage | 61V |
| Protocol | DRONE CAN、 UAV CAN、 CUBE CAN |
Peak current (for a short time) |
200A (Open environment and temperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | PFZ4918P (Carbon Fiber Folding) | Length | 49 inch (1244.6mm) |
Analysis Chart
Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
