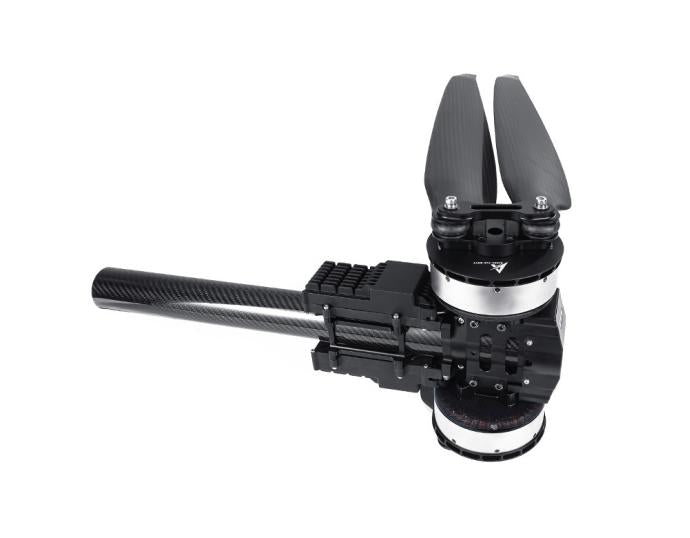

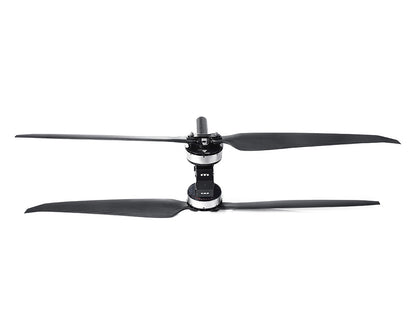

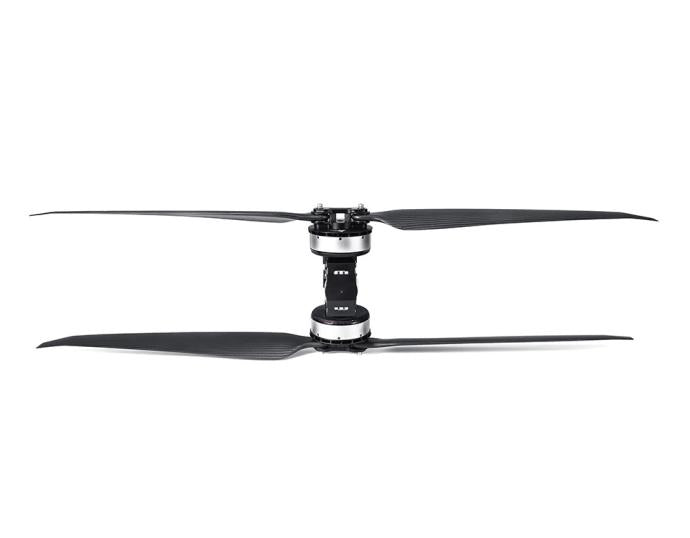

T-Motor X-A12XL-24S UAV Coaxial Modular Propulsion System

T-Motor X-A12XL-24S UAV Coaxial Modular Propulsion System

T-MOTOR

$0.00 USD
$0.00 USD
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Ver todos los detalles
X-A12XL-24S
MODULAR Propulsion System
X-A12XL-24S
X-A12XL-24S
MOTOR
24S FOC 120A
ESC
PFZ4918P
PROPELLER

X-A12XL-24S Recommendations
Take-off weight
120kg
Quadcopter

Take-off weight
180kg
Hexacopter

Specifications

Technical Drawing


Specification
Model No. X-A12XL KV48 Tube size 50mm
Setup X-A12XL-24S (Motor)+24S FOC 120A (ESC)
+PFZ4918P (Prop)		 Wire material,
wire gauge, color		 Power wires: 10#AWG red & black
Signal wires: 5P Teflon
Recommended battery 20~24S (LiPo) Wire length 1700±5mm
Rated thrust 30~35kg Weight 5170±2%g (incl. Wires+prop)
Efficiency at rated thrust 7.5g/W (33kg) IP IPX6
Max. thrust 73.3kg Recommended ambient
temperature		 -20～55℃
Motor specs.
Stator size 111*22mm KV 48
ESC specs.
Throttle range 1100~1940us Max. voltage 100V
Protocol DRONE CAN、 UAV CAN、
CUBE CAN		 Peak current
(for a short time)		 120A
(Open environment
and temperature≤60℃)
Control method PWM/CAN BEC NO
Prop specs
Model No. PFZ4918P (Carbon Fiber Folding) Length 49 inch (1244.6mm)
Analysis Chart

Load curve

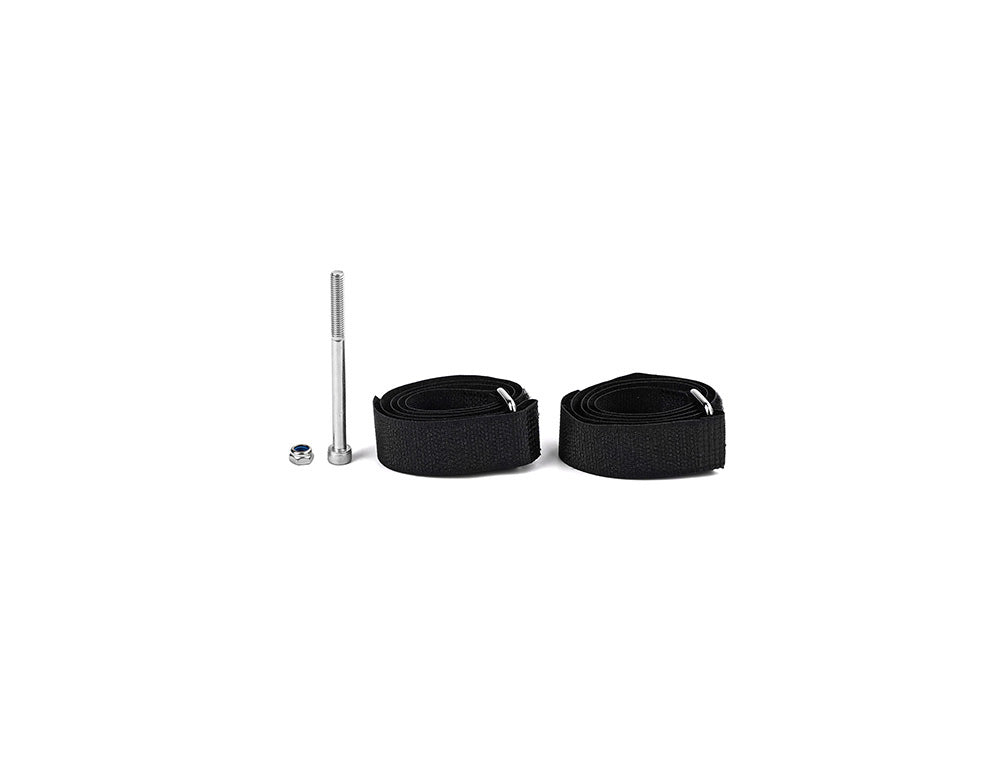

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@tmotor.com " in time.
