Surpass Hobby KK 120A / 150A Waterproof Brushless ESC for 1/8 RC Car, 3-6S LiPo, XT60/T Plug

Surpass Hobby

$67.00 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

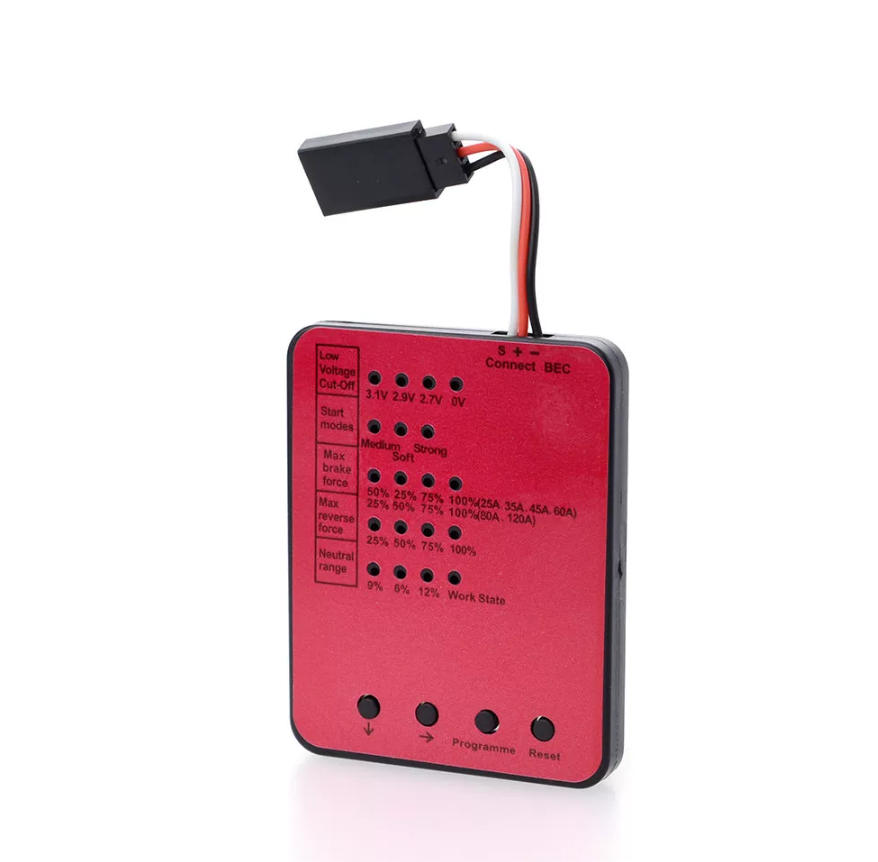

Options 120A ESC (T Plug) 120A ESC (XT60 Plug) 150A ESC (T Plug) 150A ESC (XT60 Plug) Programming Card

Cantidad

Ver todos los detalles

Overview

Surpass Hobby KK series waterproof brushless ESC for car applications, offered in KK120A and KK150A versions for 1/8 scale RC cars. It is designed for sensorless brushless motors and supports 3–6S LiPo (or 9–18 cell NiMH) power setups.

Key Features

Waterproof and dust-proof design for all-weather racing use
Designed for RC cars with strong start-up response, acceleration, and linear throttle feel
Compatible with sensorless brushless motors
Cooling-focused structure for heat dissipation
Protection functions include low-voltage cut-off protection
Battery connector options: T Plug or XT60 Plug (variant-dependent)
Standard RC connections: 3 motor wires, receiver lead, and external switch

Note: After running in water, clean and dry the ESC and connectors promptly to help prevent connector rust.

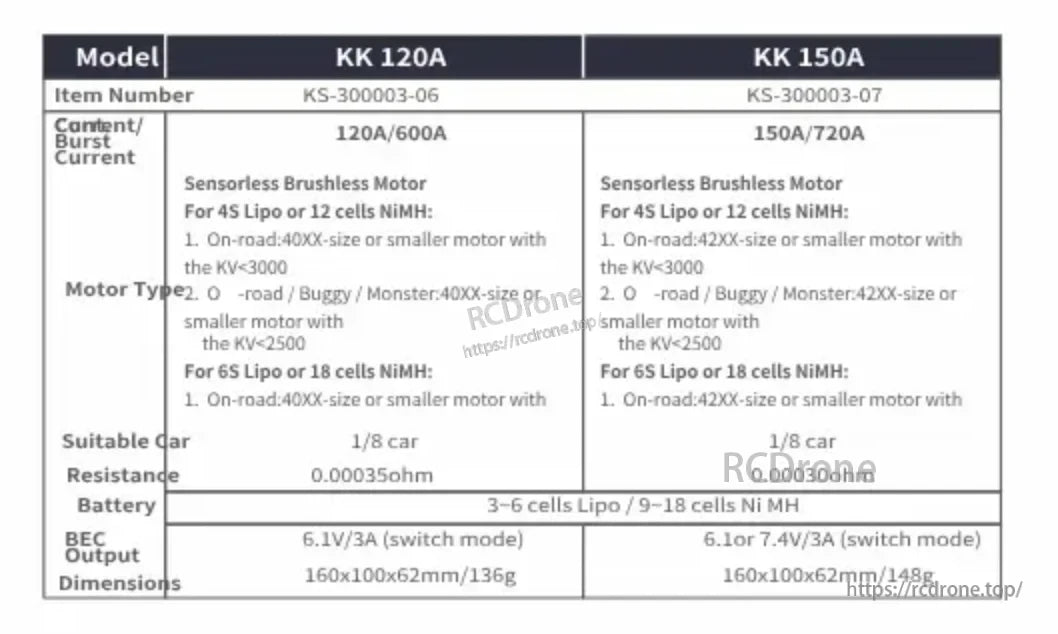

Specifications

Parameter	KK120A	KK150A
Model	KK 120A	KK 150A
Item Number	KS-300003-06	KS-300003-07
Continuous / Burst Current	120A / 600A	150A / 720A
Motor Type	Sensorless Brushless Motor
Battery	3–6 cells LiPo / 9–18 cells NiMH
BEC Output	6.1V / 3A (switch mode)	6.1V or 7.4V / 3A (switch mode)
Suitable Car	1/8 car
Resistance	0.00035 ohm	0.00030 ohm
Dimensions	160 x 100 x 62 mm	160 x 100 x 62 mm
Weight	136 g	148 g
Battery Plug Options (by variant)	T Plug or XT60 Plug

Applications

1/8 scale RC on-road cars
1/8 scale off-road buggy and monster platforms

For product selection help (KK120A vs KK150A, and T Plug vs XT60 Plug variants), contact [email protected] or visit https://rcdrone.top/.

Details

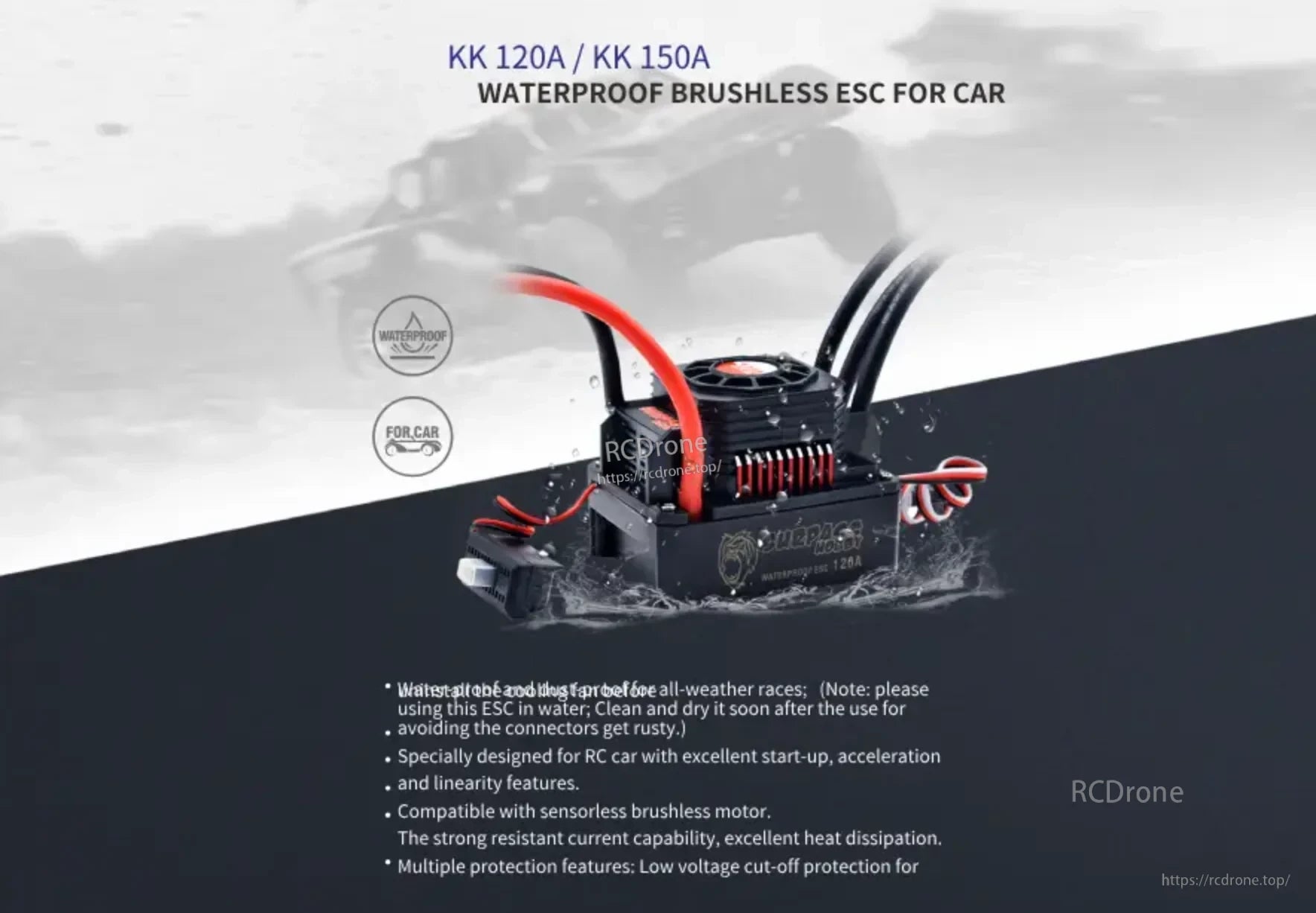

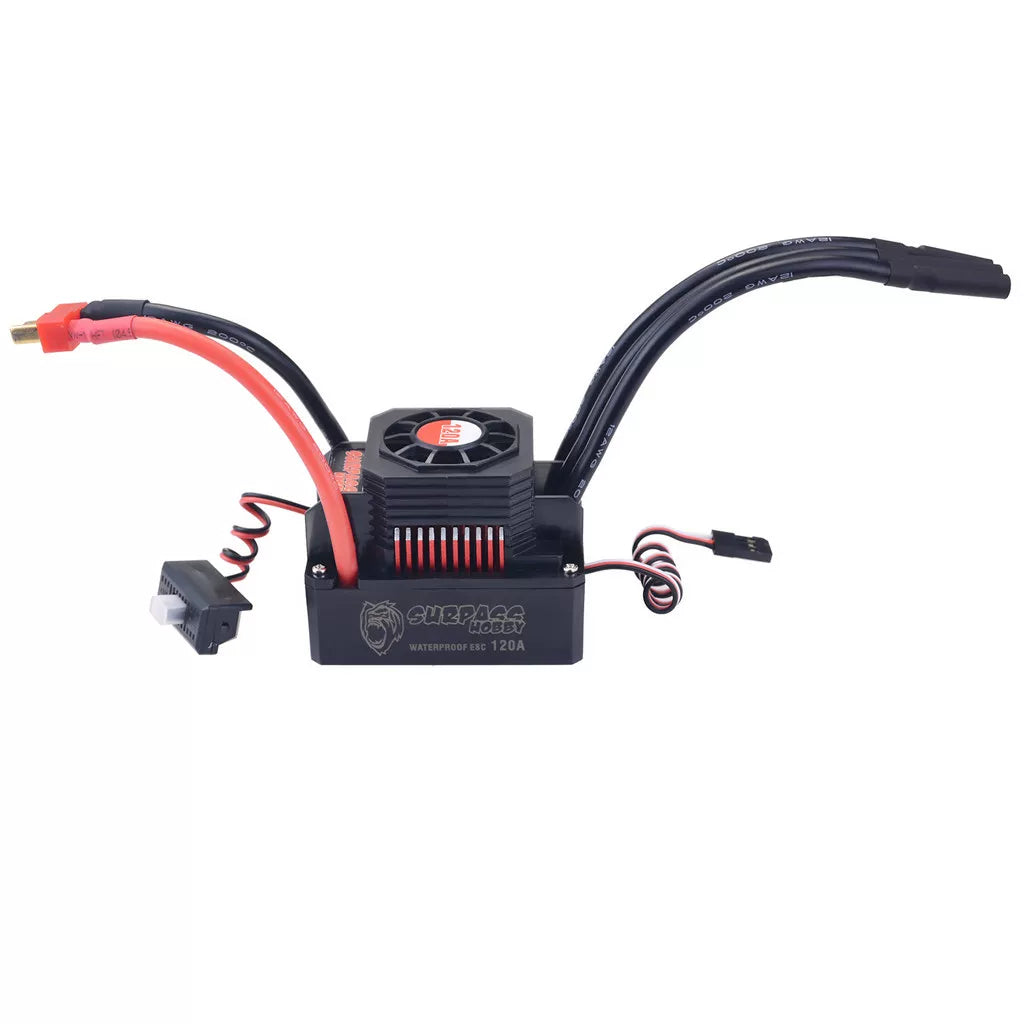

Surpass Hobby KK120A/KK150A waterproof brushless ESC for 1/8 RC car with cooling fan and motor leads

KK series waterproof, dust-proof brushless ESCs for 1/8 RC cars, built for responsive acceleration and consistent throttle feel in all-weather runs.

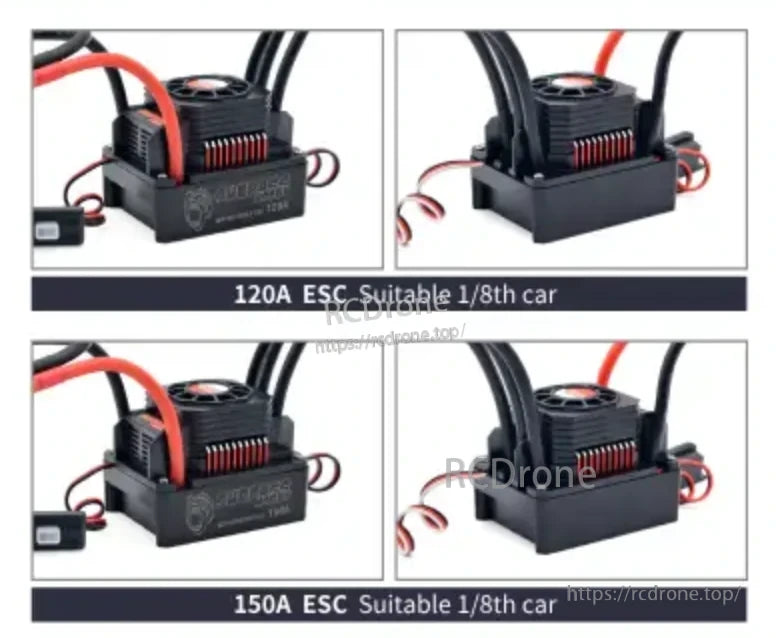

KK120A vs KK150A ESC side views for 1/8 RC cars, showing compact waterproof case and wire layout

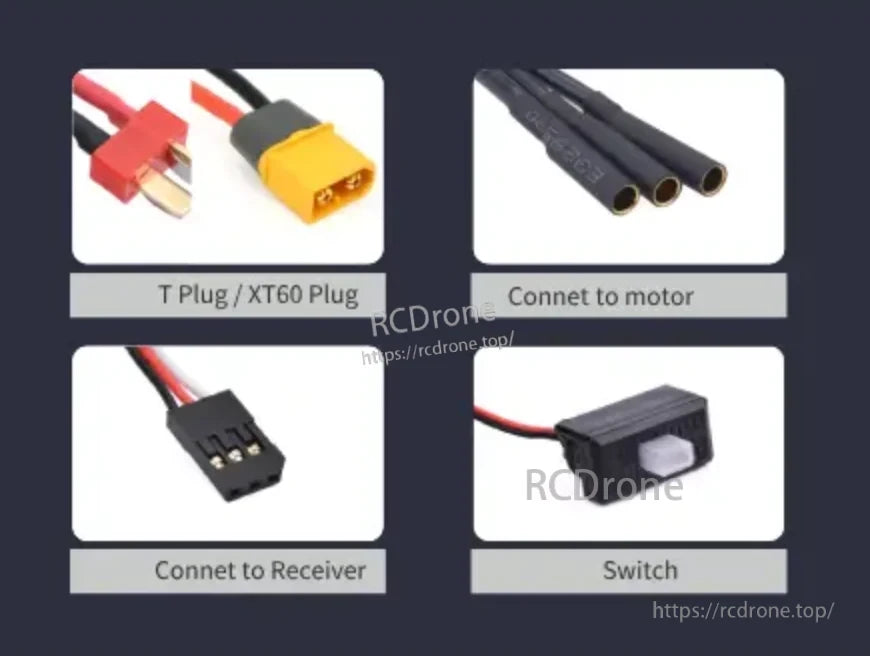

ESC wiring and connections: T plug or XT60 battery connector, motor bullet leads, receiver lead, and on/off switch

Choose the battery connector that matches your setup (T plug or XT60), with standard motor, receiver, and switch leads for straightforward installation.
