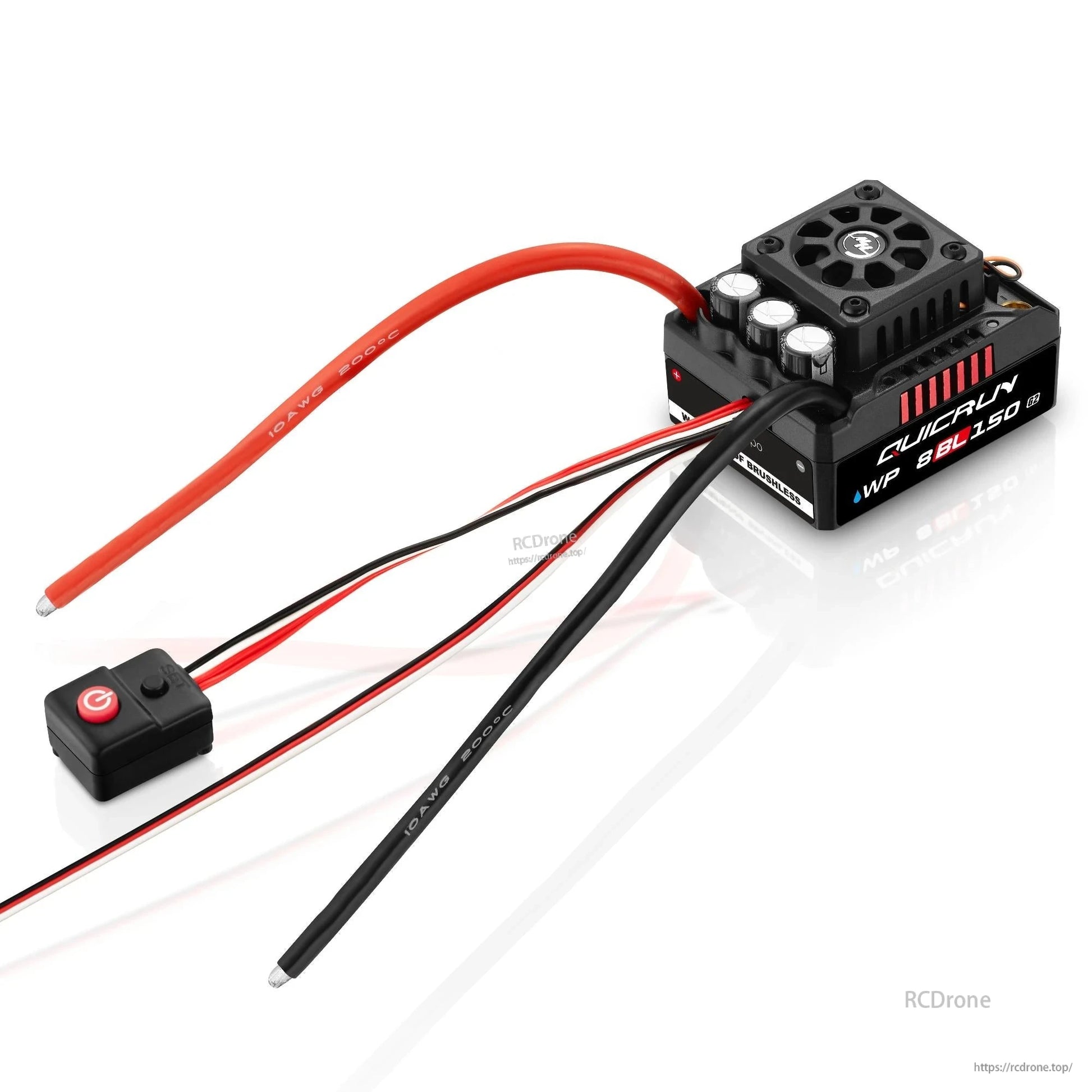

Hobbywing QuicRun WP 8BL150 G2 ESC 150A Waterproof Sensorless Brushless for 1/8 Monster Truck

Overview

The Hobbywing QUICRUN WP 8BL150 G2 is a waterproof, sensorless brushless ESC designed for 1/8th scale trucks and monster trucks. It provides waterproof and dustproof performance for operation in various climatic conditions and harsh environments, and uses intelligent freewheeling technology to improve efficiency and reduce operating temperature.

Key Features

• Efficient cooling system with a patented copper heat conduction bus bar and an added fan to help dissipate heat.

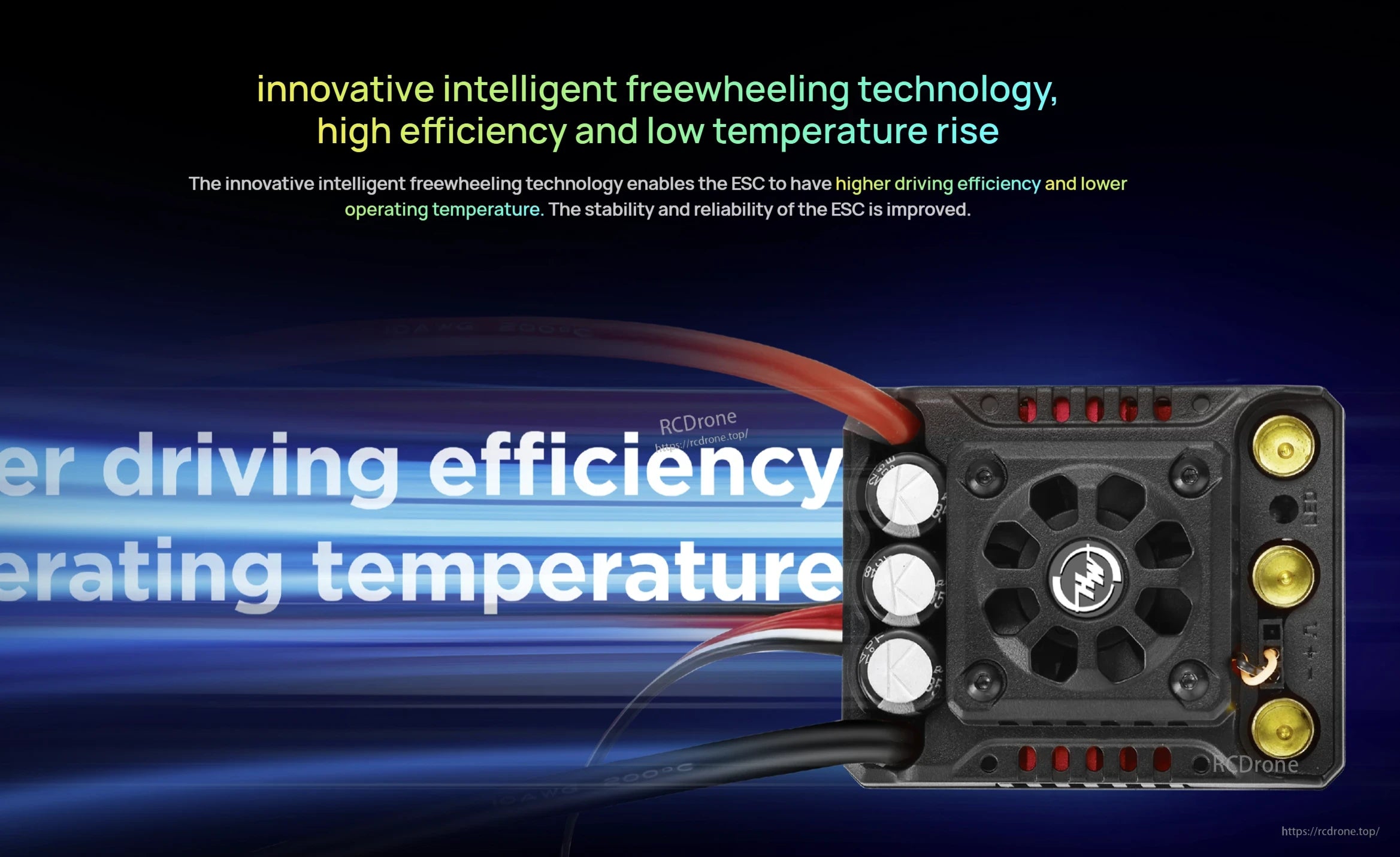

• Innovative intelligent freewheeling technology for higher driving efficiency and lower operating temperature; improves stability and reliability.
• Capacitor overheating protection function to help reduce damage to the ESC during overload use.
• Durable electronic power switch designed to reduce corrosion and impact damage common in dusty and humid environments; the life-span of the switch is 50000 times longer.
• Upgrade BEC: upgraded from 6V/3A to 6V/7.4V and fully adjustable; continuous current 6A and maximum current 12A.
• Super large built-in capacitor: built-in capacitor capacity up to 2040 uF, eliminating the need for external capacitors.
• Independent programming port for adjusting settings without disconnecting the throttle cable (program port is shared with the fan port).

Customer service: https://rcdrone.top/ or support@rcdrone.top

Specifications

What’s Included

• ESC
• User manual
• Decals & accessories

Applications

• Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
• Vehicles: 1/8th Truck, Monster truck
• KV Rating/T Count: With 4S Lipo: KV ≤ 3000
• KV Rating/T Count: With 6S Lipo: KV ≤ 2400 (4274 size motor)

Details

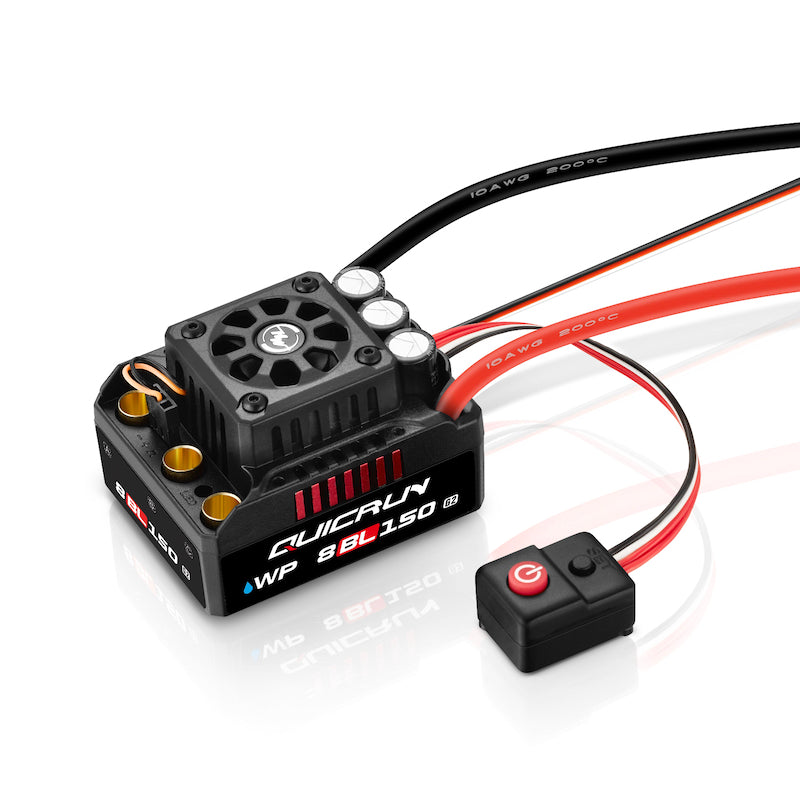

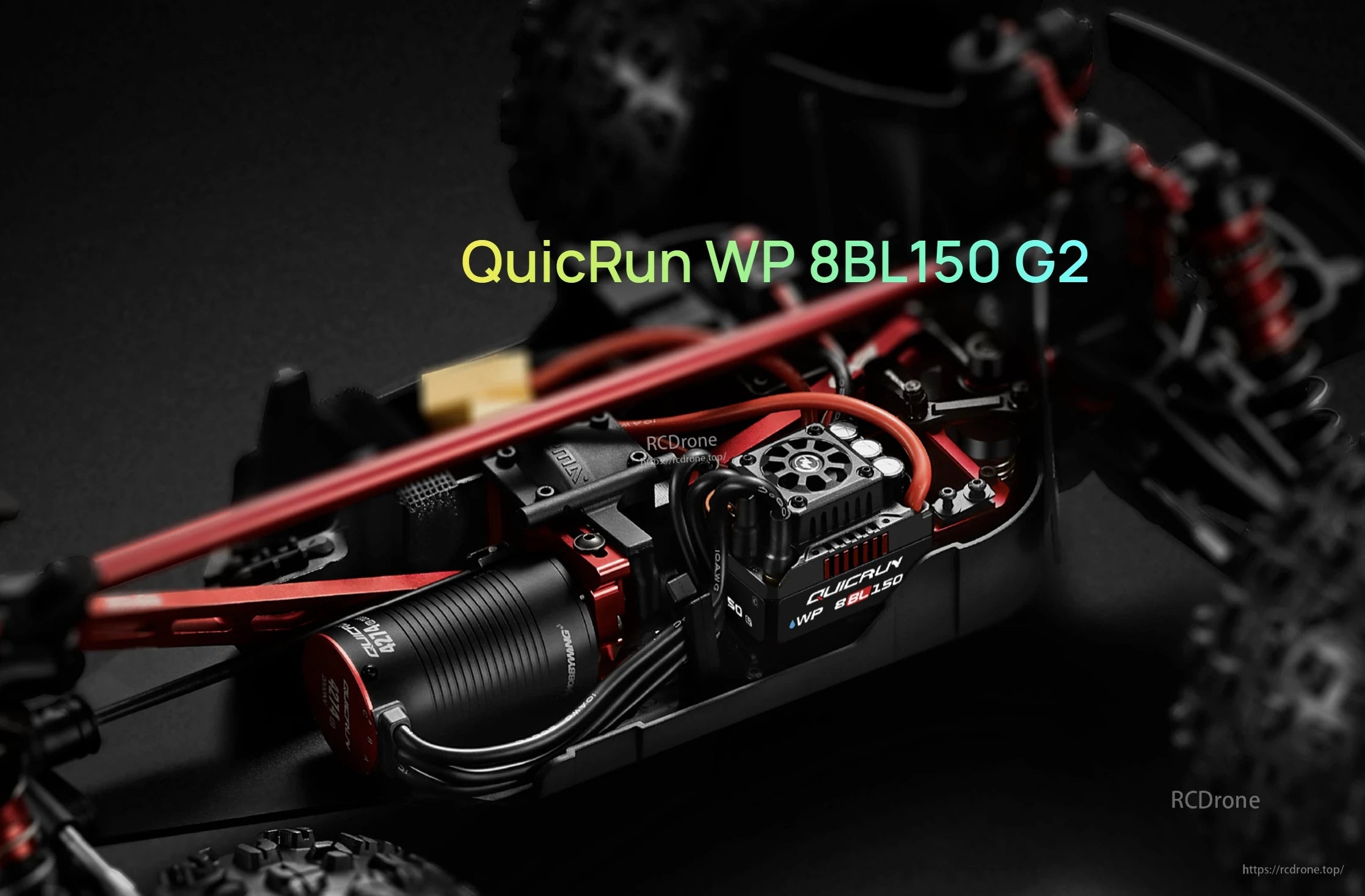

The Hobbywing QuicRun WP 8BL150 G2 ESC mounts neatly in the chassis and routes cleanly to the brushless motor and power leads.

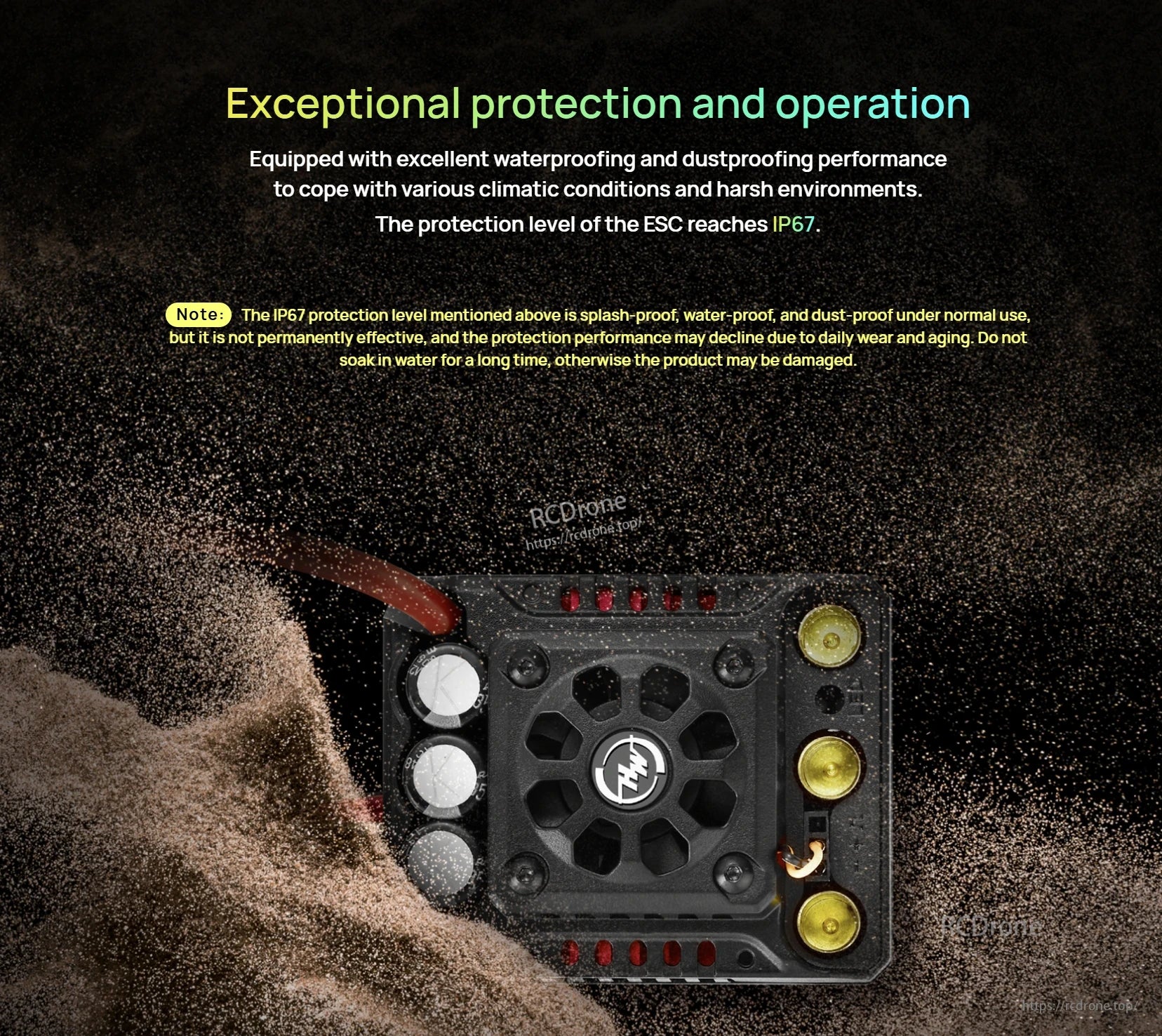

The QuicRun WP 8BL150 G2 ESC is rated IP67 for waterproof and dustproof protection for harsh running conditions.

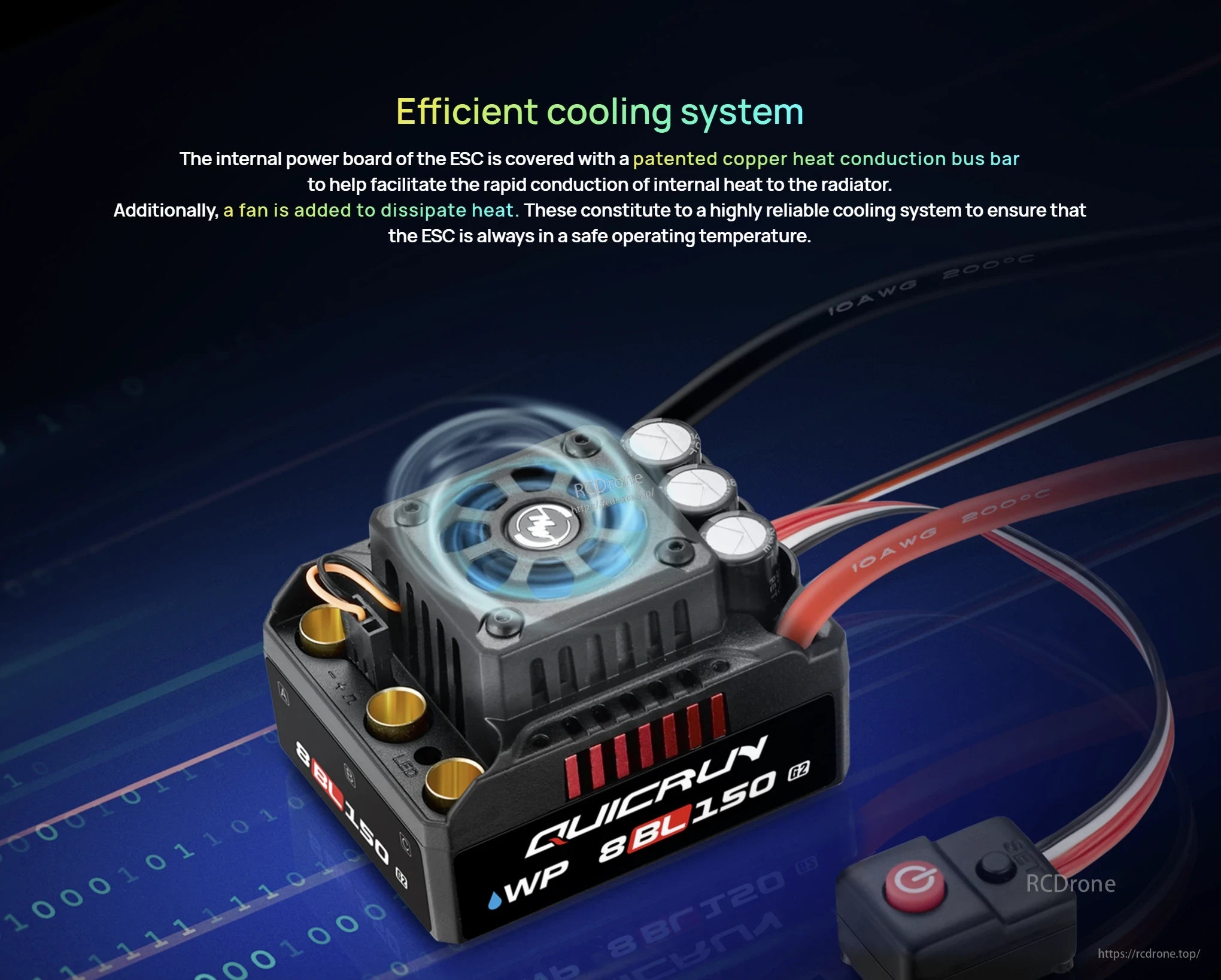

The QuicRun WP 8BL150 G2 ESC uses a fan-cooled heat sink design with a wired power switch for straightforward installation and heat management.

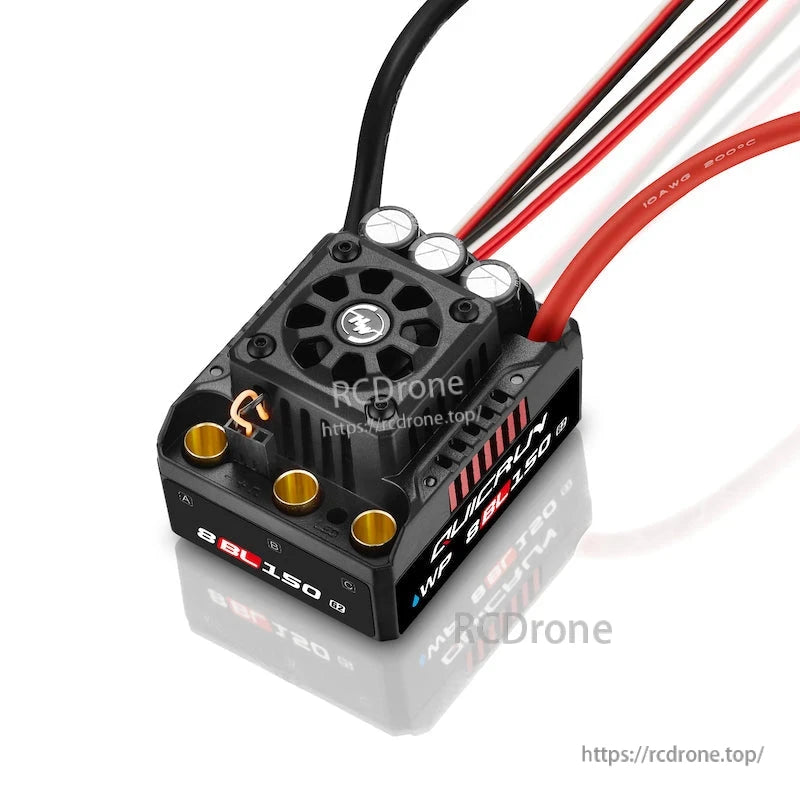

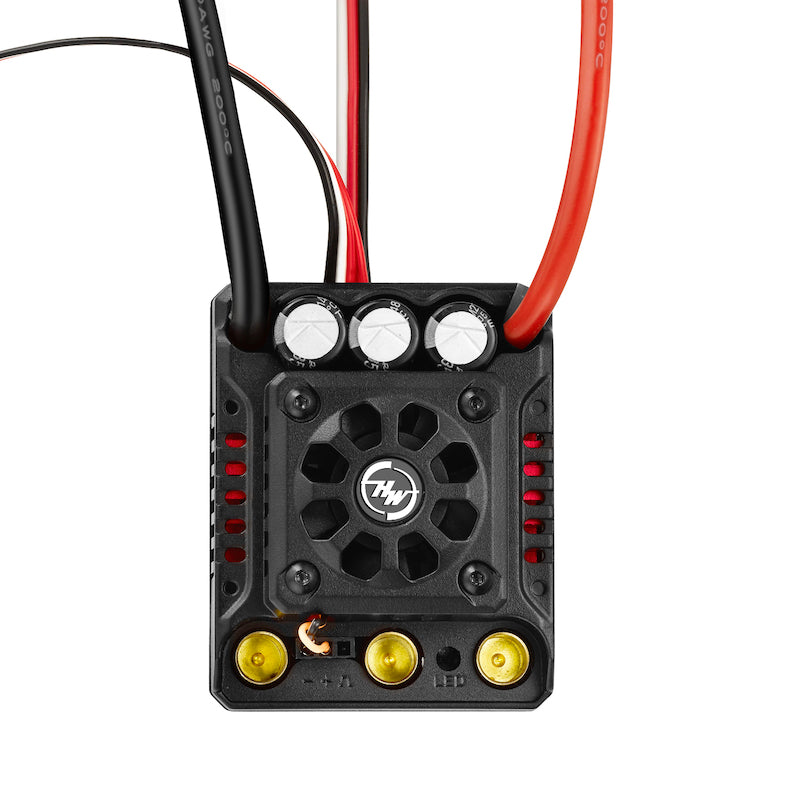

The QuicRun WP 8BL150 G2 ESC features a fan-cooled case with large power leads and bullet connectors for a clean RC wiring setup.

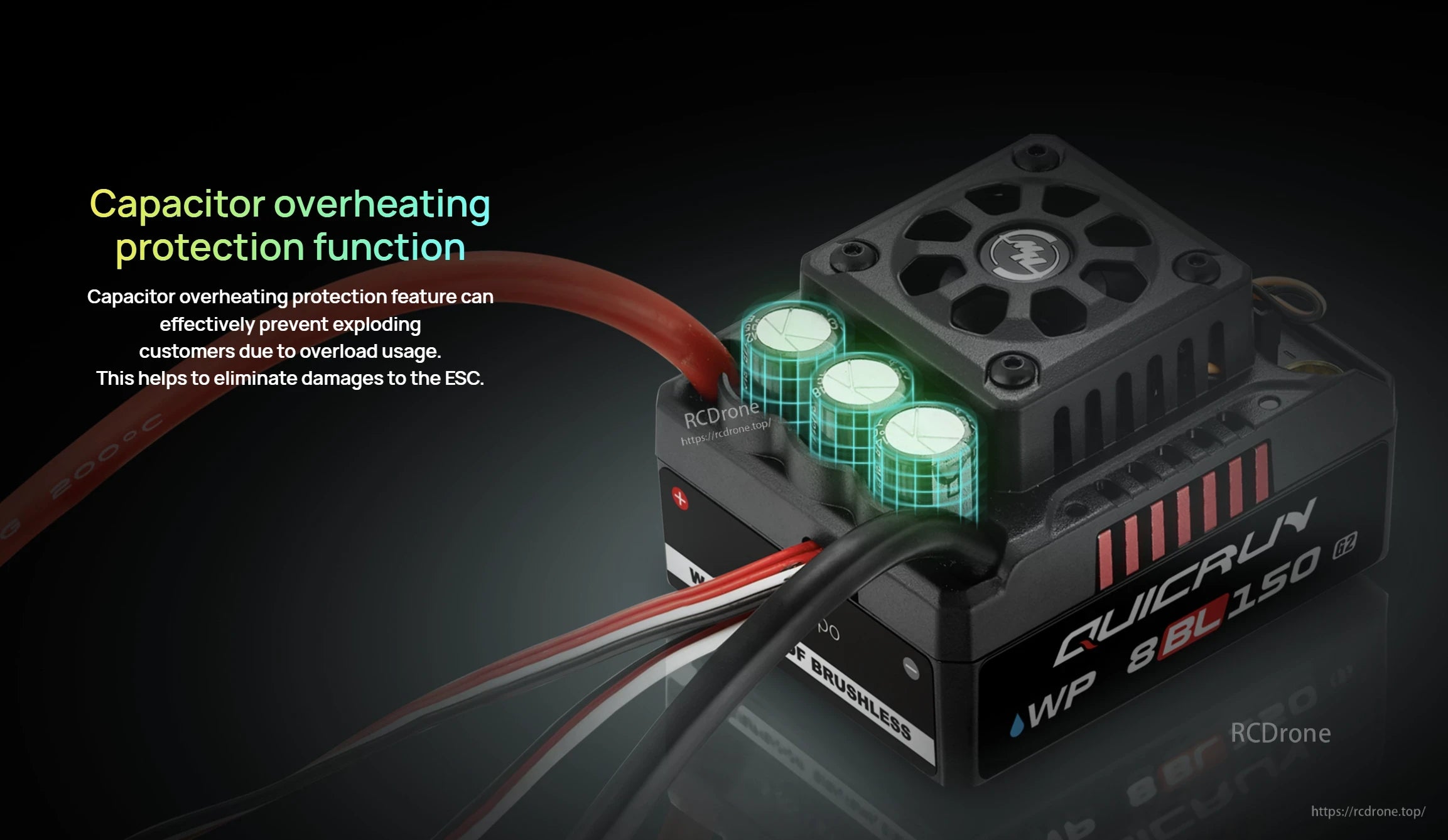

QuicRun WP 8BL150 G2 ESC features capacitor overheating protection, a top-mounted cooling fan and a compact connector layout for straightforward wiring and maintenance.

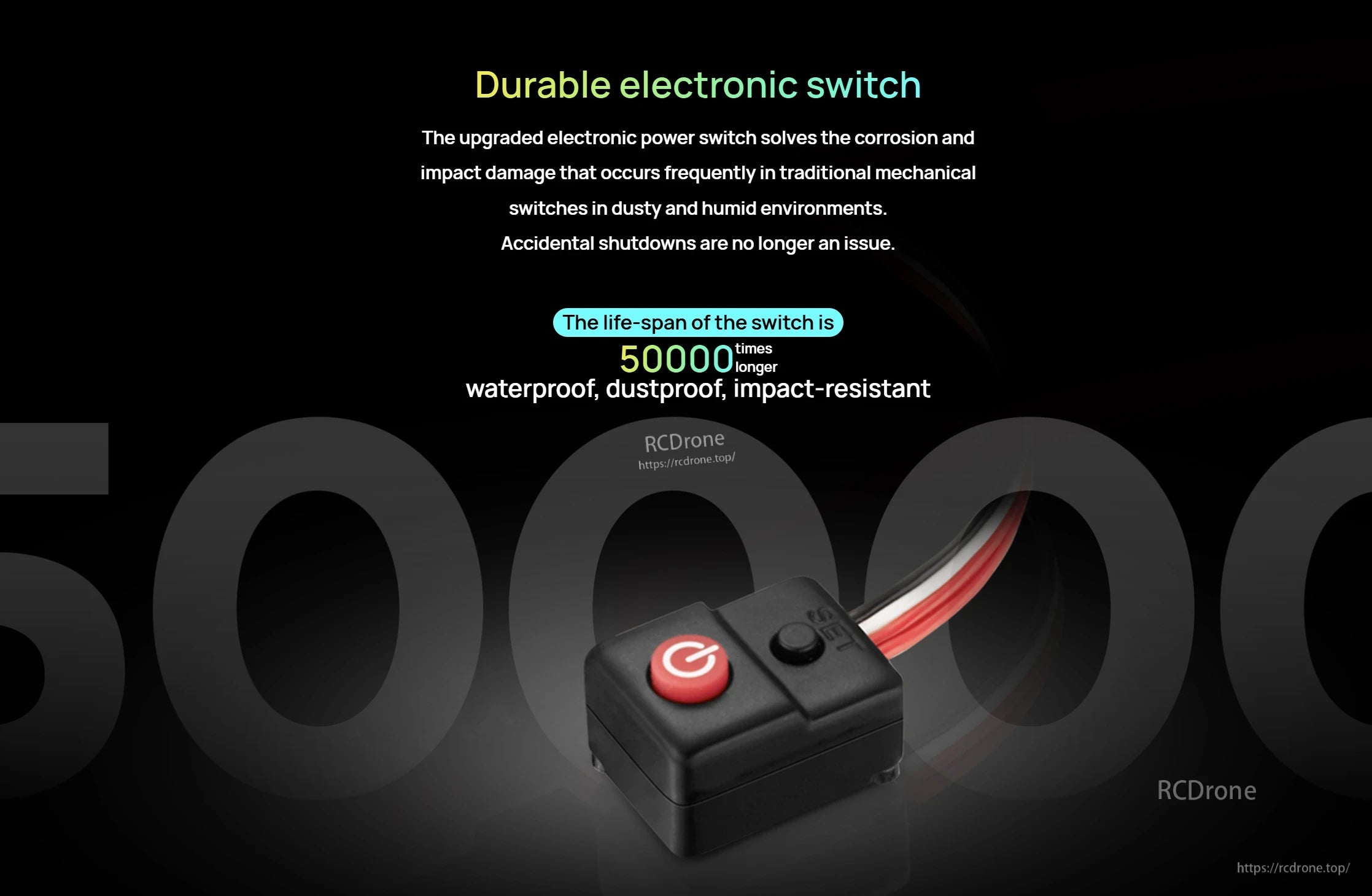

Electronic power switch features a red power button, a secondary SET button and a three‑wire lead, with a stated 50,000‑cycle life and waterproof, dustproof, impact‑resistant design.

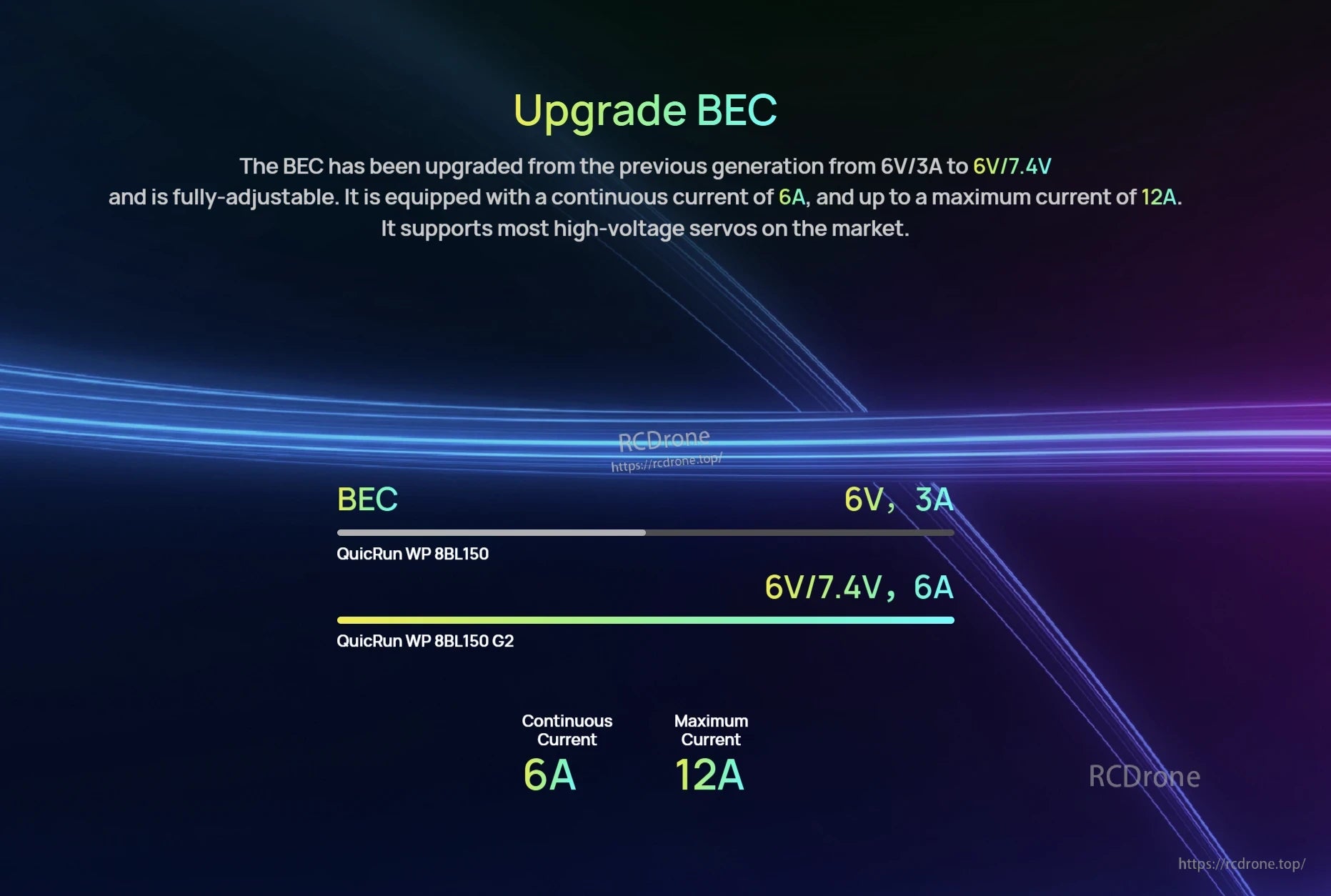

QuicRun WP 8BL150 G2 features an upgraded, fully adjustable BEC with 6V/7.4V output and a 6A continuous (12A peak) current rating to support most high-voltage servos.

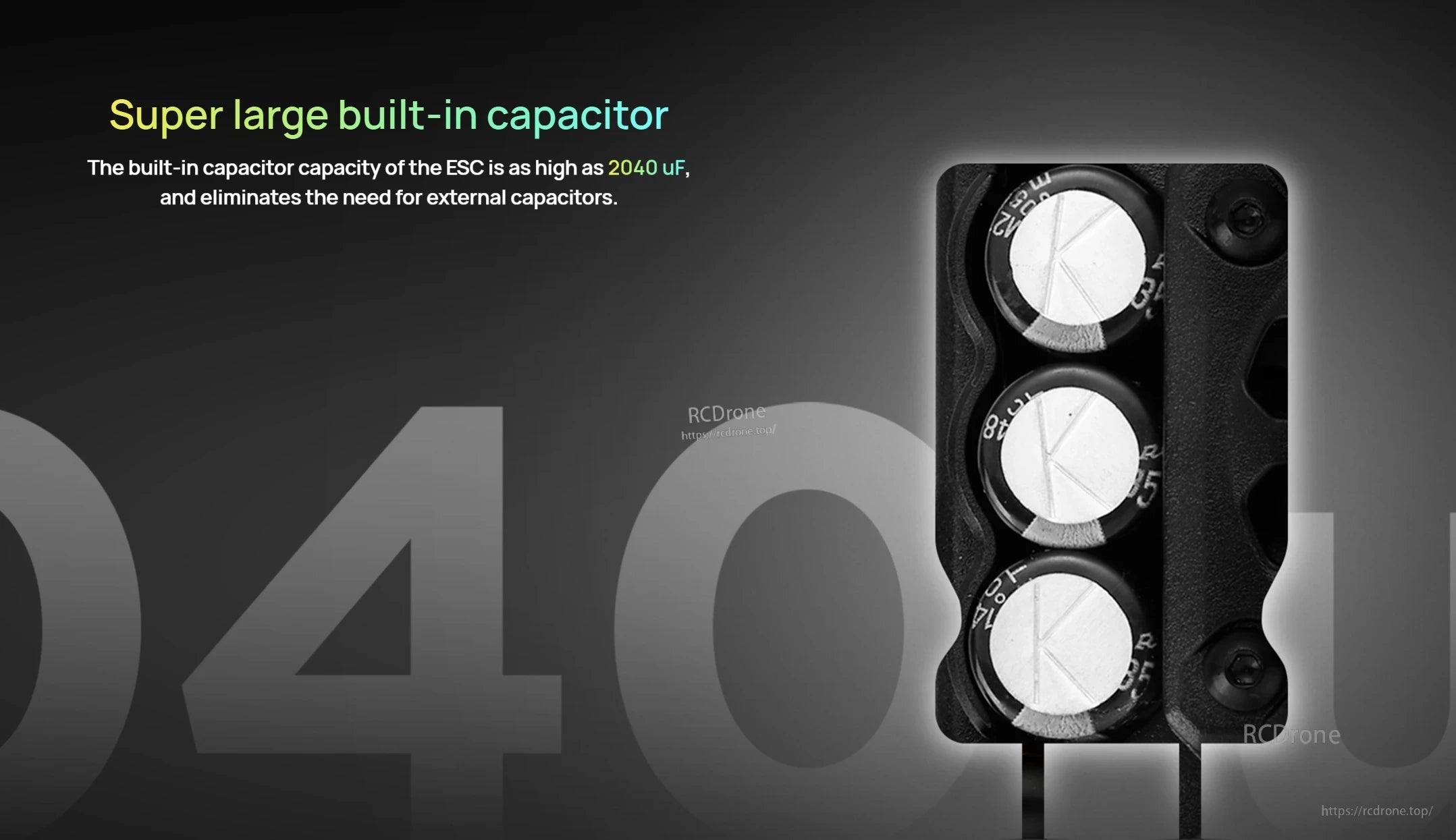

Built-in capacitor bank rated at 2040 μF consolidates smoothing components and reduces the need for external capacitors during installation.
