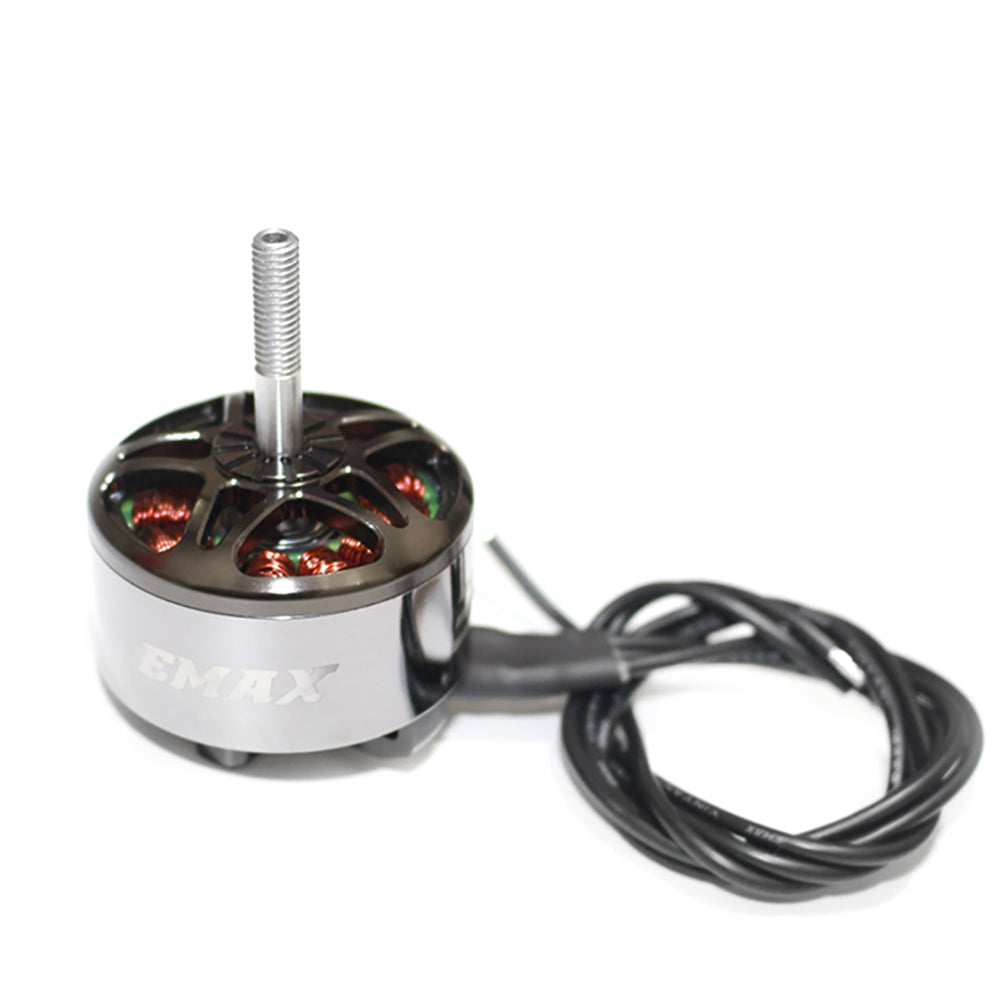

• Emax ECOII 3515 brushless motor with threaded shaft, top vented bell and attached wires

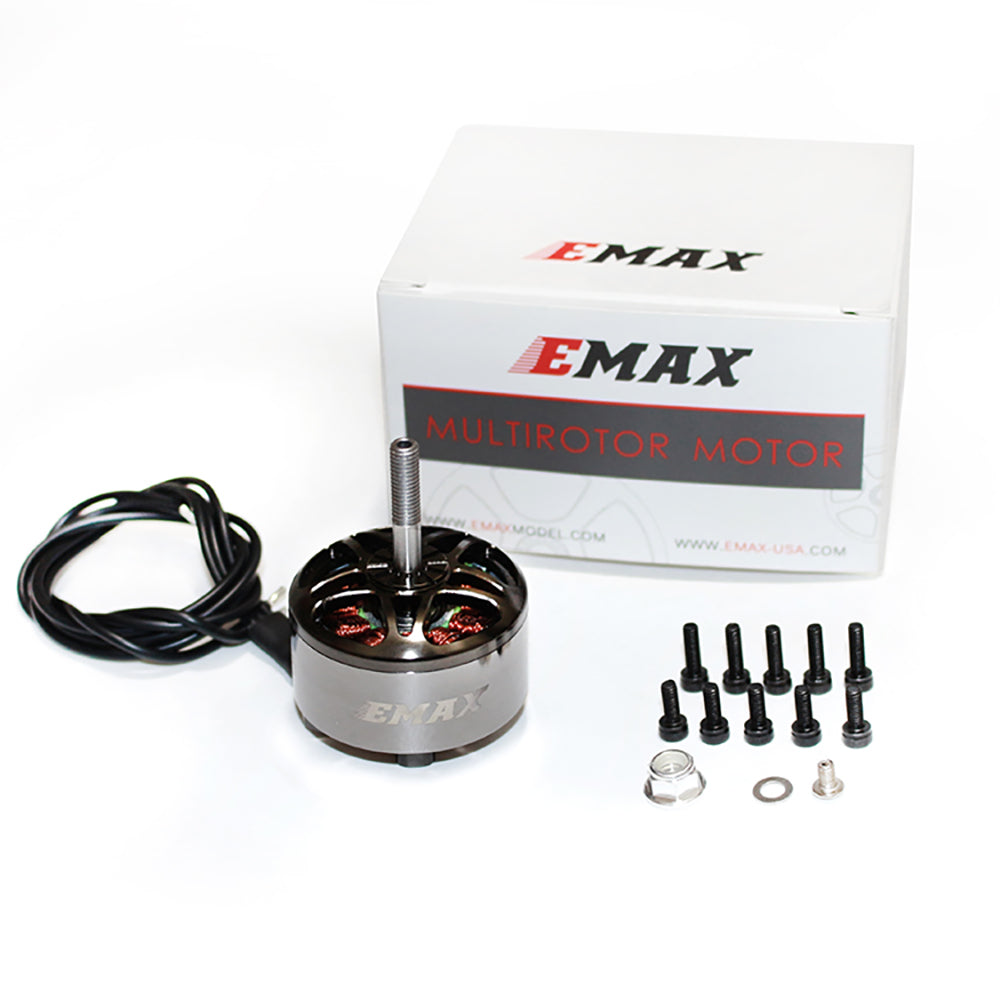

  • Emax multirotor motor box with ECOII 3515 motor, mounting screws, nut and washers included

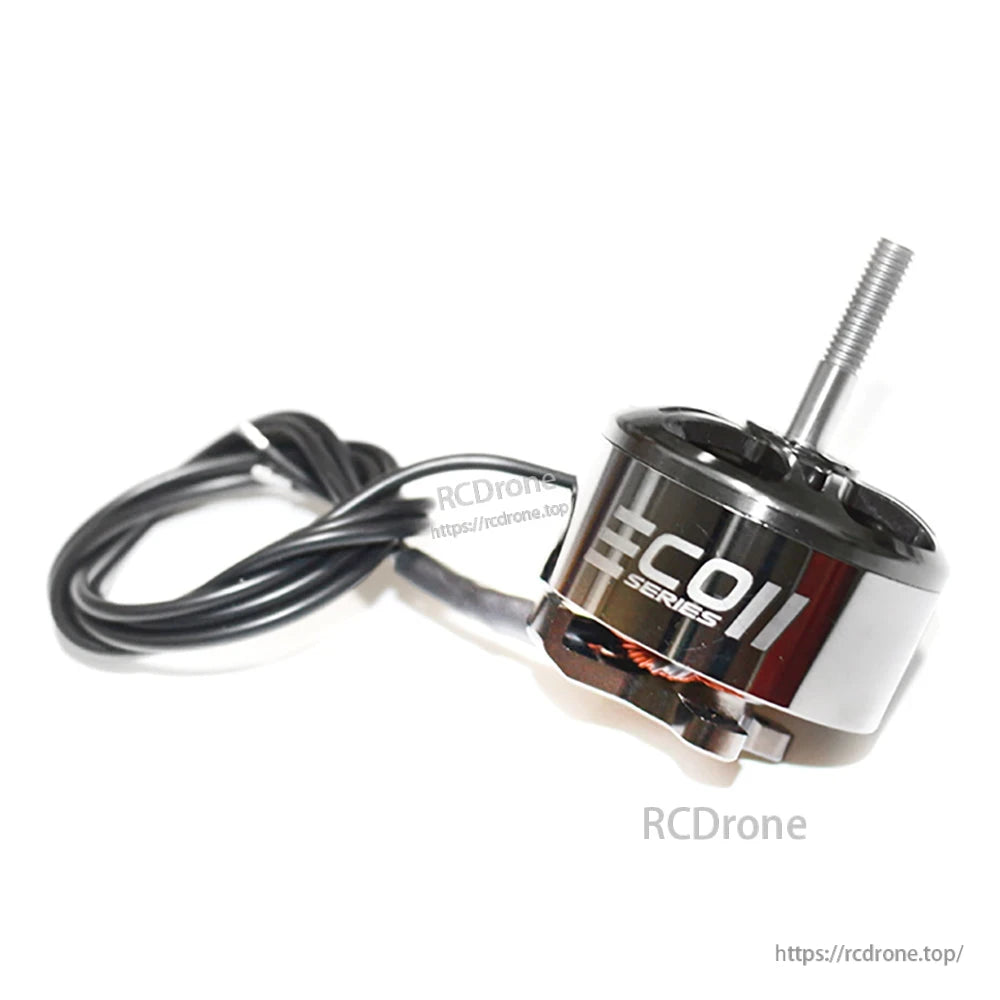

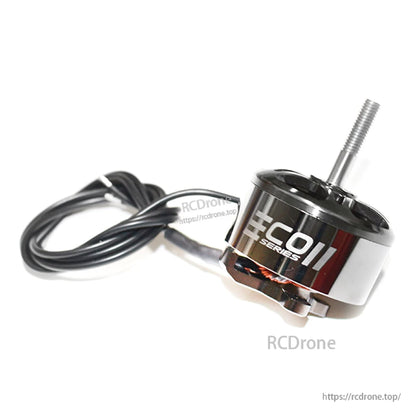

  • Emax ECOII 3515 Brushless Motor side view showing ECOII Series label and motor lead wire

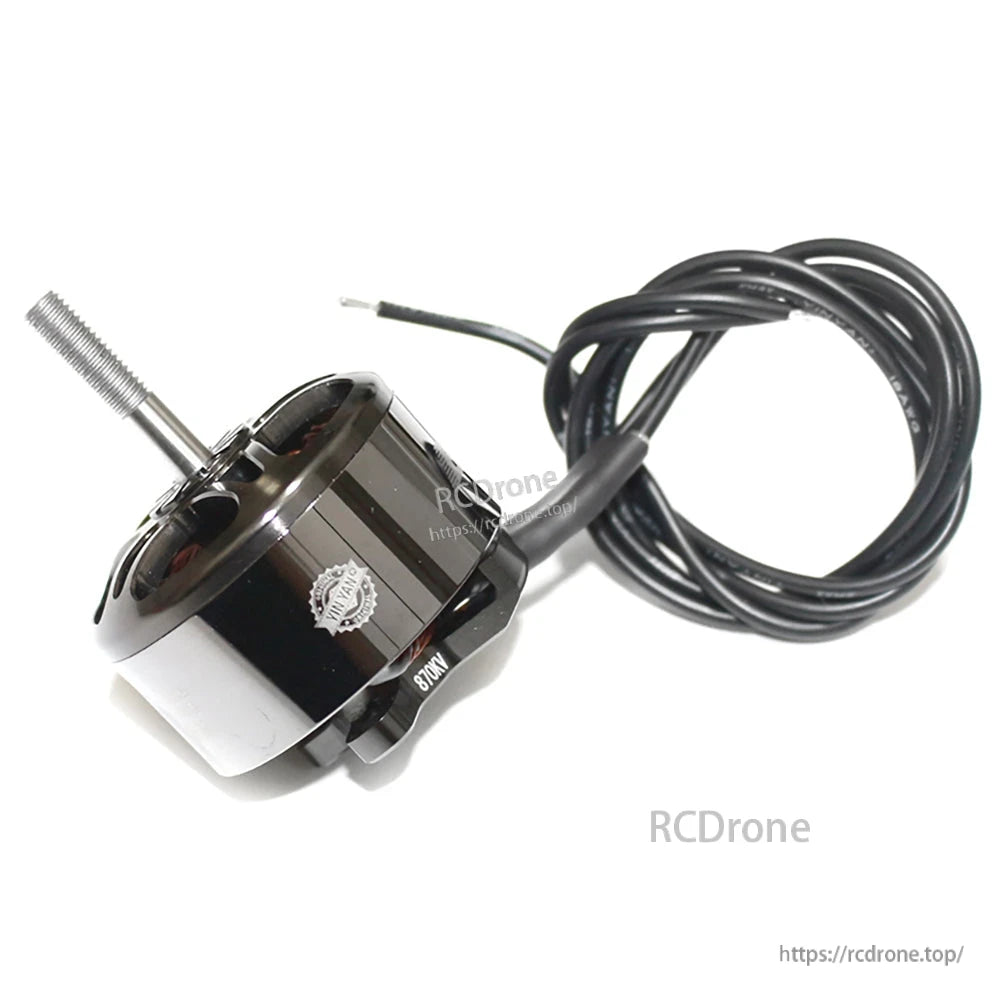

  • Brushless motor angled side view with wiring and heat-shrink lead, showing reflective can finish

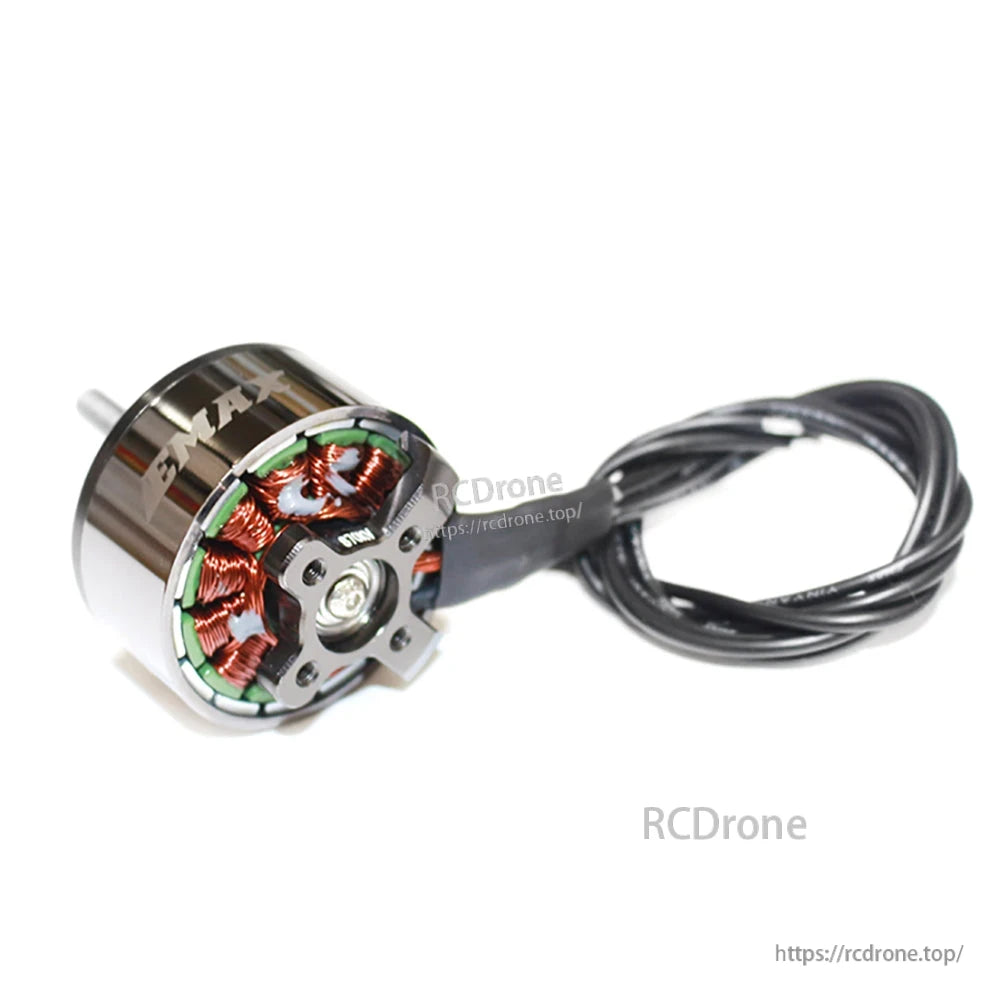

  • Bottom view showing motor base and exposed copper windings with mounting plate and screws

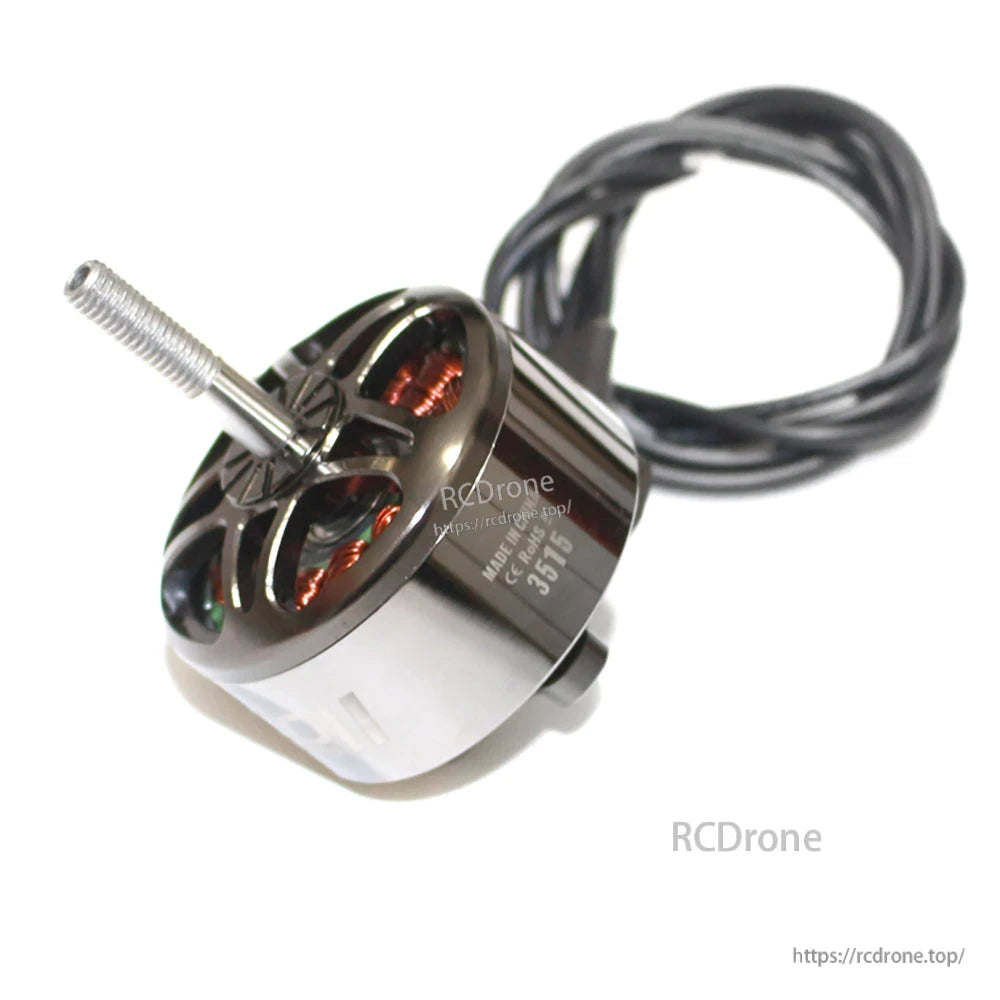

  • ECOII motor side view with printed model marking “3515” and top bell vents with copper windings

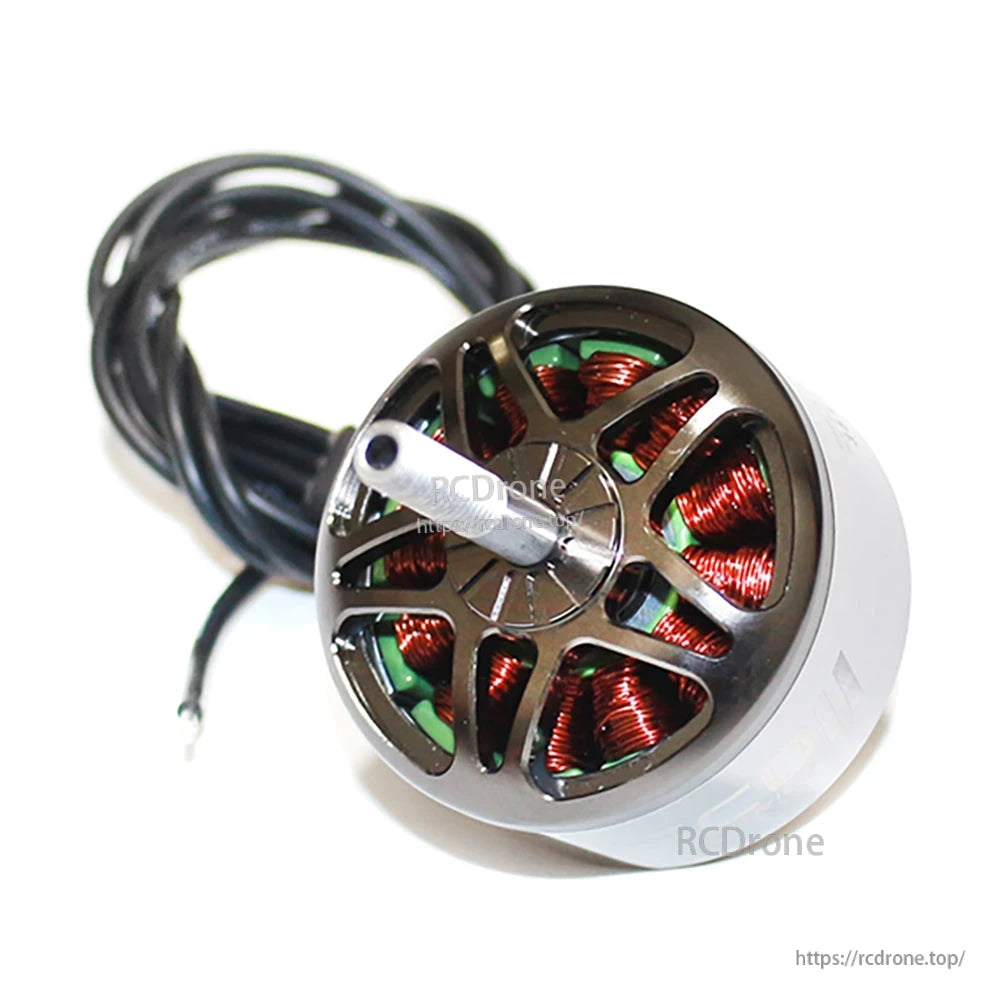

  • Top-down view of vented motor bell showing copper windings and threaded shaft detail

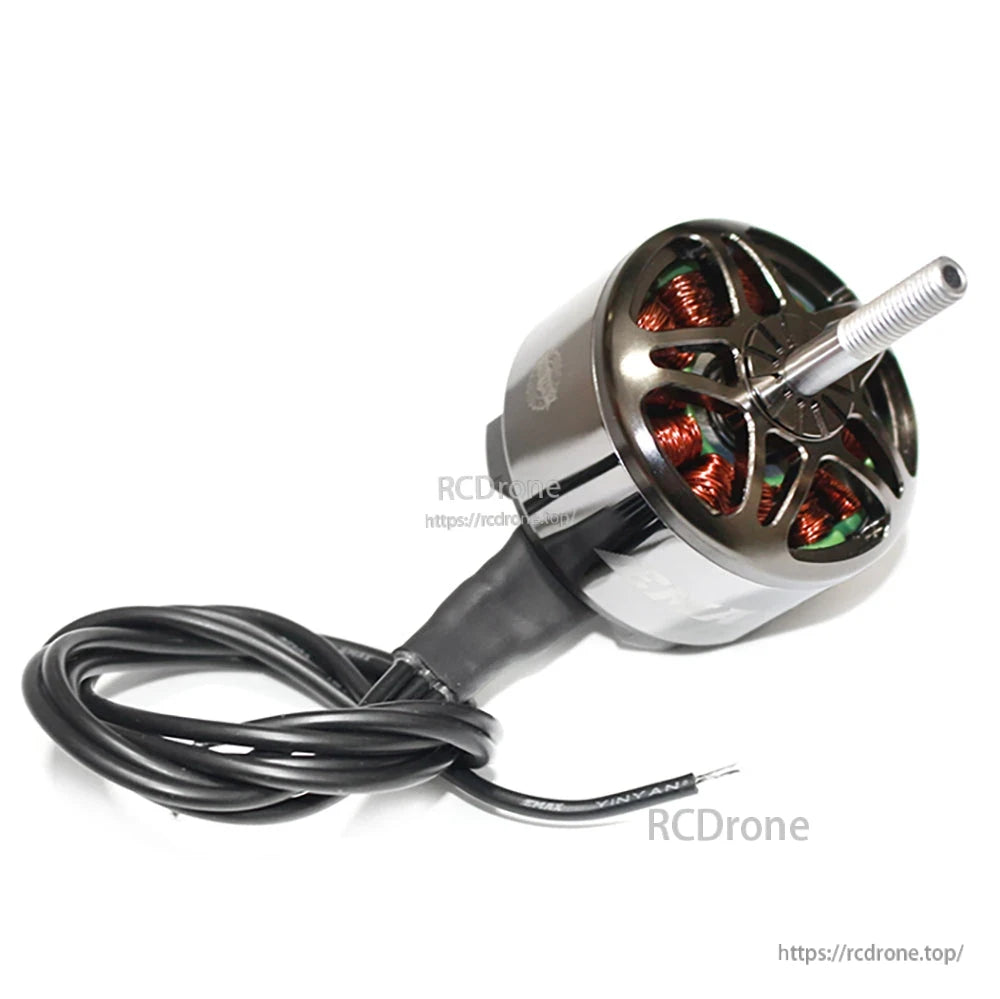

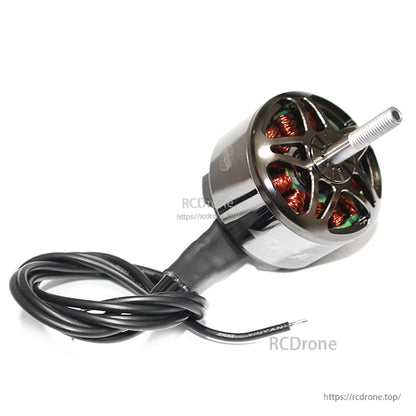

  • Angled top view of motor with coiled lead wires, showing vented bell design and shaft length

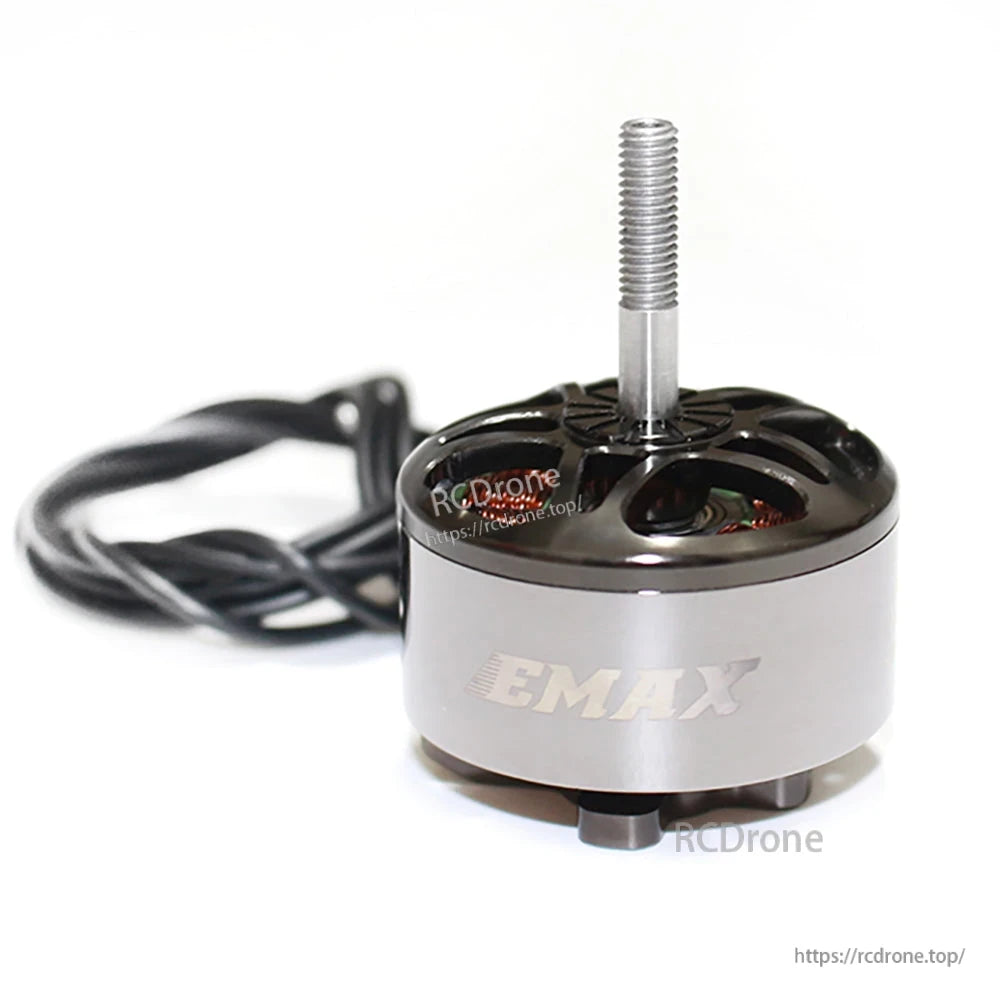

  • Front view of EMAX motor can with logo, threaded shaft centered and wiring trailing behind
1 9

Motor Tanpa Berus Emax ECOII 3515 untuk Dron Perlumbaan FPV - 450KV / 550KV / 650KV / 880KV, 41.7x52.15mm, 5mm

Motor Tanpa Berus Emax ECOII 3515 untuk Dron Perlumbaan FPV - 450KV / 550KV / 650KV / 880KV, 41.7x52.15mm, 5mm

Emax

$82.59 USD
$82.59 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
Gaya
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

Emax ECOII 3515 adalah motor tanpa berus untuk pembinaan drone perlumbaan FPV, ditawarkan dalam pilihan 450KV / 550KV / 650KV / 880KV. Motor ini menggunakan rangka 12N14P, poros 5mm, dan kabel 18AWG 300mm, dengan dimensi pemasangan dan keseluruhan yang disediakan di bawah.

Ciri Utama

  • Pelbagai pilihan KV: 450KV, 550KV, 650KV, 880KV
  • Rangka: 12N14P
  • Poros galas 5mm
  • Kabel motor 18AWG, 300mm
  • Julat propeller yang disyorkan (mengikut jadual varian): 10"-11" (450KV), 10"-11" (550KV), 10"-11" (650KV), 10" (880KV)

Untuk pemeriksaan keserasian pra-jualan atau pesanan pukal, hubungi https://rcdrone.top/ atau support@rcdrone.top.

Spesifikasi

Mekanikal / Lukisan

Model ECOII-3515
Diameter motor φ41.7
Dimensi motor (jadual spes) φ41.7*52.15mm
Ketinggian keseluruhan (lukisan) 52.15
Benang atas M5
Pemasangan 4-M3, φ19
Poros 5mm
Ketua 18AWG, 300

Elektrik / Prestasi (oleh KV)

Item 450KV 550KV 650KV 880KV
Arus menganggur (10V) 0.7A 1.0A 1.3A 1.9A
Rintangan dalaman 88mΩ 66mΩ 54mΩ 39mΩ
No. of cells 10-12S 8-10S 6-8S 4-6S
Propeller 10"-11" 10"-11" 10"-11" 10"
Arus puncak 58A (12S) 65A (10S) 69A (8S) 87A (6S)
Kuasa maksimum 2780W (12S) 2600W (10S) 2210W (8S) 2170W (6S)
Berat 139g (Tanpa Kabel Silikon) 140g (Tanpa Kabel Silikon) 139g (Tanpa Kabel Silikon) 137g (Tanpa Kabel Silikon)
Rangka 12N14P 12N14P 12N14P 12N14P

Jadual Data Bench (seperti yang disediakan)

ECOII-3515-450KV (48V)

  • Gemfan1050 propeller 3-blade: (A/G/W/G/W/RPM)
    • 2.55 / 700 / 122.40 / 5.72 / 6290
    • 4.78 / 1190 / 229.44 / 5.19 / 7890
    • 8.33 / 1810 / 399.84 / 4.53 / 9590
    • 13.1 / 2500 / 628.80 / 3.98 / 11140
    • 19.6 / 3300 / 940.80 / 3.51 / 12640
    • 28.5 / 4200 / 1368.00 / 3.07 / 14040
    • 39.2 / 5040 / 1881.60 / 2.68 / 15400
    • 50.8 / 5870 / 2438.40 / 2.41 / Max
  • AVAN1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 2.65 / 710 / 127.20 / 5.58 / 6150
    • 5.13 / 1230 / 246.24 / 5.00 / 7820
    • 8.97 / 1910 / 430.56 / 4.44 / 9490
    • 14 / 2620 / 672.00 / 3.90 / 11020
    • 21 / 3450 / 1008.00 / 3.42 / 12480
    • 30.3 / 4350 / 1454.40 / 2.99 / 13920
    • 41.7 / 5160 / 2001.60 / 2.58 / 15260
    • 53.4 / 5940 / 2563.20 / 2.32 / Max
  • HQ 10*5*3 blade propeller: (A/G/W/G/W/RPM)
    • 2.7 / 740 / 129.60 / 5.71 / 6070
    • 5.41 / 1290 / 259.68 / 4.97 / 7760
    • 9.48 / 1950 / 455.04 / 4.29 / 9390
    • 14.9 / 2690 / 715.20 / 3.76 / 10920
    • 22.2 / 3530 / 1065.60 / 3.31 / 12360
    • 31.6 / 4410 / 1516.80 / 2.91 / 13800
    • 43.8 / 5370 / 2102.40 / 2.55 / 15080
    • 57.1 / 6270 / 2740.80 / 2.29 / Max

ECOII-3515-450KV (40V)

  • Gemfan1170 3-blade propeller: (A/G/W/G/W/RPM)
    • 2.37 / 600 / 94.80 / 6.33 / 4980
    • 4.9 / 1130 / 196.00 / 5.77 / 6460
    • 8.46 / 1720 / 338.40 / 5.08 / 7840
    • 13.4 / 2400 / 536.00 / 4.48 / 9150
    • 19.9 / 3140 / 796.00 / 3.94 / 10370
    • 27.9 / 3910 / 1116.00 / 3.50 / 11540
    • 38.6 / 4820 / 1544.00 / 3.12 / 12610
    • 49.1 / 5610 / 1964.00 / 2.86 / Max

ECOII-3515-550KV (40V)

  • Gemfan1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 3.05 / 700 / 122.00 / 5.74 / 6260
    • 5.55 / 1160 / 222.00 / 5.23 / 7780
    • 9.84 / 1790 / 393.60 / 4.55 / 9460
    • 15.4 / 2480 / 616.00 / 4.03 / 10900
    • 23.1 / 3250 / 924.00 / 3.52 / 12450
    • 33.3 / 4140 / 1332.00 / 3.11 / 13860
    • 46.1 / 4970 / 1844.00 / 2.70 / 15130
    • 58.7 / 5730 / 2348.00 / 2.44 / Max
  • AVAN1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 3.13 / 720 / 125.20 / 5.75 / 6090
    • 6.01 / 1220 / 240.40 / 5.07 / 7720
    • 10.5 / 1880 / 420.00 / 4.48 / 9370
    • 16.5 / 2590 / 660.00 / 3.92 / 10890
    • 24.4 / 3370 / 976.00 / 3.45 / 12330
    • 35.1 / 4250 / 1404.00 / 3.03 / 13720
    • 48 / 5010 / 1920.00 / 2.61 / 14990
    • 60.4 / 5860 / 2416.00 / 2.43 / Max
  • HQ 10*5*3 bilah propeller: (A/G/W/G/W/RPM)
    • 3.2 / 730 / 128.00 / 5.70 / 6010
    • 6.32 / 1260 / 252.80 / 4.98 / 7660
    • 11.1 / 1890 / 444.00 / 4.26 / 9290
    • 17.3 / 2590 / 692.00 / 3.74 / 10790
    • 25.6 / 3390 / 1024.00 / 3.31 / 12210
    • 36.9 / 4280 / 1476.00 / 2.90 / 13560
    • 50.2 / 5210 / 2008.00 / 2.59 / 14850
    • 64.8 / 6080 / 2592.00 / 2.35 / Max

ECOII-3515-550KV (32V)

  • Gemfan1170 3-bilah propeller: (A/G/W/G/W/RPM)
    • 2.59 / 550 / 82.88 / 6.64 / 4720
    • 5.21 / 1000 / 166.72 / 6.00 / 6070
    • 9.06 / 1560 / 289.92 / 5.38 / 7400
    • 14.4 / 2180 / 460.80 / 4.73 / 8680
    • 21.6 / 2870 / 691.20 / 4.15 / 9860
    • 30.4 / 3620 / 972.80 / 3.72 / 10900
    • 41.1 / 4410 / 1315.20 / 3.35 / 11980
    • 51.1 / 5050 / 1635.20 / 3.09 / Max

ECOII-3515-650KV (32V)

  • Gemfan1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 3.38 / 630 / 108.16 / 5.82 / 5980
    • 6.11 / 1060 / 195.52 / 5.42 / 7430
    • 10.8 / 1630 / 345.60 / 4.72 / 9050
    • 17.1 / 2260 / 547.20 / 4.13 / 10530
    • 25.1 / 2930 / 803.20 / 3.65 / 11910
    • 35.9 / 3730 / 1148.80 / 3.25 / 13220
    • 49.4 / 4510 / 1580.80 / 2.85 / 14430
    • 62.2 / 5190 / 1990.40 / 2.61 / Max
  • AVAN1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 3.47 / 650 / 111.04 / 5.85 / 5810
    • 6.6 / 1100 / 211.20 / 5.21 / 7350
    • 11.3 / 1710 / 361.60 / 4.73 / 8940
    • 18.2 / 2350 / 582.40 / 4.04 / 10410
    • 26.7 / 3050 / 854.40 / 3.57 / 11750
    • 37.7 / 3810 / 1206.40 / 3.16 / 13060
    • 51.7 / 4620 / 1654.40 / 2.79 / 14270
    • 65.1 / 5380 / 2083.20 / 2.58 / Max
  • HQ 10*5*3 bilah propeller: (A/G/W/G/W/RPM)
    • 3.53 / 660 / 112.96 / 5.84 / 5740
    • 6.91 / 1140 / 221.12 / 5.16 / 7310
    • 12 / 1720 / 384.00 / 4.48 / 8860
    • 19.2 / 2370 / 614.40 / 3.86 / 10300
    • 28 / 3060 / 896.00 / 3.42 / 11650
    • 39.5 / 3820 / 1264.00 / 3.02 / 12940
    • 53.7 / 4630 / 1718.40 / 2.69 / 14160
    • 68.7 / 5400 / 2198.40 / 2.46 / Max

ECOII-3515-880KV (25V)

  • Gemfan1050 3-bilah propeller: (A/G/W/G/W/RPM)
    • 3.23 / 460 / 80.75 / 5.70 / 5430
    • 7.36 / 980 / 184.00 / 5.33 / 7250
    • 13.5 / 1560 / 337.50 / 4.62 / 8940
    • 22.7 / 2300 / 567.50 / 4.05 / 10470
    • 33.9 / 3050 / 847.50 / 3.60 / 11810
    • 48.6 / 3780 / 1215.00 / 3.11 / 13030
    • 64.4 / 4480 / 1610.00 / 2.78 / 14330
    • 79.1 / 4980 / 1977.50 / 2.52 / Max
  • AVAN1050 3-blade propeller: (A/G/W/G/W/RPM)
    • 3.47 / 550 / 86.75 / 6.34 / 5340
    • 7.78 / 1100 / 194.50 / 5.66 / 7160
    • 14.1 / 1670 / 352.50 / 4.74 / 8810
    • 23.6 / 2400 / 590.00 / 4.07 / 10340
    • 35.9 / 3140 / 897.50 / 3.50 / 11620
    • 49.3 / 3840 / 1232.50 / 3.12 / 12950
    • 66.3 / 4620 / 1657.50 / 2.79 / 14170
    • 81.6 / 5210 / 2040.00 / 2.55 / Max
  • HQ 10*5*3 blade propeller: (A/G/W/G/W/RPM)
    • 3.59 / 580 / 89.75 / 6.46 / 5340
    • 8.24 / 1110 / 206.00 / 5.39 / 7130
    • 15.1 / 1700 / 377.50 / 4.50 / 8730
    • 25.2 / 2420 / 630.00 / 3.84 / 10210
    • 38.4 / 3170 / 960.00 / 3.30 / 11500
    • 53.5 / 3950 / 1337.50 / 2.95 / 12640
    • 69.7 / 4670 / 1742.50 / 2.68 / 13780
    • 86.8 / 5260 / 2170.00 / 2.42 / Max

Butiran

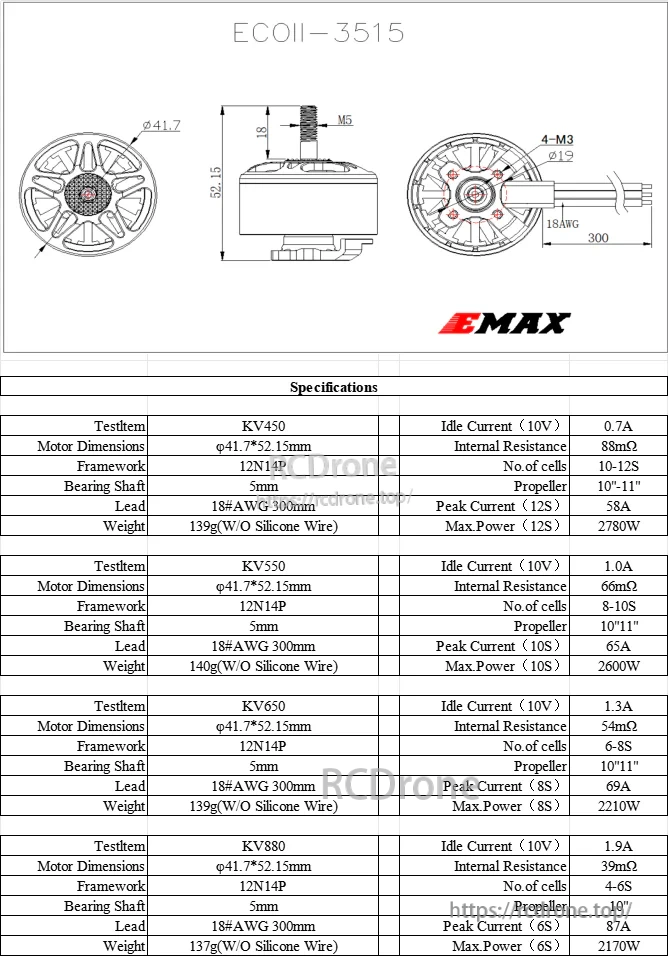

Emax ECOII 3515 brushless motor dimension drawing with 5mm shaft, 19mm M3 mount pattern and 300mm leads

Sisipkan lukisan ECOII-3515 untuk rujukan cepat mengenai pemasangan (4×M3, corak 19mm), saiz aci, dan dimensi keseluruhan.

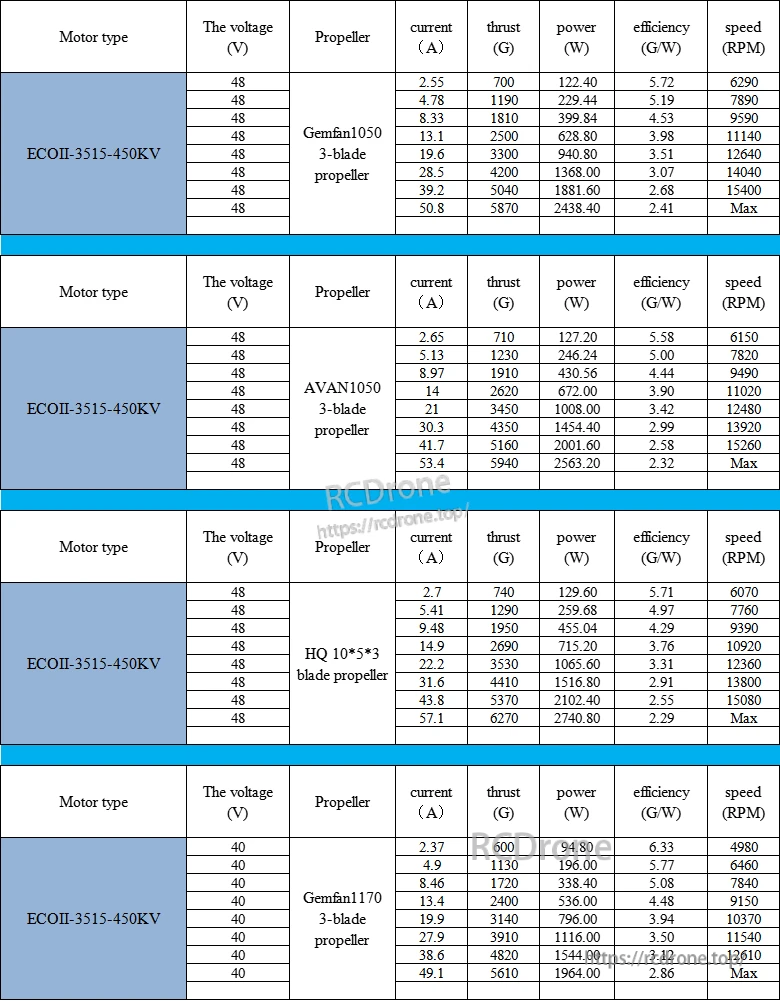

ECOII-3515 450KV bench test table with thrust, current, power and RPM for 48V using 10" propellers

Data prestasi 450KV membandingkan beberapa 10" pilihan prop pada 48V, menyenaraikan daya angkat, penggunaan arus, kecekapan, dan RPM.

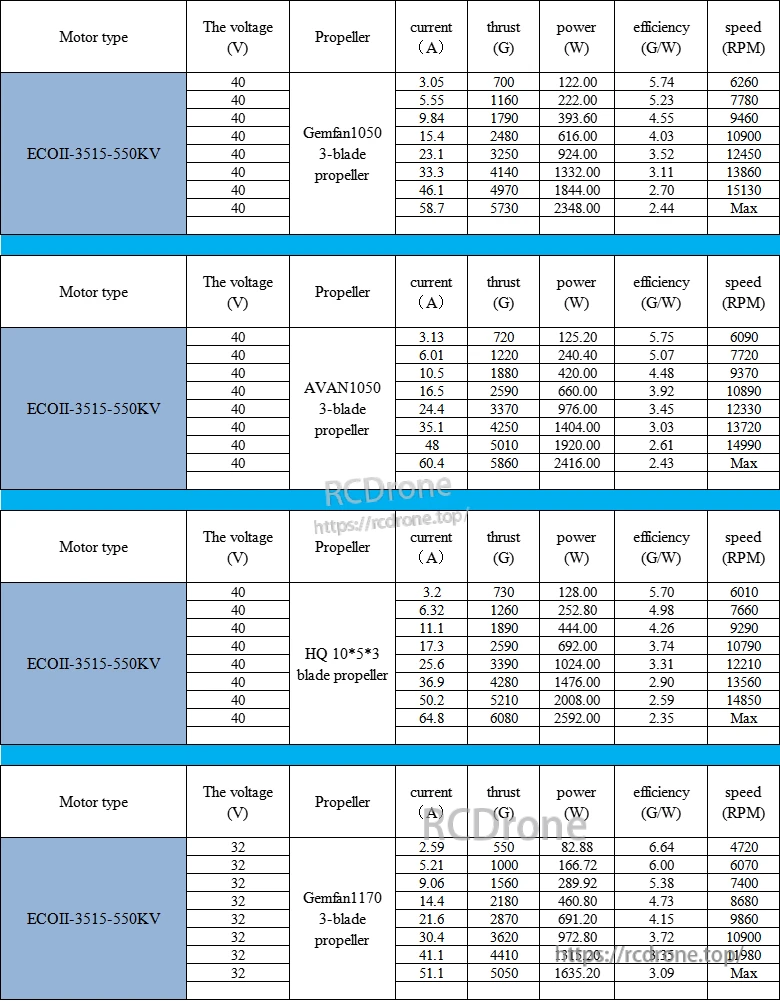

ECOII-3515 550KV bench test results table at 40V and 32V with thrust, power, efficiency and RPM columns

Keputusan bangku 550KV disediakan pada pelbagai voltan untuk membantu memadankan motor dengan bateri dan persediaan prop.

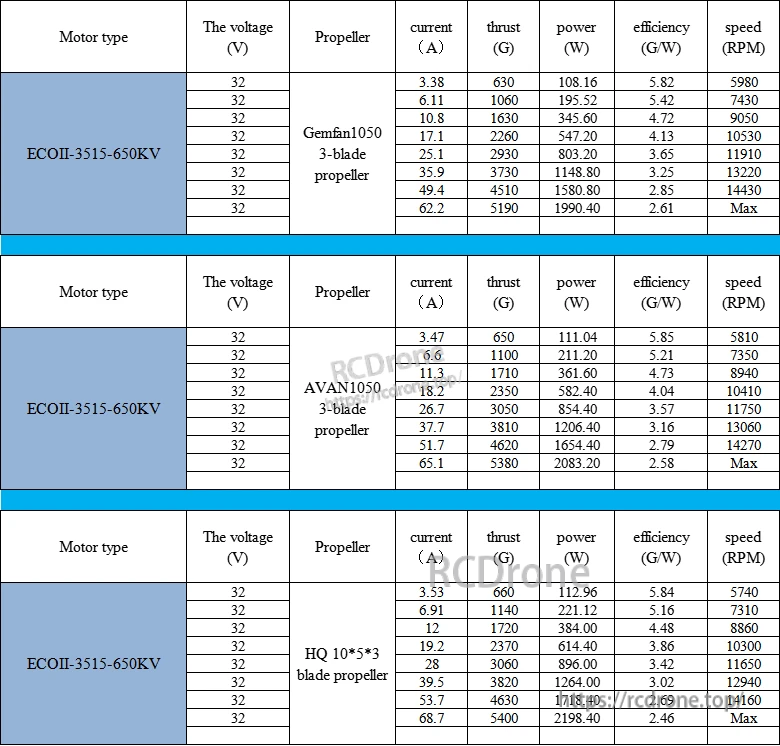

ECOII-3515 650KV bench data table at 32V for Gemfan 1050, AVAN 1050 and HQ 10×5×3 props

Jadual ujian 650KV memecahkan keputusan mengikut model propeller supaya anda boleh membandingkan daya angkat dan kecekapan merentasi persediaan.

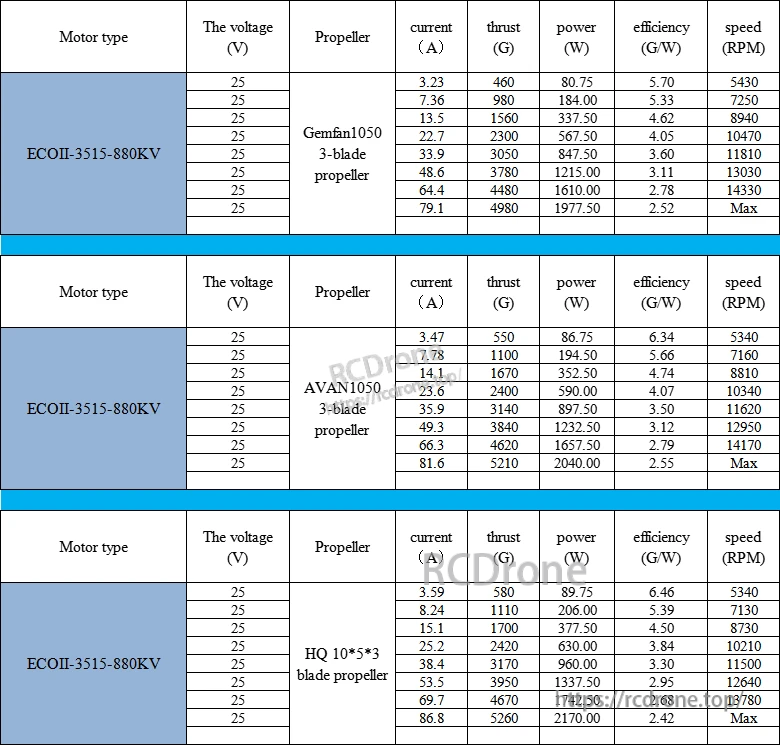

ECOII-3515 880KV bench test table at 25V with thrust, current, power, efficiency and RPM for 10×5 props
