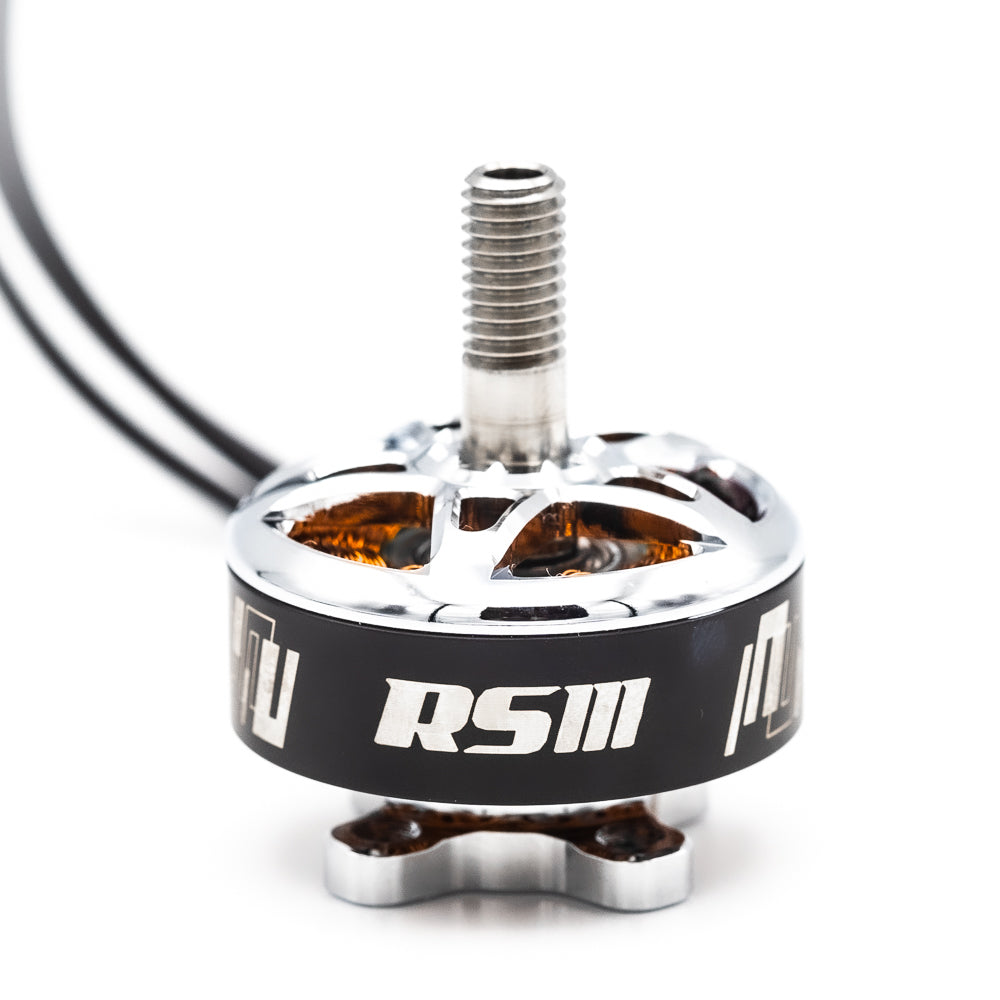

• EMAX RSIII 2306 FPV Racing Motor close-up, RSIII logo and threaded shaft

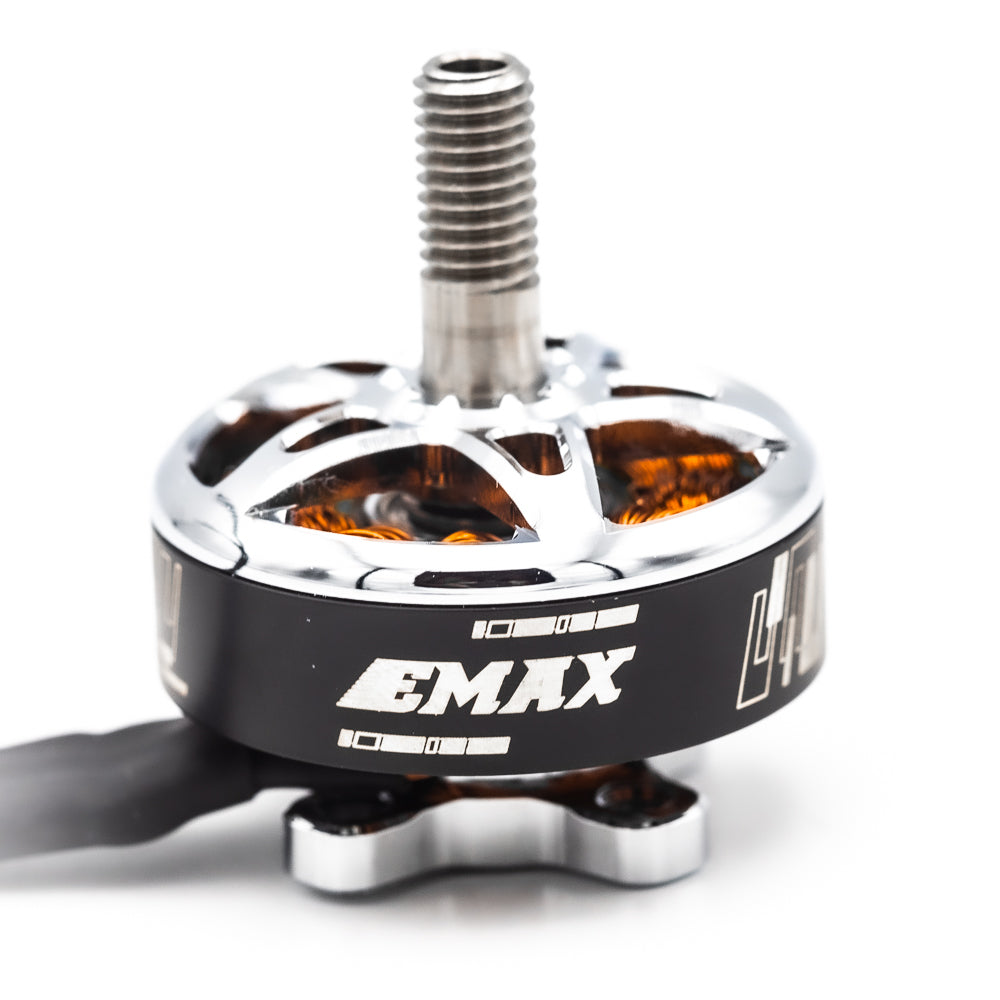

  • Side view of RSIII motor showing EMAX branding, silver bell and black can

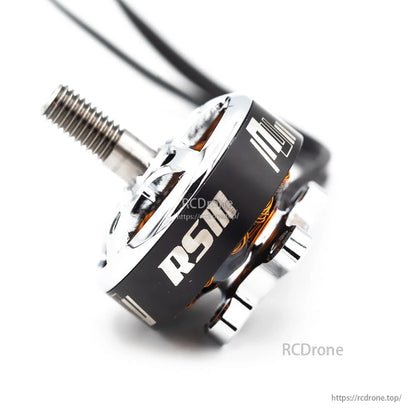

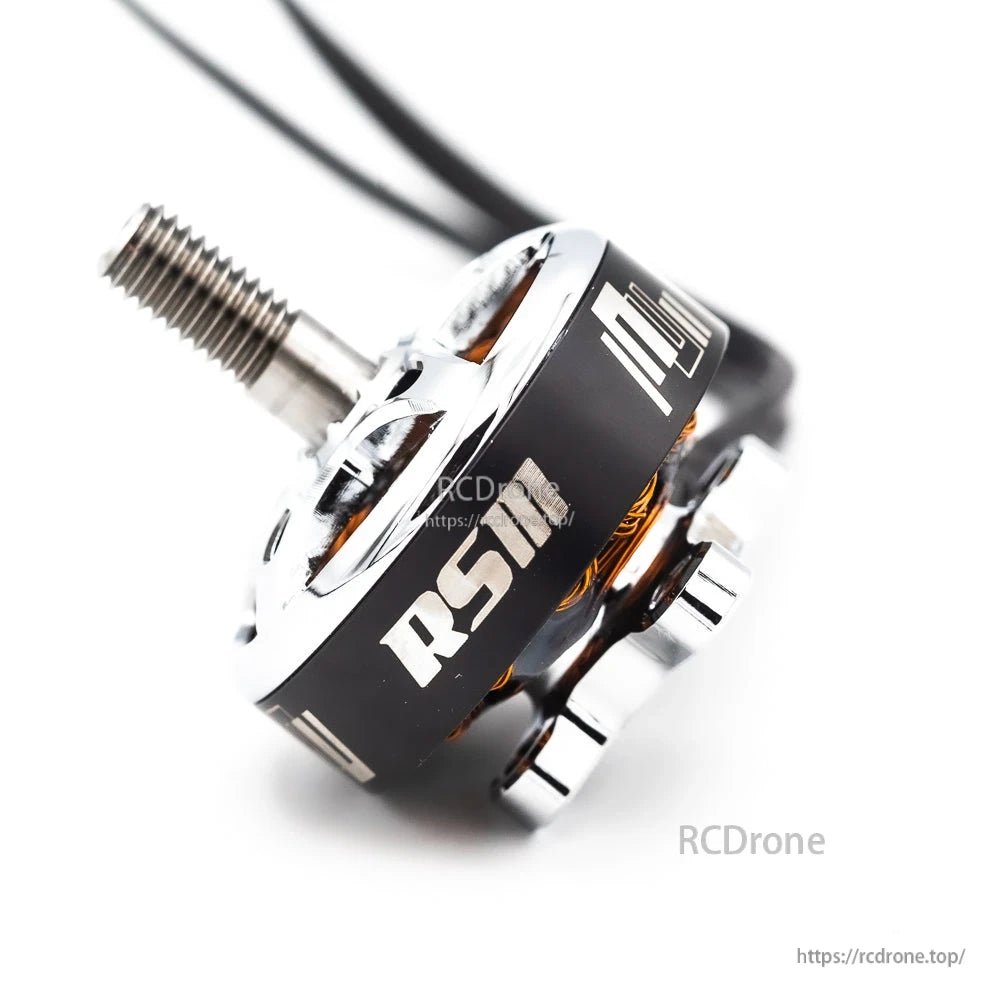

  • Angled side profile of RSIII brushless motor with RSIII text and wiring lead

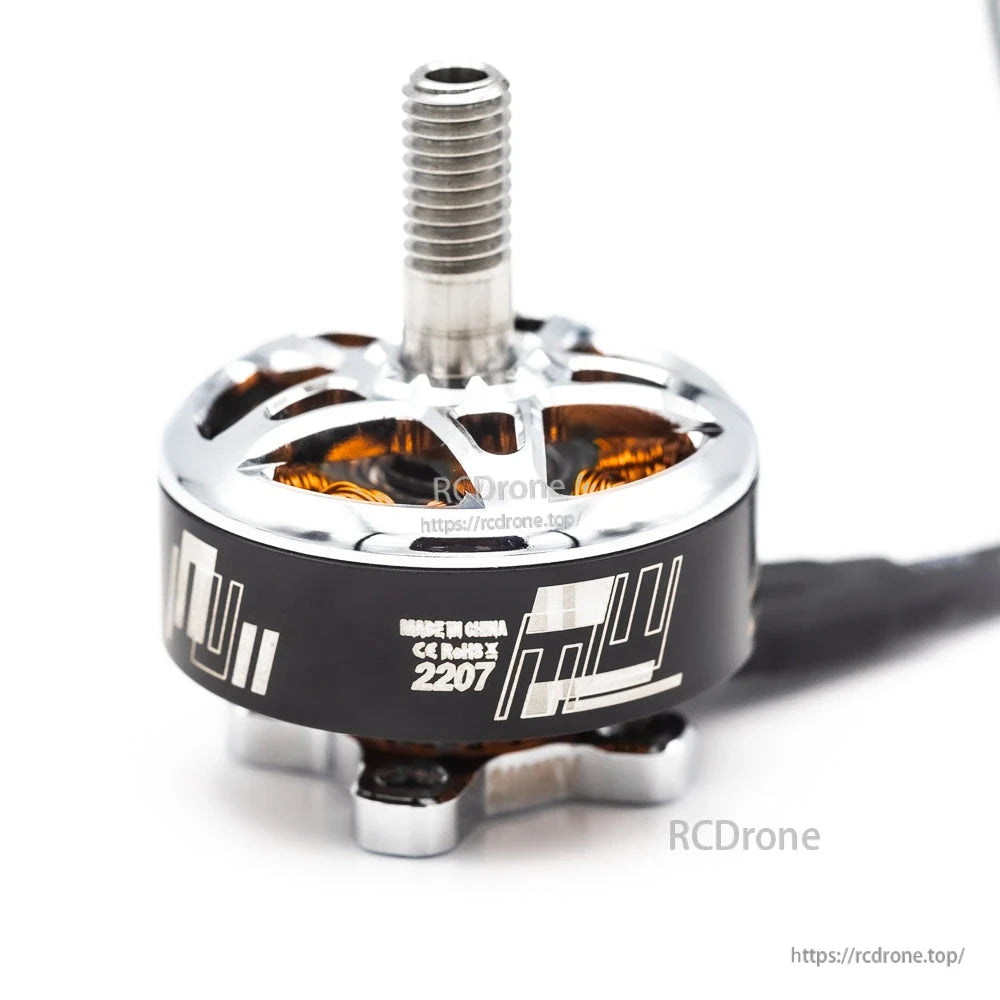

  • RSIII motor rear/side view with printed specification markings on the can

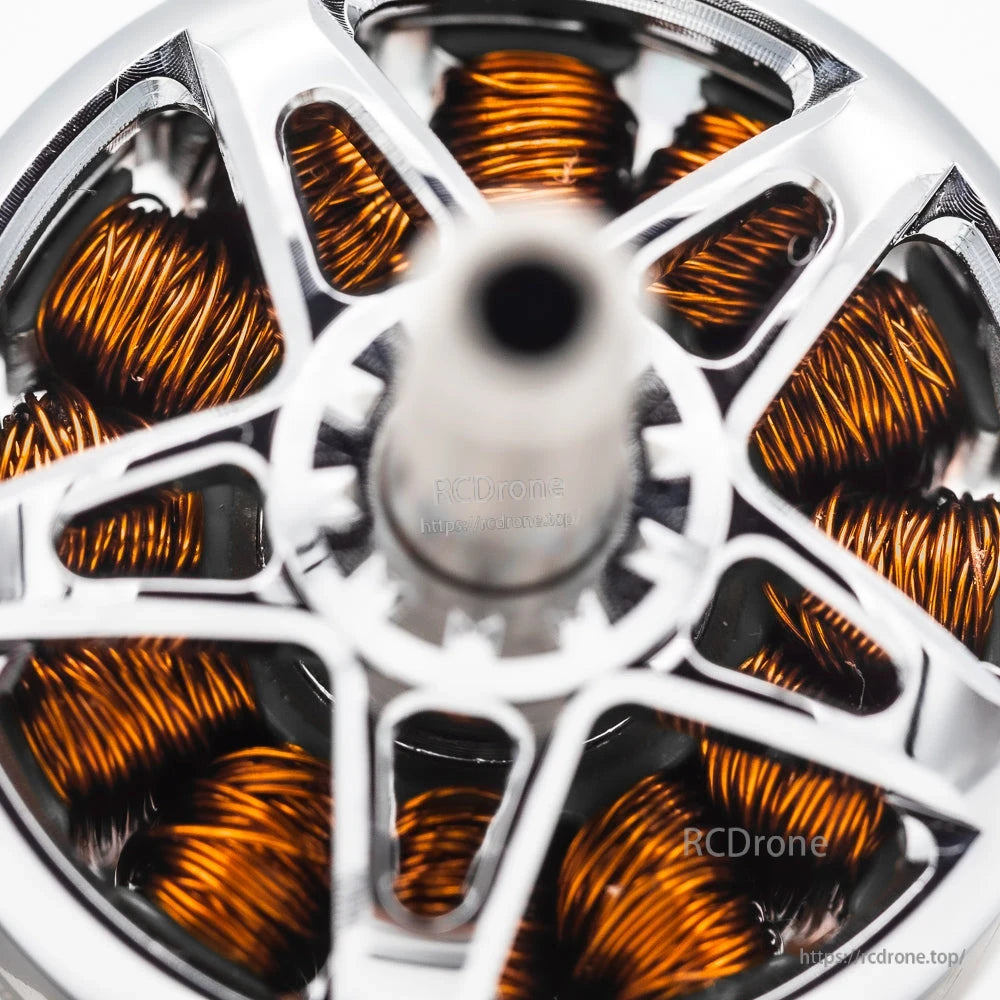

  • Top-down macro of motor bell revealing copper windings and spoke-style cutouts

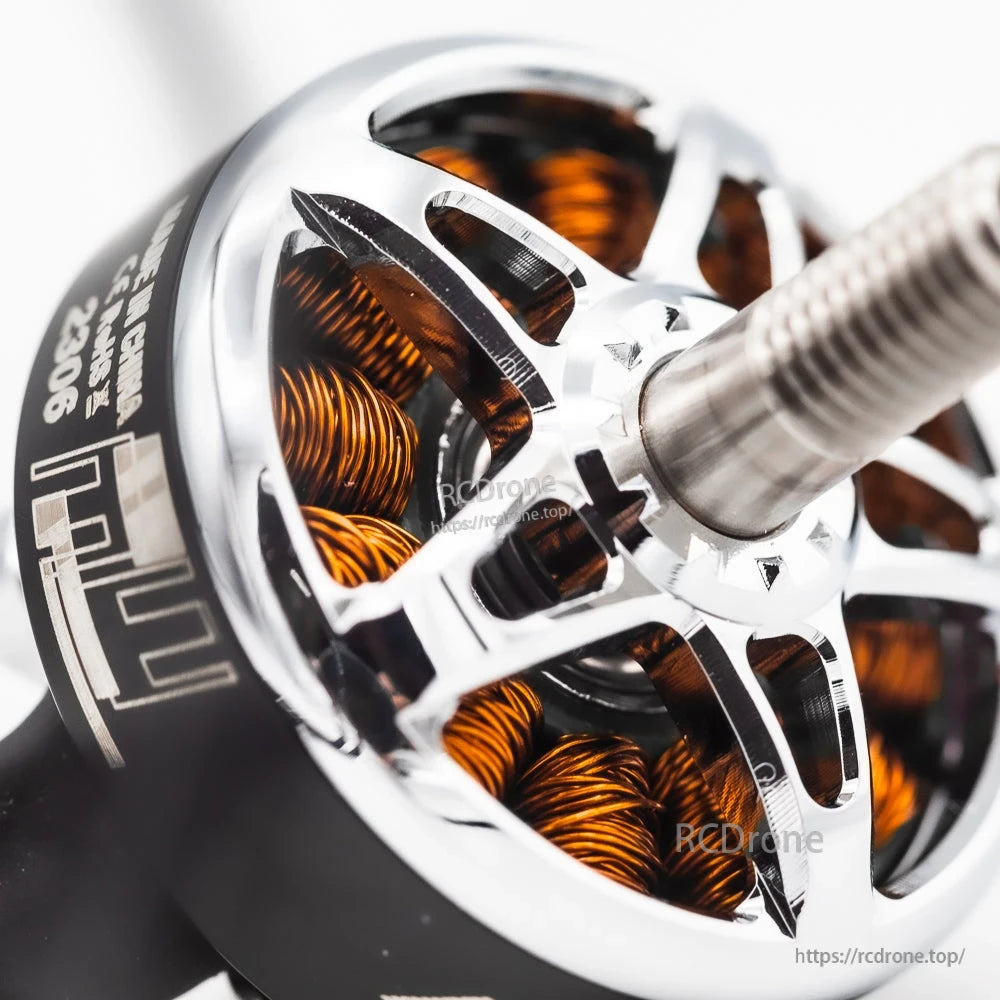

  • Macro close-up of motor shaft and bell, showing vented cutouts and copper coils

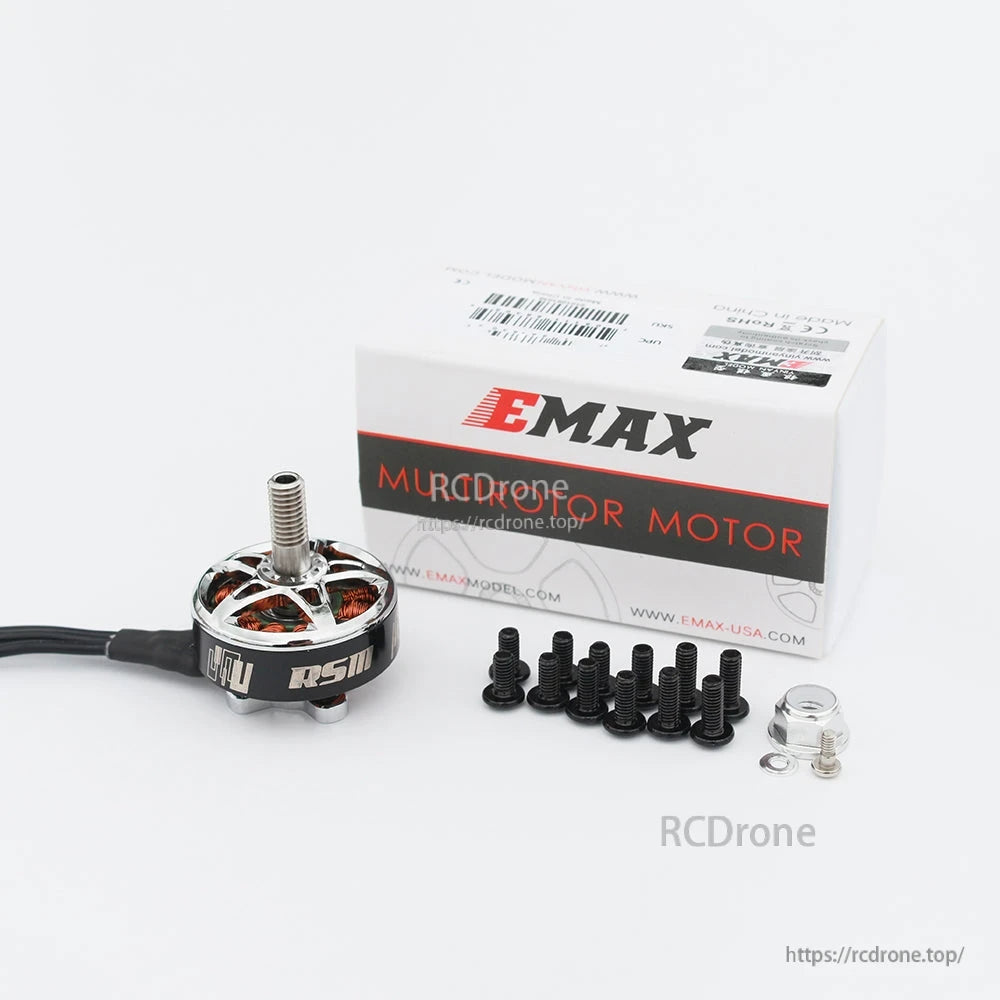

  • Package contents: EMAX RSIII motor, retail box, mounting screws, nut and washer
1 7

EMAX RSIII 2306 Motor Perlumbaan FPV - 1800KV/2100KV/2500KV, 27.3x32mm, Aci 4mm, M5

EMAX RSIII 2306 Motor Perlumbaan FPV - 1800KV/2100KV/2500KV, 27.3x32mm, Aci 4mm, M5

Emax

$48.09 USD
$48.09 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
Gaya
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Gambaran Umum

EMAX RSIII 2306 adalah motor perlumbaan FPV yang ditawarkan dalam pilihan 1800KV, 2100KV, dan 2500KV. Ia direka untuk pembinaan propeller 5 inci dan mempunyai poros galas aloi titanium 4mm serta kabel motor 20#AWG 120mm.

Ciri-Ciri Utama

  • Pilihan KV: 1800KV / 2100KV / 2500KV
  • Saiz motor: 2306 (dimensi motor: phi27.3 x 32mm)
  • Poros galas aloi titanium 4mm
  • Konfigurasi stator: 12N14P
  • Kabel pemimpin: 20#AWG, 120mm
  • Pola pemasangan: 16mm (4 x M3)
  • Panduan propeller: 5" hingga 5.5" (bergantung kepada varian)

Spesifikasi

Mekanikal

Model RSIII-2306
Dimensi motor phi27.3 x 32mm
Pemasangan 4 x M3, corak 16mm
Benang aci M5
Aci galas 4mm (aloi titanium)
Kerangka 12N14P
Panduan 20#AWG, 120mm

Elektrik (mengikut pilihan KV)

Item RSIII 2306 1800KV RSIII 2306 2100KV RSIII 2306 2500KV
Arus menganggur (10V) 1.1A 1.4A 1.8A
Rintangan dalaman 68mOhm 57mOhm 43mOhm
No. of cells 3-6S 3-6S 3-4S
Propeller 5"-5.5" 5" 5"
Arus puncak 34A (6S) 46A (6S) 43A (4S)
Kuasa maksimum 860W (6S) 1160W (6S) 720W (4S)
Berat (Tanpa wayar silikon) 27.9g 27.8g 27.7g

Ujian Beban (RSIII 2306)

RSIII2306-1800KV (25.2V)

Propeller Voltan (V) Arus (A) Dorongan (g) Kuasa (W) Kecekapan (g/W) Kelajuan (RPM)
DALPROP Cyclone 5040-3propeller 25.2 2.9 300 73.08 4.11 15200
5.6 500 141.12 3.54 19300
9.0 700 226.80 3.09 22800
27.9 1680 703.08 2.39 Max
DALPROP Cyclone 5050-3propeller 25.2 2.9 300 73.08 4.11 12600
5.8 500 146.16 3.42 16500
9.8 700 246.96 2.83 18900
33.5 1730 844.20 2.05 Max
DALPROP Cyclone F5046-3propeller 25.2 3.0 300 75.60 3.97 13800
5.8 500 146.16 3.42 17500
9.6 700 241.92 2.89 20700
32.5 1700 819.00 2.08 Max
HQ 5*4.3*3 25.2 2.8 300 70.56 4.25 14300
5.5 500 138.60 3.61 18500
8.9 700 224.28 3.12 21800
29.8 1720 750.96 2.29 Max
HQ 5*4.8*3 25.2 2.8 300 70.56 4.25 13200
5.6 500 141.12 3.54 17200
9.2 700 231.84 3.02 20200
34.1 1780 859.32 2.07 Max
GF 5045-3 25.2 2.8 300 70.56 4.25 15300
5.6 500 141.12 3.54 19300
9.0 700 226.80 3.09 22800
30.6 1670 771.12 2.17 Max

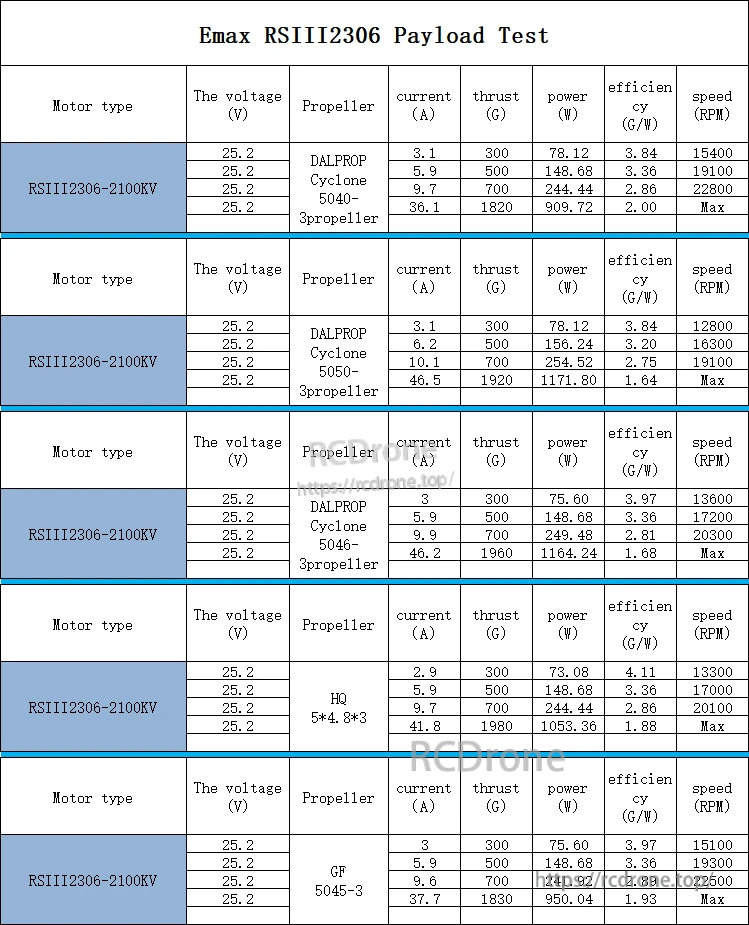

RSIII2306-2100KV (25.2V)

Propeller Voltan (V) Arus (A) Daya (g) Kuasa (W) Kecekapan (g/W) Kelajuan (RPM)
DALPROP Cyclone 5040-3propeller 25.2 3.1 300 78.12 3.84 15400
5.9 500 148.68 3.36 19100
9.7 700 244.44 2.86 22800
36.1 1820 909.72 2.00 Max
DALPROP Cyclone 5050-3propeller 25.2 3.1 300 78.12 3.84 12800
6.2 500 156.24 3.20 16300
10.1 700 254.52 2.75 19100
46.5 1920 1171.80 1.64 Max
DALPROP Cyclone 5046-3propeller 25.2 3.0 300 75.60 3.97 13600
5.9 500 148.68 3.36 17200
9.9 700 249.48 2.81 20300
46.2 1960 1164.24 1.68 Max
HQ 5*4.8*3 25.2 2.9 300 73.08 4.11 13300
5.9 500 148.68 3.36 17000
9.7 700 244.44 2.86 20100
41.8 1980 1053.36 1.88 Max
GF 5045-3 25.2 3.0 300 75.60 3.97 15100
5.9 500 148.68 3.36 19300
9.6 700 241.92 2.89 22500
37.7 1830 950.04 1.93 Max

RSIII2306-2500KV (16.8V)

Propeller Voltan (V) Arus (A) Daya Dorong (g) Kuasa (W) Kecekapan (g/W) Kelajuan (RPM)
DALPROP Cyclone 5040-3propeller 16.8 4.4 300 73.92 4.06 15300
8.7 500 146.16 3.42 19300
13.6 700 228.48 3.06 22800
35.1 1410 589.68 2.39 Max
DALPROP Cyclone 5050-3propeller 16.8 4.5 300 75.60 3.97 12900
9.2 500 154.56 3.23 16500
15.2 700 255.36 2.74 19400
47.9 1590 804.72 1.98 Max
DALPROP Cyclone F5046-3propeller 16.8 4.5 300 75.60 3.97 13600
8.9 500 149.52 3.34 17500
14.3 700 240.24 2.91 20300
43.1 1580 724.08 2.18 Max
HQ 5*4.3*3 16.8 4.3 300 72.24 4.15 14500
8.5 500 142.80 3.50 18400
13.4 700 225.12 3.11 21800
36.5 1480 613.20 2.41 Max
HQ 5*4.8*3 16.8 4.4 300 73.92 4.06 13300
8.7 500 146.16 3.42 17000
13.9 700 233.52 3.00 20200
41.9 1580 703.92 2.24 Max
GF 5045-3 16.8 4.3 300 72.24 4.15 15300
8.7 500 146.16 3.42 19300
13.7 700 230.16 3.04 22700
36.8 1470 618.24 2.38 Max

Permohonan

  • Penggunaan quad perlumbaan FPV 5 inci
  • 3-6S setup (1800KV / 2100KV) dan 3-4S setup (2500KV)

Untuk bantuan pemilihan produk (pilihan KV, bilangan sel, dan padanan prop), hubungi support@rcdrone.top or lawati https://rcdrone.top/.

Butiran

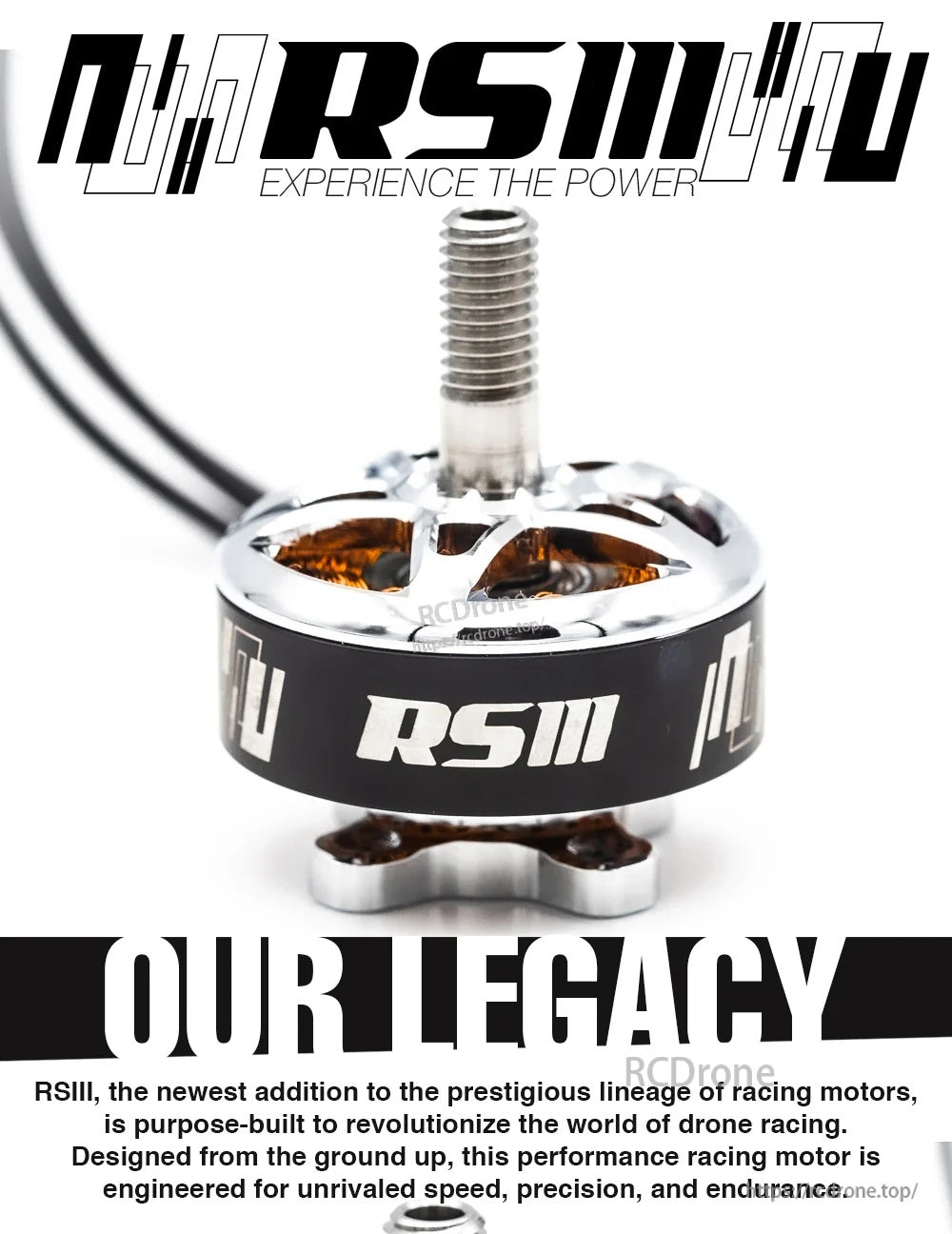

EMAX RSIII 2306 FPV racing motor with RSIII bell, silver top plate, and M5 threaded shaft

Dibina untuk binaan FPV 5 inci, motor RSIII 2306 mengimbangi kelajuan, kawalan, dan ketahanan sedia perlumbaan.

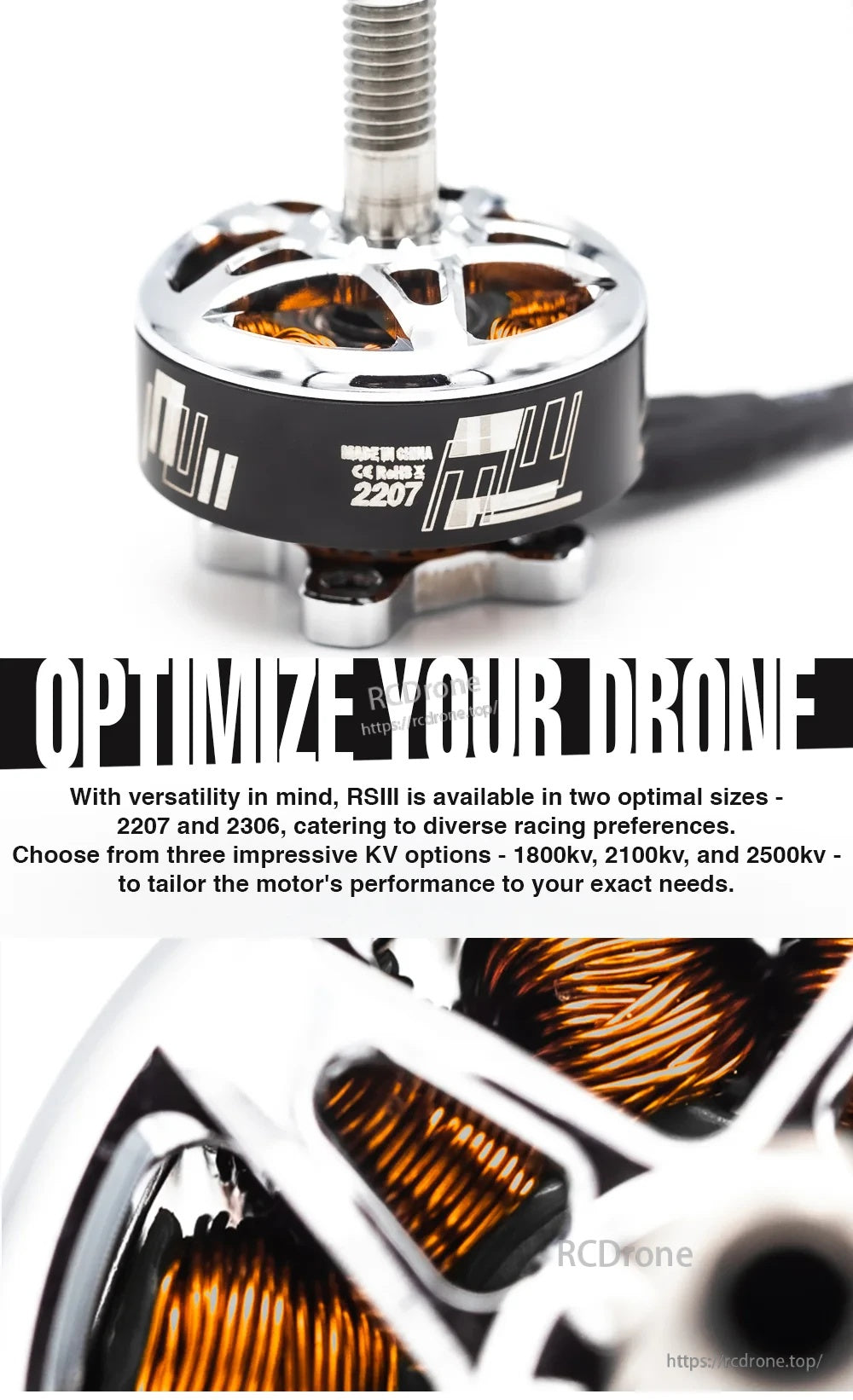

Side view of RSIII 2306 motor showing RSIII graphics, exposed copper windings, and 20AWG motor leads

Pilih 1800KV, 2100KV, atau 2500KV untuk padanan dengan bateri setup dan pilihan prop.

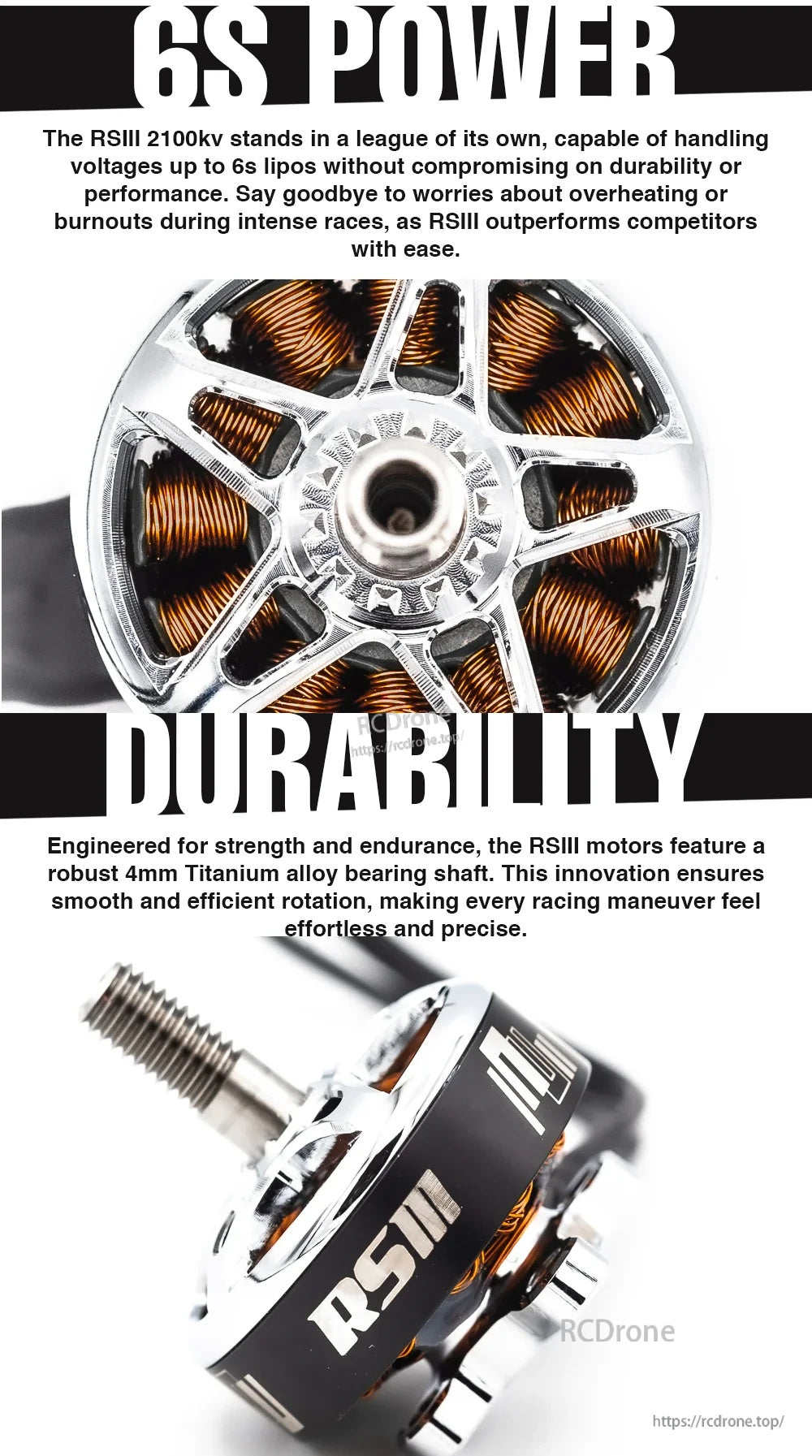

Top-down view of EMAX RSIII 2306 motor highlighting 12N14P stator layout and central shaft hub

Reka bentuk terbuka di bahagian atas menonjolkan stator dan susun atur winding untuk penyejukan yang efisien semasa penggunaan throttle yang kuat.

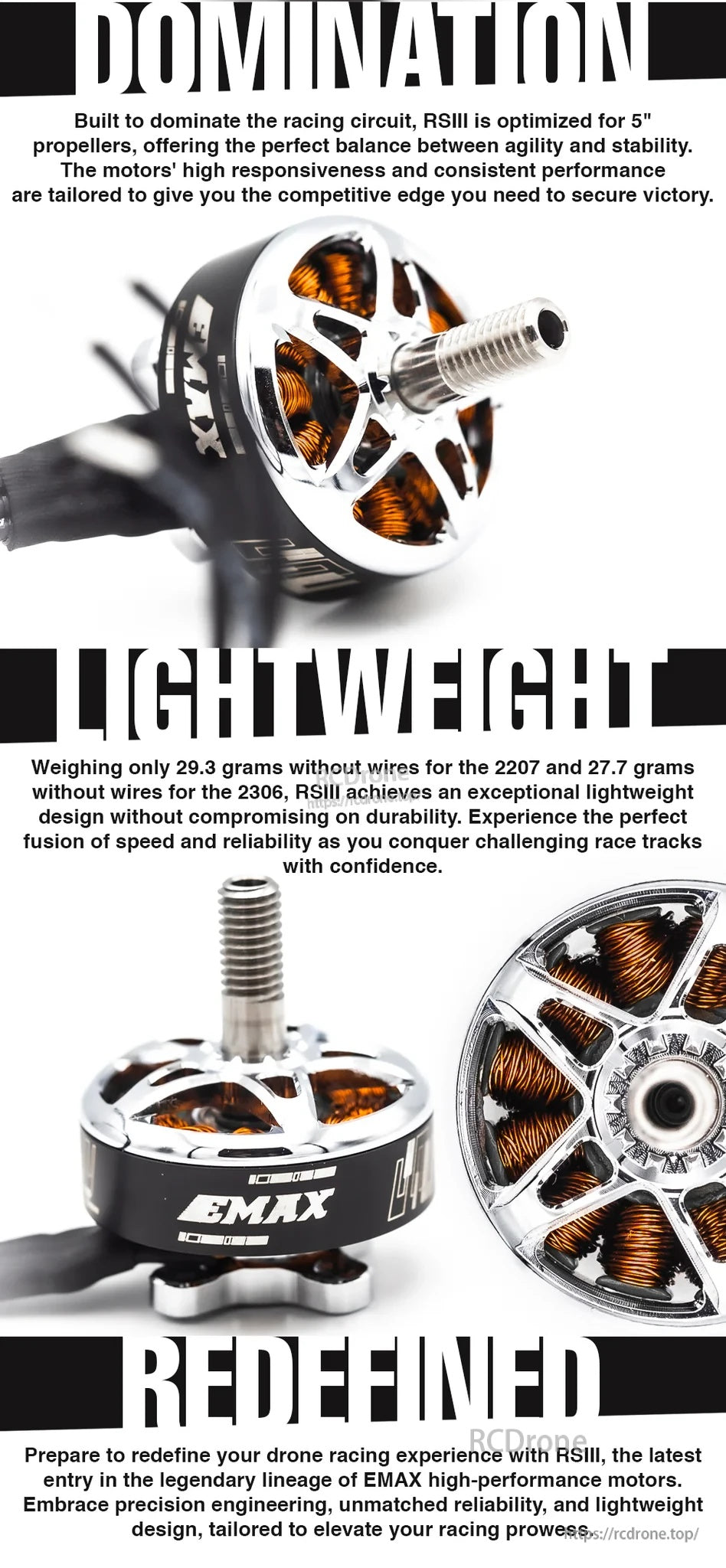

Angled views of the 2306 motor emphasizing compact height, lightweight build, and smooth bell machining

Jejak ringan 2306 memastikan pembinaan responsif tanpa mengorbankan tork untuk prop 5 inci.

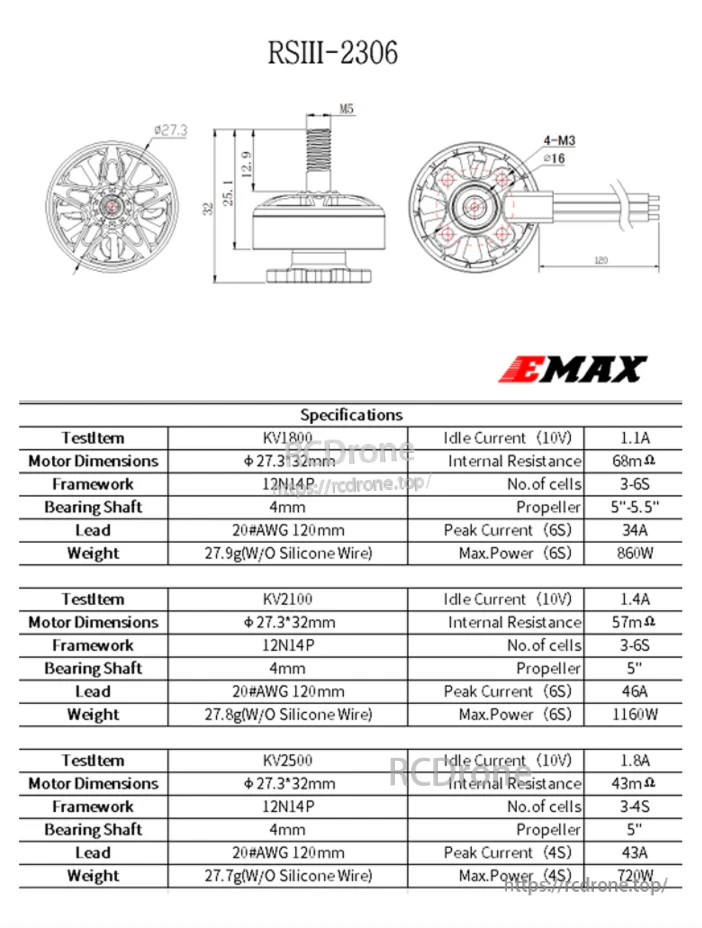

RSIII-2306 technical drawing and specifications with dimensions, 16×16mm M3 mounting pattern, and wiring length

Dimensi, corak pemasangan, dan panjang kabel disenaraikan untuk pemeriksaan kesesuaian cepat sebelum pembinaan baru.

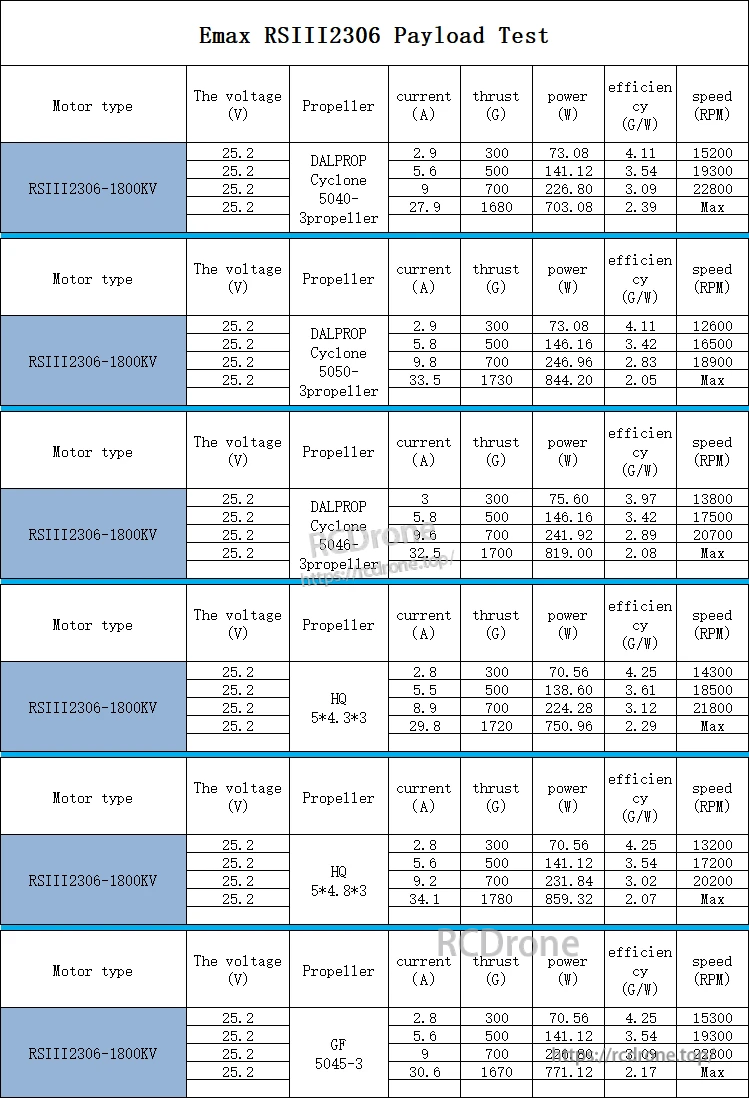

EMAX RSIII 2306 1800KV payload test table with thrust, current, power, efficiency, and RPM results

Data ujian beban membantu membandingkan pilihan prop dan menyelaraskan untuk kecekapan berbanding daya puncak.

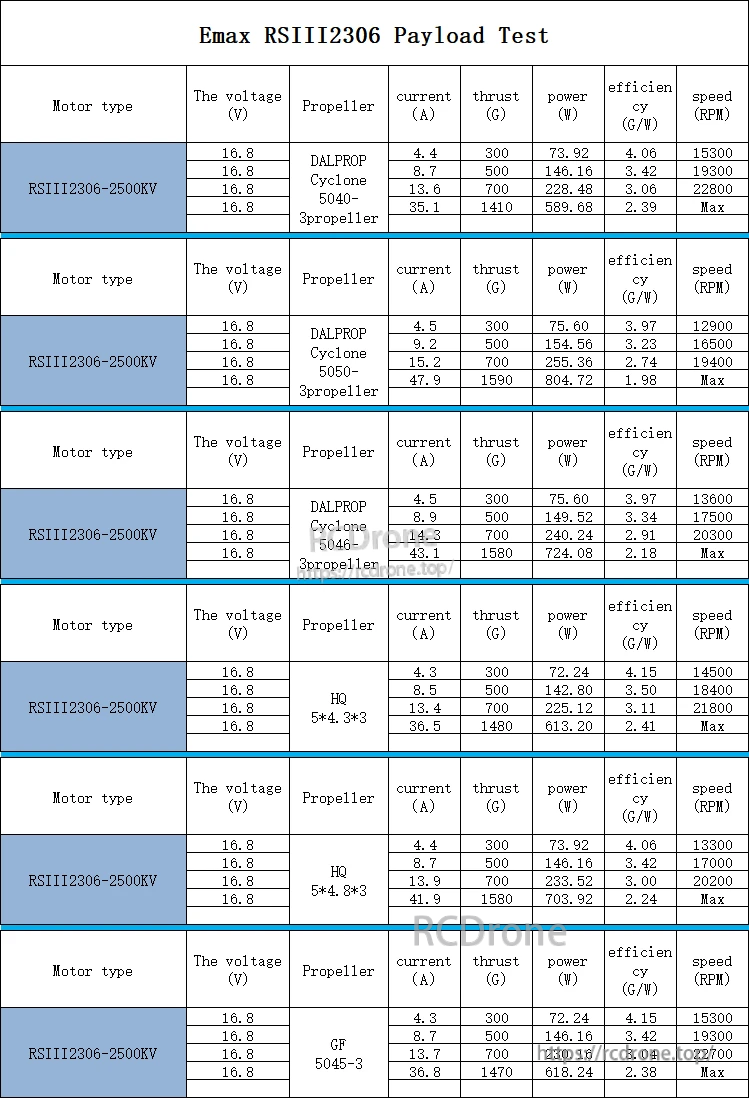

Emax RSIII 2306 FPV Racing motor w/ 1800KV 2100KV 2500KVEMAX RSIII 2306 2500KV payload test table with thrust, current, power, efficiency, and RPM results
