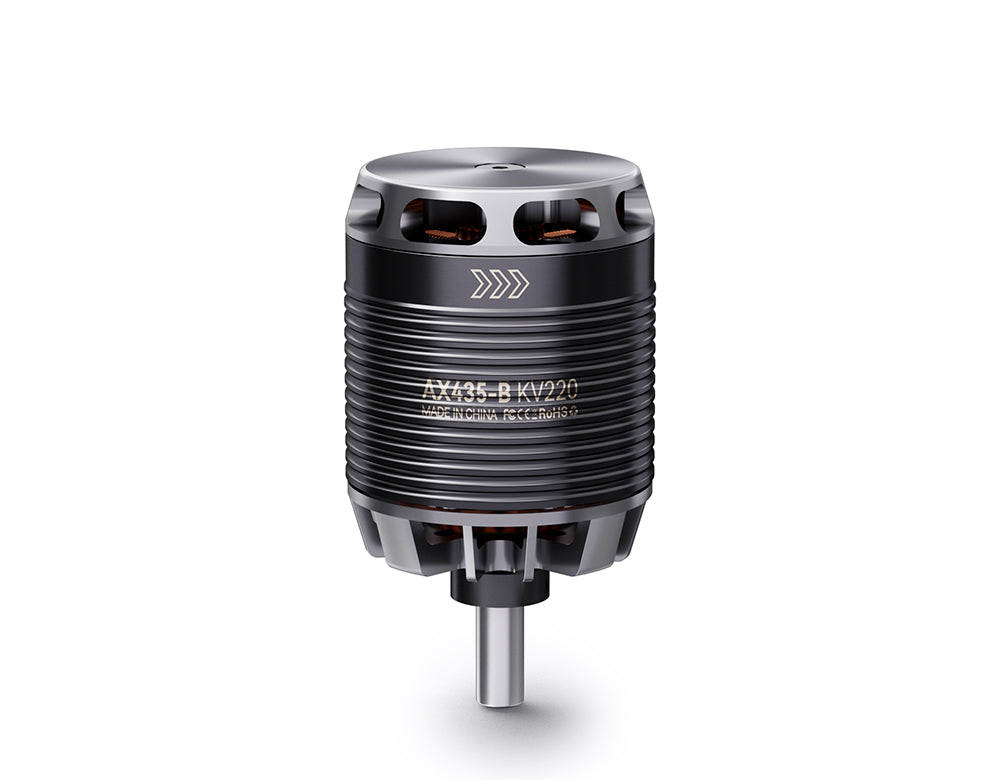

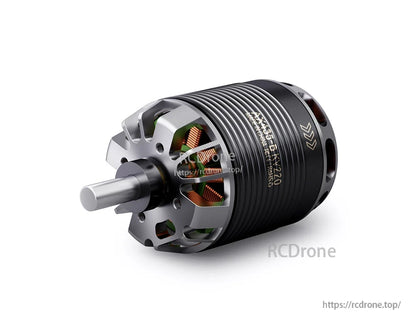

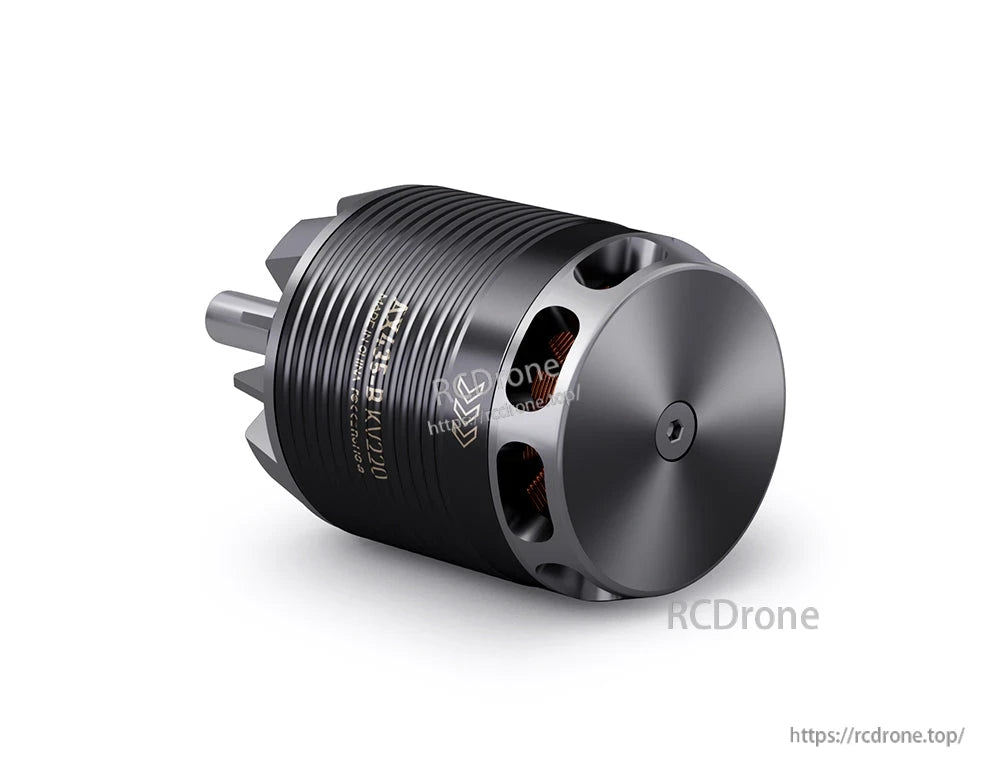

T-Motor AX435-B Brushless Motor for Fixed-Wing Cruise UAV, 12S, 10-12kg Takeoff, up to 9.7kg Thrust

T-Motor AX435-B Brushless Motor for Fixed-Wing Cruise UAV, 12S, 10-12kg Takeoff, up to 9.7kg Thrust

T-MOTOR

$180.60 USD
$180.60 USD
Jualan Habis dijual
Taxes included. Penghantaran dikira semasa pembayaran.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Lihat butiran penuh

Overview

T-Motor AX435-B is a brushless motor power system specifically engineered for fixed-wing cruise UAVs, optimized for pusher configurations. It supports versatile mounting with rear shaft output for internally mounted installations and front shaft output for externally mounted installations to adapt to different airframe layouts.

Key Features

  • High mounting versatility: rear shaft output (internal mounting) and front shaft output (external mounting) for pusher airframes.
  • Enhanced cooling efficiency: end caps with tilted centrifugal cooling fins aligned with rotation direction; heat dissipation efficiency improved by 5%.
  • Quick installation: integrated collet-type prop hub for fast folding propeller installation.
  • Recommended setup: AX435-B Motor + AT115A ESC + AUFZ16*13 / AUFZ17*14 / AUFZ17*11 prop.
  • Recommended battery: 12S (Lipo).
  • Recommended takeoff weight: 10-12kg.

For pre-sales compatibility checks (ESC, propellers, and airframe integration), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model No. AX435-B Magnet Level 180°C
Motor Size Φ49.5*89mm Lead Cable Enameled Wire 150mm
Stator 150°C high temperature-resisting coatings Copper Wire 220°C
Configuration 12N14P Coil Insulation Test 500V/5s
Shaft Diameter IN: 8mm; OUT: 8mm Rotor Dynamic Balance Standard ≤30mg
Bearing Imported MR148/688ZZ Package Size 197*104*75mm

Tech Specs (KV 220)

KV 220 Idle Current (15V) 1.4A
Max Power 1550W Peak Current 75A
Rated Voltage (Lipo) 12S Internal Resistance 46mΩ
Max Thrust 7.5kg Weight (incl. cable) 485g

Tech Specs (KV 250)

KV 250 Idle Current (15V) 1.6A
Max Power 2000W Peak Current 82A
Rated Voltage (Lipo) 12S Internal Resistance 37mΩ
Max Thrust 9.7kg Weight (incl. cable) 485g

Applications

  • Fixed-wing cruising UAV power systems
  • Pusher configuration fixed-wing airframes requiring internal or external mounting flexibility

Details

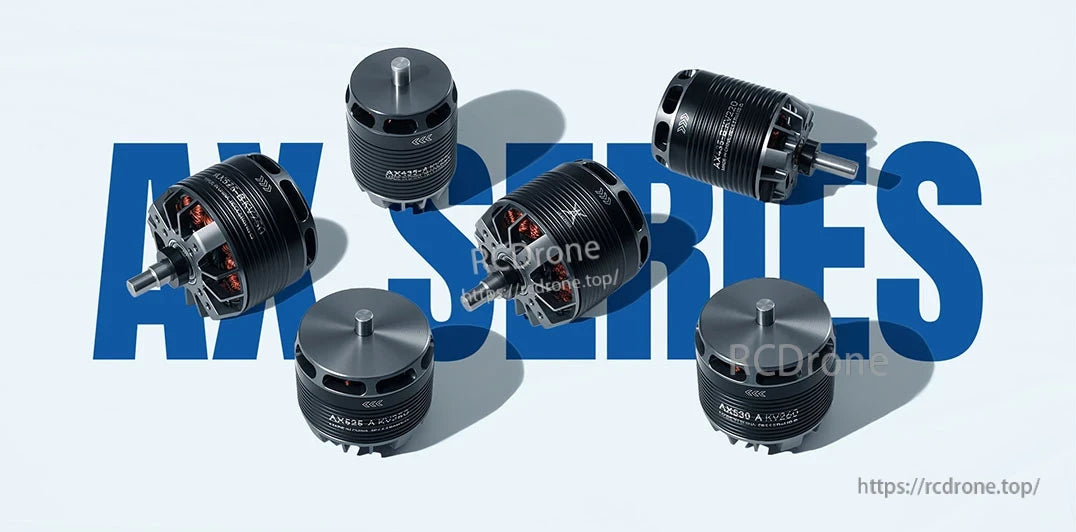

T-Motor AX Series brushless motors

T-Motor AX Series brushless motors feature a compact, shafted design with open ventilation for multirotor builds.

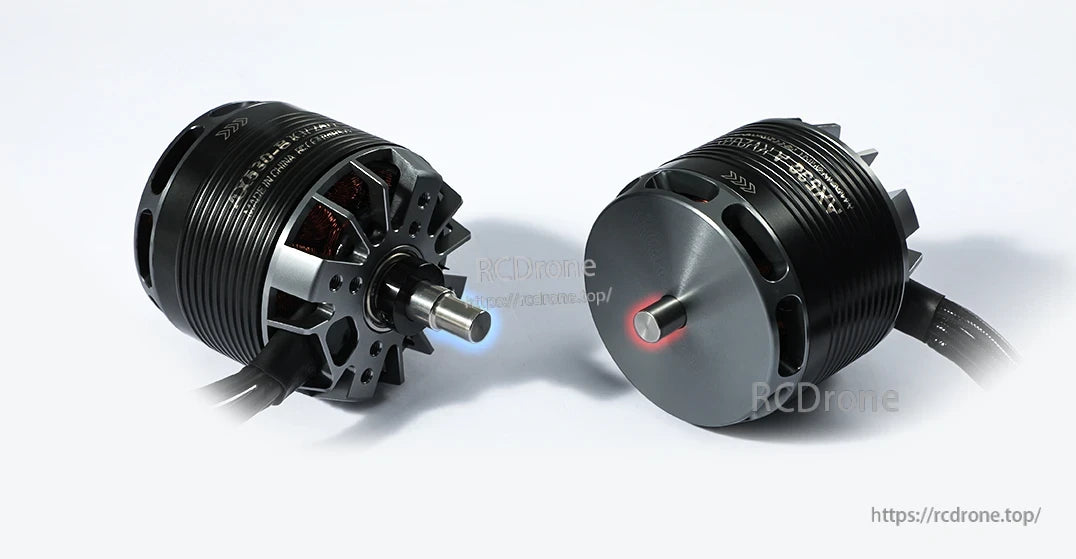

T-Motor AX Series mounting versatility

T-Motor brushless outrunner motors feature a compact black housing with exposed shafts and pre-attached leads for straightforward installation.

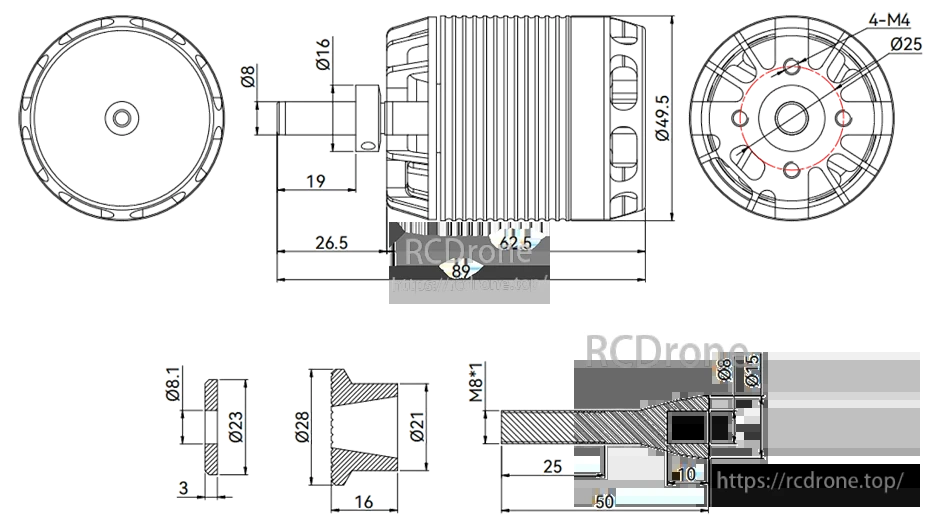

AX435-B technical drawing

Detailed dimensional views and mounting-hole spacing help confirm fitment when selecting frames, brackets, and hardware.
