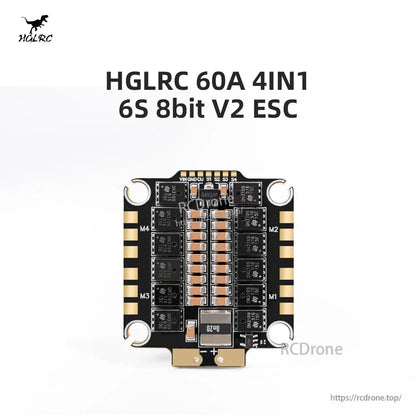

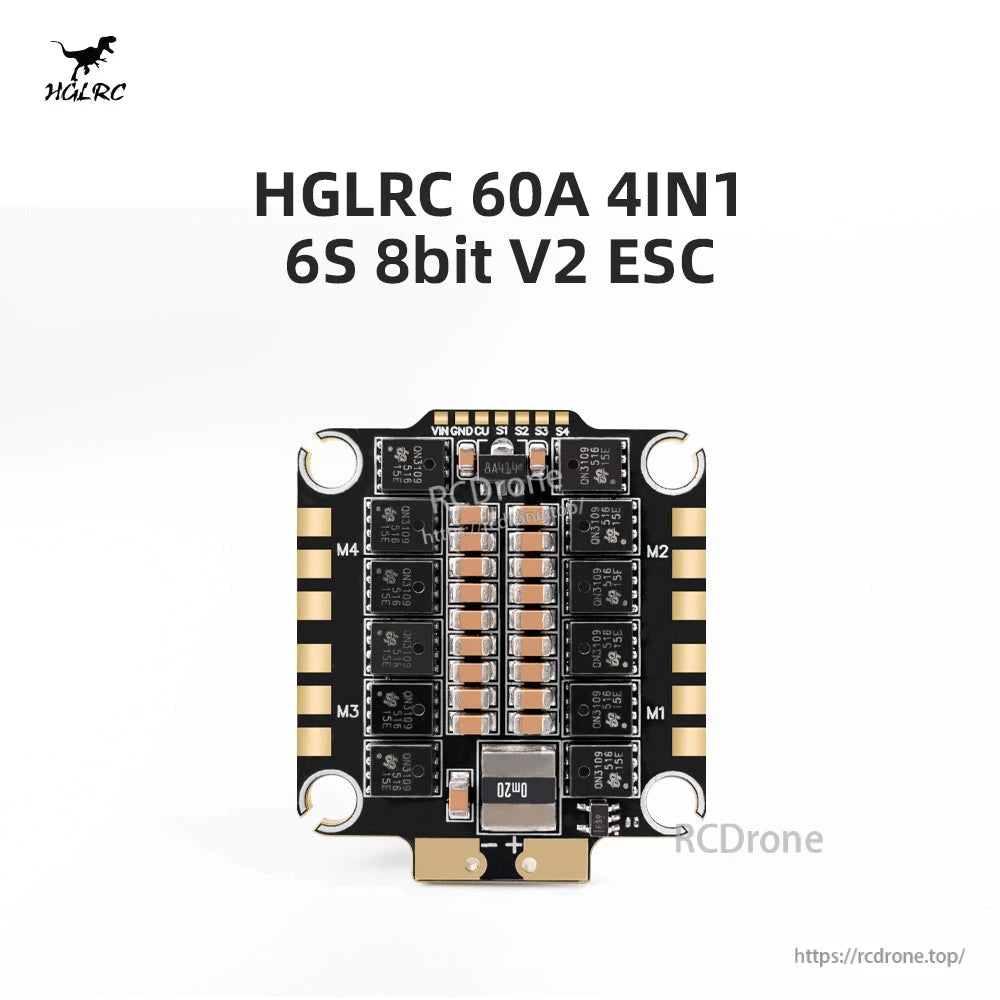

HGLRC 60A 4in1 6S 8-bit V2 ESC (B-X-40) 30.5x30.5mm M3 DShot600/300 for FPV Drone

Overview

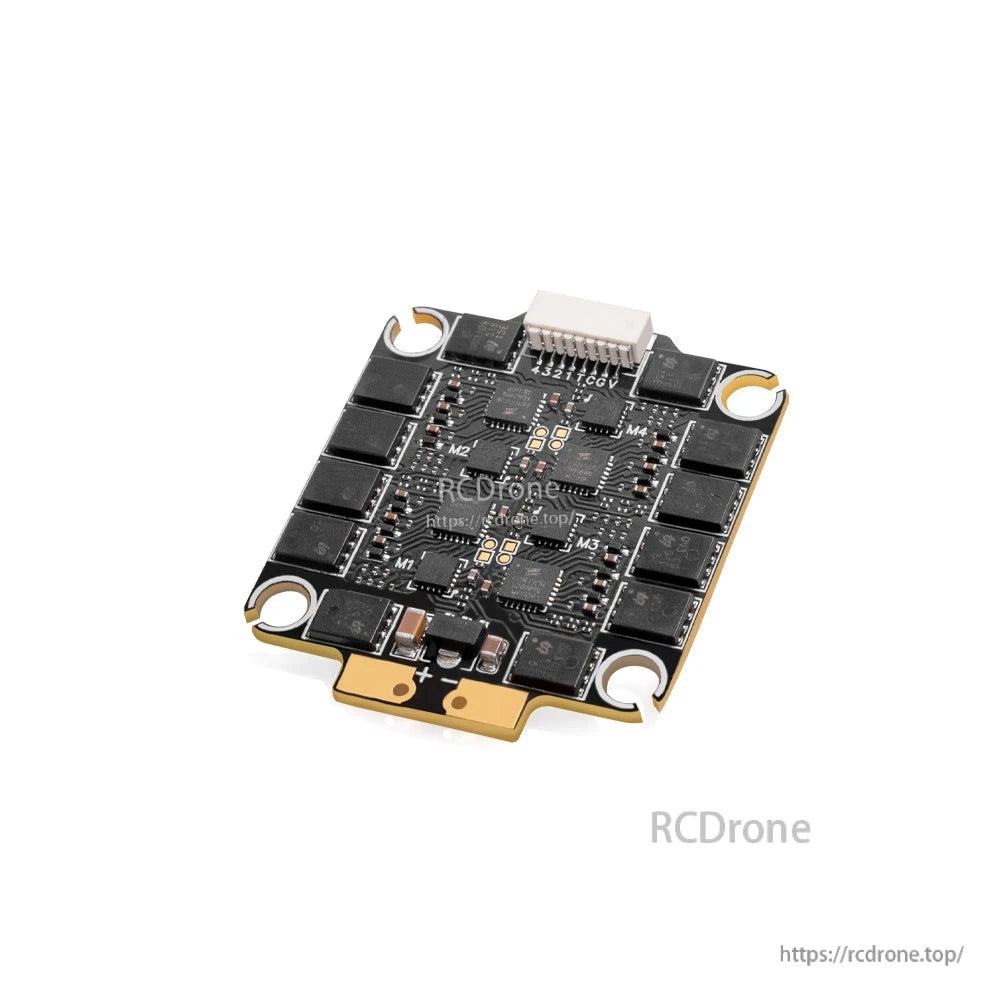

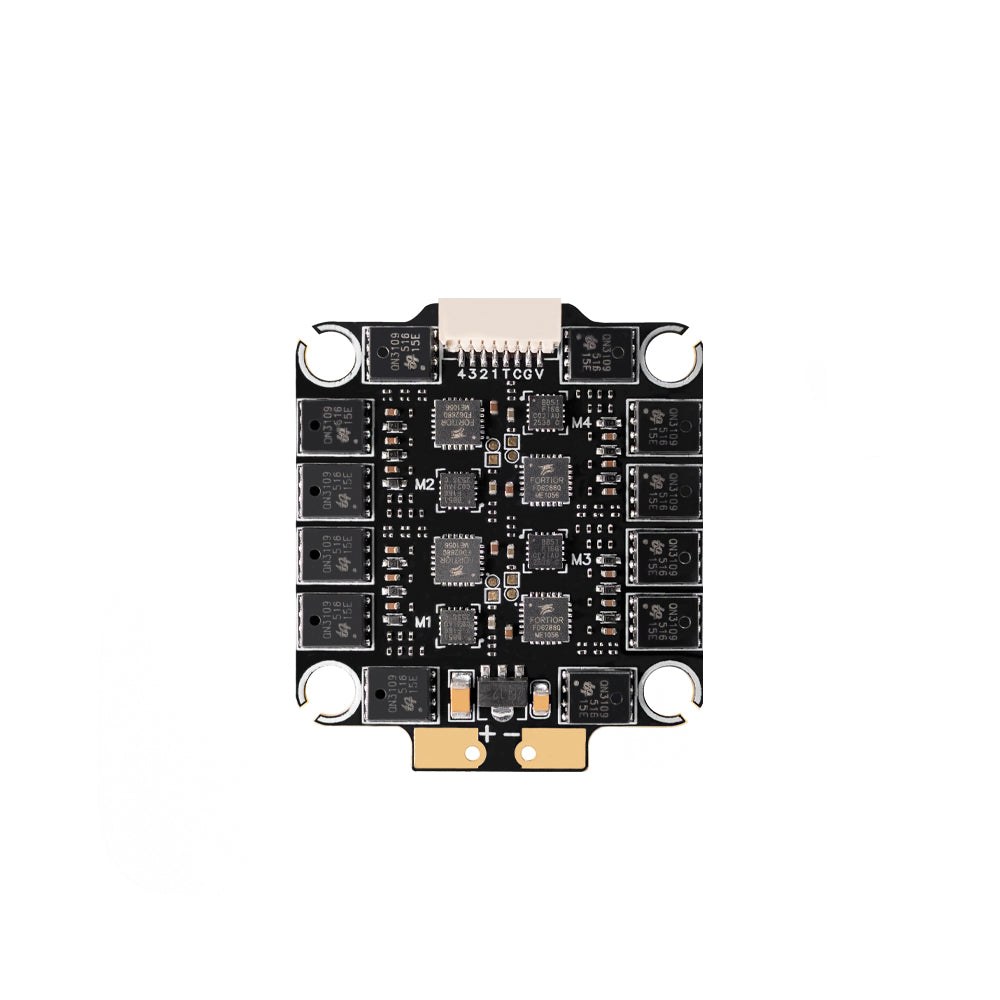

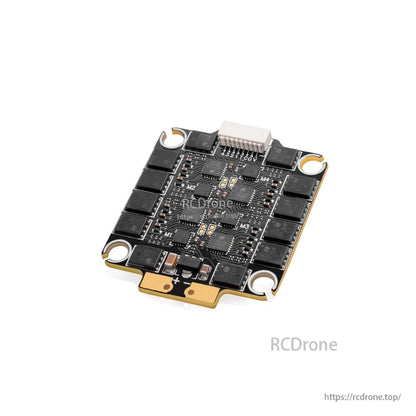

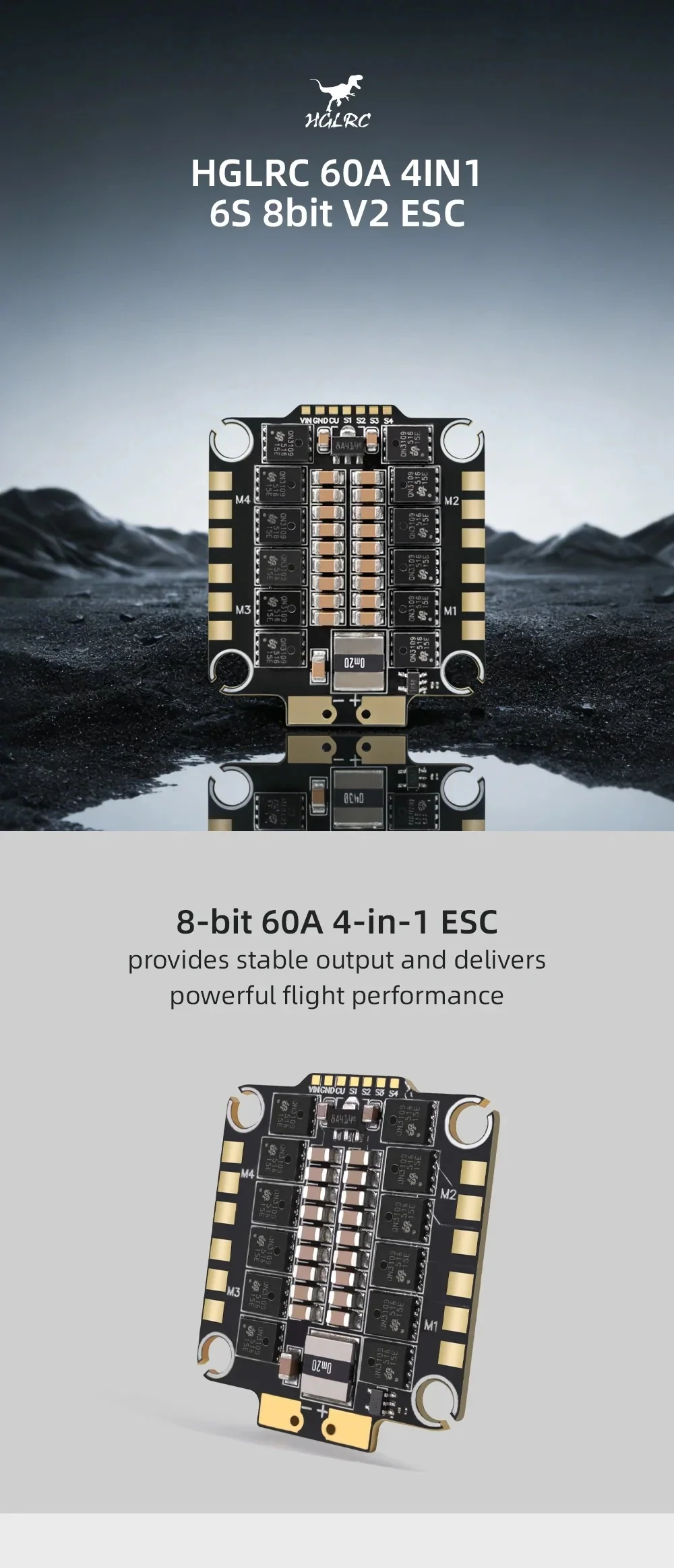

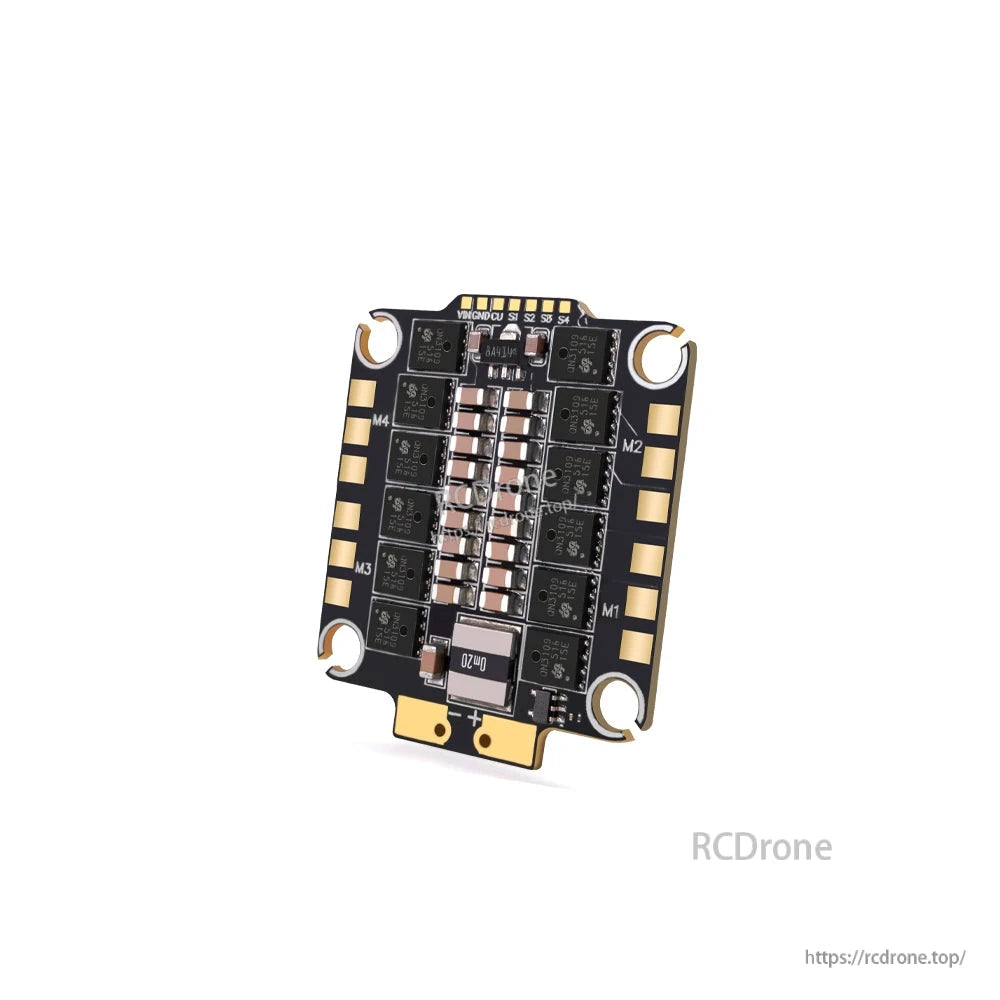

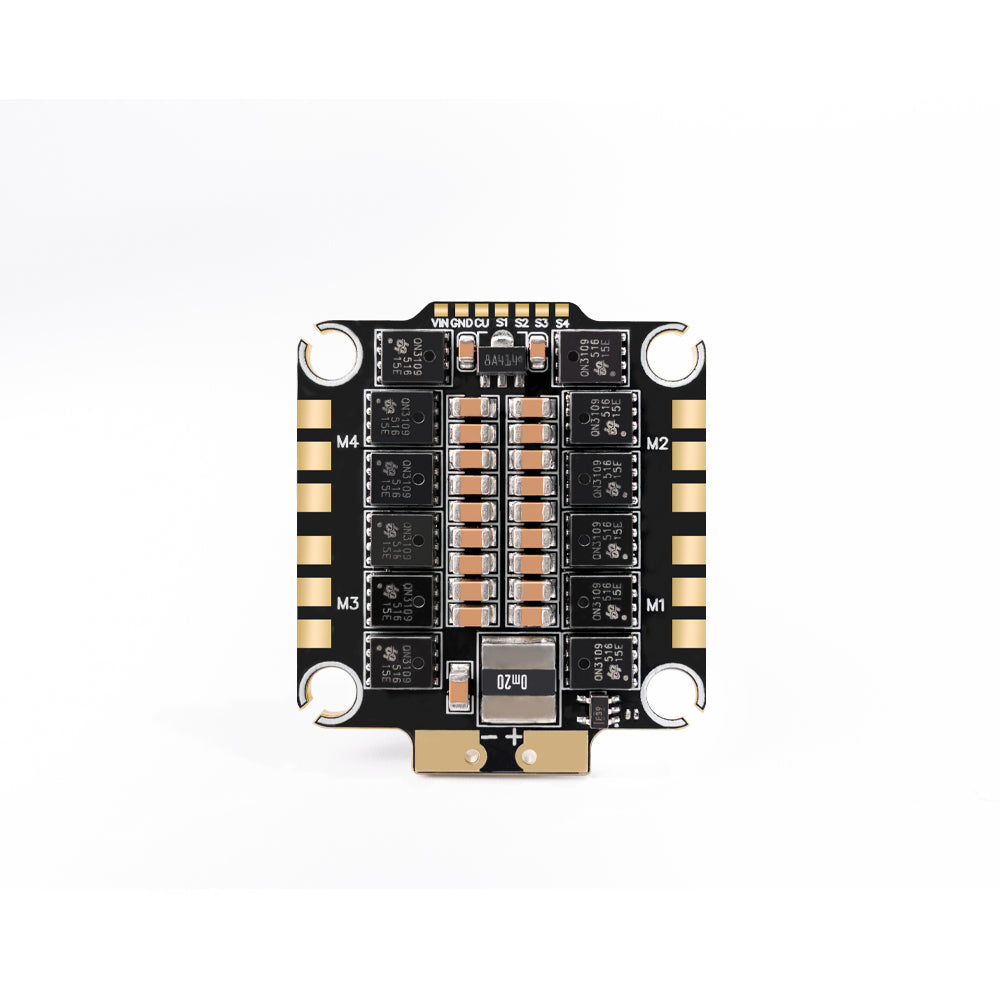

HGLRC 60A 4-in-1 6S 8-bit V2 ESC is a compact FPV drone ESC designed for 4-motor builds using a 30.5 x 30.5mm (M3) mounting pattern. It supports DShot600/300 and uses B-X-40 ESC firmware.

Key Features

• 8-bit 60A 4-in-1 ESC design
• Input voltage: 7.4V-25.2V (2S-6S)
• Rated current per motor: 60A
• Single-channel peak current: 80A (5S)
• Compatible with DShot600/300
• ENIG design for high-temperature and high-current operation
• Enlarged ESC pads and plug-in FC connection concept (wiring harness included)
• 30.5mm mounting holes for broad frame compatibility

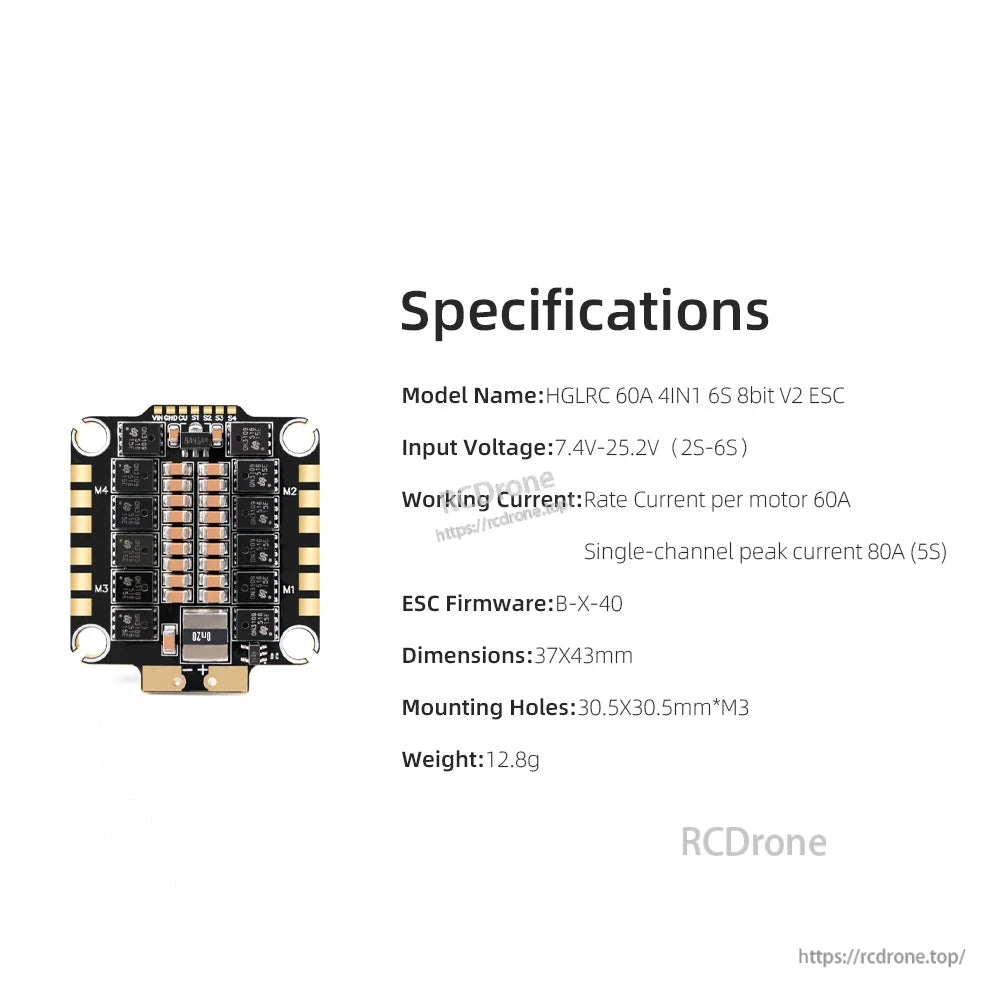

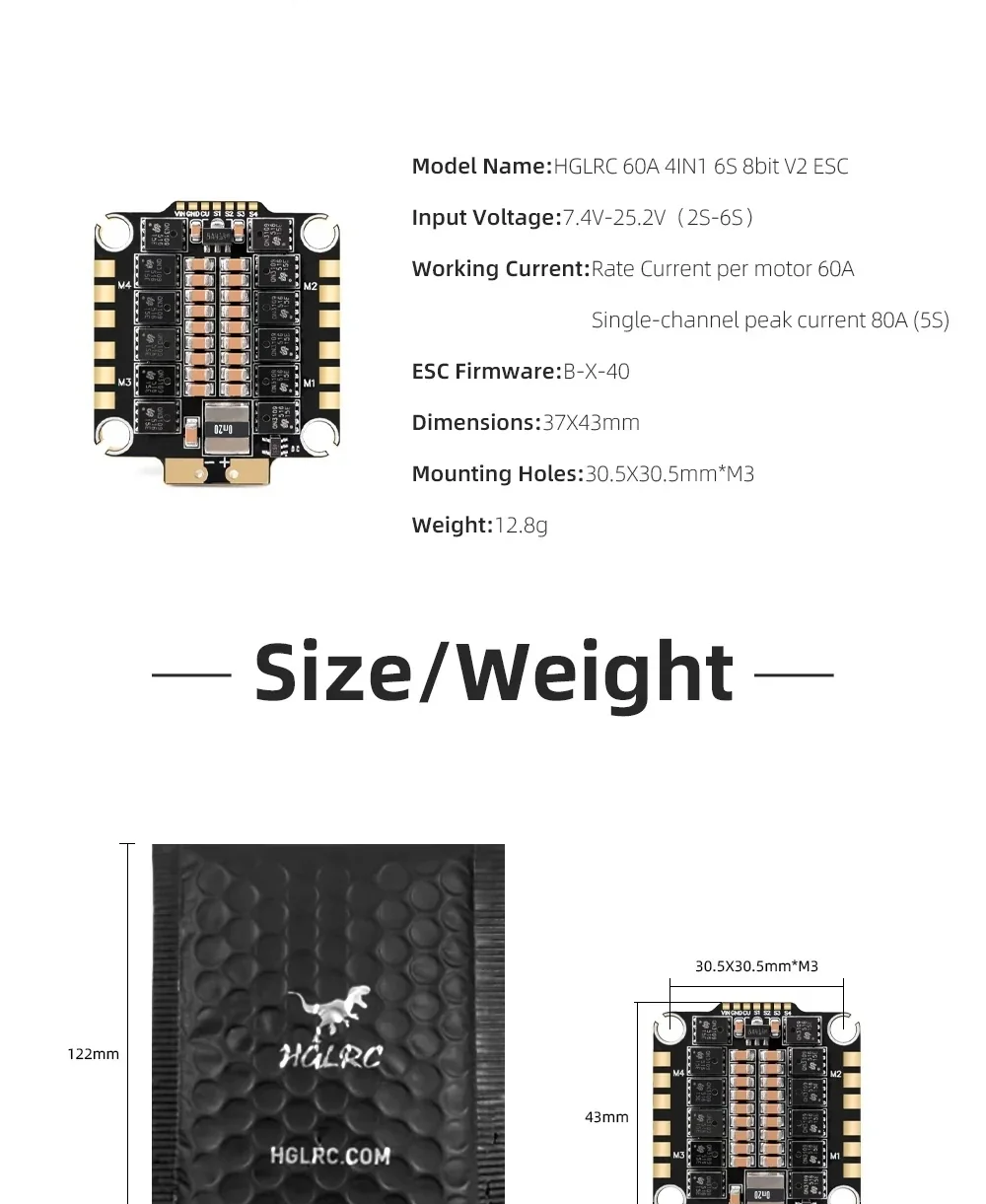

Specifications

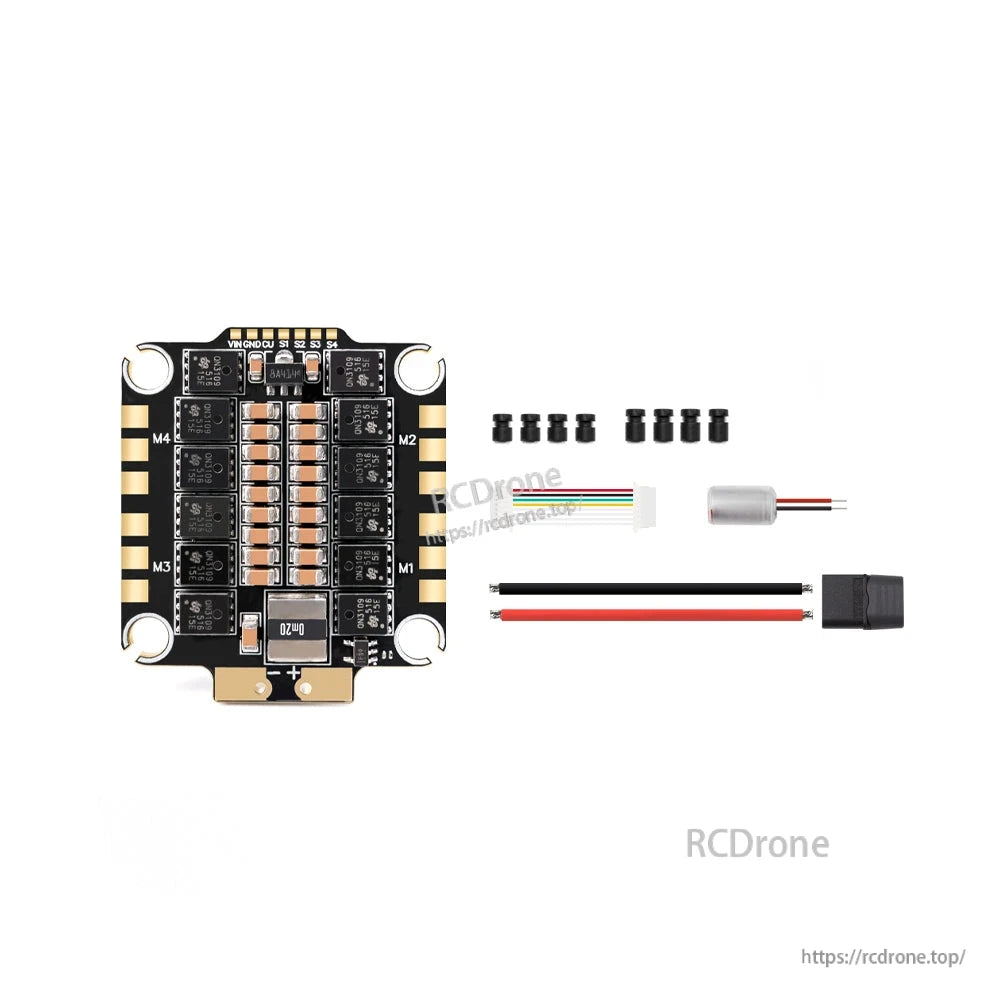

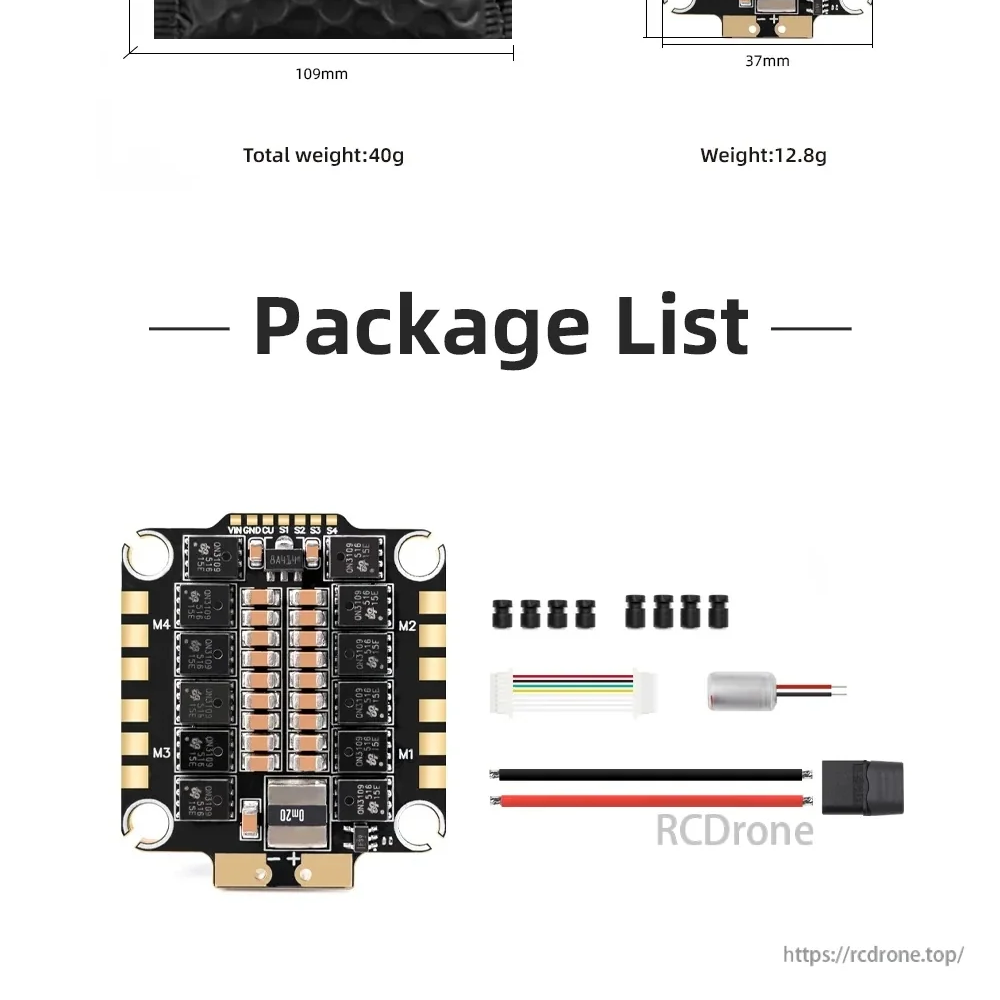

What’s Included

• 1x HGLRC 60A 4IN1 6S 8-bit V2 ESC
• 1x FC/ESC plug cable (wiring harness)
• 1x Capacitor
• 1x XT60 power lead set
• 8x Screws

Applications

• FPV racing and freestyle quad builds requiring a 30.5 x 30.5mm (M3) 4-in-1 ESC
• 2S-6S LiPo setups within the stated voltage range

For wiring help, build advice, or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

The HGLRC 60A 4-in-1 ESC keeps wiring tidy in 30.5×30.5mm stacks while delivering stable power for demanding FPV setups.

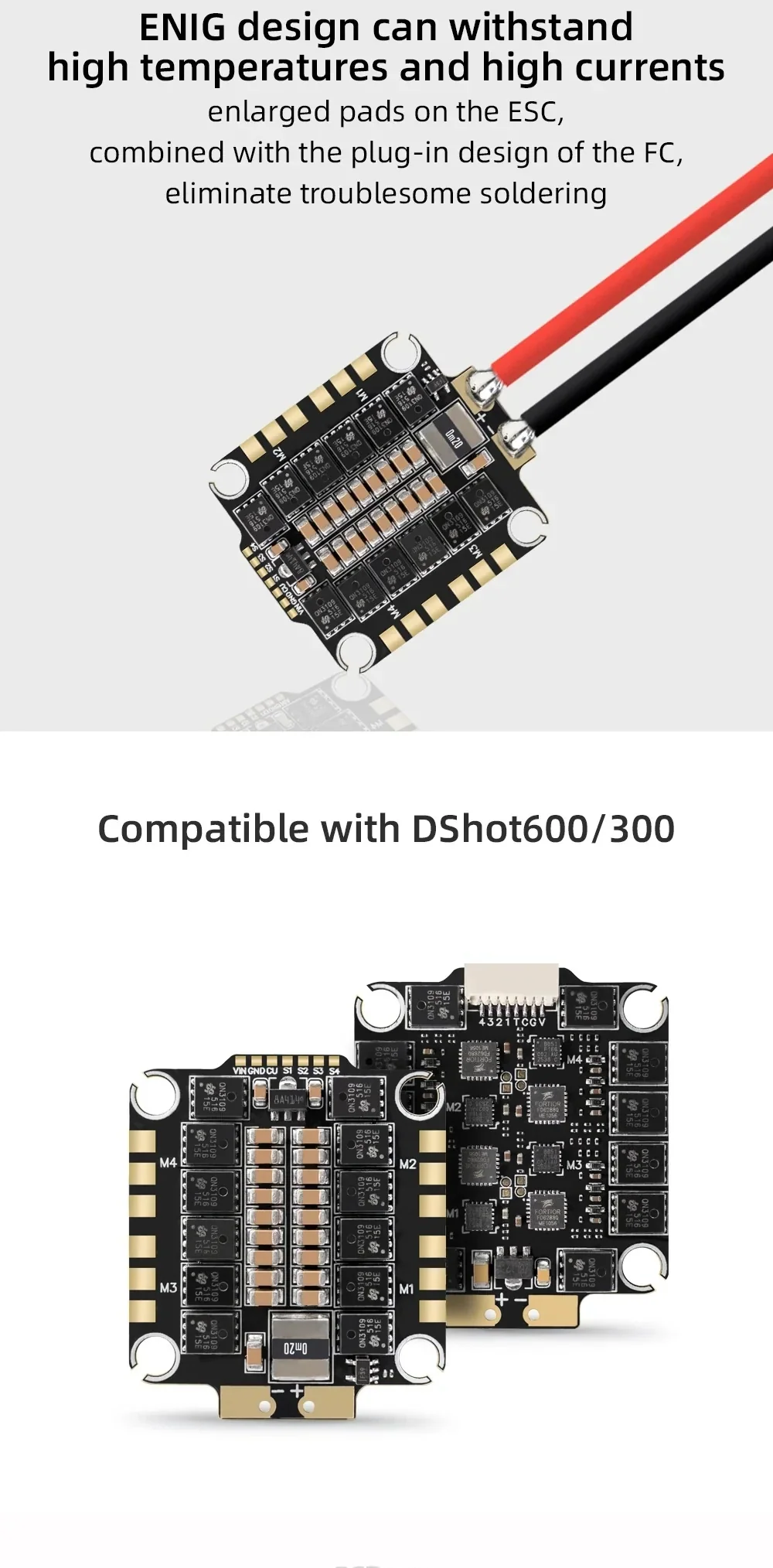

ENIG-finished pads and a plug-in FC connection concept support clean, high-current builds with DShot600/300 control.

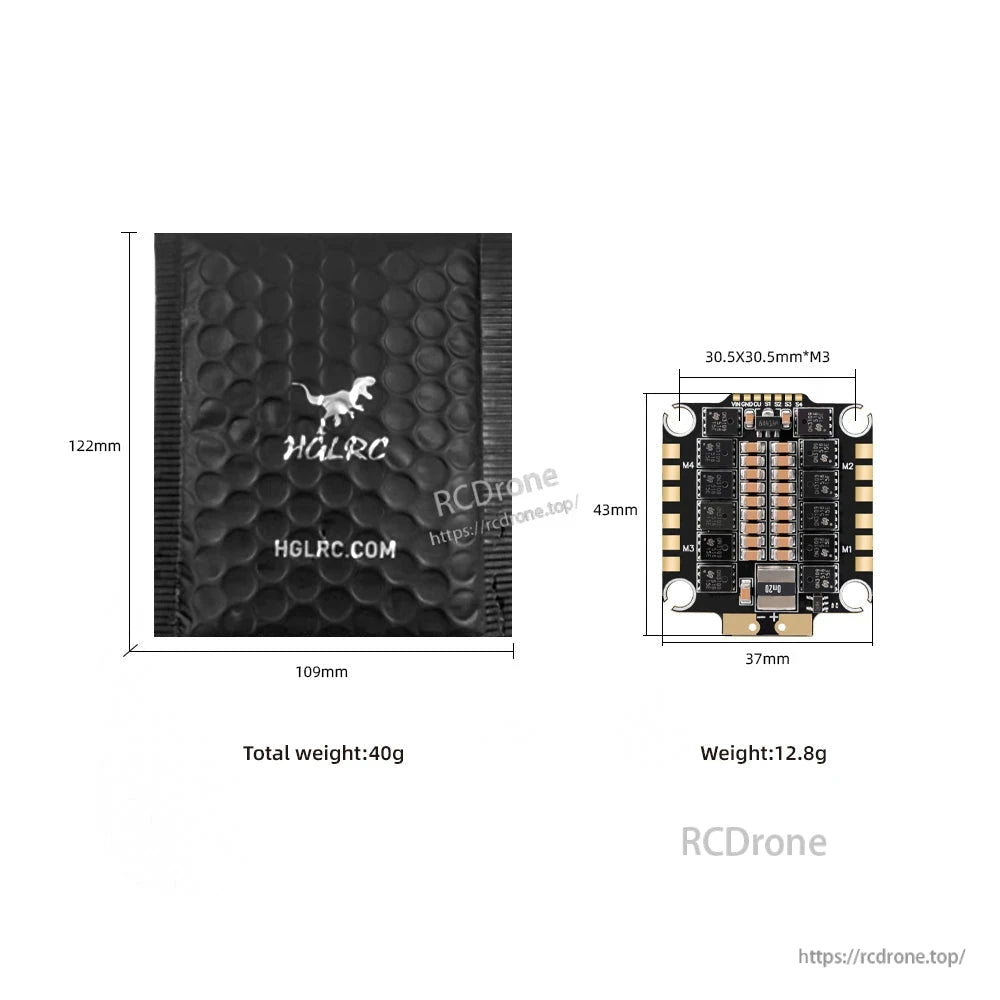

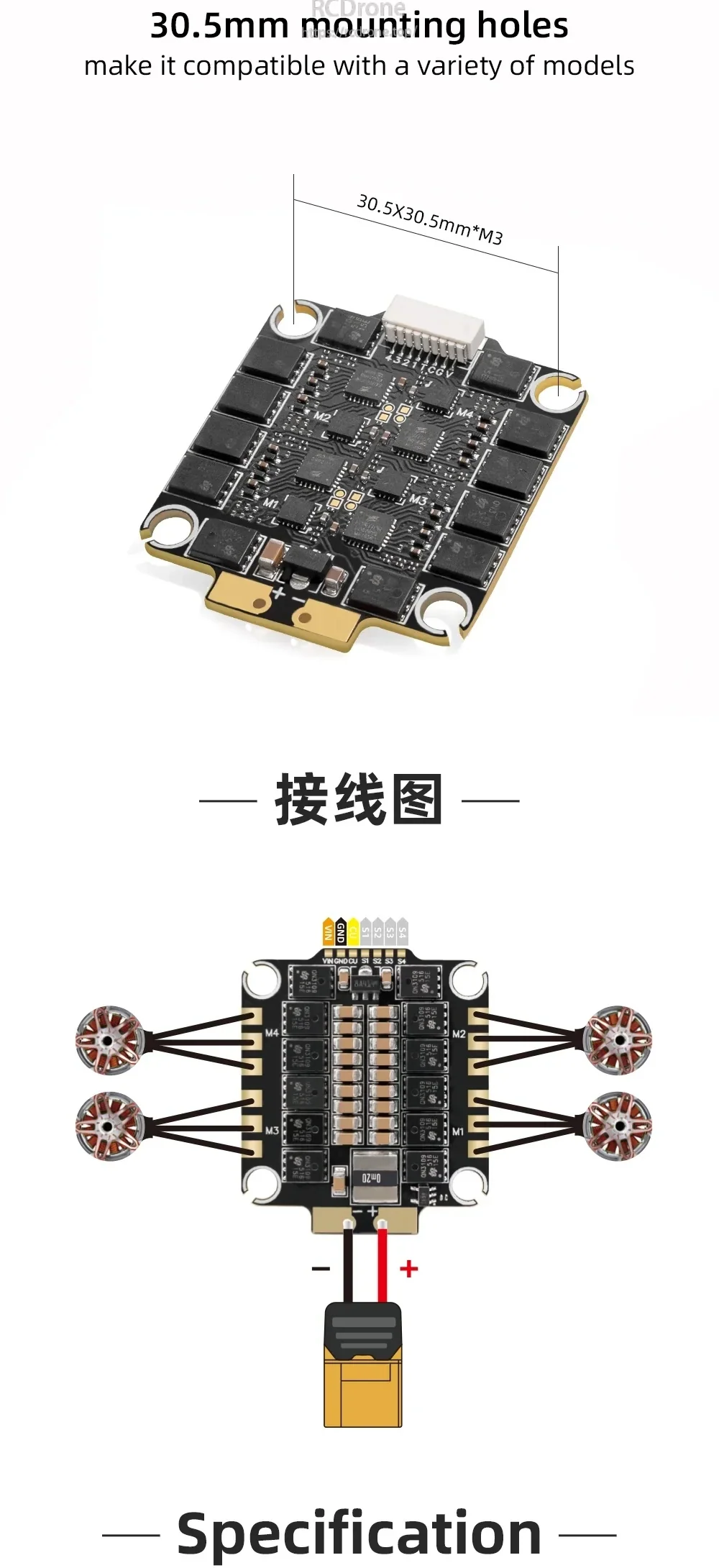

Standard 30.5×30.5mm (M3) mounting holes make it easy to fit into many FPV frames and flight controller stacks.
