Overview

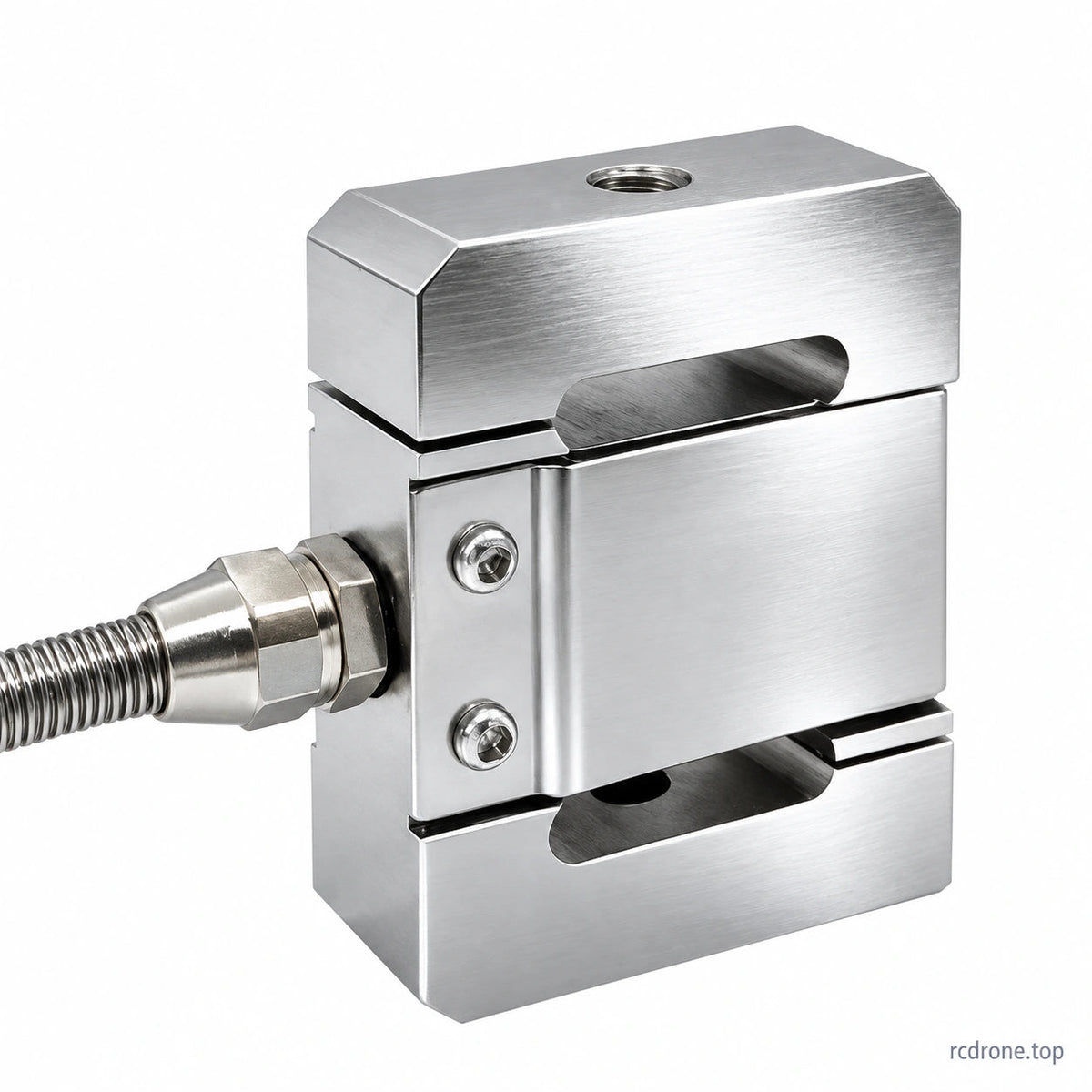

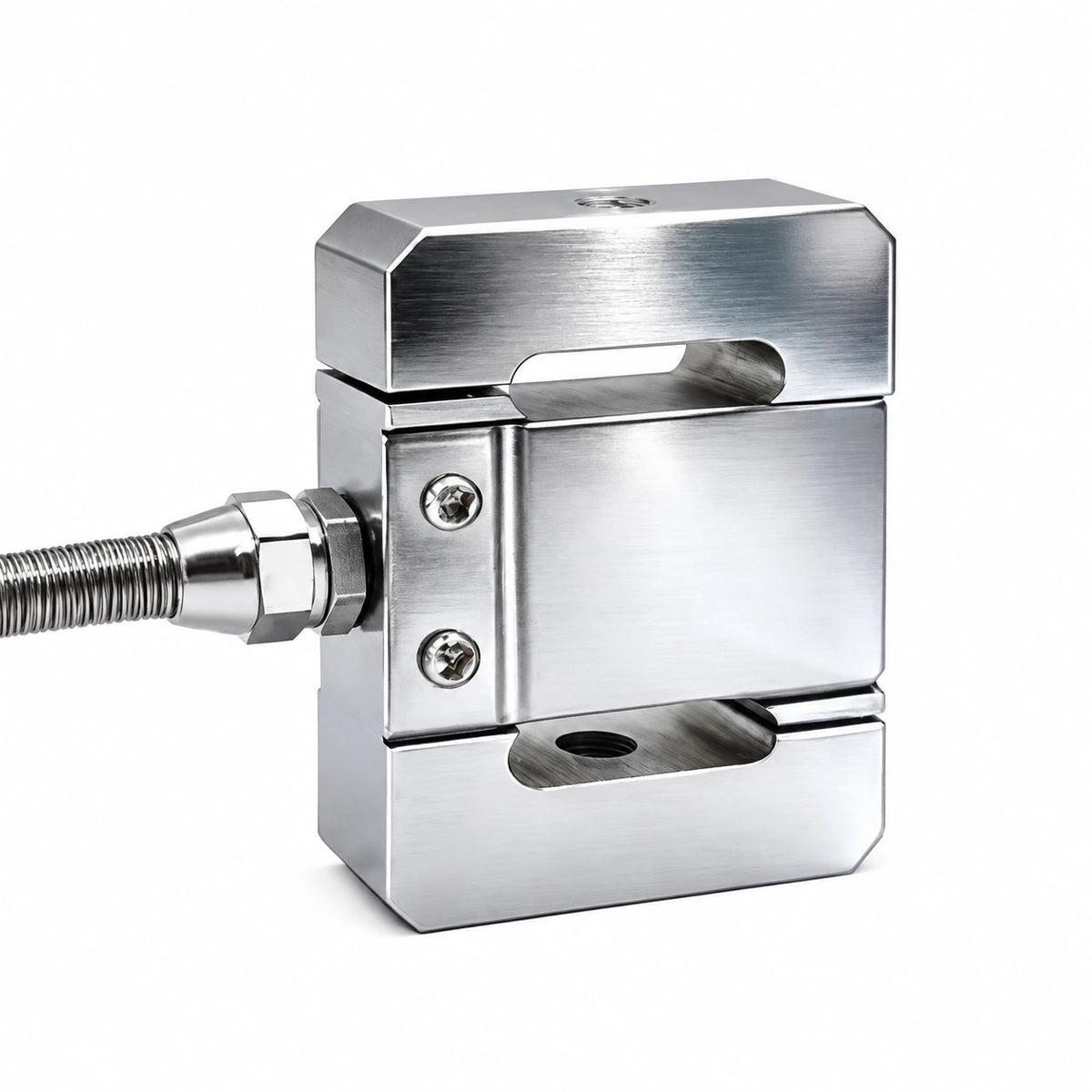

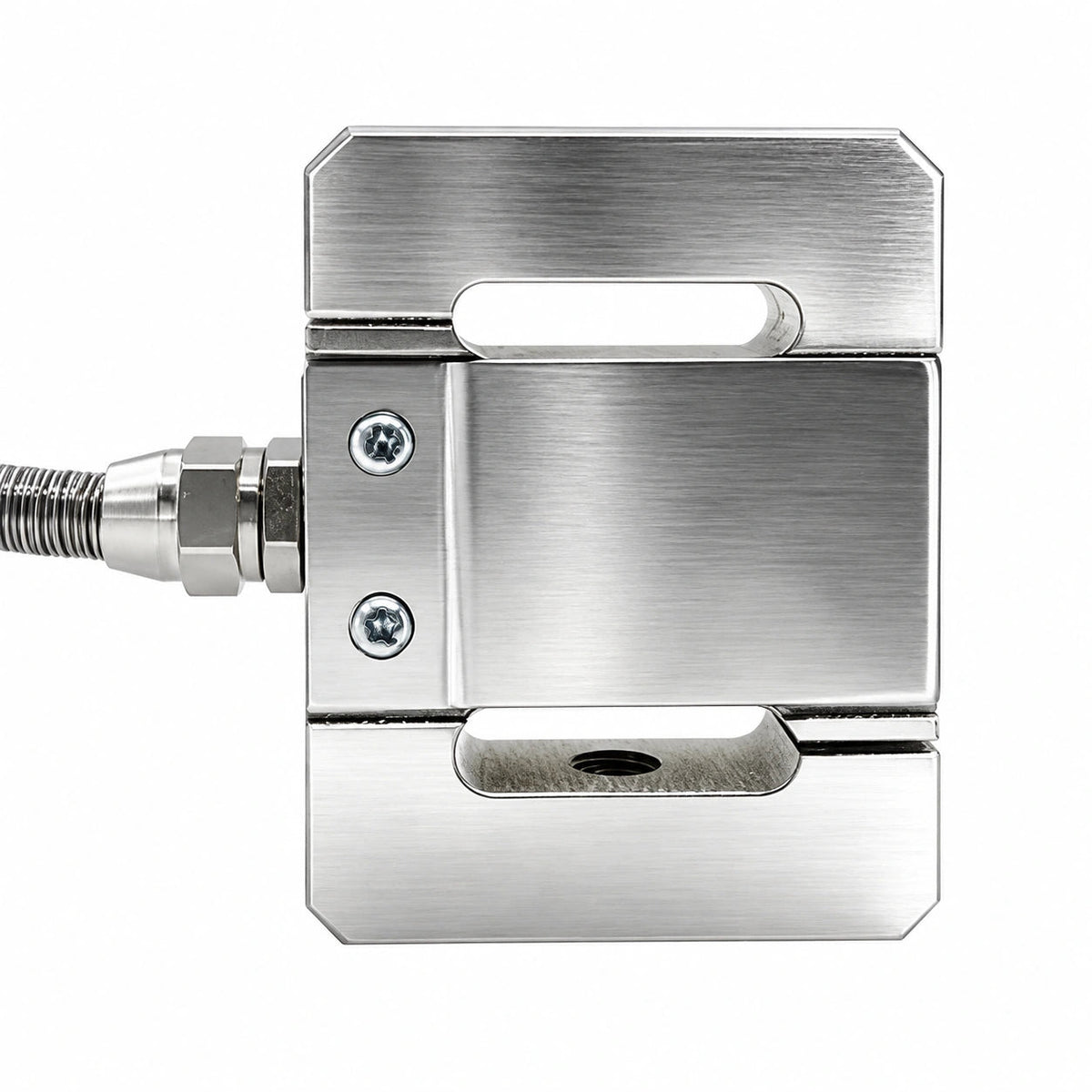

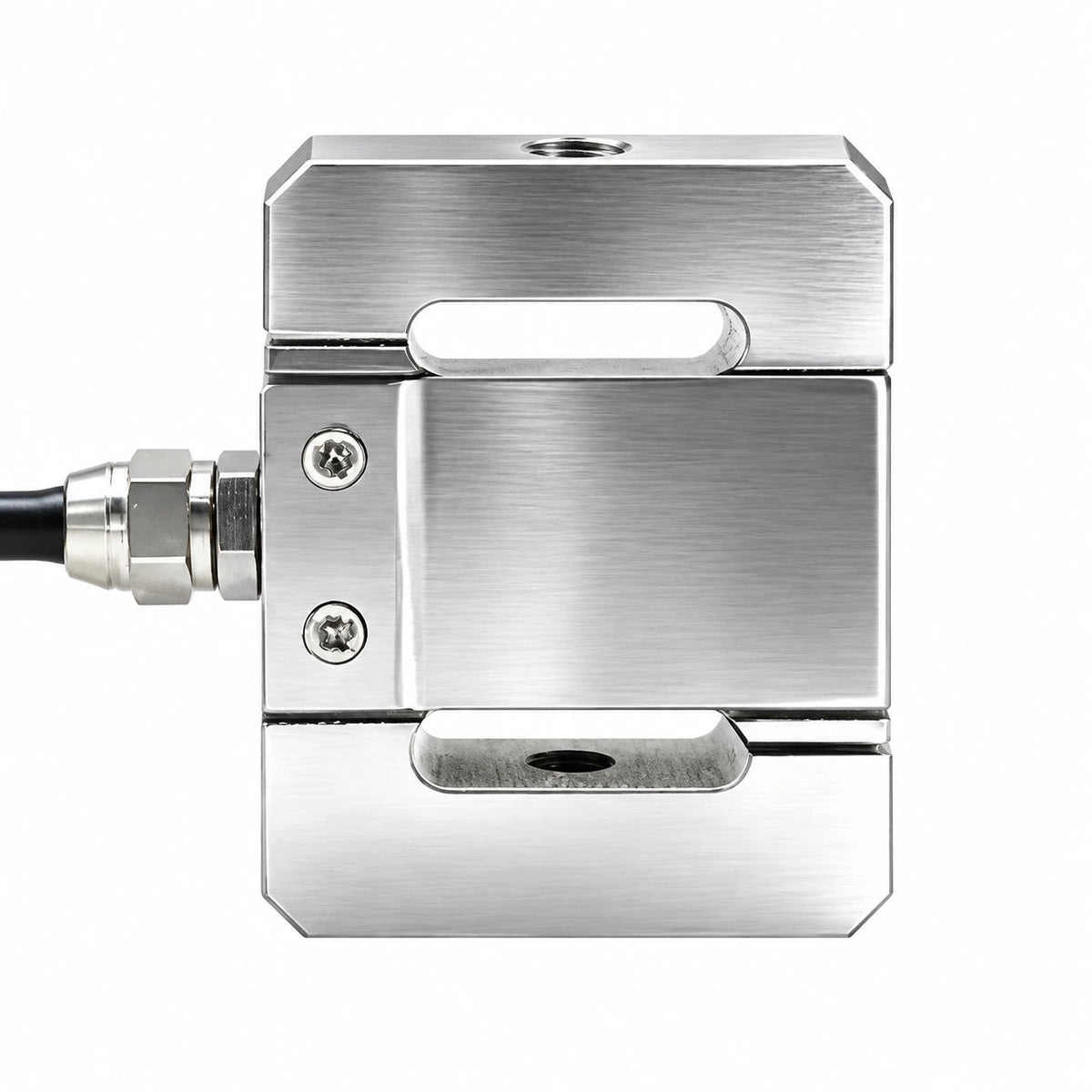

The ZhongKeMiDian miniature S-type load cell measures tension and compression in a compact stainless-steel body for weighing, force testing and automation fixtures. Nine sensor capacities from 1 to 100 kg share a 25 × 13 × 30 mm form factor and two M6 load connections. Choose a sensor capacity for your measurement range, or select the separately sold analog transmitter when building a compatible signal-conditioning setup.

Features

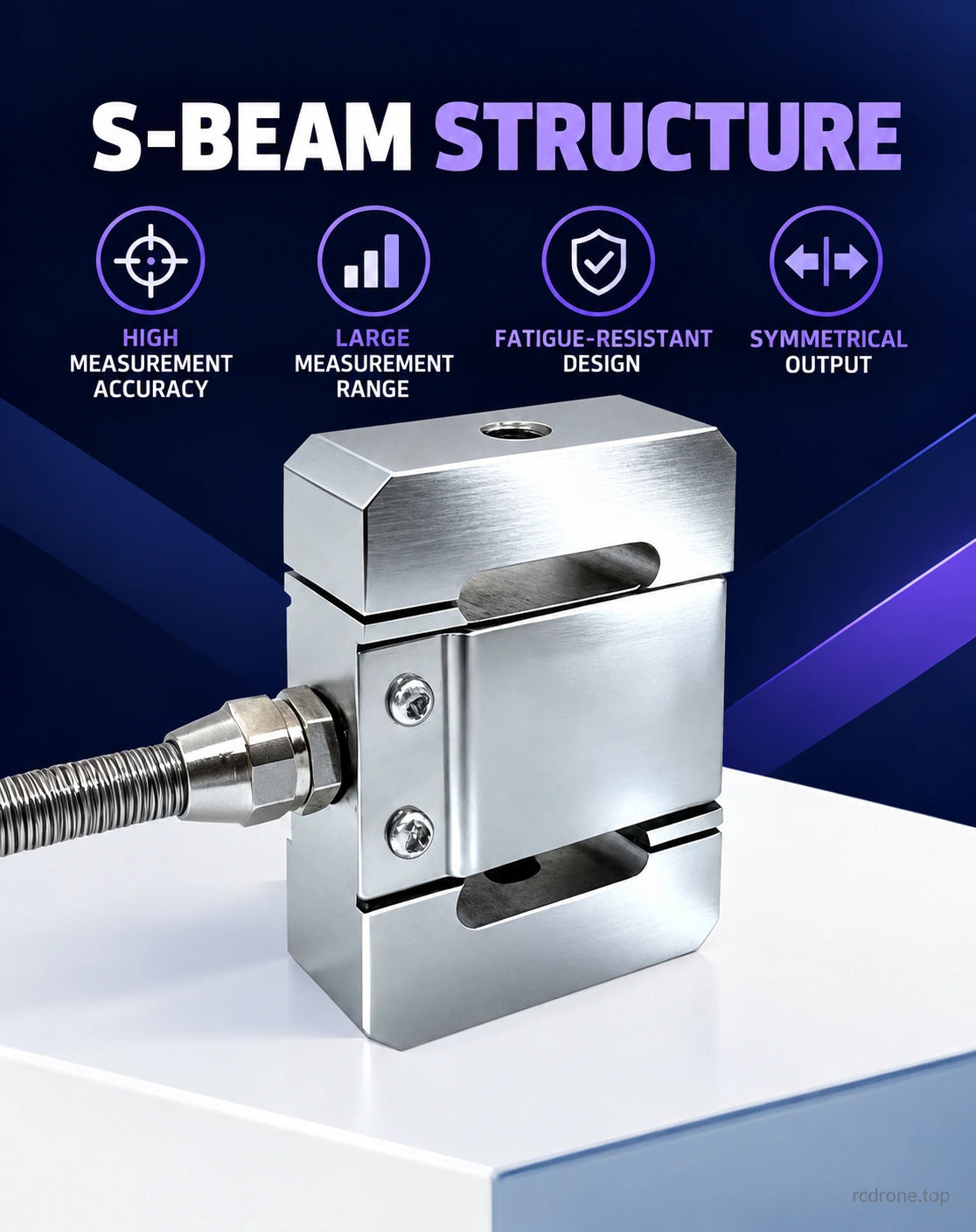

S-beam sensing structure: a defined axial load path supports tension and compression measurement with symmetrical output.

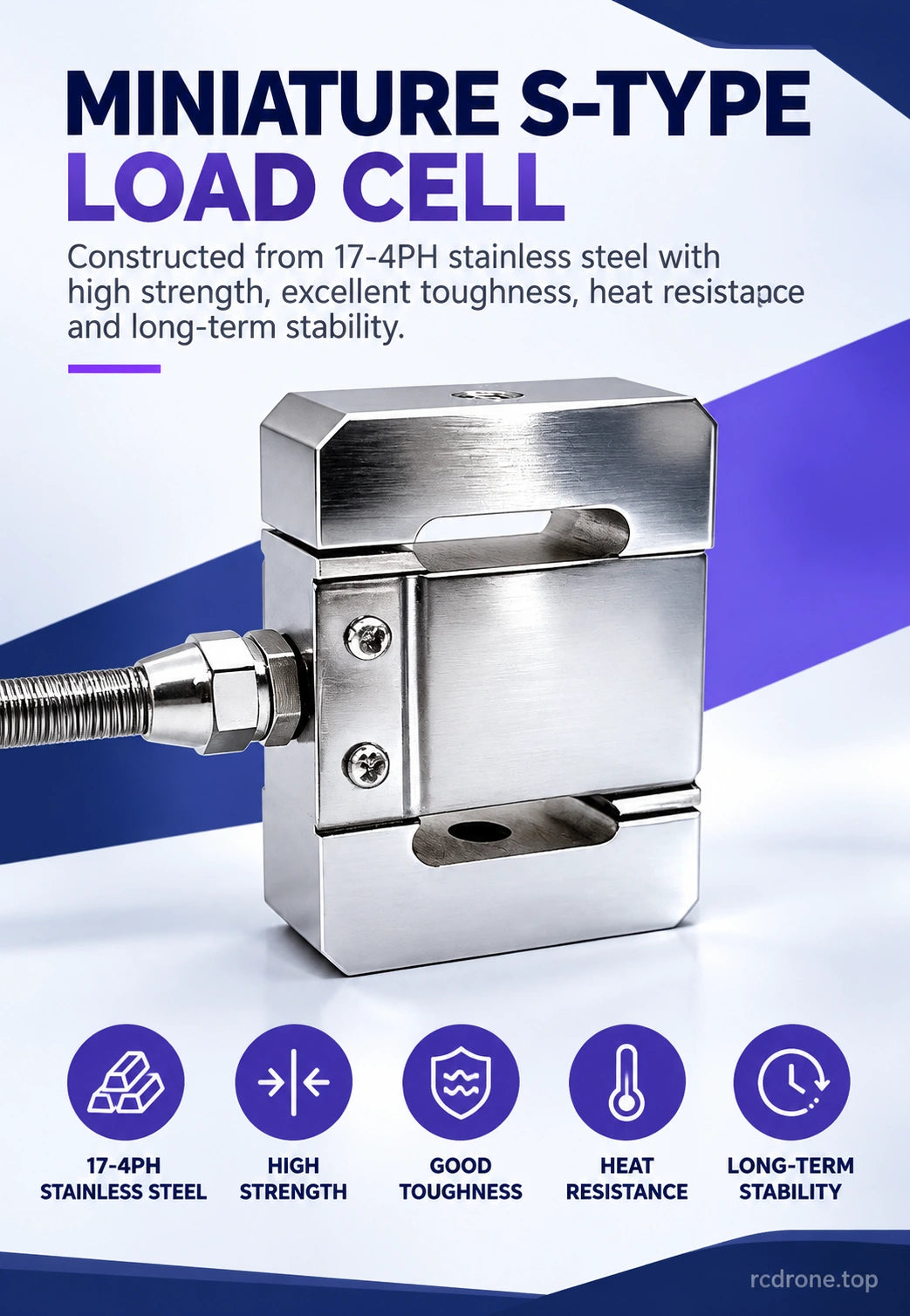

Compact stainless-steel construction: 17-4PH stainless-steel construction combines strength, toughness and long-term stability.
Nine sensor capacities: 1, 2, 3, 5, 10, 20, 30, 50 and 100 kg.

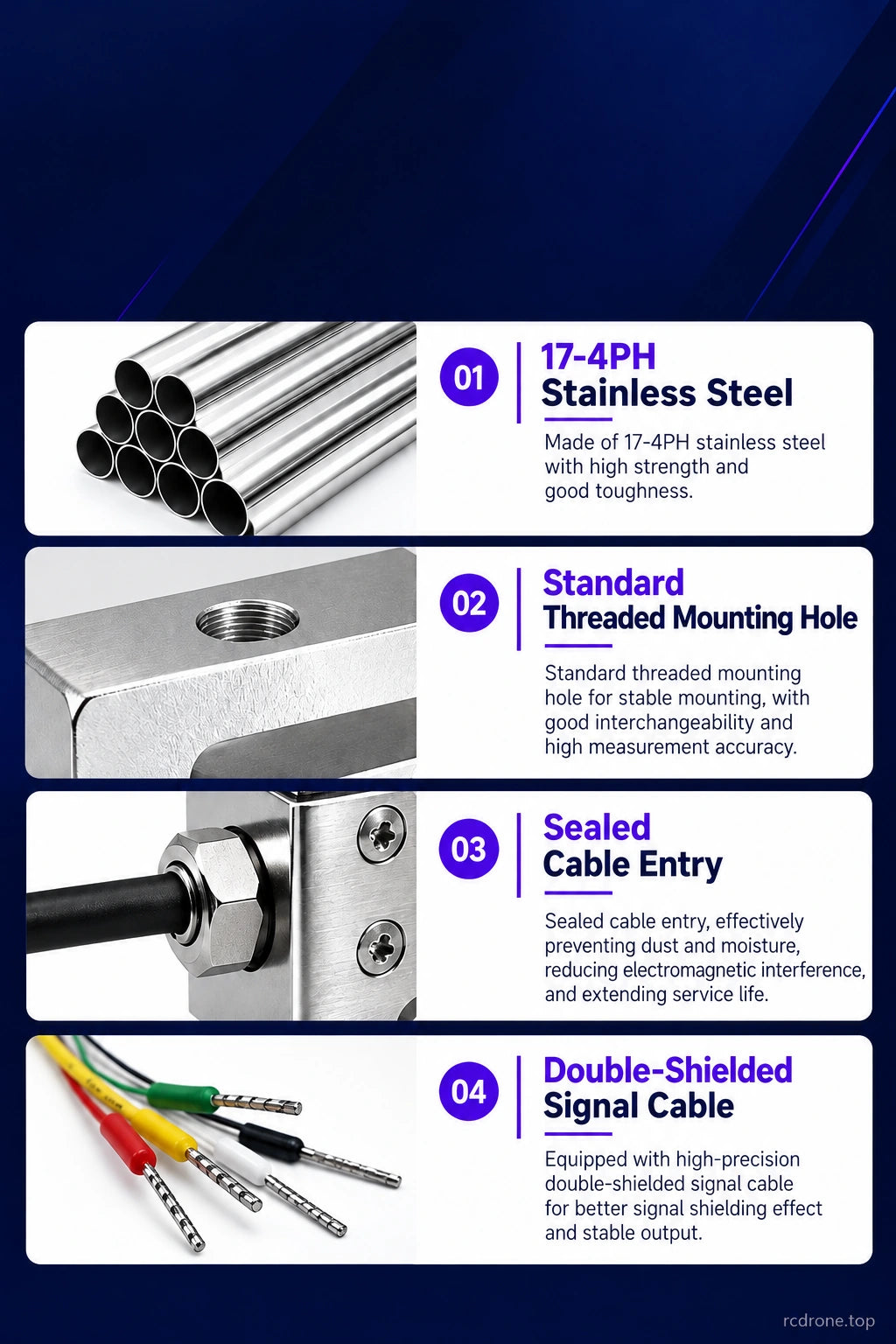

Threaded mounting: two M6 connections fit compact test and weighing fixtures.
Signal protection: a sealed cable entry and double-shielded signal cable support installation in measurement equipment.

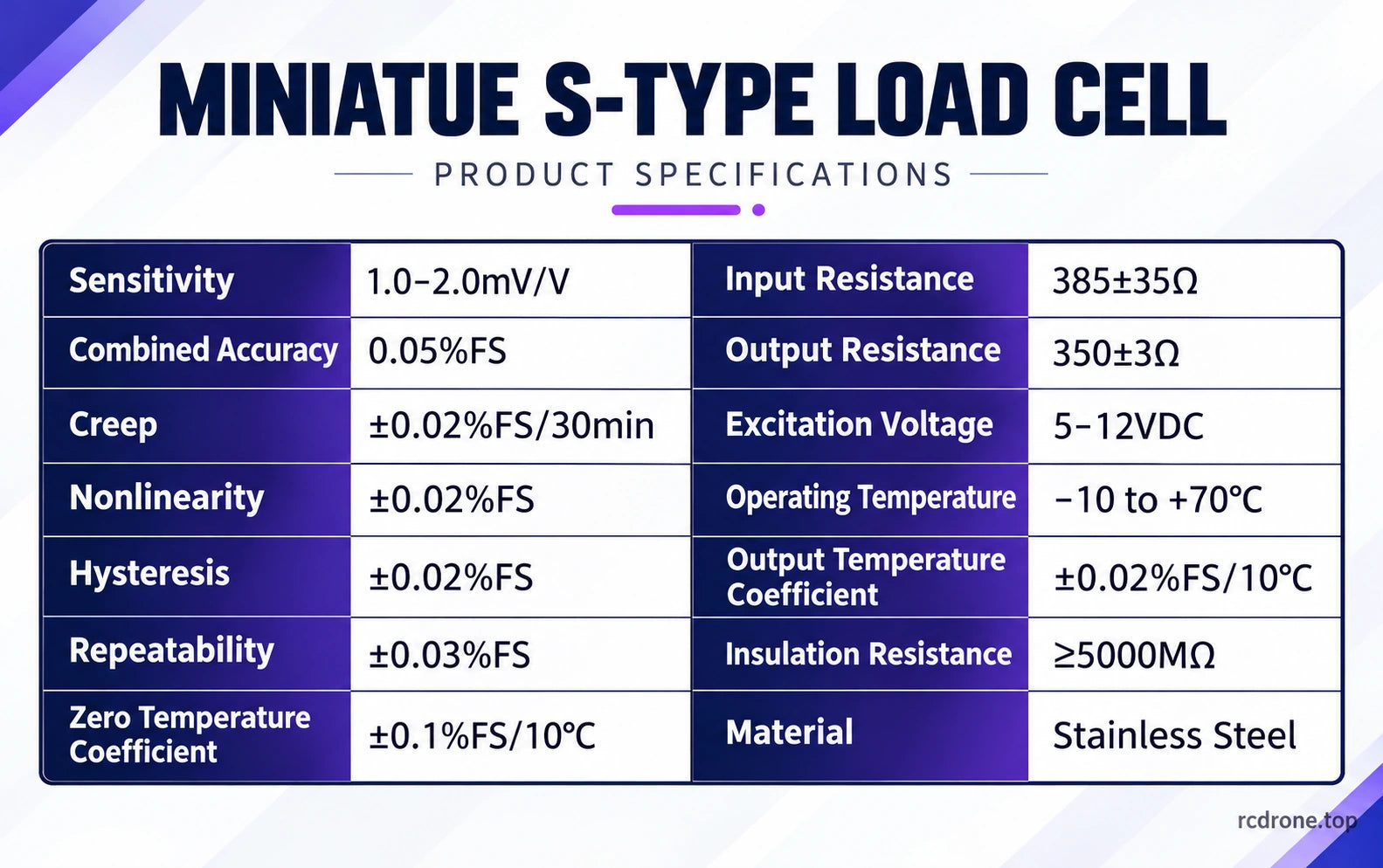

Specifications

Sensor type	Miniature S-type tension/compression load cell
Rated capacity options	1, 2, 3, 5, 10, 20, 30, 50, 100 kg
Nominal sensitivity	1.0–2.0 mV/V; use the selected unit's calibration sensitivity.
Combined accuracy	0.05% FS
Creep	±0.02% FS / 30 min
Nonlinearity	±0.02% FS
Hysteresis error	±0.02% FS
Repeatability error	±0.03% FS
Zero temperature coefficient	±0.1% FS / 10 °C
Output temperature coefficient	±0.02% FS / 10 °C
Input resistance	385 ±35 Ω
Output resistance	350 ±3 Ω
Excitation voltage	5–12 VDC
Operating temperature	−10 to +70 °C
Insulation resistance	≥5000 MΩ
Material	Stainless steel; construction described as 17-4PH
Body dimensions	25 × 13 × 30 mm
Mounting threads	2 × M6

FS means full scale. Capacity describes the measured load, not the sensor's physical weight. Sensor specifications apply to the sensor selections; the analog transmitter is a separate accessory.

Configuration Guide

Selecting a capacity supplies one sensor with that rated load range. The Analog transmitter only option supplies one signal-conditioning accessory without a sensor. Match the transmitter input to the bridge sensitivity and excitation requirements, and check its output format against the receiving instrument before connection.

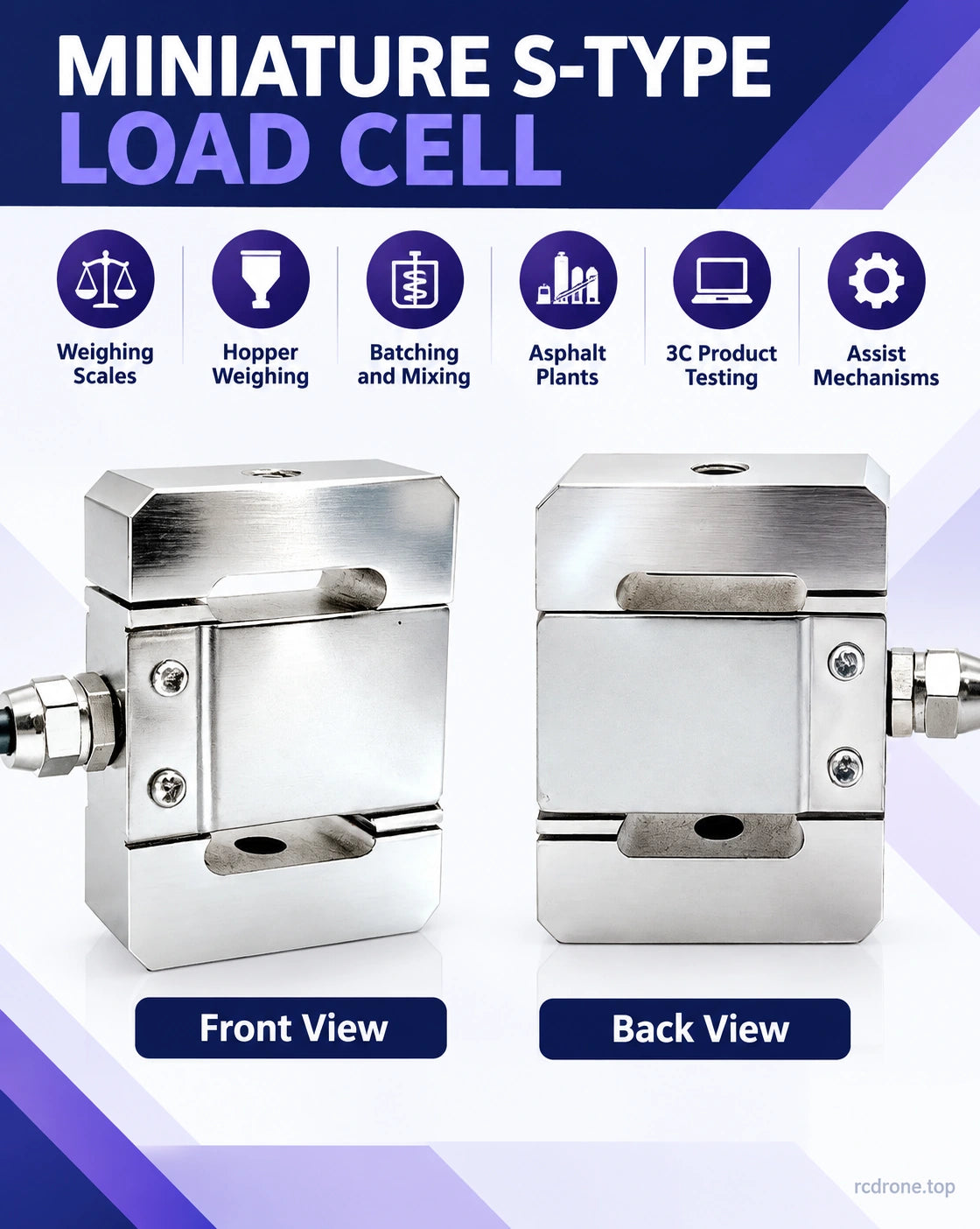

Applications

Weighing scales and hoppers: measure axial load in suitably mounted weighing assemblies.
Batching and mixing systems: provide load feedback for material handling and process measurement, within the selected capacity.
3C product testing: build compact push/pull force fixtures around the small body and M6 connections.
Assist mechanisms and automation: monitor tensile or compressive loads where fixture space is limited.

Dimensions, Wiring and Installation

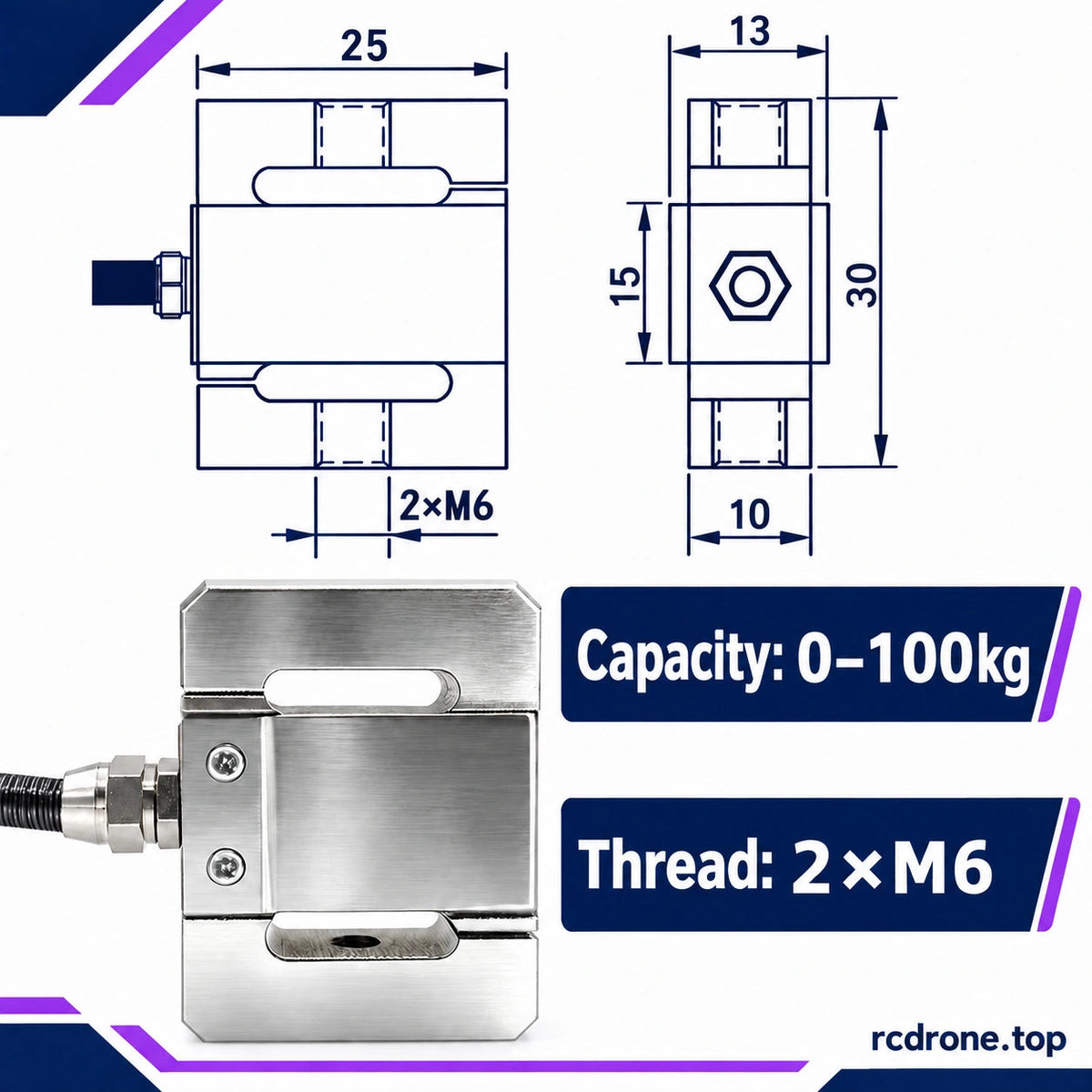

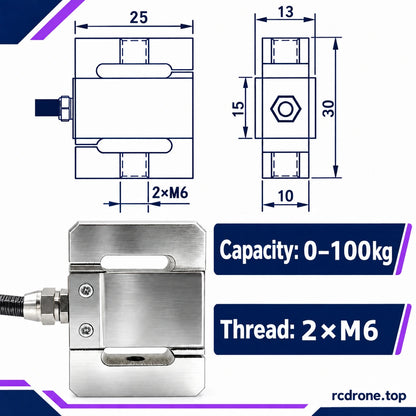

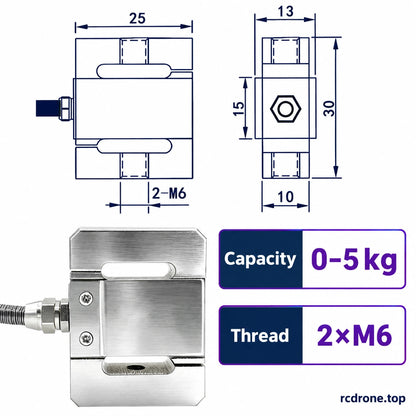

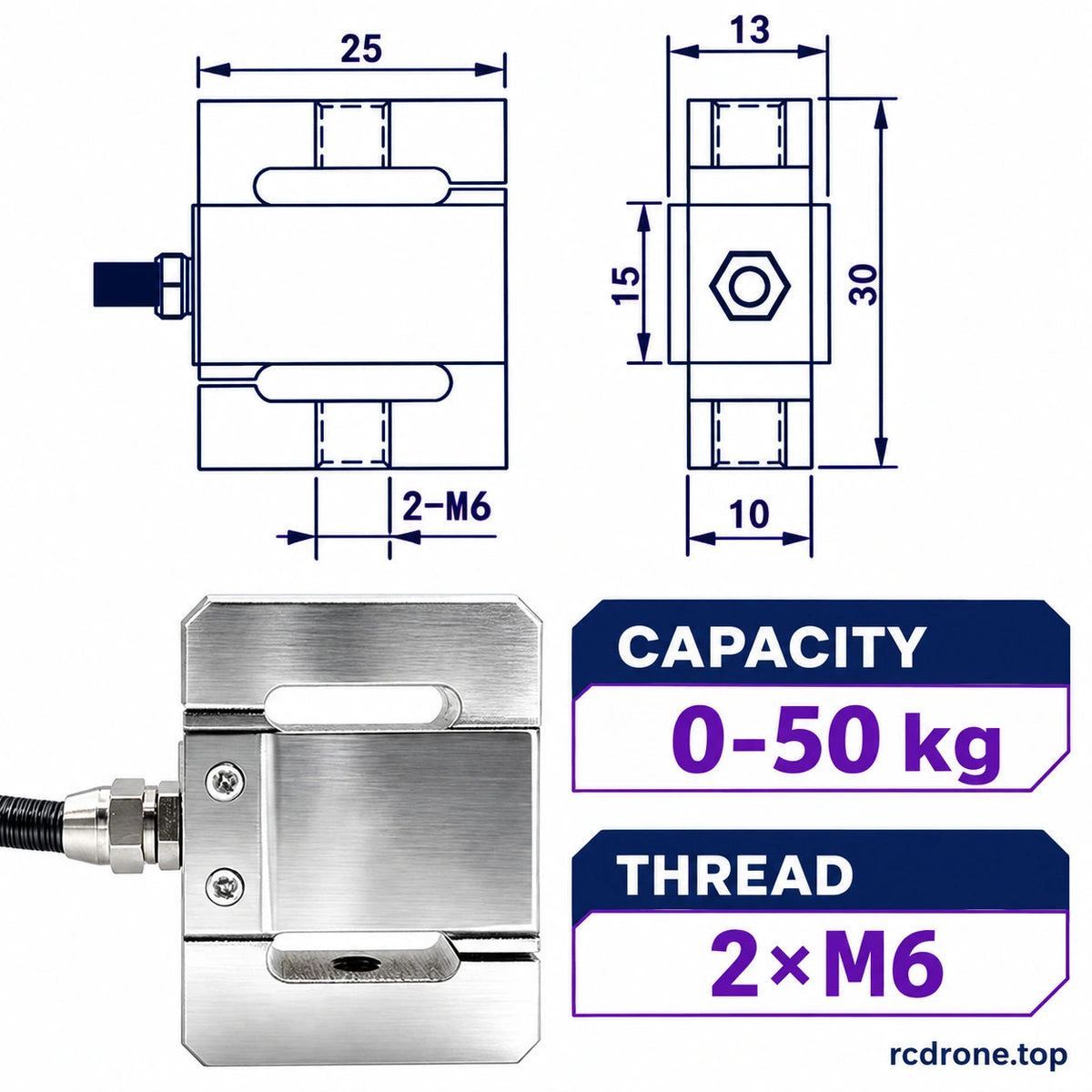

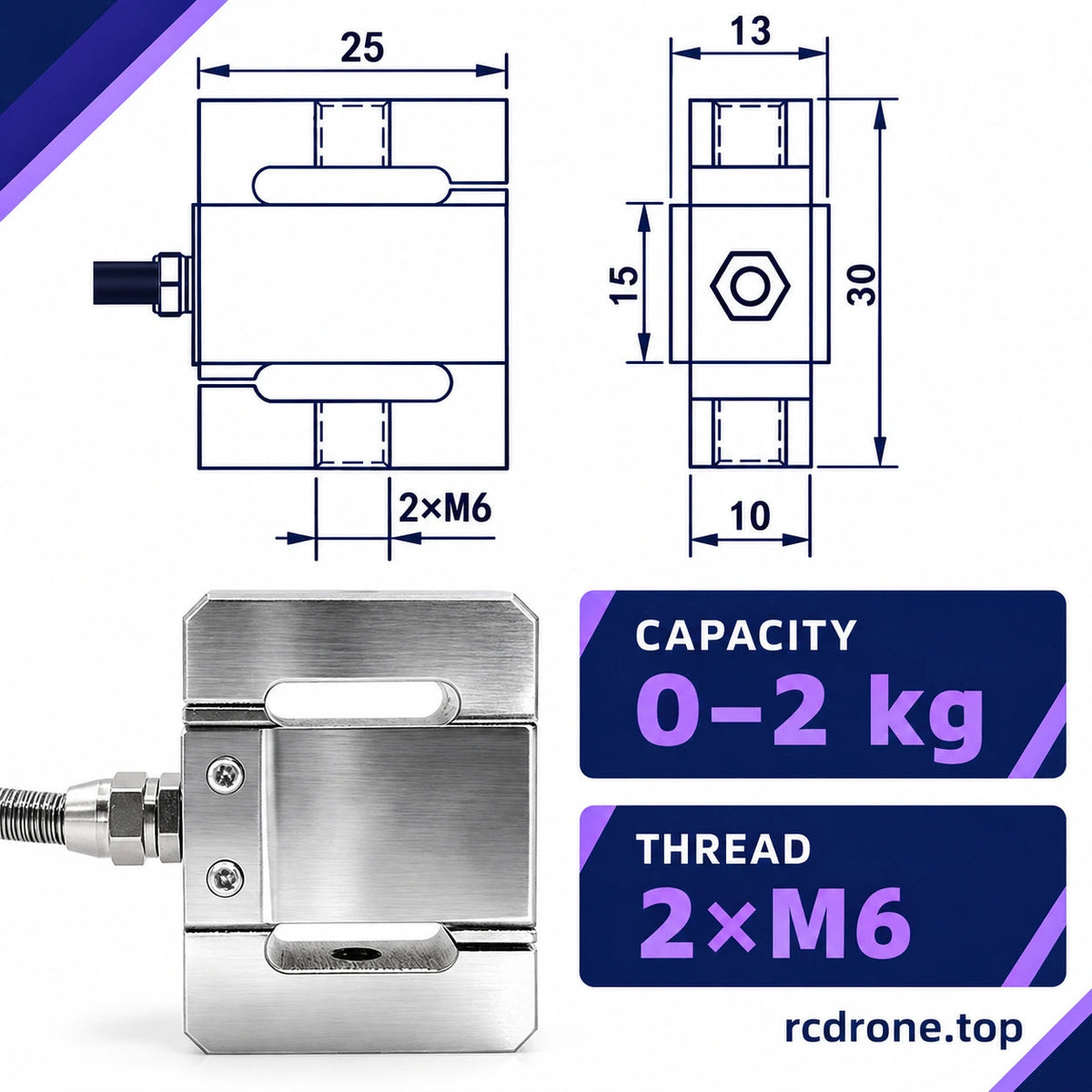

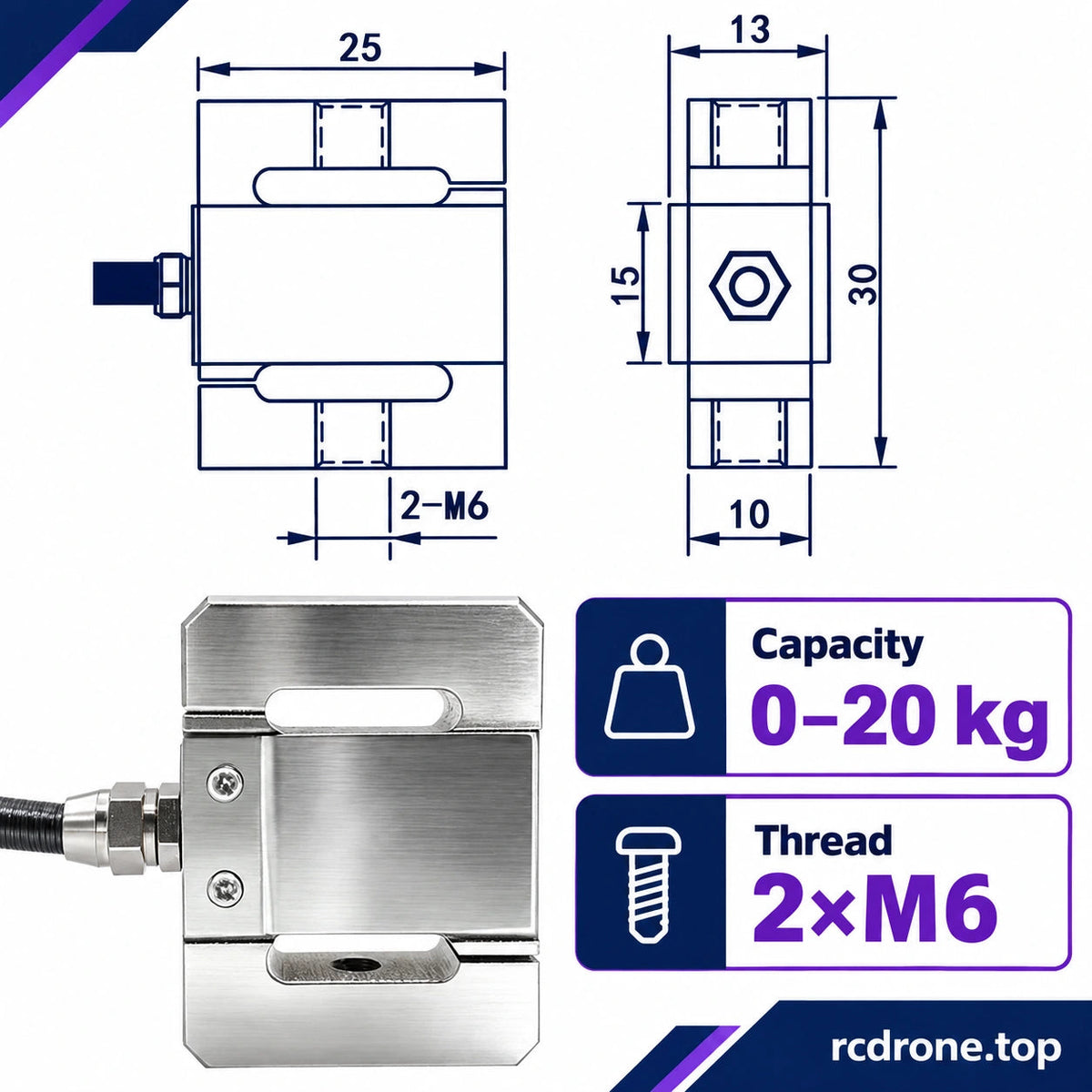

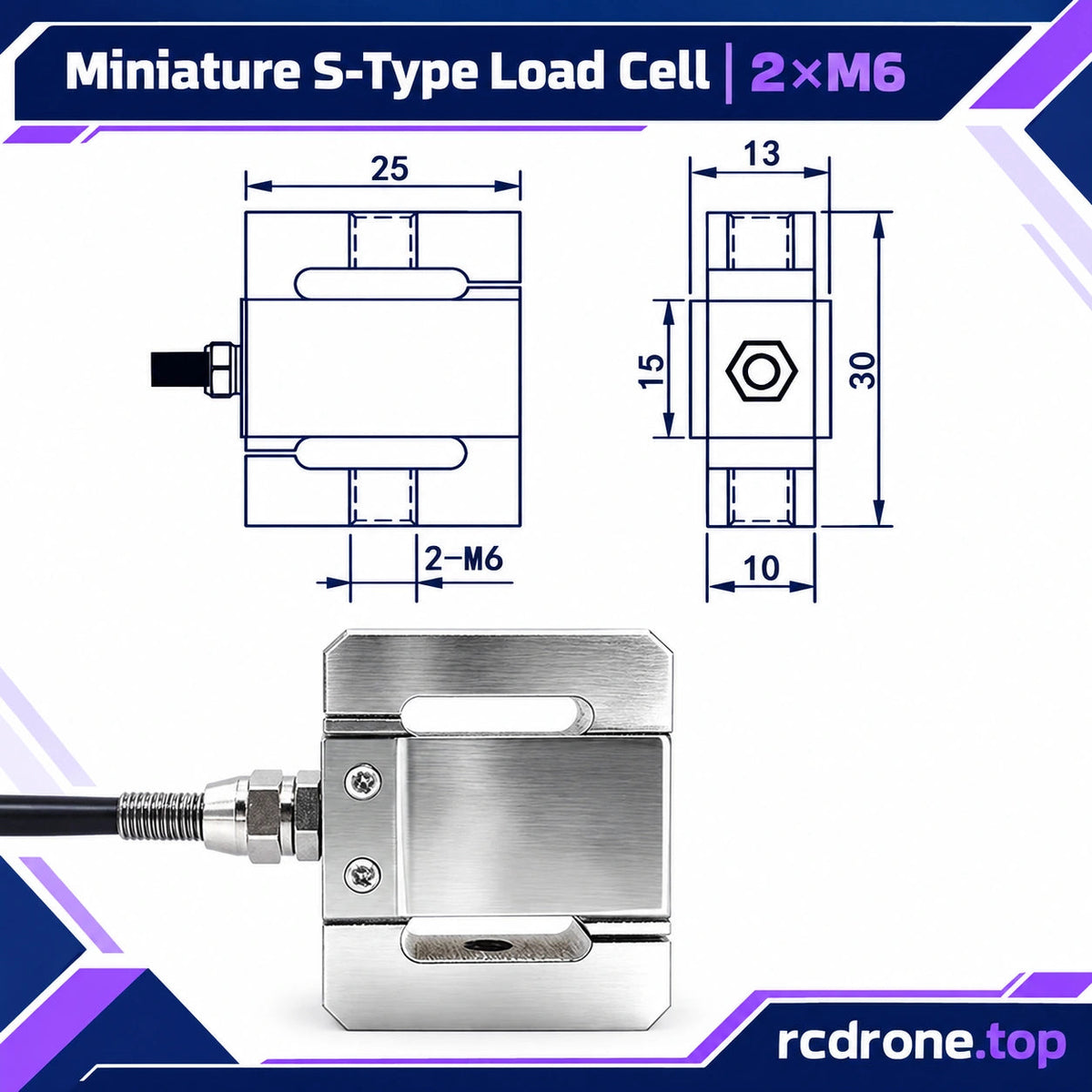

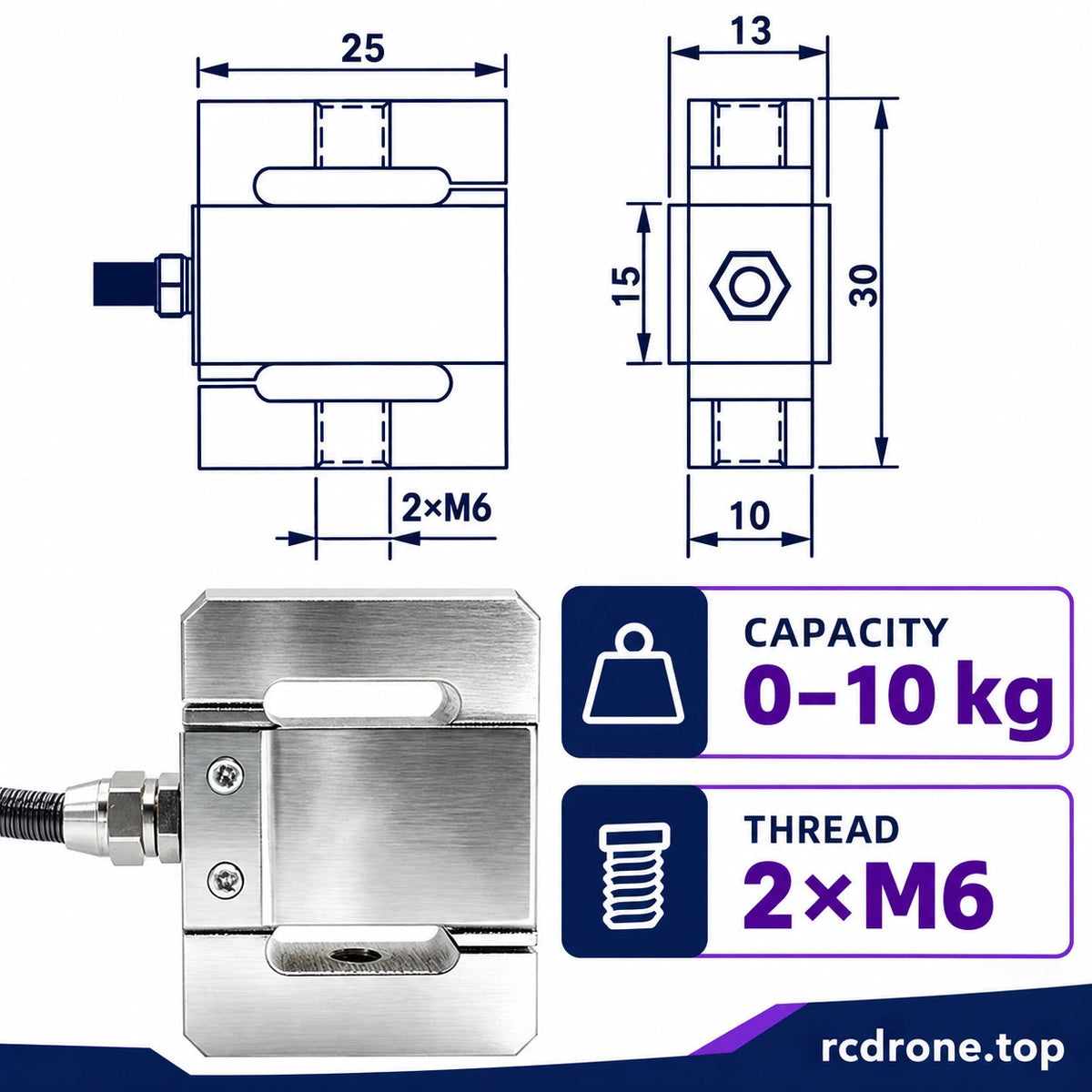

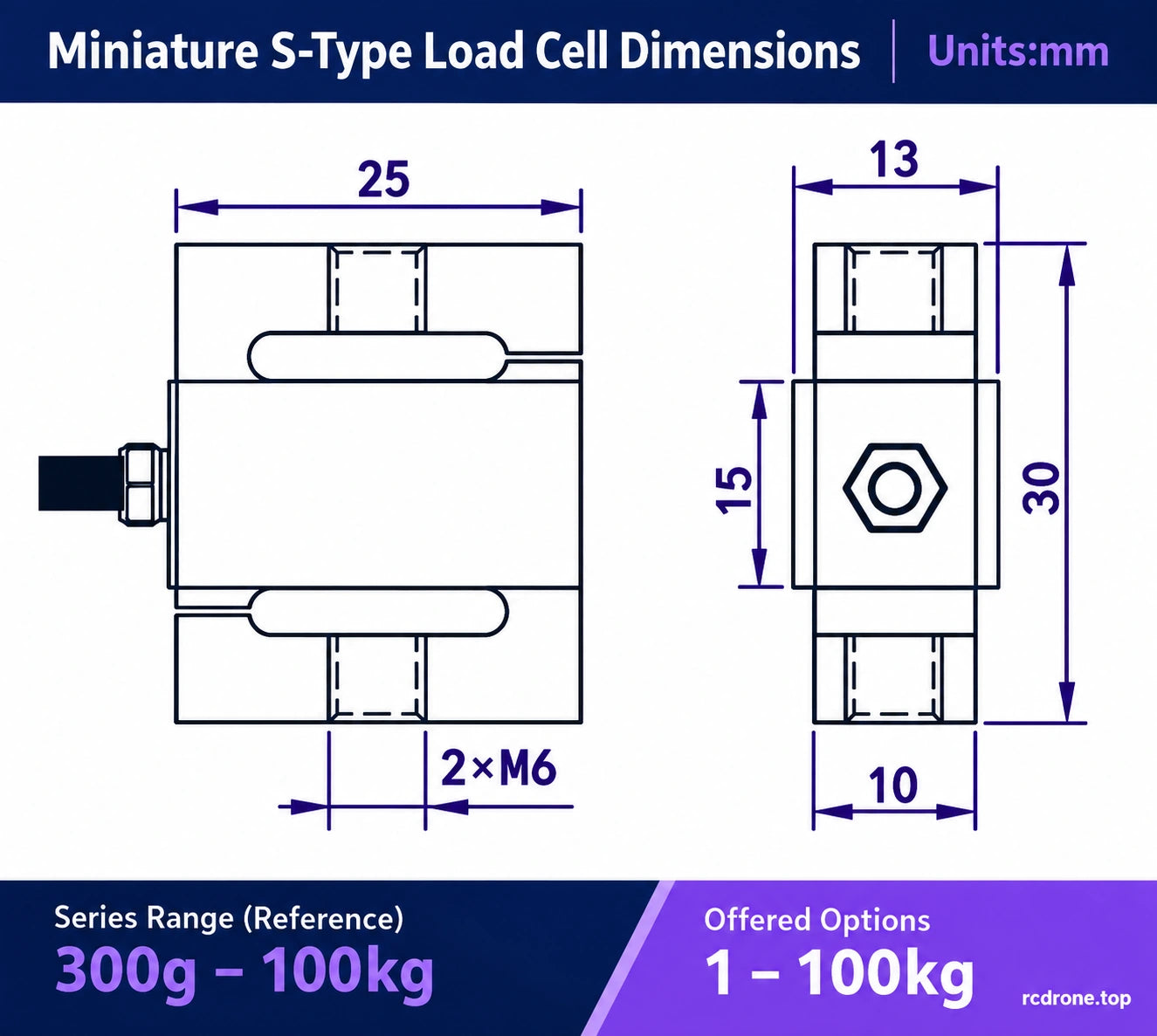

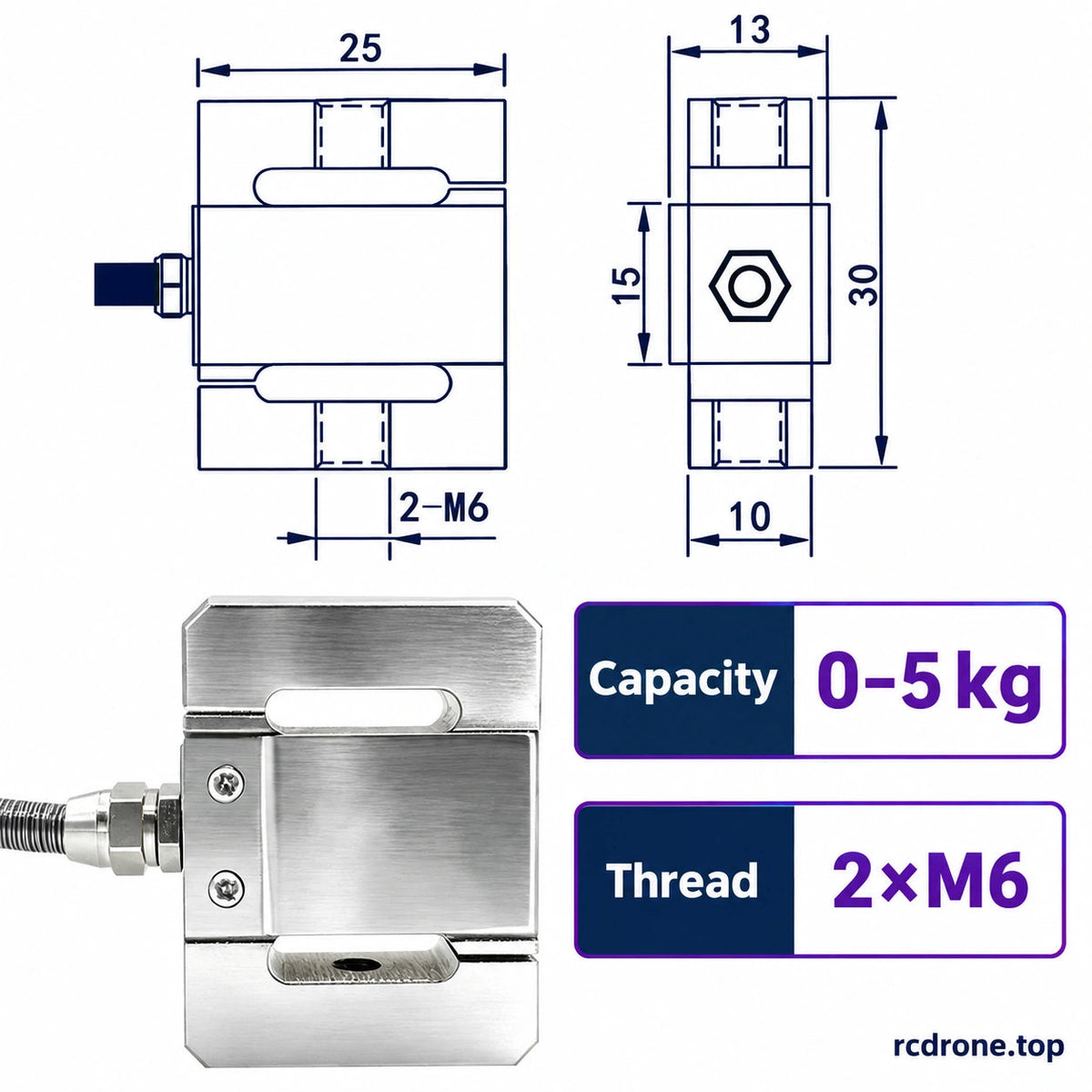

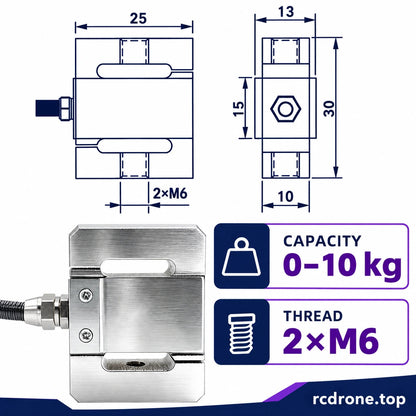

The drawing identifies 25 mm overall width, 13 mm depth, 30 mm height, a 15 mm central section, a 10 mm lower feature and two M6 threaded connections. Align loading with the intended measurement axis, use compatible mounting hardware and avoid unwanted side loads.

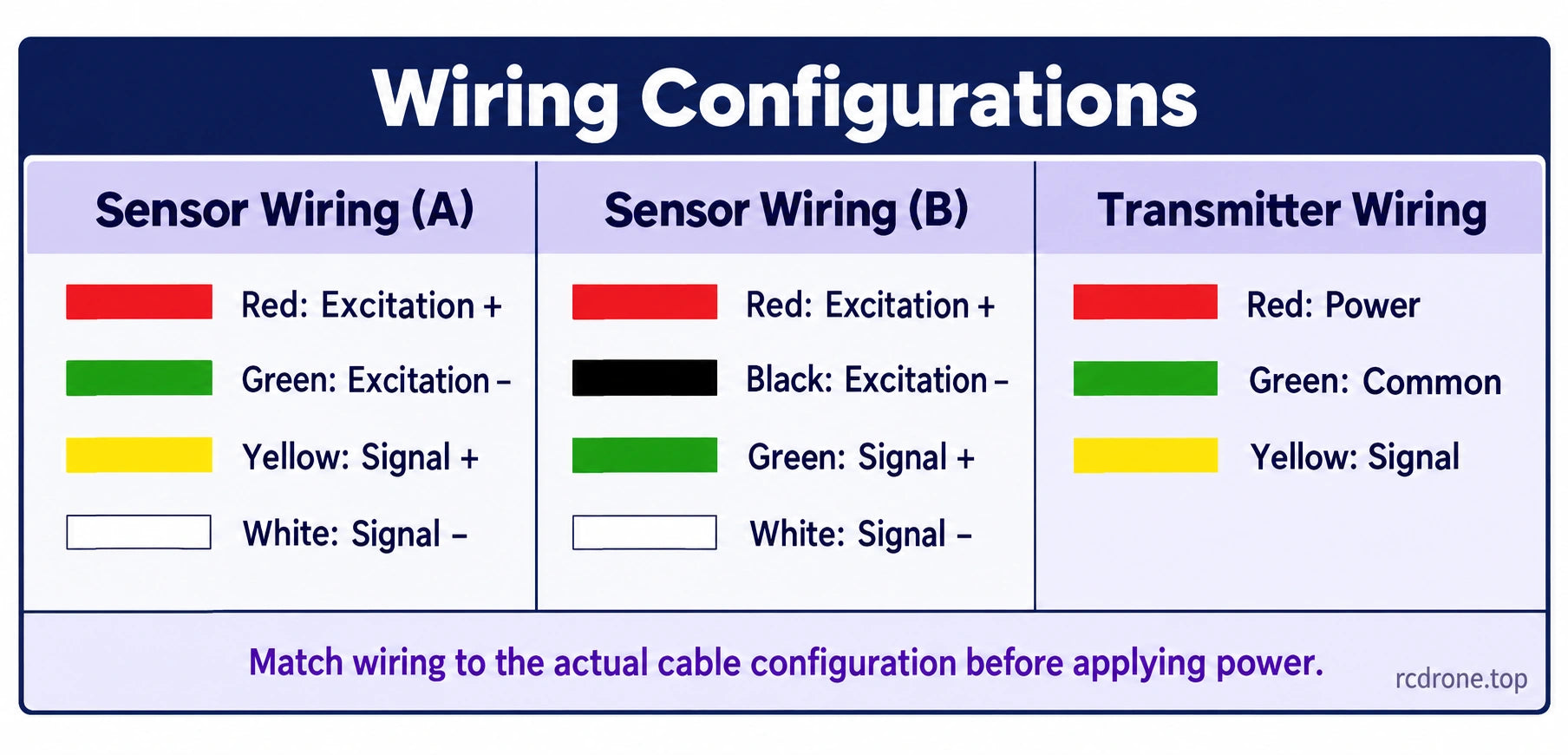

Wiring configuration	Connections
Sensor cable A	Red: excitation +; green: excitation −; yellow: signal +; white: signal −.
Sensor cable B	Red: excitation +; black: excitation −; green: signal +; white: signal −.
Transmitter	Red: power; green: common; yellow: signal.

The two sensor color schemes are alternatives. Identify the actual cable configuration before applying power; do not interchange colors between the schemes. Zero and calibrate the complete installation, route the cable with strain relief, and match excitation, pinout and signal conditioning to the selected components. A sealed entry does not establish an immersion rating.

What's Included

Sensor capacity options: 1 × miniature S-type load cell in the selected capacity, with attached cable.

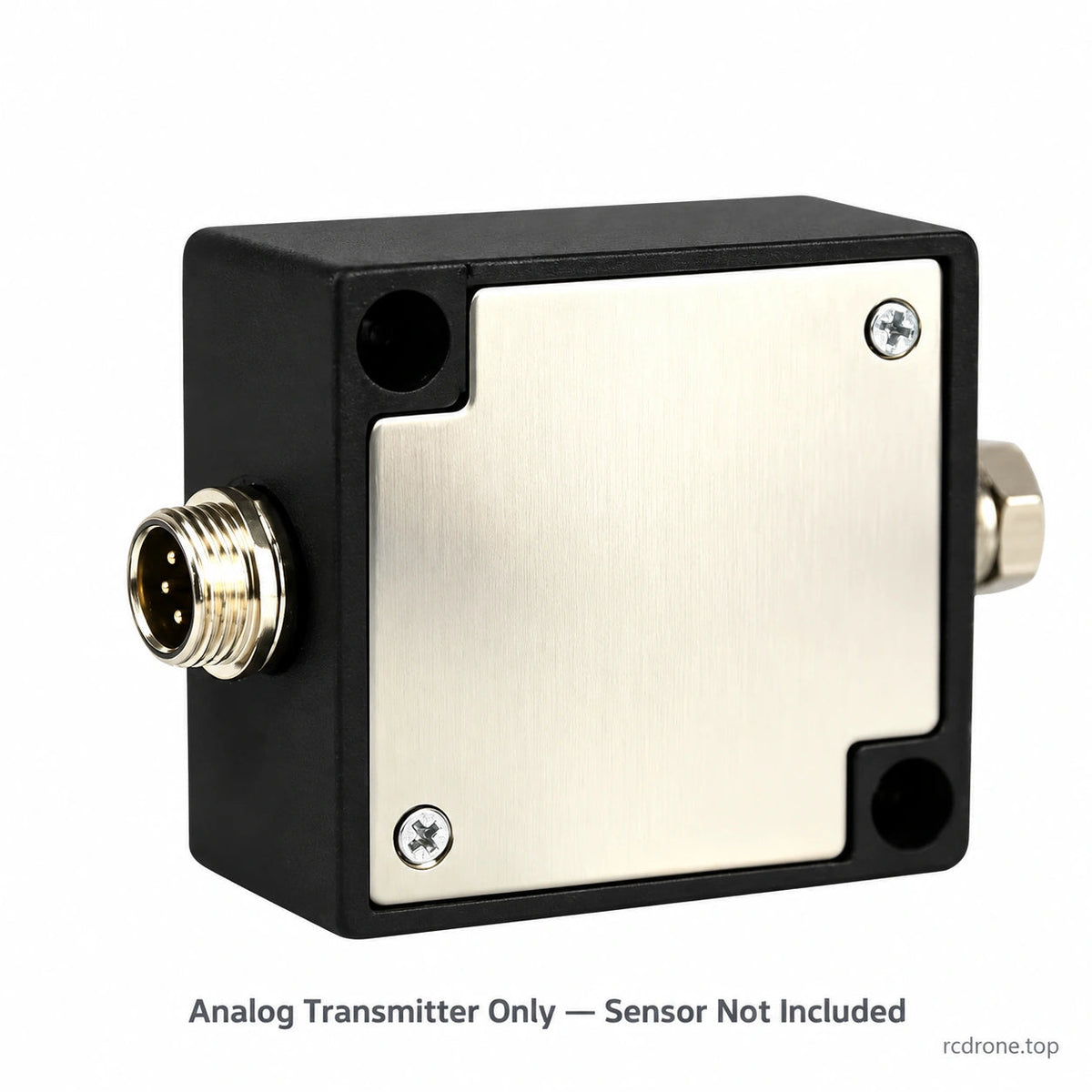

Analog transmitter only: 1 × analog transmitter; sensor not included.

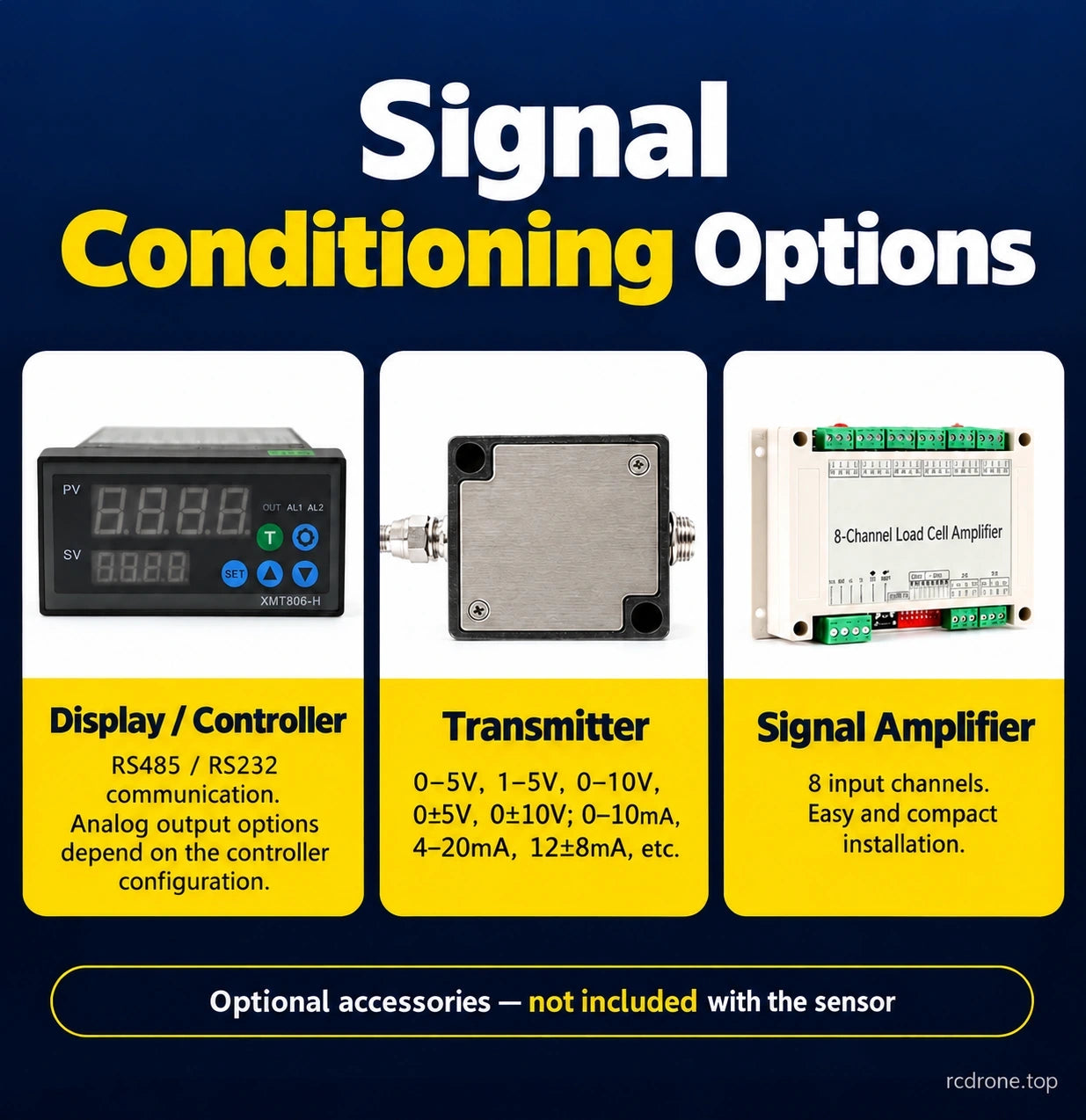

Displays, digital transmitters, amplifiers, test fixtures and mounting hardware are not included with sensor-only selections. Accessory illustrations show signal-conditioning possibilities; only the selected item is supplied.
