HGLRC Rekon5 Mini Long Range 5-Inch FPV Drone – 6S Analog / DJI O3 / HD VTX Compatible

Overview

The HGLRC Rekon5 Mini Long Range is a 5-inch FPV drone designed by Dave_C and HGLRC for lightweight, efficient, and long-endurance flights. Capable of up to 25+ minutes of air time, this sub-250g (analog version) drone supports both analog and HD VTX setups including Zeus 800mW VTX, Caddx Polar, and DJI O3 Air Unit, making it ideal for extended-range cruising, cinematic flying, or even light freestyle.

Optimized for low noise and extended range, the Rekon5 6S is quieter than most 7-inch long-range builds while still carrying a full GoPro, SMO 4K, or 18650 Li-ion batteries with no performance loss. Its modular design with a 3D-printed GPS bay and GoPro mount, reinforced arm structure, and optional protection bar ensures high durability and easy upgrades.

Key Features

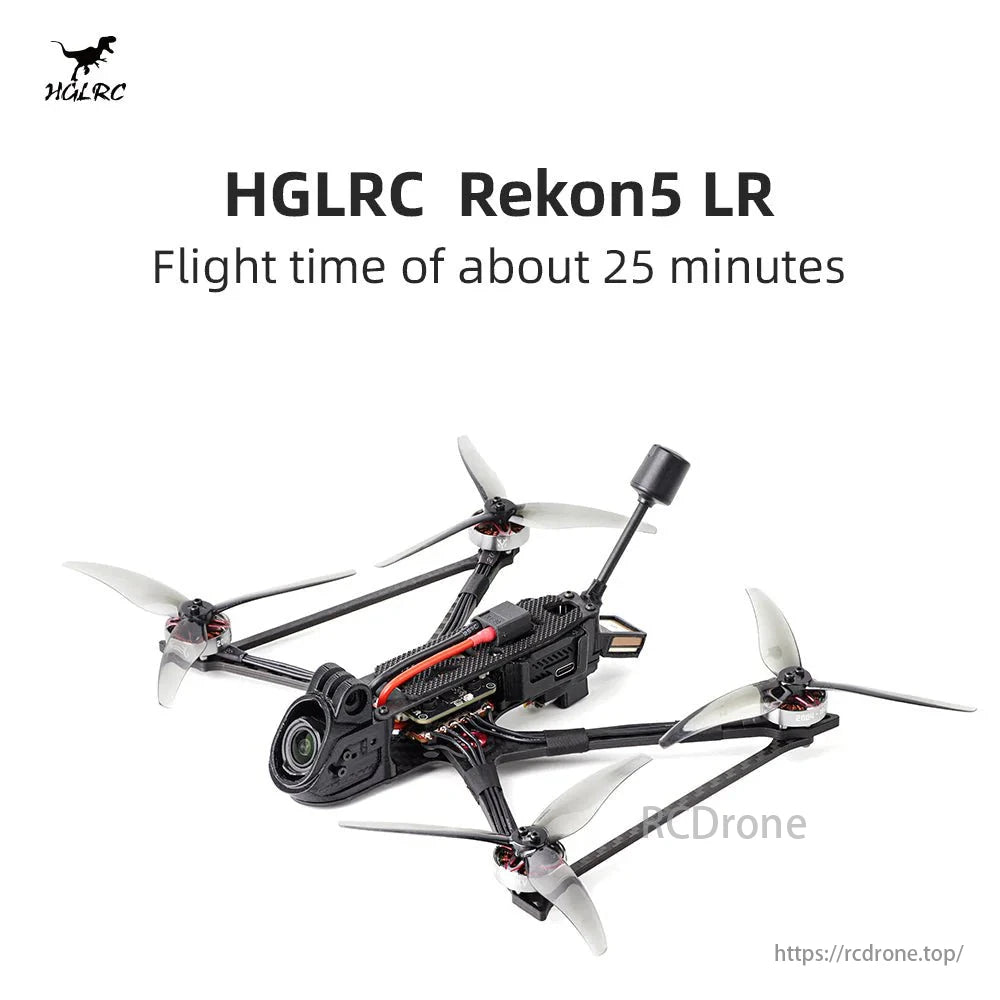

• Up to 25+ min flight time with 18650 Li-ion battery

• Compatible with DJI O3, Vista, Analog (Zeus 800mW) setups

• Integrated GoPro/SMO mount for cinematic footage

• 222mm wheelbase and lightweight carbon frame (Analog: 234g / DJI O3: 247g)

• 7050 Chainring arm lock for enhanced crash resistance

• M80 GPS and Soter buzzer with dedicated 3D printed mounts

• Supports 6S LiPo 550–1300mAh and 18650 packs

• Efficient 5125 tri-blade props and 2004 1800KV motors

Specifications

Battery Compatibility

• 4S: 850–1800mAh

• 6S: 550–1300mAh

• 18650 Li-ion: 2000–3500mAh (4S configuration)

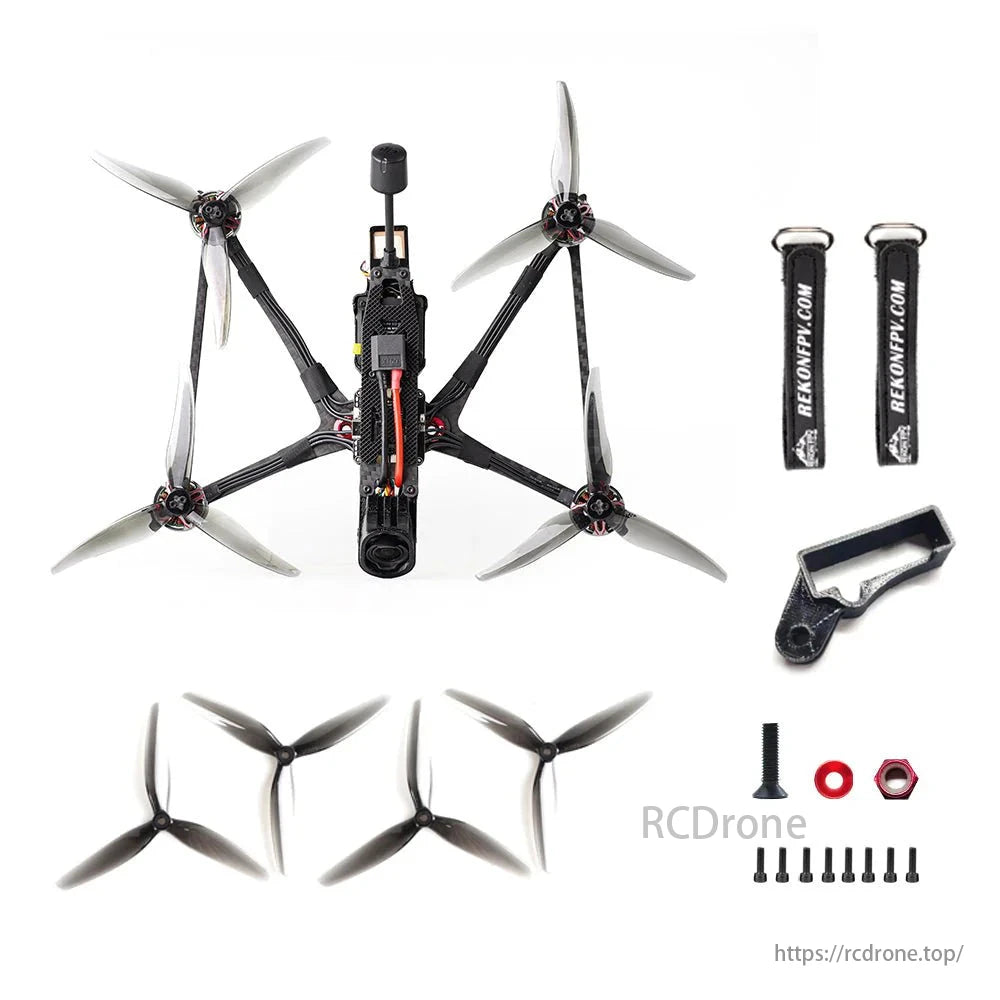

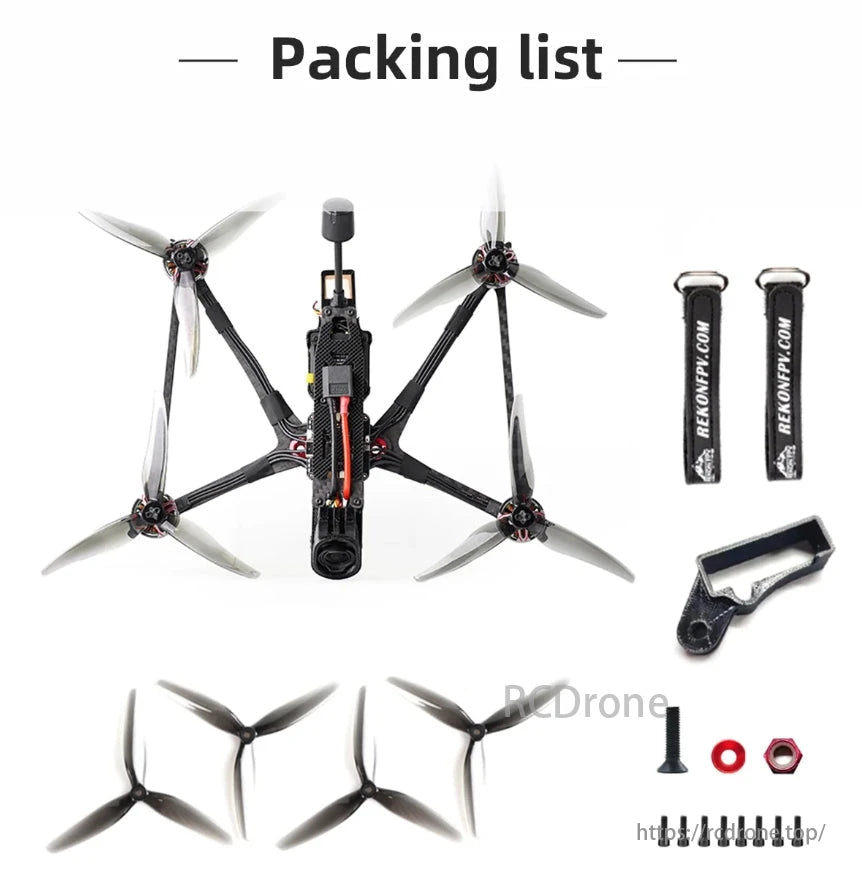

Packing List

• 1x Rekon5 Mini Long Range FPV Drone

• 2x Arm Protection Bars (3mm)

• 1x Black TPU Naked GoPro Mount

• 2x GEMFAN 5125 Propeller Sets

• 2x Rekon 15×200mm Battery Straps

• 1x Screw Kit (including M2/M3 hardware)

Details

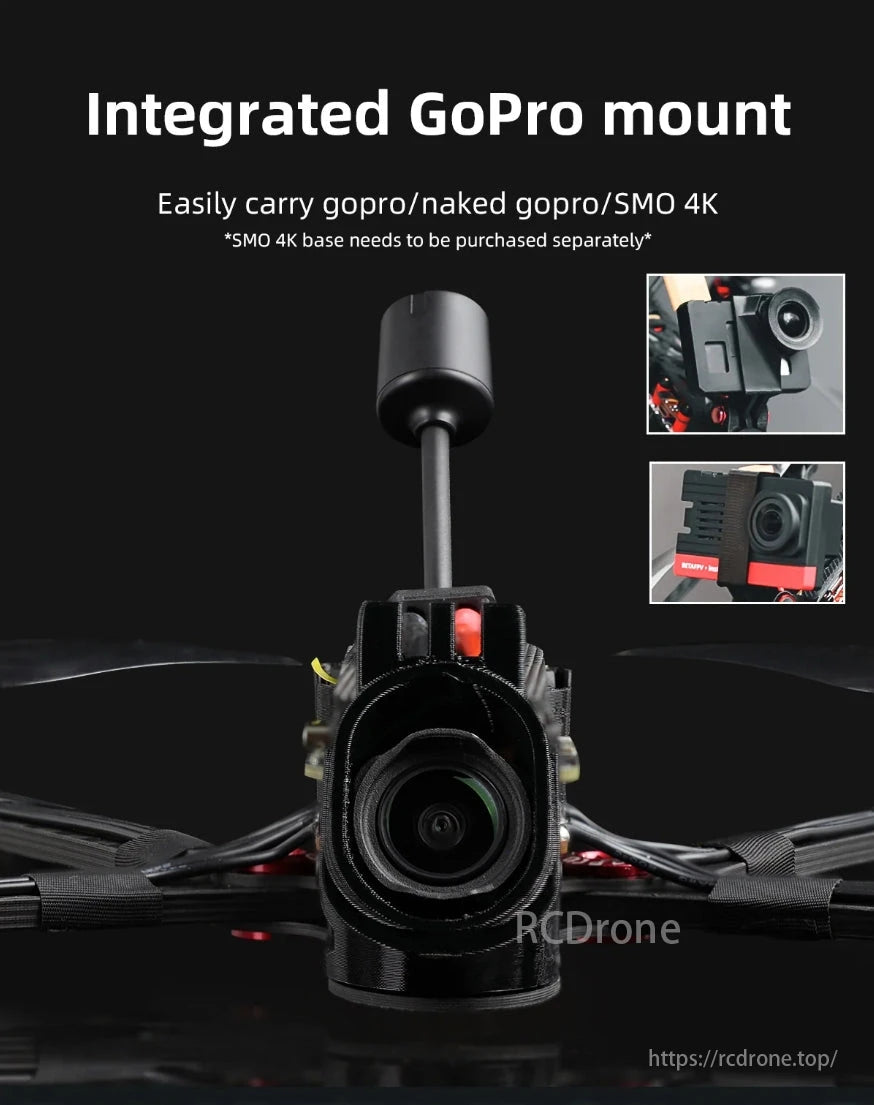

Integrated GoPro mount for easy carry; SMO 4K base sold separately.

Optional arm protection bar. One-piece front and rear arms locked by 7050 chainring screw. Improved vibration and enhanced crash performance.

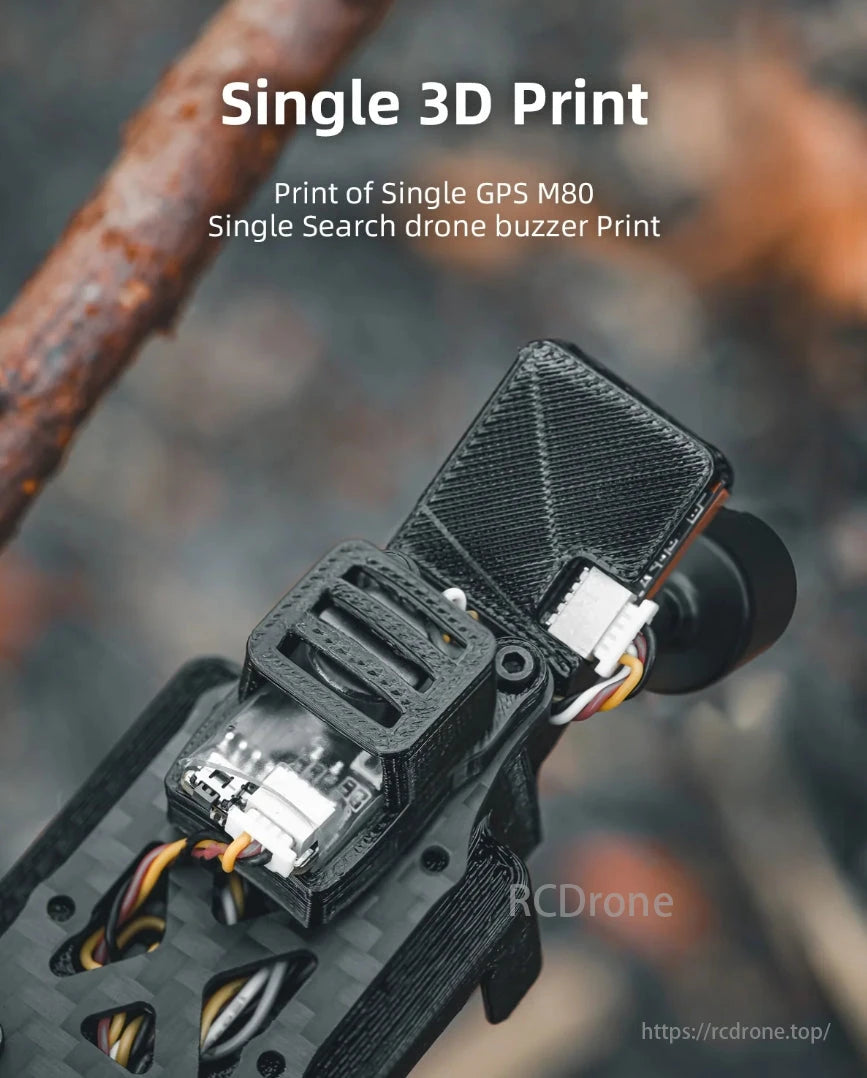

Single 3D print of GPS M80 search drone buzzer for HGLRC Rekon5 Mini Long Range FPV.

Rekon5 FPV Long Range: Rekon5 frame, SPECTER F722 MINI FC, STM32F722 MCU, MPU6000 gyro, HGLRCF722 MINI firmware, ZEUS 28A ESC, 28A current, BL_S firmware, ZEUS VTX, SPECTER motor, M80 GPS, Soter buzzer, GEMFAN propeller.
