Description

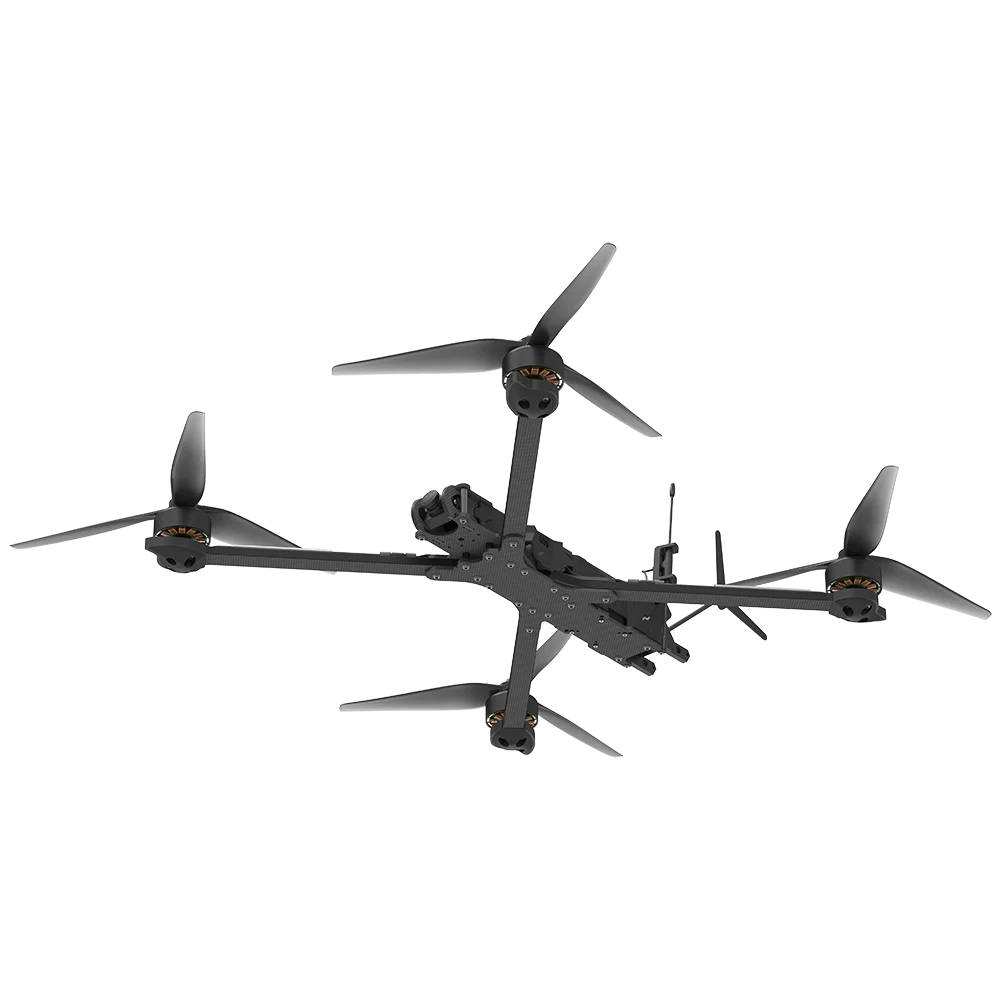

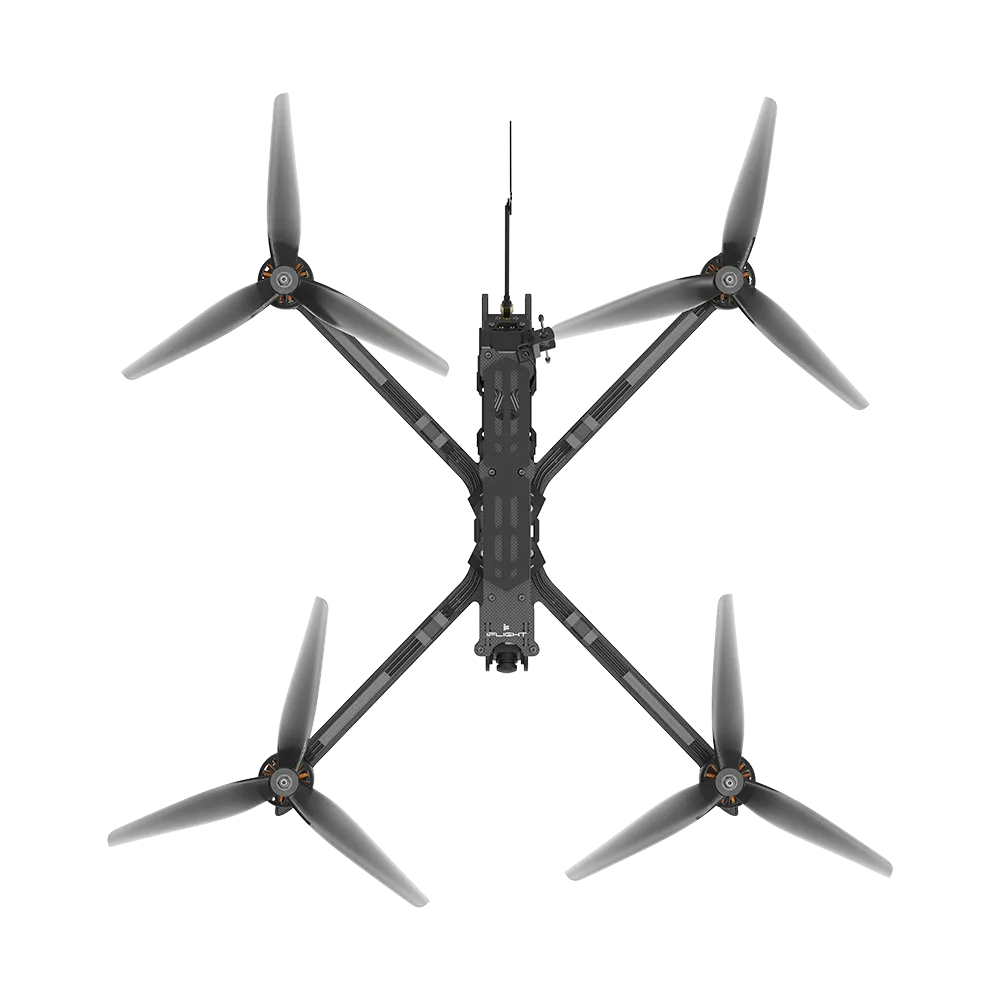

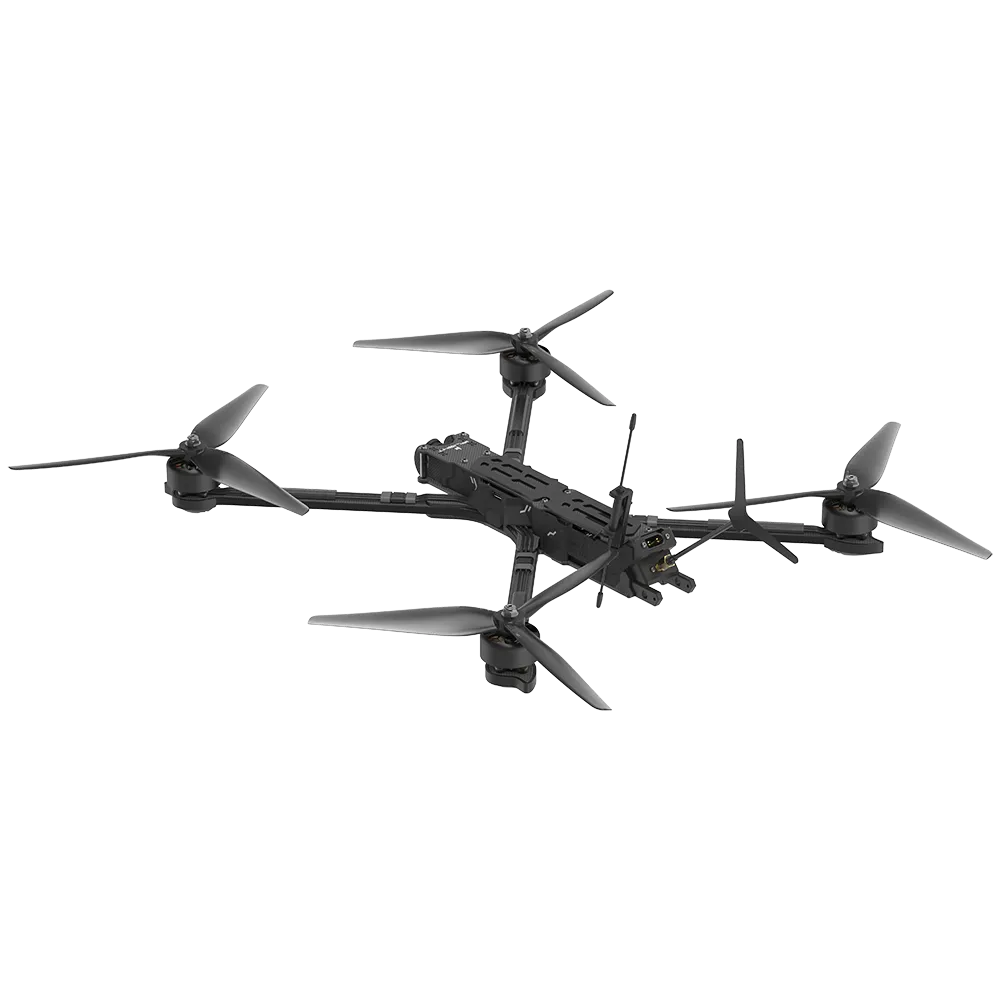

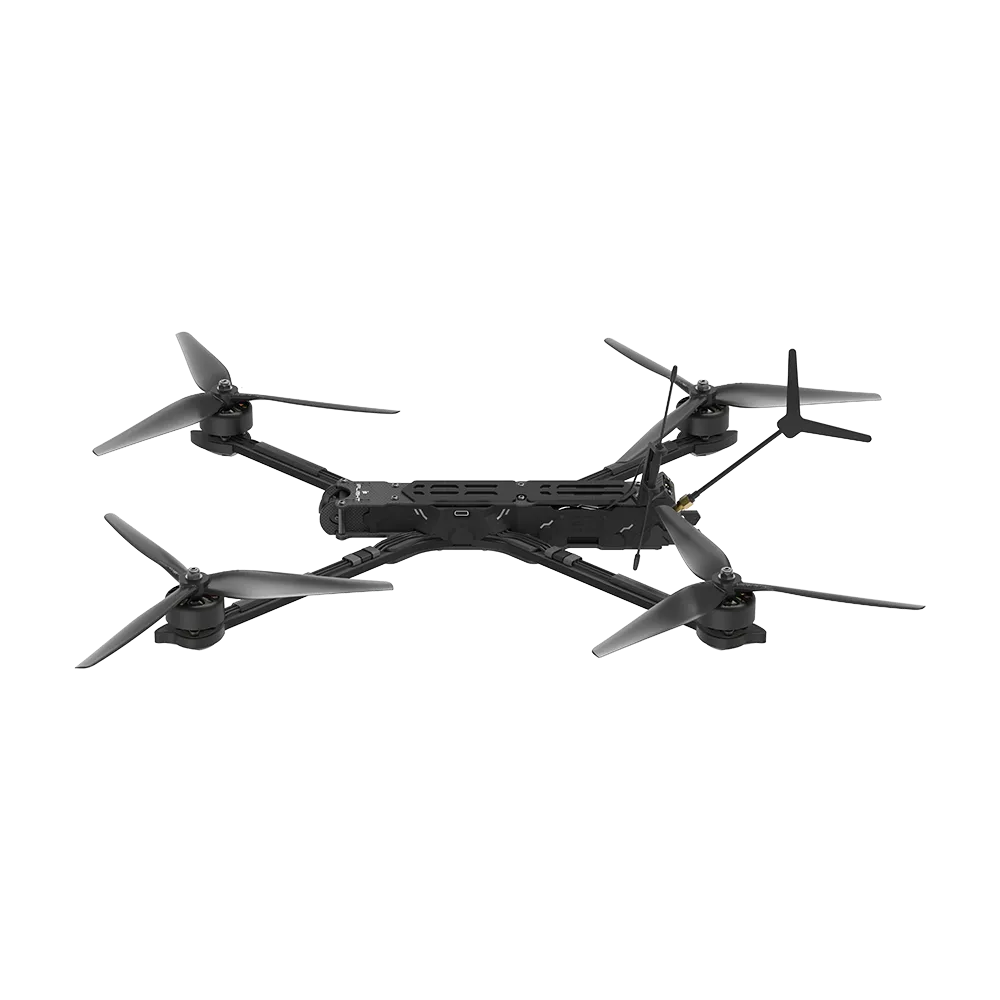

• It's proud to announce the release of the Chimera CX10 ECO analog BNF, CX10 6S Analog is a 10" BNF quadcopter that comes with the BLITZ Whoop 1.6W VTX Video Transmission System, and HQ 10" 3-Blade  propellers. The CX10 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 3110motors, BLITZ ATF435 Flight Controller, and the BLITZ E55S 4-IN-1 ESC, which make this quad a must-have!

• Full 3K Carbon Fiber airframe

• Big size XING-E 3110 with extreme lift and flight performance

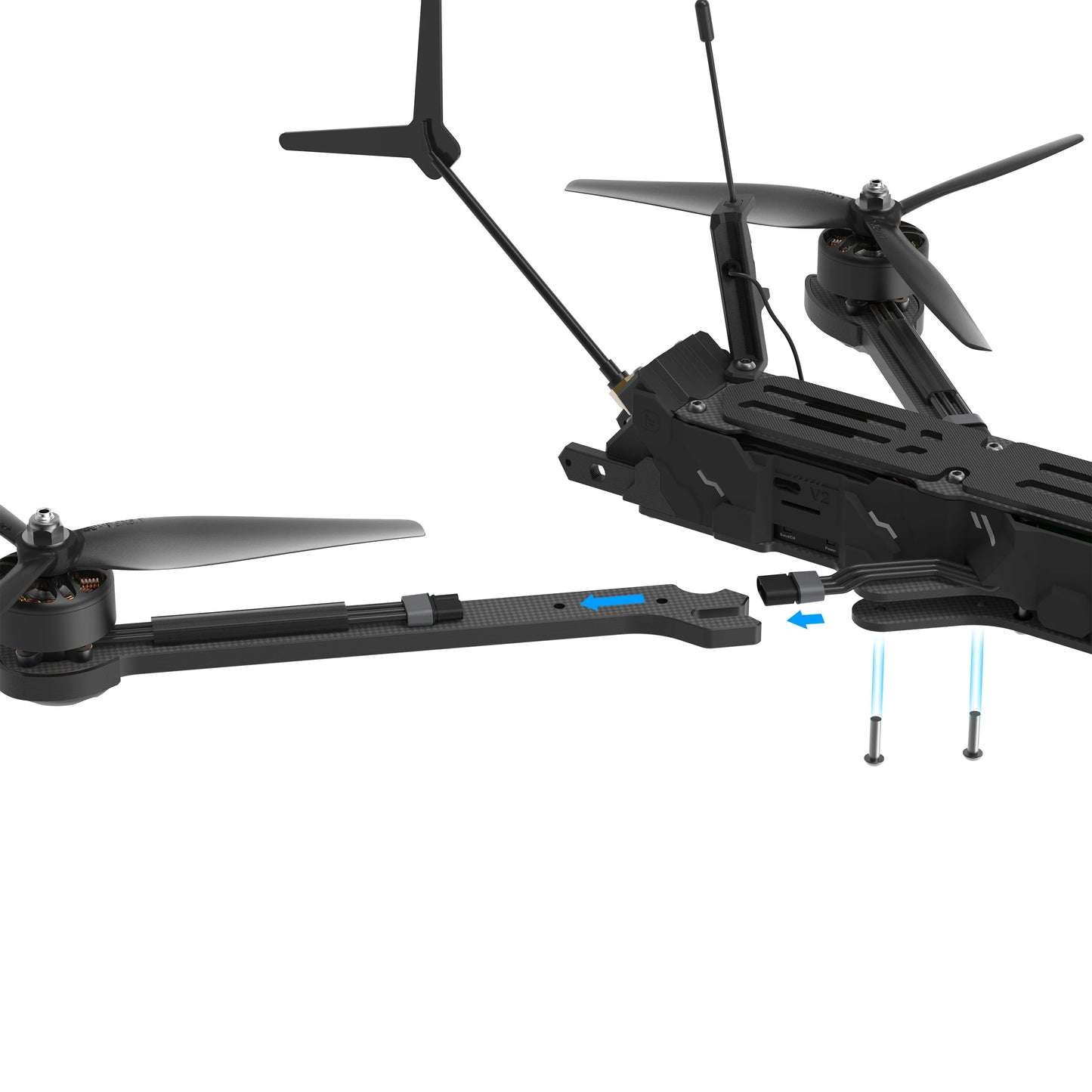

• Latest Lightweight Side Panels for Maximum Protection


Not included in BNF Lite Version:

• GPS module

• Anti Spark Filter

Specifications

• Product Name: Chimera CX10 ECO Analog 10 inch

• FC: BLITZ ATF435 Flight Controller

• ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC

• Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/BLITZ Whoop 1.6W VTX/ BLITZ Whoop 2.5W VTX

• Frame: 452mm wheelbase

• Motor: XING-E 3110 900KV motors

• Prop: 10X4.5X3 propellers

• Weight: 860g (Without Battery)

• Dimensions (L×W×H)：338x299x34mm

• Max Speed: 140km/h

• Maximum Takeoff Altitude: 6000 m

• Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)

• Payload: 1.5-2.5kg

• Max Wind Speed Resistance: Level 7

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Single Antenna

• GNSS: No

Video Transmission

BLITZ Whoop 1.2G 1.6W VTX

• Product Name: BLITZ Whoop 1.2G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 7-34V

• Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA

• Transmission fre: 8CH(1080-1360MHz)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50*30*16mm

BLITZ Whoop 5.8G 1.6W VTX

• Product Name: BLITZ Whoop 5.8G 1.6W VTX

• Output Power: 0-25-400-800-1600mw

• Input Volts: 12V

• Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: IPEX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 16.5g (Antenna not included)

• Dimensions: 37mm*31.5mm*10mm

BLITZ Whoop 5.8G 2.5W VTX

• Product Name: BLITZ Whoop 5.8G 2.5W VTX

• Output Power: 0-25-400-1000-2500mw

• Input Volts: 7-34V

• Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

• Transmission fre: 40CH(A-B-E-F-R)

• Antenna Interface: MMCX

• Mounting Hole: 25*25/φ1.6mm

• Weight: 32g

• Dimensions: 50mm*30mm*16mm

Packing List

• 1 x Chimera CX10 ECO 6S Analog BNF

• 1 x Battery pad

• 1 x Antenna

• 2 x Propellers(Pair)

• 2 x Battery strap

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1)Any military combat purpose or military combat related use;

(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
