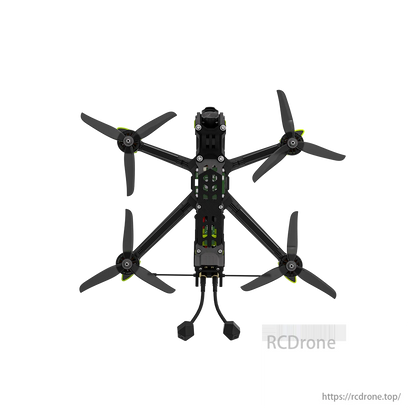

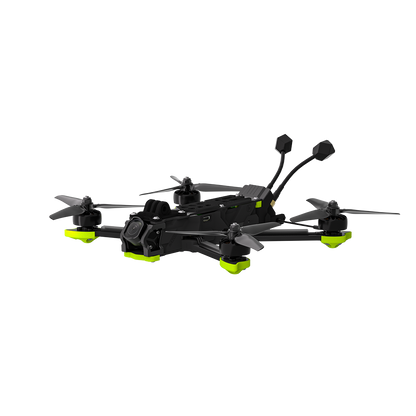

iFlight Nazgul DC5 ECO O4 6S HD 5-Inch Freestyle Drone with DJI O4 Air Unit Pro
iFlight Nazgul DC5 ECO O4 6S HD 5-Inch Freestyle Drone with DJI O4 Air Unit Pro
iFlight
Couldn't load pickup availability
Overview

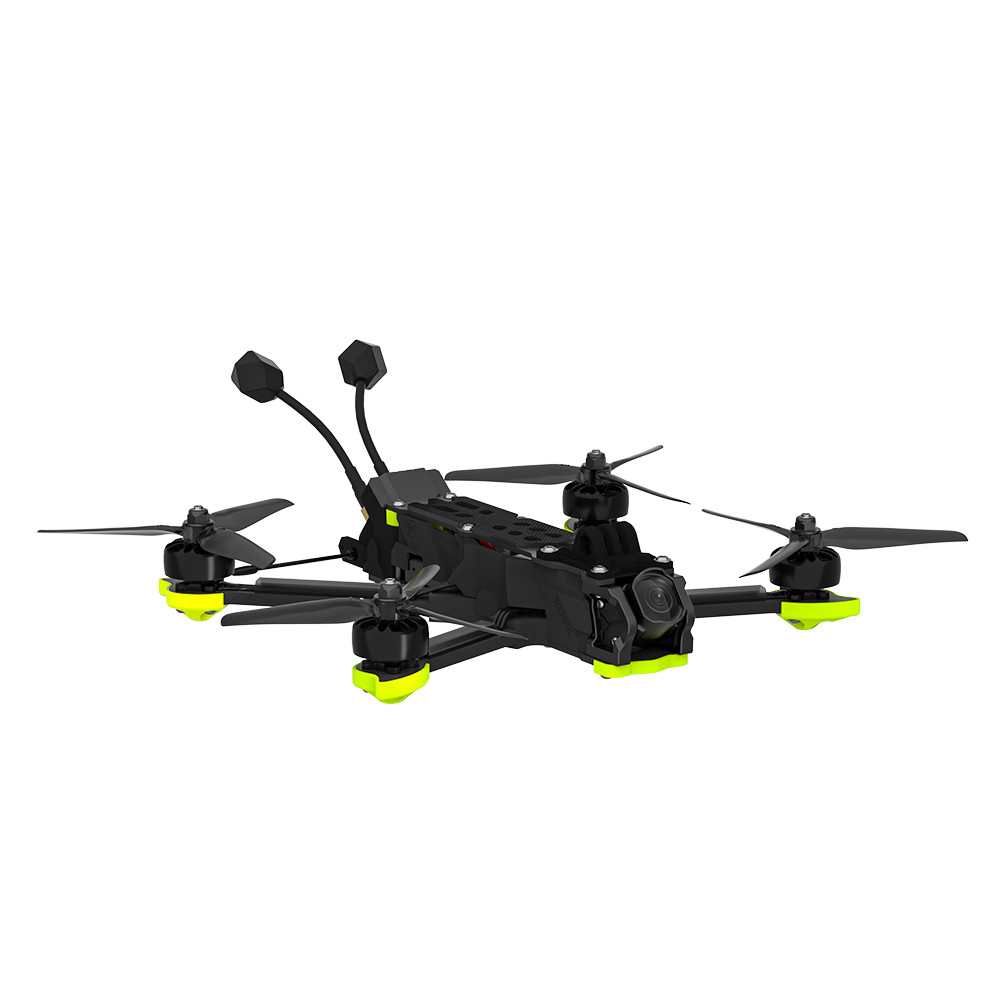

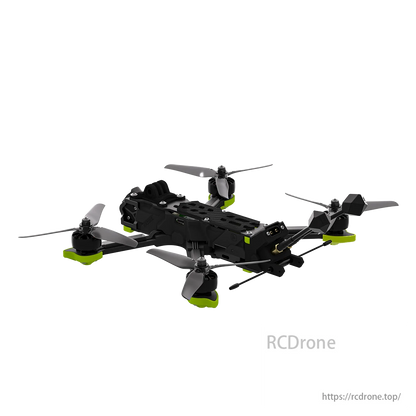

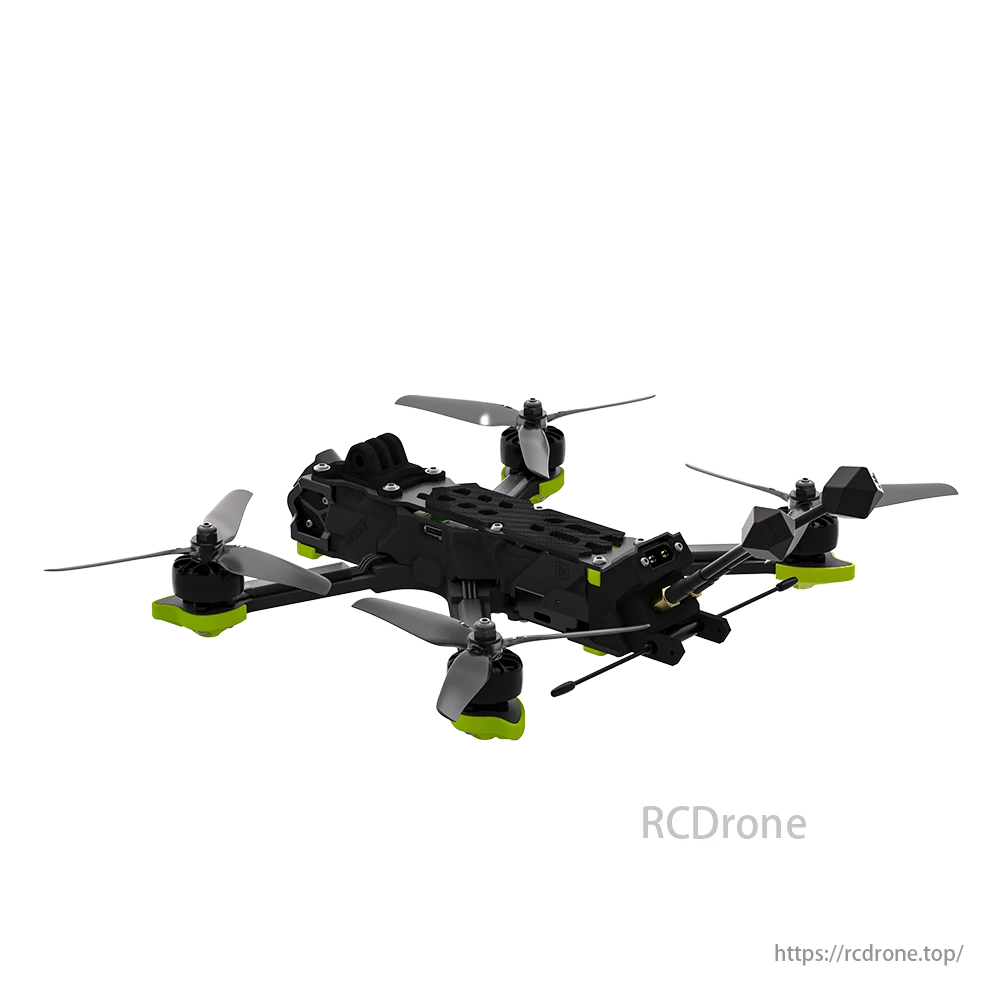

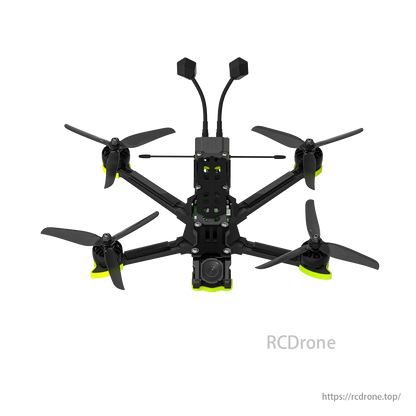

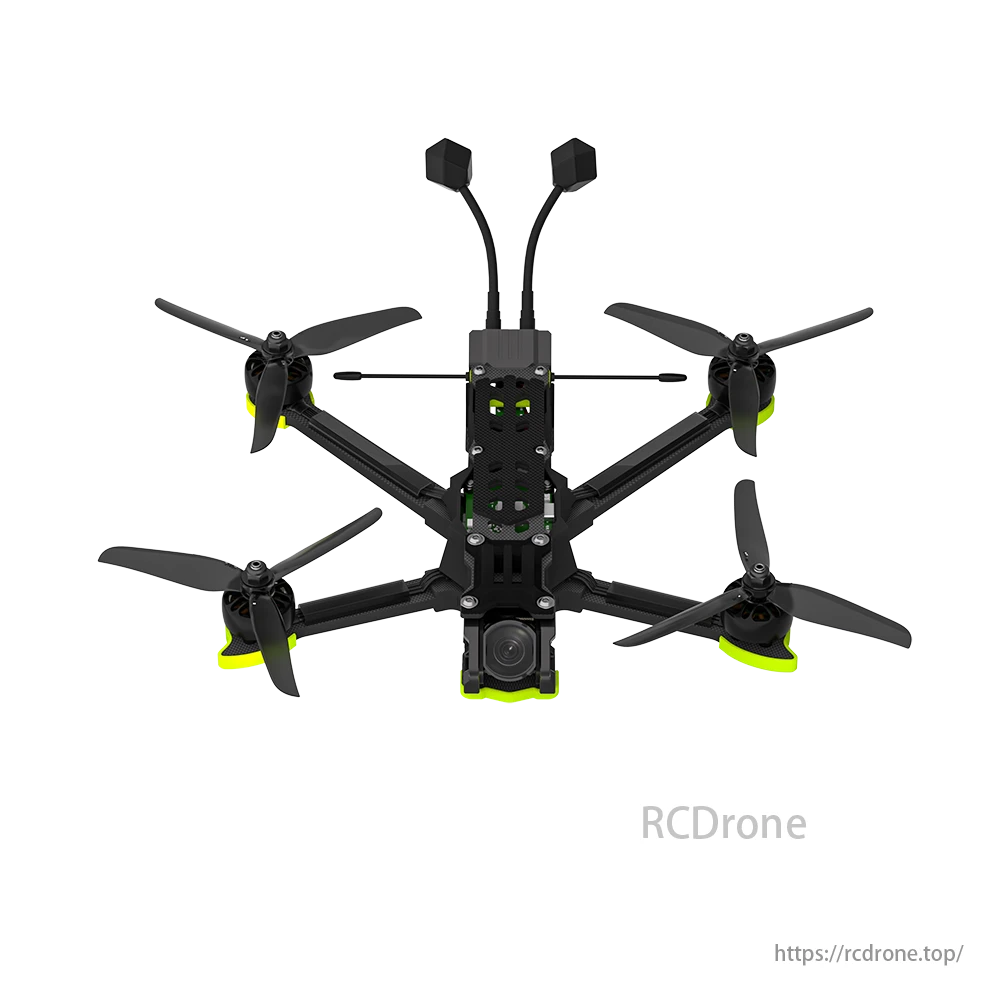

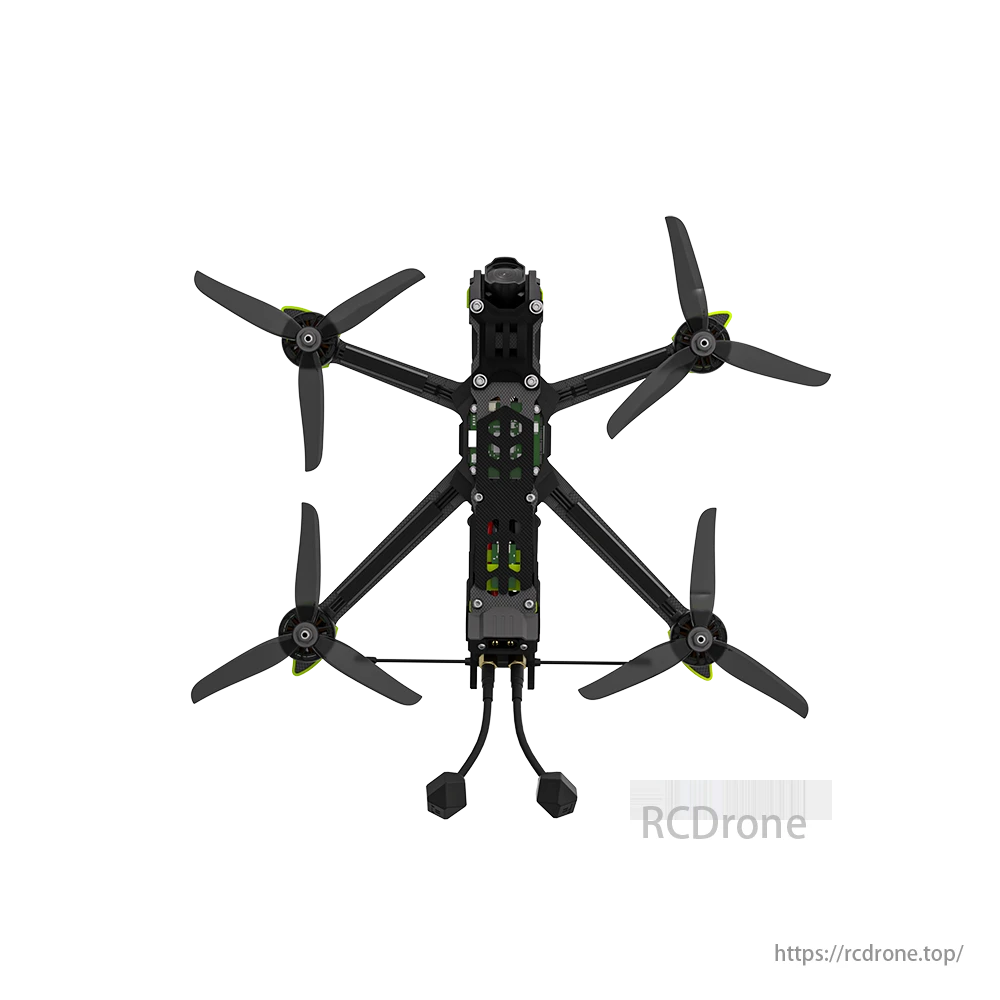

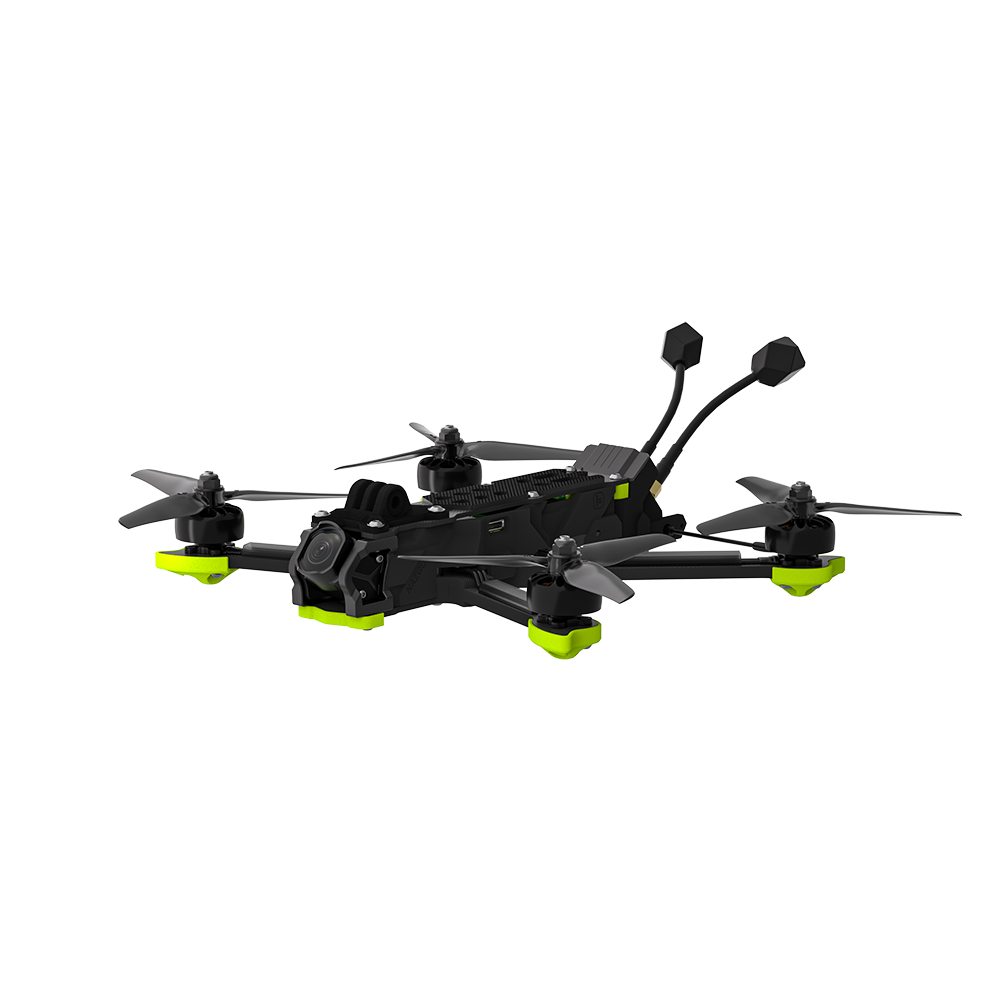

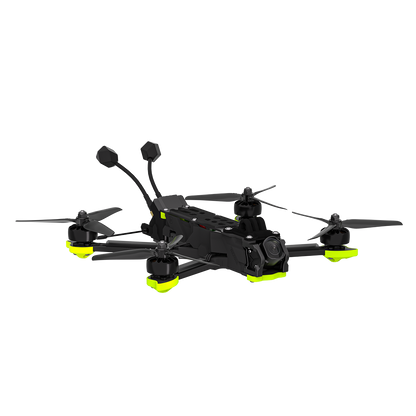

The iFlight Nazgul DC5 ECO 6S O4 HD redefines performance and value in the 5-inch freestyle drone segment. Built around a robust carbon fiber frame with an aluminum camera mount, it delivers lightweight durability and exceptional protection. Equipped with the advanced DJI O4 Air Unit Pro, the Nazgul DC5 ECO offers crystal-clear, propeller-free HD footage featuring a 1.1/1.3-inch image sensor for 4K stabilized video, even in low-light environments. Powered by the BLITZ ATF435 Flight Controller and BLITZ E55S ESC, it ensures consistent and reliable flight performance.
Whether you're chasing cinematic shots or pushing freestyle limits, the DC5 ECO is built to deliver a premium flying experience.
Key Features
Lightweight and Durable Frame
The hybrid structure of carbon fiber and aluminum provides strength without sacrificing weight. The DeadCat (DC) geometry ensures an unobstructed camera view, enhancing the visual quality of your aerial footage.
Anti-Spark Filter Protection
An integrated anti-spark filter prevents the loud electrical spark typically seen when connecting batteries, protecting the XT60 connector and sensitive electronics from damaging voltage and current spikes.
DJI O4 Air Unit Pro for Next-Level Transmission
With DJI O4 video transmission, experience up to 13 km (FCC) of maximum transmission range, 1080p/100fps real-time high-definition video, ultra-low 24 ms latency, and a stable 60Mbps transmission bitrate. (Source: DJI)
4K Stabilized Video with 155° Ultra-Wide Angle
The 1/1.3-inch sensor combined with RockSteady 3.0+ stabilization captures stunning, smooth 4K visuals at a breathtaking 155° ultra-wide field of view, even in challenging lighting conditions. (Source: DJI)
Enhanced User Experience and Maintenance
Featuring a built-in buzzer and receiver mount, the DC5 ECO makes maintenance and receiver adjustments quick and convenient.
Specifications
| Items | Details |
|---|---|
| Brand | iFlight |
| Product Name | Nazgul DC5 ECO 6S O4 HD |
| Geometry | DC (DeadCat) |
| Flight Controller | BLITZ ATF435 |
| ESC | BLITZ E55S 4-in-1 ESC |
| Video Transmission | DJI O4 Air Unit Pro |
| Frame Wheelbase | 240mm |
| Motors | XING-E Pro 2207 1800KV |
| Propellers | Nazgul F5 |
| Dry Weight | 450±5g |
| Takeoff Weight | ~675±5g (with 6S 1480mAh battery) |
| Dimensions (L×W×H) | 193×144×34 mm |
| Max Speed | 190 km/h |
| Max Takeoff Altitude | 7000m |
| Max Hover Time | ~7.5 minutes (no load, 6S 1480mAh battery) |
| Max Wind Speed Resistance | Level 7 |
| Operating Temperature Range | -10°C to 40°C (14°F to 104°F) |
| Antennas | Dual Antennas |
| GNSS | GPS+SBAS+Galileo+QZSS+Glonass (Optional) |
DJI O4 Air Unit Pro Specifications
| Item | Details |
|---|---|
| Image Sensor | 1/1.3-inch |
| Lens FOV | 155° |
| ISO Range | 100–25600 |
| Video Resolution | 1080p/100fps (H.265) |
| Video Format | MP4 |
| Max Video Bitrate | 130 Mbps |
| Color Modes | Normal / D-Log M |
| Stabilization | RockSteady 3.0+ (Standard FOV only) |
| Live View Quality | 1080p@100fps |
| Operating Frequencies | 5.170–5.250 GHz & 5.725–5.850 GHz |
| Transmitter Power (EIRP) | 5.1GHz＜23dBm(CE) / 5.8GHz＜33dBm(FCC) / ＜14dBm(CE) / ＜30dBm(SRRC) |
| Max Transmission Range | 15 km (FCC) / 8 km (CE/SRRC) |
| Communication Bandwidth | Max 60 MHz |
| Built-in Storage | 4GB |
| Supported SD Cards | microSD (up to 512GB) |
| Operating Temperature | -10°C to 40°C |
| Unit Weight | ~32g |
| Transmission Module Size | 33.5×33.5×13 mm |
Packing List
-
1 × Nazgul DC5 ECO V1.1 6S O4 HD BNF
-
2 × Antennas
-
2 × Battery Pads
-
2 × Propeller Pairs
Recommended Accessories
-
Commando 8 ELRS Radio 2.4GHz V2
-
Commando 8 ELRS Radio 868/900MHz V2
-
GoPro 8 TPU Mount
-
GoPro 9/10/11 TPU Mount
-
HOTA D6 Pro Battery Charger (US Plug)
-
HOTA D6 Pro Battery Charger (EU Plug)
-
Nazgul F5 Prop
- Fullsend 6S 1480mAh Battery
