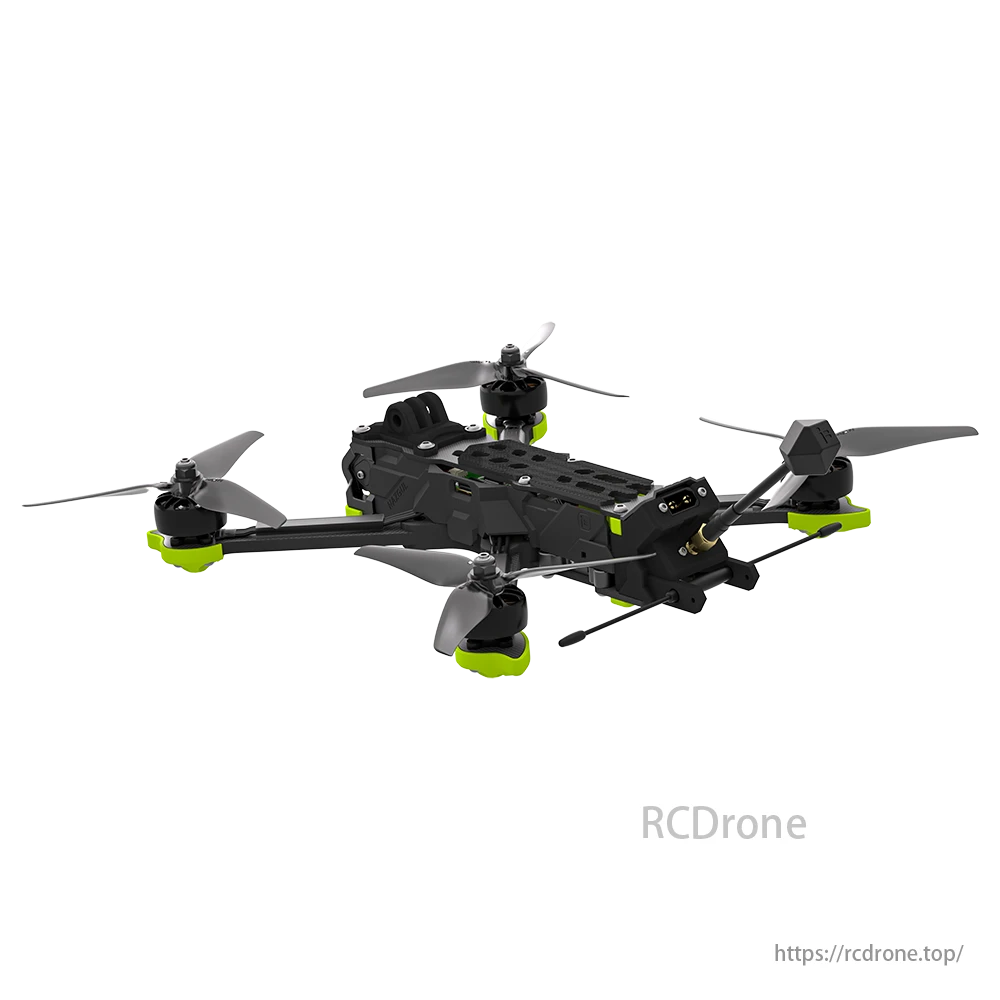

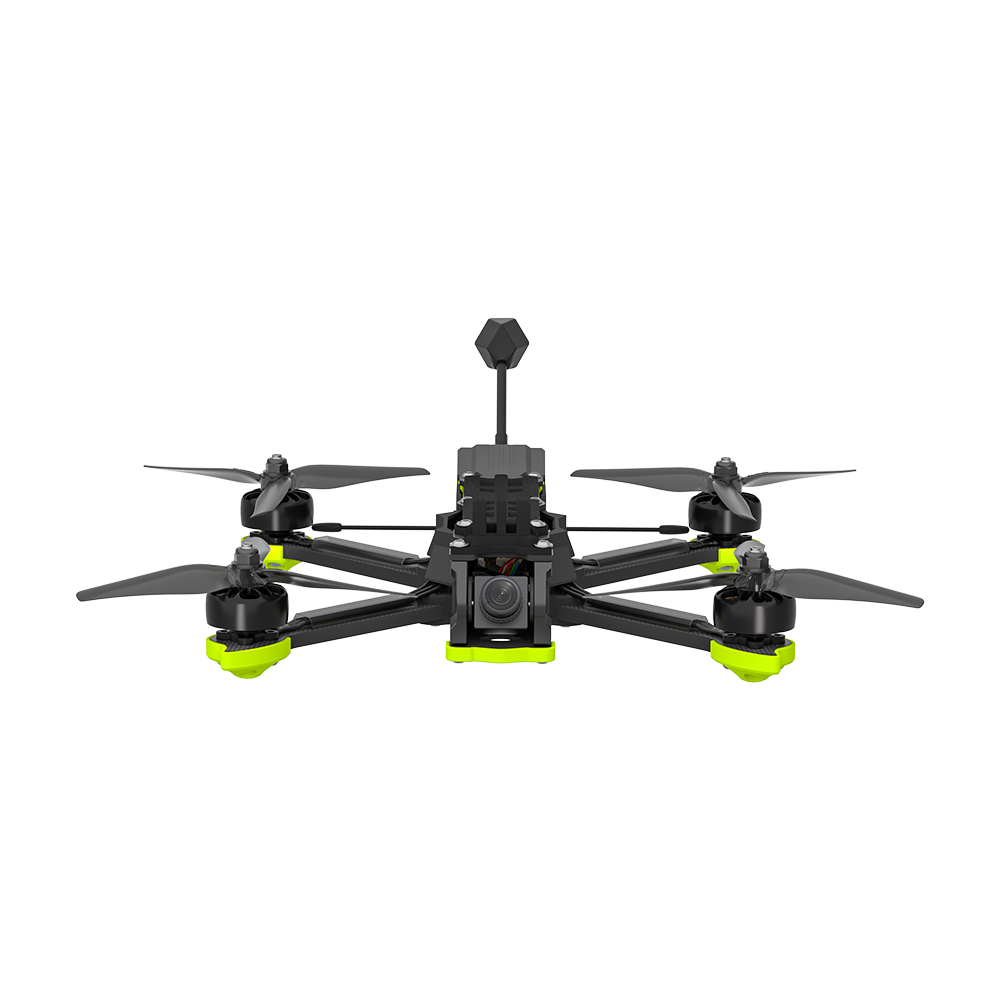

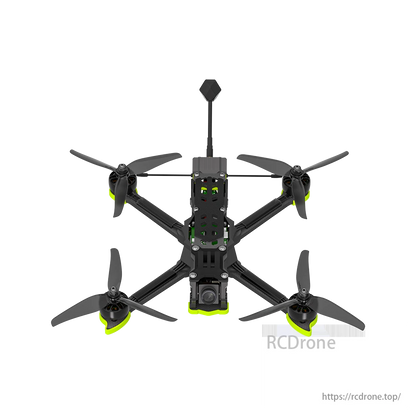

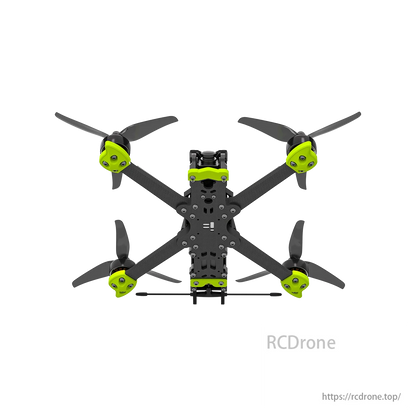

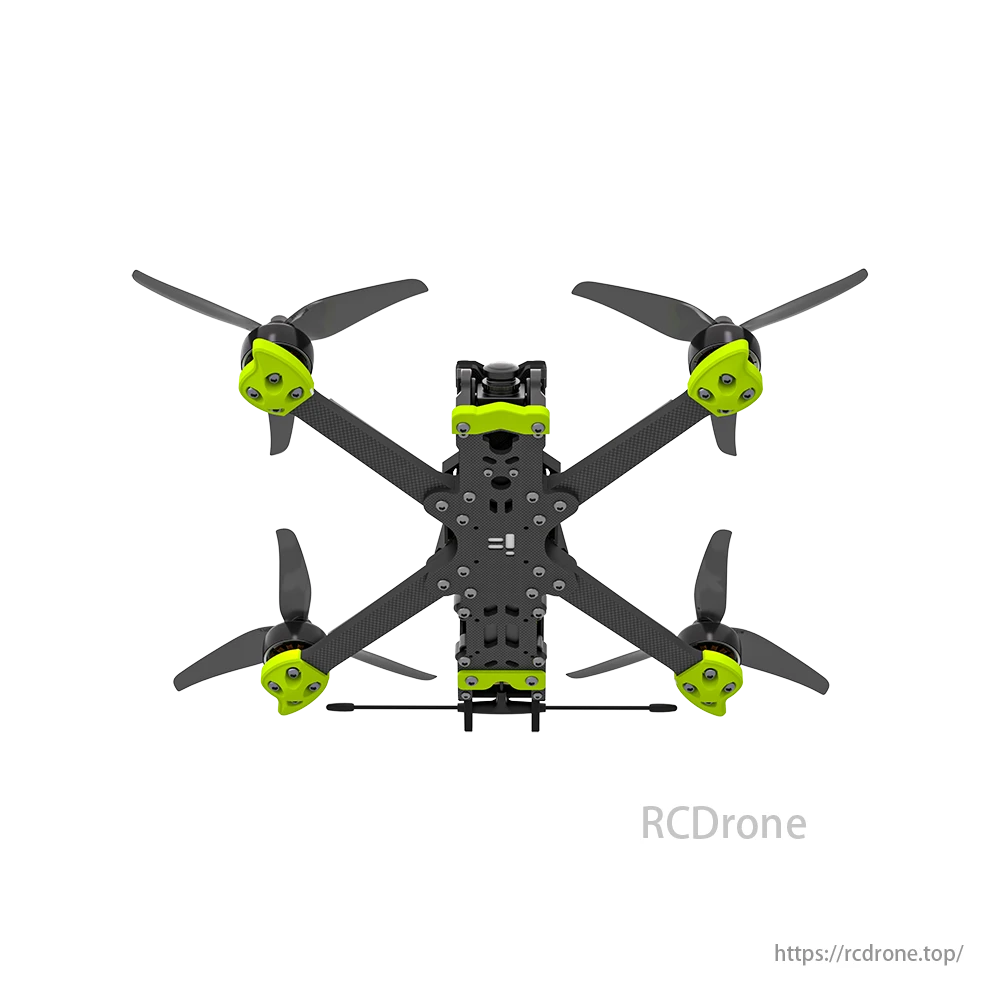

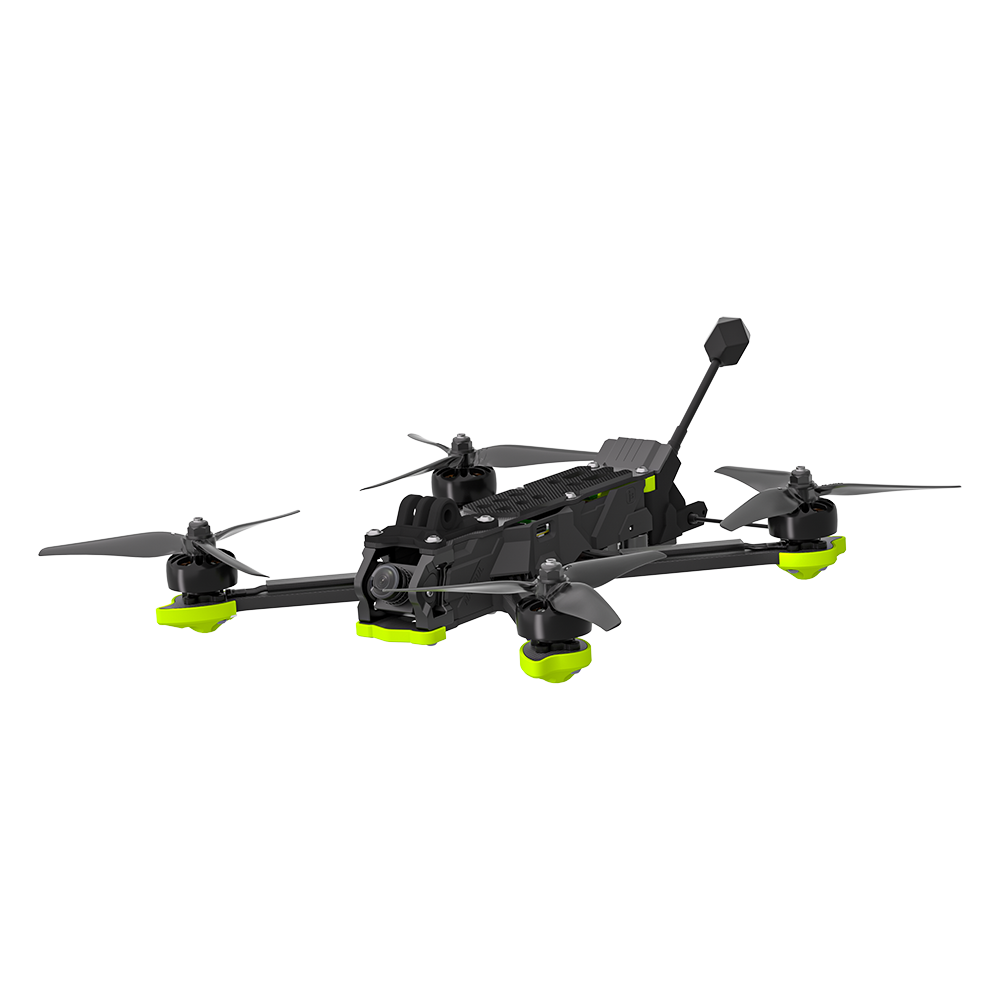

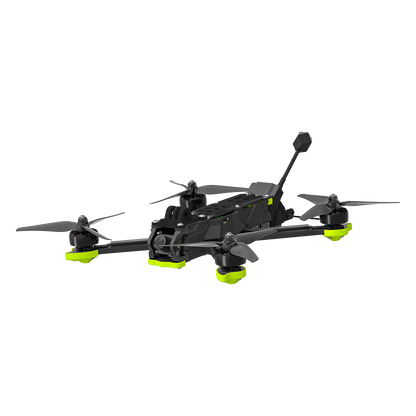

iFlight Nazgul XL5 ECO V1.1 6S Analog 5-Inch Freestyle FPV Drone with BLITZ 1.6W VTX

iFlight Nazgul XL5 ECO V1.1 6S Analog 5-Inch Freestyle FPV Drone with BLITZ 1.6W VTX

iFlight

$309.00 USD
$309.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
GPS
Receiver
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

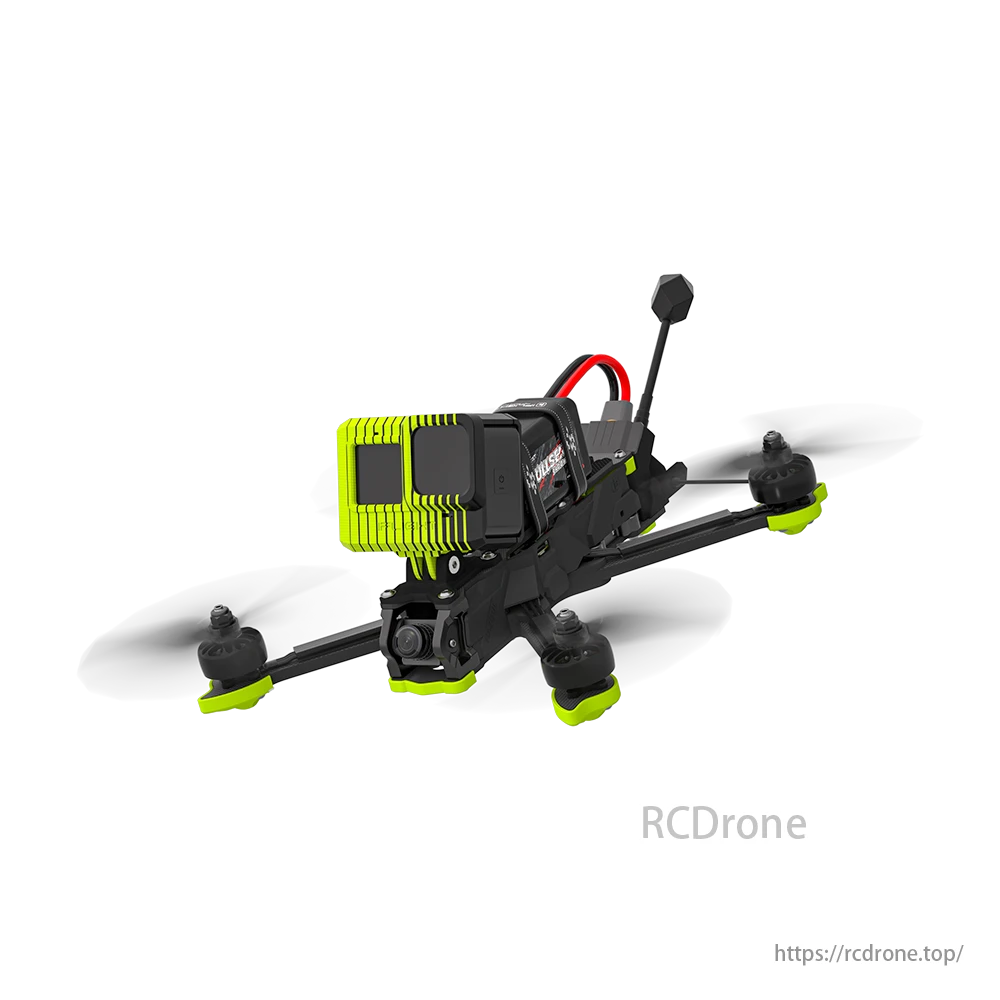

Take your freestyle flying to new heights with the iFlight Nazgul XL5 ECO V1.1 6S Analog FPV Drone. Engineered for performance and durability, this 5-inch True-X drone features a BLITZ ATF435 flight controller, BLITZ 1.6W VTX, and BLITZ E55S 55A ESC. With its lightweight carbon fiber frame and aluminum camera mount, the Nazgul XL5 ECO V1.1 offers a rugged, aerodynamic platform for high-speed freestyle maneuvers. The included GoPro mount and flexible 20x20/30.5x30.5 stack options make it perfect for custom builds and epic aerial footage.

Key Features

Lightweight and Durable Frame

  • Carbon fiber construction with aluminum camera mount for a strong yet lightweight design.

  • Optimized for unobstructed video capture with minimal prop-in-view.

Anti-Spark Protection

  • Integrated anti-spark filter protects XT60 connectors and sensitive electronics from voltage spikes during battery plug-in.

User-Friendly Maintenance

  • Built-in buzzer and dedicated receiver mount simplify repairs and receiver adjustments.

  • Streamlined design improves maintenance accessibility.

Customization Flexibility

  • Standard 20x20 and 30.5x30.5 mounting options for flight stacks and VTX modules.

  • Offers wide compatibility for personalized builds and upgrades.

Specifications

Item Details
Product Name Nazgul XL5 ECO V1.1 6S Analog
Geometry True-X
Flight Controller BLITZ ATF435
ESC BLITZ E55S 4-IN-1 2-6S 55A ESC
Video Transmission BLITZ 1.6W VTX
Frame Wheelbase 245mm
Motors XING-E Pro 2207 1800KV
Propellers Nazgul F5
Weight 427g
Takeoff Weight Approx. 652g (with 6S 1400mAh battery)
Dimensions (L×W×H) 173×173×34±2 mm
Diagonal Distance 245mm
Max Speed 190 km/h (Manual Mode)
Maximum Takeoff Altitude 3200 m
Max Hover Time Approx. 7.5 minutes (No Load, 6S 1400mAh)
Max Wind Resistance Level 7
Operating Temperature -10°C to 40°C (14°F to 104°F)
Antennas Single Antenna
GNSS (Optional) GPS + SBAS + Galileo + QZSS + Glonass

BLITZ 5.8G 1.6W VTX Specifications

Item Details
Output Power PIT/25mW/400mW/800mW/1600mW
Input Voltage 7–34V (2–8S)
Working Current (at 25.2V) ≤20mA (PIT), ≤65mA (25mW), ≤130mA (400mW), ≤150mA (800mW), ≤250mA (1600mW)
Transmission Frequency 40 Channels (A/B/E/F/R bands)
Antenna Interface MMCX
Mounting Hole Size 30.5×30.5mm (Φ3mm)
Weight 18.9g (Antenna not included)
Dimensions 38.5×38.5mm

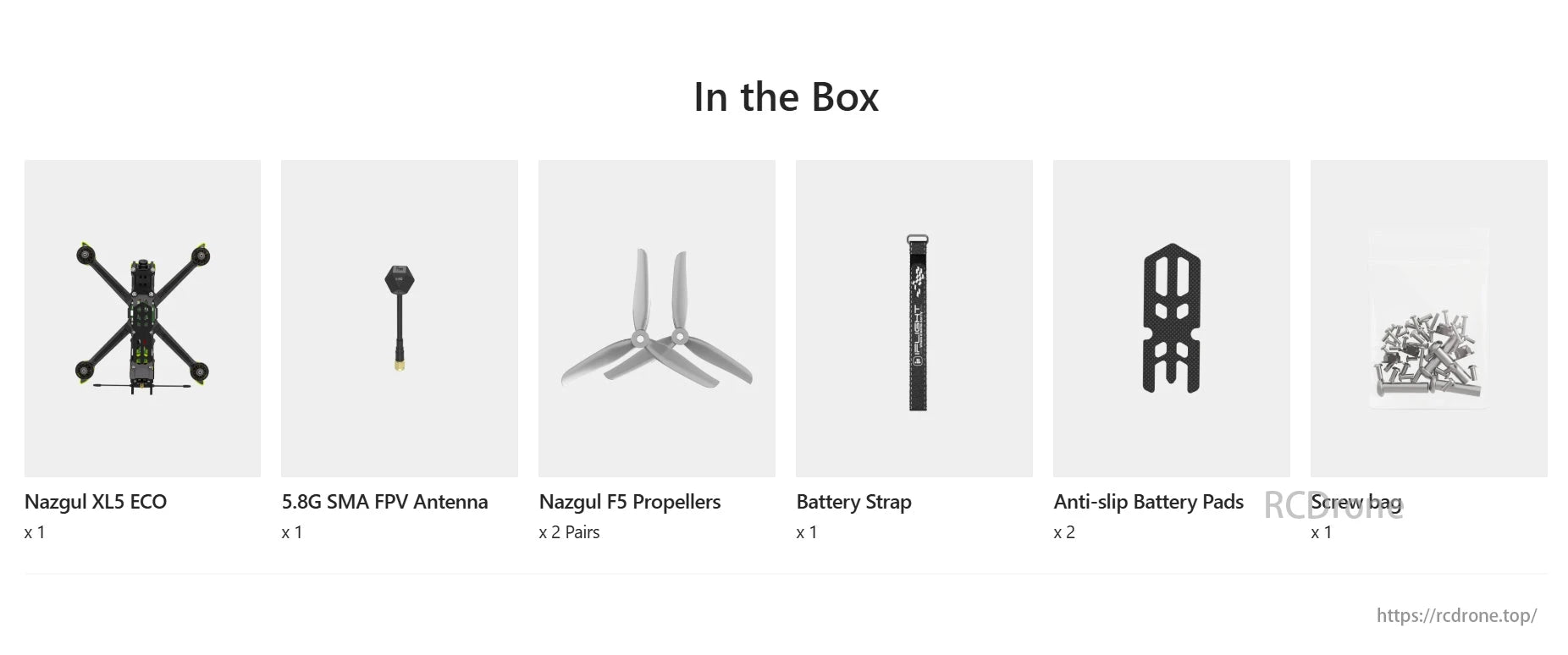

Packing List

  • 1 × Nazgul XL5 ECO V1.1 6S Analog BNF Drone

  • 1 × Antenna

  • 2 × Battery Pads

  • 2 × Pairs of Nazgul F5 Propellers



Recommendation Additional Parts

  • Commando 8 ELRS Radio 2.4GHz V2
  • Commando 8 ELRS Radio 868/900 MHz V2
  • GoPro 8 TPU Mount
  • GoPro 9/10/11 TPU Mount
  • HOTA D6 Pro Battery Charger (US Plug)
  • HOTA D6 Pro Battery Charger (EU Plug)
  • Replacement Arms
  • Nazgul F5 Prop
  • Fullsend 6S 1480mAh Battery
