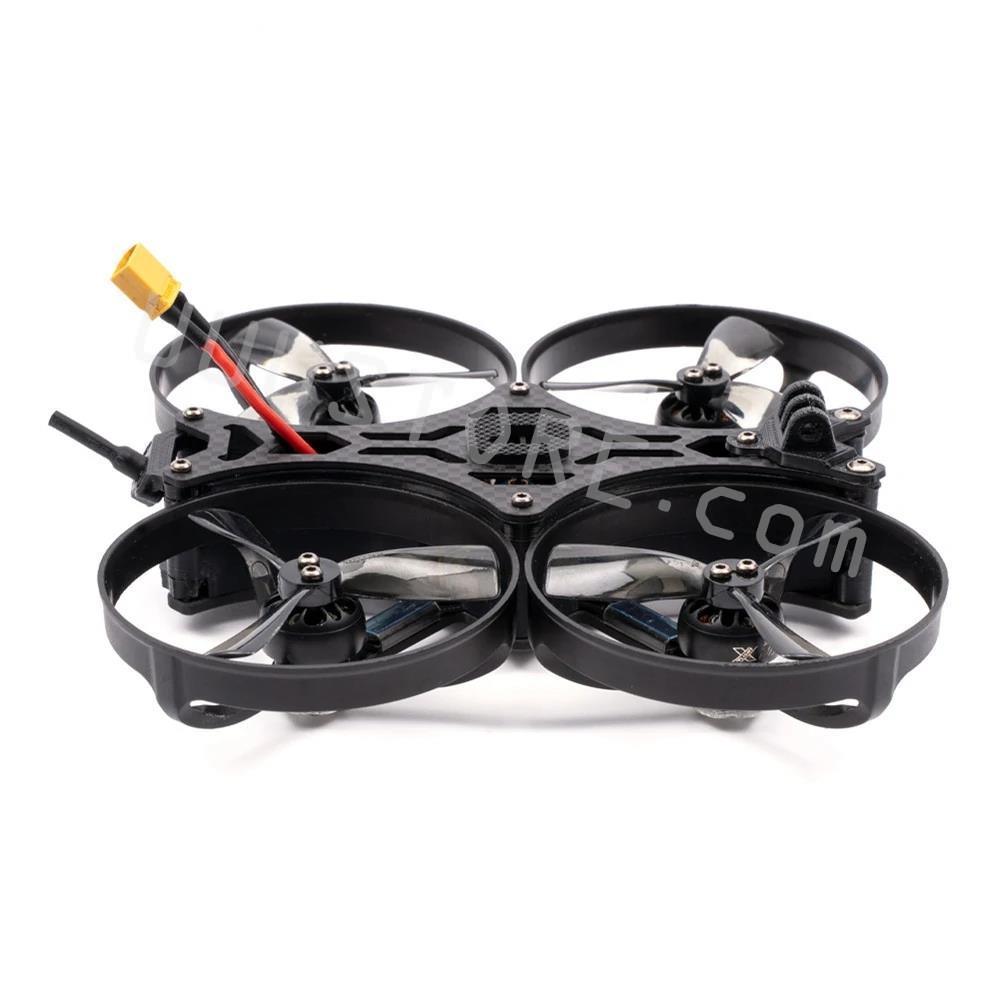

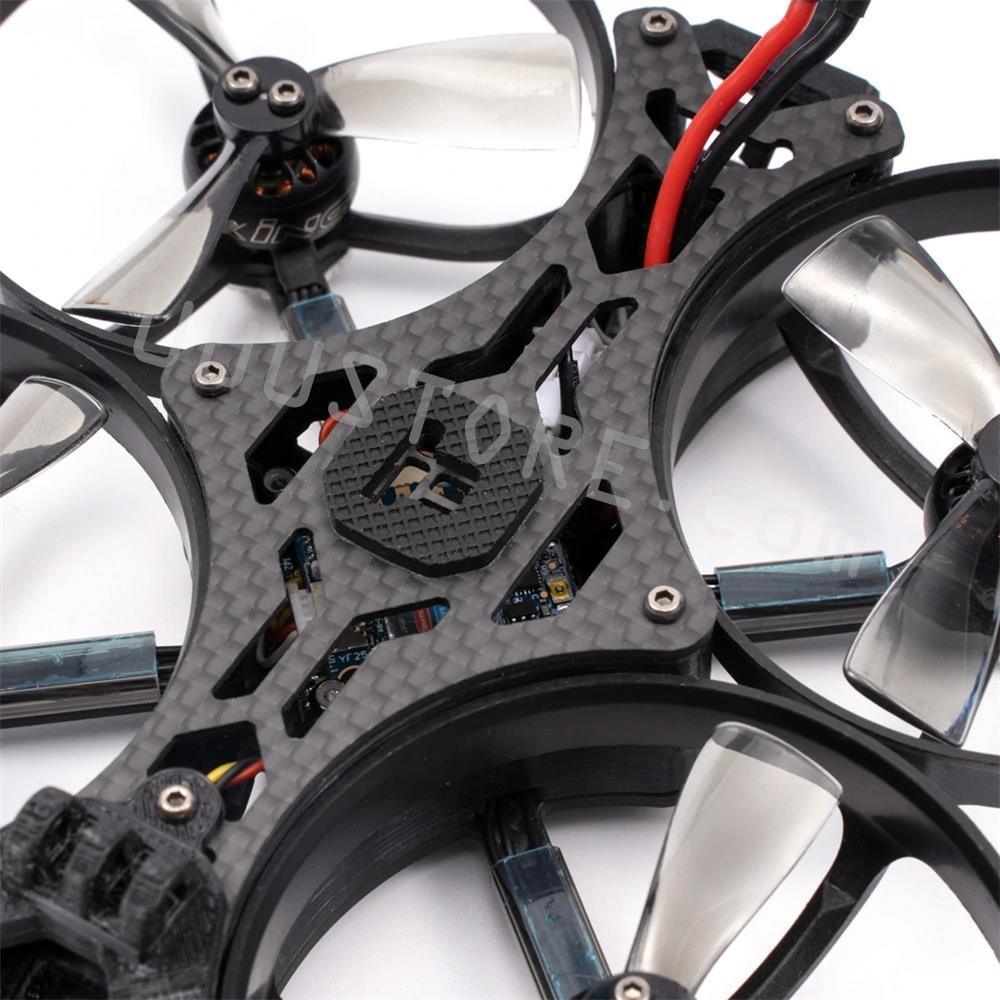

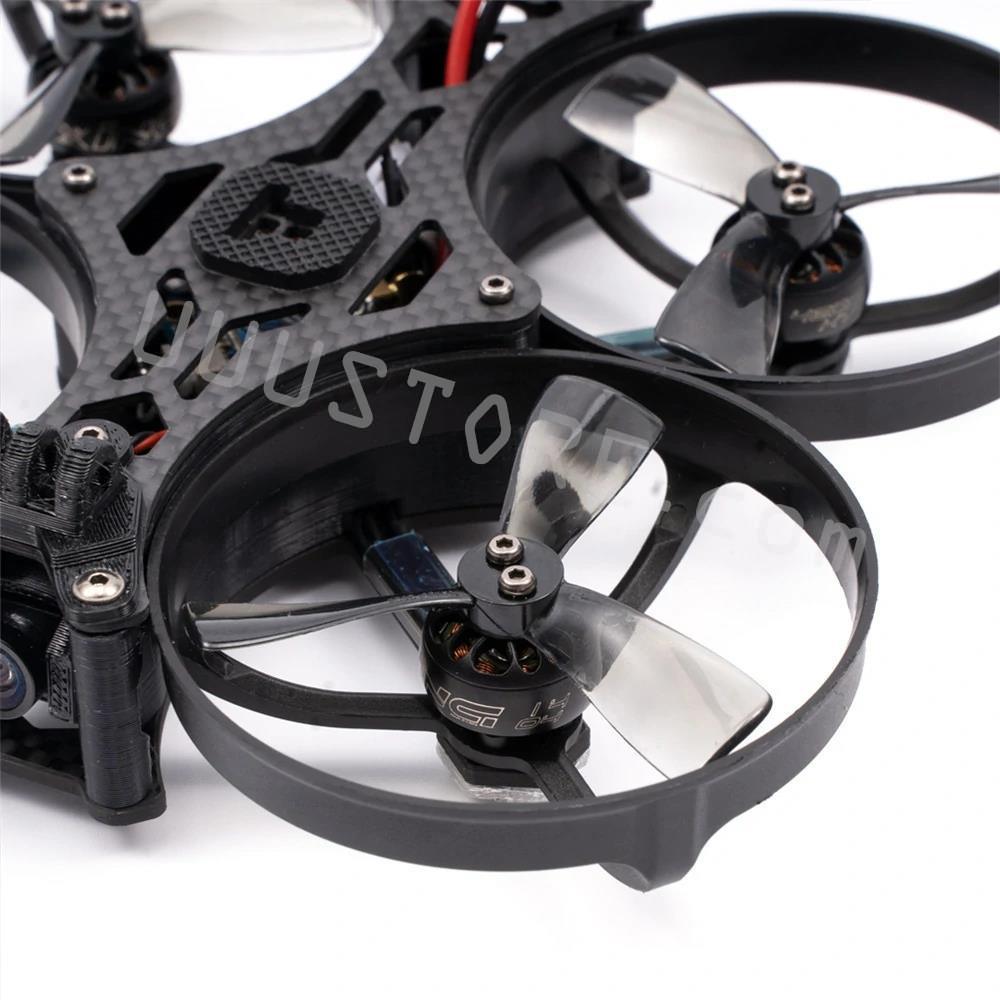

iFlight Protek R25 FPV Drone - Analog 113mm Wheelbase Whoop F4 AIO 20A ESC 4S 2.5 Inch FPV Racing Drone ELRS 2.4G 600mW VTX RaceCam Camera

iFlight Protek R25 FPV Drone - Analog 113mm Wheelbase Whoop F4 AIO 20A ESC 4S 2.5 Inch FPV Racing Drone ELRS 2.4G 600mW VTX RaceCam Camera

iFlight

$199.50 USD
$199.50 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

44 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Video Capture Resolution: 480P SD

State of Assembly: Almost Ready

Remote Distance: As show

Remote Control: No

Recommend Age: 12+y

Power Source: Electric

Package Includes: Original Box

Origin: Mainland China

Motor: Brushless Motor

Model Number: iFlight Protek R25 Analog

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Features: FPV Capable

Controller Mode: MODE1

Controller Mode: MODE2

Controller Battery: No

Control Channels: 8 Channels

Camera Mount Type: Fixed Camera Mount

Aerial Photography: Yes

Specification:

Brand Name: iFlight

Model: Protek R25 Analog

Item Name: 113mm 2.5 Inch FPV Racing Drone

Wheelbase: 113mm

Bottom plate thickness: 2.5mm
Top plate thickness: 1.5mm

Arm Thickness: 2.5mm
Body Size: 143mm*158mm

Weight: 147.5g (without battery)


Whoop AIO F4 V1.1 Flight Controller

Integrated with 20A ESC

( Diagram Picture)

Mounting pattern: 25.5*25.5mm/φ3mm
Firmware Target: IFLIGHT_F411_PRO
Constant current: 20A，25A (Burst)
Config: IFLIGHT_F411_PRO.config
Connector: Micro-USB
ESC Firmware: Q-H-15
Current sensor: yes
BEC output: 5V 2A
ESC Telemetry: NO
Size: 30.5*30.5mm
MCU: STM32F411

BLHeli: BLHeli-S
Barometer: NO
Blackbox: 8MB
Gyro: BMI270
INA pad: nR2
Weight: 7.4g
Input: 2-4S
XING X1404 4600KV Motor
 Voltage: 2S-4S
KV: 4600KV
-Configuration: 9N12P
-Stator Diameter: 14mm
-Stator Length: 4mm
-Shaft Diameter:2mm
-Motor Dimensions(Dia.*Len): Φ18.3×12.5mm
-No.of Cells(Lipo): 2-4S
-Max Continuous current(A): 11.8A
-Max Continuous Power(W): 174.6W
-Internal resistance: 0.28Ω
-Weight: 8.5g(without cable)
-Mounting pattern: 9*9*φ2mm
-Bearing: 5*2*2.5mm
Nazgul 2525 propeller

Quantity: 2 CW + 2 CCW

Color May Vary
SucceX Mini Force 5.8GHz 600mW VTX

-Power: PIT/25/200/400mW/600mW
-Antenna interface: MMCX
-VTX protocol : IRC Tramp
-Output 40 channels.
-Size: 29*29mm
-Mounting pattern: 20*20Φ3/25*25 mmΦ2
-Weight: 4g


Tips:

VTX is set to 25mW by default!

Power levels above 25mW require a HAM license

or have to be approved by local authorities!


Please ensure you're flying legal frequencies and use our prepared

Betaflight VTX tables according to your region.
RaceCam R1 Micro FPV Camera

TVL: 1200TVL

Lens: 1.8mm

Width: 14x14mm


Package Included:

1x iFlight Protek R25 Analog FPV Drone

1x Battery Strap
