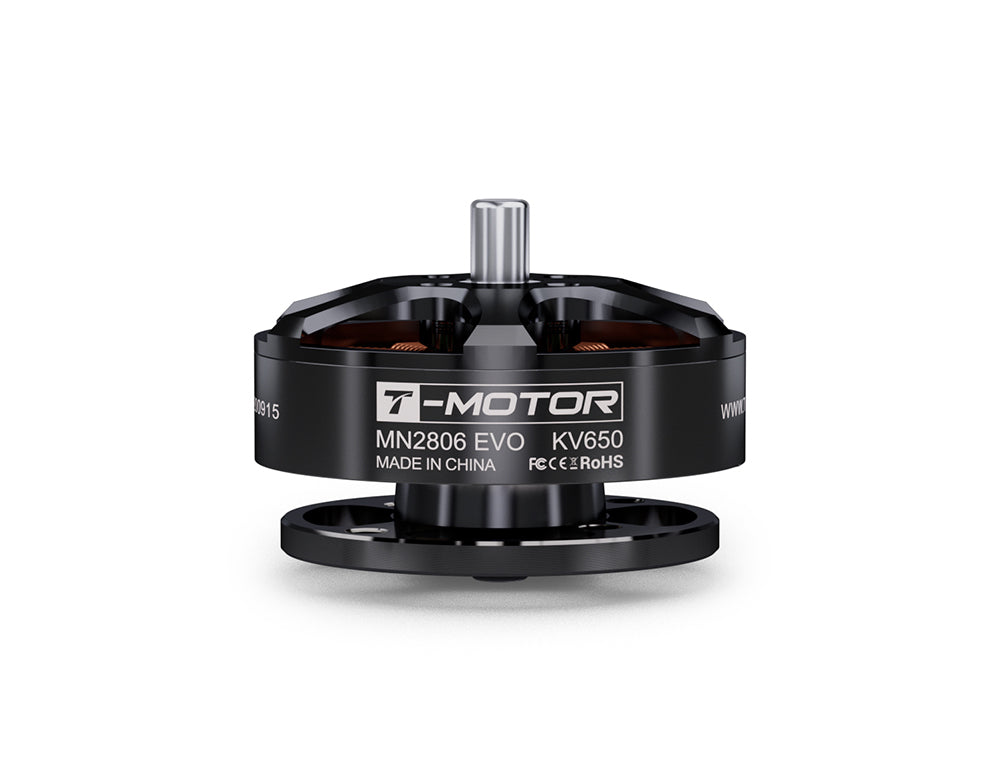

• T-Motor MN2806 EVO KV650 brushless drone motor with black housing, exposed windings, and top shaft

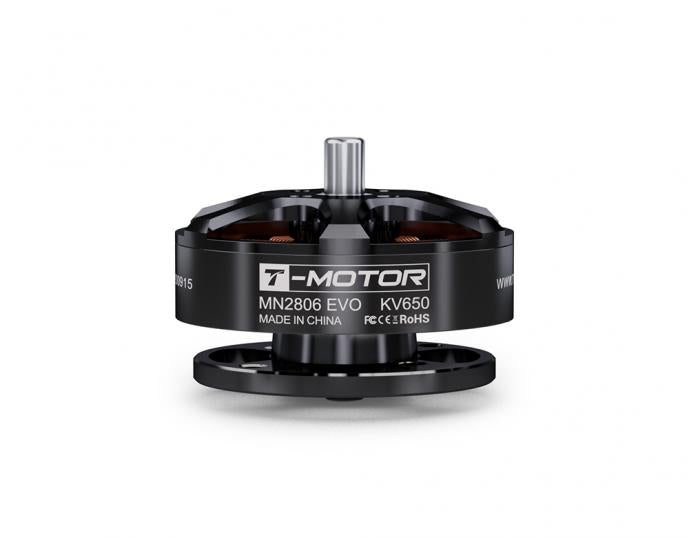

  • T-Motor MN2806 EVO KV650 brushless drone motor with exposed copper windings and mounting base

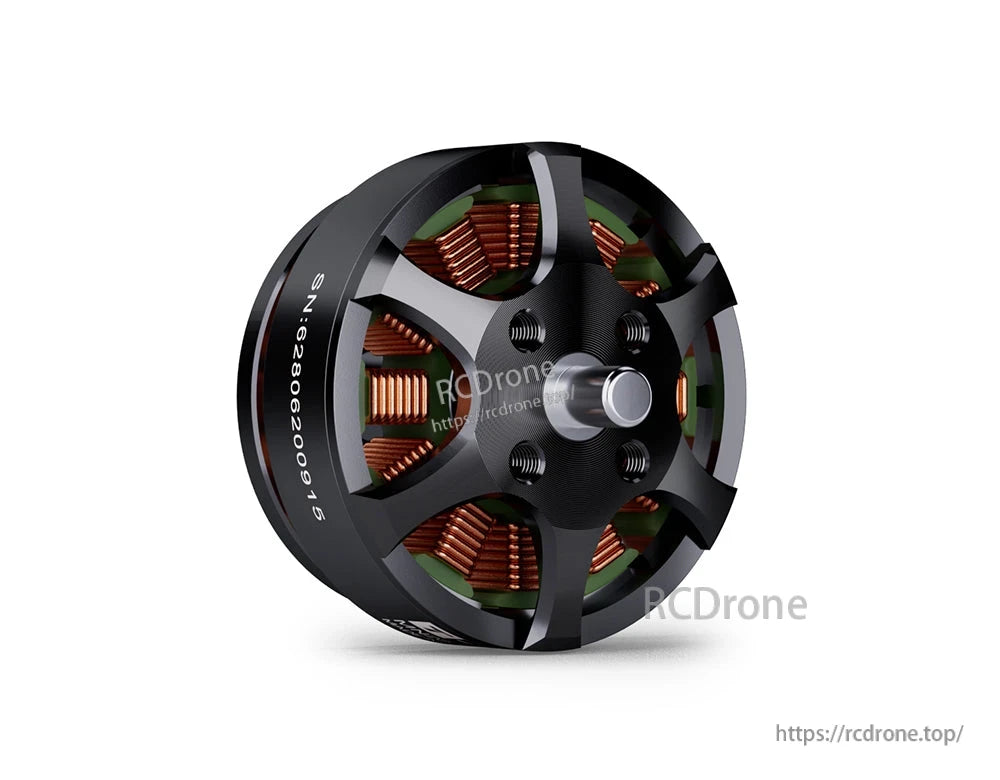

  • T-Motor brushless outrunner drone motor with black open-frame top, exposed copper windings, and center shaft

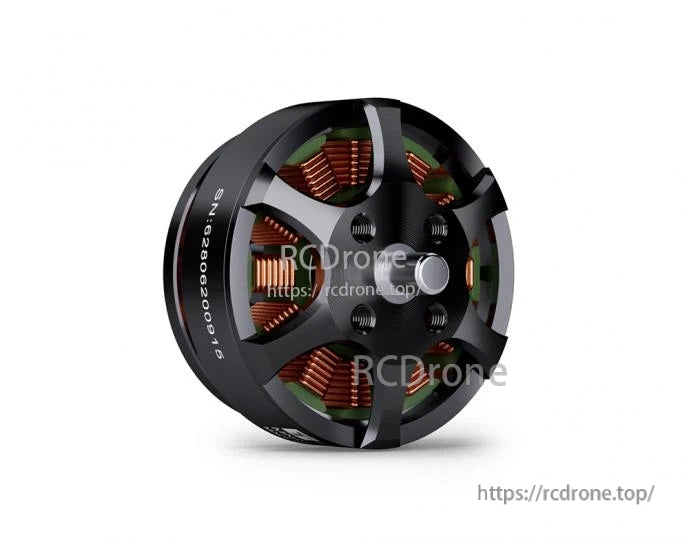

  • T-Motor brushless outrunner drone motor with black housing, copper windings, and multi-hole mounting face

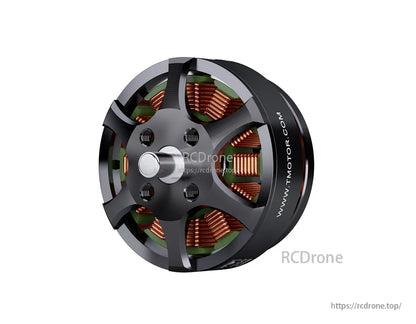

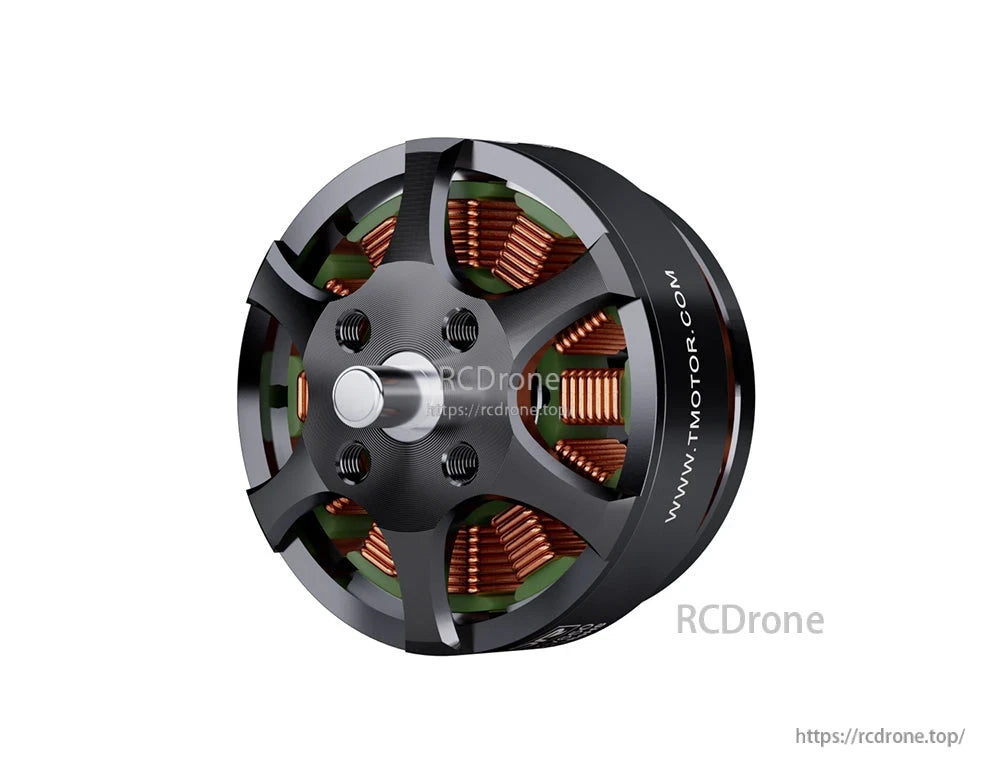

  • T-Motor brushless outrunner motor with black open bell, threaded shaft, and visible copper windings

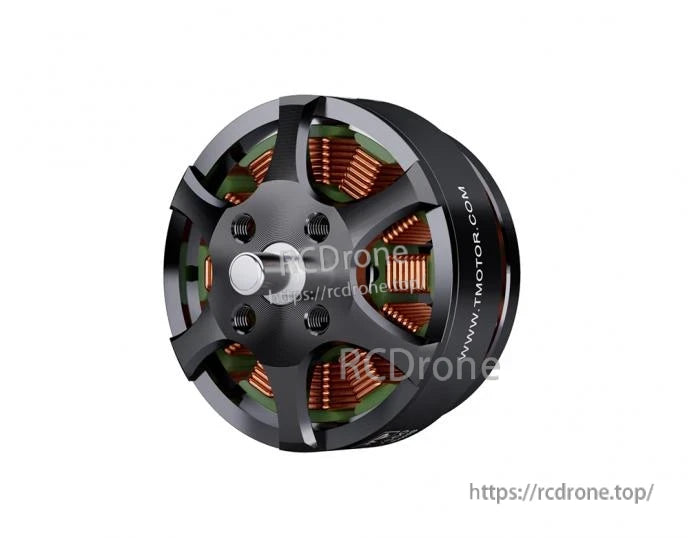

  • T-Motor brushless drone motor with black open-frame housing, visible copper windings, and multi-hole mount

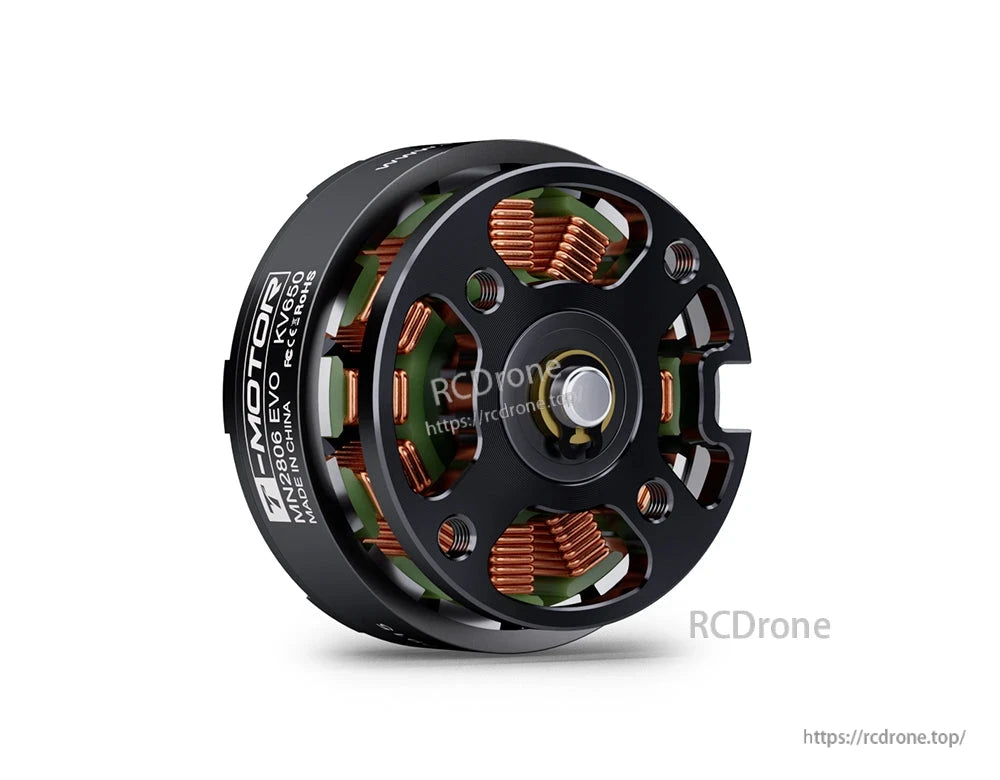

  • T-Motor MN2806 EVO 650KV brushless outrunner drone motor with open-frame housing and exposed copper windings

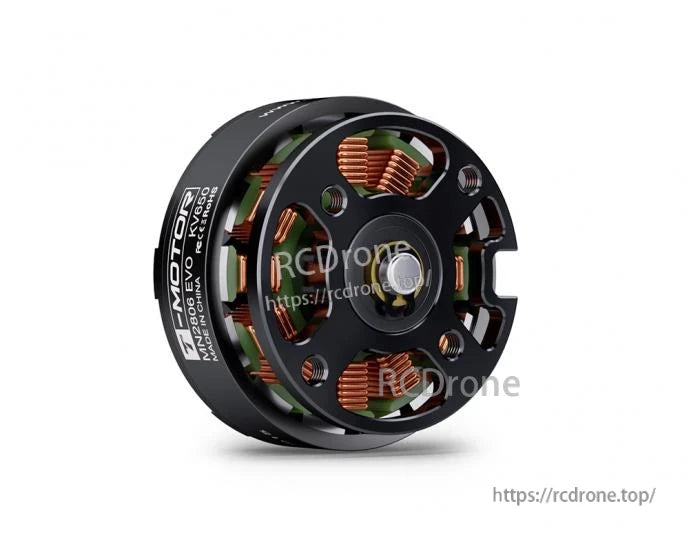

  • T-Motor MN2806 KV650 multirotor brushless motor with black housing, copper windings, and mounting holes

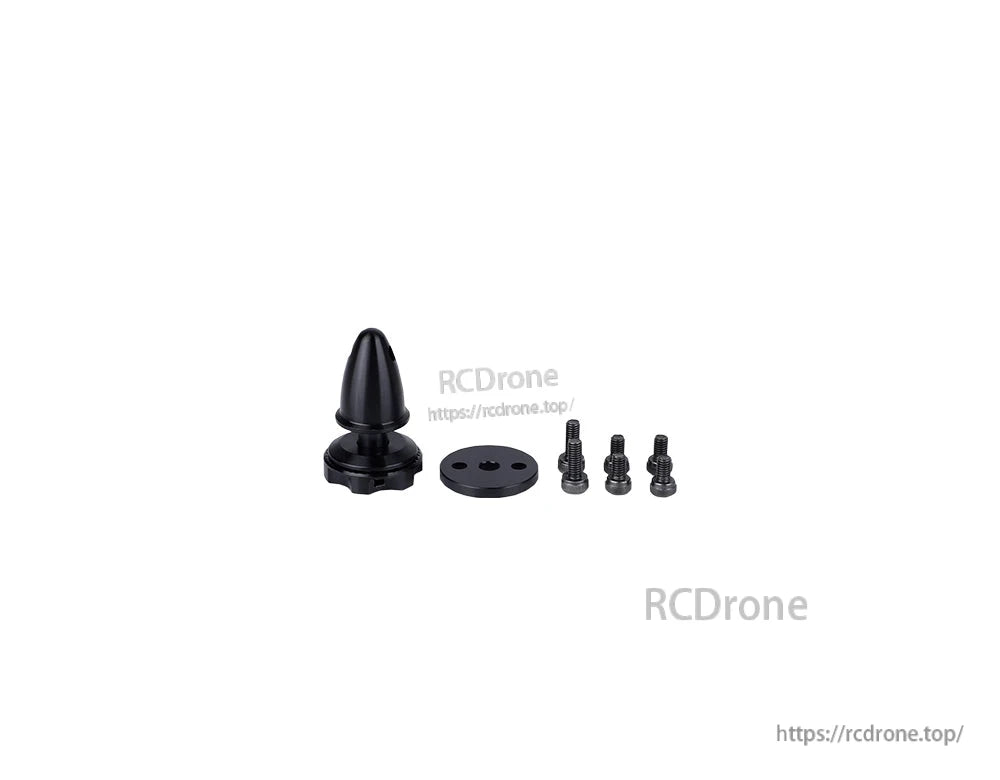

  • T-Motor black cone-shaped cap with round mounting plate and four screws, shown as a small hardware set

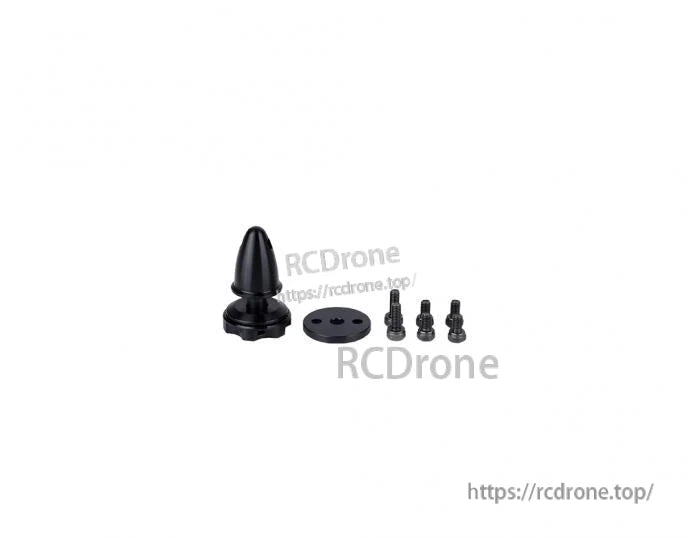

  • T-Motor black propeller spinner cone kit with round mounting plate and three screws
1 10

T-Motor Antigravity MN2806 EVO KV650 Brushless Motor - Arc Magnets, 220°C Wire, 1390g Thrust

T-Motor Antigravity MN2806 EVO KV650 Brushless Motor - Arc Magnets, 220°C Wire, 1390g Thrust

T-MOTOR

$69.86 USD
$69.86 USD
İndirim Tükendi
Vergiler dahil. Kargo, ödeme sayfasında hesaplanır.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Tüm ayrıntıları görüntüle

Overview

T-Motor Antigravity MN2806 EVO KV650 is a brushless motor upgraded with arc-shaped magnets to reduce the stator air gap, improve magnetic flux distribution, and reduce magnetic leakage for higher motor efficiency. It also uses enameled wire rated up to 220°C to maintain stability under high RPM, heavy loads, and elevated temperatures.

Key Features

  • Arc-shaped magnets designed to closely fit the steel ring, reducing the stator air gap and improving efficiency.
  • High-temperature enameled wire rated for 220°C.
  • Maximum thrust increased by 16% to 1390g.
  • Efficiency improvement of over 0.3g/W at similar thrust levels (above 400g).
  • Efficiency chart labeling (Efficiency (g/W) vs Thrust (g)):
    • MN2806 EVO + KV650 + 16V + AIR 40A + P13
    • MN2806 + KV650 + 16V + AIR 40A + P13

Specifications

Model Antigravity MN2806 EVO
KV KV650
Maximum thrust 1390g
Efficiency improvement Over 0.3g/W at similar thrust (above 400g)
Wire temperature rating 220°C
Package dimensions 85*71*35mm
Country marking Made in China
Markings FCC, CE, RoHS

What’s Included

  • Antigravity MN2806 EVO KV650 motor x1
  • phi20*M6*26mm propeller mount x1
  • M6*1 bullet head x1
  • phi20*phi4*2.4mm cover plate x1
  • M3*5mm cup head hex screw x4
  • M3*8 cup head hex screw x2

For compatibility and setup questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Matching Guide

  • AIR40A 6S ESC
  • P12*4 polished integrated carbon fiber propeller
  • P13*4.4 polished integrated carbon fiber propeller

Details

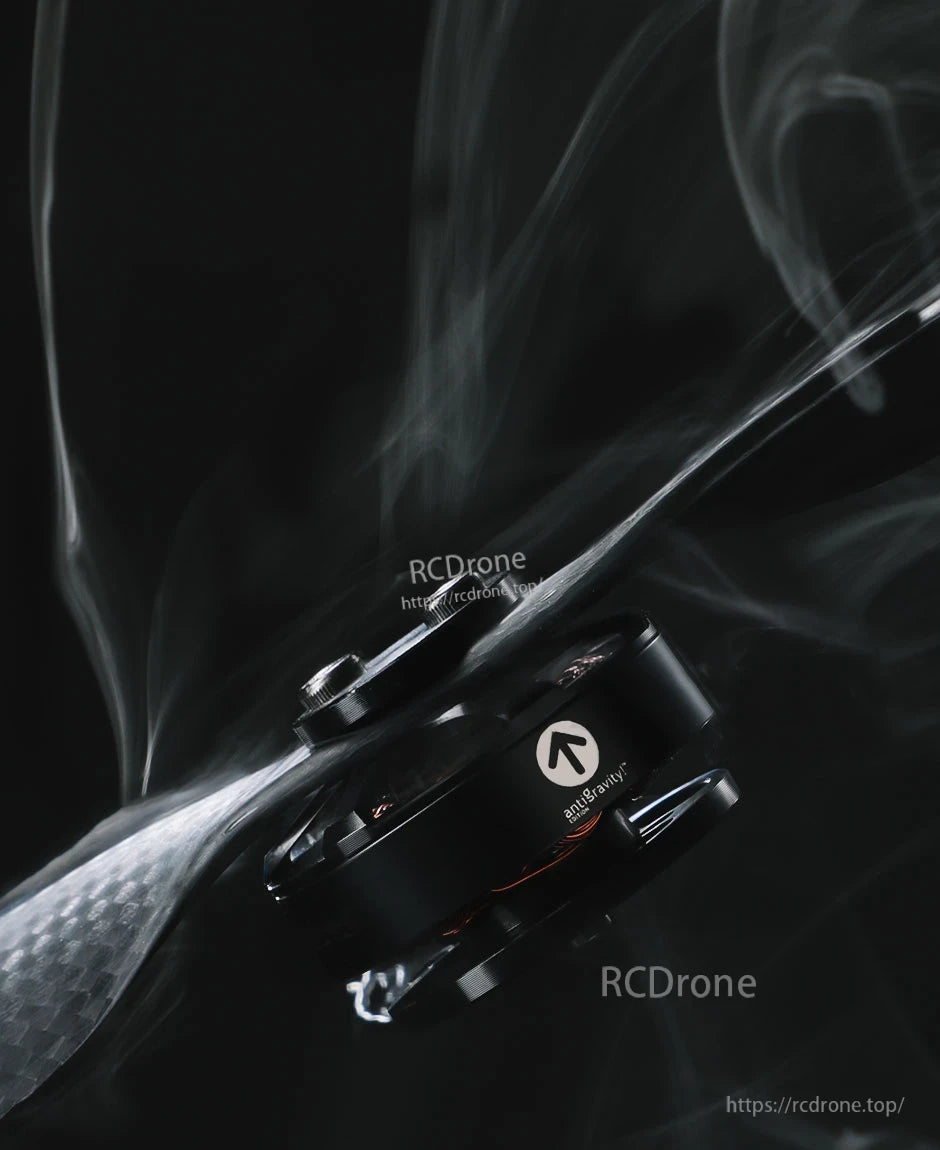

Close-up of a black T-Motor anti-gravity brushless drone motor with arrow logo on the housing

The T-Motor anti-gravity motor features a sleek black housing with clear directional marking for easier installation orientation.

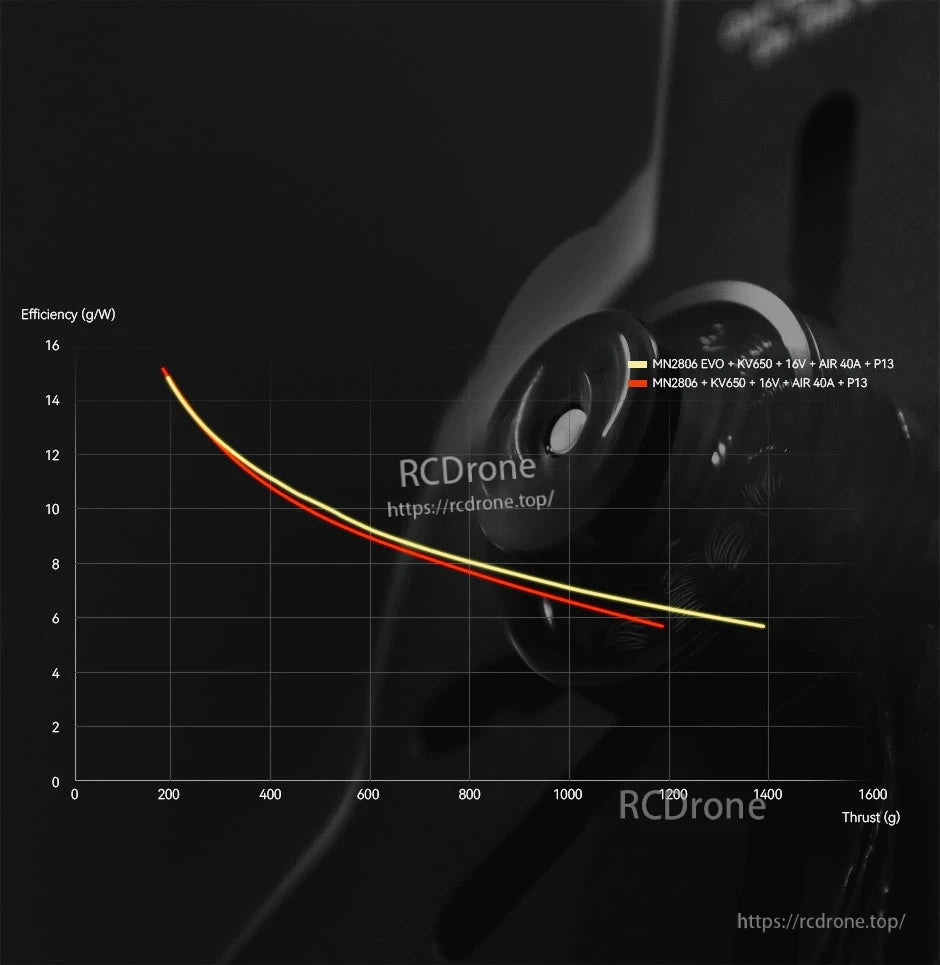

Efficiency vs thrust graph comparing T-Motor MN2806 EVO+ and MN2806 KV650 motors at 16V with AIR 40A and P13 prop

Efficiency curves compare MN2806 EVO+ and MN2806 KV650 setups at 16V using an AIR 40A ESC and P13 prop across the thrust range.

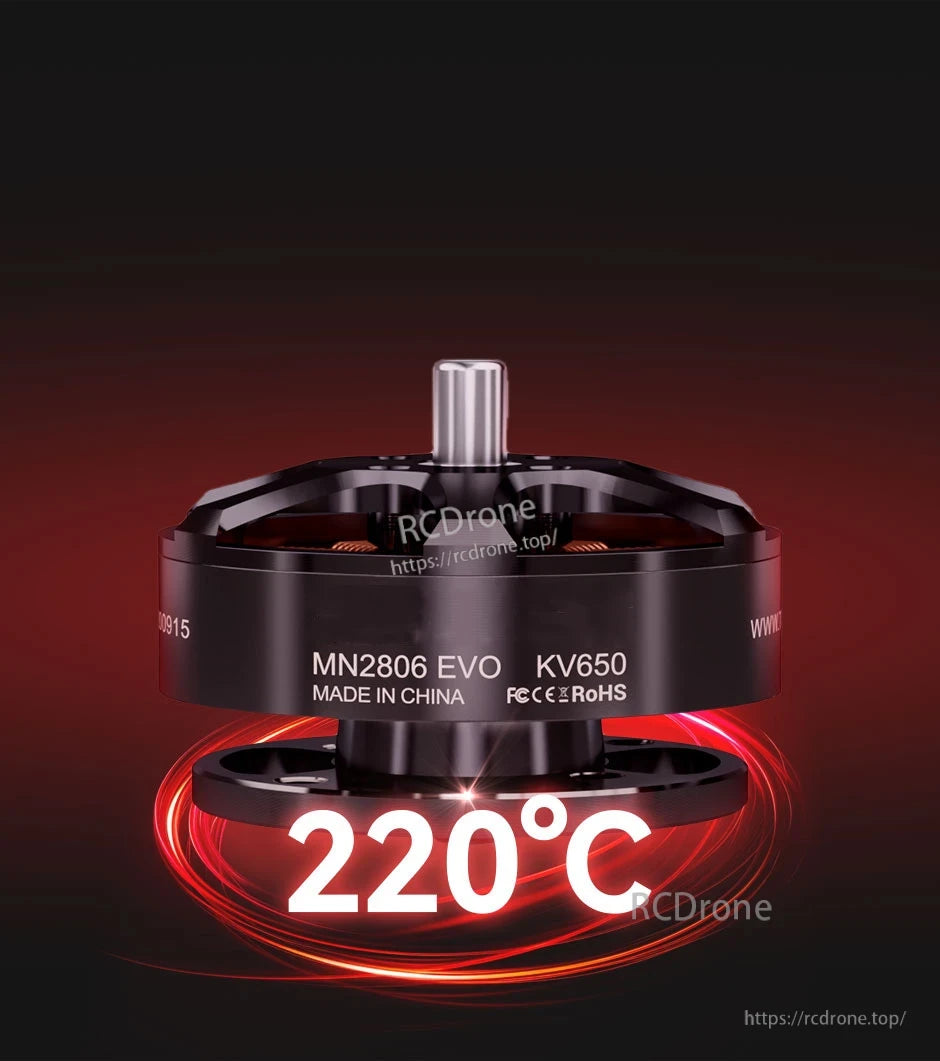

T-Motor MN2806 EVO KV650 brushless drone motor with top shaft, open frame, and 220°C graphic

The T-Motor MN2806 EVO KV650 brushless motor features clear labeling and a sturdy, open-frame design for straightforward prop mounting.
