Futaba T6PV 2.4GHz 6-Channel Surface RC Transmitter w/ R404SBS/R404SBS-E F-4G Telemetry

Futaba

$509.00 USD

İndirim Tükendi

Vergiler dahil. Kargo, ödeme sayfasında hesaplanır.

Options T6PV Transmitter T6PV + R404SBS Receiver T6PV + R404SBS-E Receiver

Adet

Tüm ayrıntıları görüntüle

Overview

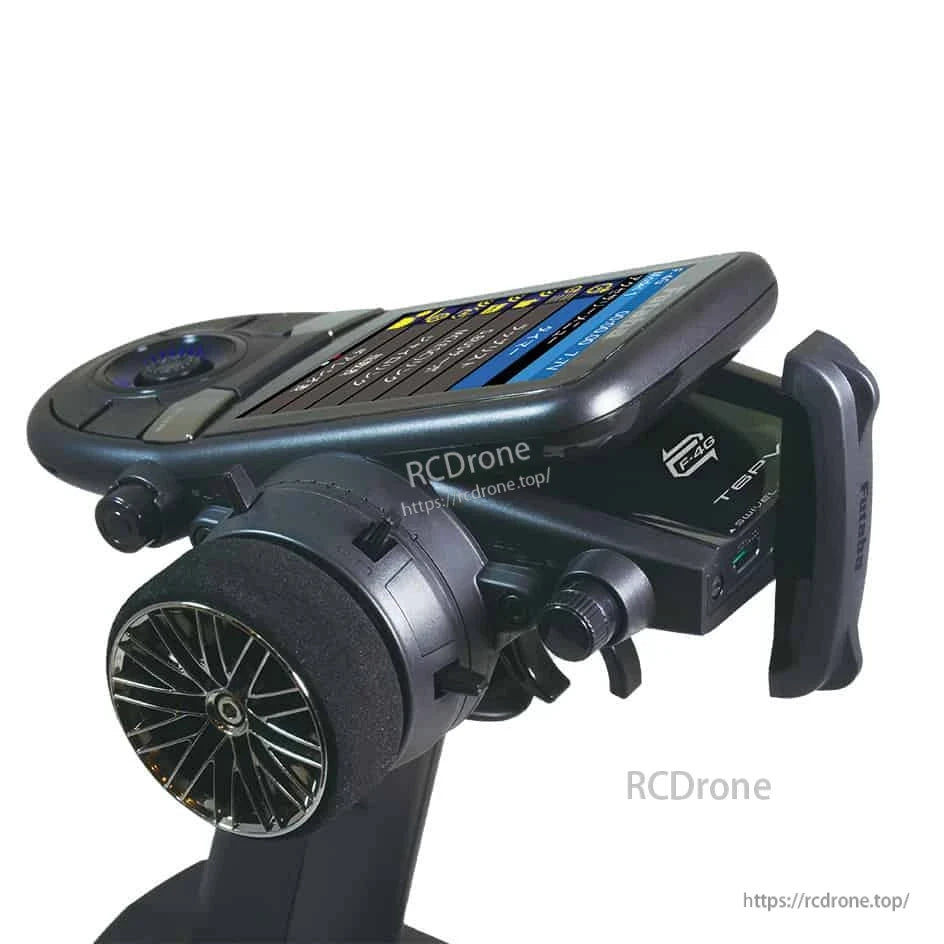

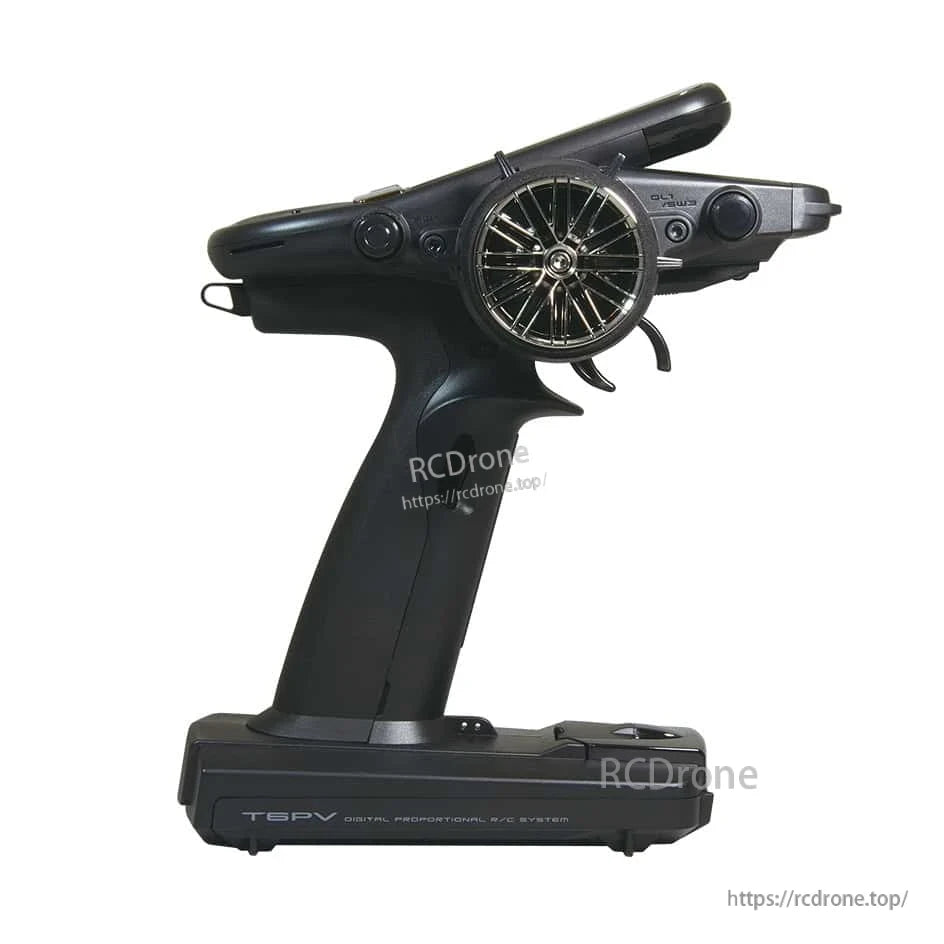

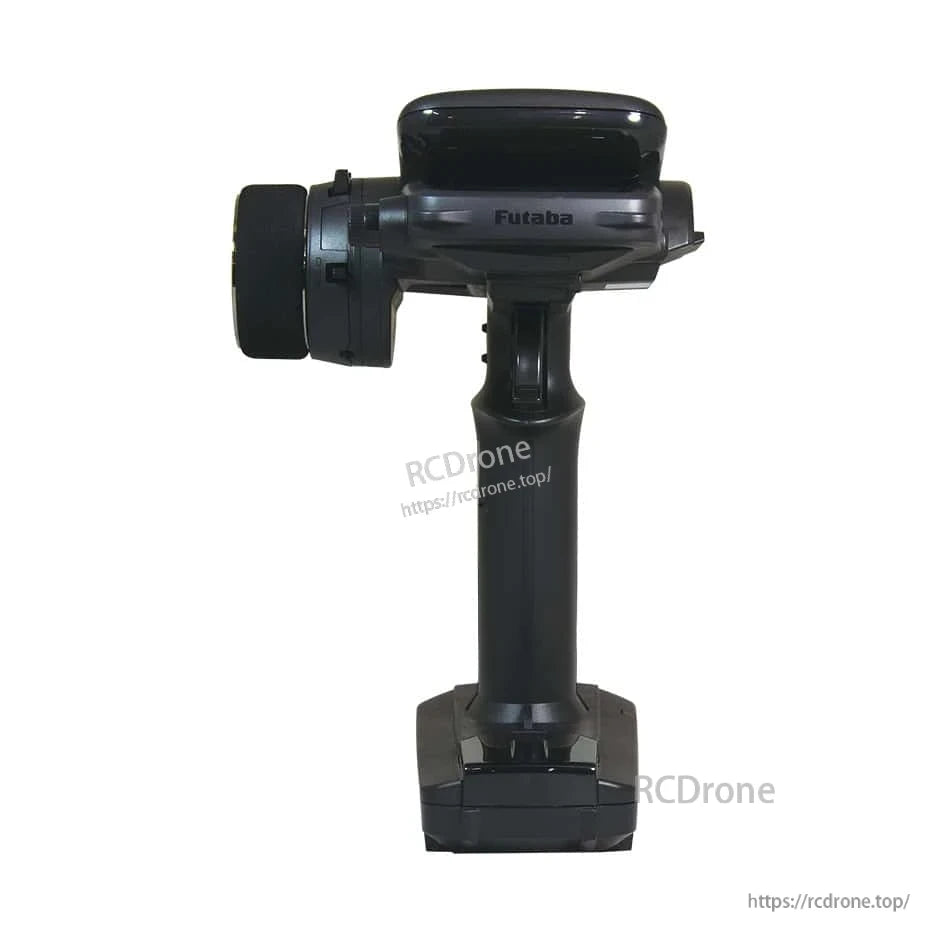

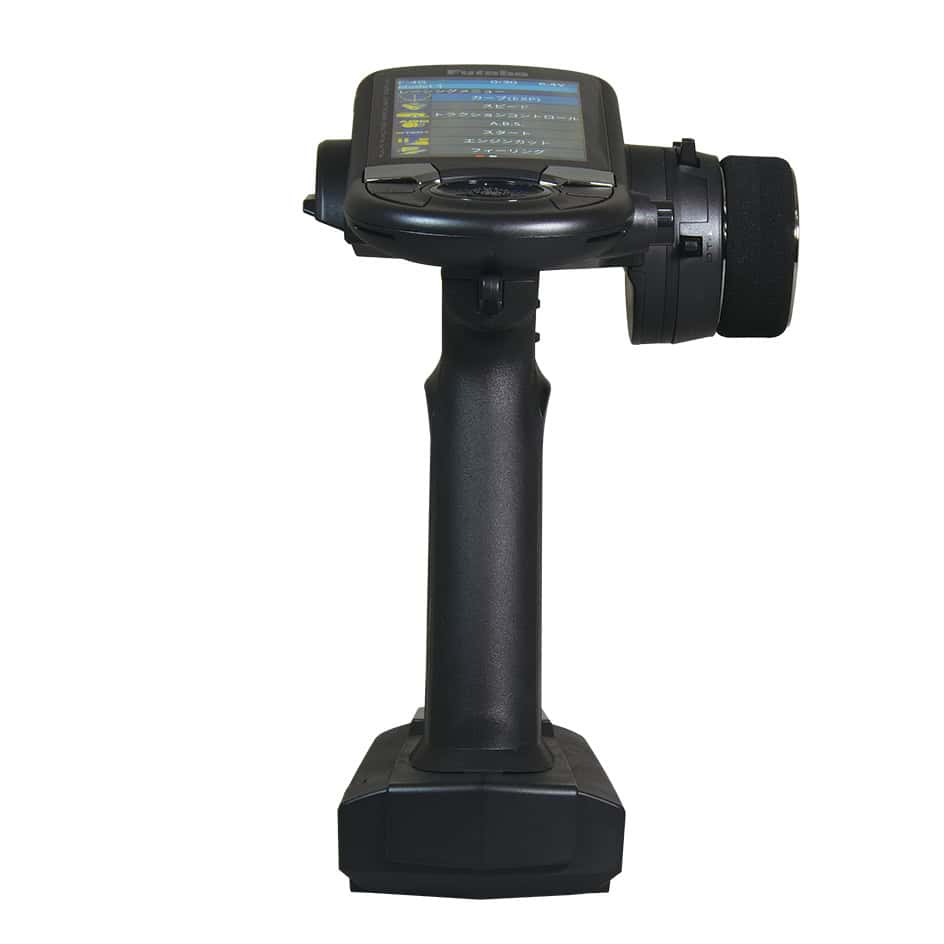

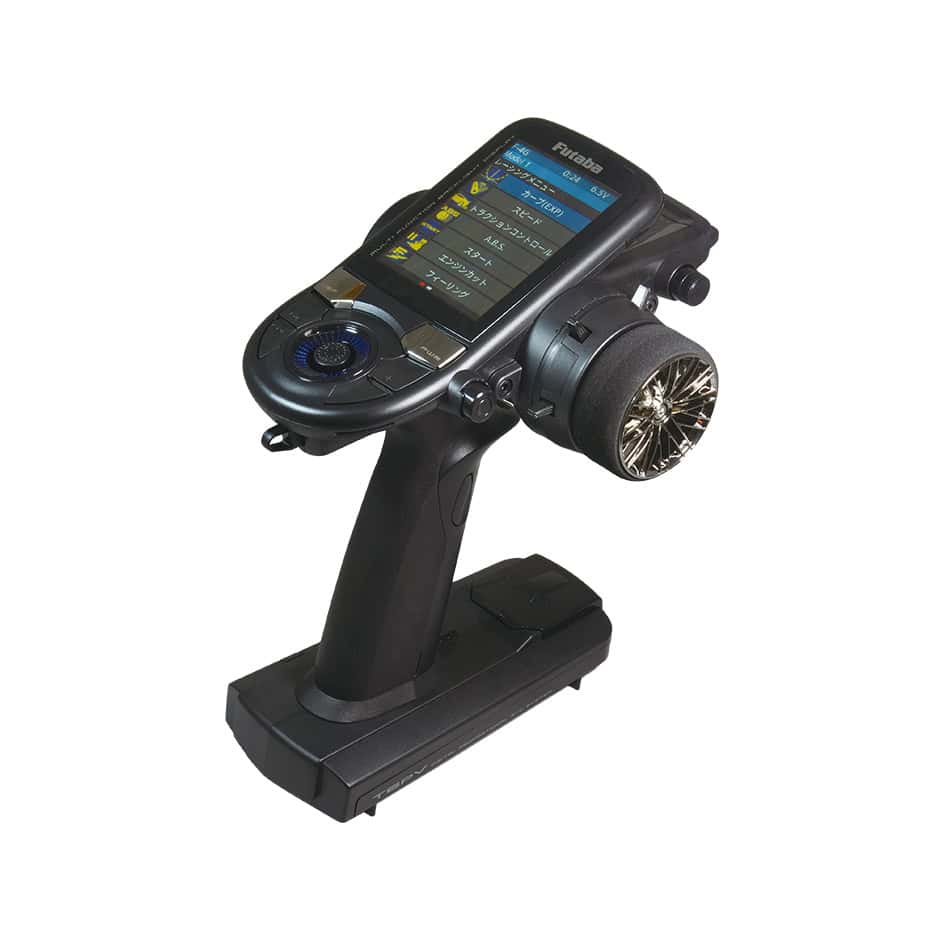

Futaba T6PV is a surface RC transmitter (wheel system) designed for use with surface models (01004442-1) (01004441-1), featuring a full-color backlit LCD and support for multiple 2.4 GHz protocols including F-4G telemetry.

For setup help or pre-purchase questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

Full color screen LCD: Full-color, backlit LCD screen; transflective for indoor and outdoor visibility.
F-4G system & telemetry: F-4G telemetry with faster response than T-FHSS SR system.
6 channels: Up to 6 channels can be operated by using the S.BUS2 system together.
T-FHSS MINIZ system: By setting to the MINIZ system in the receiver setting menu, compatible with Kyosho Mini-Z Evo dedicated receiver RA-42 (receiver purchased separately).
Update-able software: Software updates via microSD card; model data and telemetry log data can be saved to microSD.
Model memory: 40 models; model names up to 15 letters, numbers, and symbols; model copy supported.
Battery options: Optional LT2F2000B LiPo battery can be used as transmitter power supply for extended running time.
Mixing & vehicle functions: Brake mixing (front/rear independent for 1/5GP and other large cars), steering mixing (independent left/right steering servo), 4WS mixing, dual ESC mixing, gyro mixing (Futaba car rate gyros), tank/tracked-vehicle style mixing, CPS mixing (CPS-1 channel power switch for LED lighting/flashing control).
S.BUS servo: Parameter setting for Futaba S.BUS servos (via PC Link software workflow).
MC-Link: Link function for Futaba speed controllers (ESC) including MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc., enabling variable frequency and other data changes.
Throttle/steering speed: Adjustable throttle speed and steering speed.
Dial & switch assignment: Dial select (digital trim, grip dial, knob) with step amount and direction; switch select assigns functions to 10 switches with direction setting.
Adjustable ergonomics: Wheel position can be offset with APA wheel position offset adapter; wheel angle adjustable; throttle trigger position adjustable (forward/back).
Grip options: Rubber grip can be exchanged to convert to a narrow grip type.
Trim/dial lock: Lock functions provided to prohibit setting/operation by transmitter trim and dials.
Non-telemetry LED: Indicator when telemetry function is OFF.

Specifications

Transmitter (T6PV)

System	Wheel system
Channels	6 channels (F-4G system); 4 channels with TFHSS-SR, T-FHSS system
Transmitting frequencies	2.4 GHz band
Transmitting RF power output	100 mW EIRP
Protocols	T-FHSS-SR / T-FHSS / S-FHSS / F-4G
Power requirement	LiPo - NLF2F2000B (7.4 V); LiFe - FT2F1700BV2 (6.6 V)
Current drain	350 mA or less (When the T-FHSS, Vibration off, back lighting on)
Transmitting antenna	1/2 lambda dipole
Product weight	64 oz
Product dimensions	17 x 10 x 5 in

Receiver (included option)

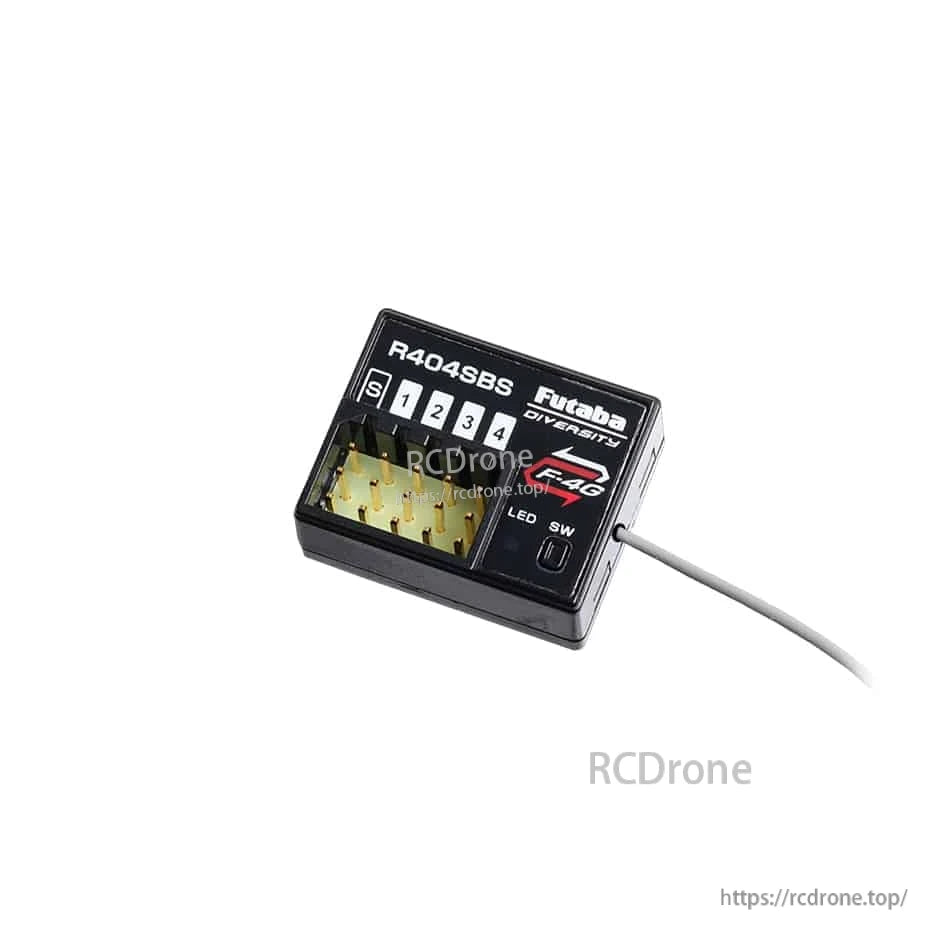

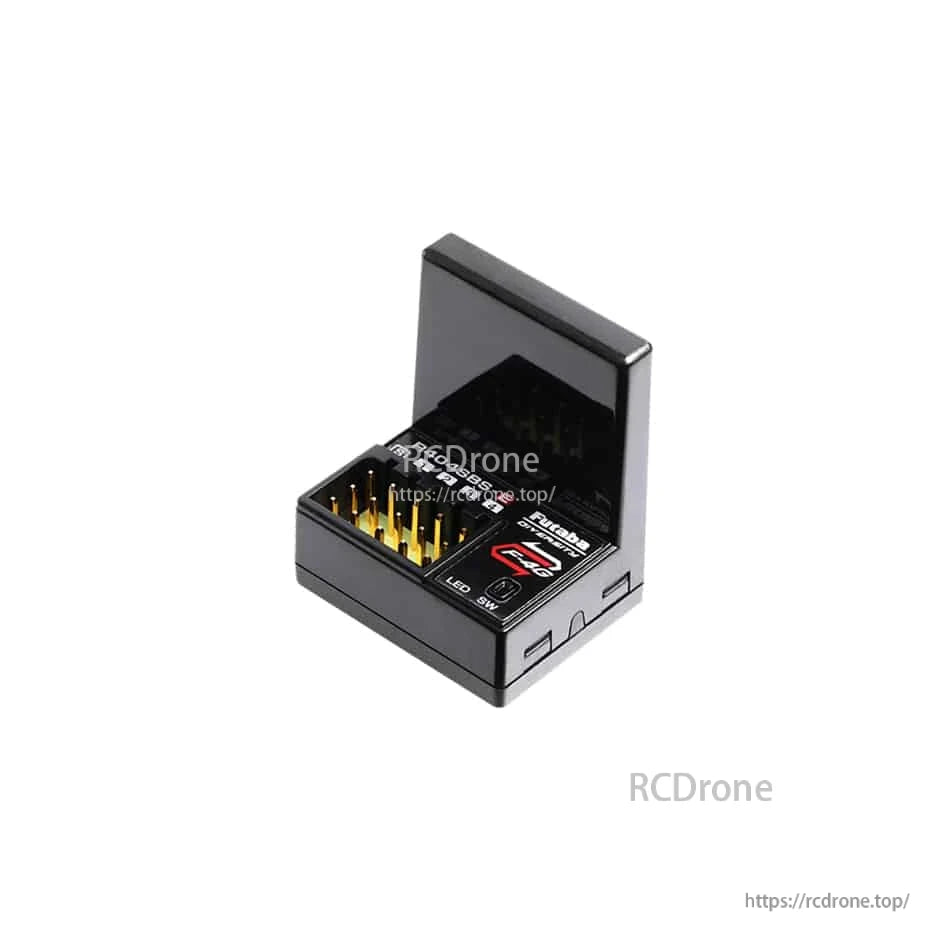

Receiver models	R404SBS or R404SBS-E
System	F-4G
Size (both)	1.00 x 0.81 x 0.42 inch (25.5 x 20.7 x 10.6 mm)
Weight (both)	5.7 g (0.2 oz.)
Operating voltage (R404SBS)	DC 3.7-8.4 V
Operating voltage (R404SBS-E)	DC 3.7-7.4 V

What's Included

T6PV Transmitter
R404SBS OR R404SBS-E Receiver
Dry Battery Holder
Wheel offset adapter two size (APA) APA Mounting screws (spare screws also included)
Wheel adapter 32 deg.
Wheel Angle spacer 5 deg.
Large diameter steering wheel
Trigger guard (Lx1/Rx1)
Grip rubber x1
Blind paddle x2
Hex wrench
Short manual
