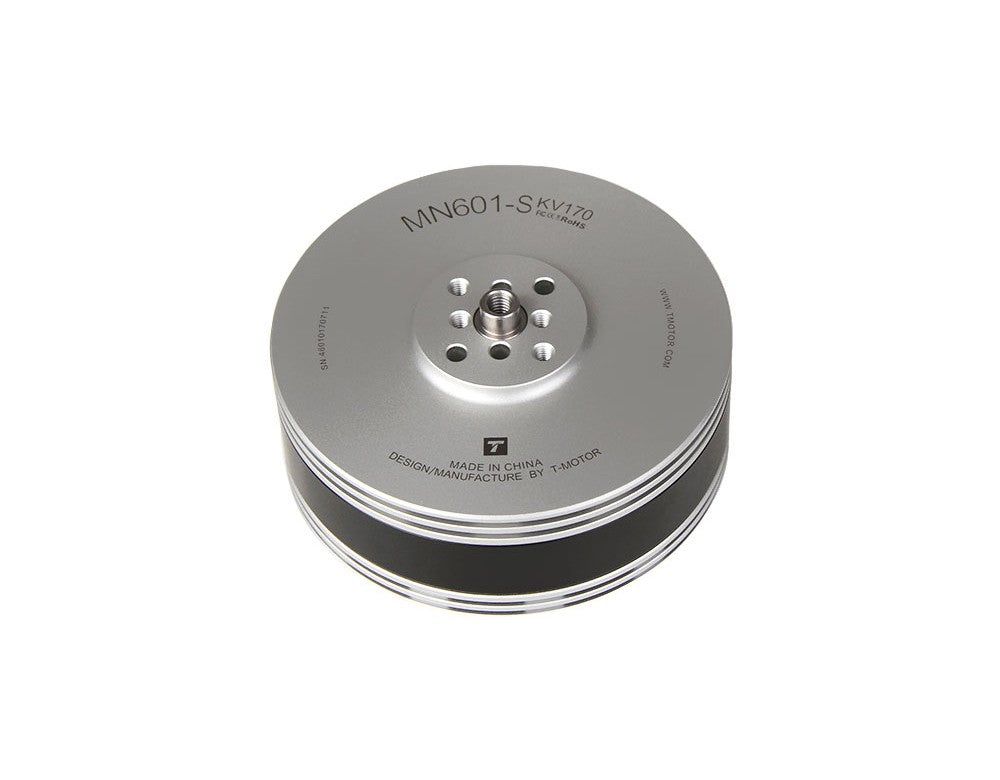

• Top view of T-Motor MN601-S KV170 brushless motor with threaded center hub and multi-hole mounting pattern
  • T-Motor MN601-S KV170 brushless outrunner motor, top view with threaded shaft and mounting holes

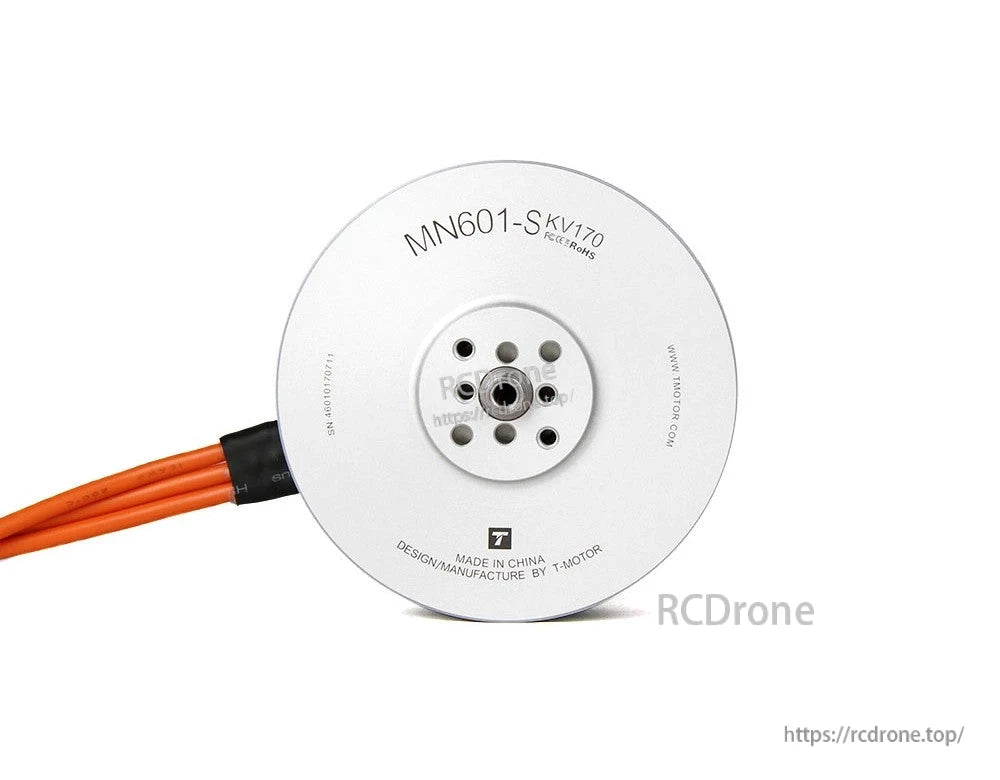

  • Front view of T-Motor MN601-S KV170 brushless motor with central mounting holes and orange power leads
  • T-Motor MN601-S KV170 brushless motor top view with central mounting holes and orange power leads

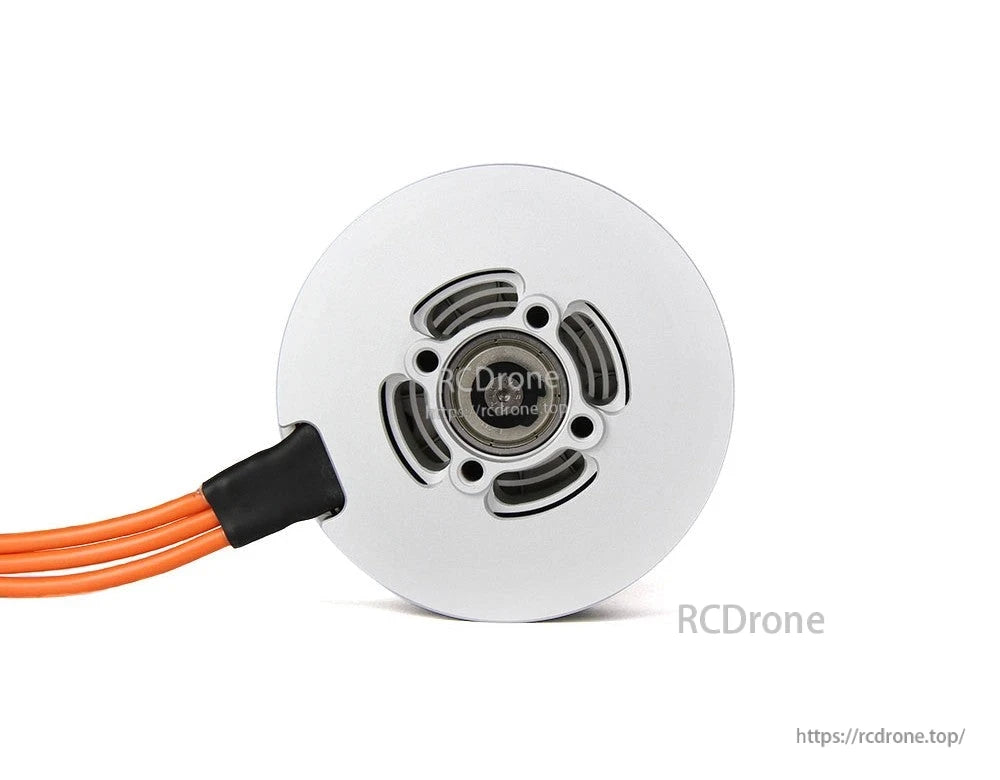

  • T-Motor brushless drone motor with round silver housing, vented end cap, and three orange motor wires
  • Rear view of a T-Motor brushless drone motor with silver round housing, ventilation slots, and orange lead wires

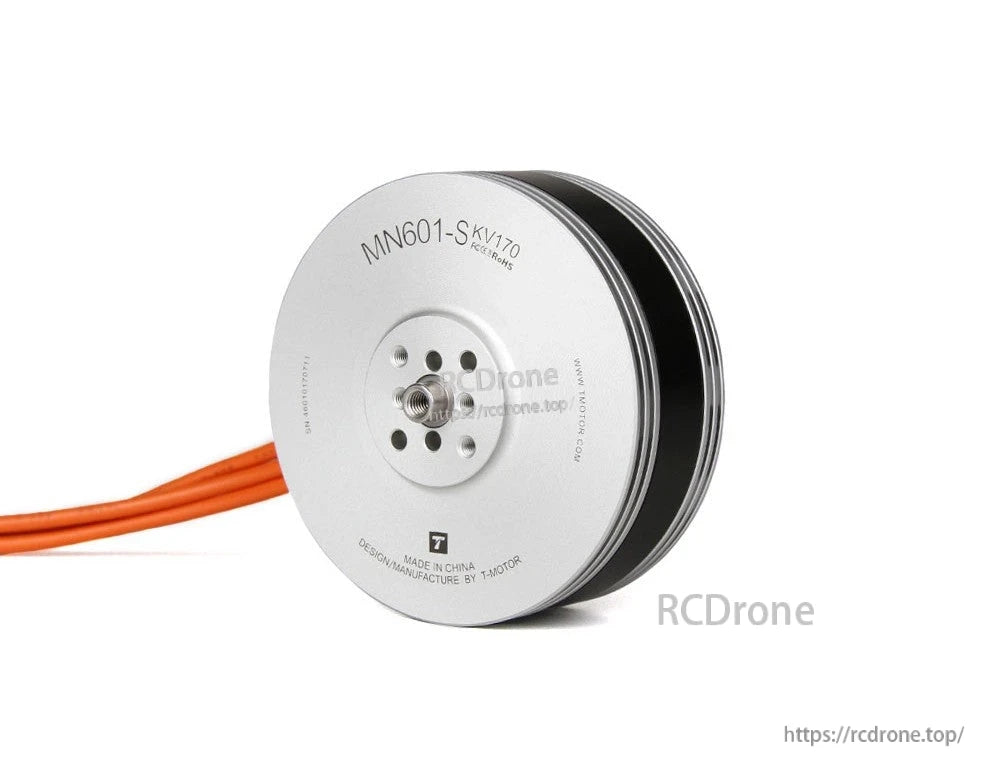

  • T-Motor MN601-S KV170 brushless drone motor with silver housing, mounting holes, and orange power leads
  • T-Motor MN601-S KV170 brushless motor with silver round housing, multi-hole mount, and orange lead wires
  • T-Motor hardware set with two black round mounting plates and assorted metal bolts for installation

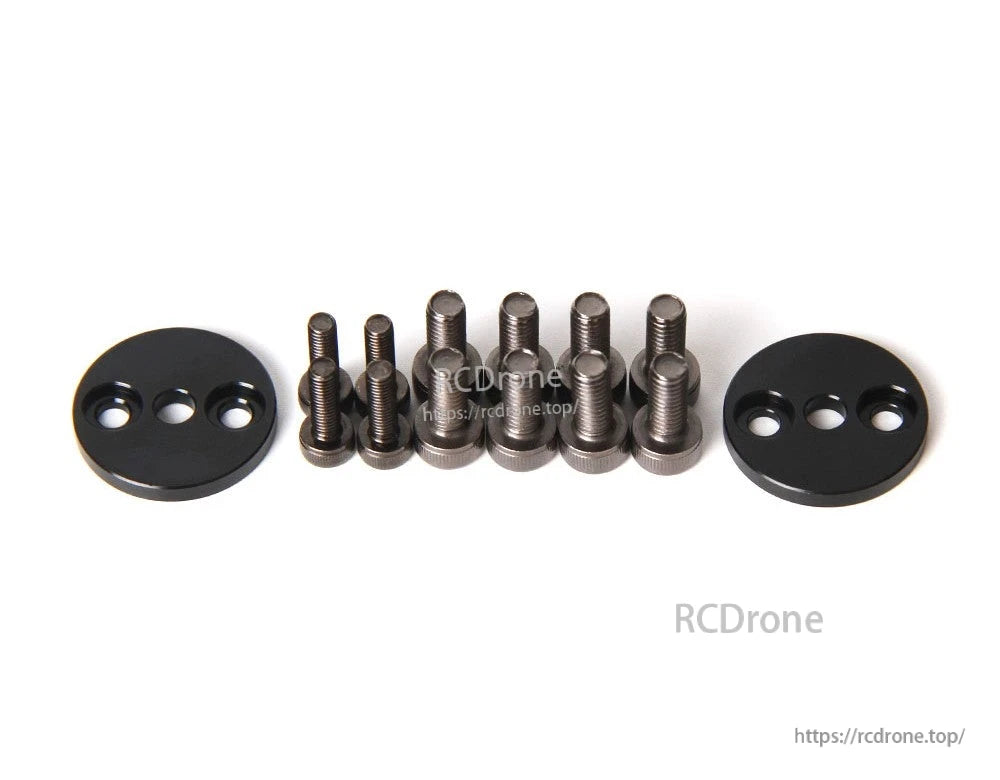

  • T-Motor mounting hardware kit with two black three-hole round plates and a set of metal screws
1 10

T-Motor MN601-S KV170 IP45 UAV Motor 2PCS/Set Brushless Multirotor & Fixed Wing, Max Thrust 6.6kg

T-Motor MN601-S KV170 IP45 UAV Motor 2PCS/Set Brushless Multirotor & Fixed Wing, Max Thrust 6.6kg

T-MOTOR

$363.97 USD
$363.97 USD
İndirim Tükendi
Vergiler dahil. Kargo, ödeme sayfasında hesaplanır.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Tüm ayrıntıları görüntüle

Overview

The T-Motor Navigator MN601-S KV170 is a brushless UAV motor for multirotor and fixed-wing (including VTOL) aircraft. It features a centrifugal-fan cooling structure and an IP45 protection grade design intended for operation in demanding environments.

Key Features

  • Cooling design: Centrifugal fan design of bell cap actively cools the motor; divergent and upward fin design of motor base enlarges the heat dissipation area.
  • Heat dissipation: Heat dissipation performs 15% better than ordinary motors.
  • High-temperature materials: Manual winding with special varnished wires of high temperature resistance; high-temperature resistant magnets for heat and overload resistance.
  • Protection grade:IP45 semi-closed design with grid-shaped ventilation structure for dust/debris protection while maintaining ventilation.
  • Anti-rust / anti-corrosion treatment: Alloy shaft, bearing, varnished wires, silicon steel sheet, magnet and bell treated with anti-rust and anti-corrosion technology.
  • Locking method: T shape shaft secured with a circlip and a screw for “Double Security” against rotor looseness under high RPM and power.
  • Shaft and bearings: 6mm steel shaft and big bearings for impact resistance, stability and lifetime.
  • Magnet structure: Anti-high temperature curved magnets with tolerance control and rational magnet spacing; motor performance improvement noted as 5%+.

Specifications

Model MN601-S
KV 170KV
Protection grade IP45
Max thrust 6.6kg
MTBF About 1000 hours
Shaft 6mm steel shaft
Cooling performance note Heat dissipation performs 15% better than ordinary motors
Performance note Motor performance improvement 5%+
Protection features Waterproof, dust-resistant, anti-corrosion
Installation method (hardware) M3*10mm mounting screw*2; φ 20*2.4mm cover*1
Air flow simulation scale Temperature(K): 293.00 to 393.00

For pre-sales questions, compatibility checks (prop/ESC), or order support, contact https://rcdrone.top/ or email support@rcdrone.top.

What’s Included

  • 2x T-Motor MN601-S KV170 brushless motor (2PCS/SET)
  • Hardware pack

Applications

  • Aerial photography platforms
  • Multirotor aircraft, VTOL, and fixed-wing UAVs
  • Cargo drones
  • Tethered systems
  • Mapping and inspection

Details

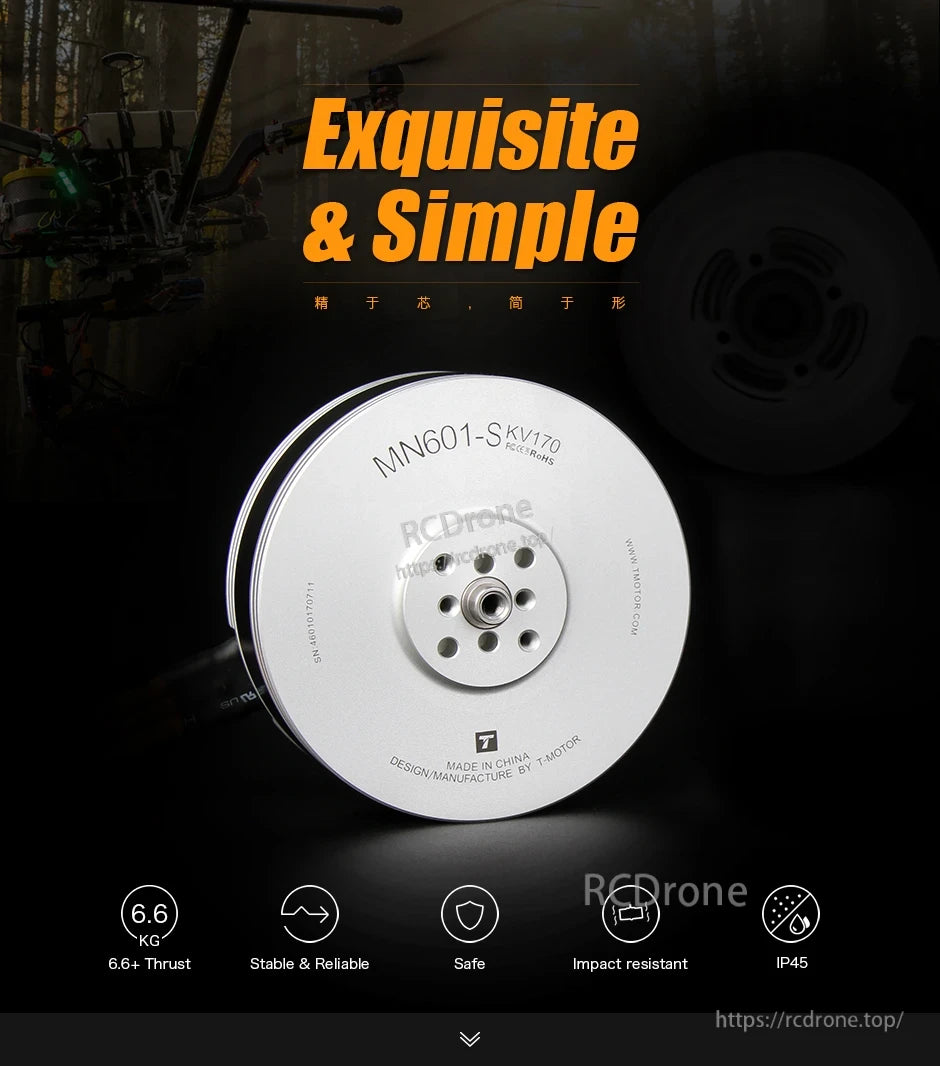

T-Motor MN601-S KV170 brushless drone motor top view, labeled MN601-S with IP45 and 6.6+ kg thrust icons

The T-Motor MN601-S KV170 motor features a clean top-plate layout with clearly marked model info, plus IP45 and 6.6+ kg thrust callouts.

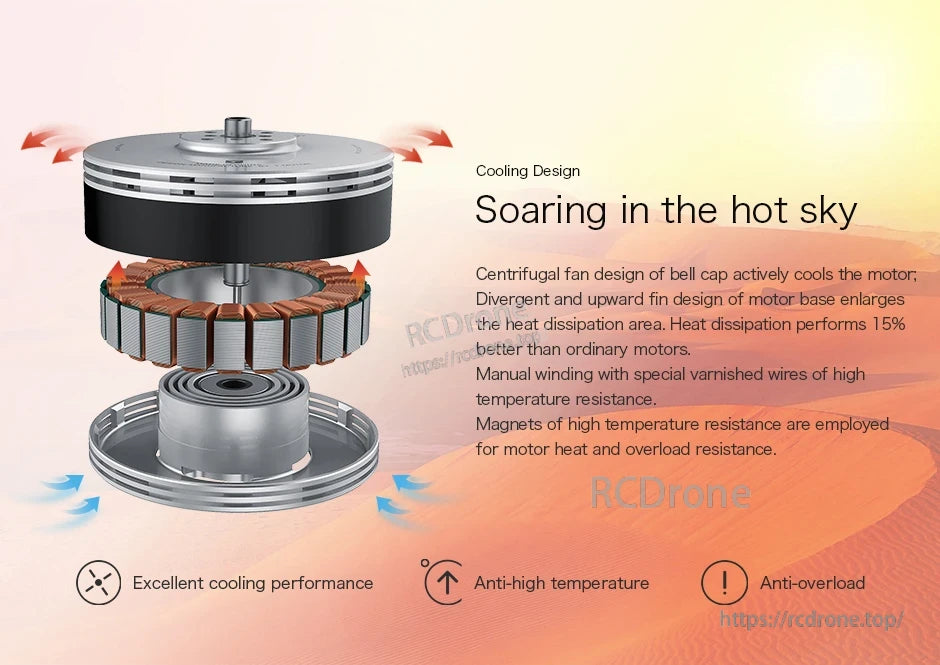

Exploded view of T-Motor brushless motor showing centrifugal fan bell cap and finned base cooling design

The centrifugal fan bell cap and upward finned motor base are designed to increase heat dissipation for more reliable running in hot conditions.

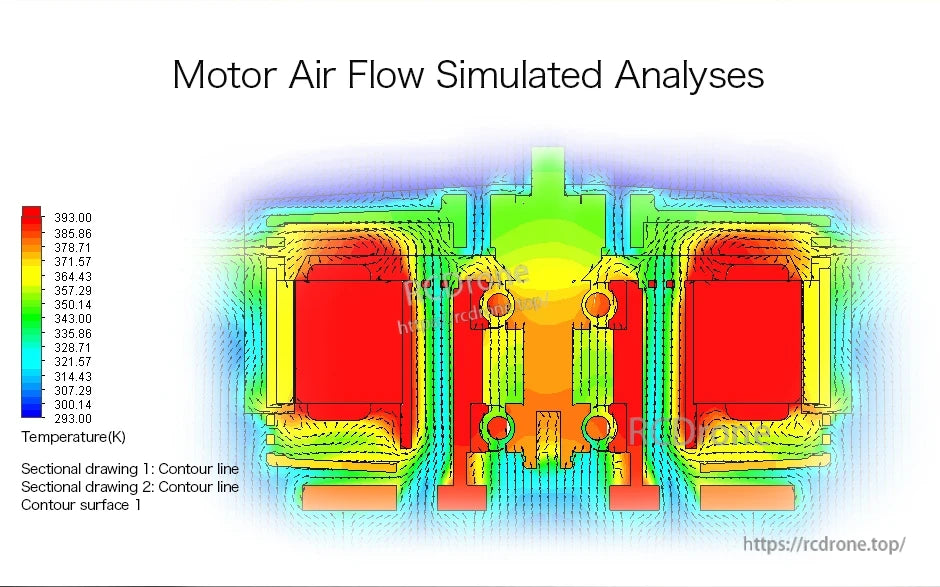

T-Motor airflow simulation cross-section with temperature contour map (293–393 K) around internal components

T-Motor airflow and temperature contour analysis helps visualize heat distribution and cooling paths through the motor body.

T-Motor MN601S motor protection slide with IP45 grade and waterproof, dust-resistant, anti-corrosion icons

The MN601S semi-closed, grid-shaped bell cap design is rated IP45 and is described as waterproof, dust-resistant, and anti-corrosion.

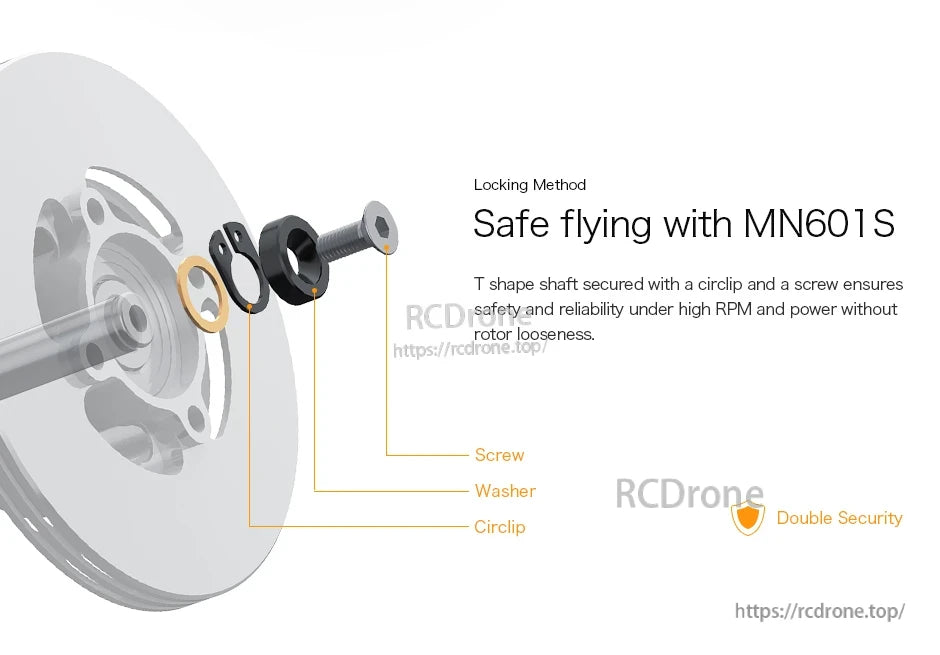

Exploded view of T-Motor MN601S shaft locking method with screw, washer, and circlip for secure rotor fit

The MN601S shaft locking setup uses a screw, washer, and circlip to help keep the rotor securely in place.

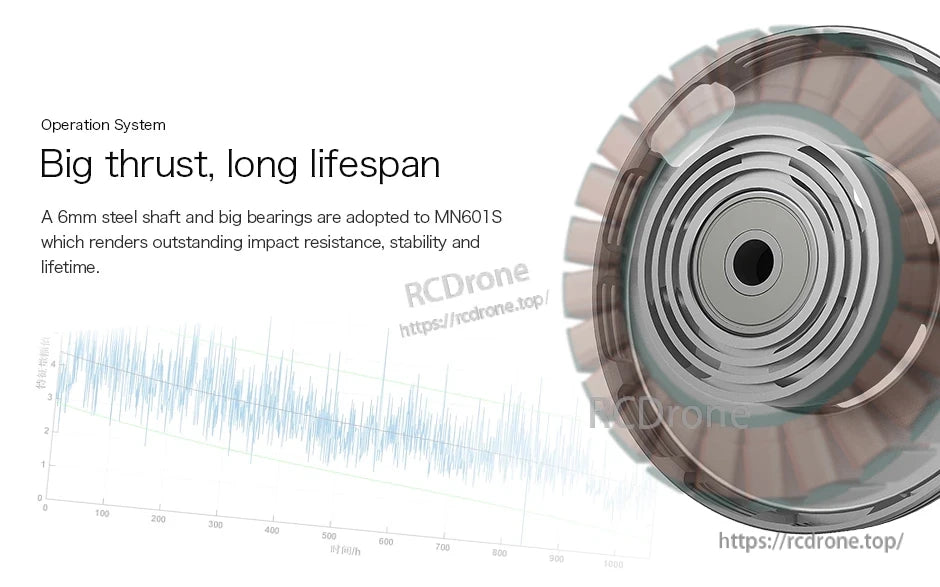

Cross-section graphic of T-Motor MN601S showing a 6 mm steel shaft and large bearings for long lifespan.

The MN601S motor uses a 6 mm steel shaft and large bearings to support impact resistance, stability, and long service life.

T-Motor graphic comparing curved magnet vs ordinary magnet, noting optimized magnetic circuit for 5%+ performance gain

Curved magnets with optimized spacing are designed to improve the motor’s magnetic circuit for 5%+ performance.

T-Motor installation method showing prop mounted on motor hub with two M3×10mm screws and a φ20×2.4mm cover

The T-Motor prop installation uses two M3×10mm mounting screws and a φ20×2.4mm cover for a secure fit.

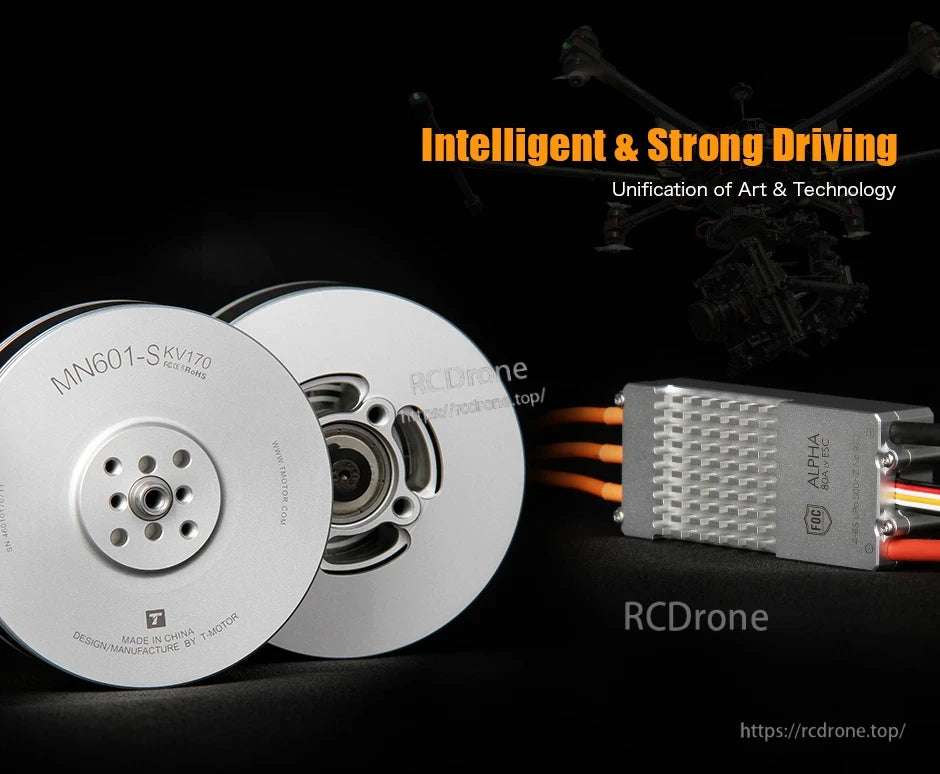

T-Motor MN601-SKV170 brushless motor with silver housing beside Alpha ESC with heatsink and wiring

The MN601-SKV170 motor pairs with an Alpha series ESC featuring a finned heatsink and pre-attached power and signal leads for clean installs.
