T-Motor H7 Mini Flight Controller Dual Gyroscope (ICM42688P/BMI270), Dual BEC 5V/10V, DPS310, 16MB

Overview

The T-Motor H7 Mini Flight Controller is a compact FC designed for drone builds that need an H7-class MCU, selectable IMU (dual gyroscope option), integrated barometer, onboard flash logging, and dual-voltage BEC support for HD and analog setups.

Key Features

• Dual versions of gyroscope optional: ICM42688P or BMI270.
• Independent power supply for gyroscope: designed to avoid interference from other electrical equipment.
• Integrated dual BEC: supports HD & analog.
• Integrated sensors and storage: DPS310 barometer and 16MB flash (black box).
• Mounting pattern: 20*20/Φ4mm for compact frames.

For support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

What’s Included

• 1x T-Motor H7 Mini Flight Controller (HD + Analog) - 20x20 (Choose Gyro)
• 2x FC connecting cables (connect cable*2)
• 1x QC PASS card (QC PASS card*1)
• 2x sticker set (Hobby stickers*2)
• 2x sticker set (F stickers*2)

Applications

• 5" FPV racing builds
• 3.5" cinematic builds
• 5" freestyle builds

Manuals

• MINI H7 Manual (PDF)

Details

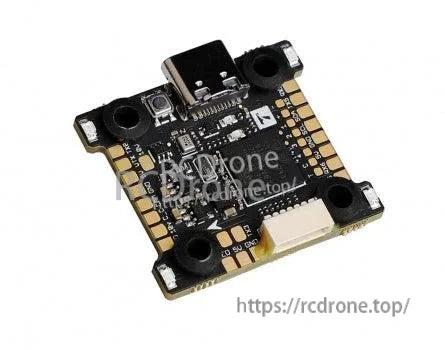

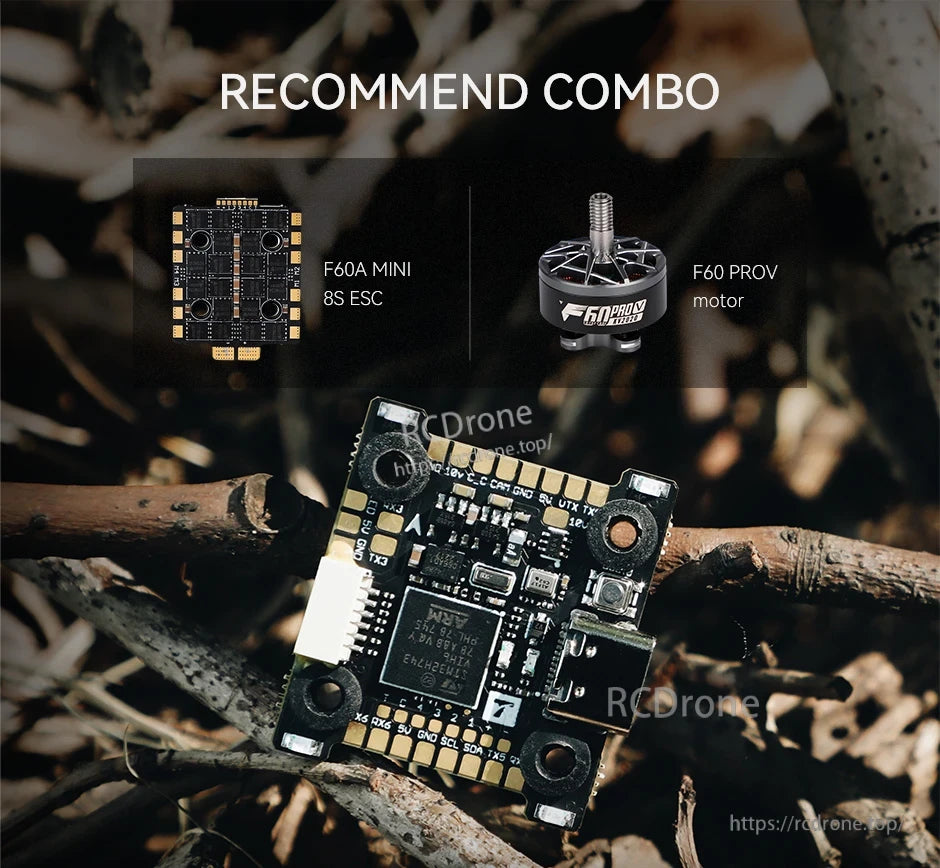

The T-Motor H7 Mini flight controller features clearly labeled pads and a compact layout, with a suggested pairing of the F60A Mini 8S ESC and F60 PROV motor.

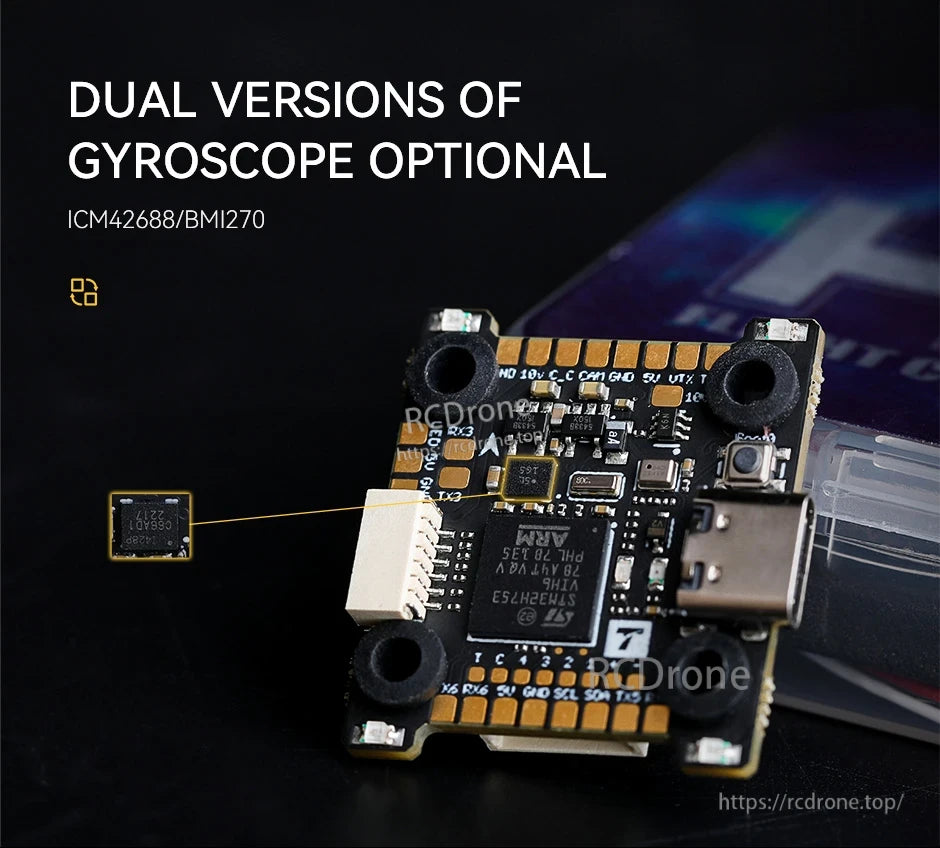

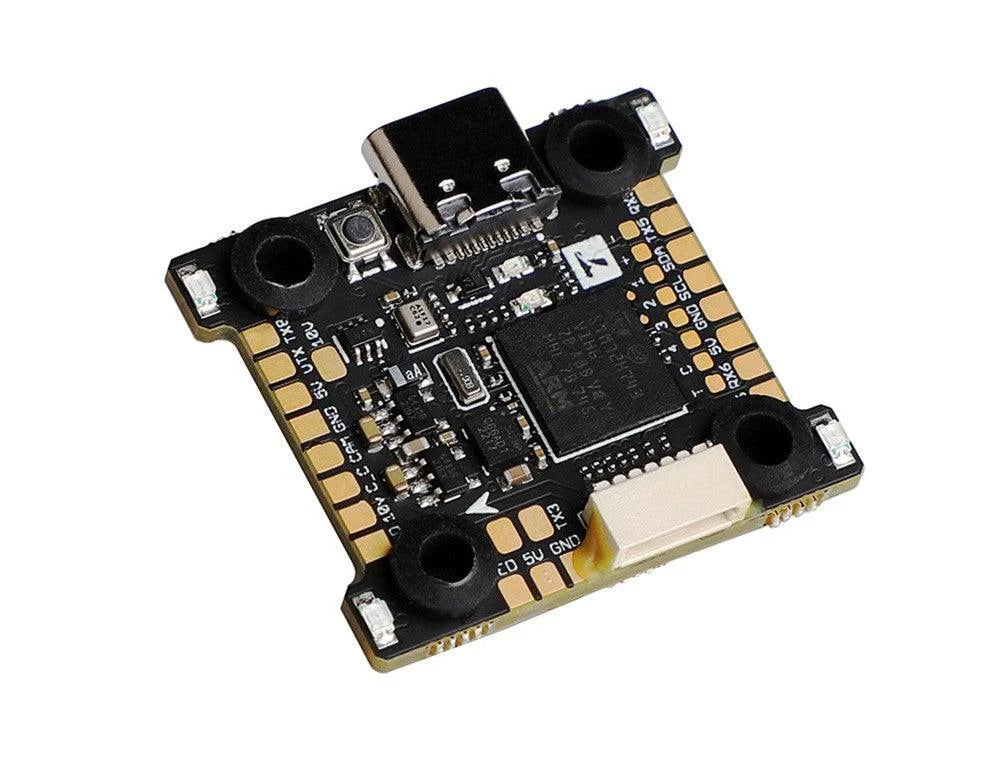

The T-Motor H7 Mini flight controller features a USB-C port and supports optional ICM42688 or BMI270 gyro versions for flexible builds.

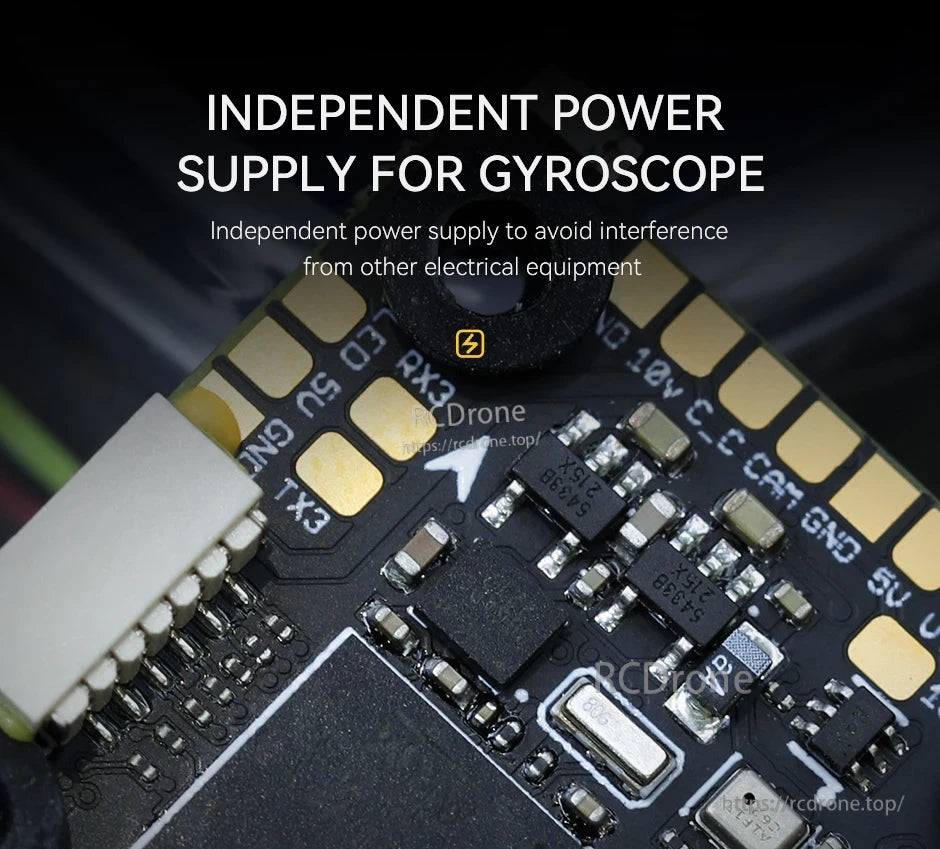

The H7 Mini flight controller uses an independent power supply for the gyroscope to help reduce electrical interference.

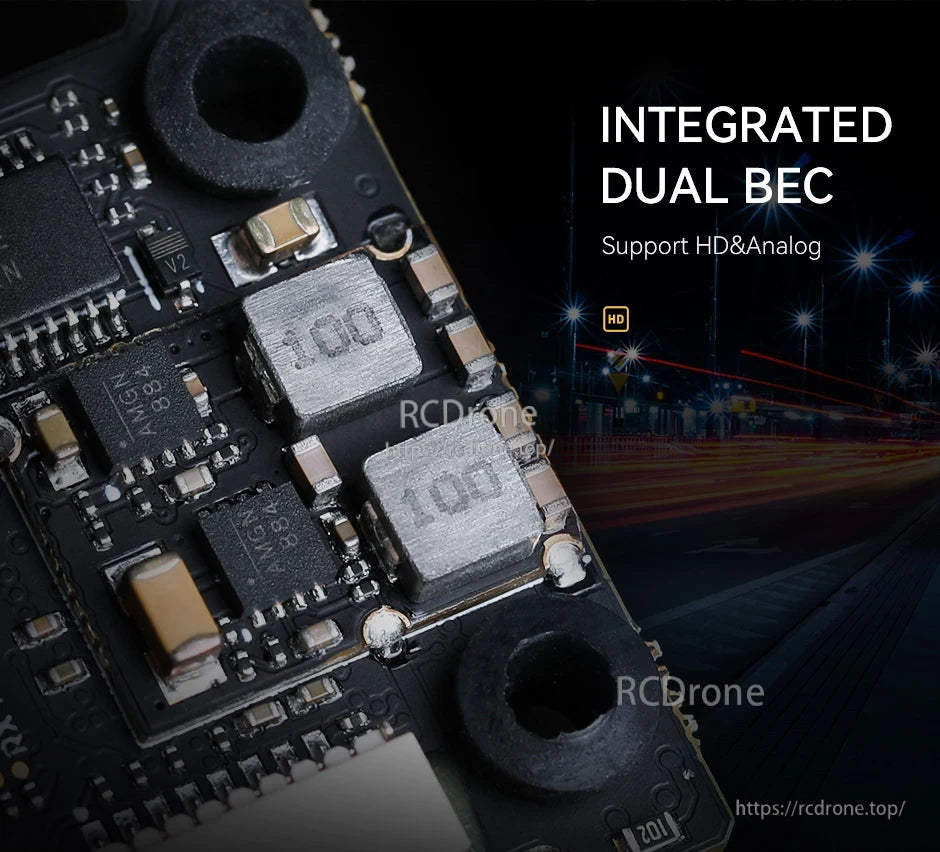

The T-Motor H7 Mini flight controller includes an integrated dual BEC to support both HD and analog FPV gear.

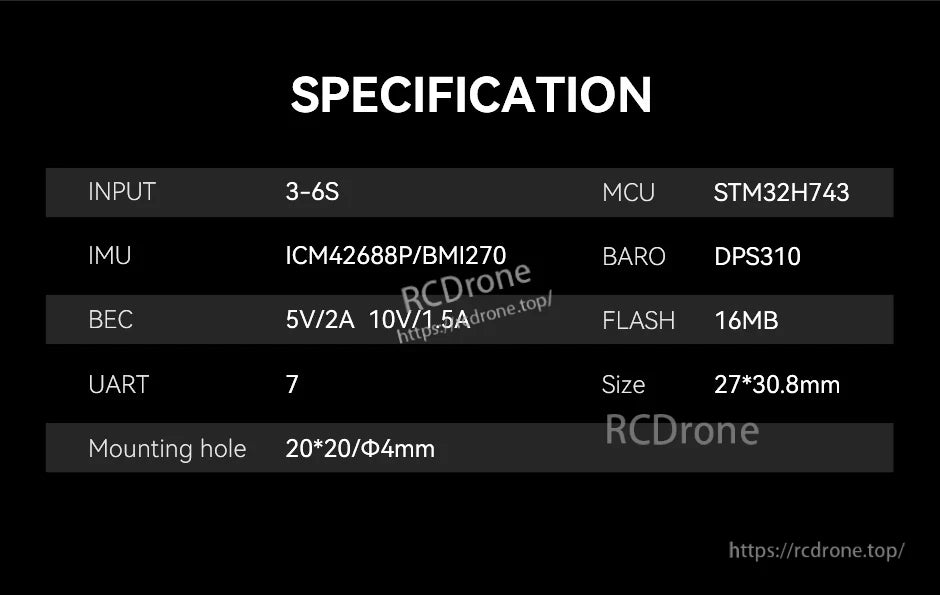

T-Motor H7 Mini flight controller supports 3–6S input, uses an STM32H743 MCU, and measures 27×30.8mm with 20×20 mounting.

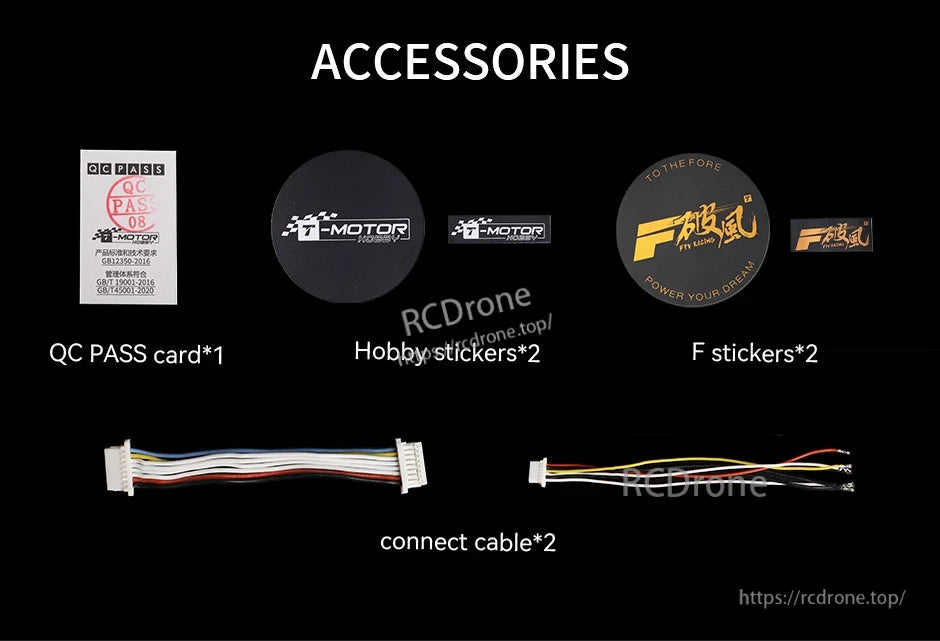

The T-Motor H7 Mini Flight Controller package includes a QC pass card, two sticker sets, and two connector cables for wiring.
