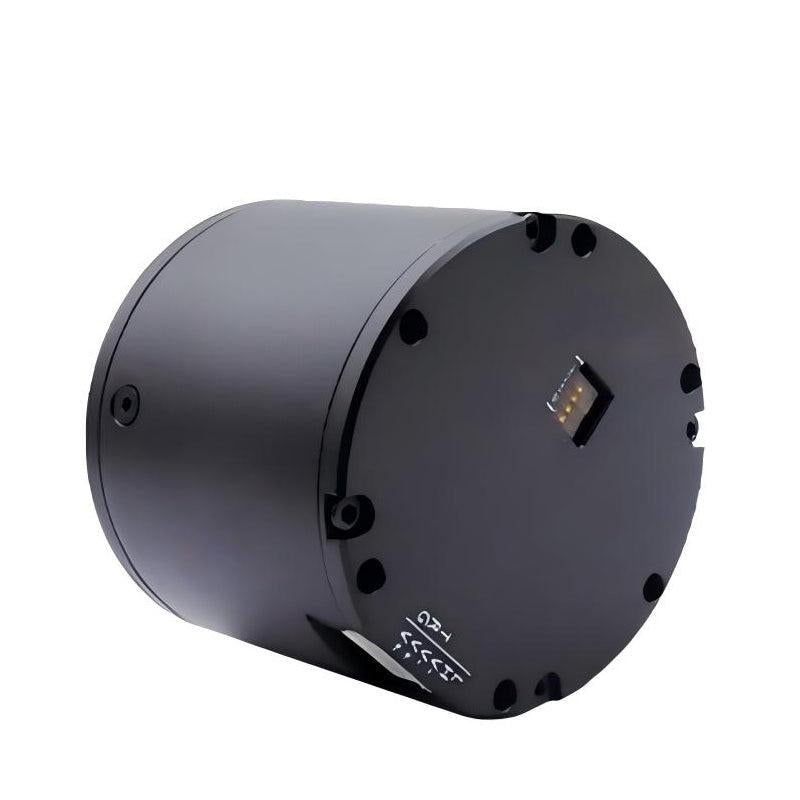

• MUWEIDU TS5003-10 compact servo geared motor, black cylindrical housing side profile

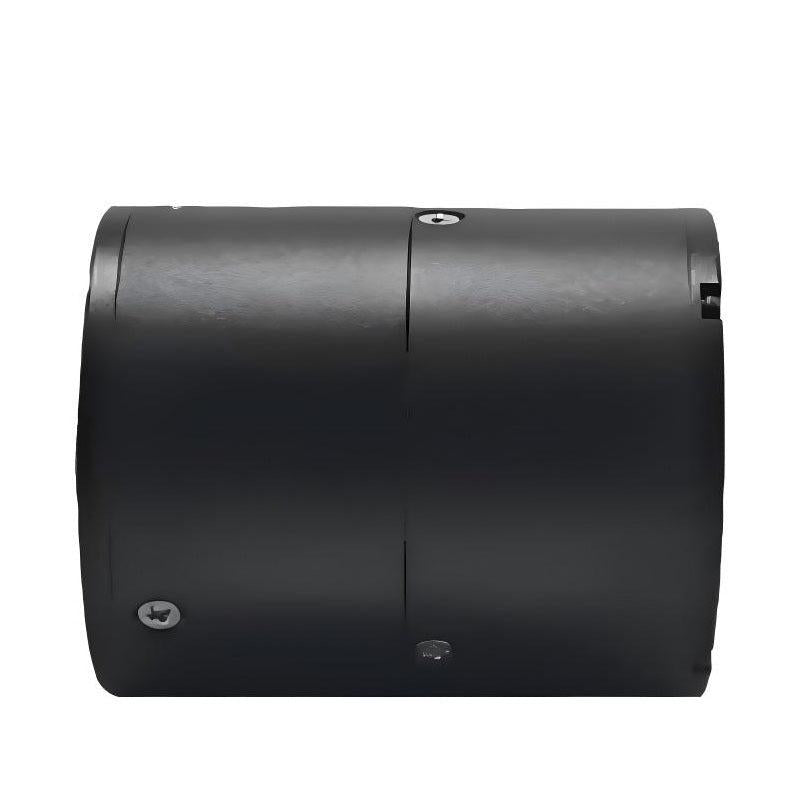

  • 24V servo geared motor body close-up showing housing seam and mounting screws, side view

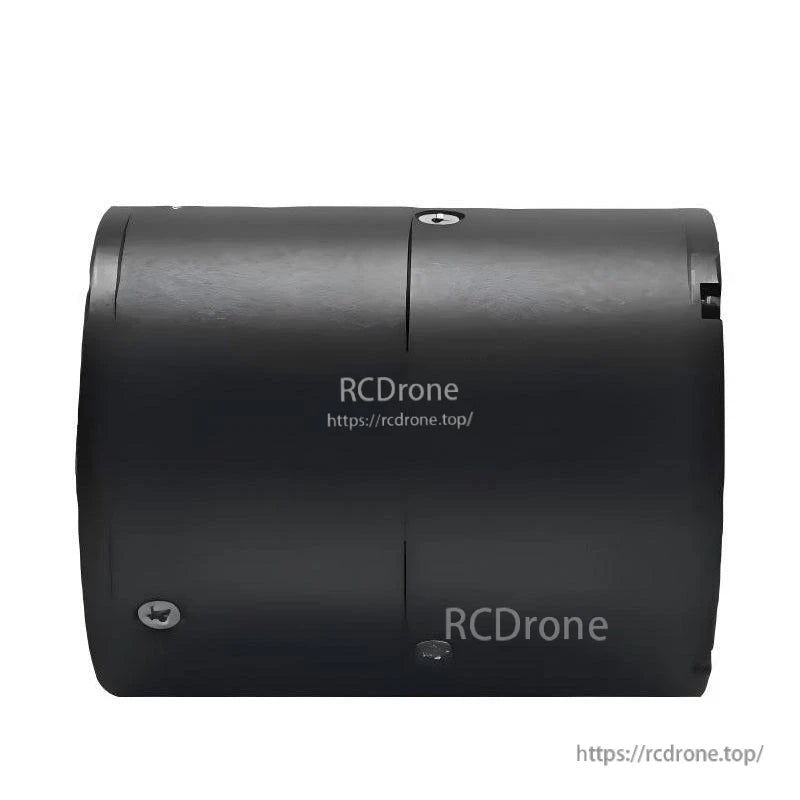

  • Side view of black servo motor housing with visible RCDRone watermark text on casing
1 3

MUWEIDU TS5003-10 Compact Servo Geared Motor 24V 1:10 RS485/CAN 18-bit Encoder for Robotics

MUWEIDU TS5003-10 Compact Servo Geared Motor 24V 1:10 RS485/CAN 18-bit Encoder for Robotics

MUWEIDU

$439.00 USD
$439.00 USD
特價 售罄
已包含稅額。 結帳時計算運費。
Version
Communication Mode
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
查看完整資訊

Overview

The MUWEIDU TS5003-10 Motor is a TS Series compact servo geared motor (servo motors) designed as an integrated electric drive system for robotics and automation joints. It features an 18-bit single-turn absolute encoder, and the zero-point setting requires one-time calibration only.

Key Features

  • Compact servo geared motor design
  • 18-bit single-turn absolute encoder
  • Zero-point setting requires one-time calibration only
  • Integrated electric drive system: high-power brushless motor + high-precision planetary reducer + high-performance FOC drive
  • Control modes: Torque / Speed / Position
  • Communication protocol: RS485 / CAN
  • Design notes: High Power, High Torque, High Precision; Ultra-high Standard Product Design

Specifications

Model TS5003-10
Rated Voltage 24V
Rated Current 3.5A
Peak Power 140W
Rated Torque 2.5N.m
Peak Torque 4.5N.m
Rated Speed 260rpm
Encoder 18bit + 14bit
Rotor Inertia 140gcm^2
Rotor Inertia (with brake) 202gcm^2
Reduction Ratio 1:10
Control Modes Torque/Speed/Position
Communication Protocol RS485/CAN
Overall Dimensions Φ53mm×41mm
Overall Dimensions (with brake) Φ53mm×59mm
Weight 250g
Weight (with brake) 392.5g

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots / legged robots
  • AGV vehicles
  • ARU robots
  • Industrial robots
  • Inspection robotic vehicles
  • Medical robots

Documents

For pre-sales and integration support (wiring, protocol selection, and model choice), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

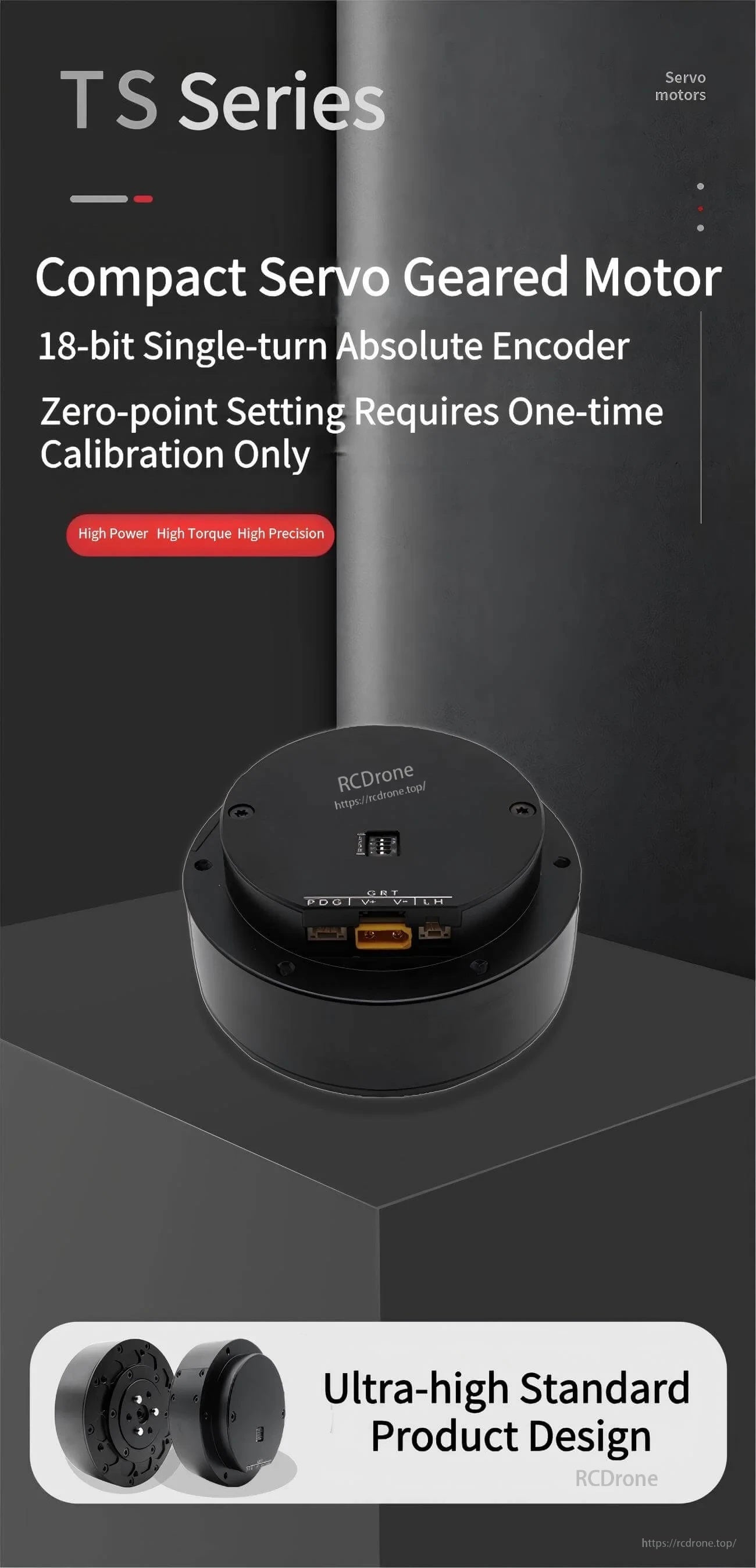

MUWEIDU TS5003-10 compact servo geared motor with 18-bit absolute encoder and one-time zero calibration

The TS5003-10 integrates a compact servo geared motor with an 18-bit single-turn absolute encoder for stable joint positioning.

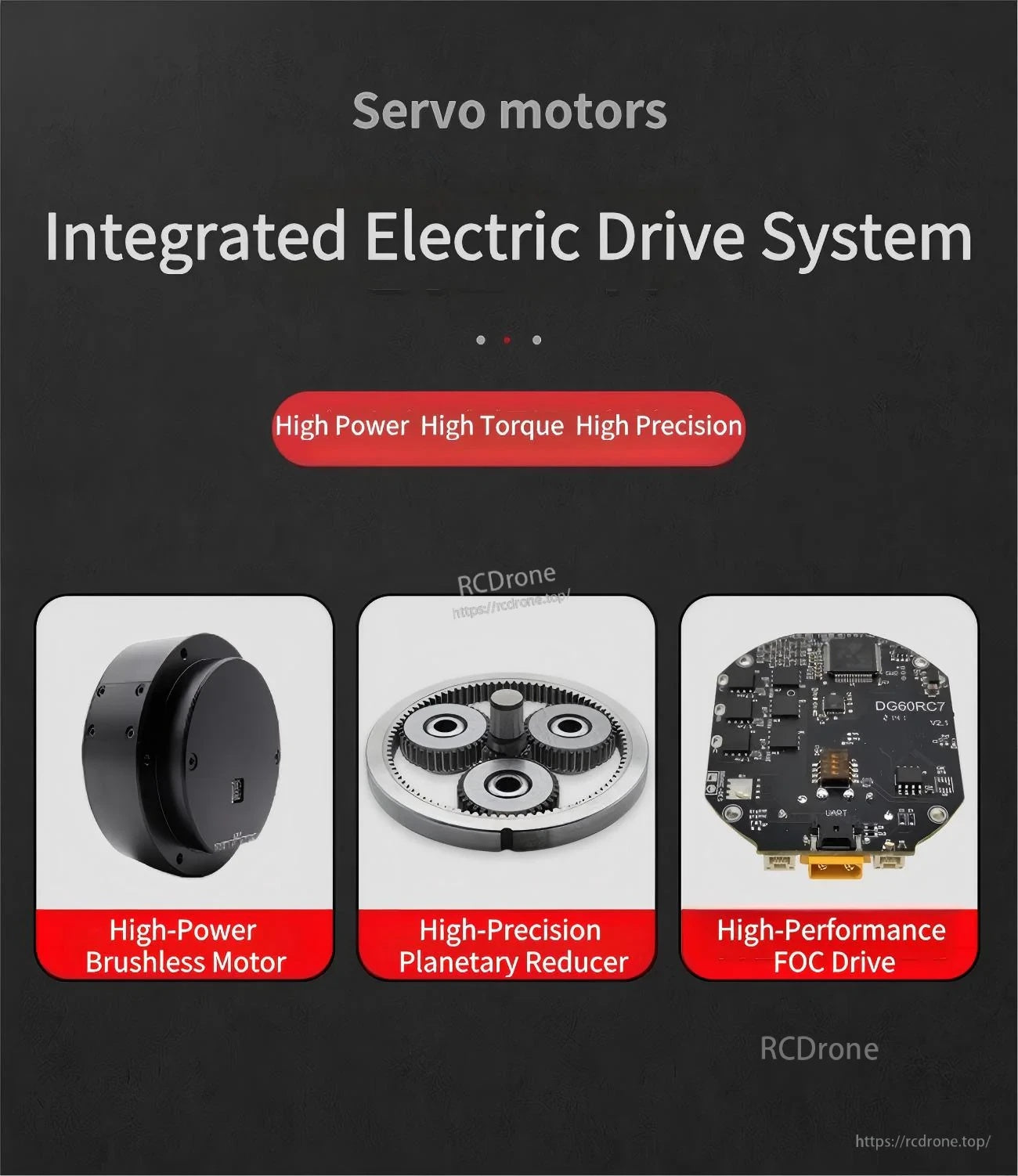

Integrated electric drive system layout: brushless motor, planetary reducer, and FOC drive board for TS series servo motor

An integrated drive stack combines the brushless motor, precision planetary reducer, and FOC drive electronics in one unit.

Robotics application scenarios for the servo geared motor: legged robots, industrial arms, inspection vehicles, and exoskeletons
