MUWEIDU TS6013-36 24V Compact Servo Geared Motor 1:36 RS485/CAN 18-bit Absolute Encoder

Overview

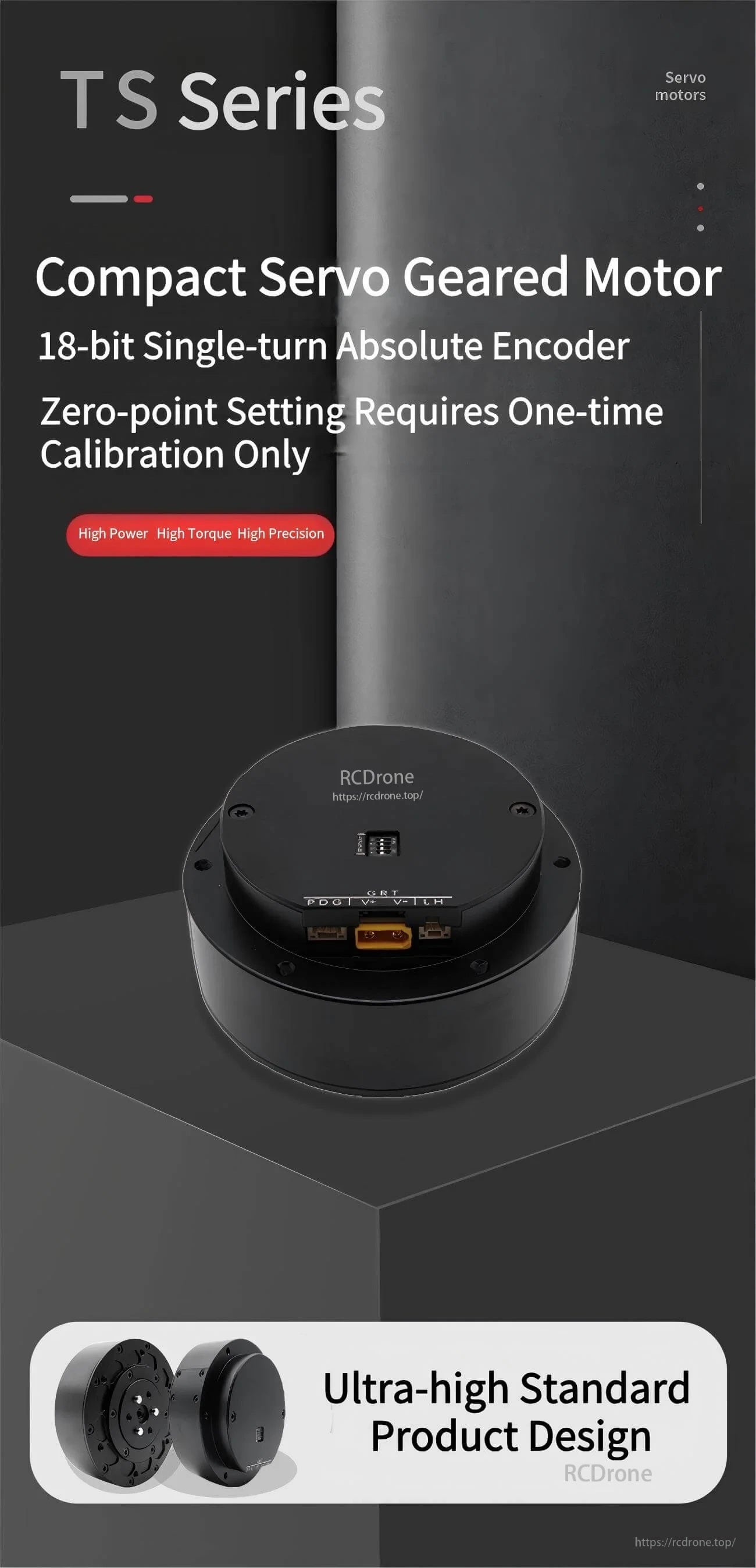

MUWEIDU TS6013-36 Motor is a compact servo geared motor (TS Series servo motors) designed as an integrated electric drive system for robotics and automation. It features an 18-bit single-turn absolute encoder and supports zero-point setting with one-time calibration only. Control modes include torque, speed, and position, with RS485/CAN communication.

Key Features

• Compact servo geared motor (TS Series servo motors)
• 18-bit single-turn absolute encoder
• Zero-point setting requires one-time calibration only
• Integrated electric drive system architecture
• High-power brushless motor + high-precision planetary reducer + high-performance FOC drive
• Control modes: Torque/Speed/Position
• Communication protocol: RS485/CAN

Specifications

Applications

• Humanoid robots
• Robotic arms
• Exoskeletons
• Quadruped robots / legged robots
• AGV vehicles
• ARU robots
• Industrial robots
• Inspection robotic vehicles
• Medical robots

Manuals / Downloads

• MUWEIDU_TS6013-36_Motor.STP
• MUWEIDU_TS6013-36_Product_structure_diagram.pdf
• MUWEIDU_TS6013-36B_Product_structure_diagram.pdf

For wiring, integration, or model selection support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

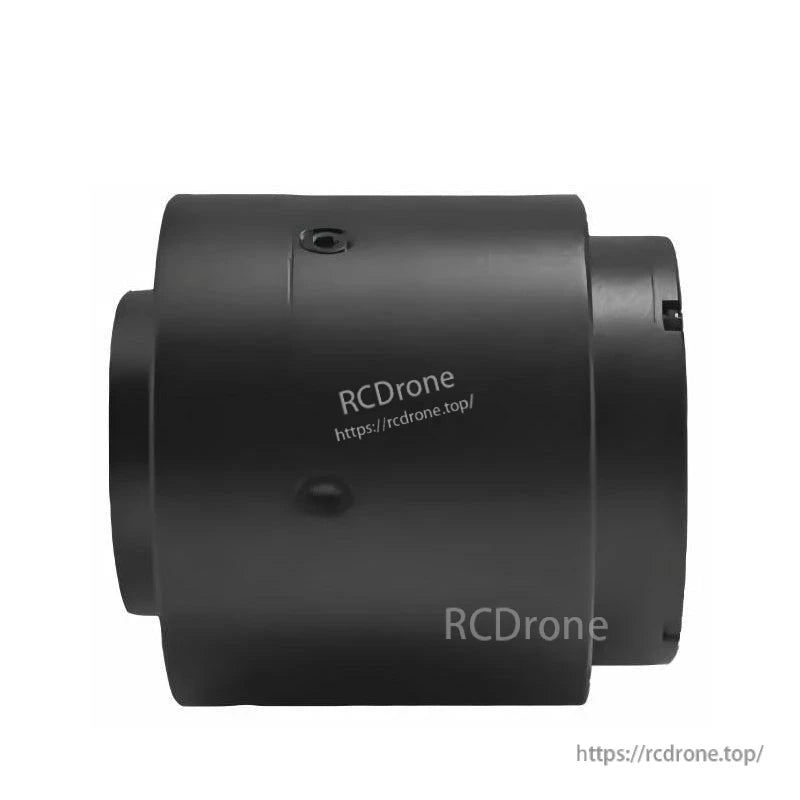

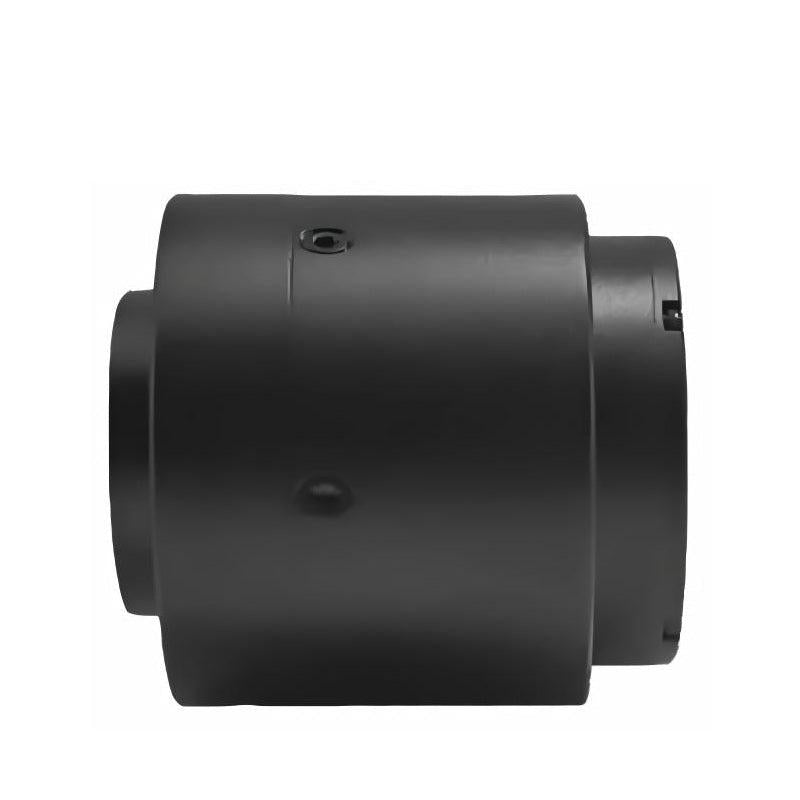

An integrated TS Series servo geared motor combines compact sizing with an 18-bit absolute encoder for stable, repeatable positioning.

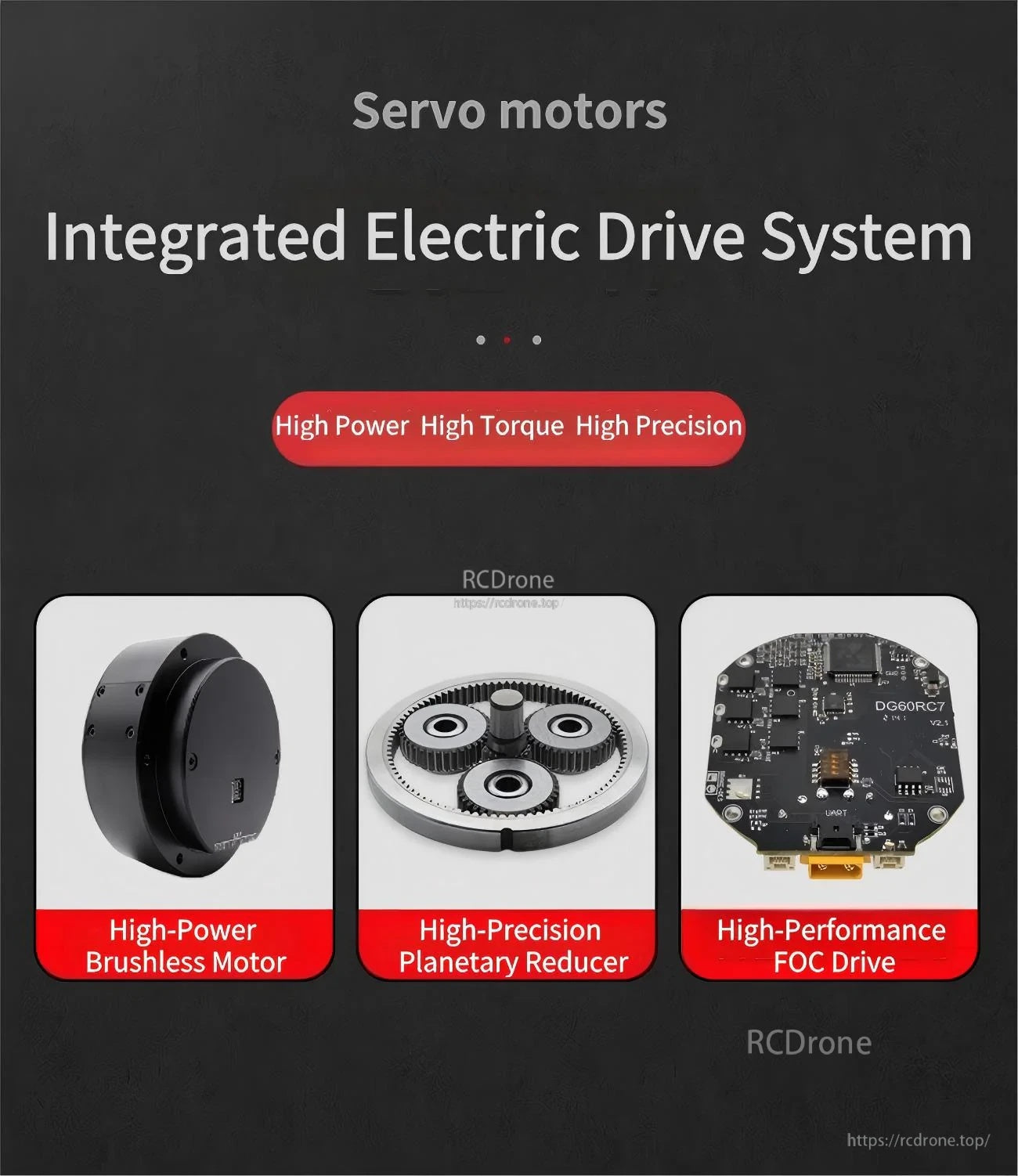

Brushless motor, planetary gearbox, and FOC drive electronics are integrated into one drive unit to simplify robot joint design.
