Overview

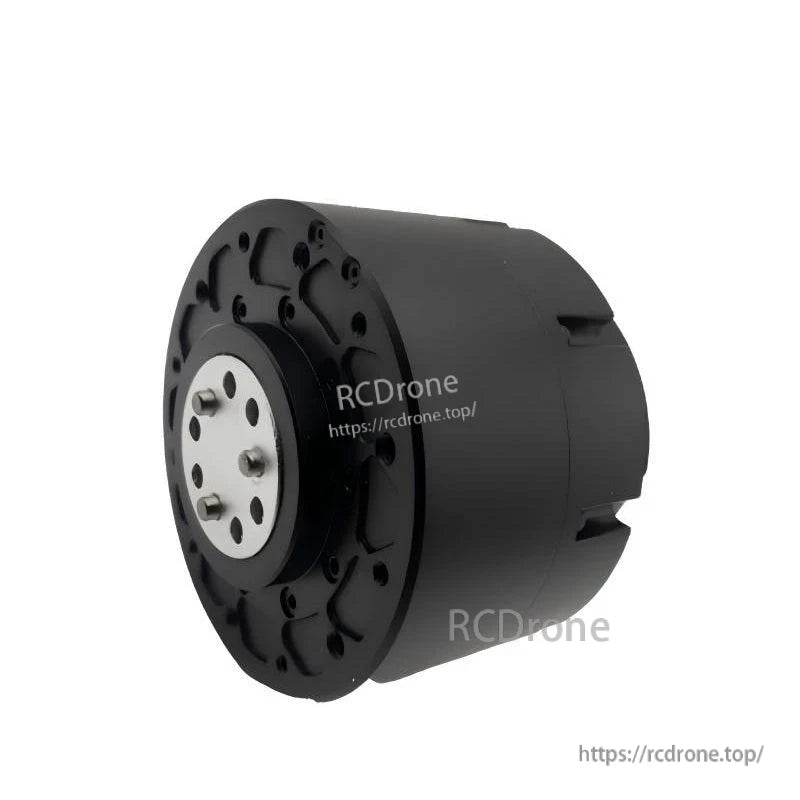

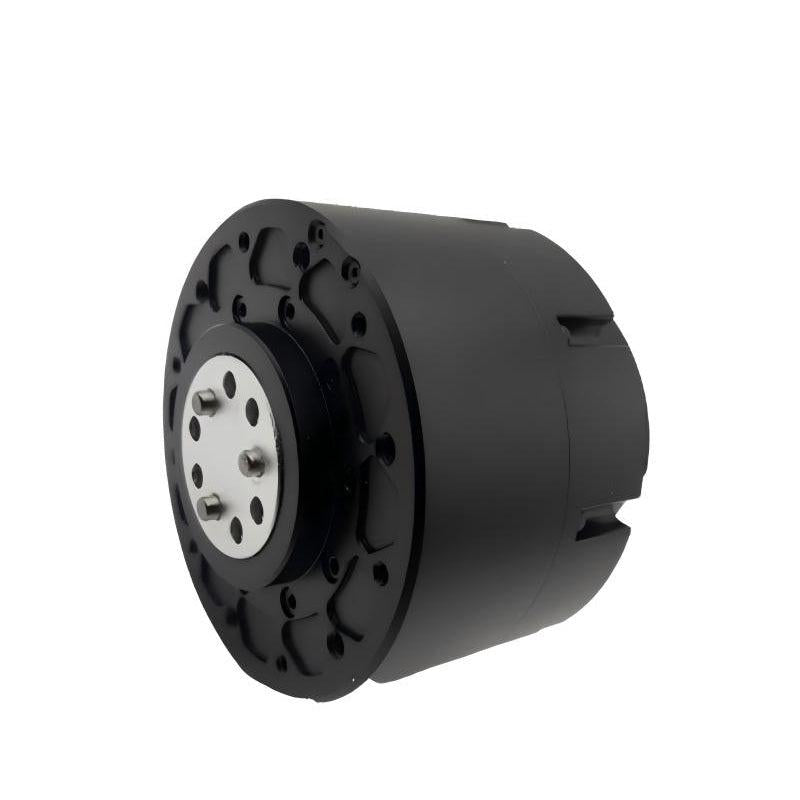

MUWEIDU TS8025-36 motor is a TS Series compact servo geared motor (servo motors) designed as an integrated electric drive system for robotics actuators. It supports torque/speed/position control modes with RS485/CAN communication, and uses an absolute encoder for repeatable positioning and simplified commissioning.

Key Features

Compact servo geared motor (TS Series)
18-bit single-turn absolute encoder
Zero-point setting requires one-time calibration only

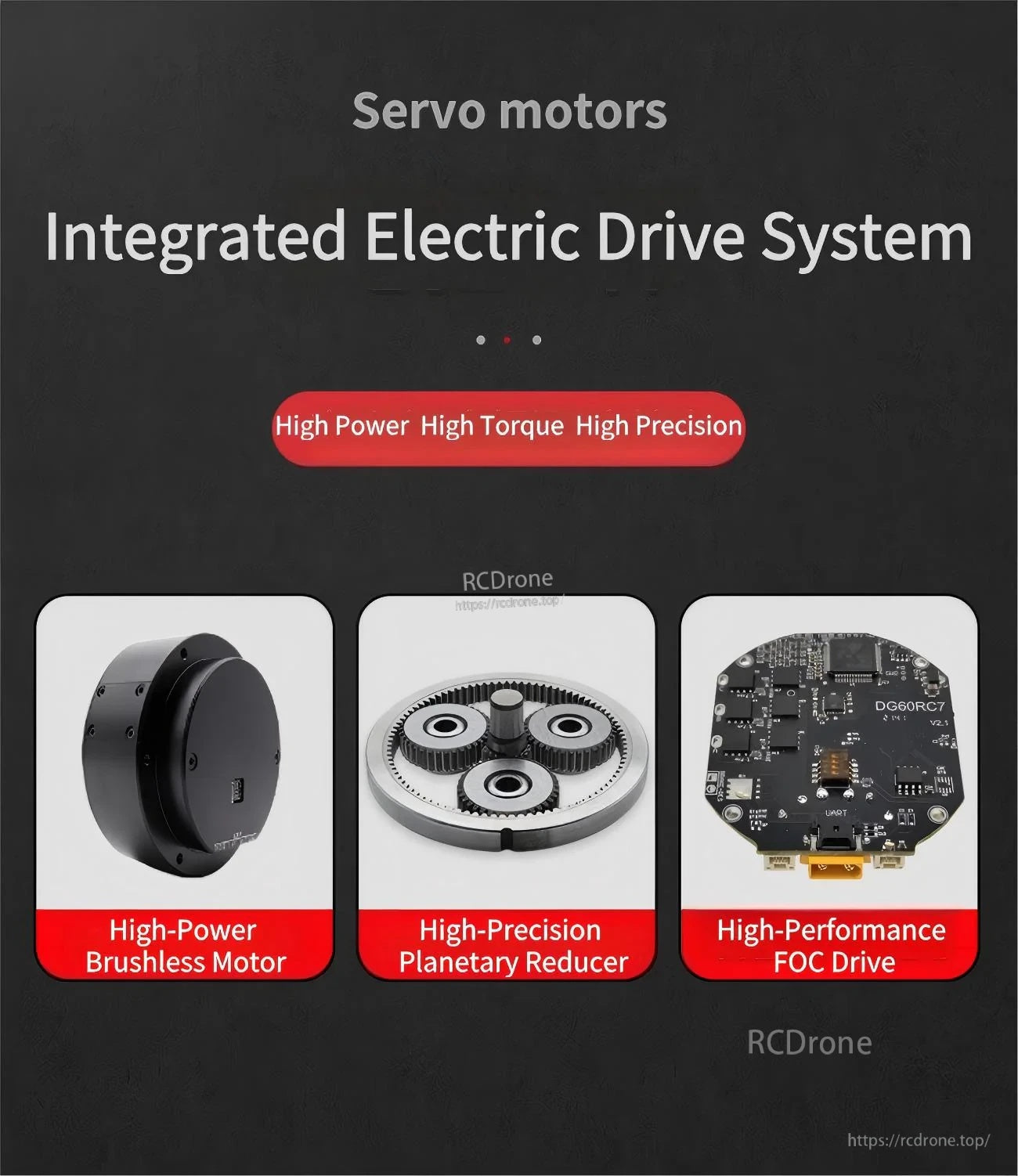

Integrated electric drive system: high-power brushless motor + high-precision planetary reducer + high-performance FOC drive
Control modes: Torque / Speed / Position
Communication protocol: RS485 / CAN
Motor temperature monitoring: YES (with brake)

For selection and integration support (wiring, communication, and CAD files), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model	TS8025-36
Rated Voltage	24V/48V
Rated Current	4A/4.8A
Peak Power	140W/500W
Rated Torque	25N.m
Peak Torque	40N.m
Rated Speed	45rpm/74rpm
Rated Speed (with brake)	33rpm/74rpm
Encoder	18bit + 14bit
Encoder (with brake)	19bit
Rotor Inertia	930gcm²/8930gcm²
Reduction Ratio	1:36
Motor temperature monitoring (with brake)	YES
Control Modes	Torque/Speed/Position
Communication Protocol	RS485/CAN
Overall Dimensions	Φ80mm×53.5mm
Overall Dimensions (with brake)	Φ80mm×66mm
Weight	503g
Weight (with brake)	788g
