Yahboom Raspberry Pi 5 ABS Silver Case with PWM Cooling Fan, Power Button & Quick-Release Vented Cover
Yahboom Raspberry Pi 5 ABS Silver Case with PWM Cooling Fan, Power Button & Quick-Release Vented Cover
Yahboom
無法載入取貨服務供應情況
Overview
This Raspberry Pi 5 ABS silver case is designed for the Raspberry Pi 5 development board. It consists of a base and an upper cover, and includes a PWM cooling fan. The vented upper cover is designed to help dissipate hot air, and the precise side cutouts align ports, slots, and buttons to support normal operation without blocking access.
Key Features
- ABS material with impact-resistant protection (dustproof and anti-collision).
- PWM cooling fan with temperature-based speed adjustment.
- Quick-release design for easier installation.
- Built-in power button for one-touch switching (no need for external tools).
- Openings for heat dissipation on the upper cover.
- Designed for Raspberry Pi 5 (not universal with Raspberry Pi 4B/3B+).
- Compatible with the official Raspberry Pi 5 radiator; after removing the fan, it can be connected to the official active cooler (purchased separately).

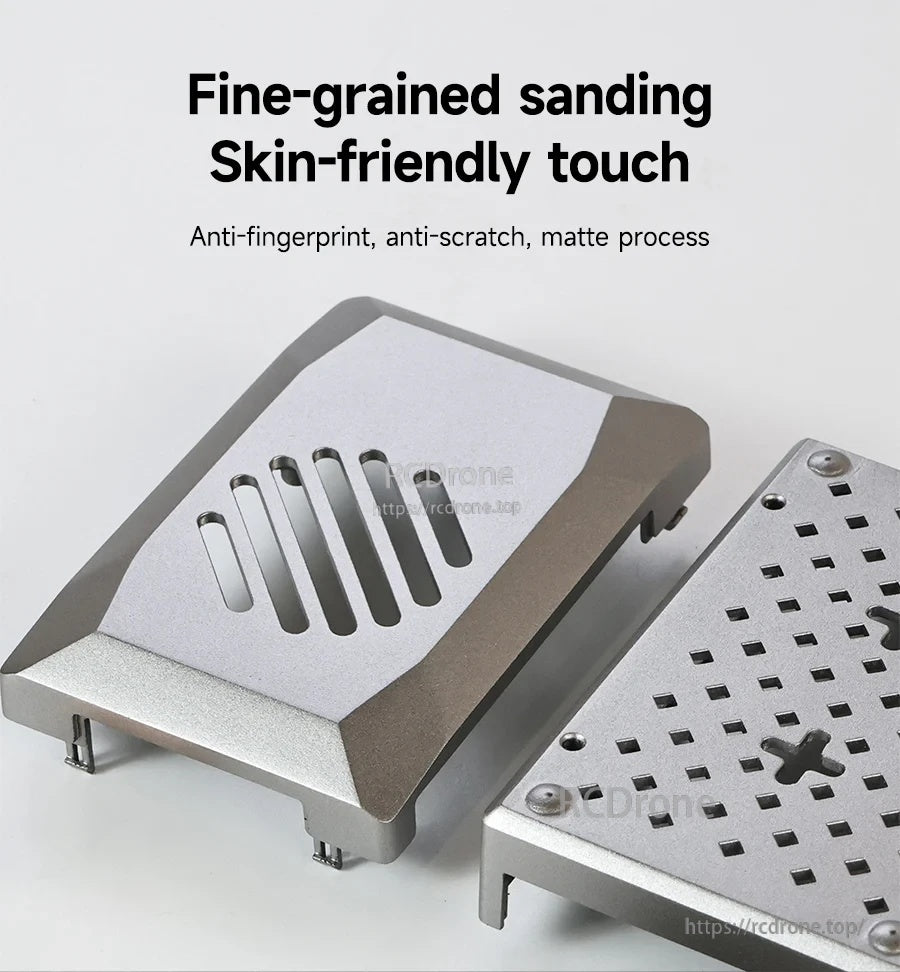

- Surface finish: matte process (anti-fingerprint, anti-scratch).
For pre-sales compatibility questions or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

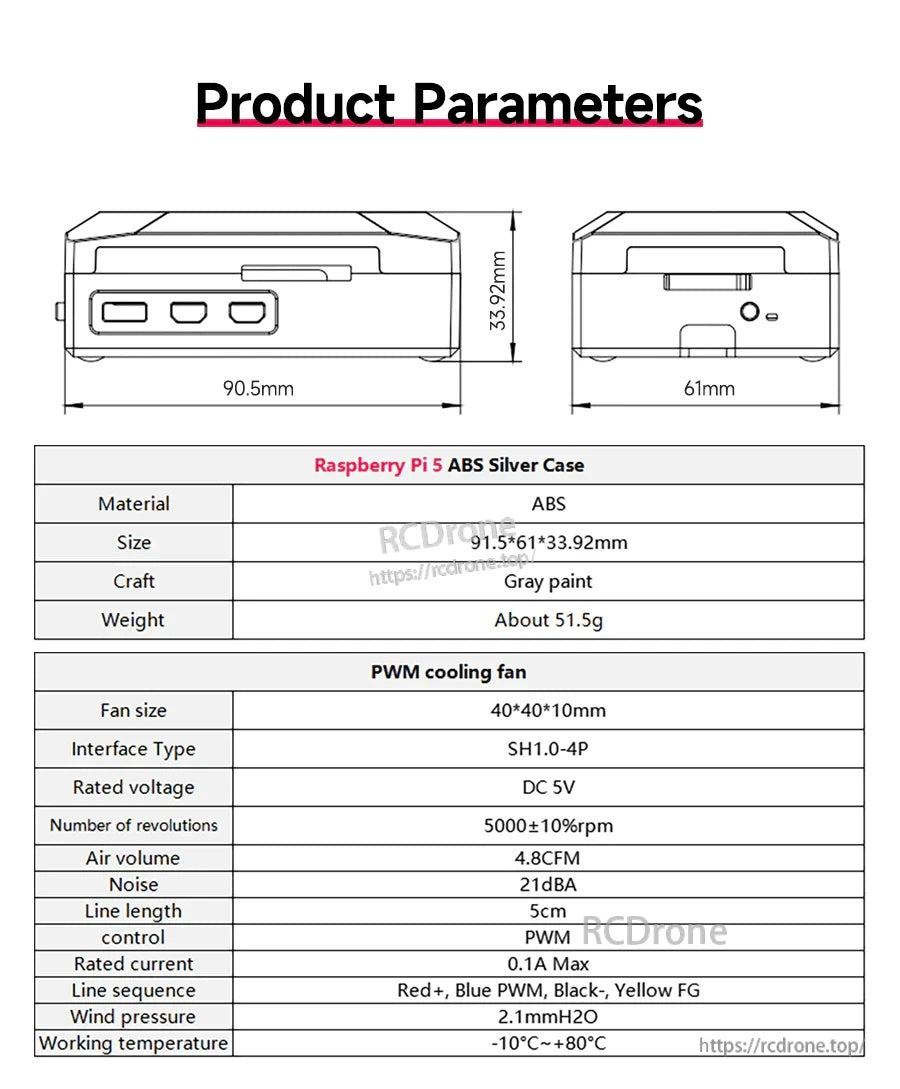

Specifications
Case
| Material | ABS |
| Color/finish | Silver (Gray paint) |
| Size | 91.5*61*33.92mm |
| Weight | About 51.5g |
| Accessible openings/cutouts | Type-C power supply port; MicroHDMI*2 interface; CSI camera hole; Network port interface; USB 3.0; USB 2.0; PCIe hole; Power indicator hole; Power button; SD card slot; SD card interface; 40PIN GPIO |
PWM Cooling Fan
| Fan size | 40*40*10mm |
| Interface type | SH1.0-4P |
| Rated voltage | DC 5V |
| Number of revolutions | 5000±10%rpm |
| Air volume | 4.8CFM |
| Noise | 21dBA |
| Line length | 5cm |
| Control | PWM |
| Rated current | 0.1A Max |
| Line sequence | Red+, Blue PWM, Black-, Yellow FG |
| Wind pressure | 2.1mmH2O |
| Working temperature | -10°C~+80°C |
| PWM speed profile | 50°C: 20% | 60°C: 50% | 65°C: 60% | 70°C: 70% | 80°C: 100% |
What's Included
- ABS silver case (base + upper cover)
- PWM cooling fan
Applications
- Protective enclosure for Raspberry Pi 5 development board projects
- Thermal management for Raspberry Pi 5 setups requiring active airflow
Details

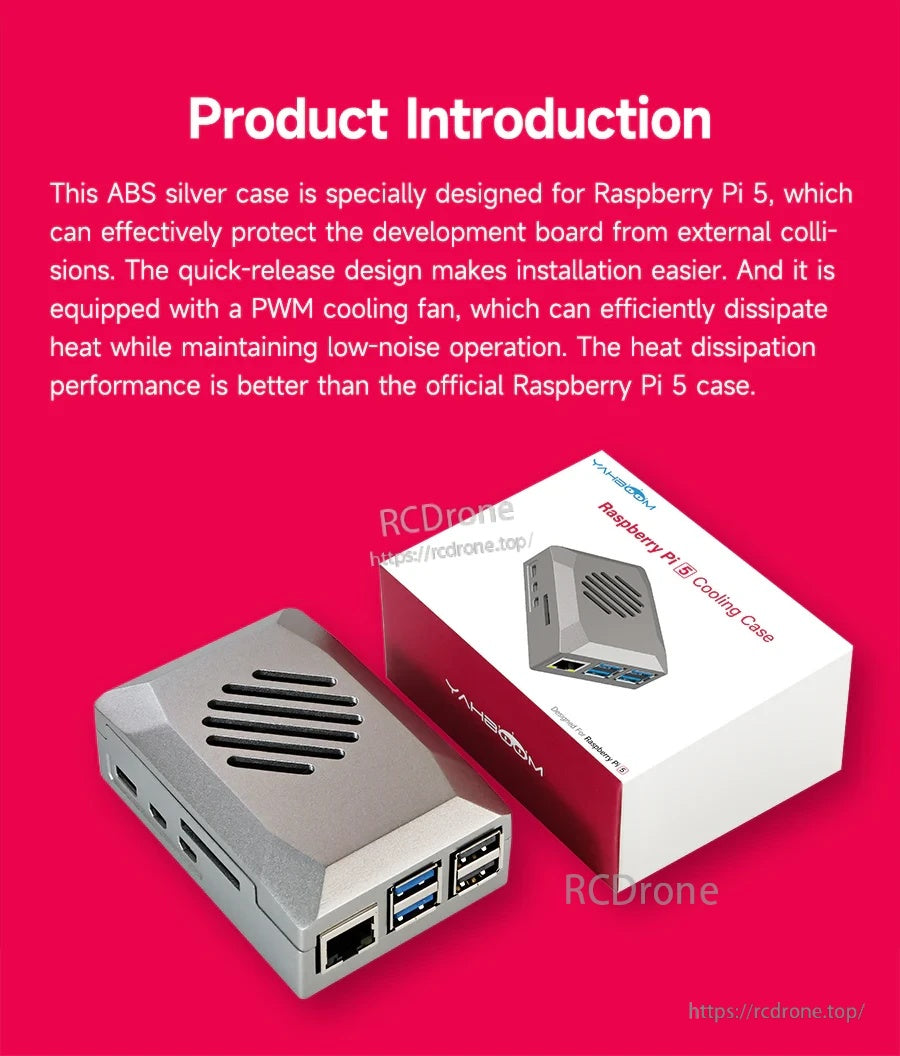

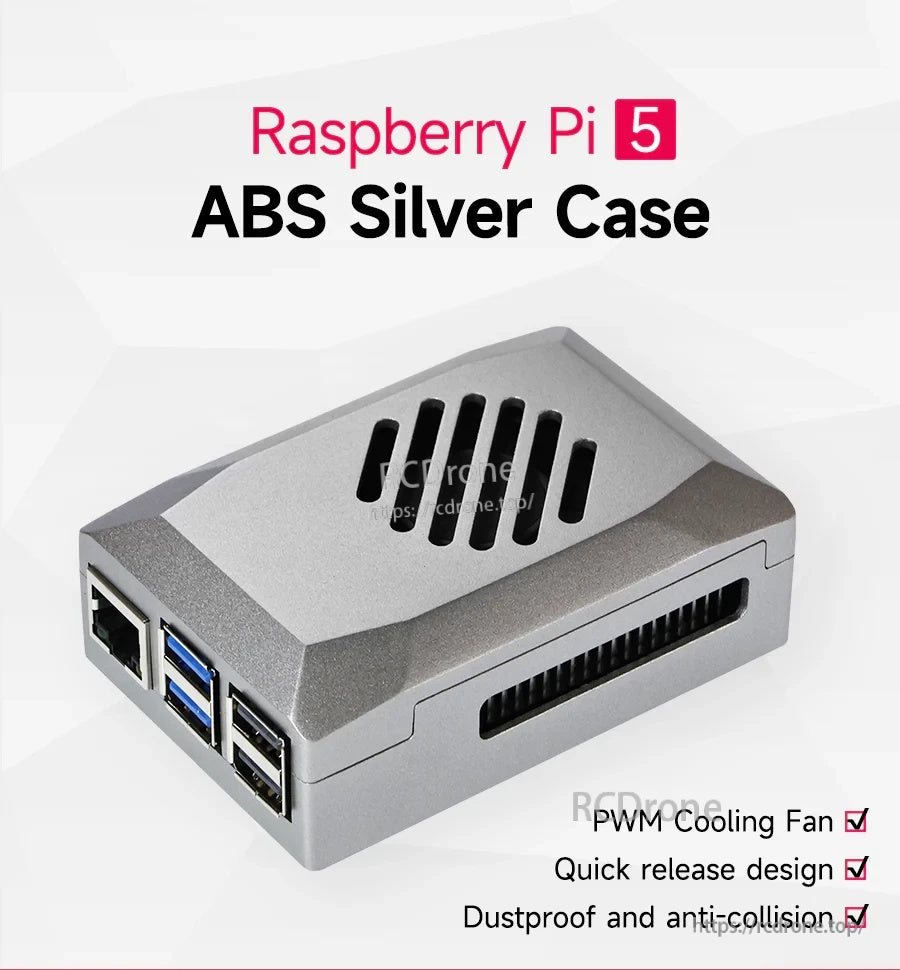

A compact ABS silver enclosure for Raspberry Pi 5 with a vented top cover and precise cutouts for everyday port access.

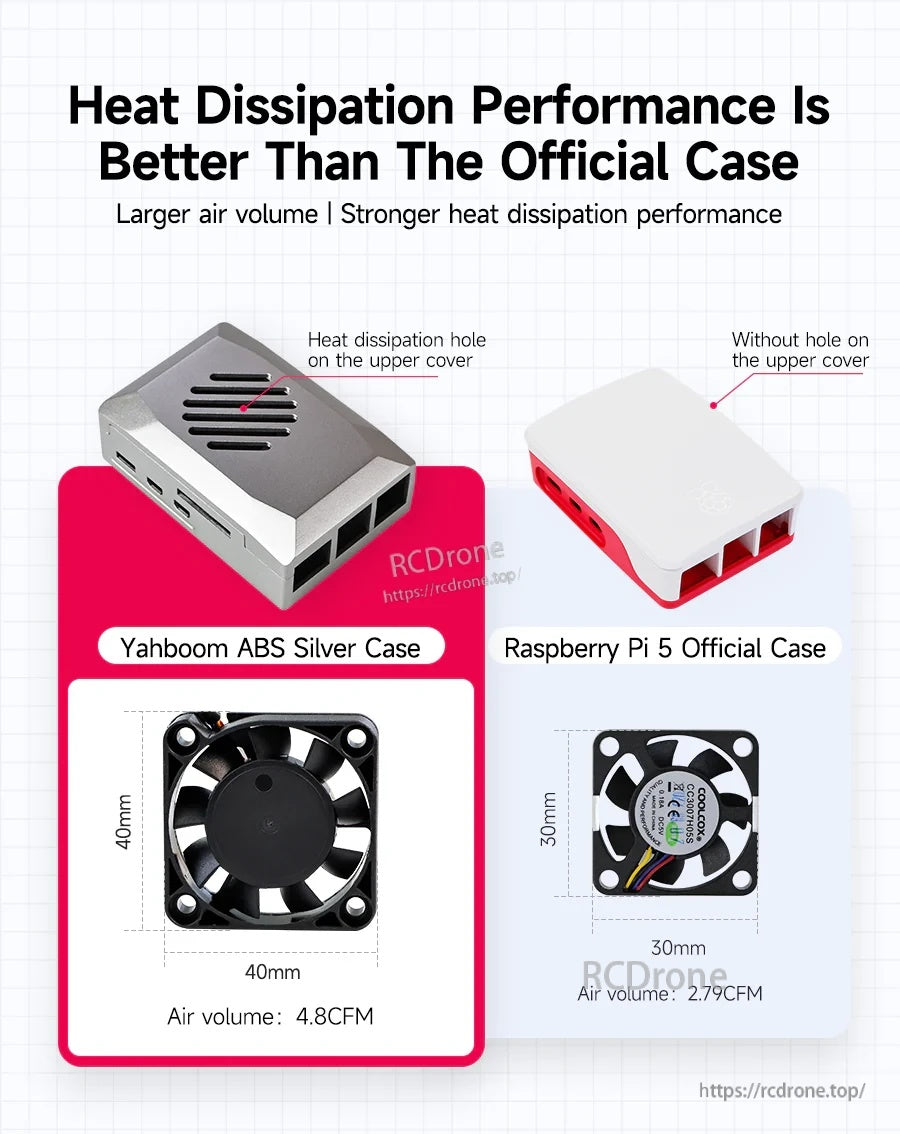

Built-in airflow and top vents are designed to move hot air out quickly for more consistent Raspberry Pi 5 cooling.

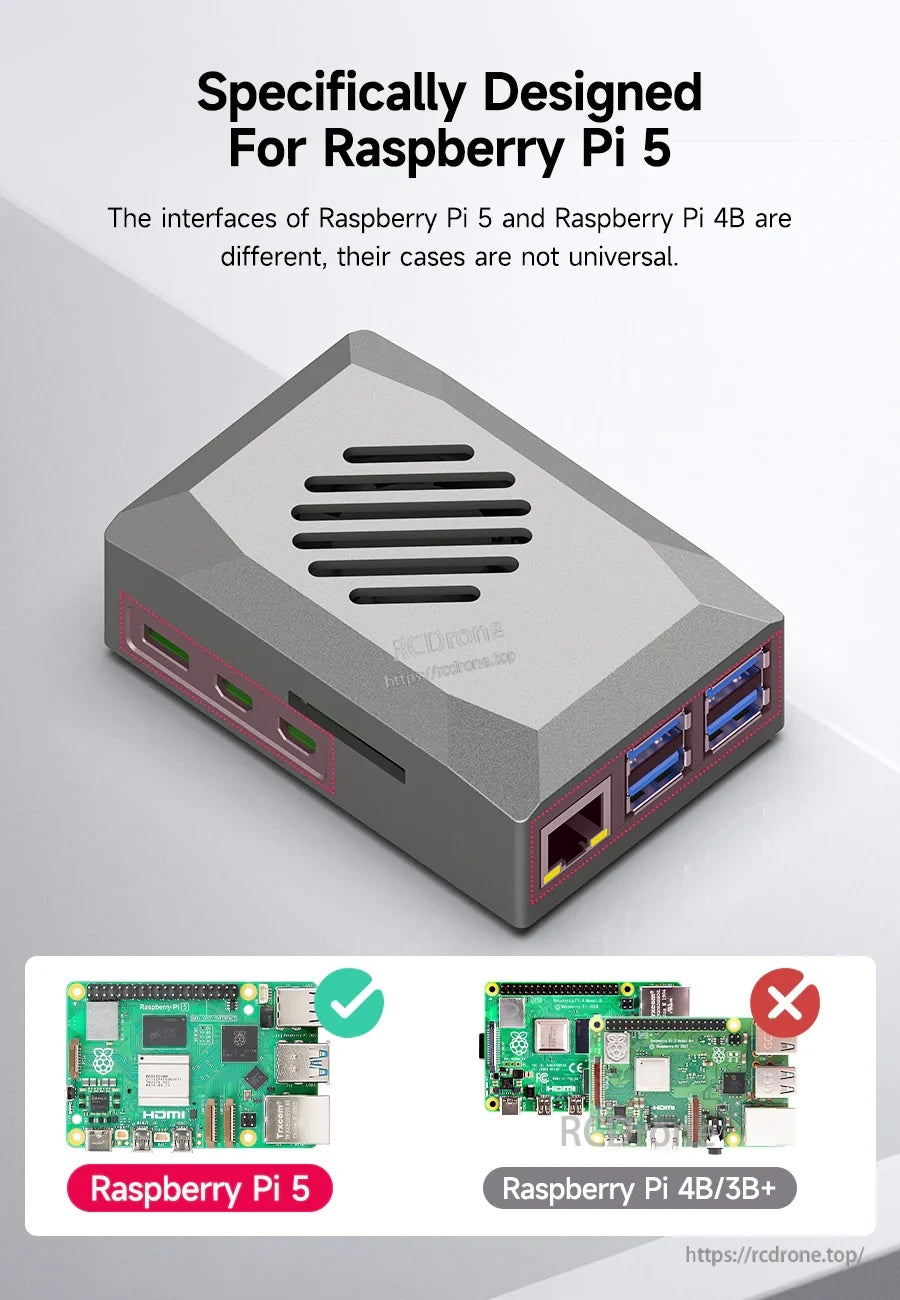

Made specifically for Raspberry Pi 5—port and connector alignment differs from Raspberry Pi 4B/3B+ cases.

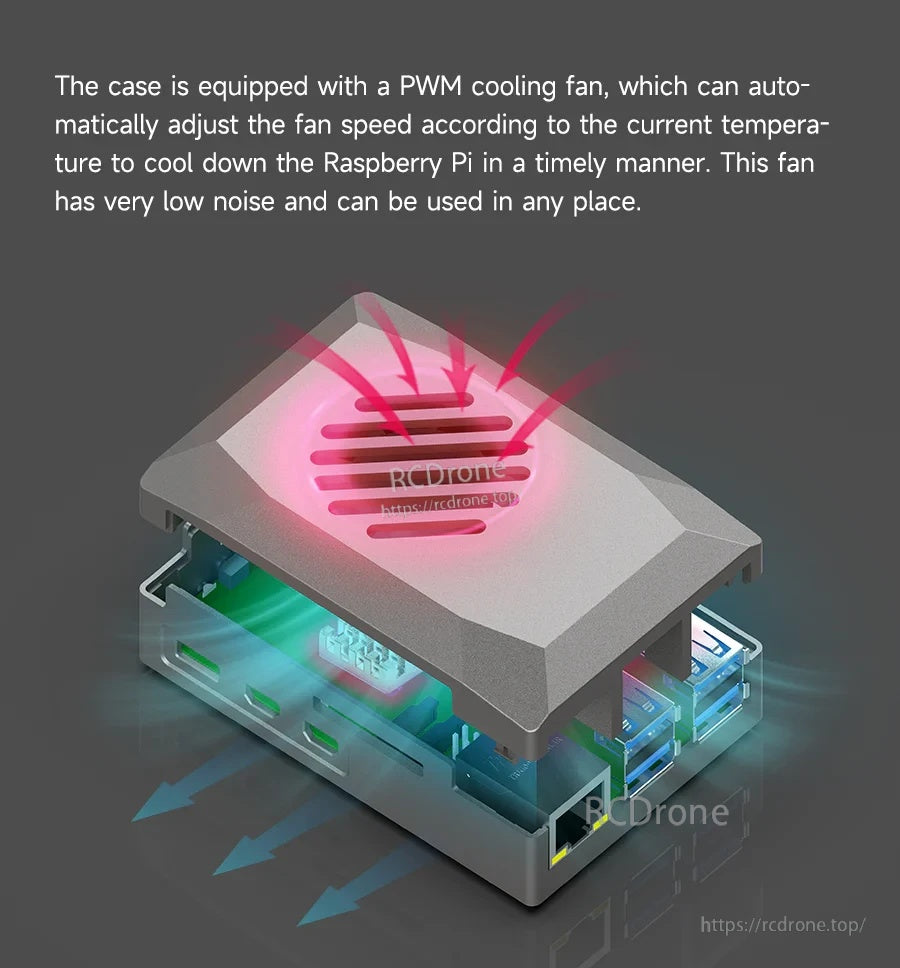

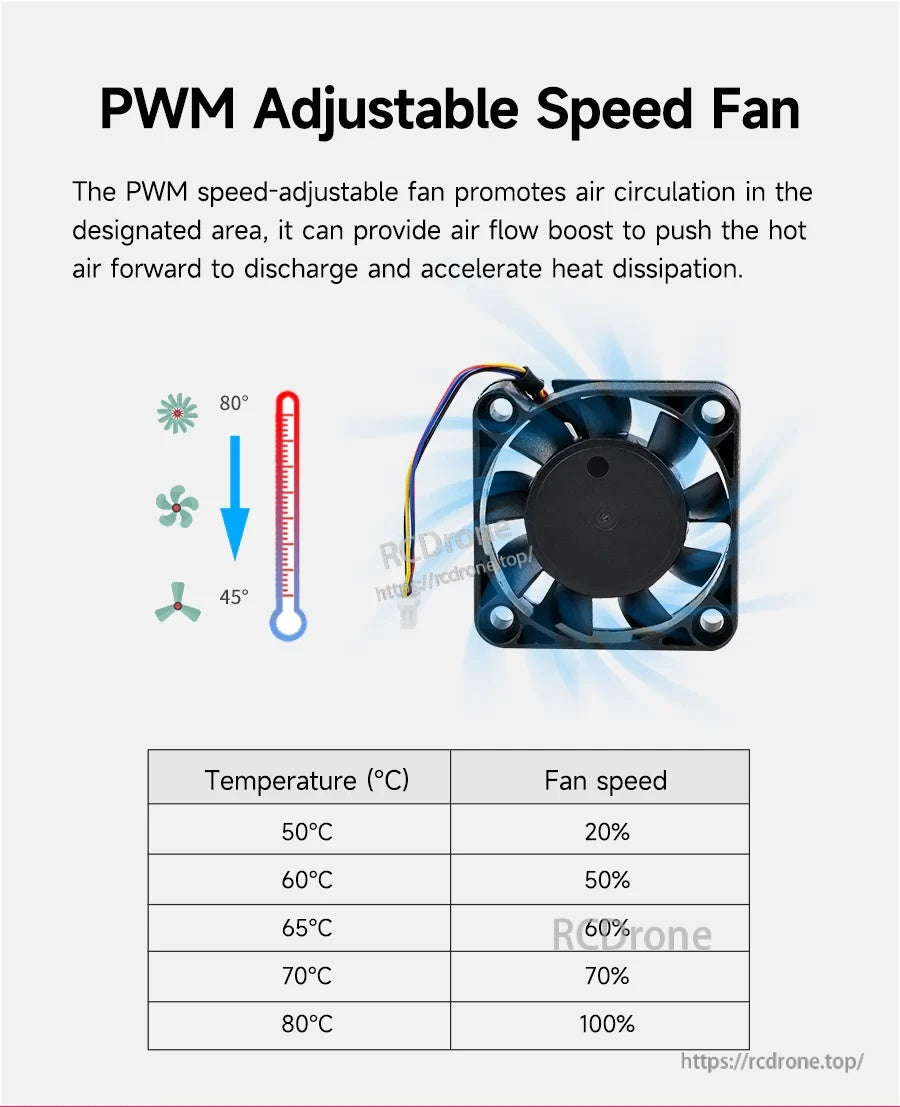

PWM fan cooling supports automatic speed adjustment to help balance airflow and noise as temperatures change.

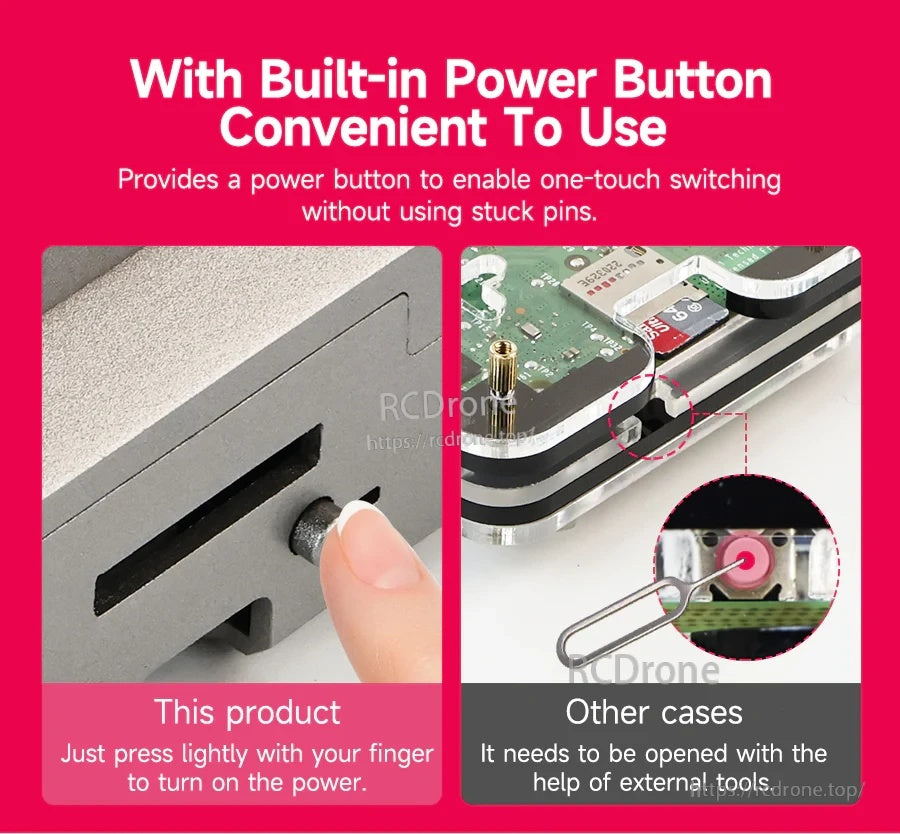

A built-in power button enables quick on/off control without needing to open the enclosure.

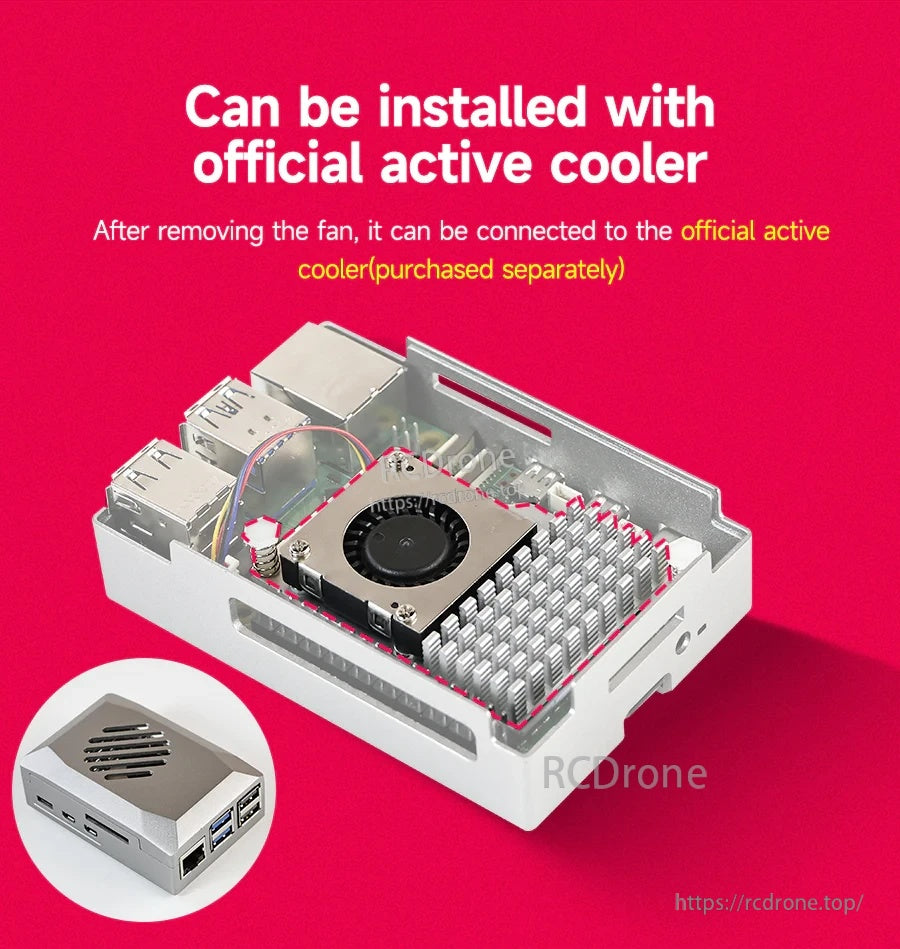

Fan removal leaves room to use the official Raspberry Pi 5 active cooler (sold separately) when preferred.

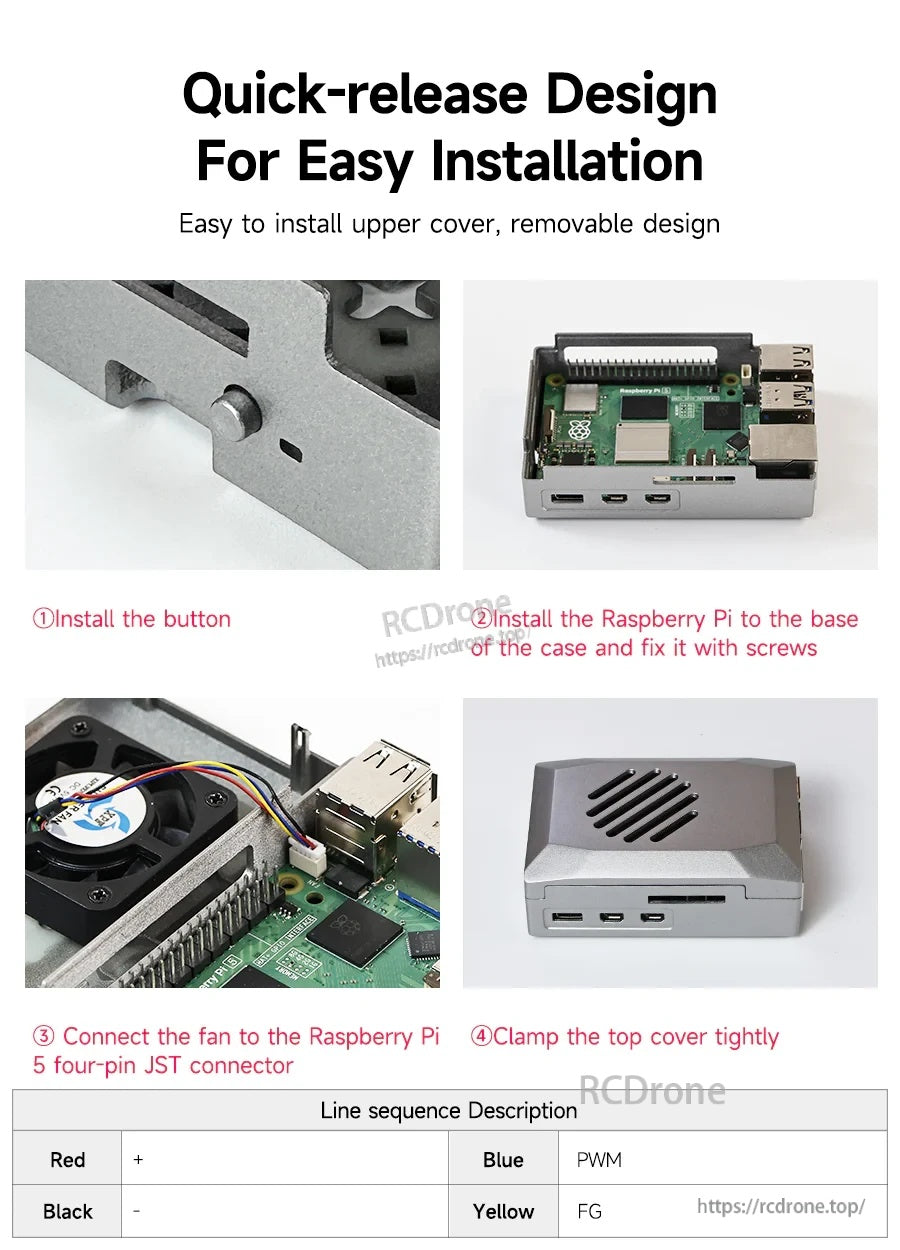

Quick-release structure simplifies assembly: mount the Pi, connect the 4-pin fan lead, then snap the cover into place.

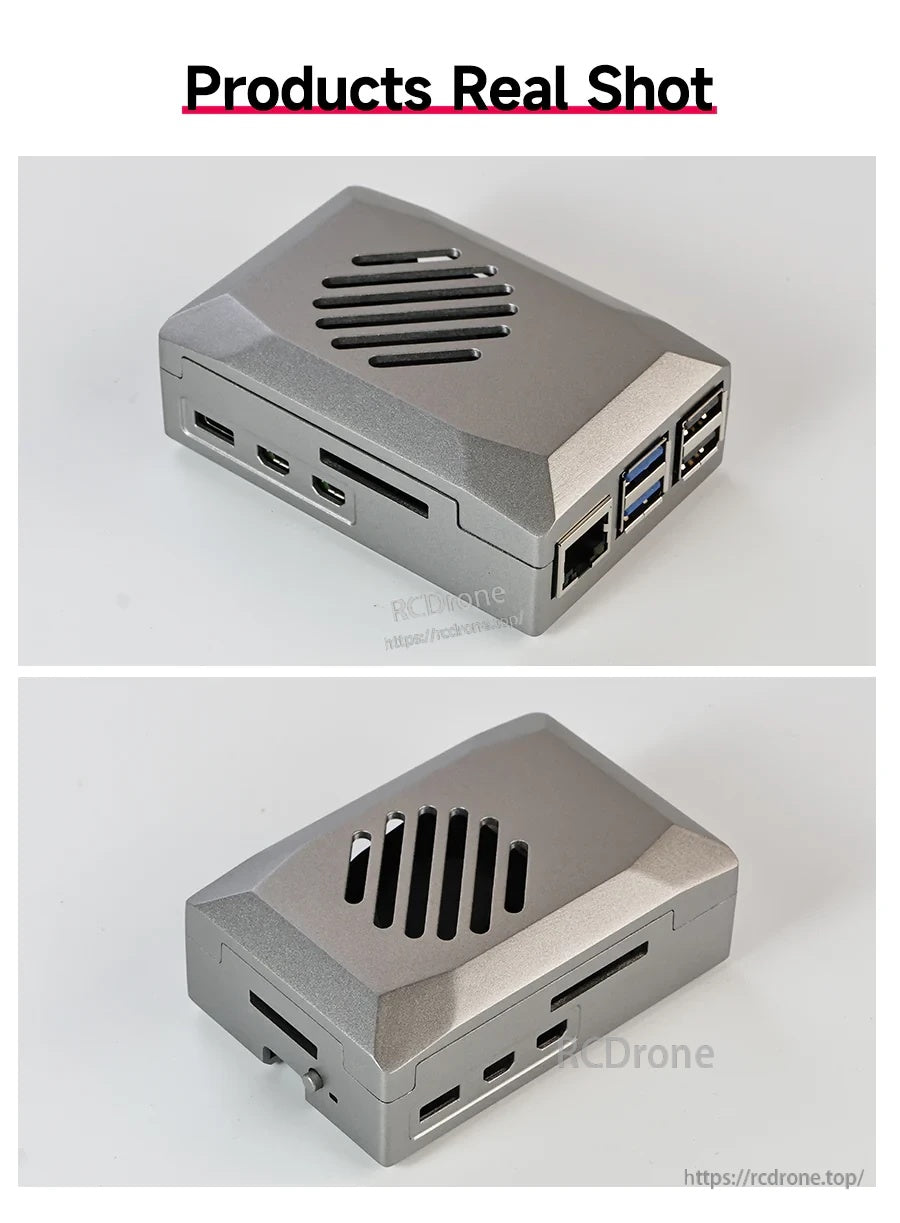

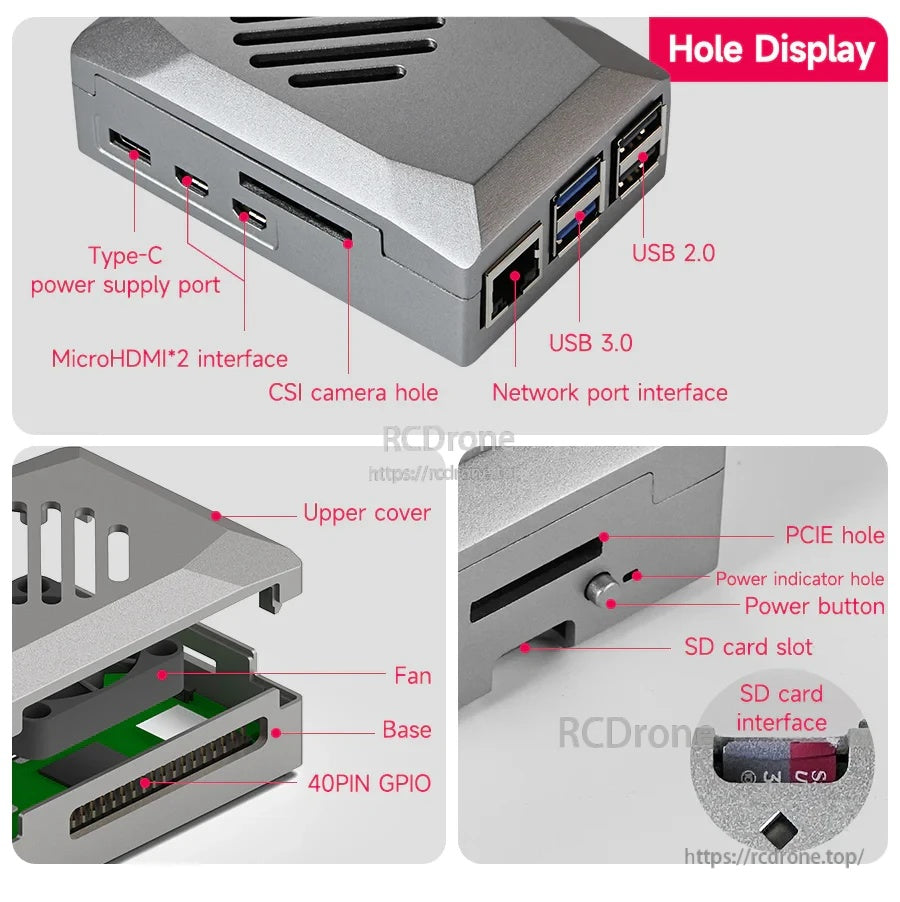

All key openings are kept accessible, including dual micro HDMI, USB, Type‑C power, SD slot, GPIO, and the power button.

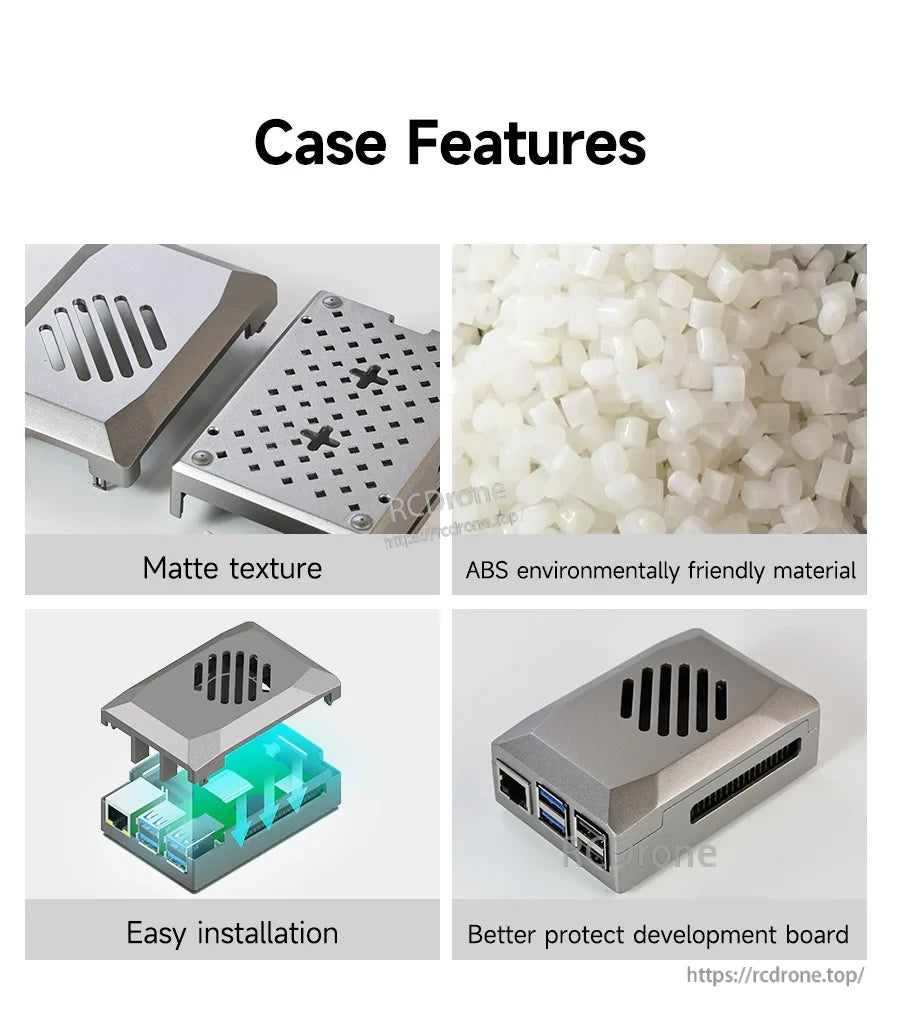

The matte silver finish pairs with a low-profile shape, while the vented lid supports active cooling during projects.

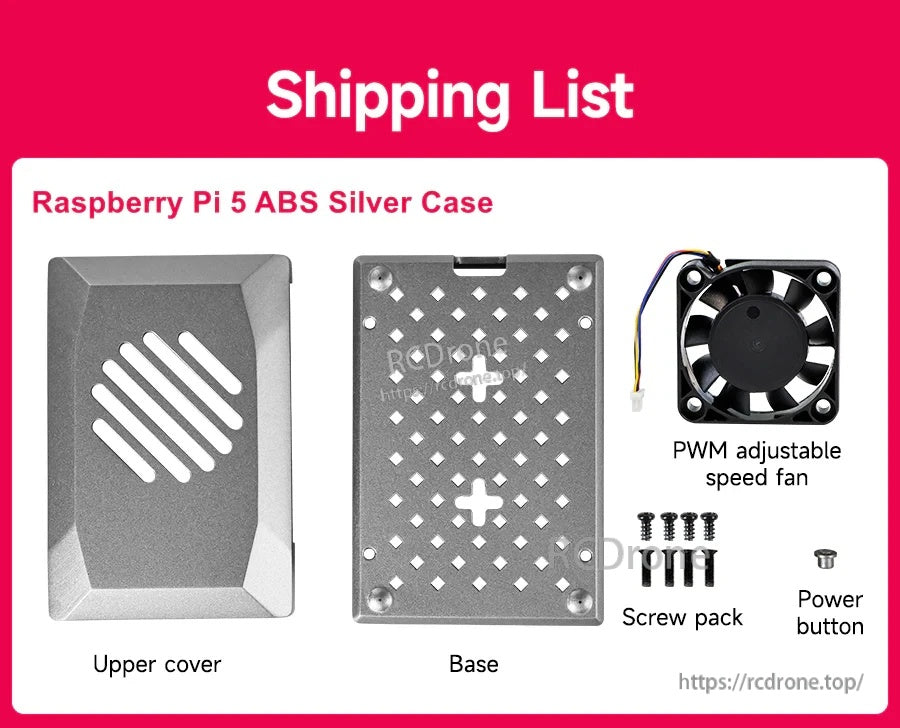

The Raspberry Pi 5 ABS silver case kit includes an upper cover and base along with a PWM adjustable-speed fan, screw pack, and power button.

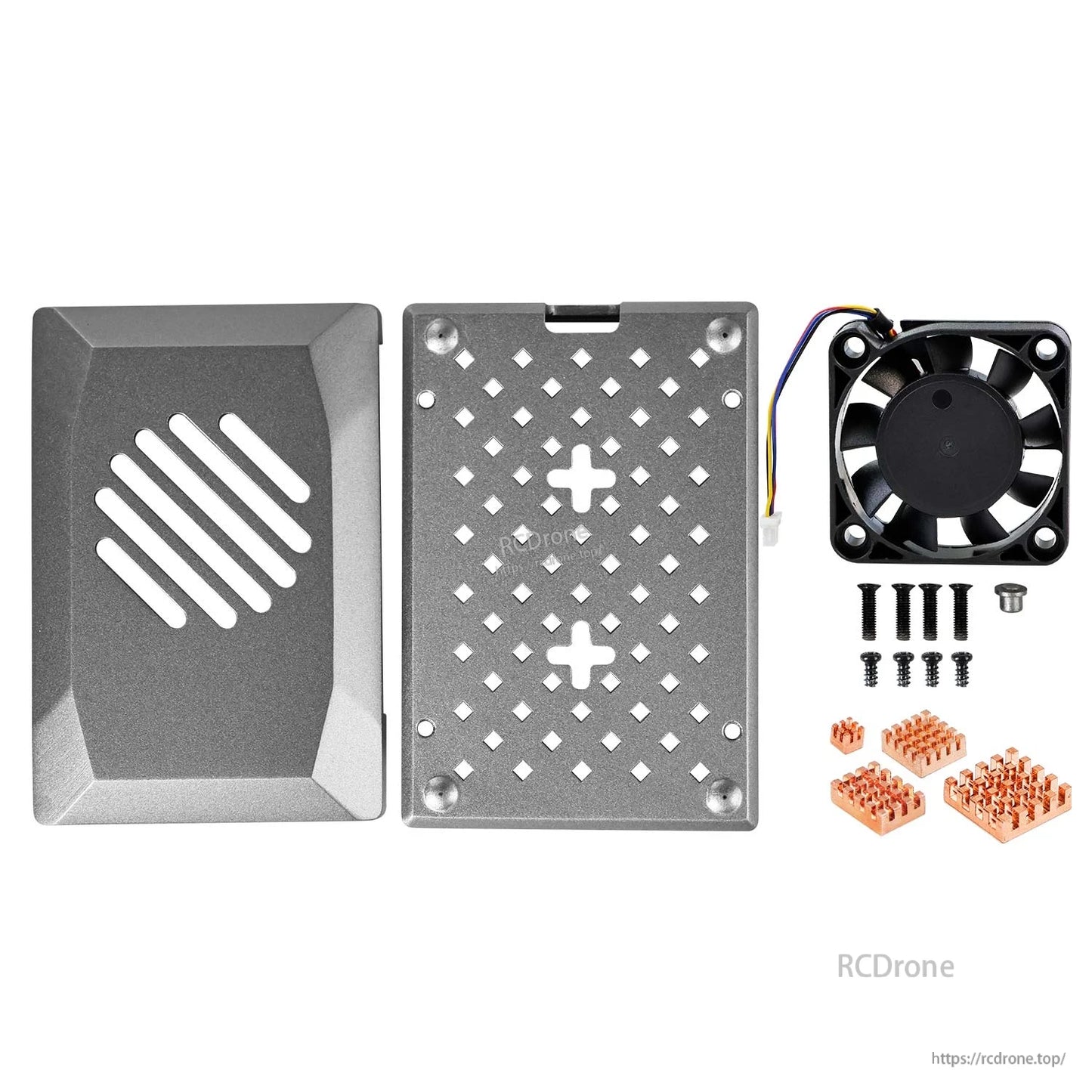

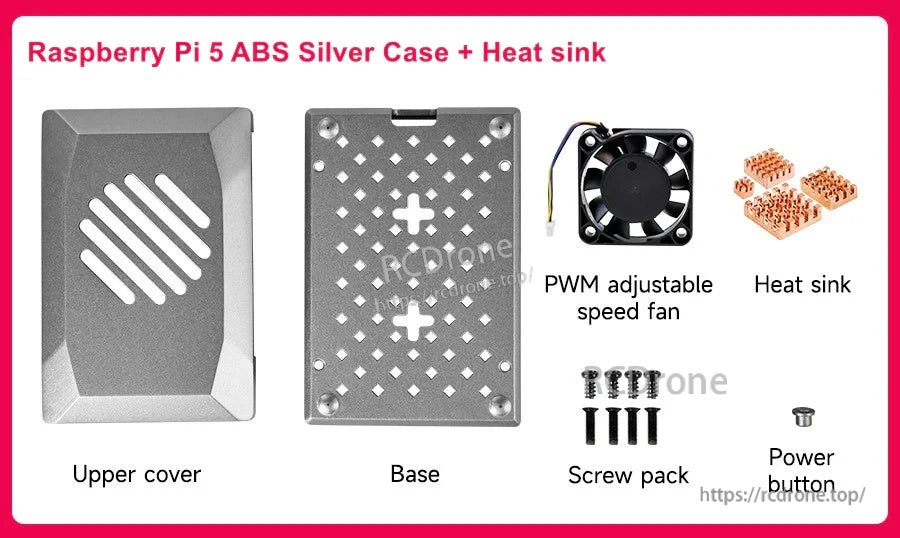

The Yahboom Raspberry Pi 5 ABS silver case kit includes a vented upper cover, base, PWM adjustable fan, heatsinks, screws, and a power button.
