MAD KONKER Star Sky 2207/2306 FPV Drone Motor V1.0 - 1850/1950/2040KV, 12N14P, M5, 4mm
MAD KONKER Star Sky 2207/2306 FPV Drone Motor V1.0 - 1850/1950/2040KV, 12N14P, M5, 4mm
MAD
無法載入取貨服務供應情況
Overview
MAD KONKER Star Sky Series is an FPV drone motor line featuring a dual-color design and a one-piece CNC-machined outer rotor for high-speed stability. Available in 2207 and 2306 sizes, the series is built on proven performance and finished in color.
Key Features
- Dual-color design motor series
- One-piece construction: one-piece CNC-machined outer rotor for high-speed stability
- Lightweight design: weight (incl. wires) 34.5 g; thrust output up to 1.7 kg (also listed up to 1.76 kg depending on KV/model)
- Precision response: 0.01 seconds response time
- Each rotor is professionally dynamically balanced for smooth, quiet operation at high speeds
- High-strength arc-shaped magnets for more even magnetic field distribution and consistent power output
- Component highlights: vibration damping pad, arc-shaped magnet, high-temperature enamel coated wire, premium imported bearings
- Enhanced performance: 35%
- Color options: Starlight Pink; Starlight Blue
Color Notes
- Starlight Pink: Soft pink tones paired with a refined pearlescent finish, producing a subtle shimmer under natural light
- Starlight Blue: Clear blue tone with a refined surface that subtly reflects light
Specifications
General (2207 / 2306)
| Series | KONKER x Star Sky Series Motor |
| Version | V1.0 |
| Color | Starlight Blue / Starlight Pink |
| Prop Mount | M5 |
| Shaft Diameter | IN: 4 mm |
| Slots / Poles | 12N14P |
| Dynamic Balance Test | ≤ 5 mg |
| Motor Mount Pattern | D:16 M3x4 |
| Wire Spec | 150 mm 20 AWG Silicone Wire |
| Compatibility | 5-Inch FPV |
Motor Size
| Model | Motor Size |
|---|---|
| Star Sky 2207 V1.0 | D:28.54 x 31.55 mm |
| Star Sky 2306 V1.0 | D:29.42 x 30.6 mm |
Star Sky 2207 V1.0 (Electrical / Performance)
| KV Option | No-Load Current | Max Current | Weight (Incl. Wires) | Phase Resistance | Max Thrust | Max Power | Package Weight |
|---|---|---|---|---|---|---|---|
| 1950 KV | 1.1 A / 10 V | 40 A | 34.5 g | 61 mΩ | 1.7 kg | 942 W | 45 g |
| 2040 KV | 1.3 A / 10 V | 42.8 A | 34.5 g | 55 mΩ | 1.76 kg | 1003 W | 45 g |
Star Sky 2306 V1.0 (Electrical / Performance)
| KV Option | No-Load Current | Max Current | Weight (Incl. Wires) | Phase Resistance | Max Thrust | Max Power | Package Weight |
|---|---|---|---|---|---|---|---|
| 1850 KV | 1.1 A / 10 V | 41.7 A | 34.5 g | 62 mΩ | 1.65 kg | 972 W | 45 g |
| 1950 KV | 1.3 A / 10 V | 42.2 A | 34.5 g | 53 mΩ | 1.66 kg | 981 W | 45 g |
For compatibility checks (frame clearance, prop fit, and KV selection), contact support at https://rcdrone.top/ or email support@rcdrone.top.
What’s Included
- M5 nut
- M3x8 pan head screws (x4)
- M3x4 pan head screw (x1)
- Washer (x1)
- O-ring (x1)
- Stickers (x2)
Applications
- 5-inch FPV builds requiring 2207 or 2306 motor sizing
Details

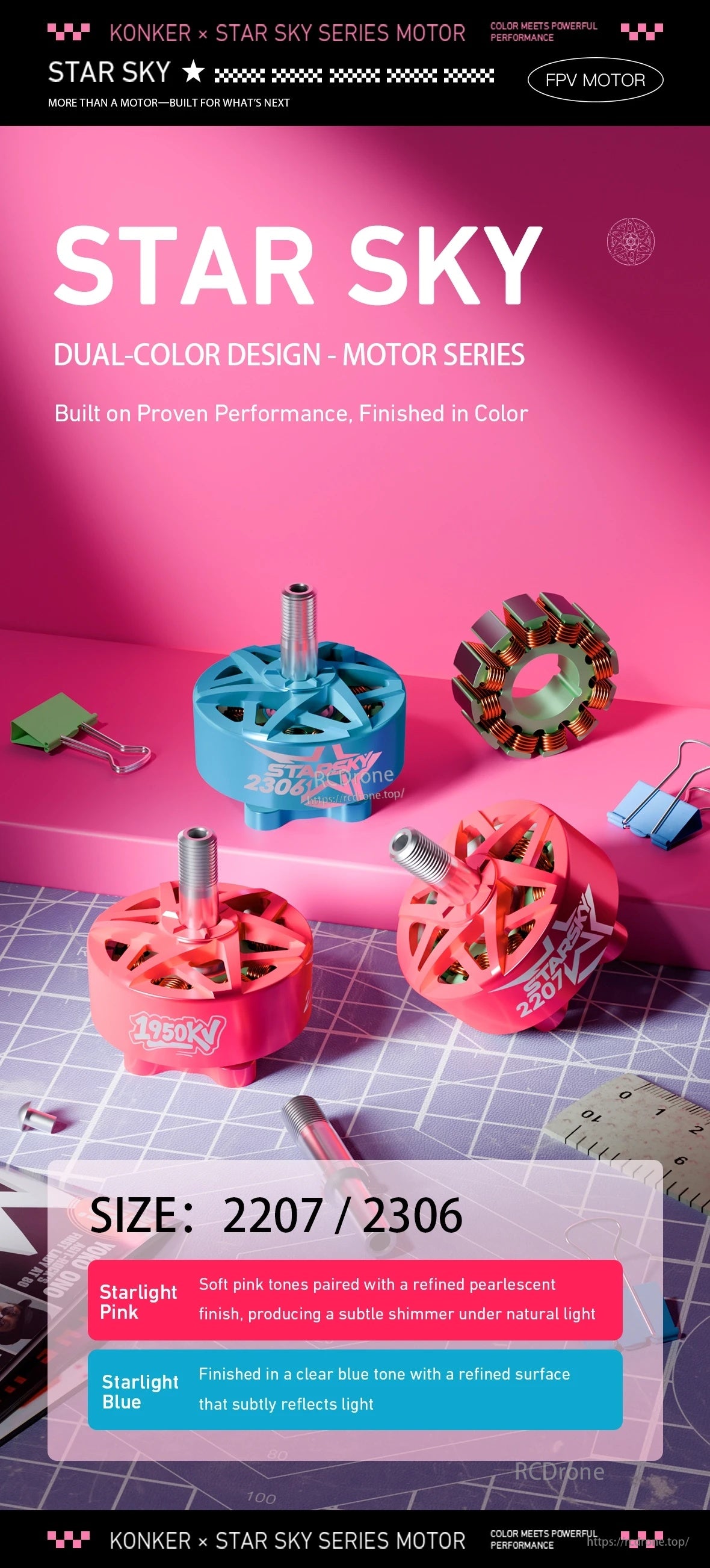

MAD KONKER Star Sky FPV drone motors come in starlight pink or starlight blue and are offered in 2207 or 2306 sizes.

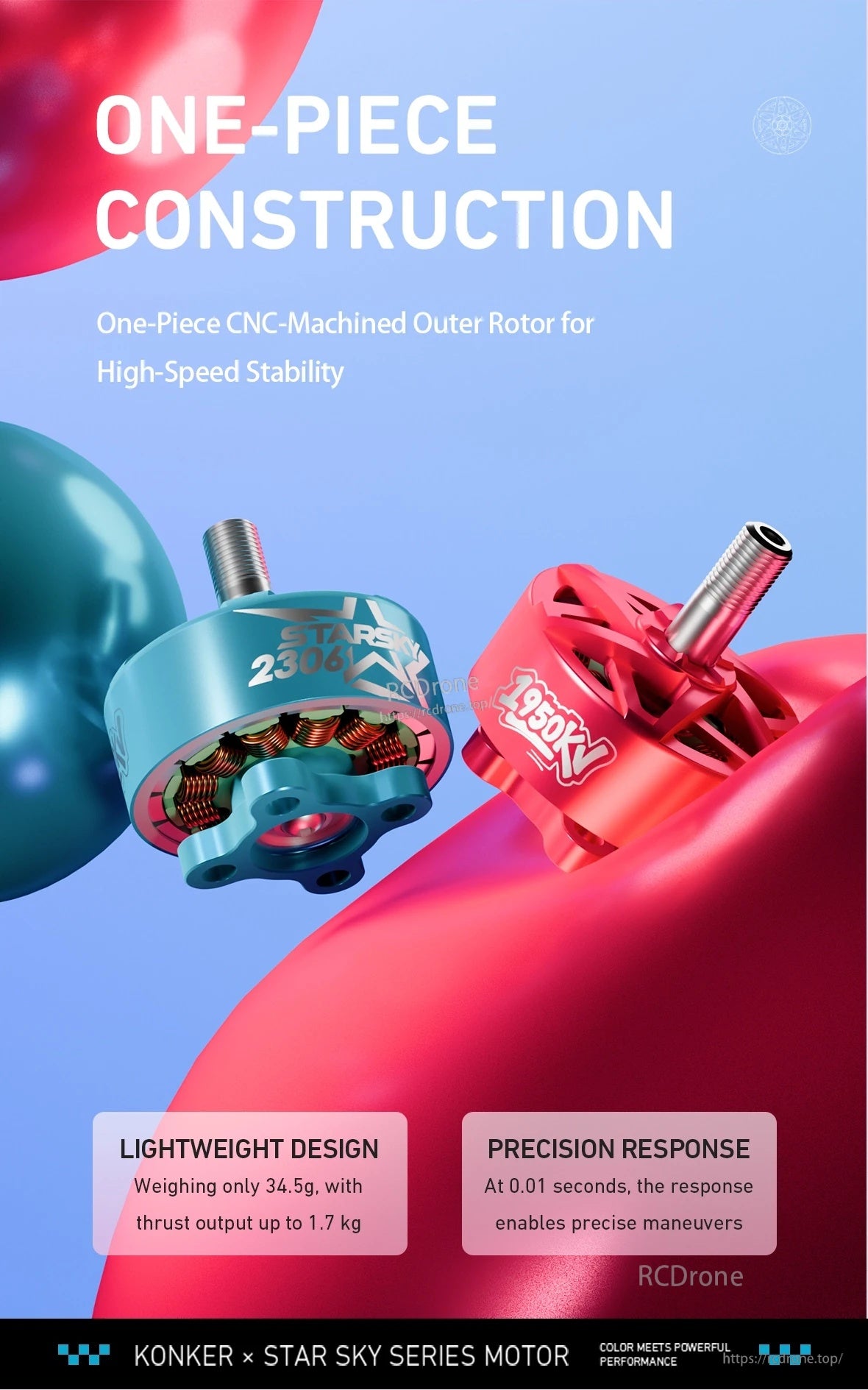

MAD KONKER Star Sky FPV drone motors feature a one-piece CNC-machined outer rotor design with lightweight 34.5 g construction and fast 0.01 s response.

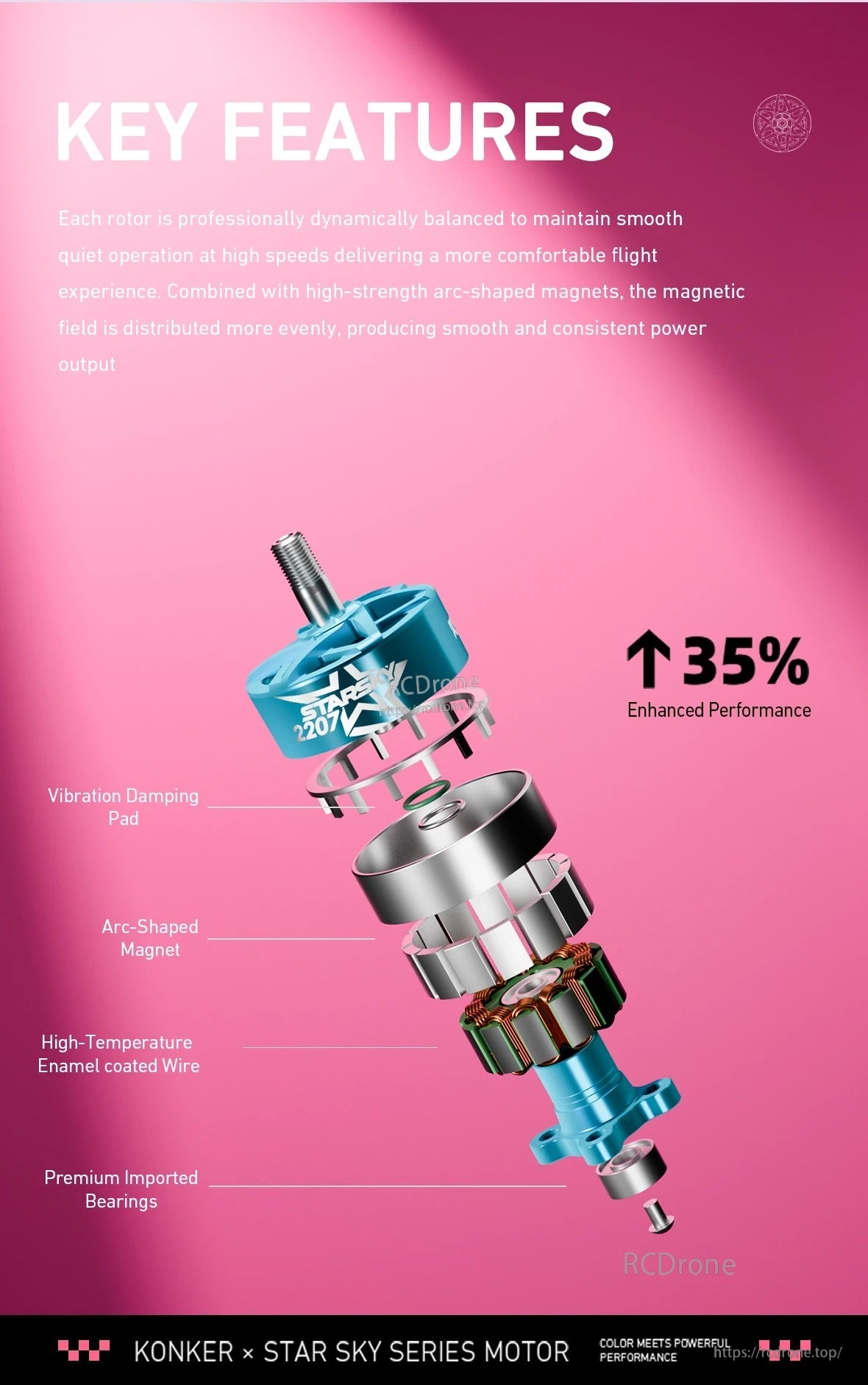

The MAD KONKER Star Sky series FPV motor uses an arc-shaped magnet design with a vibration damping pad, enamel-coated wire, and imported bearings.
MAD KONKER Star Sky series motors are presented as part of a ready-to-fly FPV drone setup for quick takeoff.

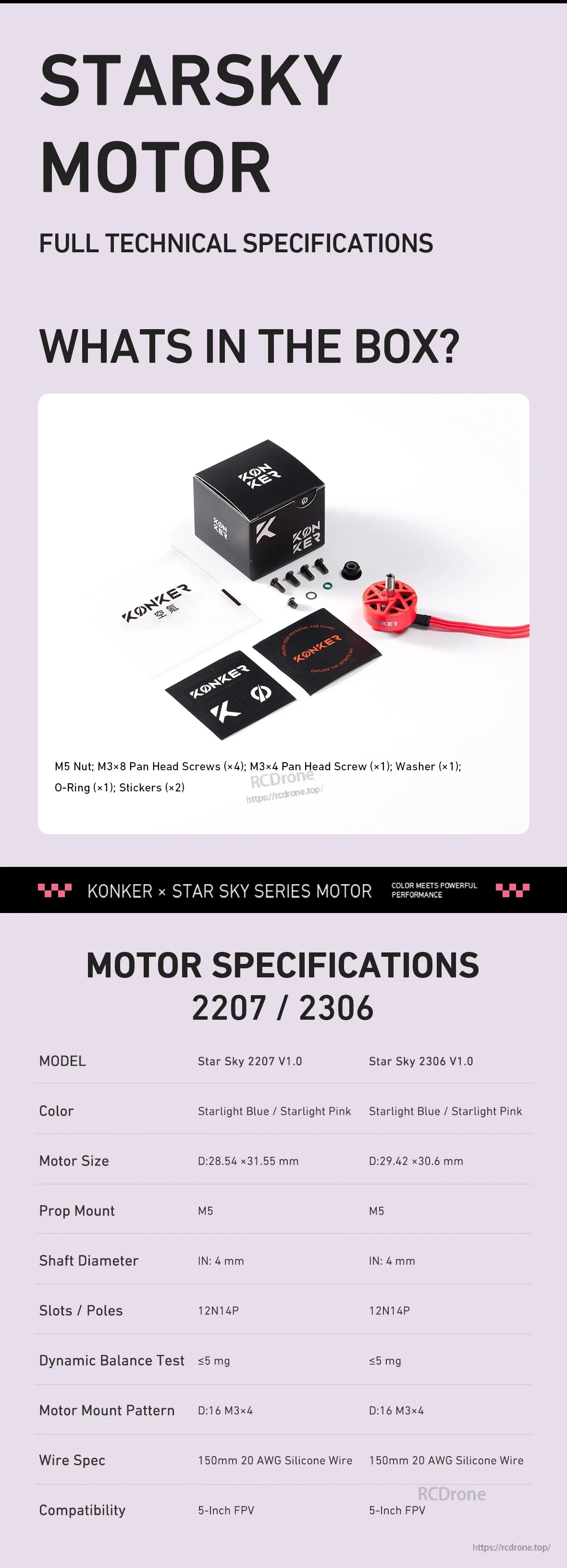

The StarSky 2207/2306 motor package includes the motor with leads along with the branded box and included mounting hardware.

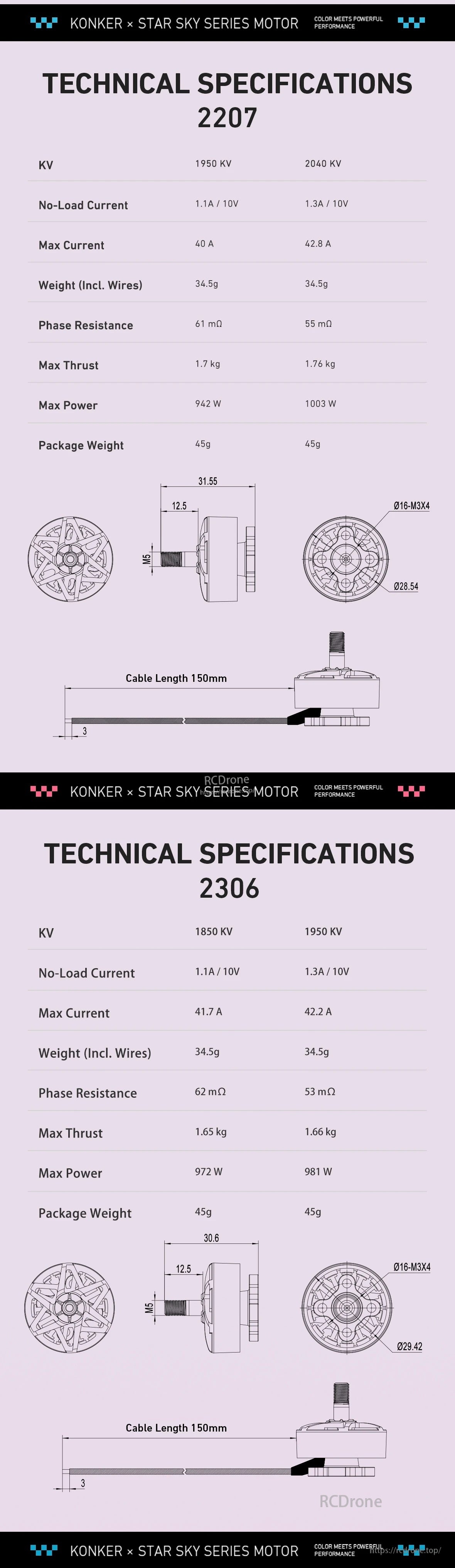

MAD KONKER Star Sky 2207/2306 motor specifications list key ratings and dimensions to help plan fit, wiring, and tuning for your FPV build.

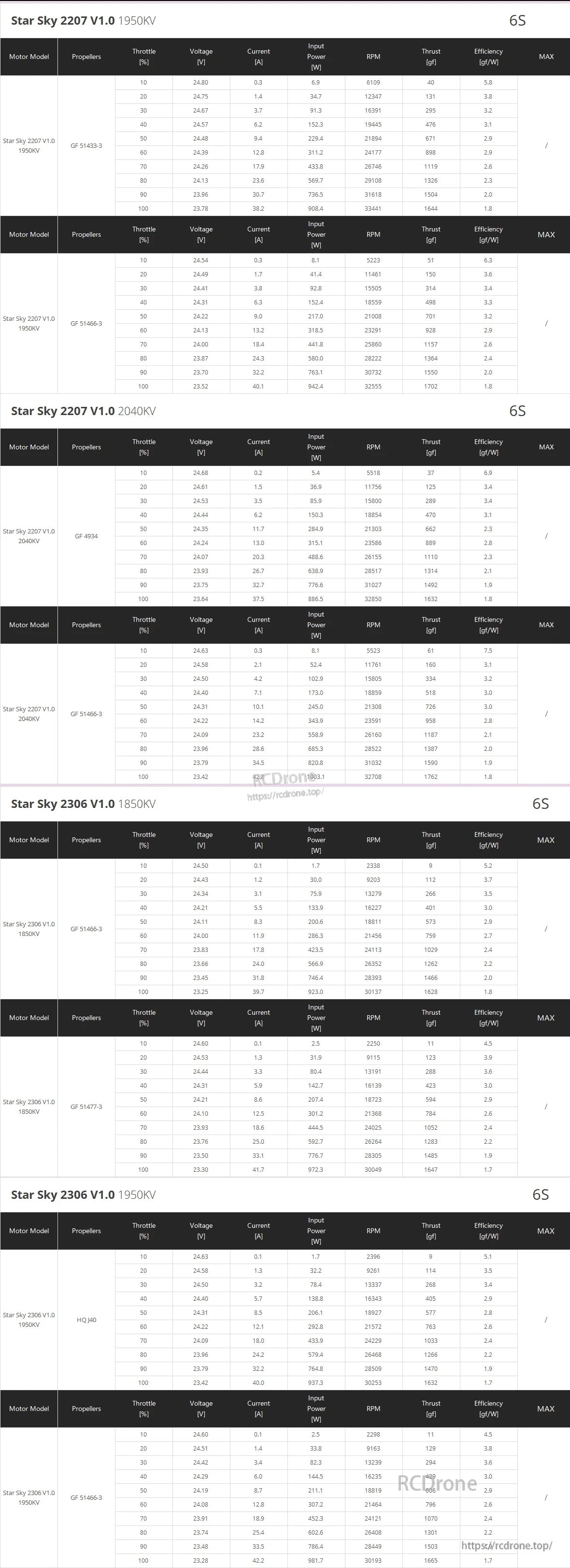

Star Sky 2207/2306 motor test data breaks down 6S performance by throttle with thrust and current figures for setup comparisons.
