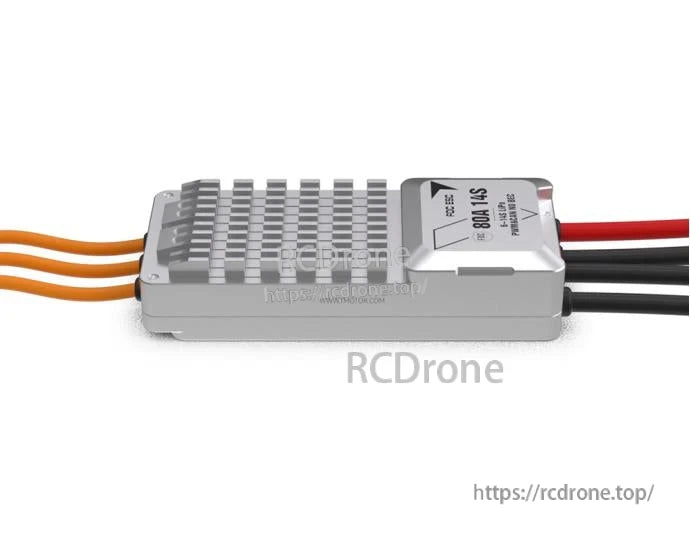

  • T-Motor V80A 14S UAV FOC ESC with finned aluminum heatsink, 80A label, and red/black power leads
1 10

T-Motor V80A 14S UAV FOC ESC (Electronic Speed Controller) 6-14S 40A Cont. 80A Peak PWM/CAN

T-Motor V80A 14S UAV FOC ESC (Electronic Speed Controller) 6-14S 40A Cont. 80A Peak PWM/CAN

T-MOTOR

$209.86 USD
$209.86 USD
特價 售罄
已包含稅額。 結帳時計算運費。
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
查看完整資訊

Overview

T-Motor V80A 14S is a UAV FOC ESC (electronic speed controller) designed for fast response, efficient driving, accurate control, and low-noise operation. It supports 6~14S LiPo (18~60V) input and provides PWM/CAN control with no BEC.

For pre-sales and technical support, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

  • Fast response
  • Efficient driving
  • Accurate control
  • Low-noise operation
  • PWM/CAN protocol support
  • No BEC

Recommendation

  • Motor: VL7015 KV190
  • ESC: V80A
  • Propeller: P24

Specifications

Model No. V80A 14S
Support Voltage 18~60V (6~14S)
Continuous Current 40A
Peak Current 80A (<10s)
Protocol PWM/CAN
BEC NO
Throttle Pos. Range 1040~1940
Throttle Refresh Frequency 50~500Hz
Throttle Response Speed 300ms
Standby Consumption ≤50mA@48V
ESC Size 84*35*19mm (L*W*H)
ESC Weight 78g (excl. cable) / 110g (Incl. Cables)
Input Cable Silicone Wire-Red/Black-12AWG-180mm
Output Cable Silicone Wire-Orange-14AWG-110mm
Signal Cable Shielded Cables-Black-OD4.2-5C-450mm-JP-3P*2-Black Blank White-Green Yellow Gray
Encoder Cables Shielded Cables-Black-24AWG-5C-450mm-M6 Aviation Connector

What’s Included

  • Packaging Box*1
  • V80A 14S*1

Downloads

Details

T-Motor V80A 14S

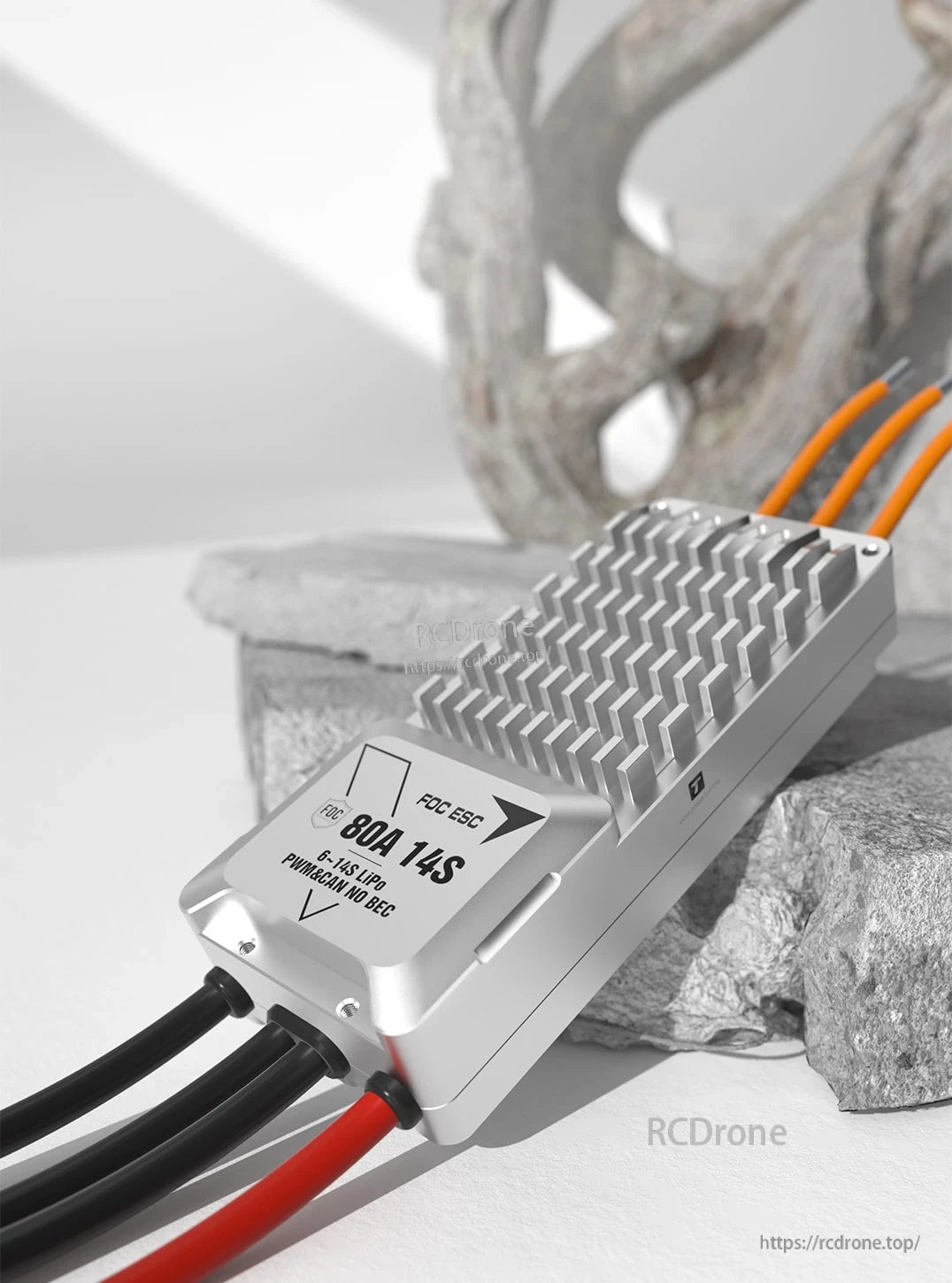

The V80A FOC ESC uses a finned aluminum heatsink and clearly labeled 80A 14S specs, with PWM/CAN control and no BEC noted on the case.

V80A 14S technical drawingV80A 14S packing list

The T-Motor V80A 14S ESC comes with its packaging box and a finned aluminum housing with pre-attached power leads for straightforward installation.
