Deep Space DINO 20 2-Inch Freestyle FPV Frame Kit for DJI O4 Pro/O4
Deep Space DINO 20 2-Inch Freestyle FPV Frame Kit for DJI O4 Pro/O4
Deep Space
سعر عادي
$41.26 USD
سعر عادي
سعر البيع
$41.26 USD
سعر الوحدة
per
Taxes included.
الشحن محسوب عند السداد.
تعذر تحميل توفر الالتقاط
Overview
The Deep Space DINO 20 Frame Kit is a 2-inch freestyle FPV frame for indoor and outdoor flight, with listed compatibility for DJI O4 Pro and DJI O4 VTX systems. Its integrated injection-molded body is connected to the lower carbon-fiber plate by four damping balls for stable video.
Features

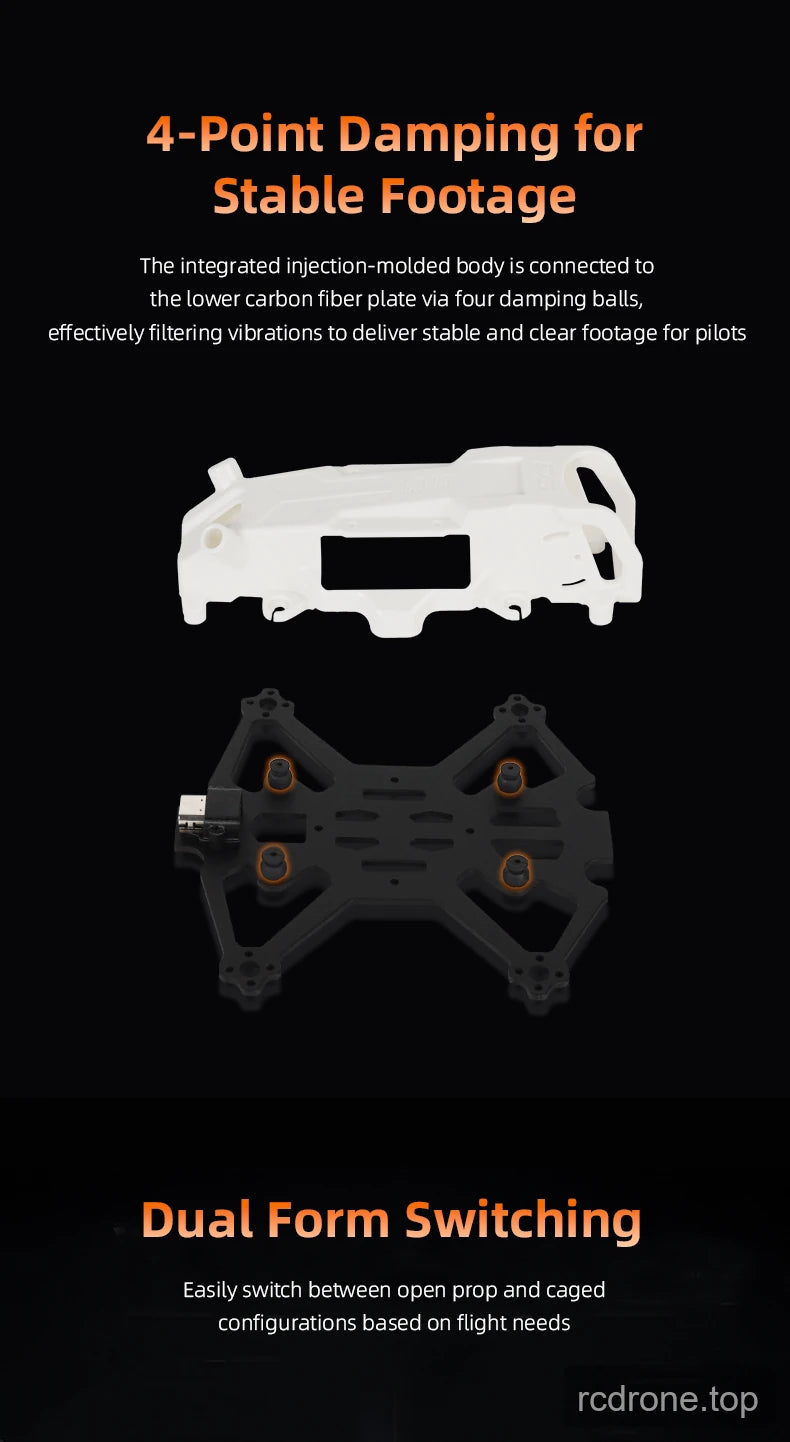

Four-Point Damping System
Four damping balls connect the integrated injection-molded body to the lower carbon-fiber plate.
Open-Prop or Caged Configuration
- Supports open-prop and caged configurations.
- Open-prop mode is labeled lightweight.
- Caged mode is labeled impact-resistant and safe.
- The integrated injection-molded body is described as rugged yet lightweight.
Specifications
| Wheelbase | 113 mm |
|---|---|
| Illustrated overall size | 110 × 106 mm |
| Maximum prop size | 2.2 inches |
| Motor mounting pattern | 9 × 9 mm |
| AIO / FC mounting | 25.5 × 25.5 mm (M2) |
| VTX mounting holes | 20 × 20 mm (M2) |
| VTX module dimensions | 34 × 34 × 12 mm |
| VTX antenna mount diameter | 5 mm |
| VTX compatibility | DJI O4 Pro / DJI O4 |
| Propeller interference | None |
| Main board thickness | 2 mm |
| Weight | 32 g |
All dimensions are manually measured with a tolerance of ±0.2 mm; refer to the actual product for details.
Applications
Designed for indoor and outdoor freestyle FPV flight.
What's Included
- 1 × Frame
- 1 × Kit
Visual Details
Features and Design
