Flysky FS-R11P 2.4GHz 11CH ANT Receiver PWM/PPM i-BUS S.BUS for FS-G11P RC Car Boat
Flysky FS-R11P 2.4GHz 11CH ANT Receiver PWM/PPM i-BUS S.BUS for FS-G11P RC Car Boat
FlySky
سعر عادي
$25.00 USD
سعر عادي
سعر البيع
$25.00 USD
سعر الوحدة
per
Taxes included.
الشحن محسوب عند السداد.
تعذر تحميل توفر الالتقاط
Overview
Flysky FS-R11P is a 2.4GHz ISM 11-channel receiver based on the ANT protocol. It supports bidirectional transmission and a compact design with an external single antenna. Signal outputs include PWM, PPM, i-BUS, and S.BUS, making it suitable for a variety of RC cars and boats when used with an ANT-protocol transmitter such as the FS-G11P.
Key Features
- 11-channel receiver with bidirectional transmission
- ANT RF protocol
- Multi-output support: PWM / PPM / i-BUS / S.BUS
- External single antenna design
- Firmware update supported
Specifications
| Brand | Flysky |
| Product Name | FS-R11P Receiver |
| Number of PWM Channels | 11CH |
| RF | 2.4GHz ISM |
| Maximum Power | <20 dBm (e.i.r.p.) (EU) |

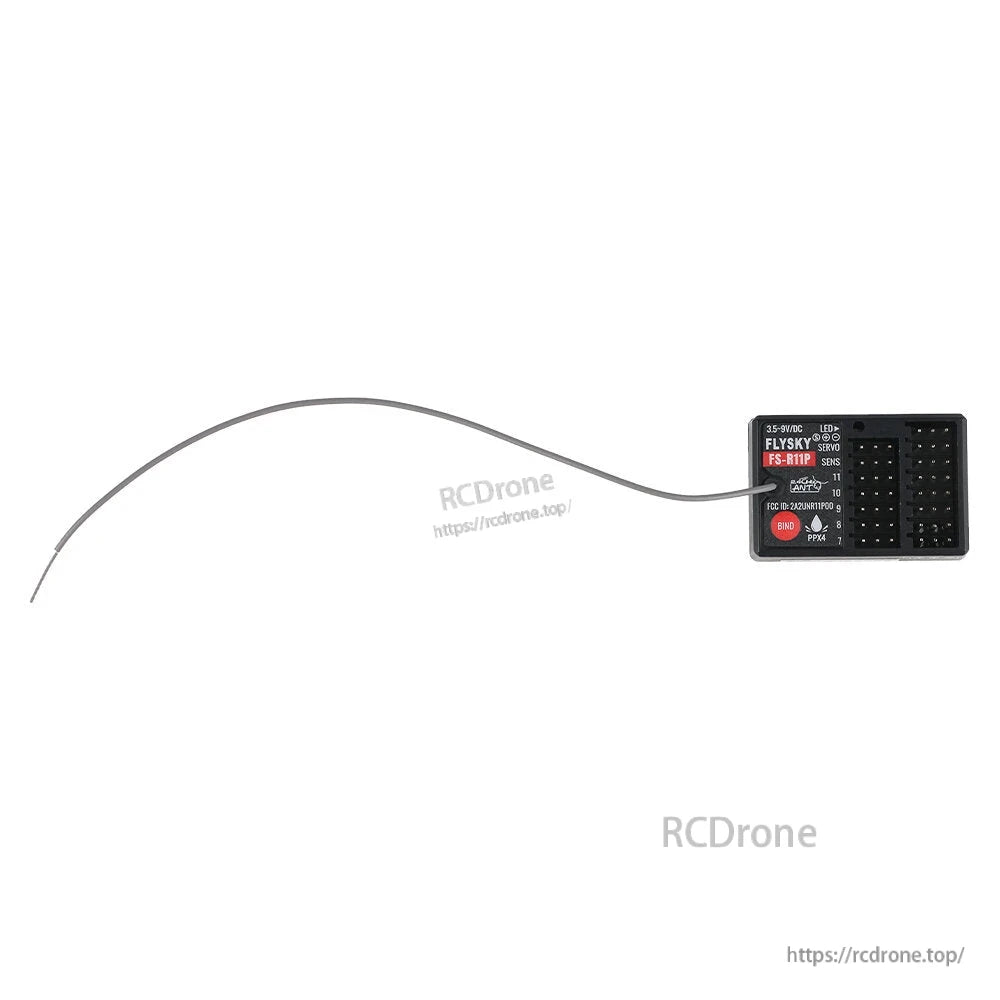

| Antenna | External single antenna |
| Distance | >= 300 m (Ground distance without interference) |
| RF Protocol | ANT |
| Resolution | 4096 |
| Data Output | PWM / PPM / i-BUS / S.BUS |
| Operating Voltage | 3.5 ~ 9V/DC |
| Firmware Update | Supported |
| Temperature Range | -10°C ~ +60°C |
| Humidity Range | 20% ~ 95% |
| WaterProof | PPX4 |
| Dimensions | 37.0 mm x 25 mm x 13.3 mm |
| Weight | 10 g |

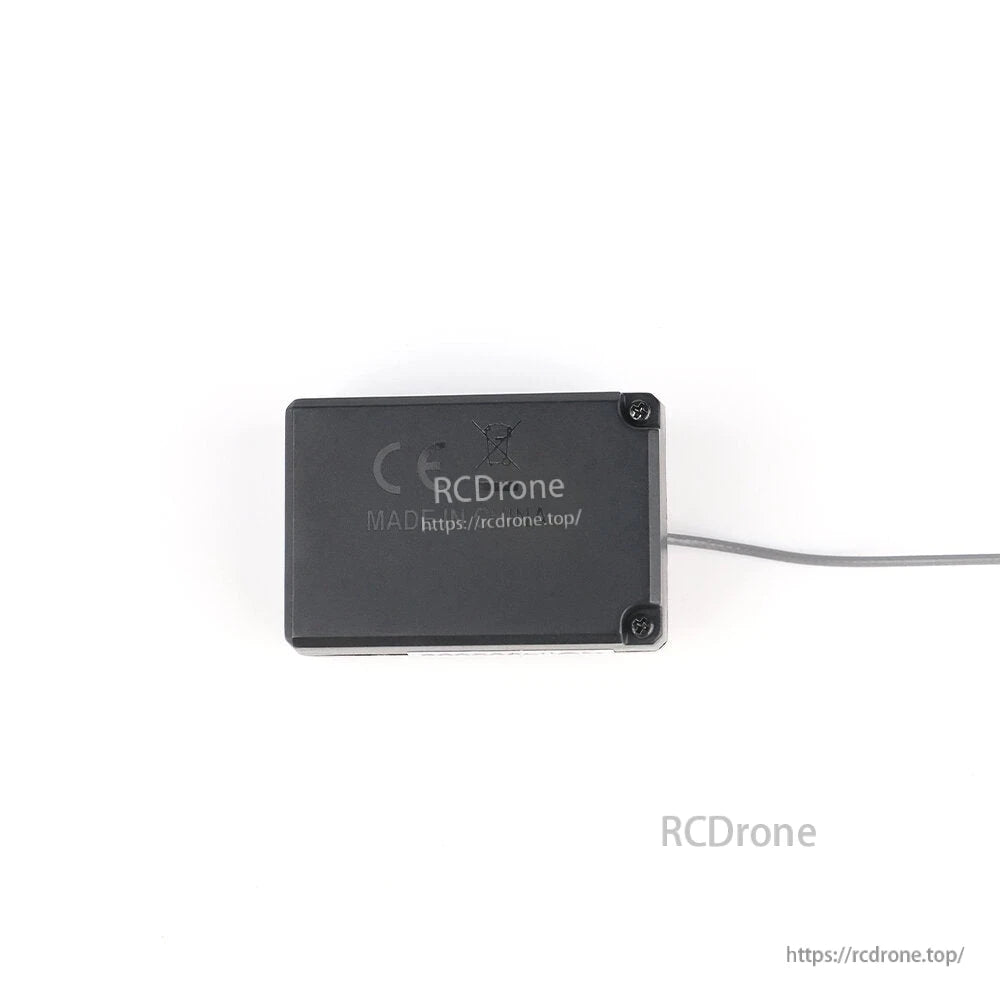

| Certifications | CE, FCC ID: 2A2UNR11P00 |
| Compatible Transmitters | FS-G11P (Adapts transmitters with ANT protocol) |
| Compatible RC Models | Cars or boats |
What’s Included
- 1x Flysky FS-R11P Receiver
Applications
- RC cars and boats requiring an ANT-protocol 2.4GHz receiver
- Installations needing PWM, PPM, i-BUS, or S.BUS output options
For compatibility questions (for example, ANT-protocol transmitter support) or after-sales assistance, contact support@rcdrone.top or visit https://rcdrone.top/.
