Menace FPV Goggle Pack RHCP Antenna Combo (Pico Patch + Periscope Omni) SMA Connectors 5.8GHz
Menace FPV Goggle Pack RHCP Antenna Combo (Pico Patch + Periscope Omni) SMA Connectors 5.8GHz
Menace RC
تعذر تحميل توفر الالتقاط
Overview
The Menace FPV Goggle Pack Antennas set combines a compact receiving patch antenna with a tall omni antenna to improve the FPV goggle reception experience straight out of the box. This proven matched combination is designed to reduce guesswork when selecting a goggle receiving antenna setup, whether starting out or upgrading an FPV system.

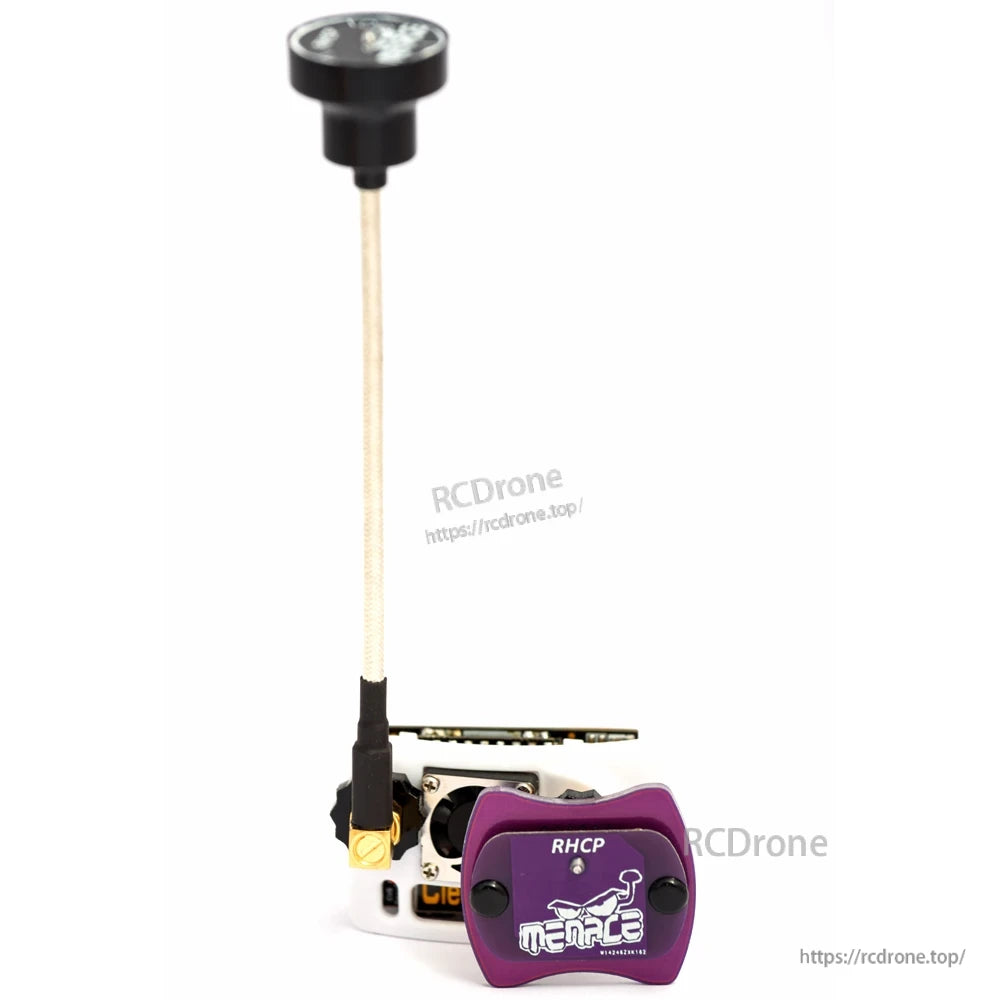

The PICOpatch is a small receiving patch antenna designed for strong performance, while the Periscope Omni positions the active antenna element above head height for clearer reception when flying in any direction, including behind the pilot.
Key Features
- Matched patch + omni goggle antenna combination
- 5.8 GHz band coverage (per listed frequency ranges)
- Circular polarization options listed: LHCP or RHCP
- SMA connectors for goggle receiver connections (including SMA 90° connector on the omni)
Specifications
Pico Patch
| Frequency range | 5645 - 5945 Mhz |
| Gain | 9.4 dBi |
| Beam width | 61° at -3db points |
| Polarization | Left or Right Hand Circular Polarised (LHCP or RHCP) |
| Connector | SMA Connector (Fits Fatshark Goggles) |
| Dimensions | 37.0mm x 33.6mm x 19.2mm |
| Weight | 10 grams |
| Note | (Check polar plot comparison invader actual angular db) |
Periscope Omni
| Center frequency | 5.8 GHz |
| Frequency range | 5550 - 6050 MHz |
| Matching | S11 < -20dB, VSWR <1.22 |
| Gain / efficiency | 1.09dB with efficiency: 92% |
| Axial ratio | <1.3 |
| Beamwidth | 360 degrees |
| Polarization | Left or Right Hand Circular Polarised (LHCP or RHCP) |
| Connector | SMA 90 Degree Connector |
| Height | 138mm |
| Weight | 14grams |
What's Included

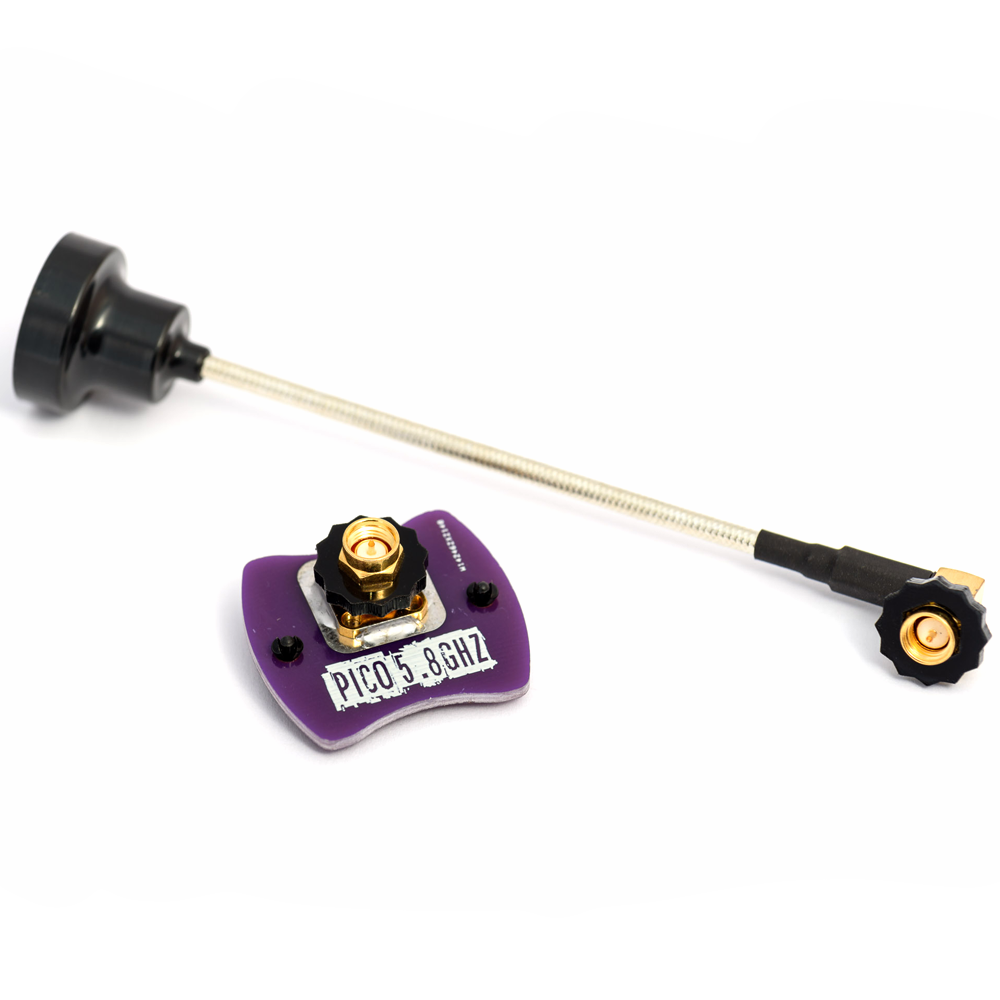

- 1x Pico Patch Antenna
- 1x Periscope Omni Antenna
- 2x SMA finger spinners
For pre-sales compatibility questions (for example, SMA fitment on specific FPV goggles) or order support, contact support@rcdrone.top or visit https://rcdrone.top/.
