HGLRC Wind5 Lite V2 Racing Frame (camouflage)

Overview

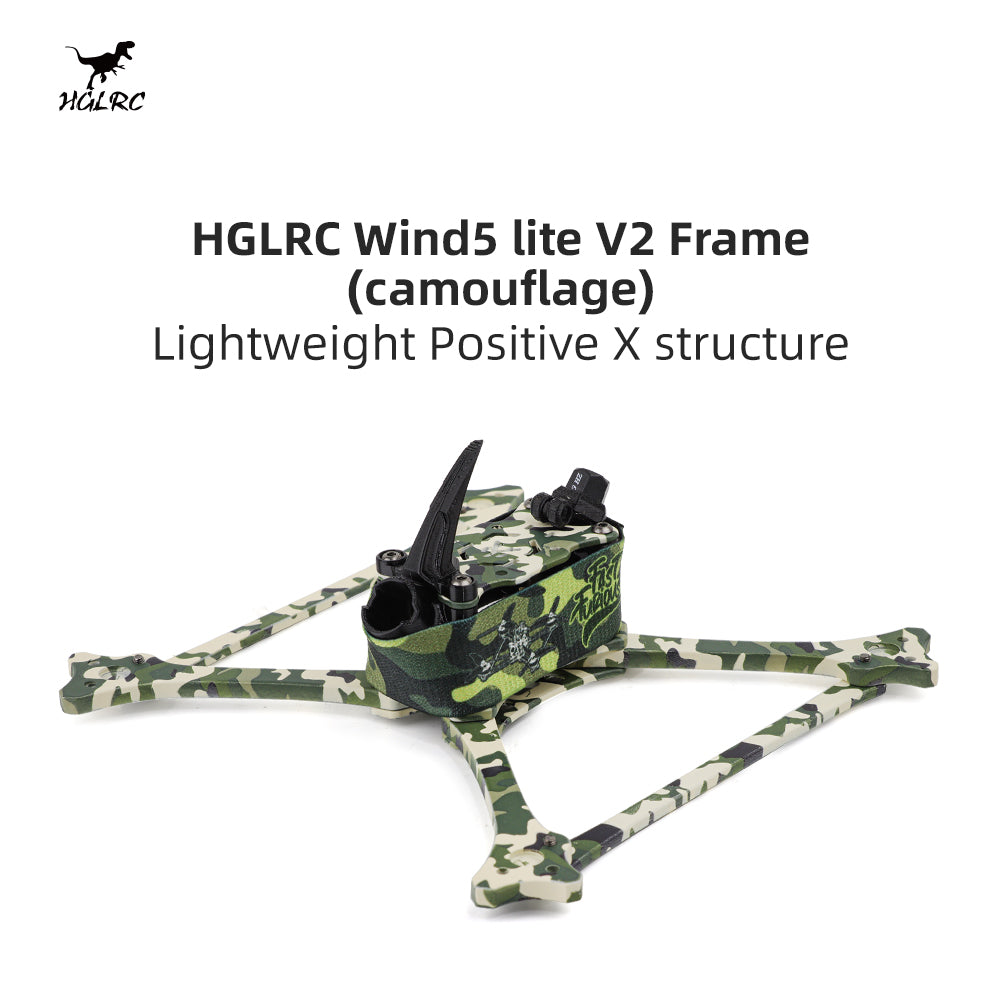

HGLRC Wind5 Lite V2 is a lightweight racing frame for racing drone competitions, featuring a water-transfer camouflage finish and a Positive X structure with a shortened 195mm wheelbase for improved flight feel. The frame uses high-strength carbon fiber with customized high-strength 7075 aviation-grade aluminum parts/columns, and includes an arm protection rod design. It also supports quick disassembly of the arms for easier maintenance.

Key Features

• Water-transfer camouflage appearance

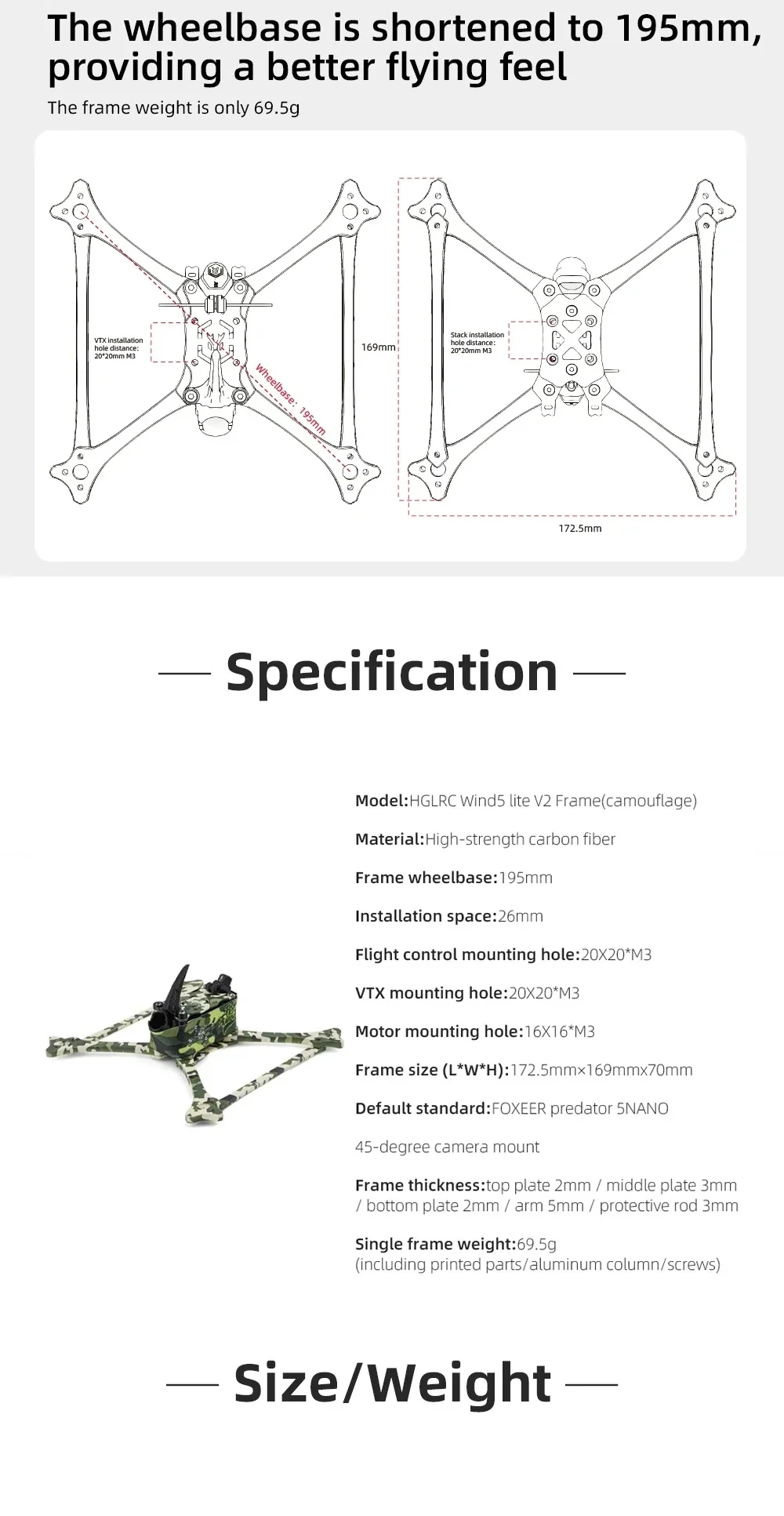

• Positive X structure; wheelbase shortened to 195mm
• High-strength carbon fiber construction

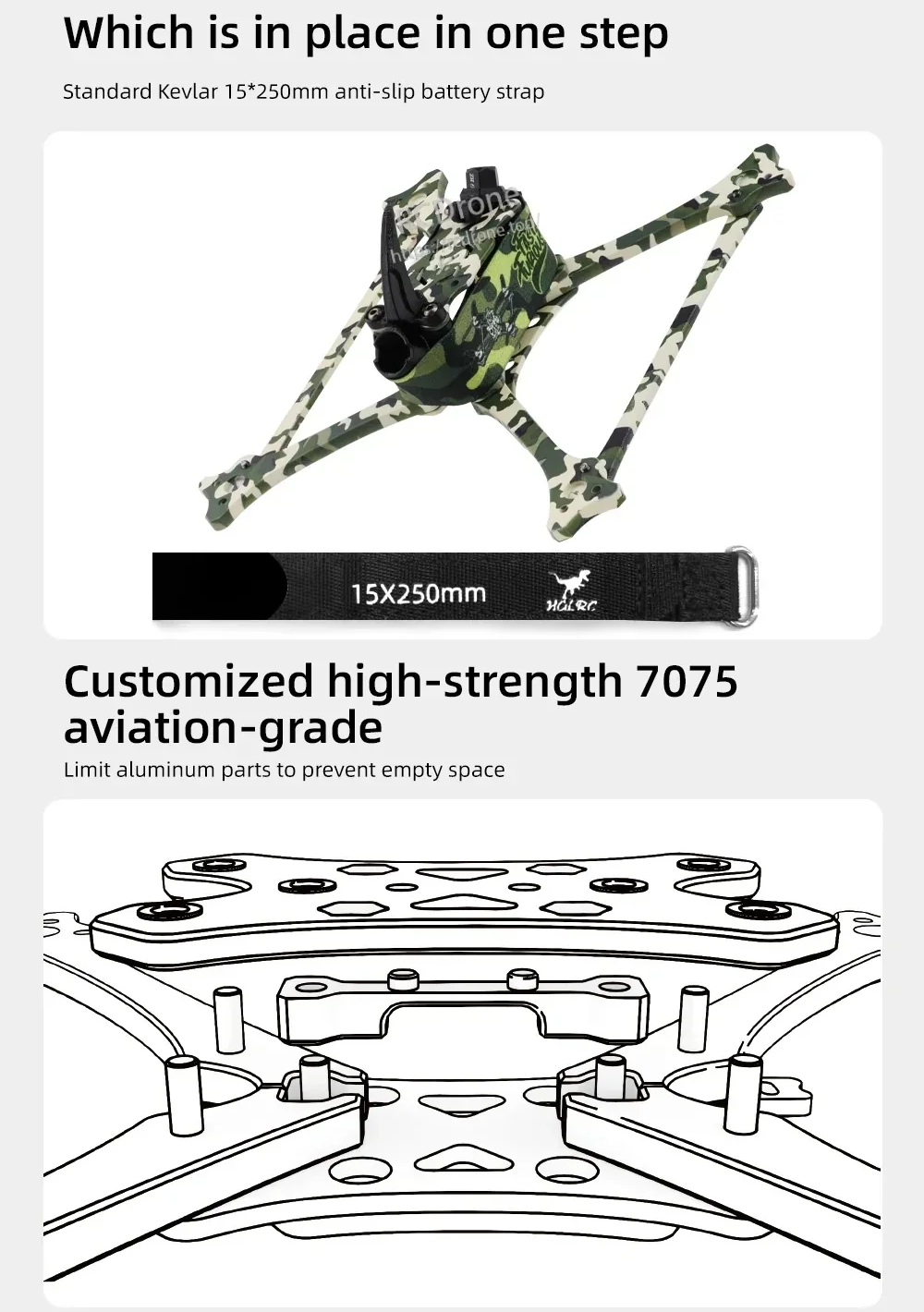

• Customized high-strength 7075 aviation-grade aluminum parts to prevent empty space

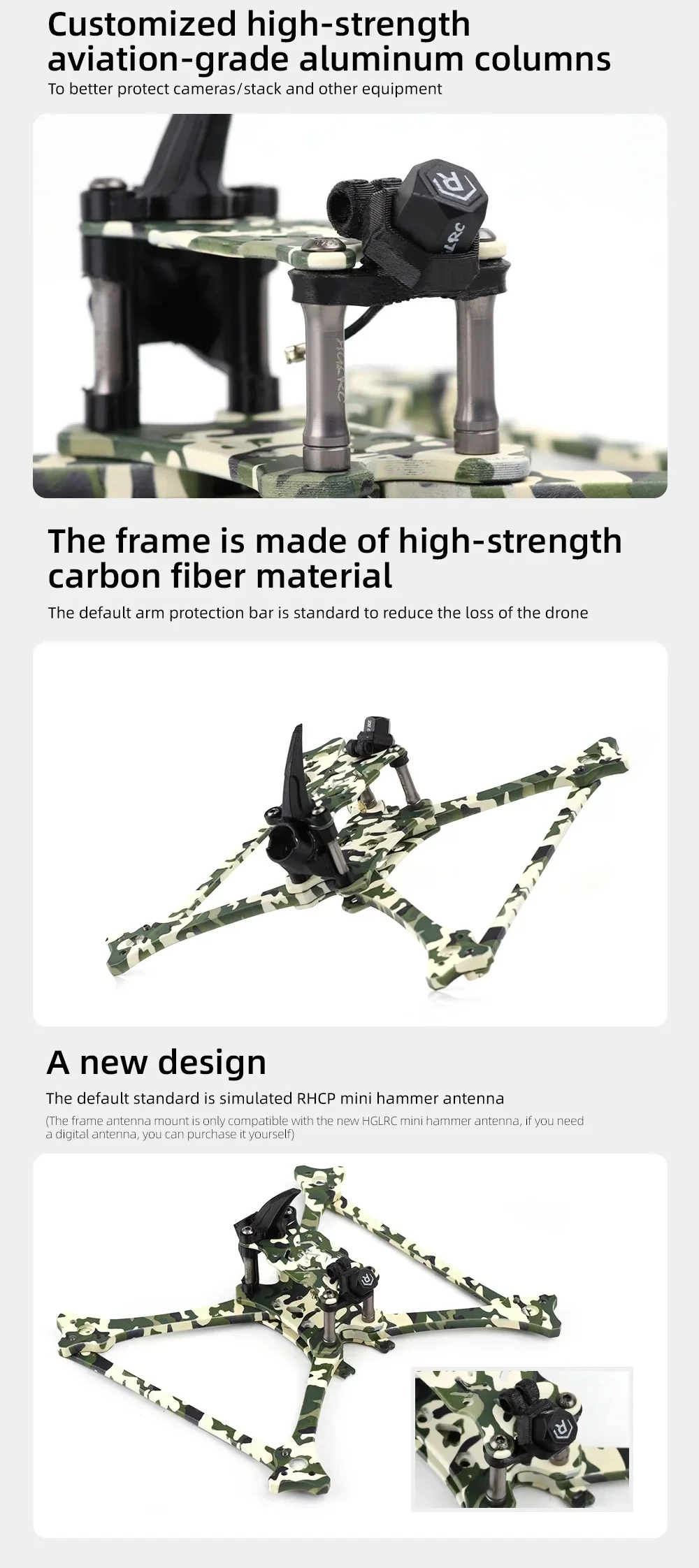

• Customized aviation-grade aluminum columns to better protect cameras/stack and other equipment

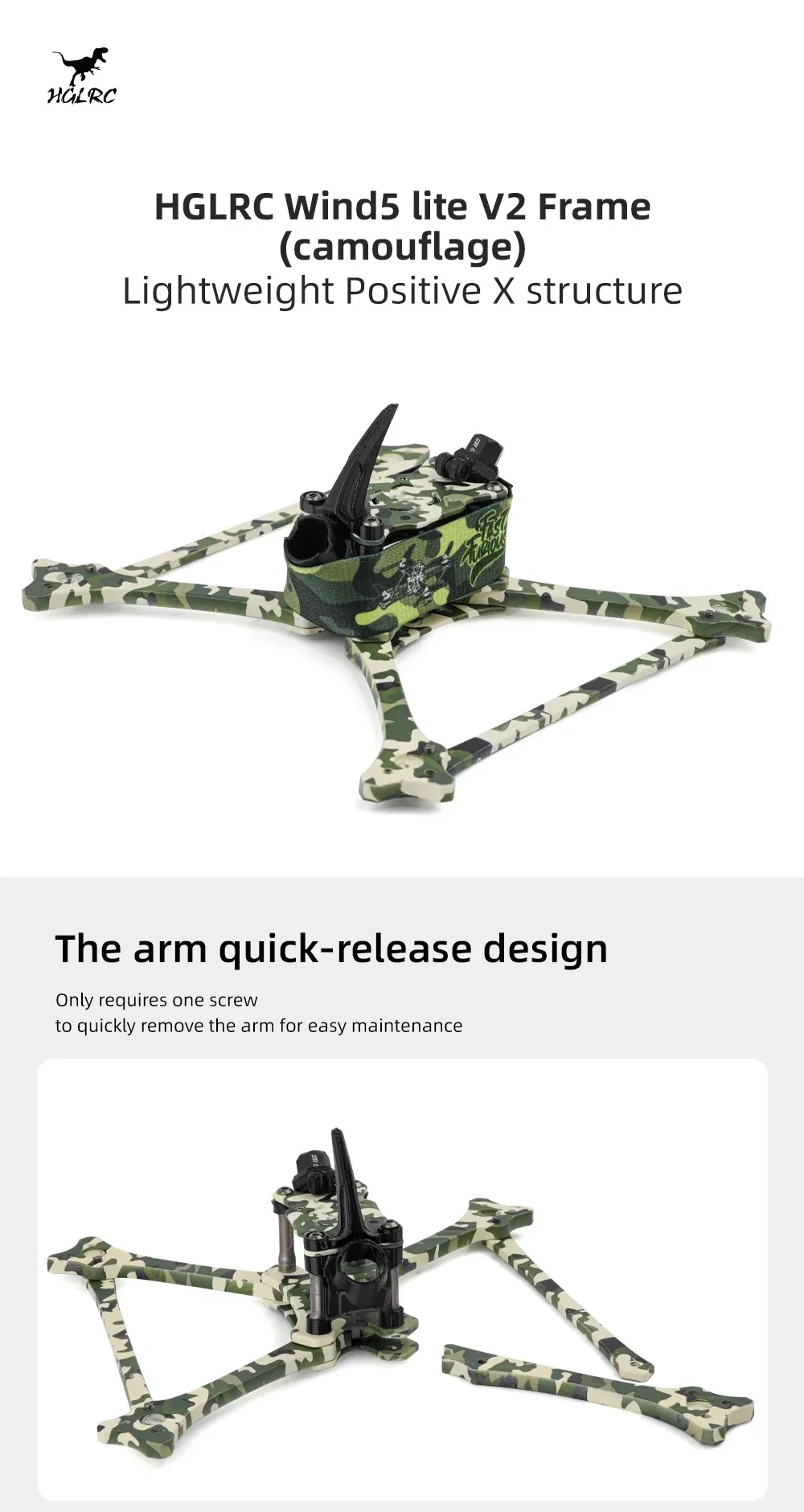

• Arm quick-release design: only one screw required to remove an arm for maintenance
• Top plate includes 20x20*M3 mounting holes for HDZero digital VTX installation
• Arm protection bars included as standard
• Includes a simulated RHCP mini hammer antenna (analog version)
• Includes non-slip battery straps: 15*250mm

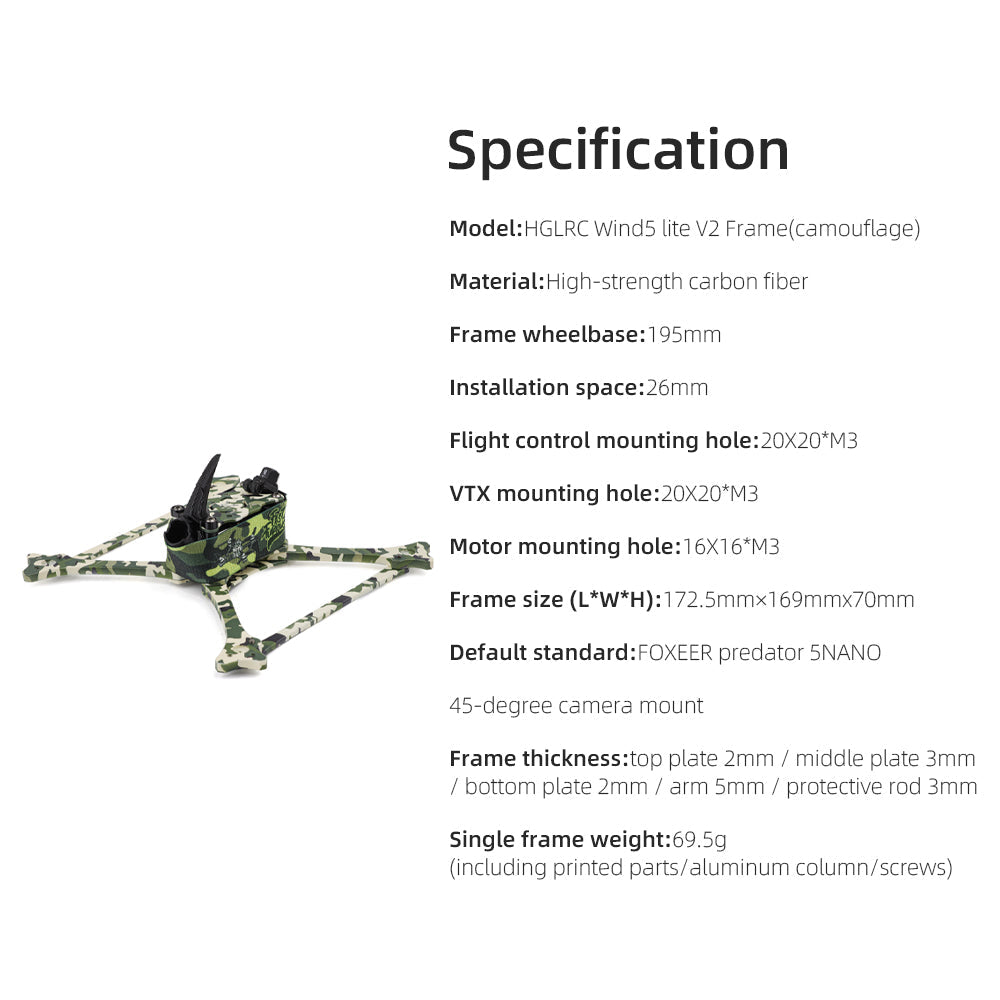

Specifications

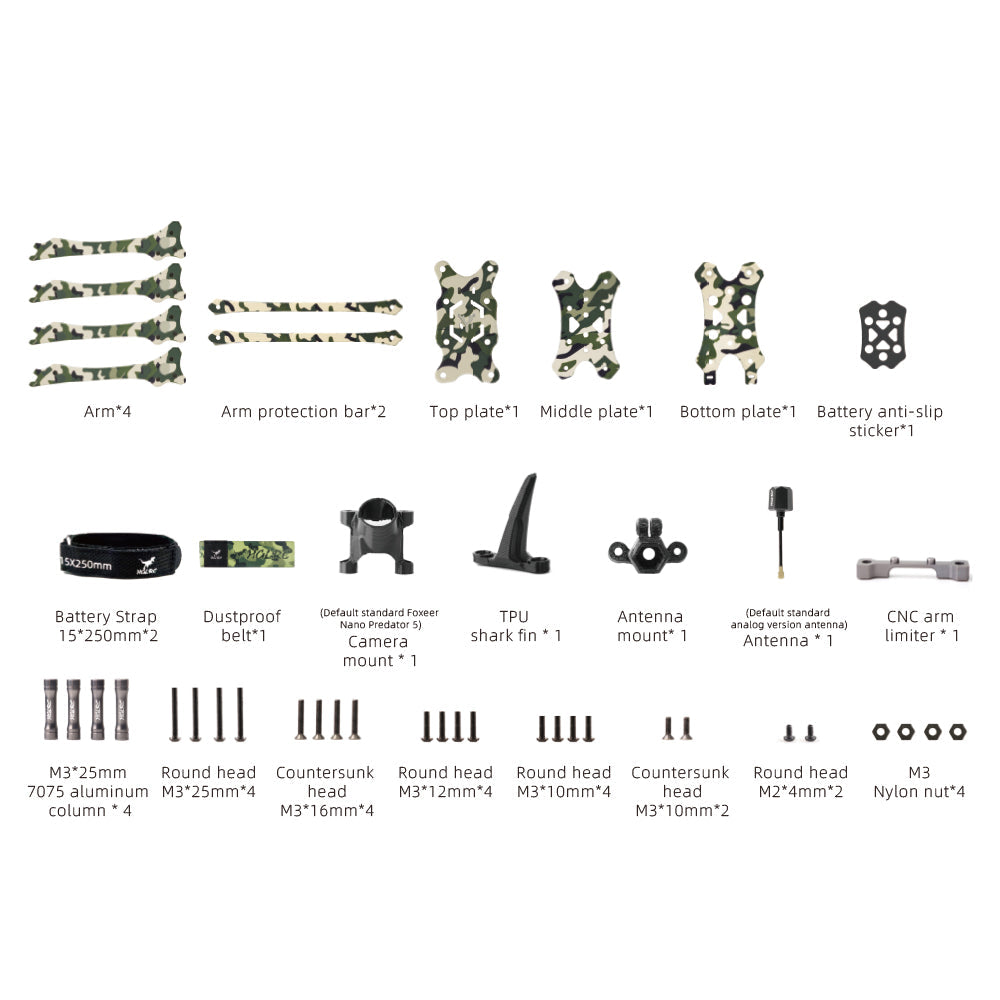

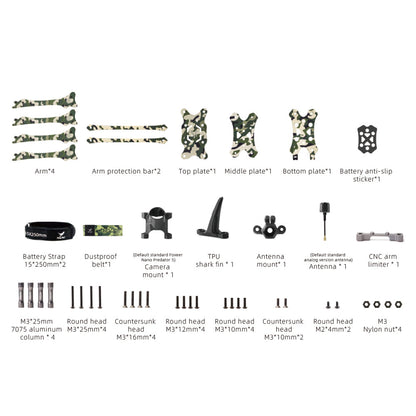

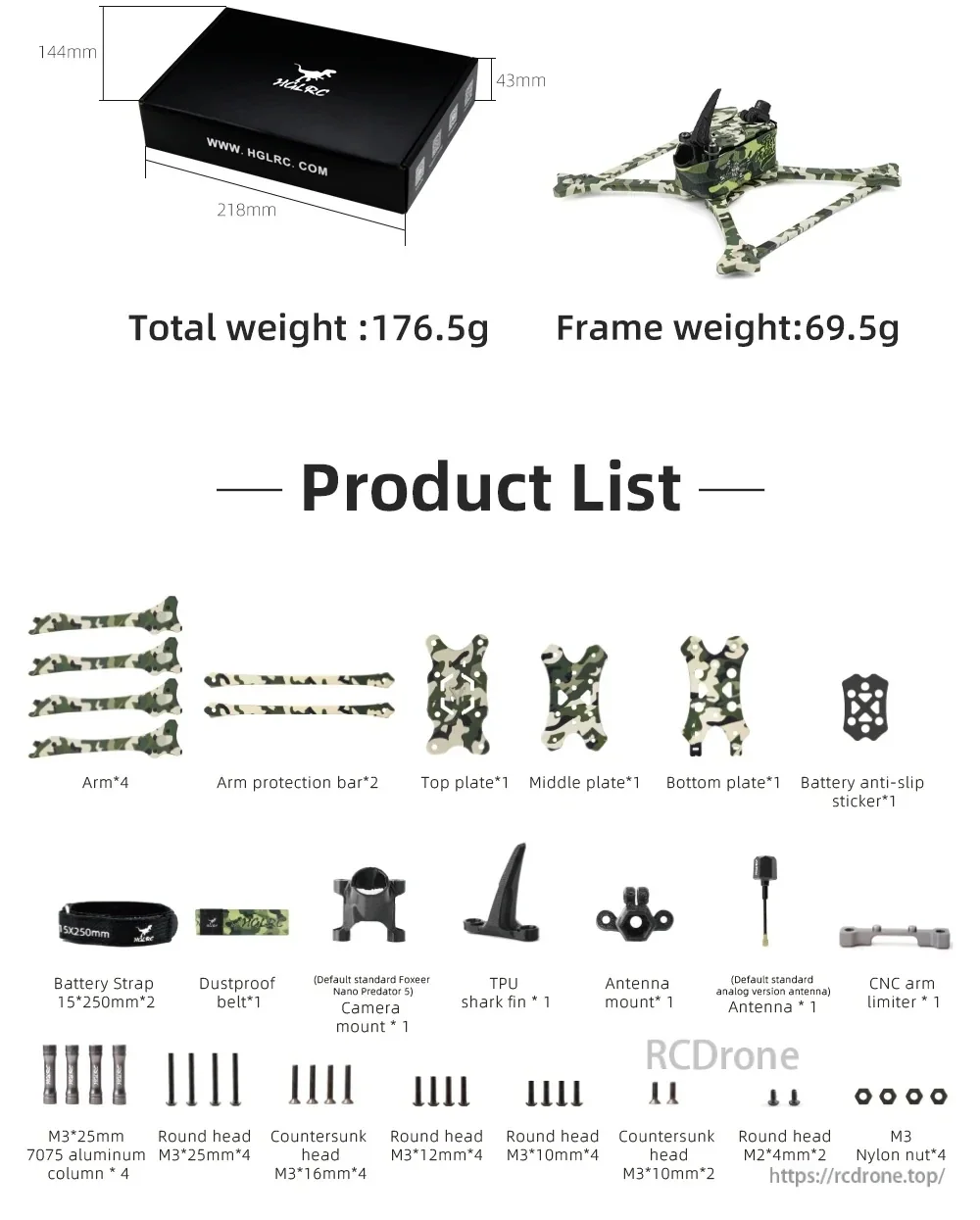

What’s Included

• Arms x4
• Arm protection bars x2
• Top plate x1
• Middle plate x1
• Bottom plate x1
• Battery anti-slip sticker x1
• Battery straps 15*250mm x2
• Dustproof belt x1
• Camera mount x1 (default standard Foxeer Nano Predator 5)
• TPU shark fin x1
• Antenna mount x1
• Antenna x1 (default standard analog version antenna)
• CNC arm limiter x1
• M3*25mm 7075 aluminum columns x4
• Round head screws M3*25mm x4
• Countersunk head screws M3*16mm x4
• Round head screws M3*12mm x4
• Round head screws M3*10mm x4
• Countersunk head screws M3*10mm x2
• Round head screws M2*4mm x2
• M3 nylon nuts x4

Notes

• The default configuration includes a FOXEER predator 5NANO 45-degree camera mount and an analog RHCP mini hammer antenna.
• The frame antenna mount is only compatible with the new HGLRC mini hammer antenna. If a digital antenna is required, it must be purchased separately.

Recommended Parts (Not Included)

• ESC: SPECTER 60A
• Flight controller: SPECTER F722 MINI
• Motor: SPECTER 2306.5-1900KV
• Camera: FOXEER predator 5NANO / Runcam Nano4
• Propeller: Gemfan 51466

For product selection or build compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.
