Kpower M0300 Analog Servo Motor, 4.8–8.4 V, PWM/TTL/RS-485 for R/C Models and Robot Joints

Kpower

$37.00 USD

أُوكَازيُون نفذ

الضرائب متضمنة. شحن يتم احتساب المبلغ عند إتمام عملية الشراء.

Version M0300

كمية

عرض التفاصيل الكاملة

Overview

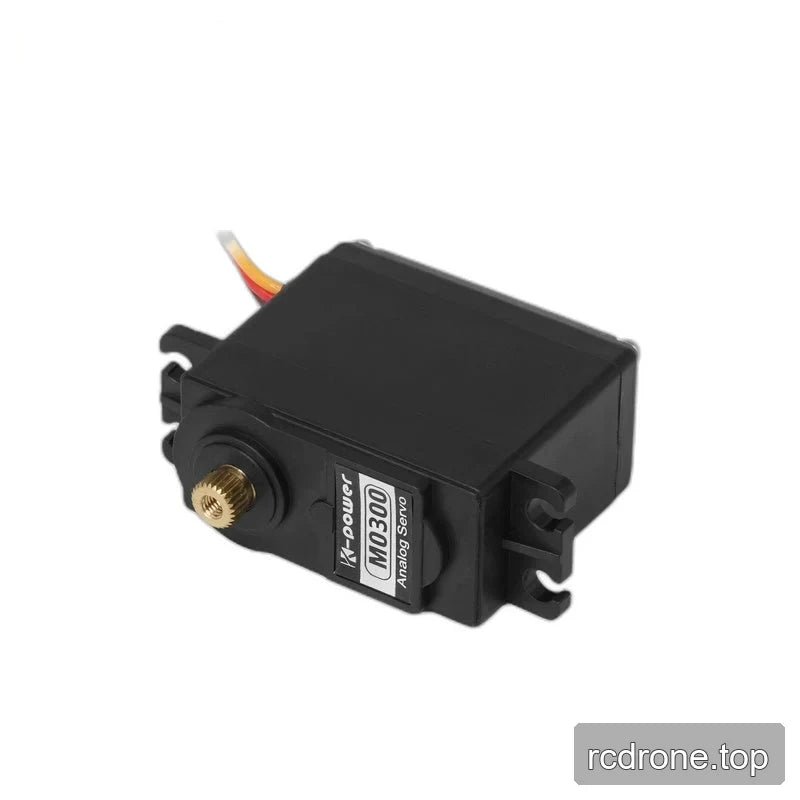

The Kpower M0300 is an analog servo motor for R/C models, robot joints, educational robot kits and equipment actuation. Its 40.7 × 19.8 × 37.7 mm body weighs 58 g and combines precision-machined metal gears with potentiometer position sensing. Operating at 4.8–8.4 V, it lists PWM, TTL and RS-485 protocols, a customizable 120° travel range and a no-load speed of 0.12 s/60°.

Features

Analog servo design with a DC brushed motor.

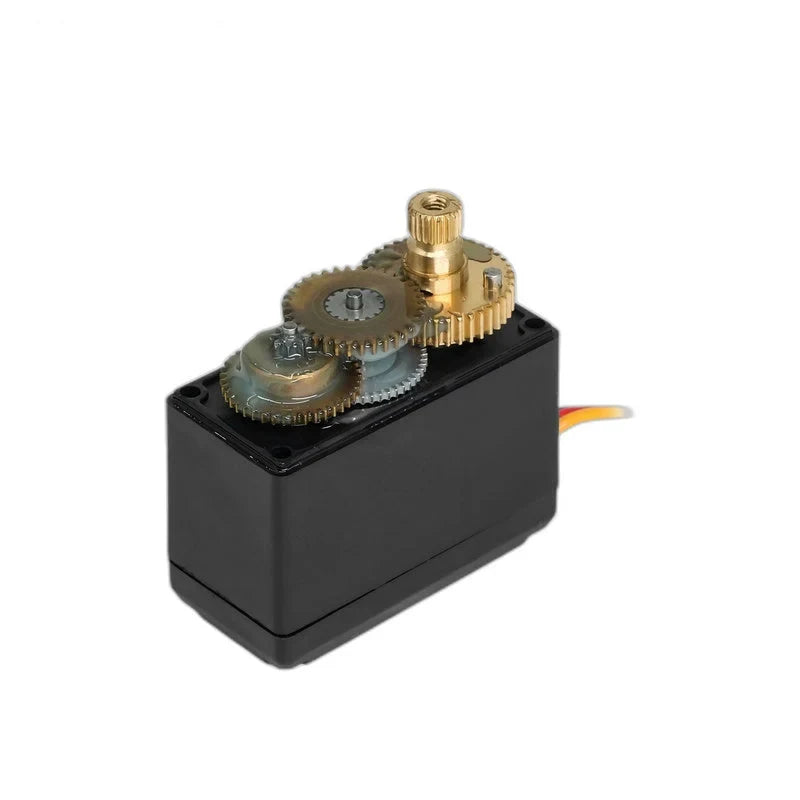

Precision-machined metal gears and high-speed response; M0300 is designated as a high-speed model.
Long-lifespan potentiometer for position sensing.
Plastic case with two ball bearings (2BB).

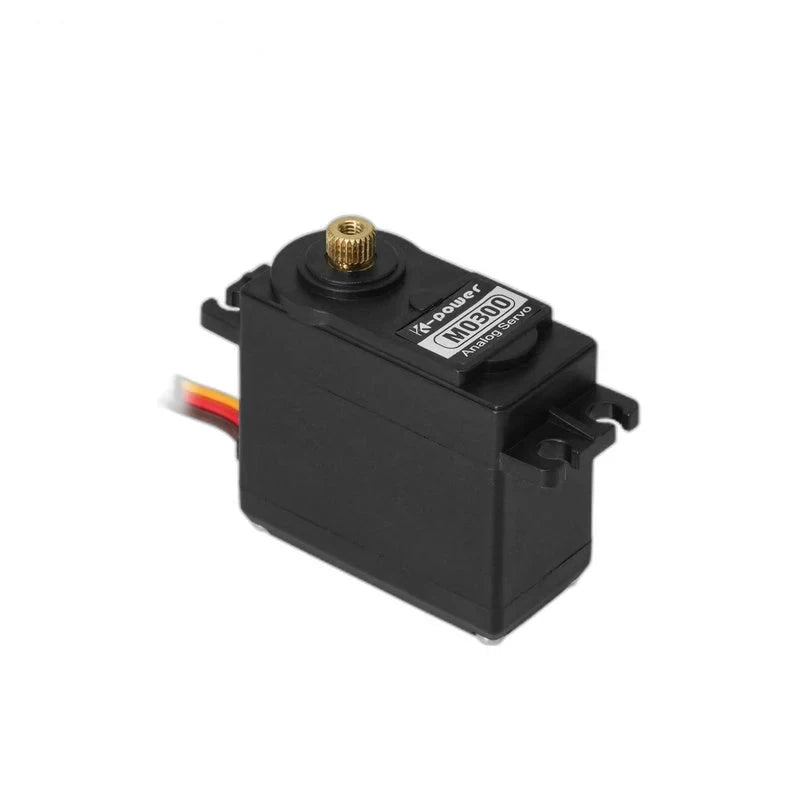

Mounting ears with four mounting openings.

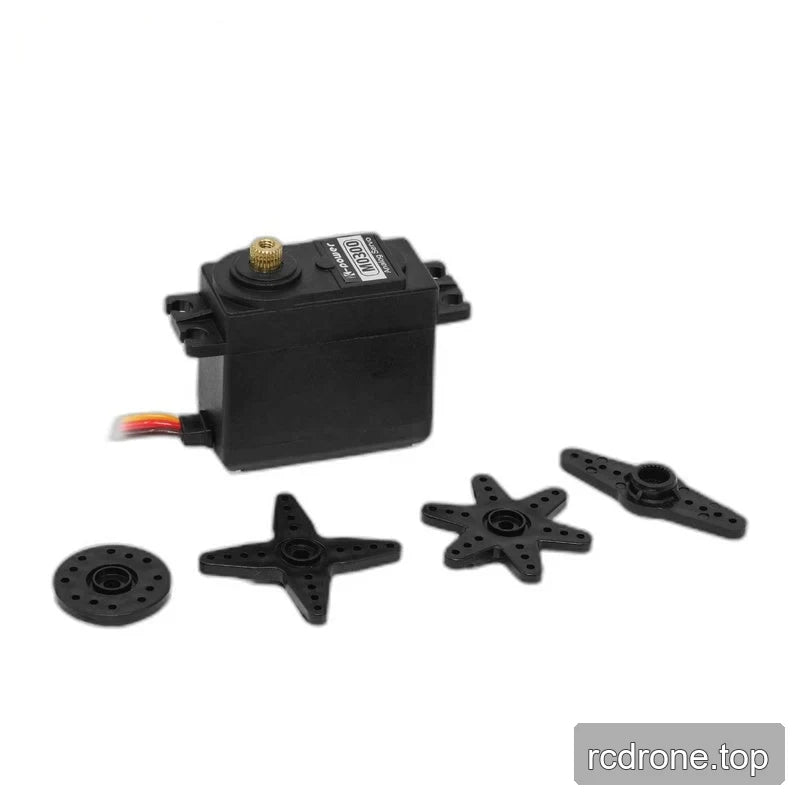

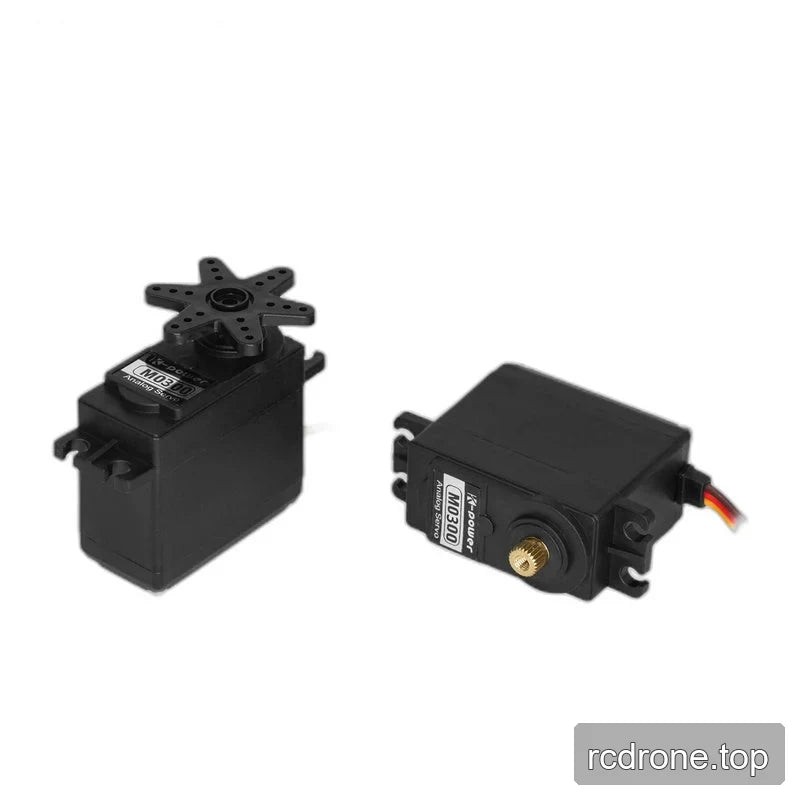

25T output horn spline with a 5.7 mm diameter.
120° travel angle, customizable.

Specifications

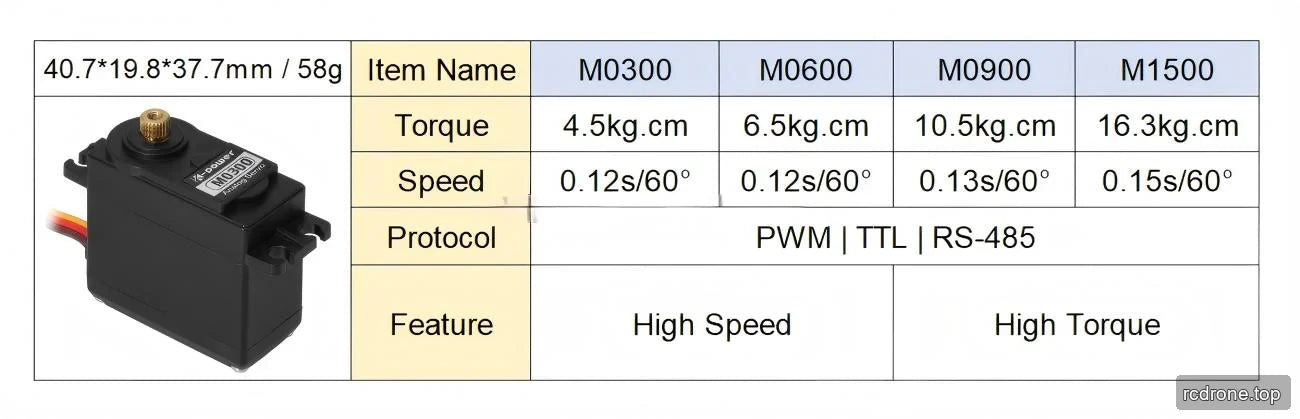

Parameter	M0300
Servo type	Analog
Speed designation	High Speed
Stall torque	4.5 kg·cm
Rated torque	1 kg
No-load speed	0.12 s/60°
Weight	58 g
Dimensions	40.7 × 19.8 × 37.7 mm
Travel angle range	120° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, φ5.7 mm
Gear material	Metal; precision-machined gears
Motor	DC brushed
Protocols	PWM, TTL, RS-485
No-load current	2500 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

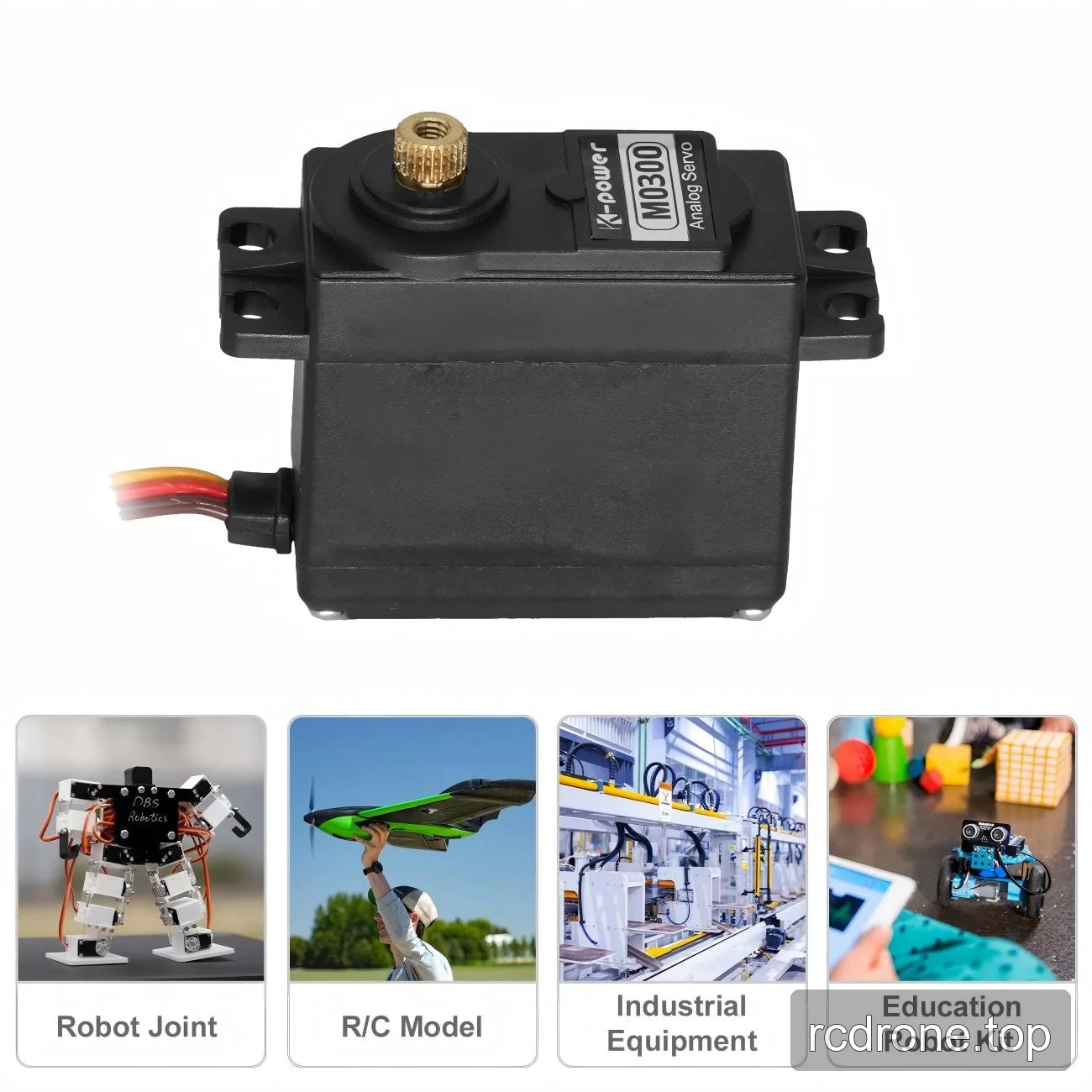

Applications

R/C models, including aircraft and cars: actuate model linkages with a compact 58 g servo and a specified no-load speed of 0.12 s/60°.
Robot joints: position joint linkages using potentiometer sensing and a 120° travel range.
Educational robot kits: build motion-control mechanisms around the mounting ears and metal gear train.
Industrial equipment: actuate positioning mechanisms using the listed control protocols and customizable travel angle.
Smart-home equipment: operate moving mechanisms within the servo's stated voltage and travel limits.
