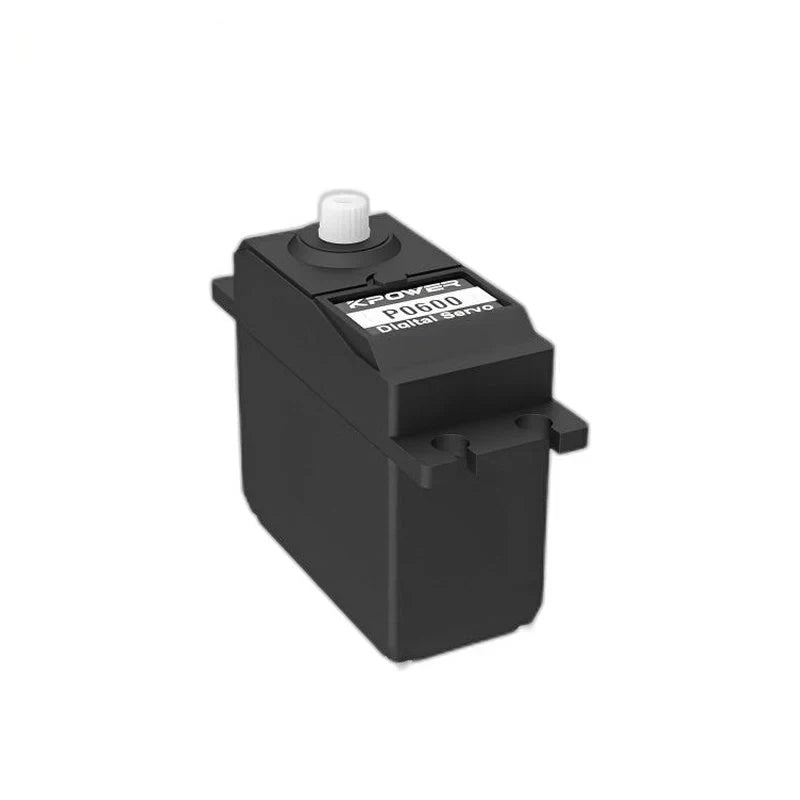

Kpower P0600 Digital Servo Motor, 4.8–8.4 V, PWM/TTL/RS-485 for RC Cars and Boats

Kpower

$35.00 USD

أُوكَازيُون نفذ

الضرائب متضمنة. شحن يتم احتساب المبلغ عند إتمام عملية الشراء.

Version P0600

كمية

عرض التفاصيل الكاملة

Overview

The Kpower P0600 is a compact digital servo motor for RC cars, RC boats and small actuation tasks such as electronic locks and smart switches. It combines POM gears with a plastic case and weighs 40 g. Its 4.8–8.4 V operating range, listed PWM, TTL and RS-485 interfaces, and 120° customizable travel provide key selection points for integrating controlled movement into a mechanism.

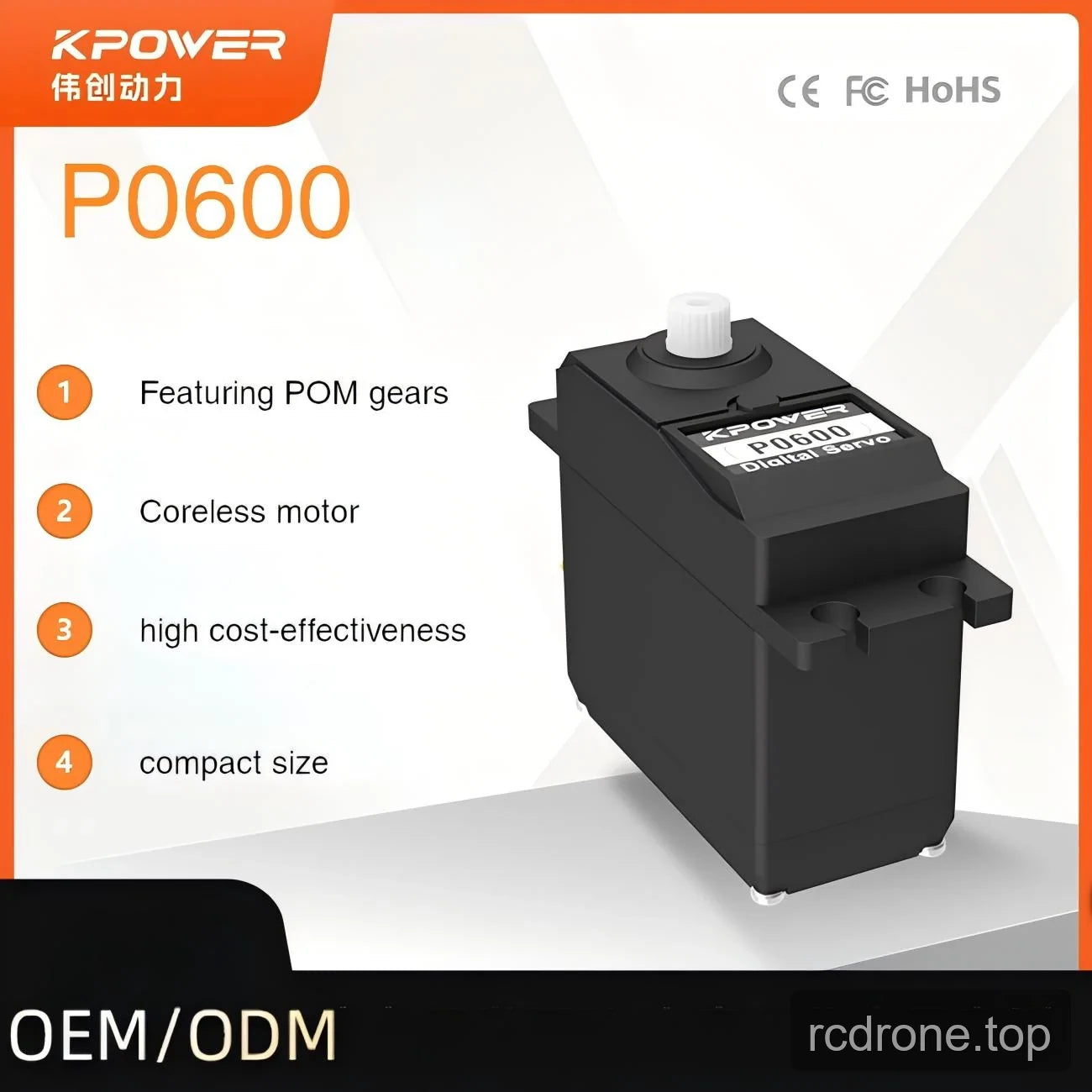

Features

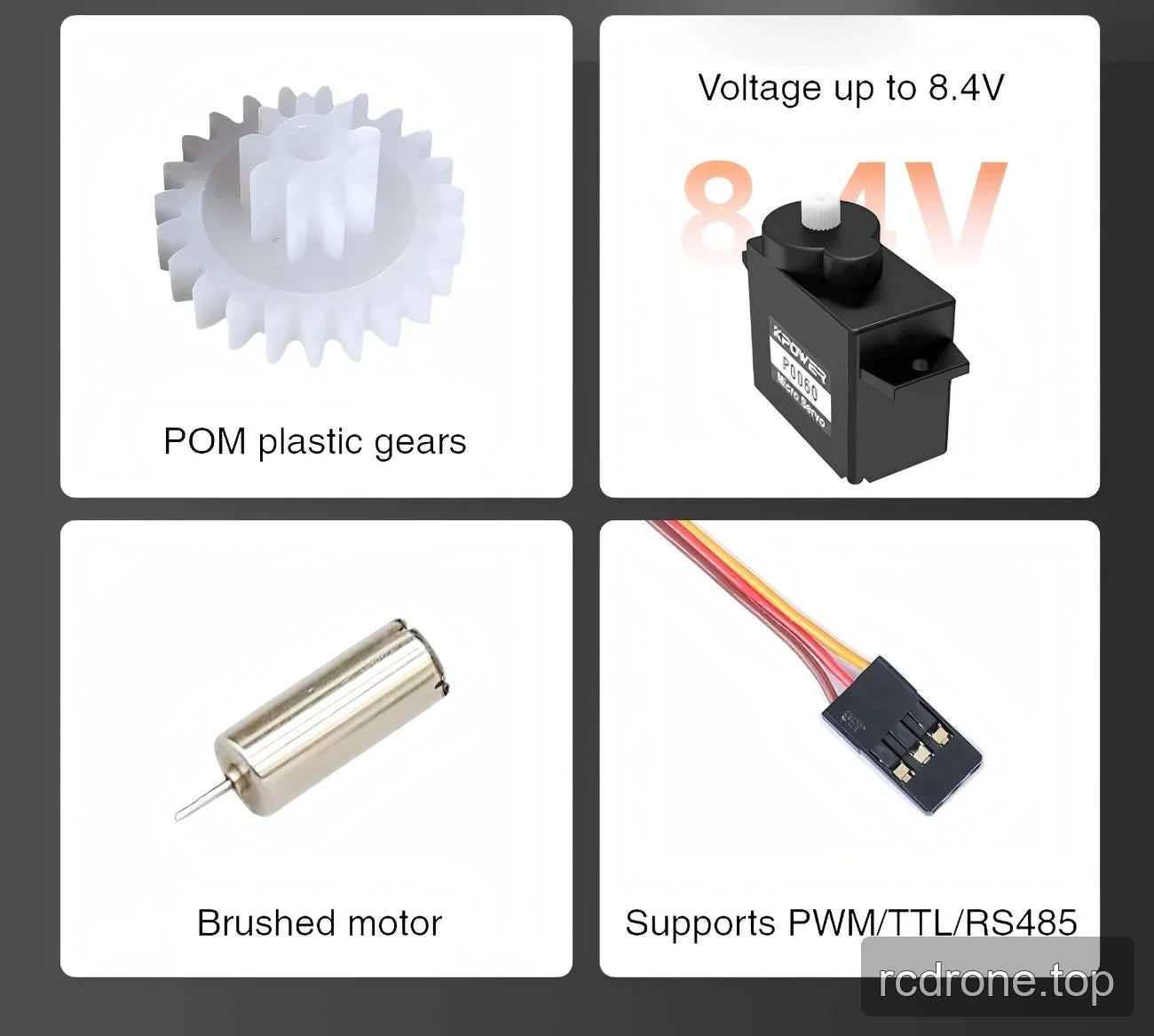

POM plastic gears and a plastic case in a compact 40 × 20 × 37.5 mm body.
DC brushed motor with potentiometer position sensing.
PWM, TTL and RS-485 control interfaces listed for the P0600.
120° travel angle, with customization indicated.

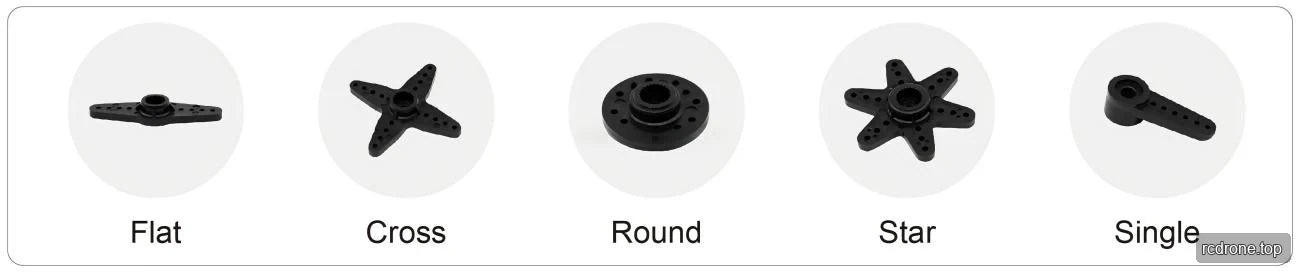

25T, Ø5.5 mm horn gear spline and 2BB ball bearings.

Specifications

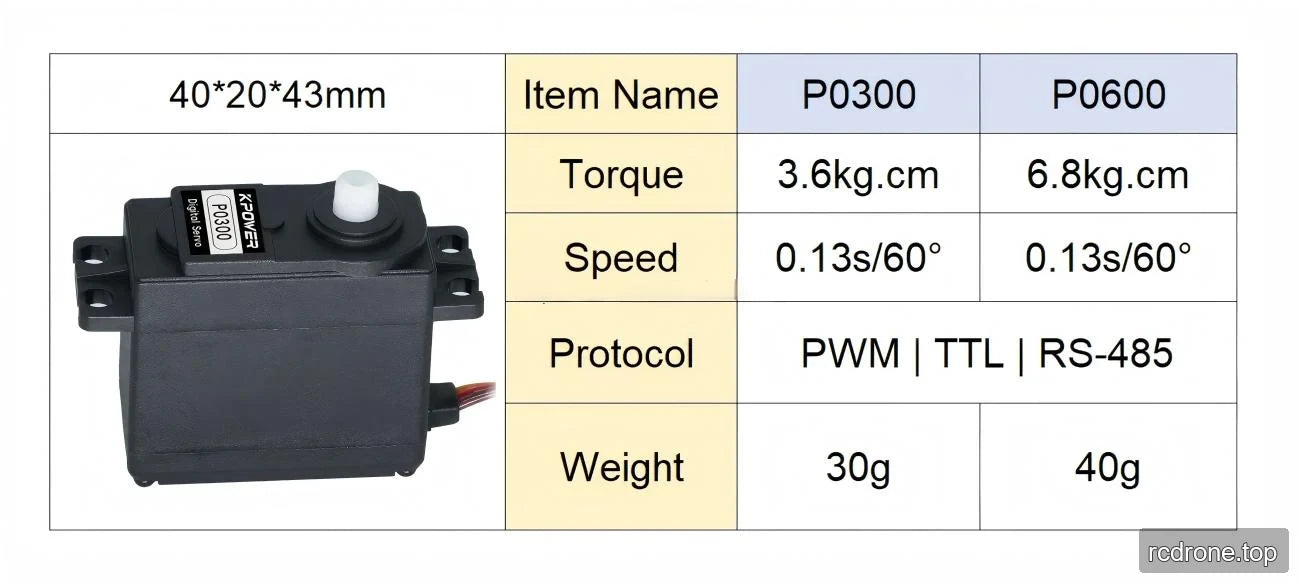

Parameter	P0600
Brand / model	Kpower P0600
Product type	Digital servo motor
Stall torque	6.8 kg·cm
Rated torque	1.7 kg*
No-load speed	0.13 s/60°
Weight	40 g
Dimensions	40 × 20 × 37.5 mm
Travel angle range	120° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø5.5 mm
Gear material	POM
Motor	DC brushed
Protocol	PWM / TTL / RS-485
No-load current	1800 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB

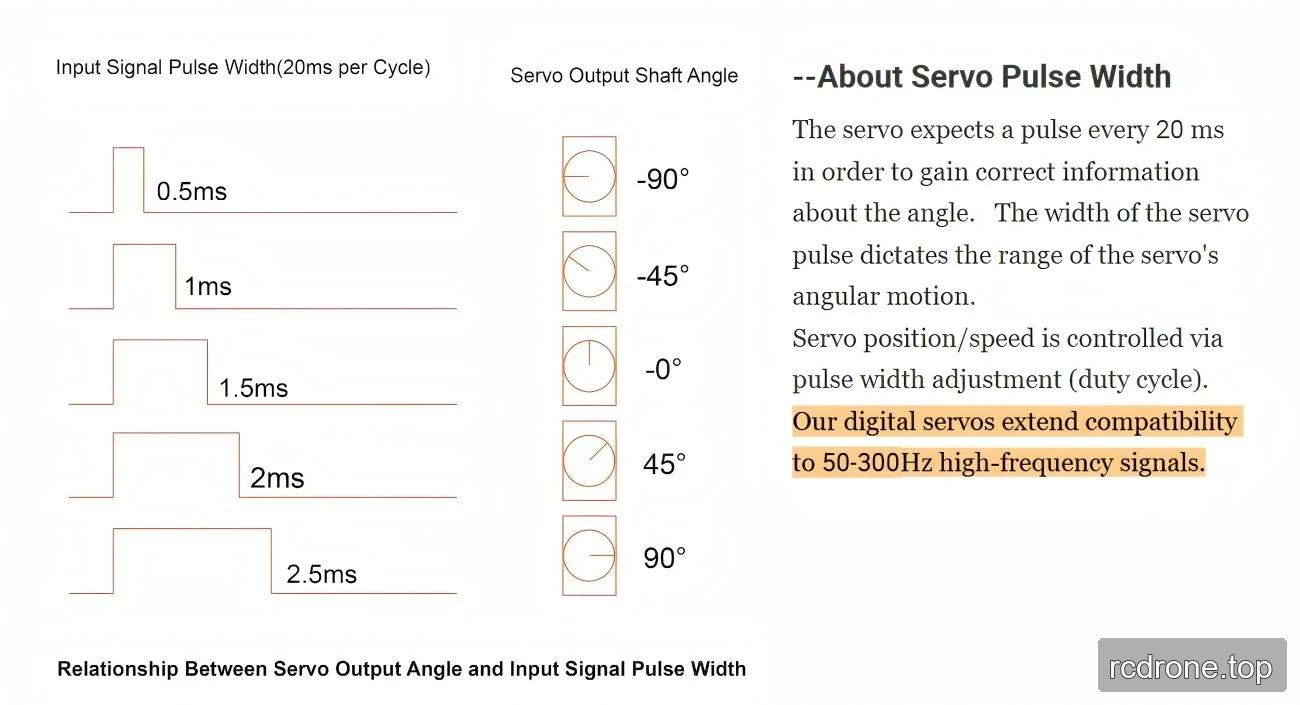

Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

*The rated-torque unit is stated as kg; a torque moment-arm unit is not specified.

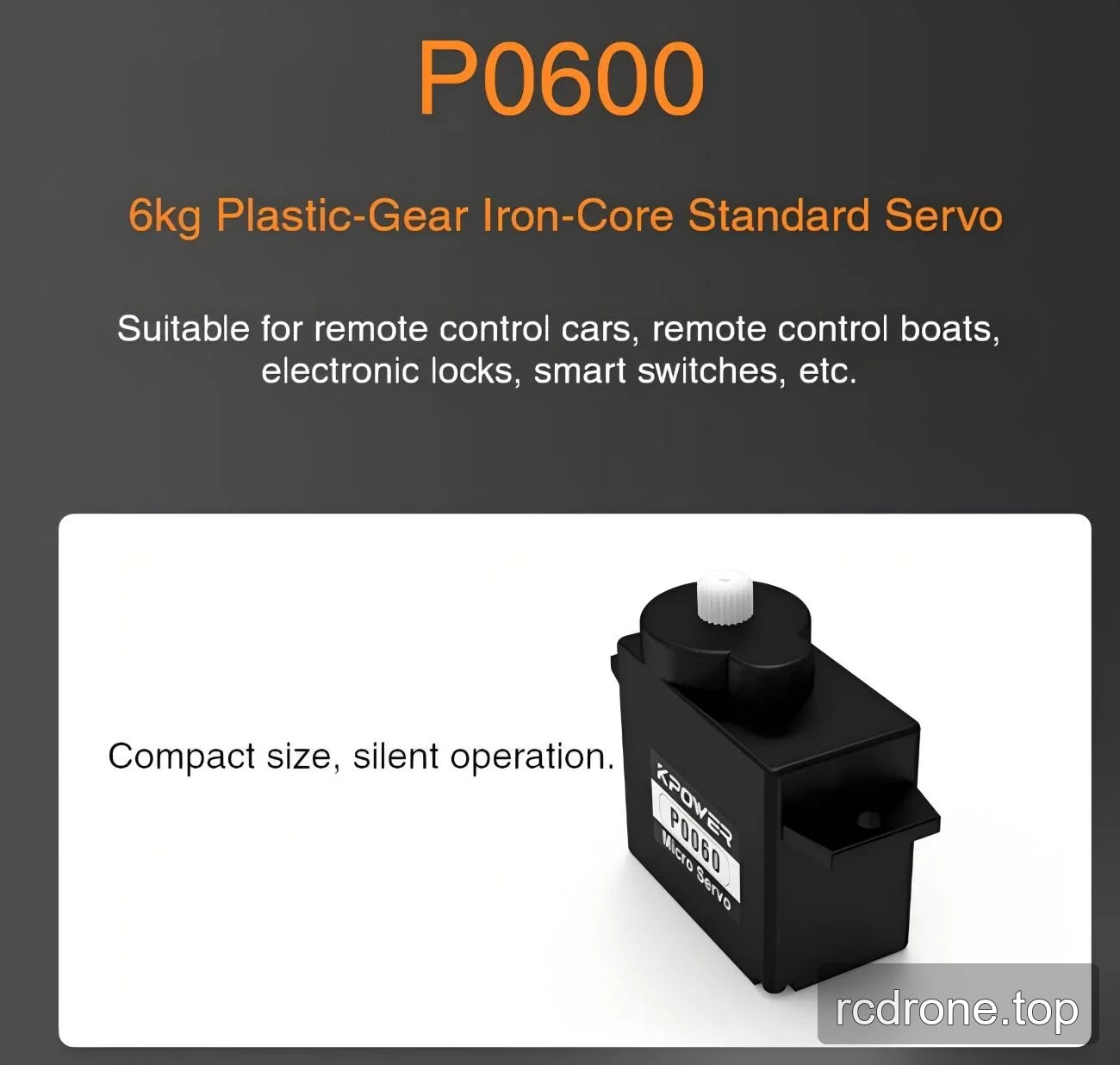

Applications

RC cars: Actuate steering or other positioning linkages using the 120° travel range and 25T horn spline.
RC boats: Drive rudder or other control linkages with the compact 40 g servo, while keeping installation conditions within its IP42 rating.
Electronic locks: Move a latch linkage using potentiometer-based position sensing and the listed control interfaces.
Smart switches: Operate a mechanical switching linkage where the compact housing and limited-angle movement suit the mechanism.
