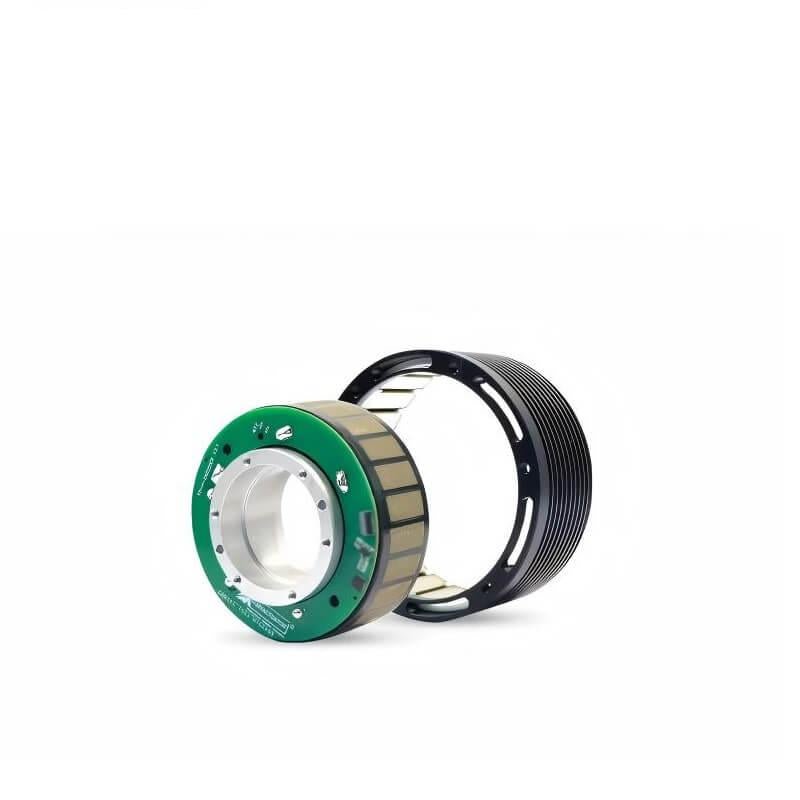

• MyActuator RMD-FLO-50-15 24V frameless torque motor kit with stator PCB and outer rotor ring

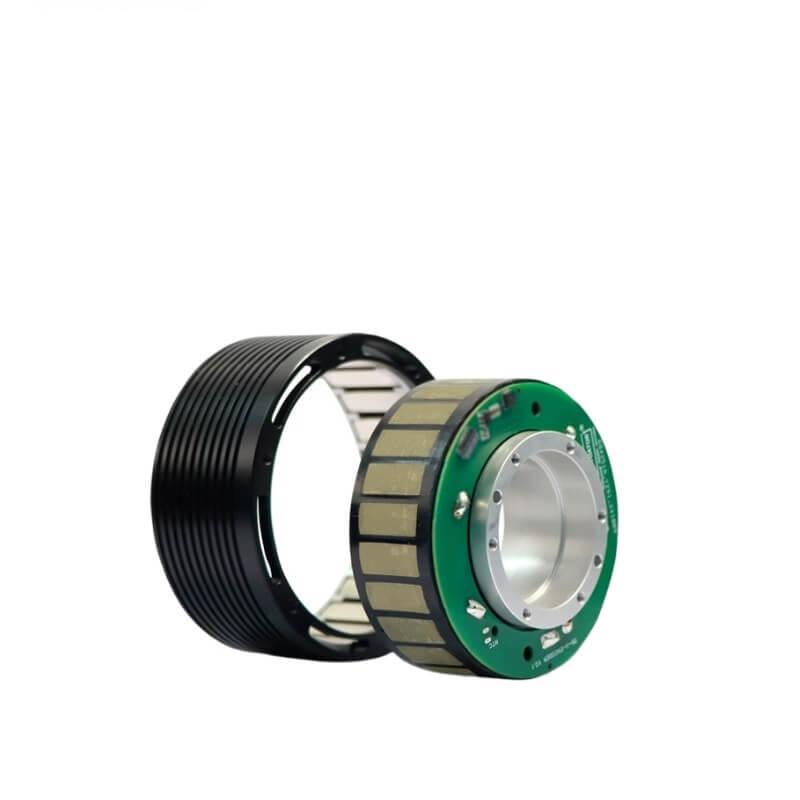

  • Angled view of frameless outer rotor motor assembly with green Hall sensor board and black rotor housing

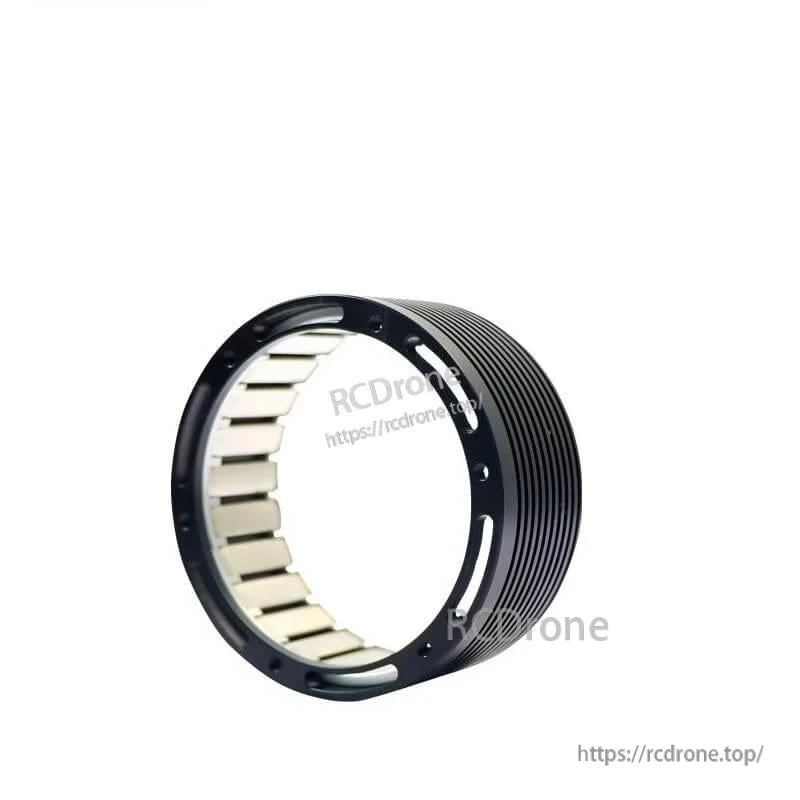

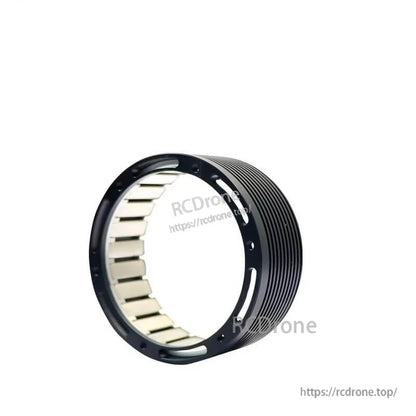

  • Outer rotor ring close-up with internal magnet segments and ribbed black housing for RMD-FLO-50 motor
1 3

MyActuator RMD-FLO-50 Motor RMD-FLO-50-15 24V Frameless Torque Motor Outer Rotor Hall-NC 0.19Kg

MyActuator RMD-FLO-50 Motor RMD-FLO-50-15 24V Frameless Torque Motor Outer Rotor Hall-NC 0.19Kg

MyActuator

$159.00 USD
$159.00 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

MyActuator RMD-FLO-50 Motor is a FLO Series frameless torque motor with an outer-rotor design for flexible integration into robotic joints and compact actuation modules. The FLO series is presented with the following product features: Flexible integration, High Power Density, Good heat dissipation, High Precision, Light Weight, and Hall+INC.

Applications

  • Humanoid Robots
  • Robotic Arms
  • Exoskeletons
  • Quadruped Robots
  • AGV Vehicles / AGV smart car
  • ARU Robots
  • Wheeled robot
  • Gimbal
  • PTZ
  • Industrial robots / Industrial automation / CNC machine tools
  • Smart warehousing / Warehouse robot / Smart warehouse
  • Inspection
  • Healthcare / Medical equipment
  • Photography
  • Smart agriculture

Key Features

  • FLO Series frameless torque motor (outer rotor)
  • Flexible integration
  • High power density
  • Good heat dissipation
  • High precision
  • Light weight

Technical Specifications

Model RMD-FLO-50-15
Input Voltage 24V
No-Load Current 0.32A
Rated Speed 2500RPM
Rated Torque 0.35N.m
Rated Power 91.6W
Rated Current 4.9A(rms)
Peak Torque 0.87N.m
Peak Current 14.7A(rms)
Efficiency >83%
Motor Back-EMF Constant 7.93Vdc/Krpm
Module Torque Constant 0.07N.m/A
Motor Phase Resistance 0.4Ω
Motor Phase Inductance 0.19mH
Pole Pair 13
Cogging Torque 12N.m
3 Phase Connection Y
Encoder Type&Interface Hall-NC
Weight 0.19Kg
Insulation Grade F

RMD-FLO Series Naming Conventions

Example format: RMD - FLO - 70 - 15 - 200

  • RMD: Brand Name (R-Reducer, M-Motor, D-Drive)
  • FLO: Series name (outer rotor frameless torque motor)
  • 70: Rotor outer diameter 70mm
  • 15: Stator stack height 15mm
  • 200: Rated power 200W

For example: RMD-FLO-90-15-400 where 90 is rotor outer diameter, 15 is stator stack height, and 400 is rated power.

Documents

For product selection and technical support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MyActuator RMD-FLO outer-rotor frameless torque motor (FLO series) overview with key feature icons

The FLO series outer-rotor frameless torque motor is designed for flexible integration in compact robotic joints and actuator modules.

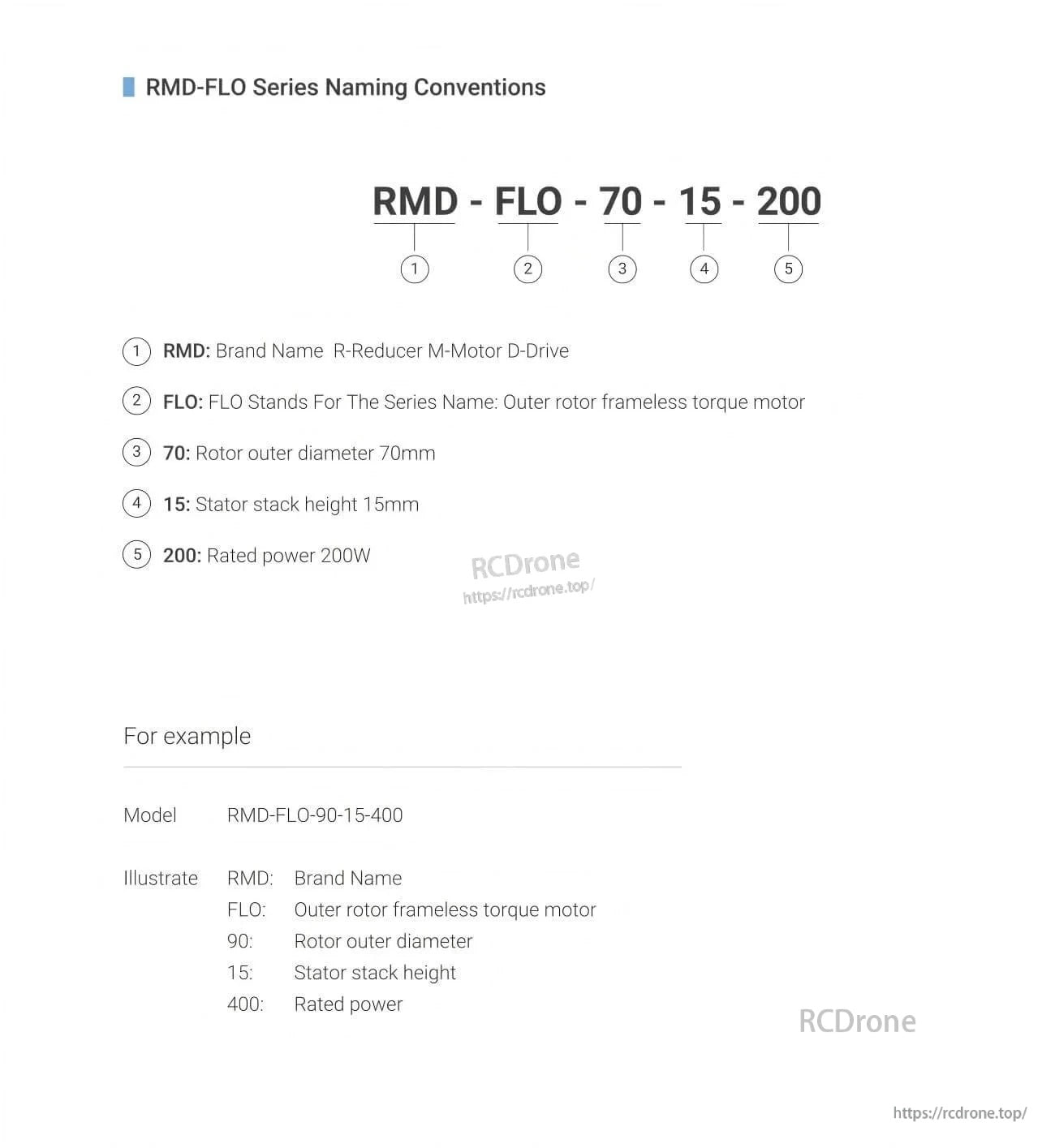

RMD-FLO series motor naming convention chart explaining diameter, stack height and rated power in the model code

Model codes in the RMD-FLO series indicate the rotor outer diameter, stator stack height, and rated power to simplify selection.

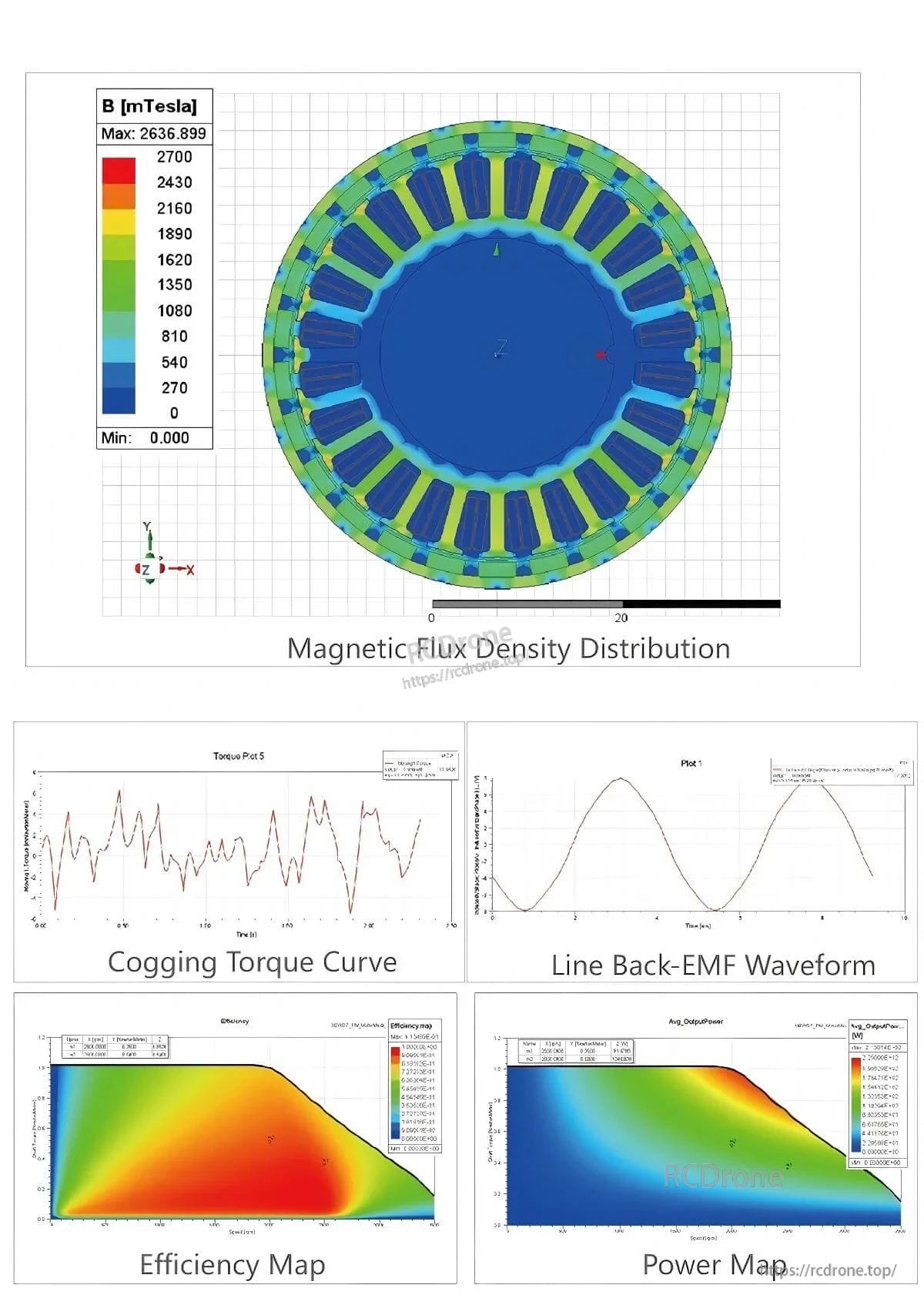

Application examples for FLO frameless torque motors, including humanoid robots, robotic arms, AGV vehicles, gimbals and automationPerformance charts for the FLO frameless torque motor: magnetic flux density distribution, cogging torque curve, back-EMF waveform, maps

Engineering plots highlight magnetic flux distribution, cogging torque, back‑EMF waveform, and efficiency/power maps for system design reference.
