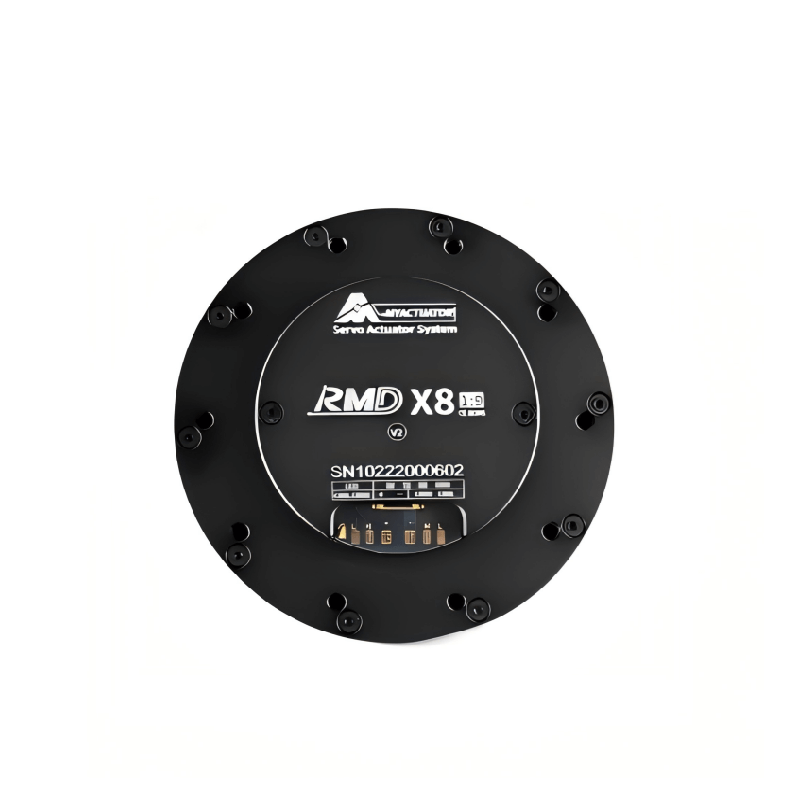

• MyActuator RMD-X8 V2 1:9 servo actuator motor, front face showing RMD X8 label and connector pins

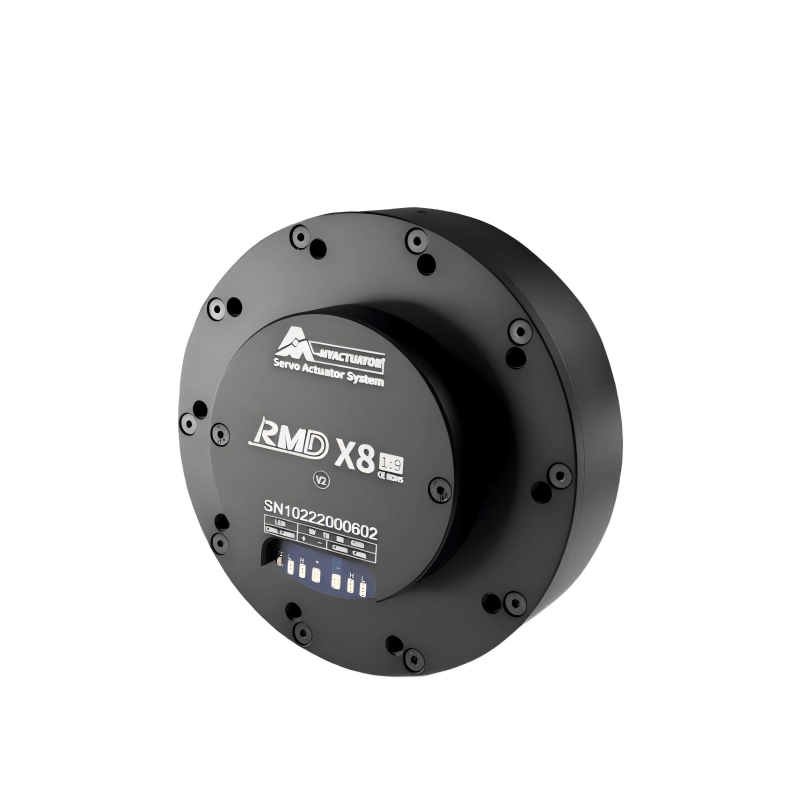

  • Angled view of MyActuator RMD-X8 V2 servo actuator motor housing, showing mounting holes and front cover

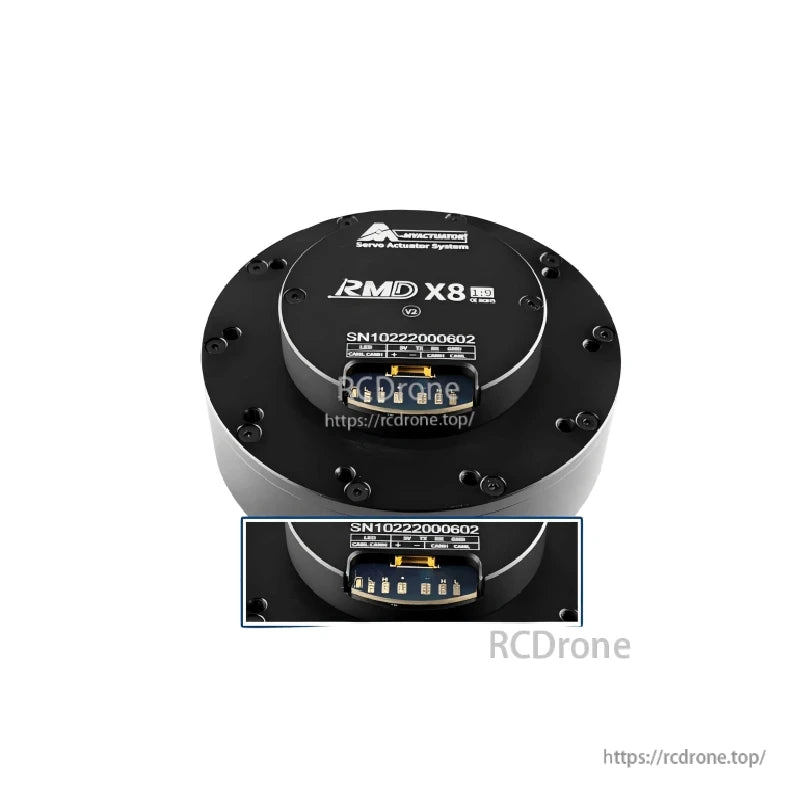

  • Top angled view of RMD X8 V2 servo actuator with close-up inset of the signal/power connector area

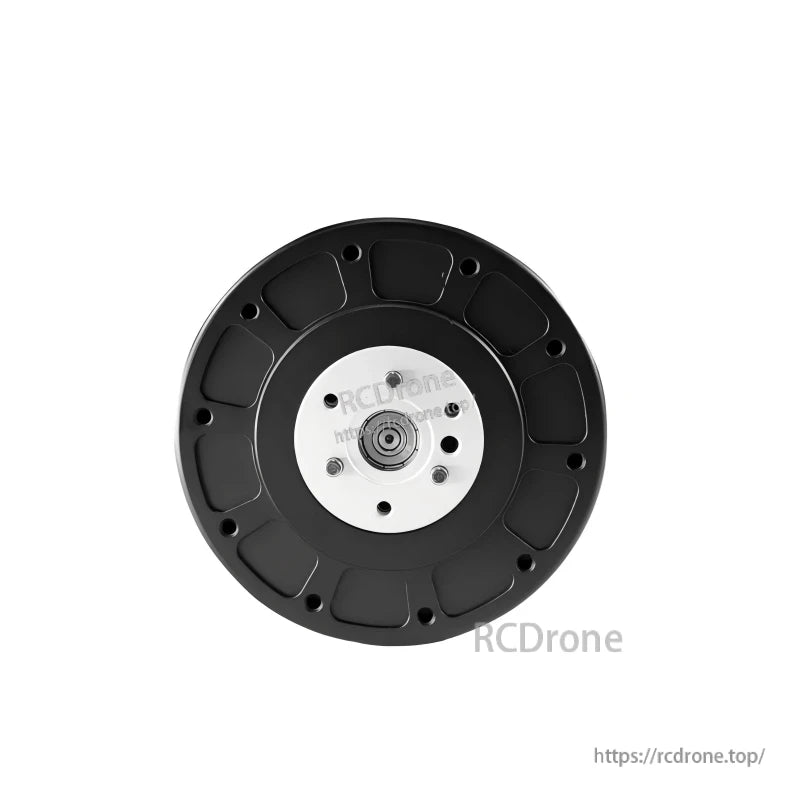

  • Rear/output side of RMD X8 V2 actuator showing central shaft hub and bolt pattern on the faceplate

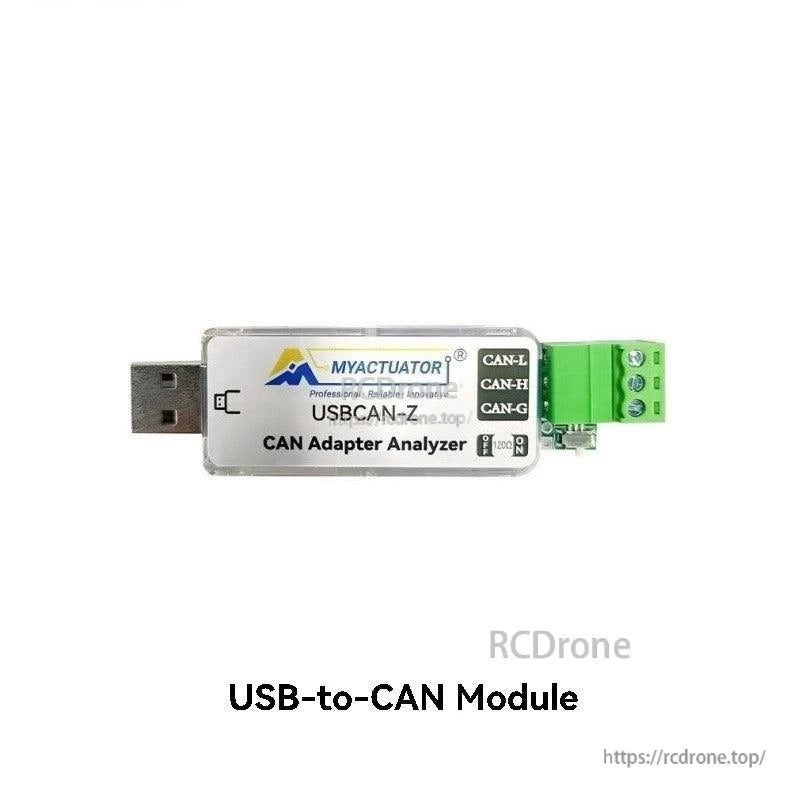

  • MyActuator USBCAN-2 USB-to-CAN adapter module with green screw terminal labeled CAN-L, CAN-H, CAN-G
1 5

MyActuator RMD-X8 V2 1:9 Servo Actuator Motor 24-48V 9 N·m 160W 215RPM@48V (A00083)

MyActuator RMD-X8 V2 1:9 Servo Actuator Motor 24-48V 9 N·m 160W 215RPM@48V (A00083)

MyActuator

$535.60 USD
$535.60 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
Version
Accessory Kit
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

The MyActuator RMD-X8 (Item No: A00083) is a servo actuator motor with a 9:1 reducer ratio for robotics motion applications. It supports 24-48V input and provides nominal torque of 9 N·m with 160 W nominal power. The design highlights include a lightweight structure made with high quality aviation aluminum, plus multiple built-in protections and support for remote firmware update.

Key Features

  • Lightweight design; high quality aviation aluminum
  • Reducer ratio: 9:1
  • Support multiple protections: over temperature protection / over current protection / overvoltage protection / overspeed protection
  • Support remote update: update the latest firmware at any time; personalized instructions can be customized
  • Support temperature sensor
  • Support IP54 customization; waterproof / dustproof / corrosion resistant

Specifications

Actuator Name RMD-X8
Item No A00083
Reducer Ratio 9:1
Input Voltage 24-48V
No-load Speed 215 RPM @48V
Nominal Speed 170 RPM
Nominal Current 4.3 A
Nominal Power 160 W
Nominal Torque 9 N·m
Maximum Torque (instantaneous) 20 N·m
Pole Pairs 21 (42)
Motor Efficiency 74%
Resistance 0.4 Ω
Wire Connect Y
Phase To Phase Inductance 0.22 mH
Speed Constant 40 rpm/v
Torque Constant 2.09 N·m/A
Axial Direction Payload 775 N
Radial Direction Payload 1250 N
Rotor Inertia 2600 g·cm²
Number Of Pole Pairs 21
Motor Weight 568 g
Environment Temperature -20 ~ 55°C
Backlash 5 Arc min

What’s Included

  • 1 pc motor
  • 1 pair of CAN cables
  • 1 pair of power cords
  • 1 pc terminating resistor
  • 1 pair of sleeves
  • 1 pair of CAN connectors
  • 1 pair of power connectors

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots

Manuals

For pre-sales questions and integration support, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

MyActuator RMD-X8 servo actuator motor feature banner highlighting lightweight aluminum body and built-in protections

Lightweight RMD-X8 actuator design emphasizes an aluminum housing, protection functions, and firmware update support for robotics projects.

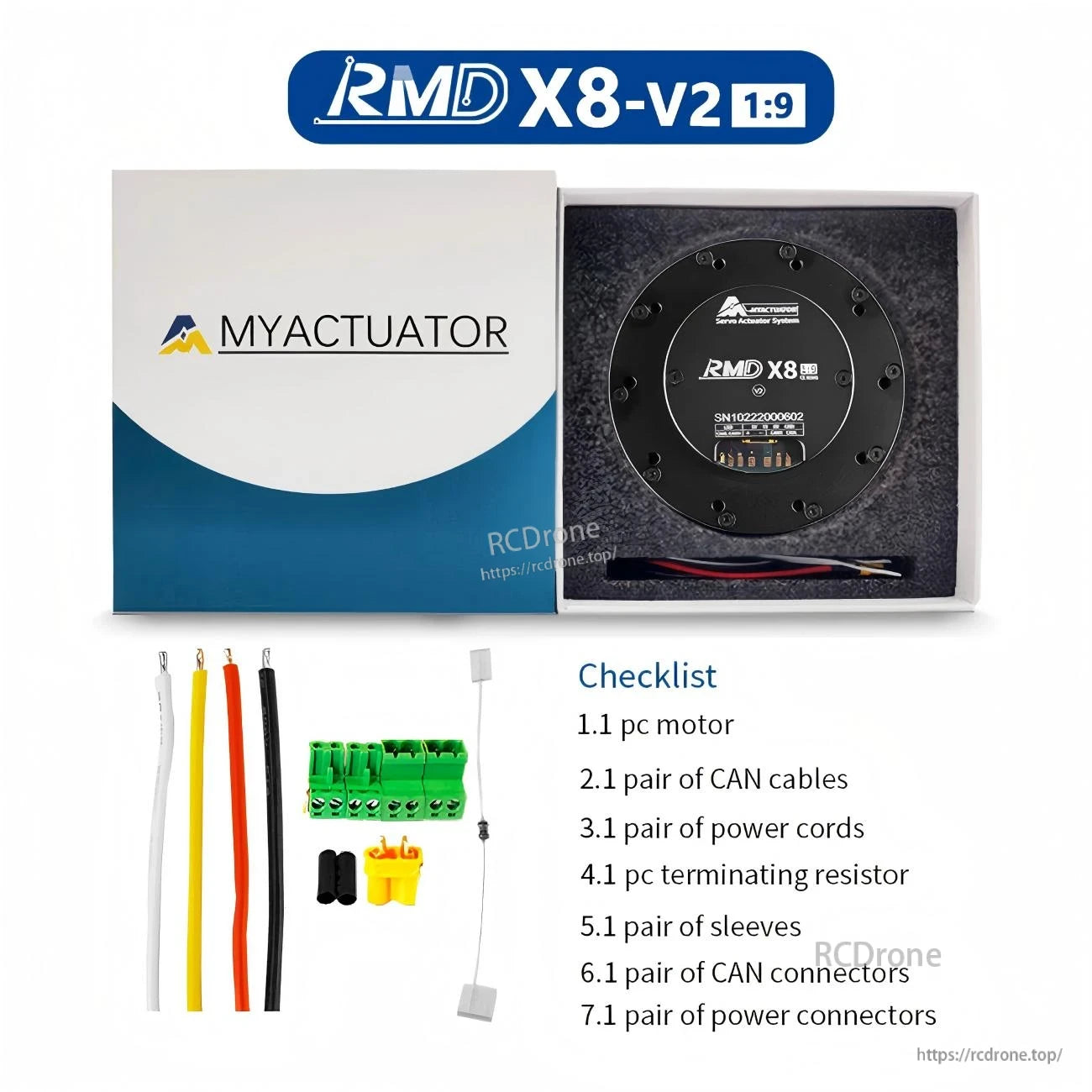

MyActuator RMD-X8 V2 1:9 servo actuator motor kit in box with included CAN cables, power cords, connectors and terminating resistor

Package includes the RMD-X8 V2 servo actuator plus CAN cables, power leads, connectors, sleeves, and a terminating resistor for CAN bus wiring.
