Overview

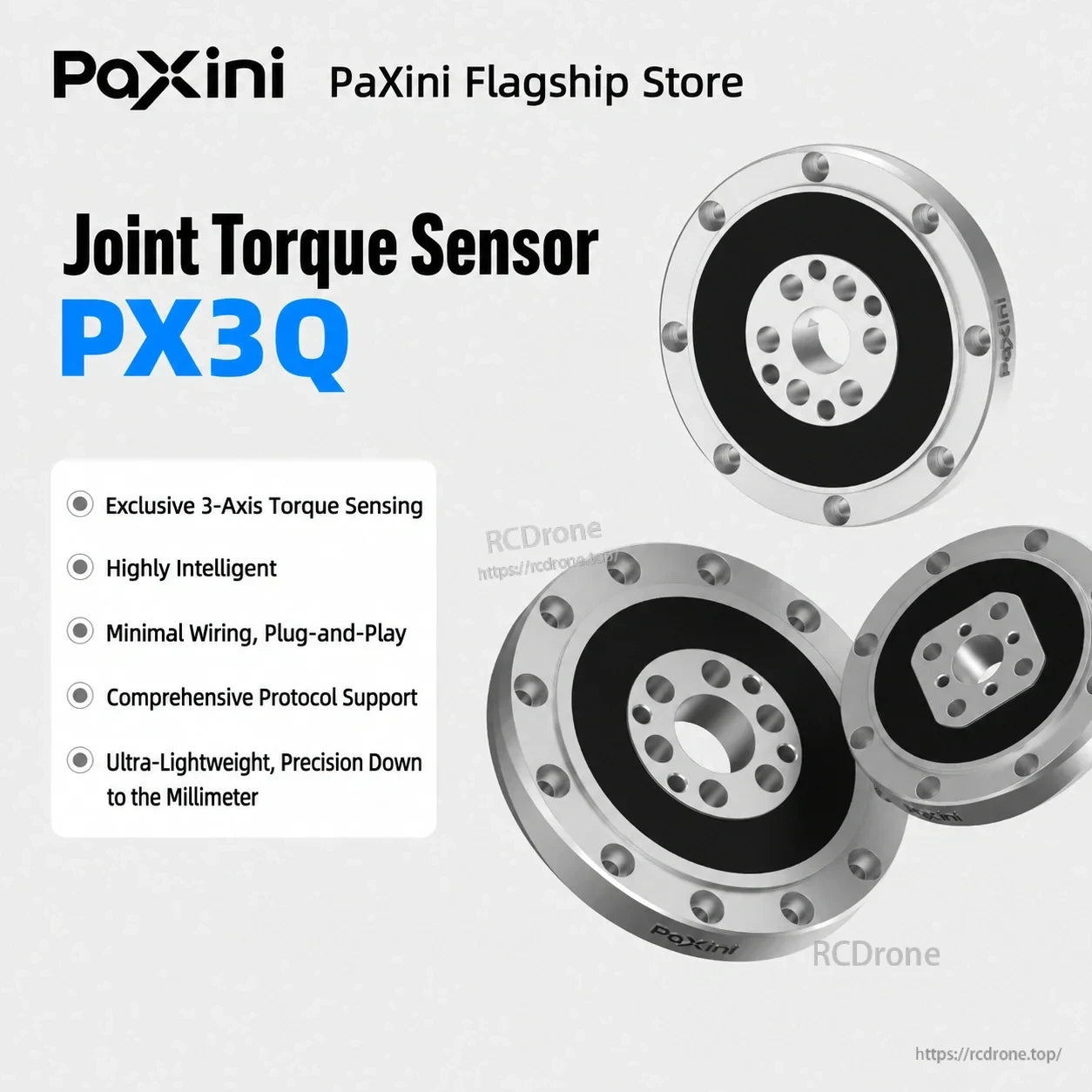

PaXini PX3Q is a Joint Torque Sensor featuring exclusive 3-axis torque sensing and digital output for robotics and industrial integration. It is designed for minimal wiring (plug-and-play) and supports multiple communication protocols for easier system integration in research, business, and industrial applications.

Key Features

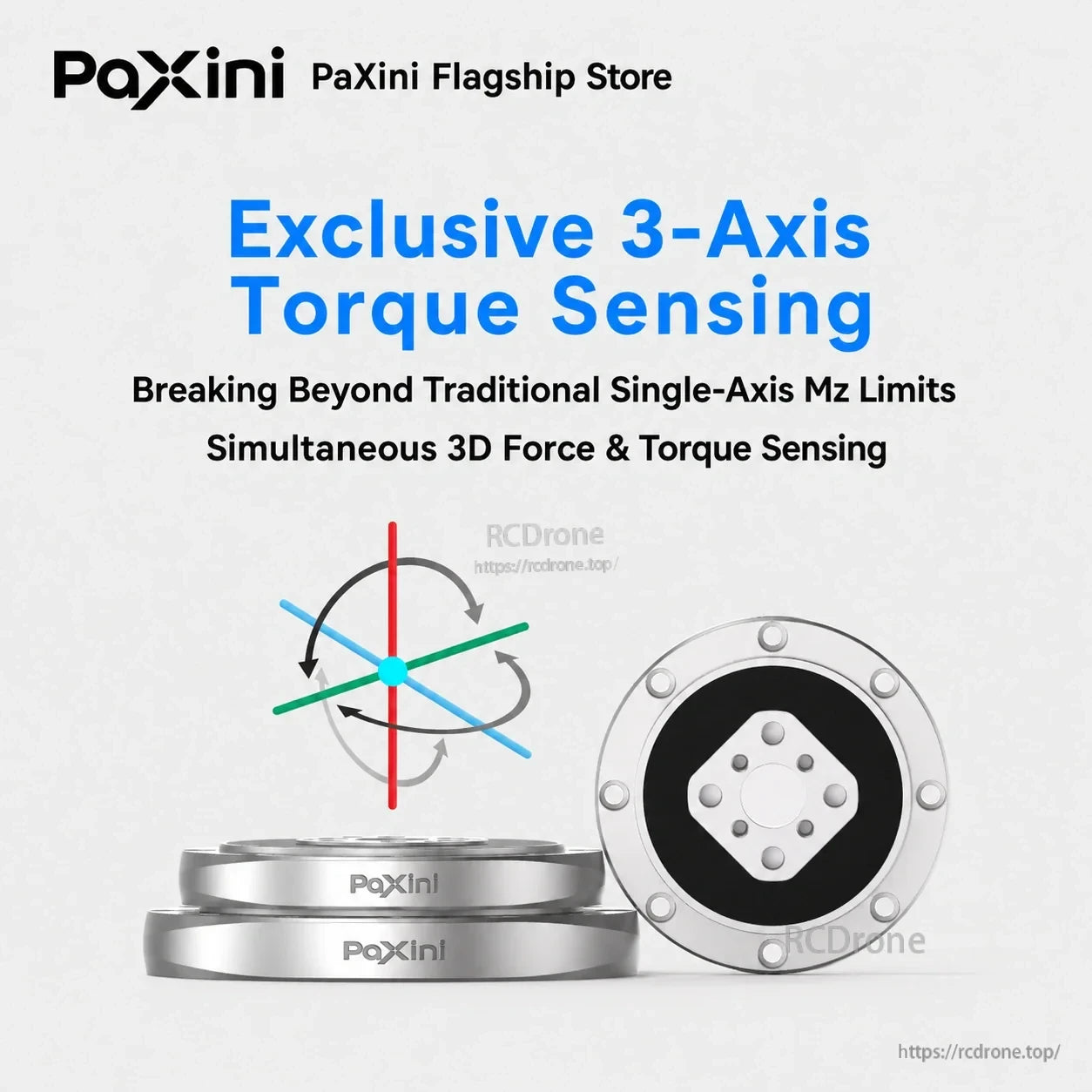

Exclusive 3-axis torque sensing

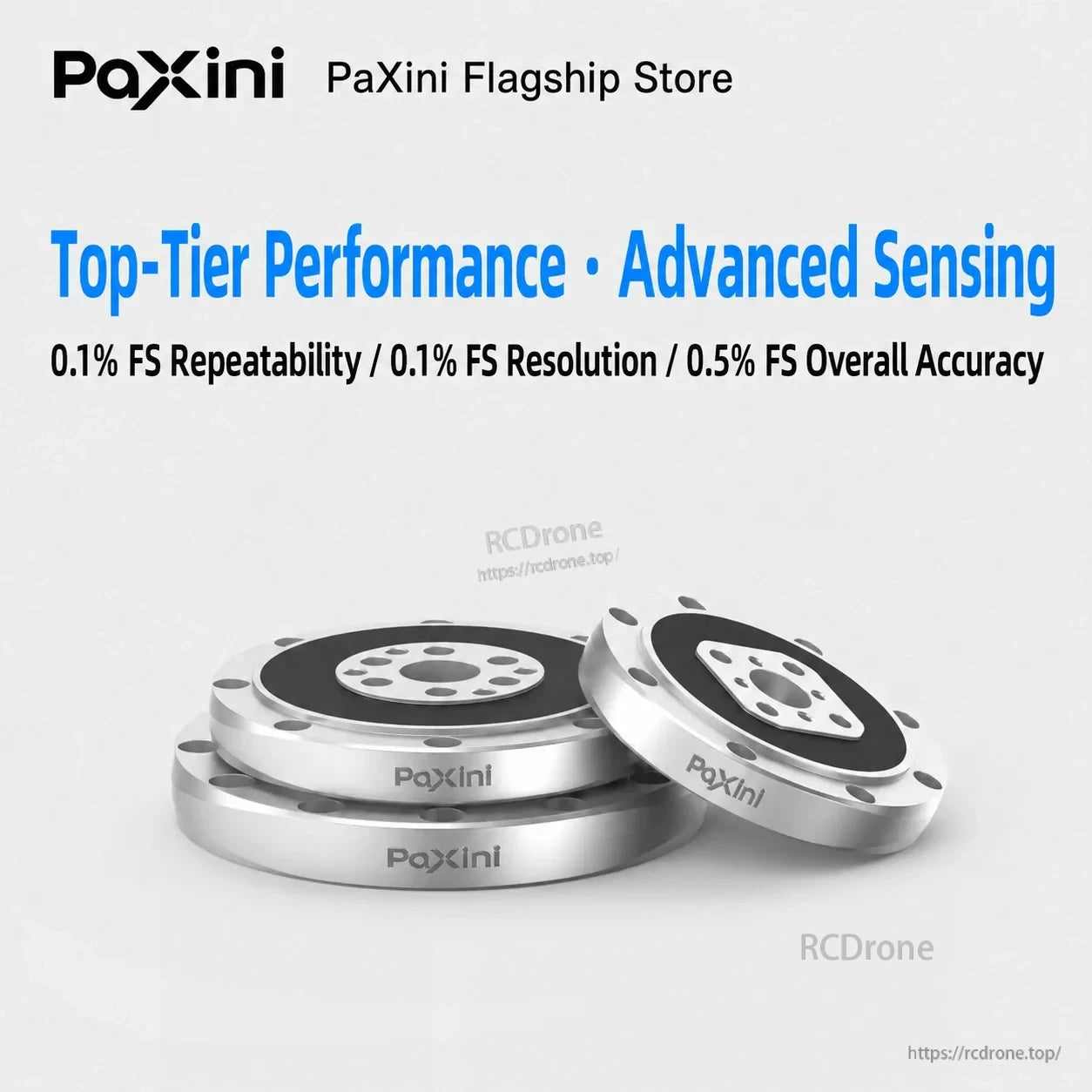

Top-tier performance metrics: 0.1% FS repeatability / 0.1% FS resolution / 0.5% FS overall accuracy

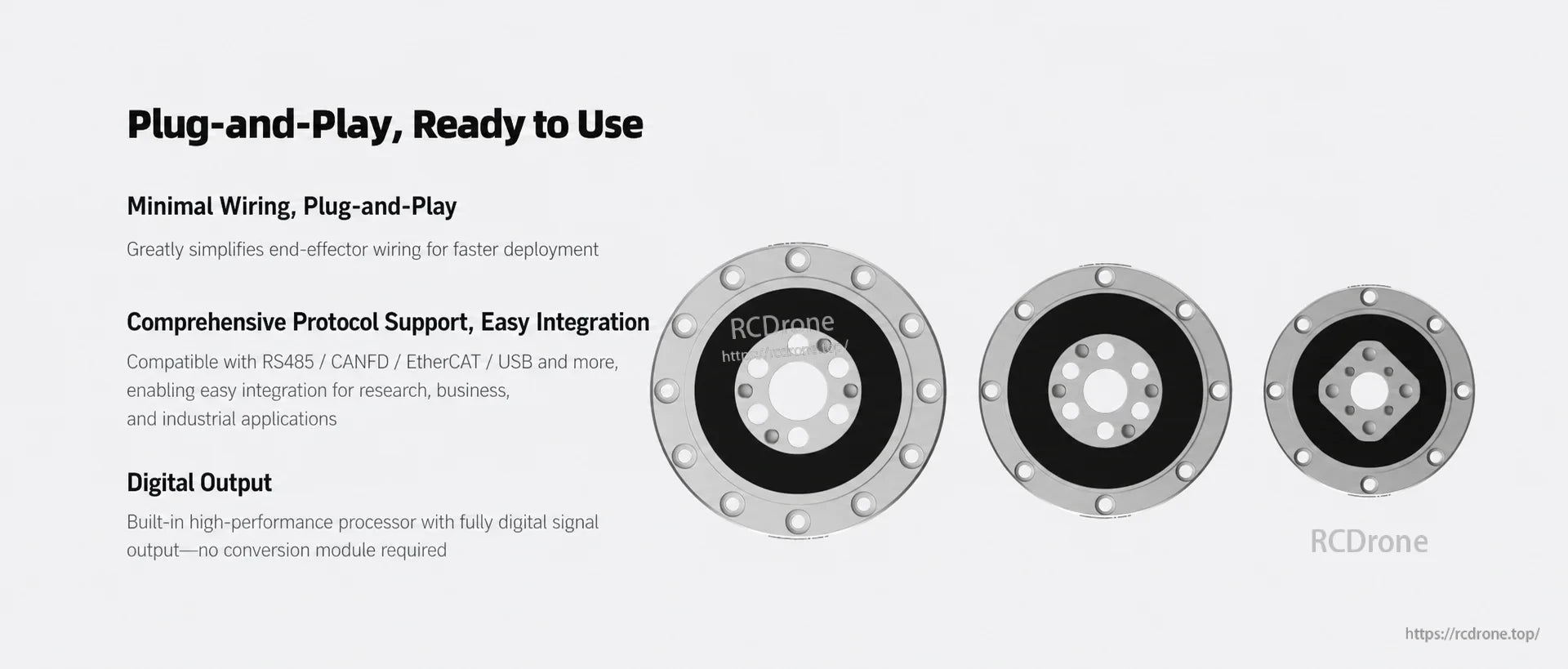

Minimal wiring, plug-and-play

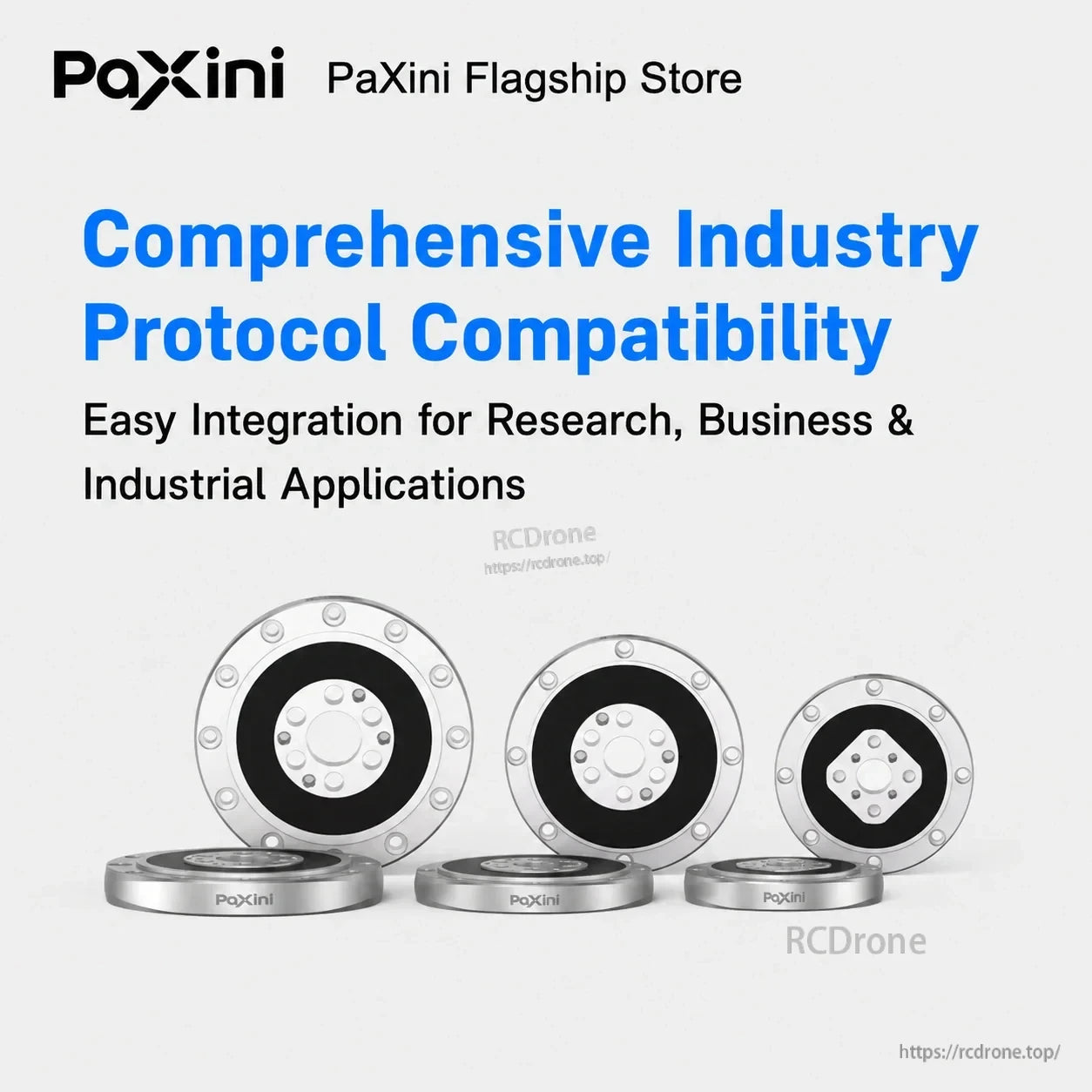

Comprehensive protocol support
Digital output: built-in high-performance processor with fully digital signal output (no conversion module required)

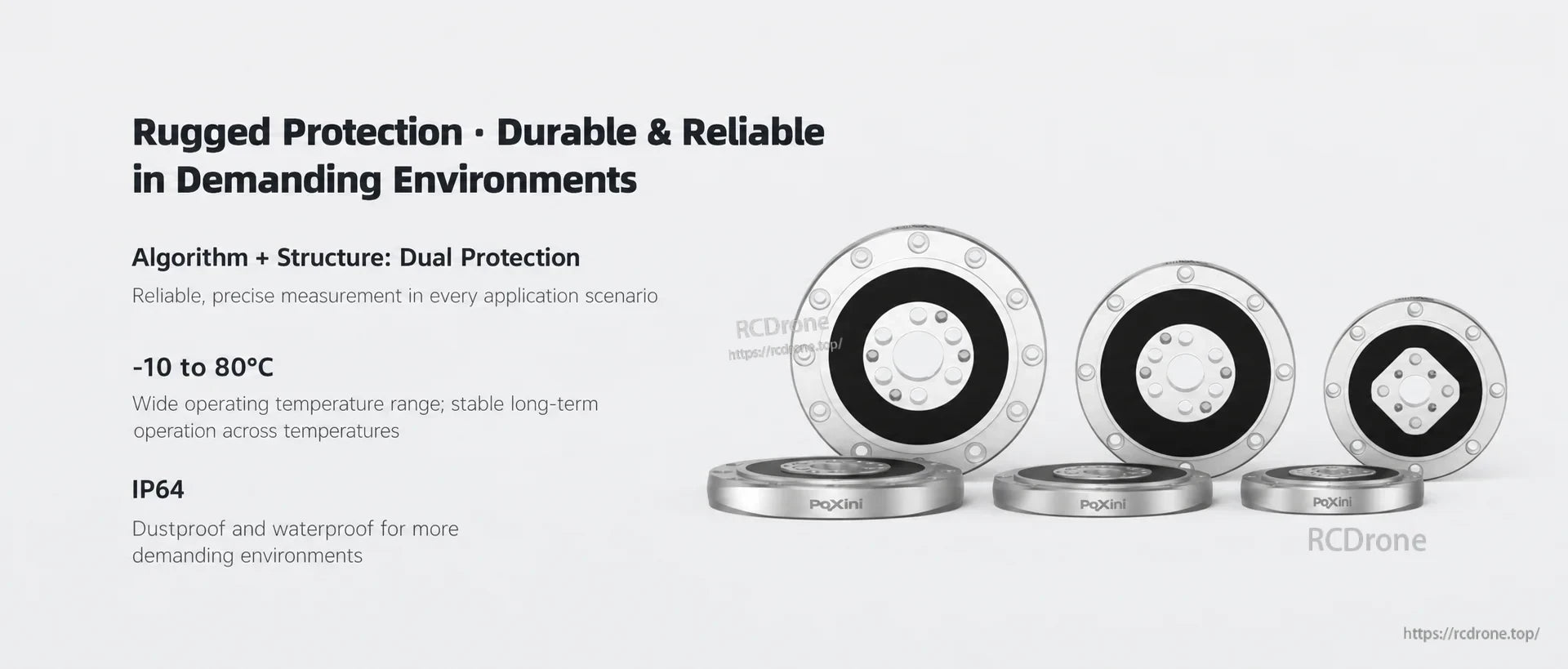

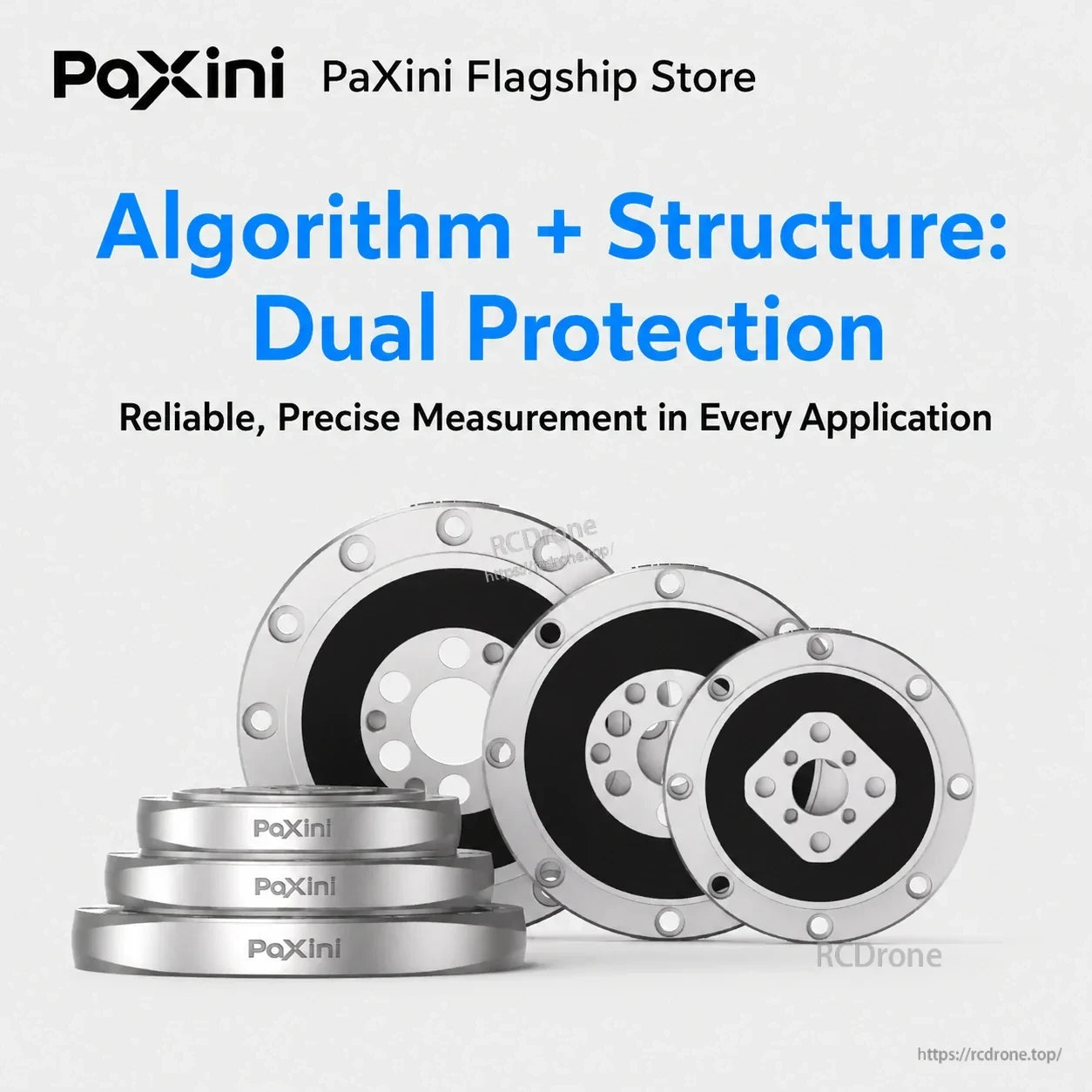

Rugged protection concept: “Algorithm + Structure: Dual Protection”
Operating temperature range: -10 to 80 C
Ingress protection: IP64 (IP67/IP68 customizable)

Applications

Humanoid robots
Robotic arms / collaborative robot arms
Exoskeletons
Quadruped robots
AGV vehicles
ARU robots
Aerospace
Automotive manufacturing
Rail transit
Energy & power equipment

Specifications

Measurement Range	30 Nm / 50 Nm / 100 Nm
Resolution	0.1 %FS*
Sampling Rate / Sampling Frequency	1000 Hz*

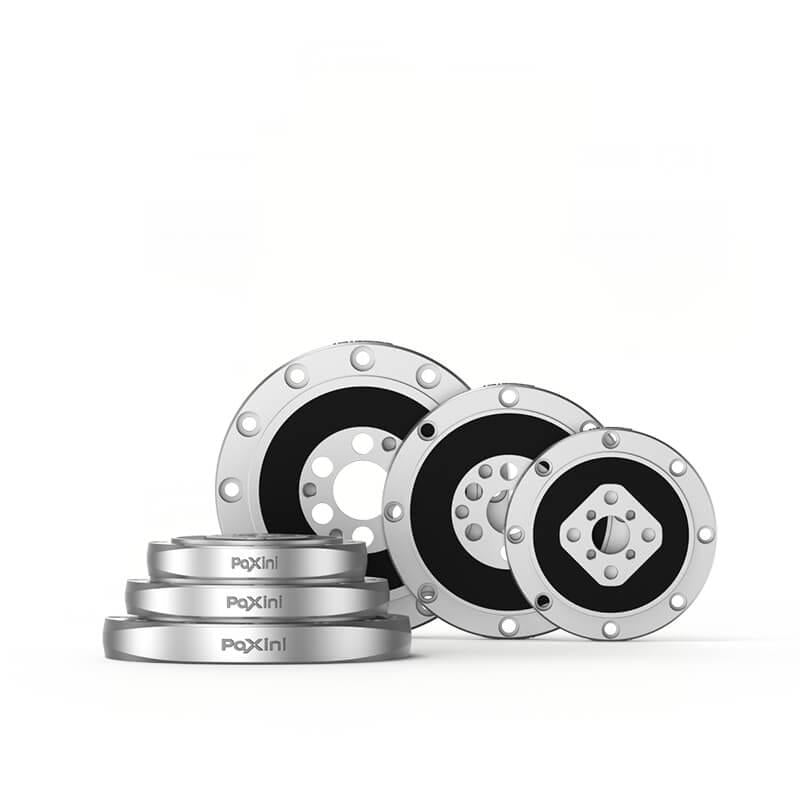

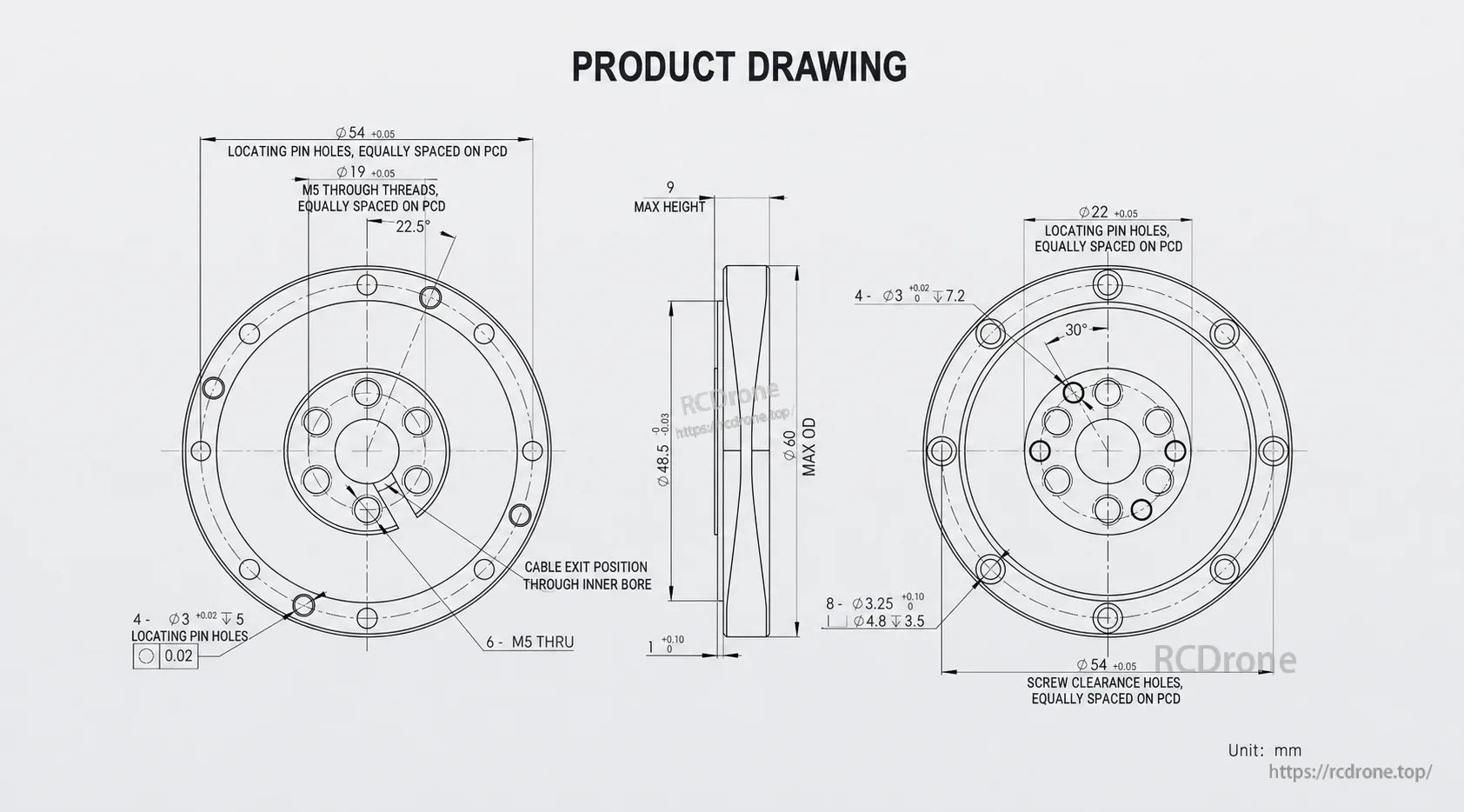

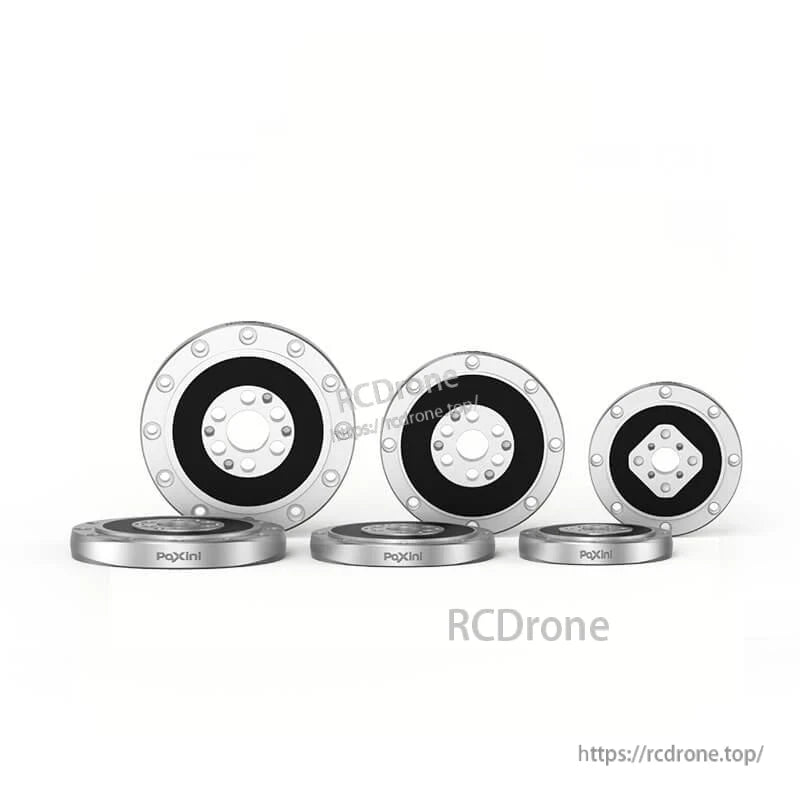

Diameter	50 mm / 60 mm / 70 mm (Customizable)

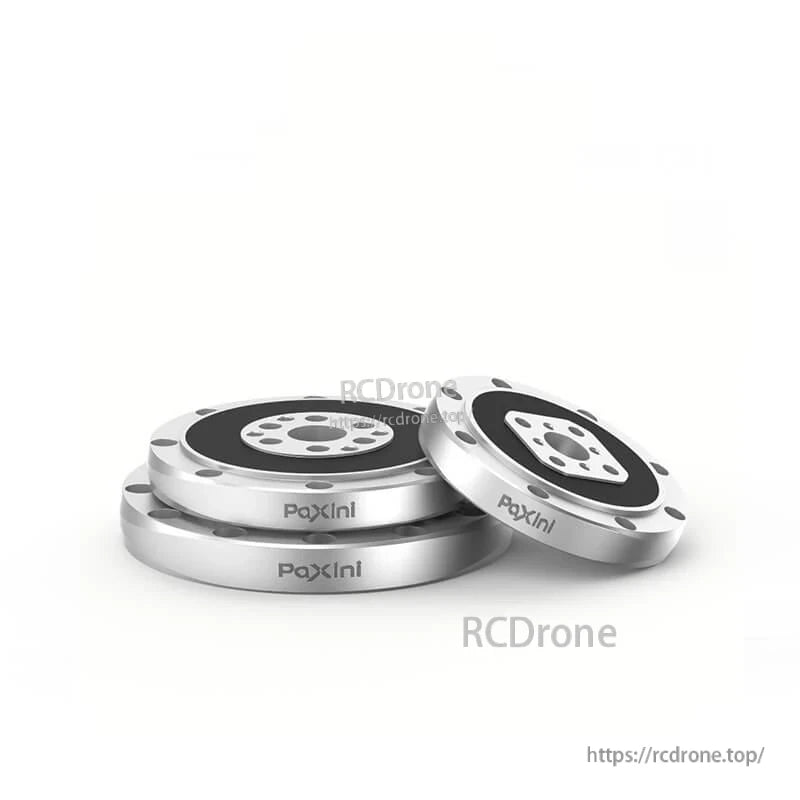

Height	9 mm / 9 mm / 11 mm (Customizable)
Weight	50 g*
Material	Aluminum Alloy
Limited Overload / Maximum Overload	300%
Repeatability	0.1 %FS*
Overall Accuracy	0.5 %FS*
Operating Temperature	-10 ~ 80
Water and Dust Resistance / Ingress Protection	IP64 (IP67/IP68 Customizable)
Operating Voltage	9 ~ 24 VDC
Communication Protocols	RS485 / CANFD / EtherCAT / USB, and others
