Rocket-RC 540 V6-M Sensored Brushless Motor for 1/10 Scale RC Racing Cars, 3.5T-21.5T Options
Rocket-RC 540 V6-M Sensored Brushless Motor for 1/10 Scale RC Racing Cars, 3.5T-21.5T Options
Rocket-RC
تعذر تحميل توفر الالتقاط
Overview
The Rocket-RC 540 V6-M Sensored Brushless Motor is a 540-size motor for 1/10 scale RC racing cars. It uses a sensored design with adjustable timing and dual sensor ports, with multiple wind options available for modified, stock-spec, and outlaw racing setups.

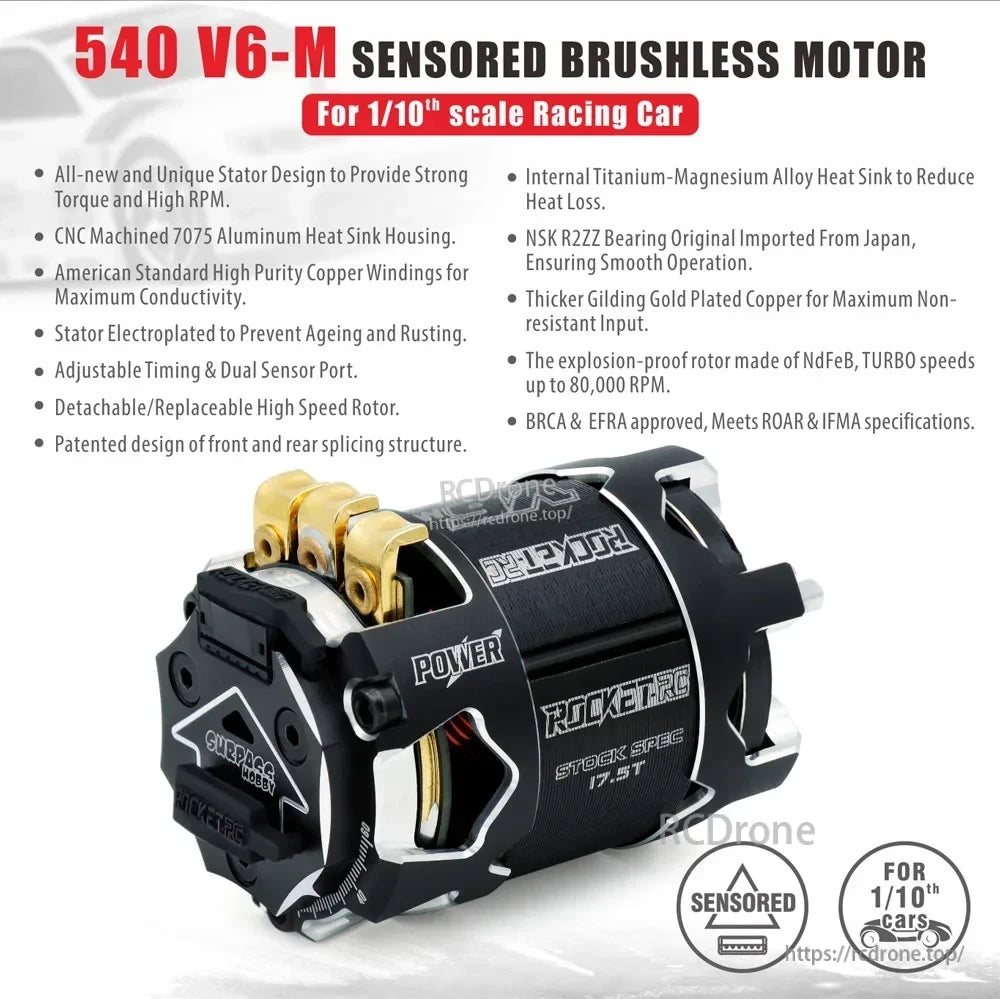

Key Features
- Sensored brushless motor with dual sensor ports and adjustable timing.
- CNC-machined 7075 aluminum heat-sink housing with an internal titanium-magnesium alloy heat sink.
- High-purity copper windings and gold-plated copper terminals.
- Electroplated stator and NdFeB rotor.
- NSK R2ZZ bearings for smooth operation.
- Detachable construction for cleaning and maintenance.
- Rotor speed rated up to 80,000 RPM.
For help selecting a wind option for a compatible 1/10 scale RC racing car setup, contact rcdrone.top.
Specifications
| Model | Rocket-RC 540 V6-M |
| Product type | Sensored brushless motor |
| Application | 1/10 scale RC racing cars |
| Motor diameter | 35.8 mm |
| Overall length | 52.3 mm |
| Shaft diameter | 3.175 mm |
| Bearings | NSK R2ZZ, 3.175 x 9.525 x 4 mm |
| Sensor ports | Dual |
| Timing | Adjustable |
| Motor mounting holes | 6 x M3 |
Available Wind Options
Modified: 3.5T, 4.0T, 4.5T, 5.0T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, and 10.5T.
Stock Spec: 13.5T, 17.5T, and 21.5T.
Outlaw: 13.5T, 17.5T, and 21.5T.
Details

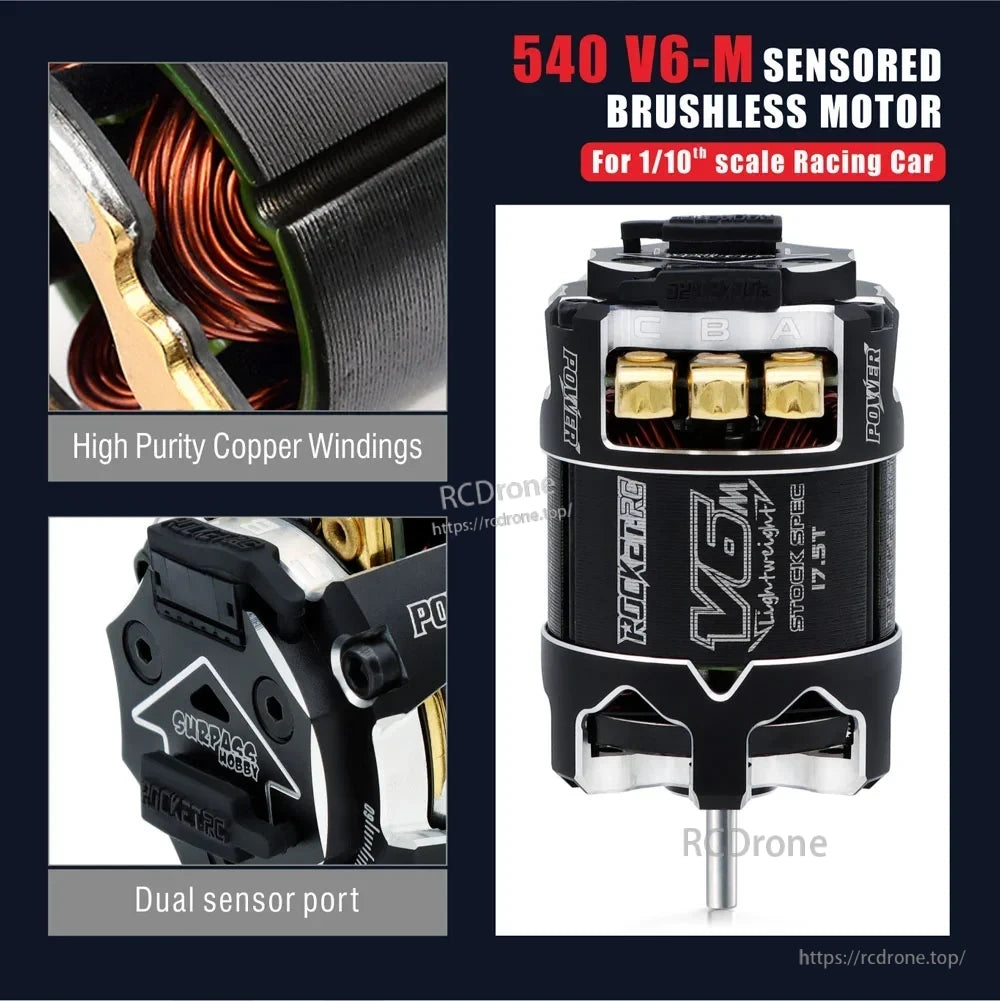

High-purity copper windings, gold-plated terminals, and dual sensor ports support a sensored racing setup.

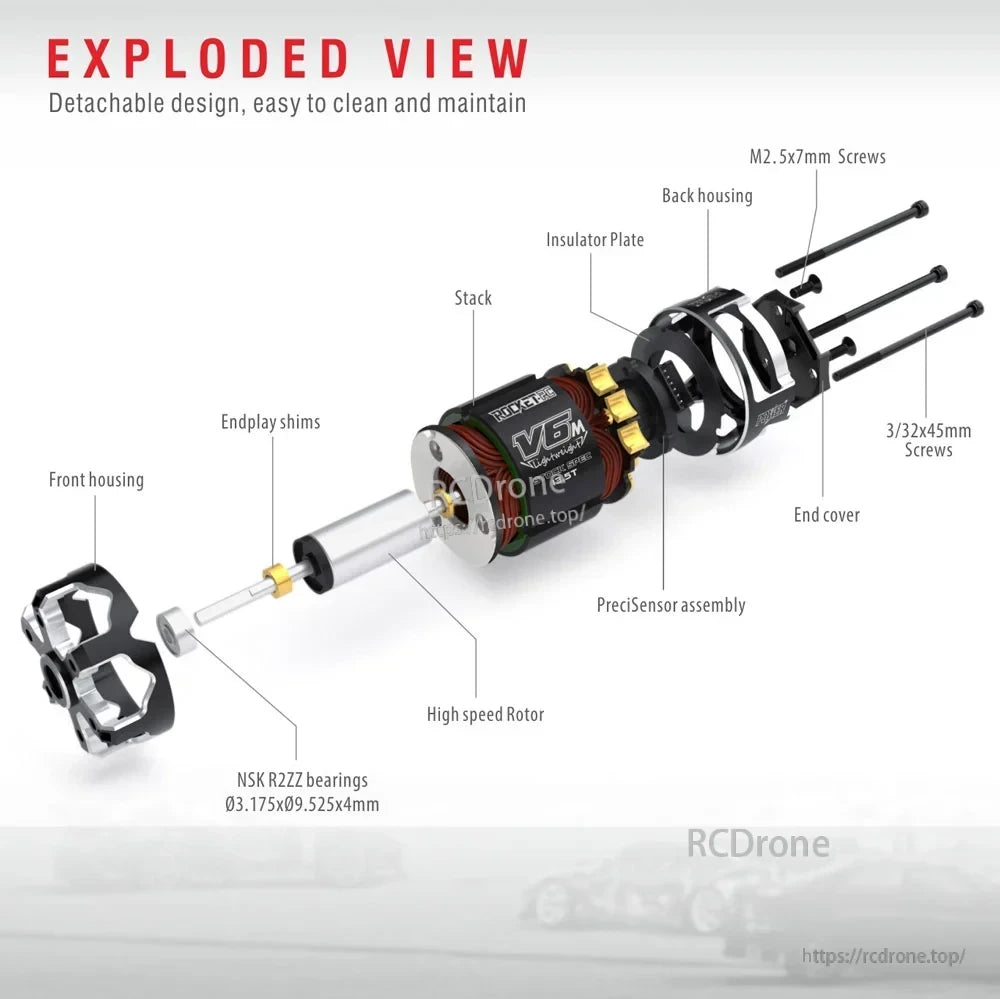

The detachable construction allows access to the rotor, bearings, sensor assembly, and housing components for cleaning and maintenance.

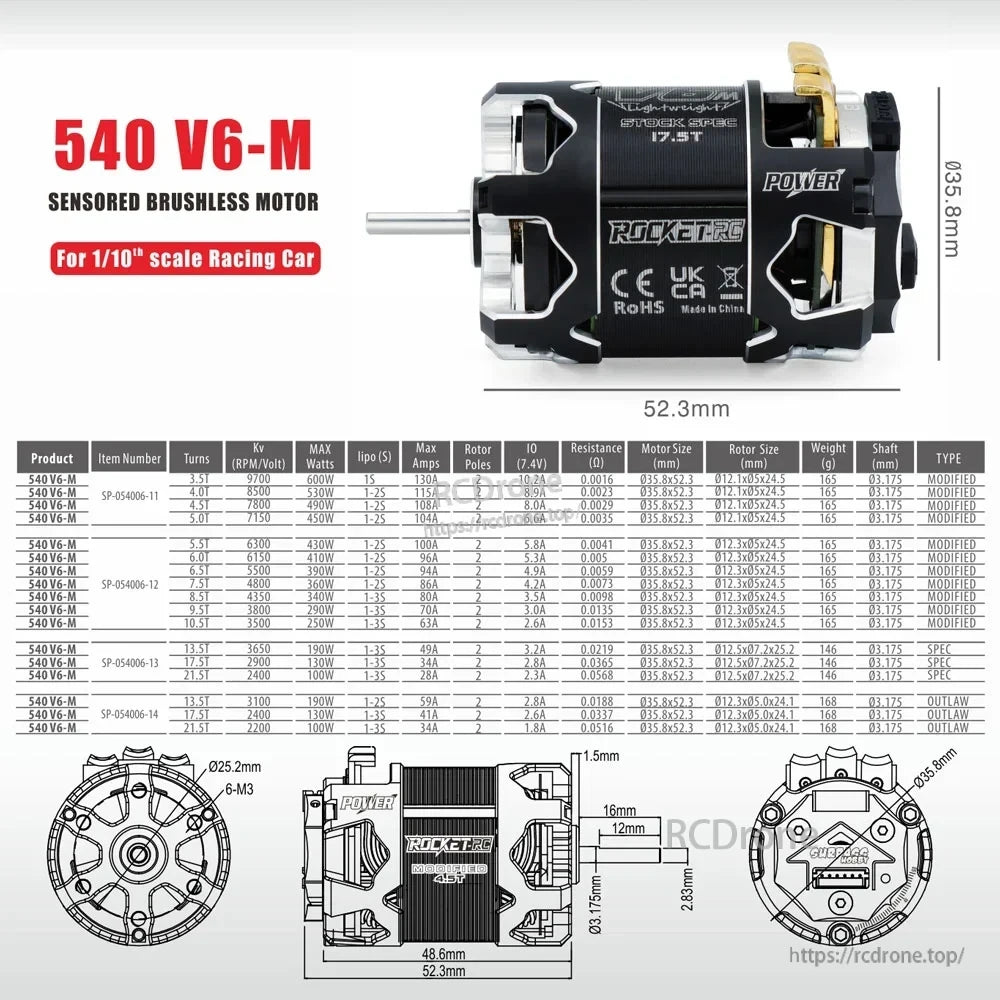

Dimensions include a 35.8 mm motor diameter, 52.3 mm overall length, and 3.175 mm shaft diameter.
