GEPRC GEP-CQ 3-Inch FPV Frame Kit (4K CineQueen), 145mm Wheelbase, 3mm Plates, 66.6g, Guards

GEPRC GEP-CQ 3-Inch FPV Frame Kit (4K CineQueen), 145mm Wheelbase, 3mm Plates, 66.6g, Guards

GEPRC

$31.91 USD
$31.91 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
The camera version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

GEPRC GEP-CQ is a 3-inch FPV frame designed around a 145 mm motor-to-motor layout and 3 inch propeller size. The carbon plates are labeled “4K CineQueen” and “GEPRC”.

Key Features

  • 145 mm motor-to-motor frame size for 3 inch propeller builds
  • 3 mm top plate and 3 mm bottom plate
  • Includes propeller guards and an aluminium camera mounting set
  • Listed camera versions: CADDX Camera, RUNCAM Camera

Specifications

Brand name GEPRC
Item name GEP-CQ
Motor to Motor 145 mm
Propeller 3inch
Top plate 3mm
Bottom plate 3mm
Weight 66.6g
Weight (additional information) 150 g
Dimensions (additional information) 300 × 200 × 100 mm
The camera version CADDX Camera, RUNCAM Camera

What’s Included

  • 1 x Top plate : 3mm
  • 1 x Bottom plate :3mm
  • 1 x Aluminium Camera Mounting Set
  • 16 x M2x8mm Grade Steel Screw
  • 14 x M2x6mm Socket Head Cap Screw
  • 10 x M2mm Flight Controller Bumper
  • 4 x M2x5mm Bolt – Black Nylon
  • 10 x M2x2mm Nut – Black Nylon
  • 1 x 3D Print Part
  • 1 x Battery Pad
  • 1 x Neoprene Landing Pads
  • 2 x Antenna Tubes
  • 1 x M15x200 Lipo Strap
  • 4 x Propeller Guard
  • 1 x LED light
  • 1 x L-Type USB Connector
  • 1 x 20x20mm Spacer Plate

Applications

  • 3-inch FPV quad builds requiring prop guards
  • FPV builds using CADDX or RUNCAM camera versions

For pre-sales fitment questions and parts support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

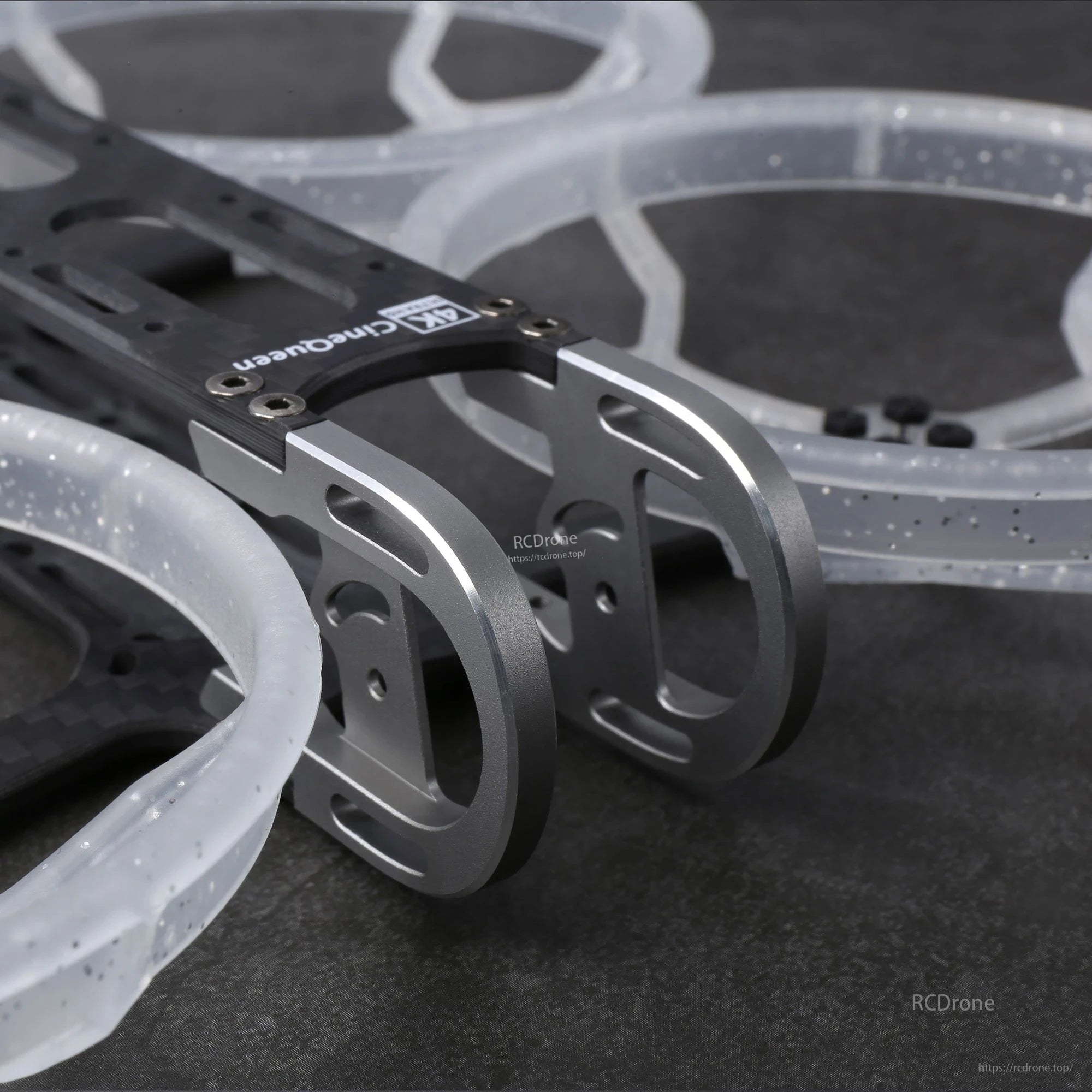

GEPRC GEP-CQ 3-Inch FPV Frame, Close-up of GEPRC GEP-CQ FPV frame with carbon fiber plates, aluminum camera side brackets, and duct rings

The GEP-CQ frame combines carbon fiber plates with aluminum camera side brackets and duct rings for a compact cinewhoop-style build.

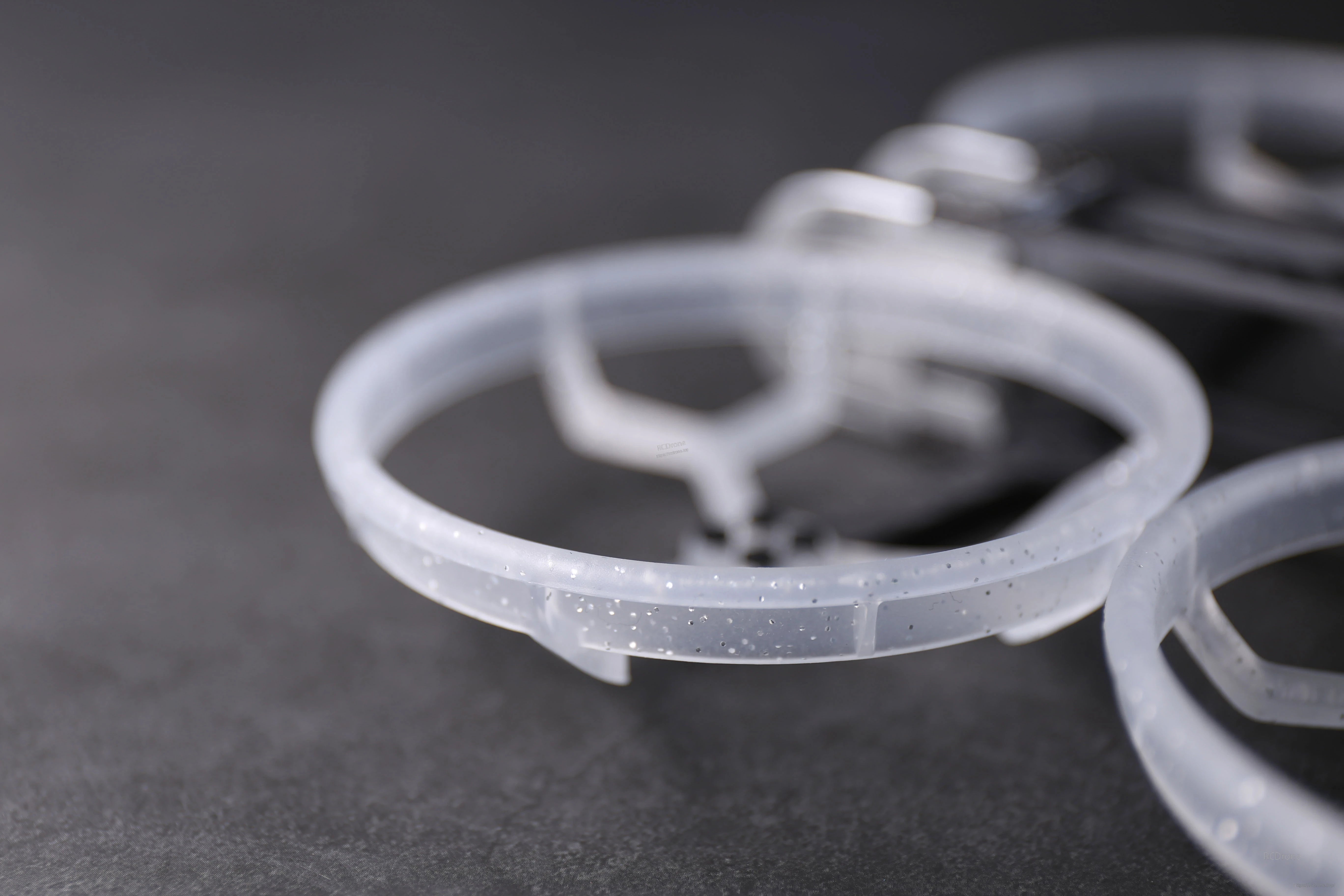

Close-up of GEPRC GEP-CQ 3-inch FPV frame translucent circular prop ducts/guards on a dark surface

The GEP-CQ 3-inch frame uses circular prop ducts to help protect props and keep the build compact.

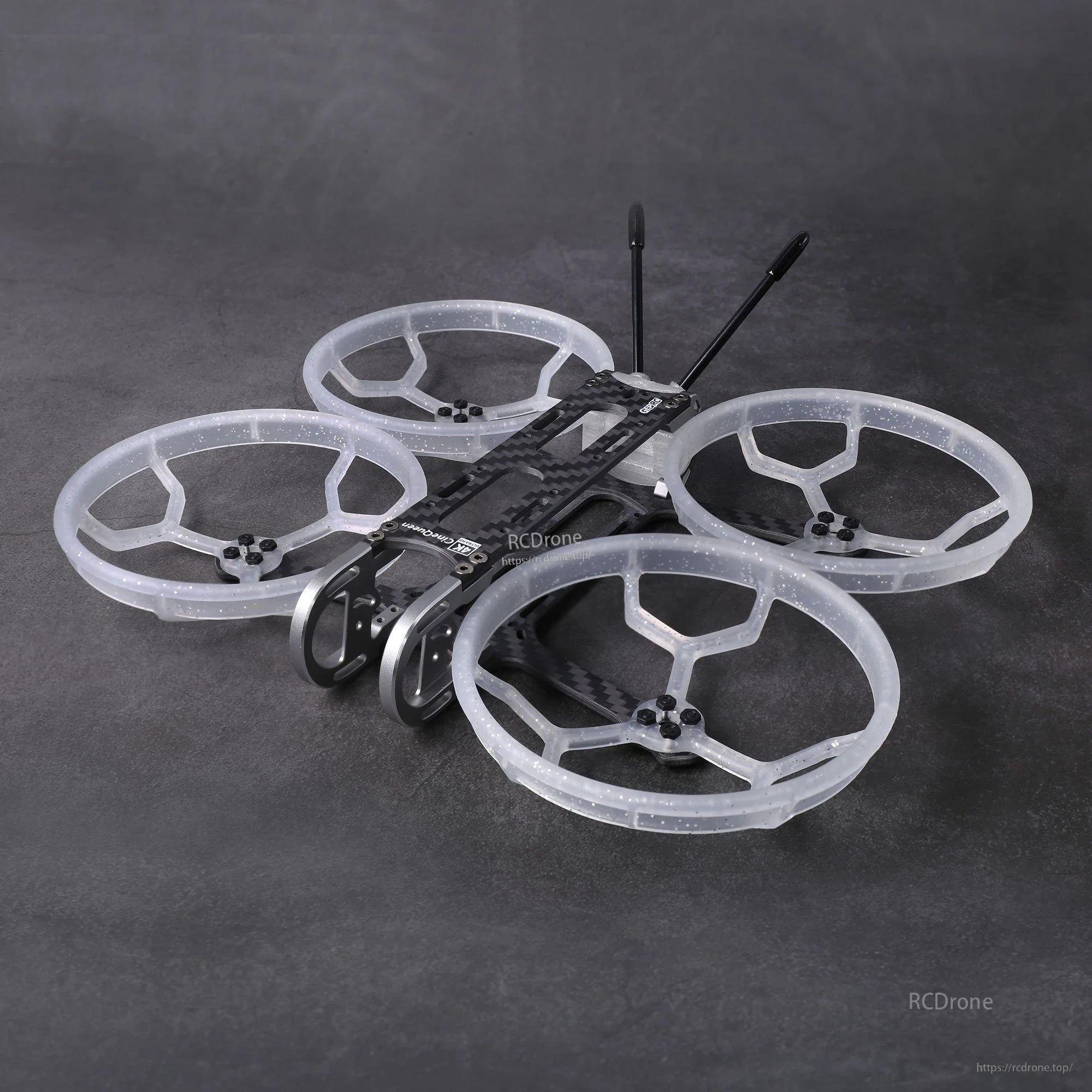

GEPRC GEP-CQ 3-inch FPV frame with carbon fiber center plate, translucent duct guards, and dual antennas

The GEPRC GEP-CQ 3-inch frame features a carbon fiber center plate with four translucent duct guards and front camera mounting brackets.

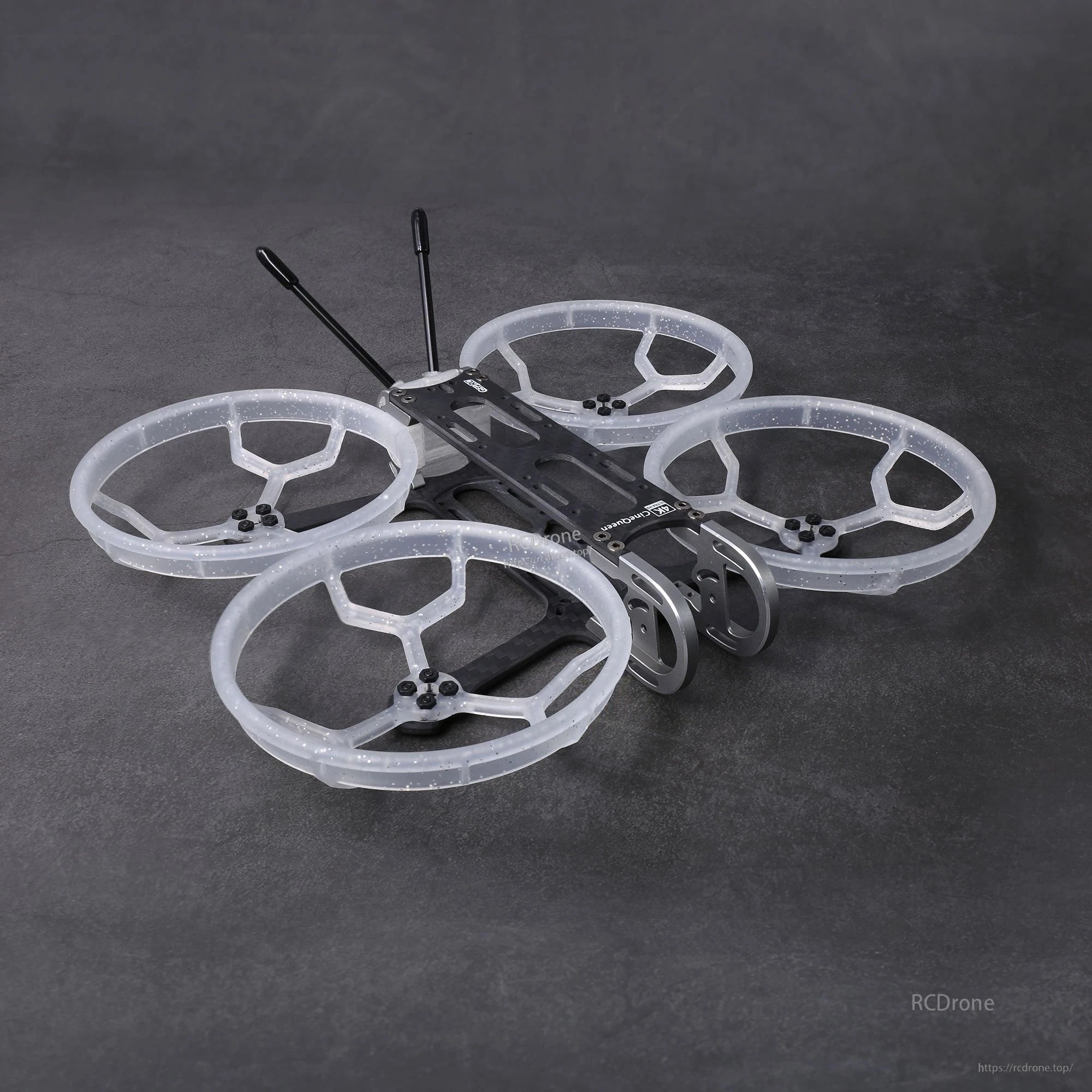

GEPRC GEP-CQ 3-Inch FPV Frame, GEPRC GEP-CQ 3-inch FPV drone frame with carbon fiber center plate and four translucent prop guard ducts

The GEPRC GEP-CQ 3-inch frame combines a carbon fiber center plate with four lightweight prop guard ducts for a compact quad build.

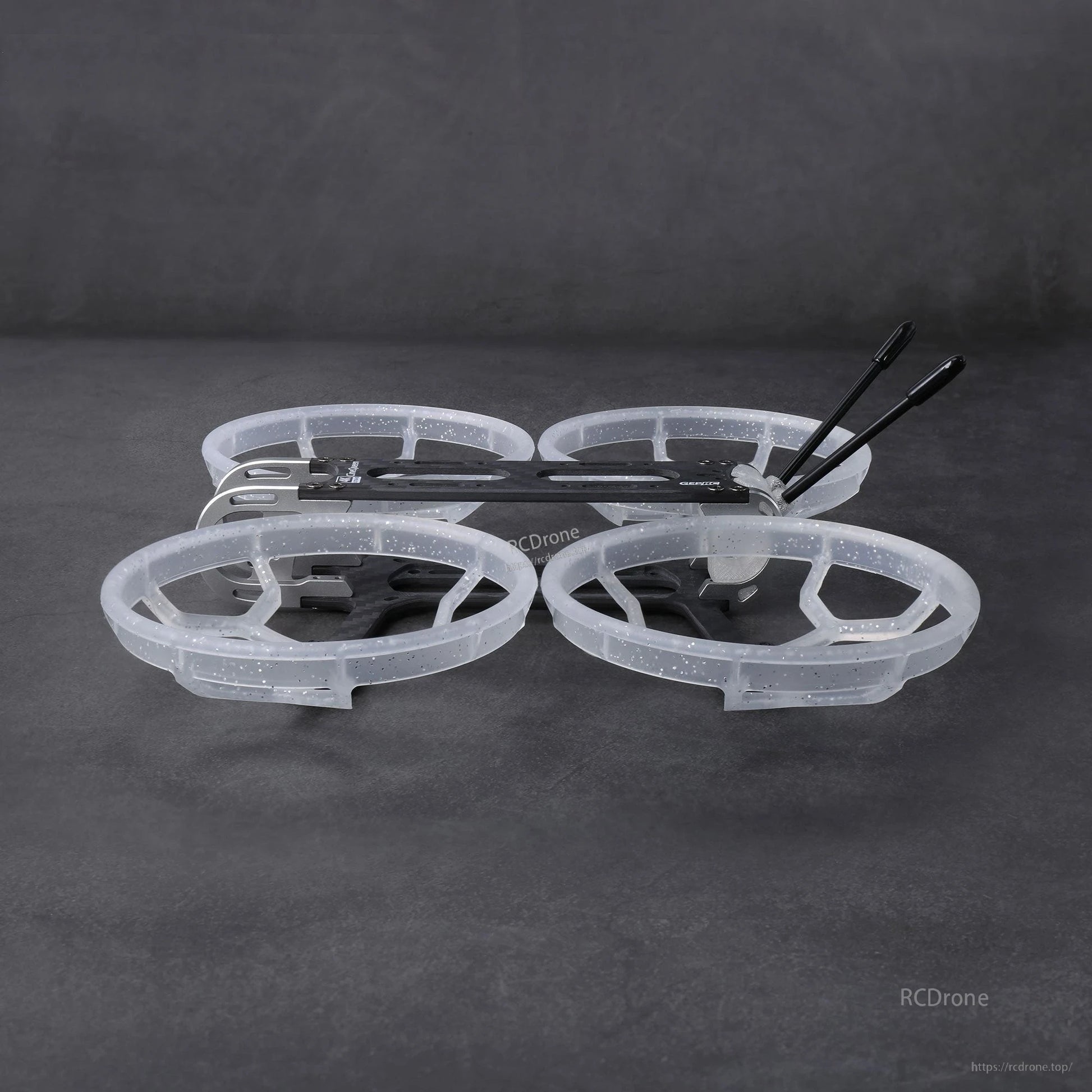

GEPRC GEP-CQ 3-inch FPV frame with carbon fiber plates, translucent prop guards, and rear antenna mounts

The GEP-CQ 3-inch cinewhoop-style frame uses integrated prop guards and a slim carbon plate layout for a tidy build.

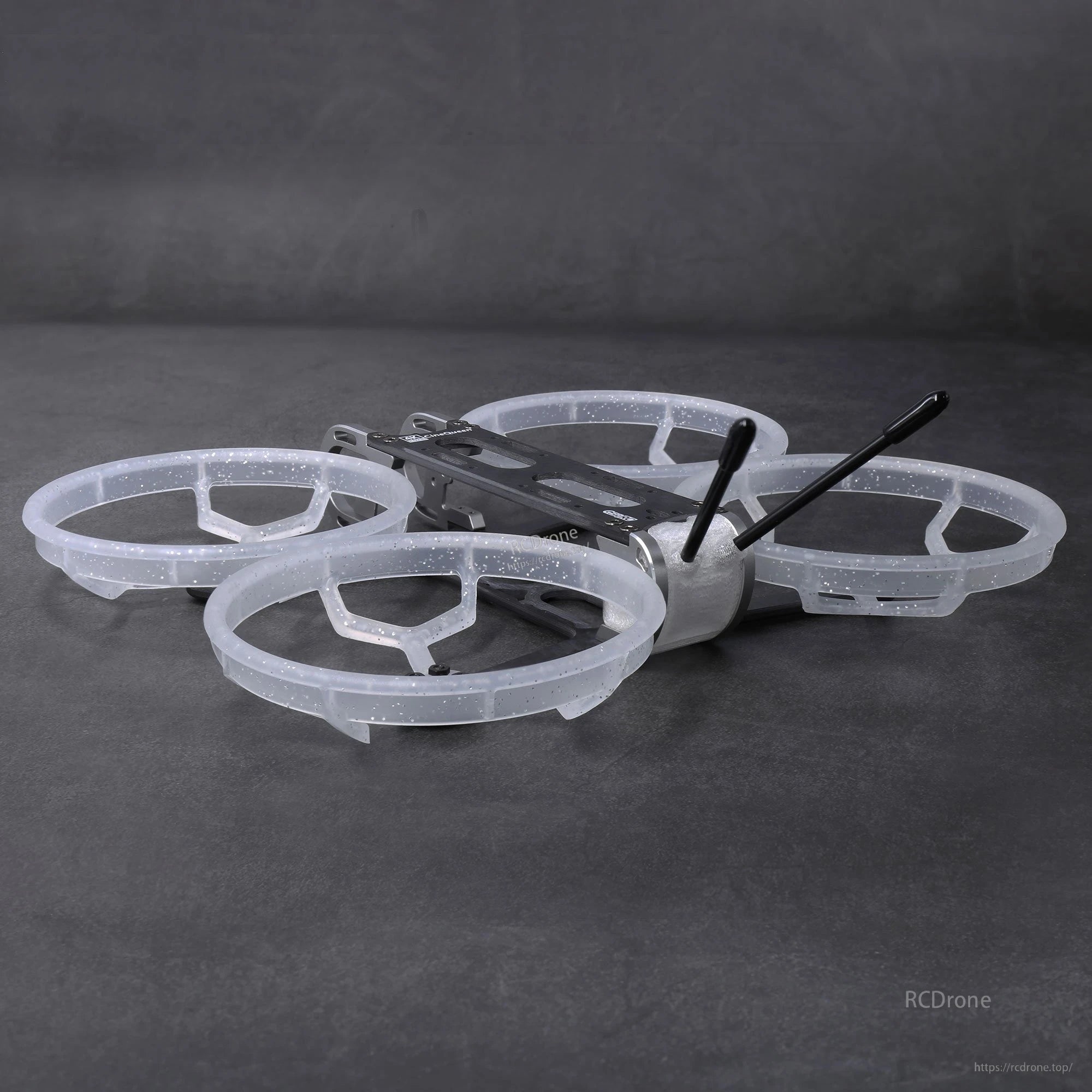

GEPRC GEP-CQ 3-inch FPV frame with four translucent duct guards, carbon fiber plates, and rear antenna mounts

The GEP-CQ 3-inch frame uses a compact carbon plate layout with duct-style prop guards for a tidy cinewhoop-style build.

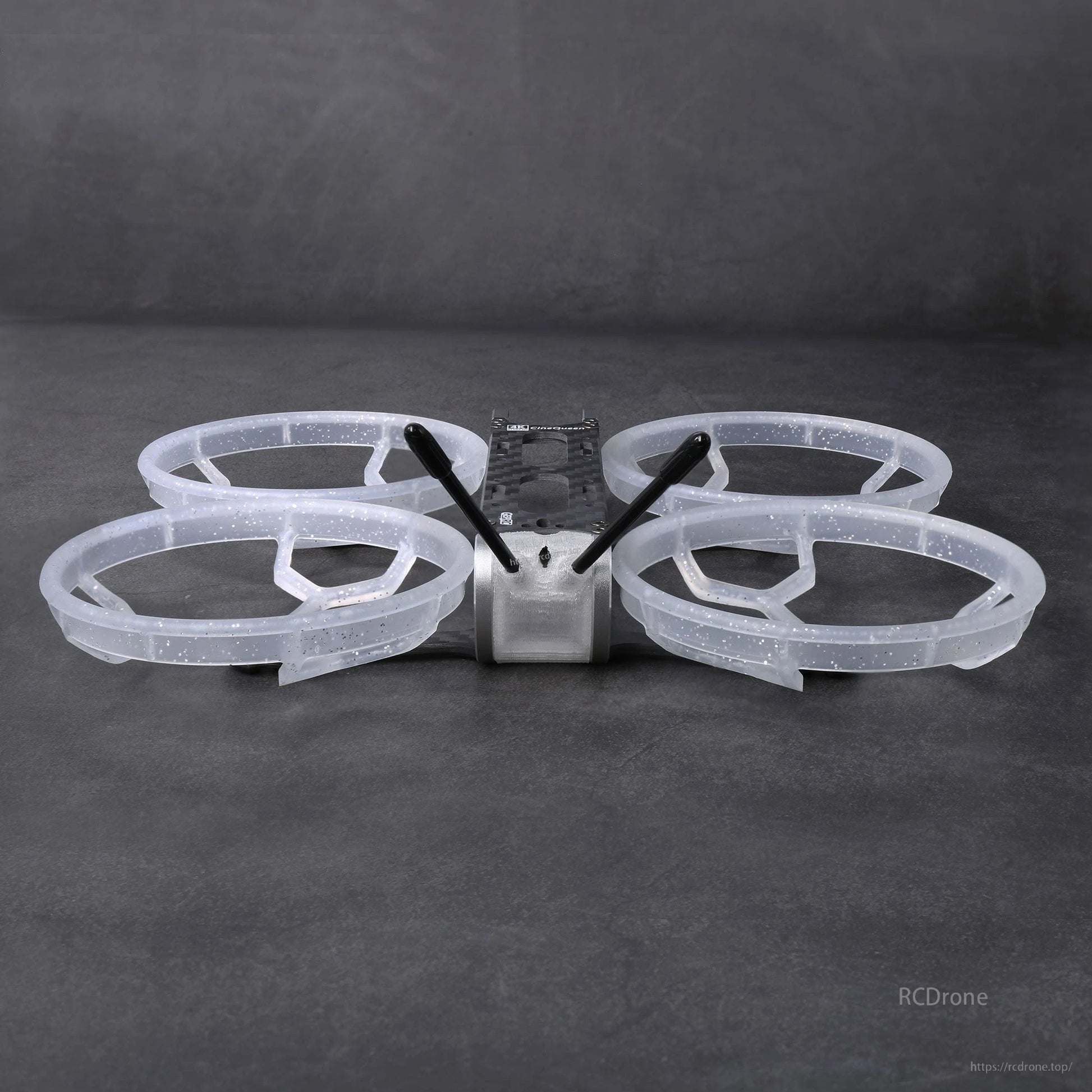

GEPRC GEP-CQ 3-inch FPV frame with carbon fiber center plate, four translucent prop ducts, and twin antenna mounts

The GEPRC GEP-CQ 3-inch frame uses a carbon center plate with ducted prop guards and rear antenna mounts for a tidy cinewhoop-style build.

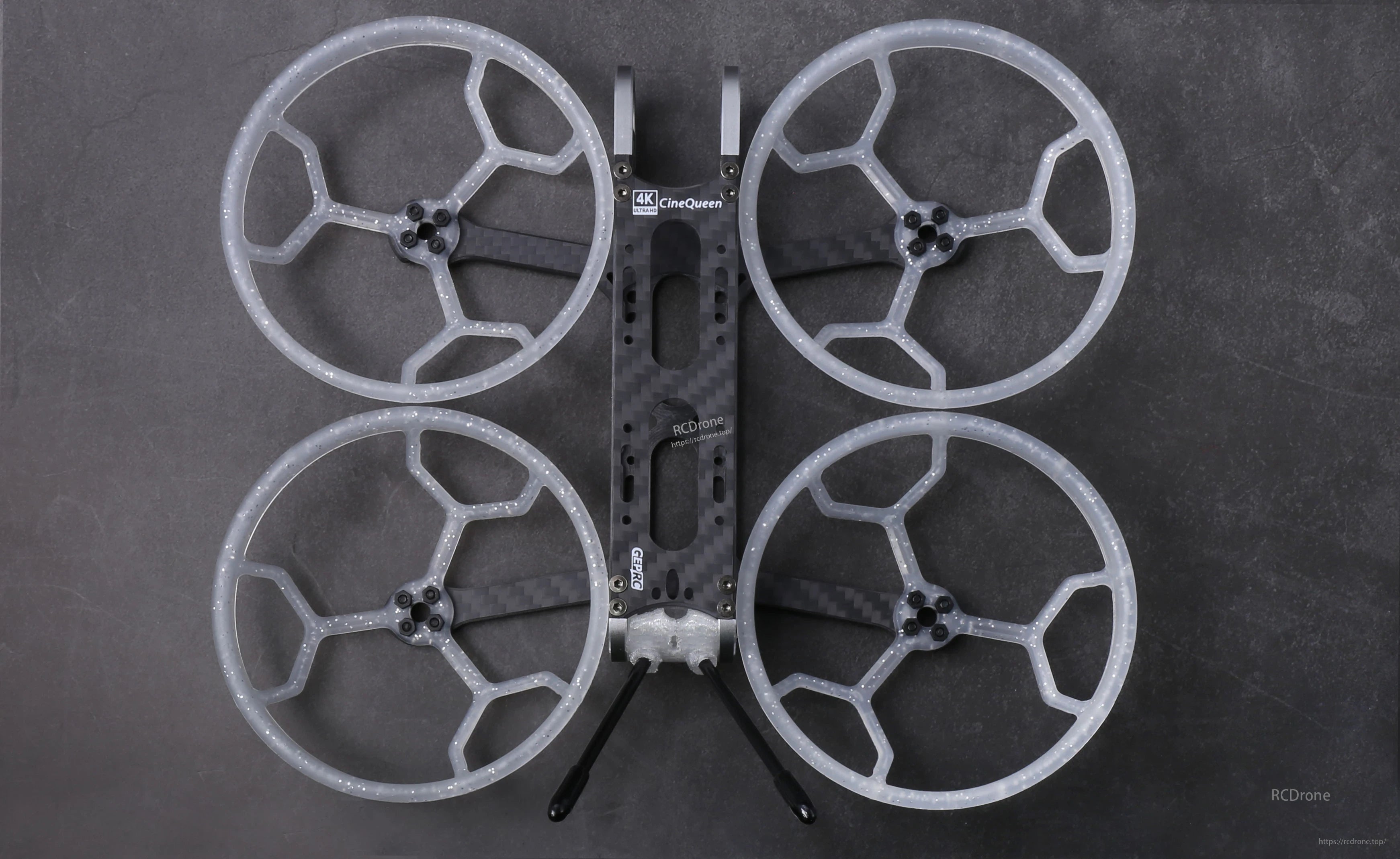

Top view of GEPRC GEP-CQ 3-inch FPV frame with carbon fiber body and four circular prop guards

The GEPRC GEP-CQ 3-inch FPV frame uses a carbon fiber center plate with integrated prop guards and landing legs for a tidy cinewhoop build.

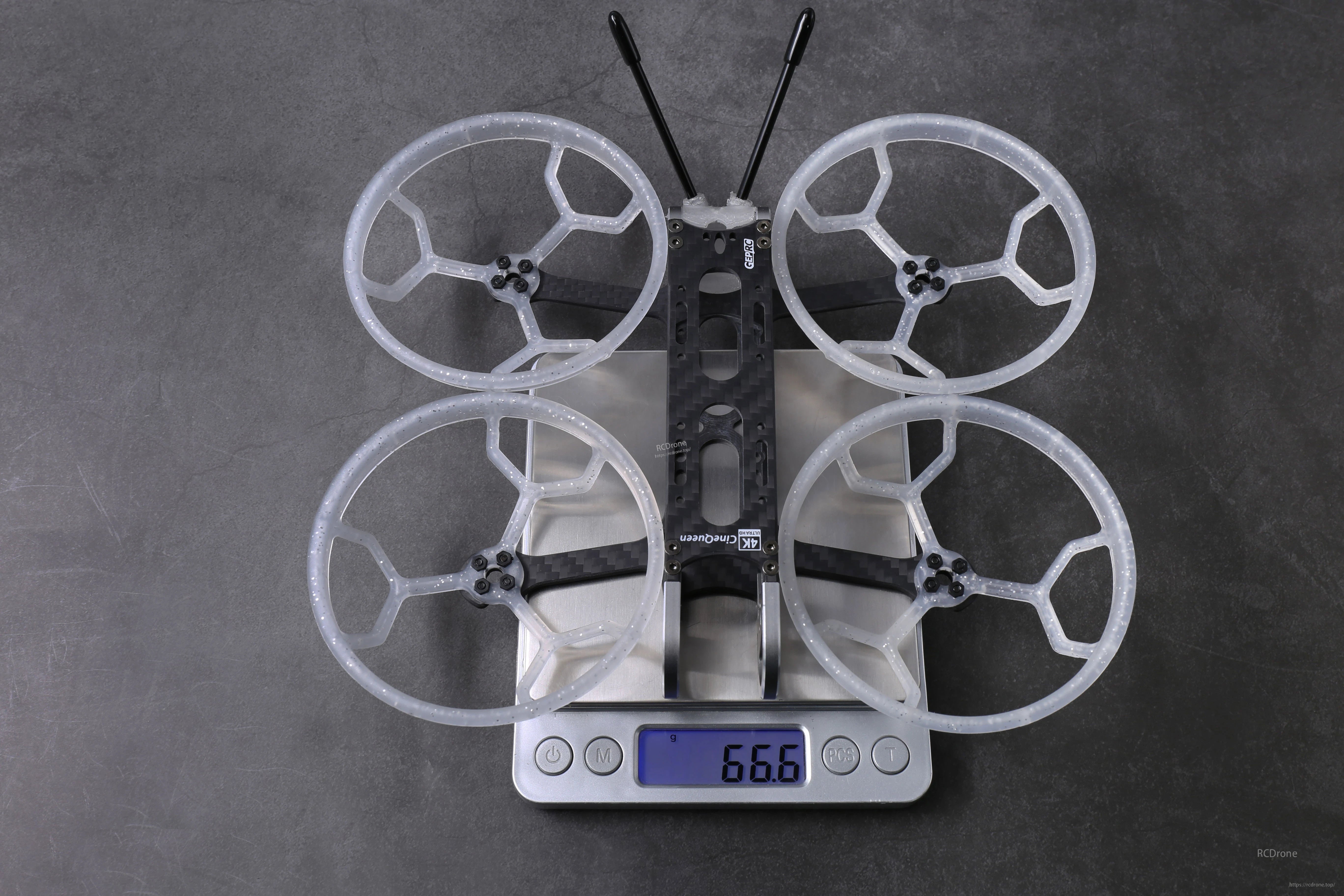

GEPRC GEP-CQ 3-inch FPV frame with translucent prop guards on a digital scale reading 66.6 g

The GEPRC GEP-CQ 3-inch FPV frame includes integrated prop guards and weighs 66.6 g on the scale.
