Surpass Hobby MS6210 180KV / MS6215 210KV Brushless Multirotor Drone Motor, 12S, 12/18mm Mount
Surpass Hobby MS6210 180KV / MS6215 210KV Brushless Multirotor Drone Motor, 12S, 12/18mm Mount
Surpass Hobby
تعذر تحميل توفر الالتقاط
Overview

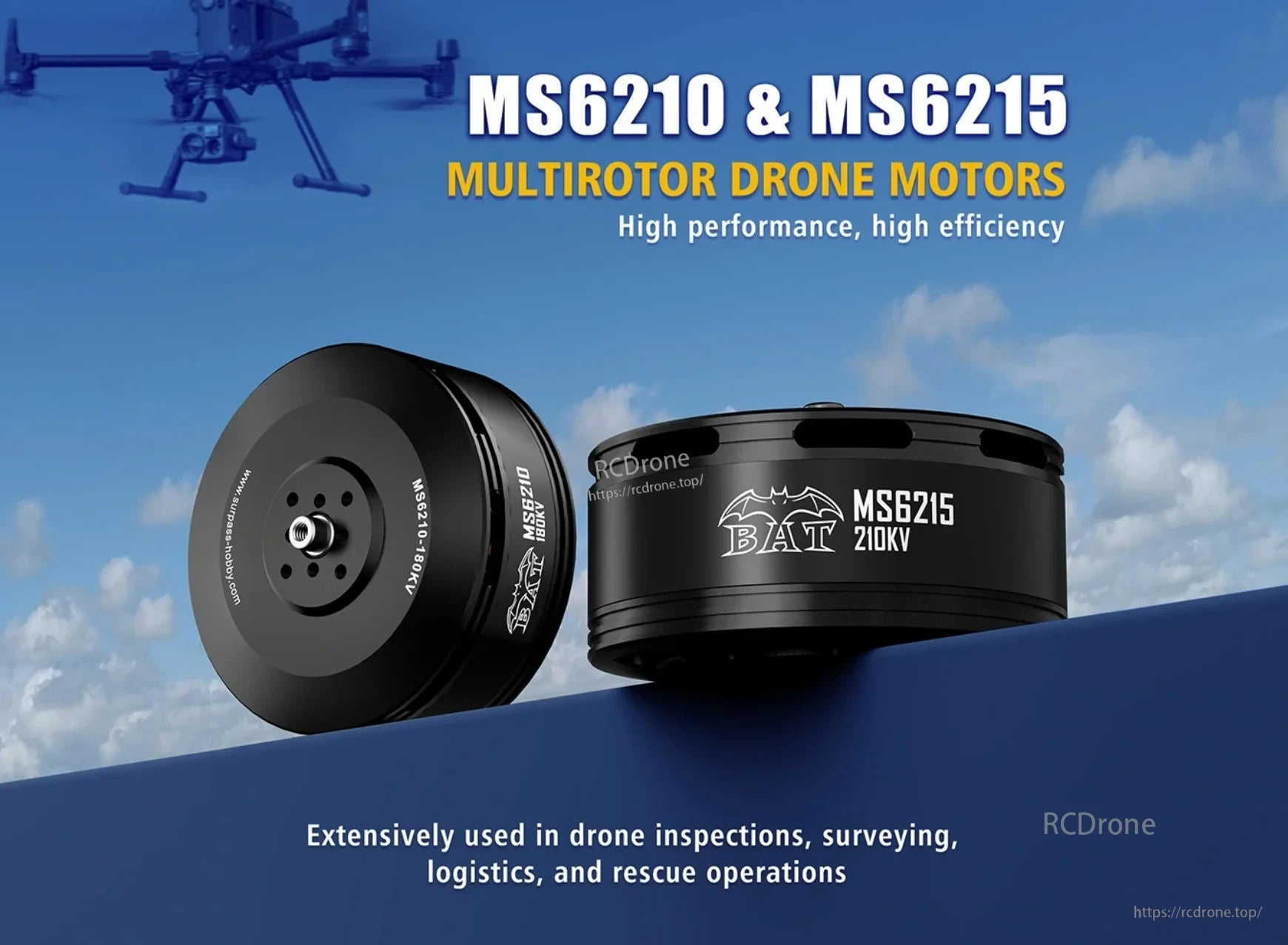

Surpass Hobby MS6210/MS6215 is a multirotor drone motor series for multirotor drones, offered in two KV options: MS6210 180KV and MS6215 210KV. The design focuses on efficient heat dissipation, easy maintenance, and strong torque using N48SH magnets, making it suitable for demanding drone payload and endurance builds.
Key Features
- Model options: MS6210 180KV or MS6215 210KV
- N48SH strong magnetic sheet for strong torque and high-temperature resistance
- Detachable design for easier cleaning and improved heat dissipation
- Porous air outlet structure on front and rear covers to improve cooling performance
- Two installation hole spacings: 4-hole 12mm and 4-hole 18mm
Specifications
| Parameter | MS6210 | MS6215 |
|---|---|---|
| KV (RPM/V) | 180KV | 210KV |
| Motor size (mm) | 068.8 x 36 | 068.8 x 41 |
| Motor weight | 324.2 g | 400.2 g |
| Max watts (W) | 3546.4 | 4401.8 |
| Max current (A) | 77.72 | 82.02 |
| Max thrust | 8416 g | 13261 g |
| Max take-off weight (quad-rotor) | 20 kg | 26 kg |
| Recommended battery | 12S Lipo | 12S Lipo |
| Recommended propeller | 2265 | MF2311P |
| Recommended thrust/rotor | 3.5~5 kg | 4~6.5 kg |
| Recommended ESC | HV260A(V5) | HV260A(V5) |
| Mounting hole spacing | 4-hole 12mm / 4-hole 18mm | 4-hole 12mm / 4-hole 18mm |
| Shaft diameter | 06 (M6) | 06 (M6) |
| Lead wire | 14#760mm | 14#670mm |
Applications
- Drone inspections and surveying
- Logistics and payload multirotors
- Small multirotor drone builds requiring higher thrust motors
For selection help between MS6210 180KV and MS6215 210KV, contact [email protected] or visit https://rcdrone.top/.
Details
Choose between MS6210 180KV and MS6215 210KV for high-efficiency multirotor power on 12S LiPo setups.

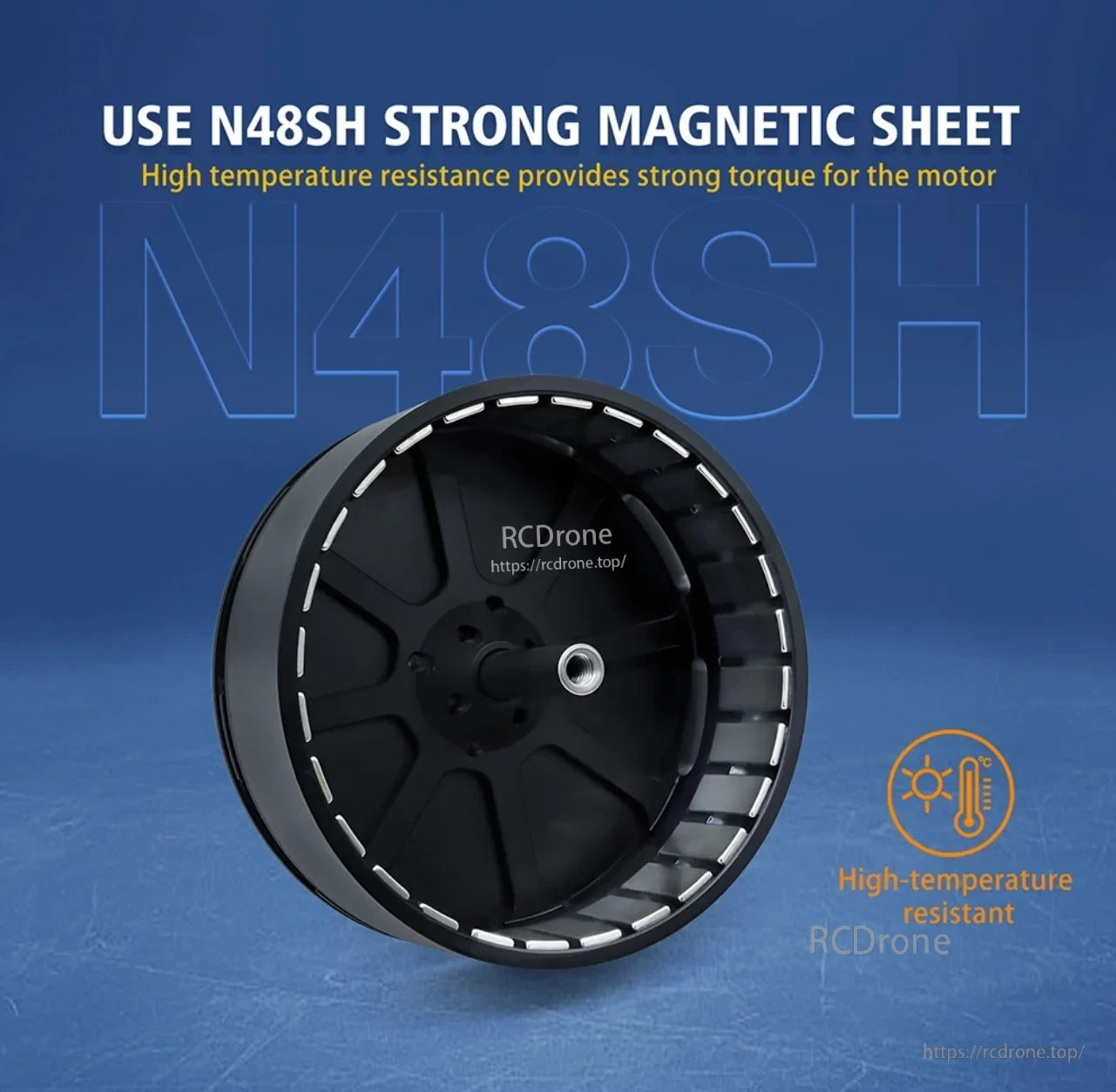

N48SH magnets support strong torque and reliable performance under higher-temperature operation.

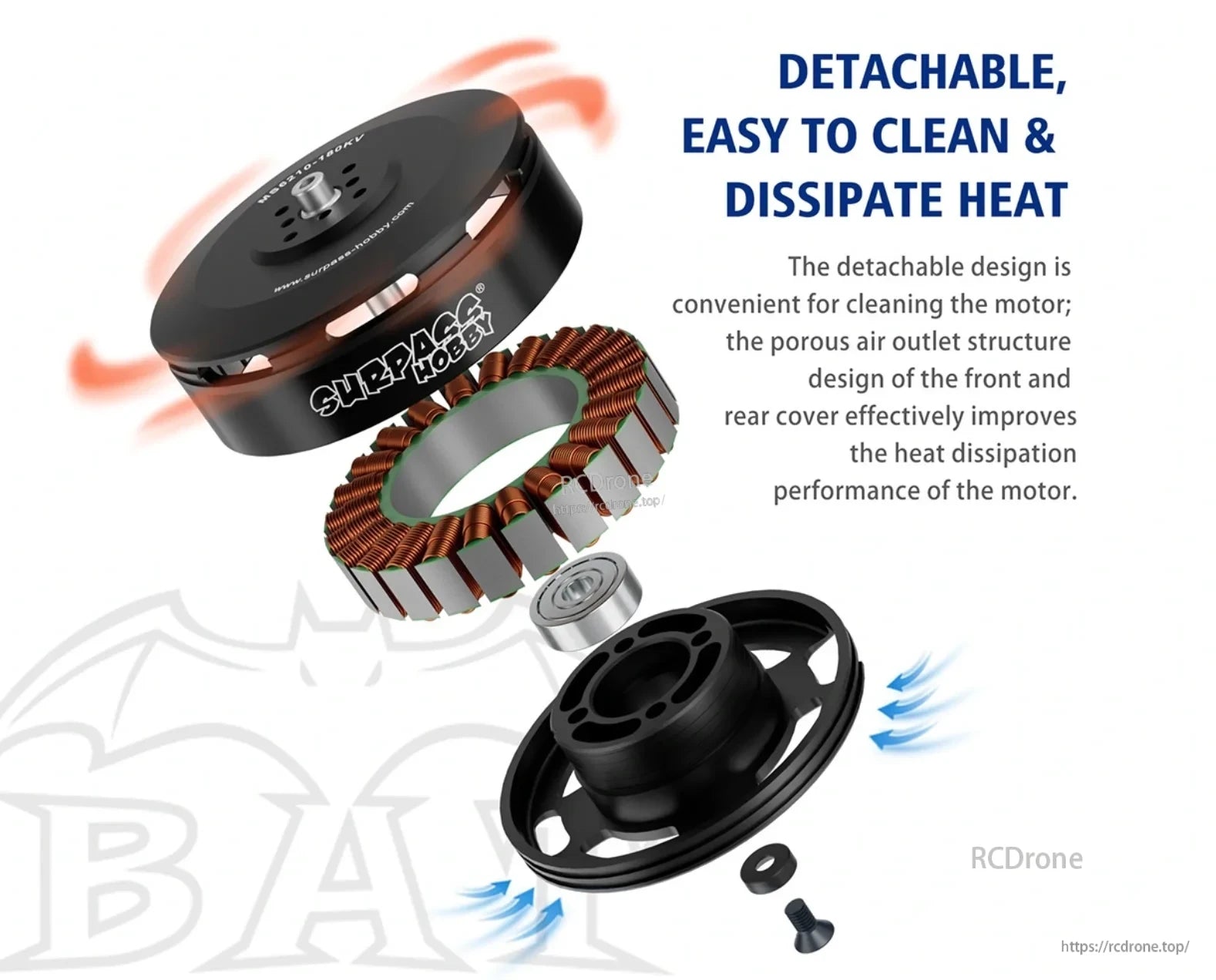

A detachable construction makes maintenance easier while the vented covers help move heat out during long flights.

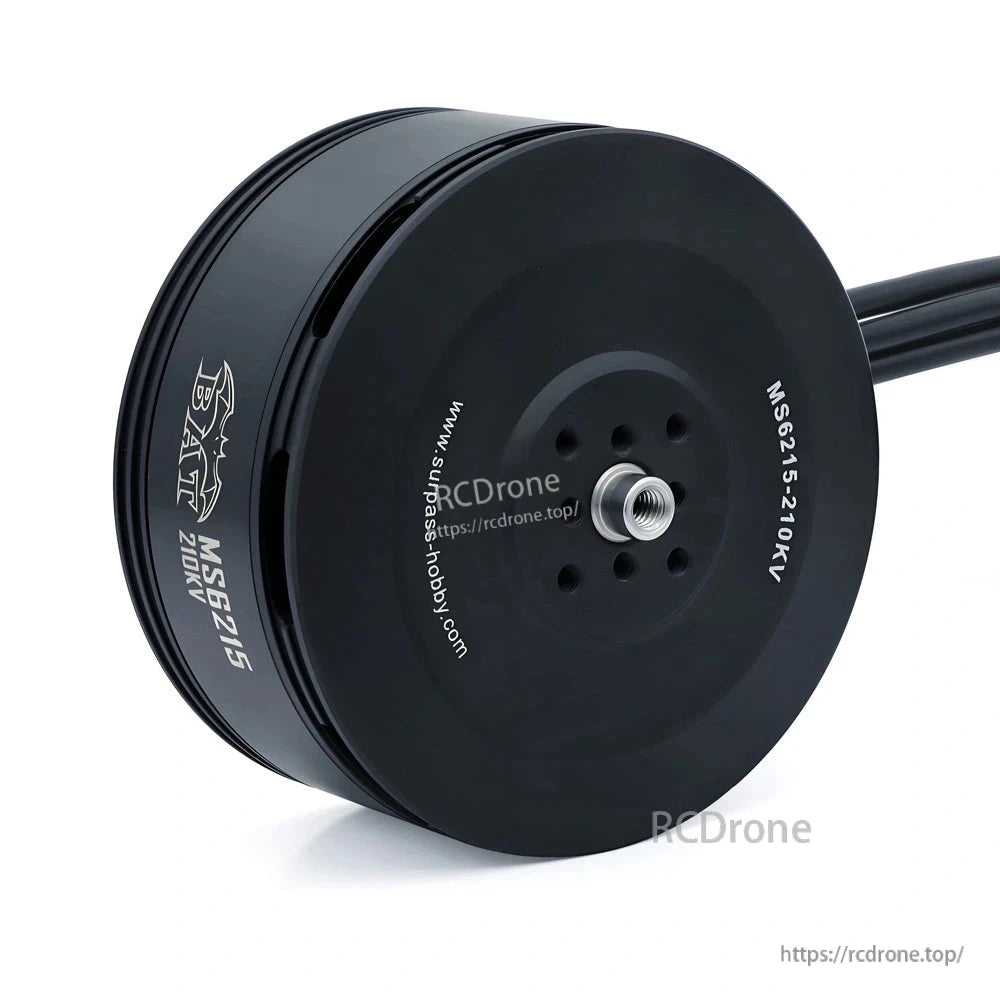

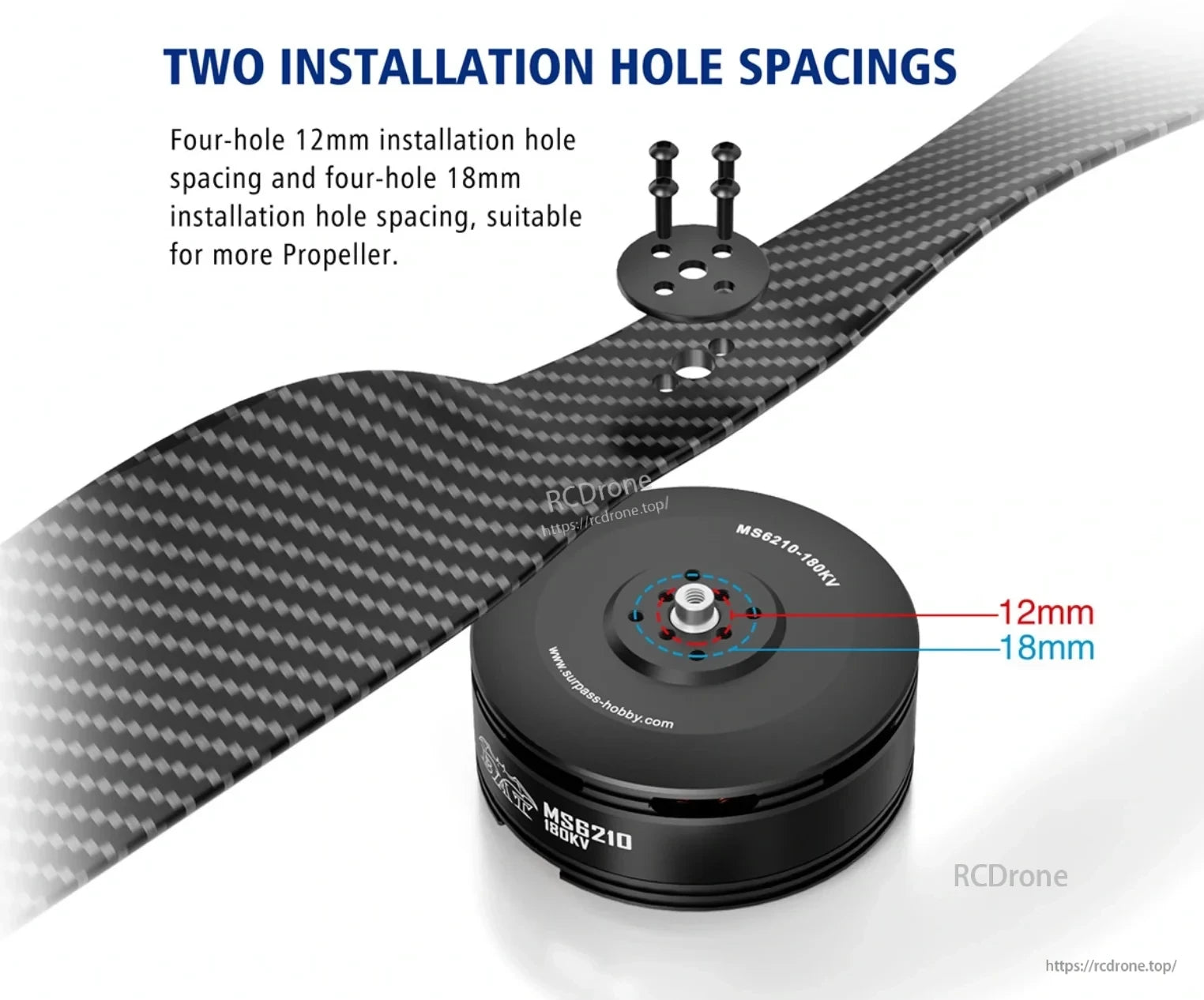

Two mounting options—4-hole 12mm and 4-hole 18mm—help match more multirotor frames and prop setups.

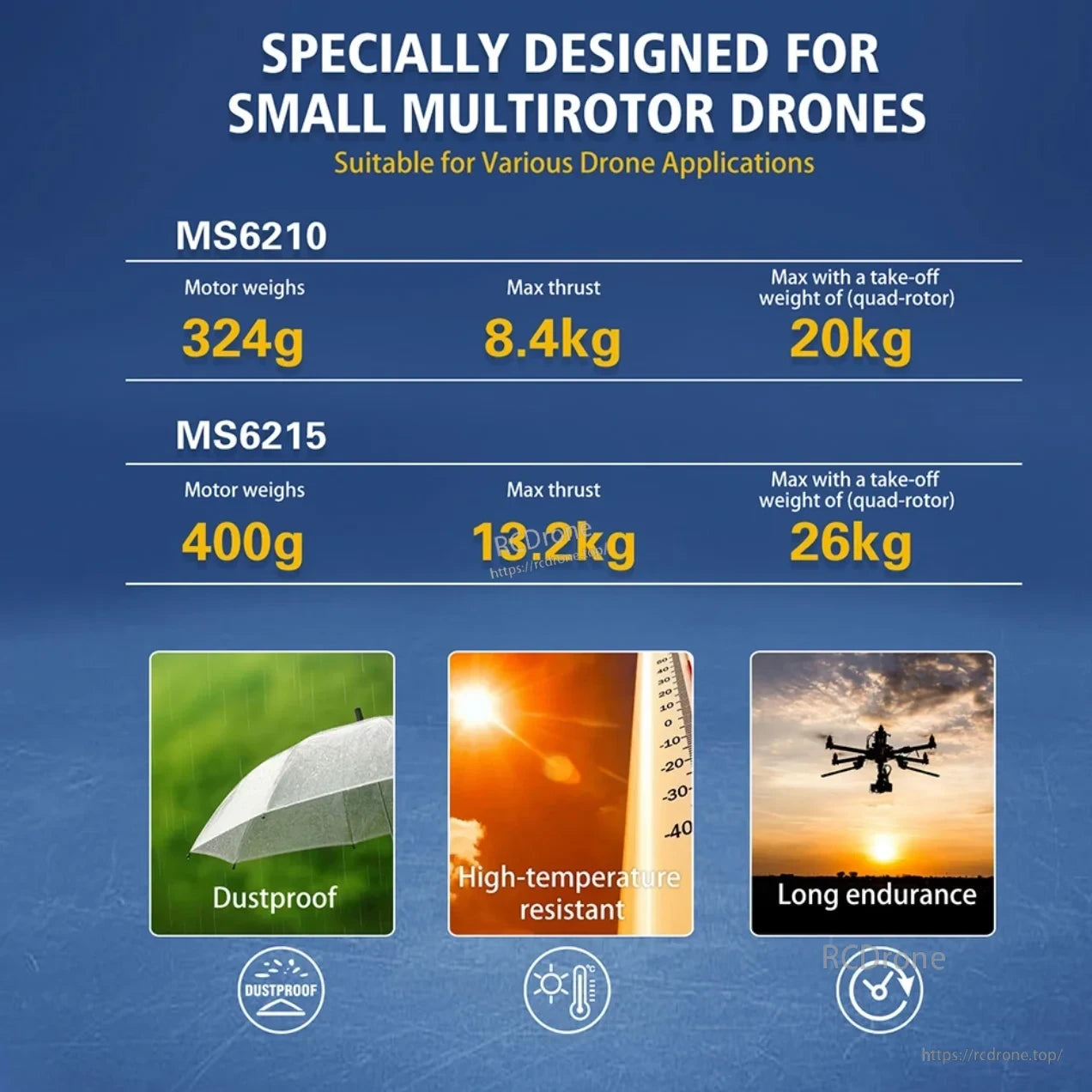

Quick comparison of weights and thrust ranges to help match the motor to payload, endurance, and takeoff-weight targets.

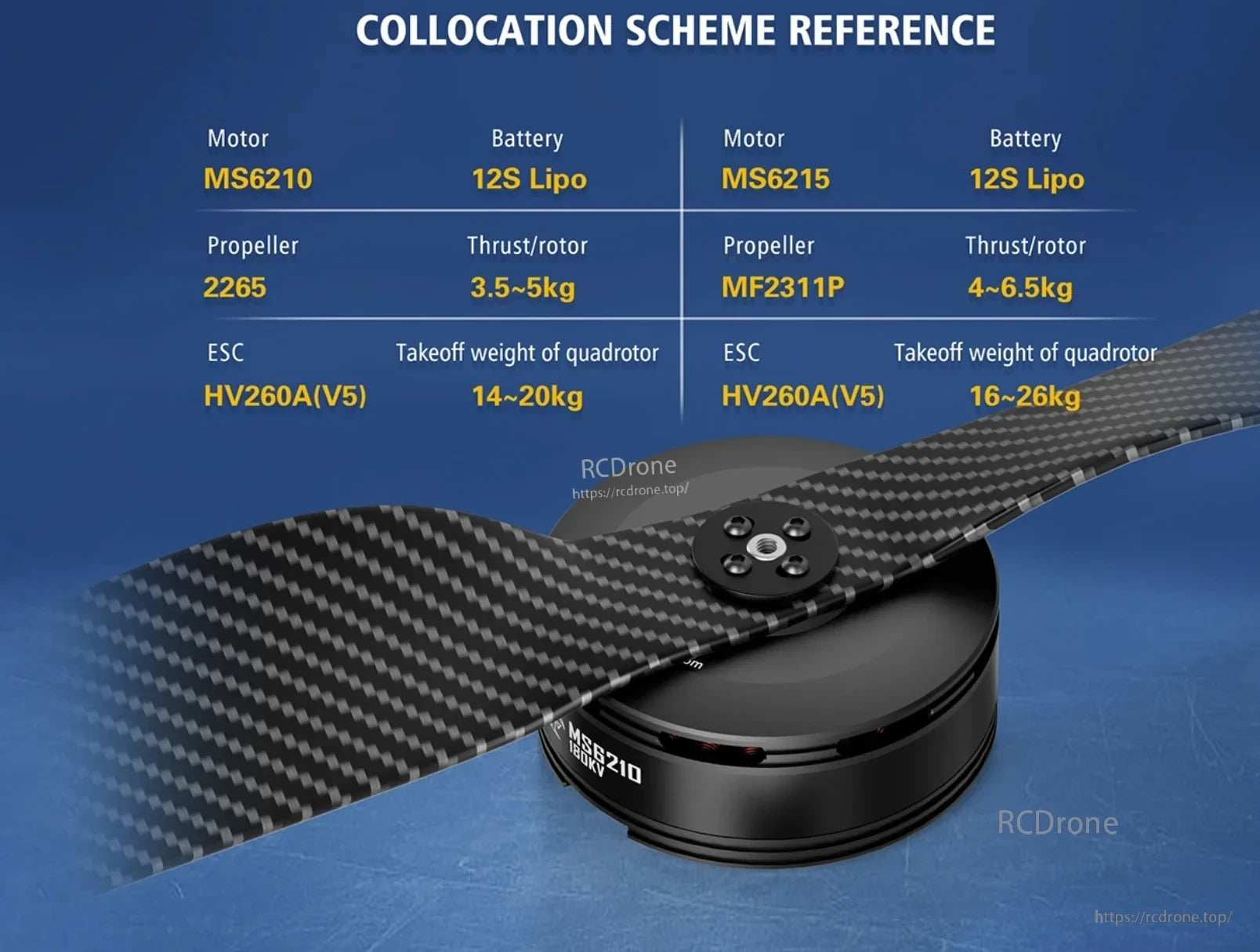

Suggested pairing reference for 12S batteries, propellers, and HV260A(V5) ESC selection for each KV option.
