VCI SPARK 1506 Motor 2050KV/2500KV/3250KV/4000KV, Ø19×L18.4mm, 4-M2 Mount for FPV Drone

VCI

$25.25 USD

أُوكَازيُون نفذ

Taxes included. الشحن محسوب عند السداد.

KV 2050KV 2500KV 3250KV 4000KV

كمية

عرض التفاصيل الكاملة

Overview

VCI SPARK 1506 is a compact motor series offered in multiple KV options (2050KV / 2500KV / 3250KV / 4000KV) for RC multirotor and lightweight propulsion builds where size, weight, and tested performance data matter.

Key Features

Multiple KV selections to match different voltage and propeller setups
12S14P configuration with N52SH arc magnets
Compact 1506 stator size (Ø15*L6mm)
24AWG silicone wire (100mm)

Specifications

Common (All KV Options)

Series	SPARK 1506
Configuration	12S14P
Magnets	N52SH arc
Stator Size	Ø15*L6mm

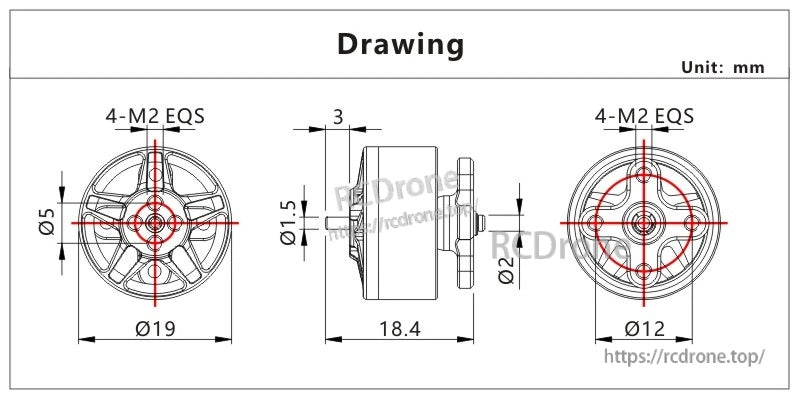

Motor Dimensions	Ø19*L18.4mm
Shaft Diameter	Ø1.5mm
Shaft Length	3mm
Wire	24AWG 100mm (silicone)
Mounting Holes	4-M2

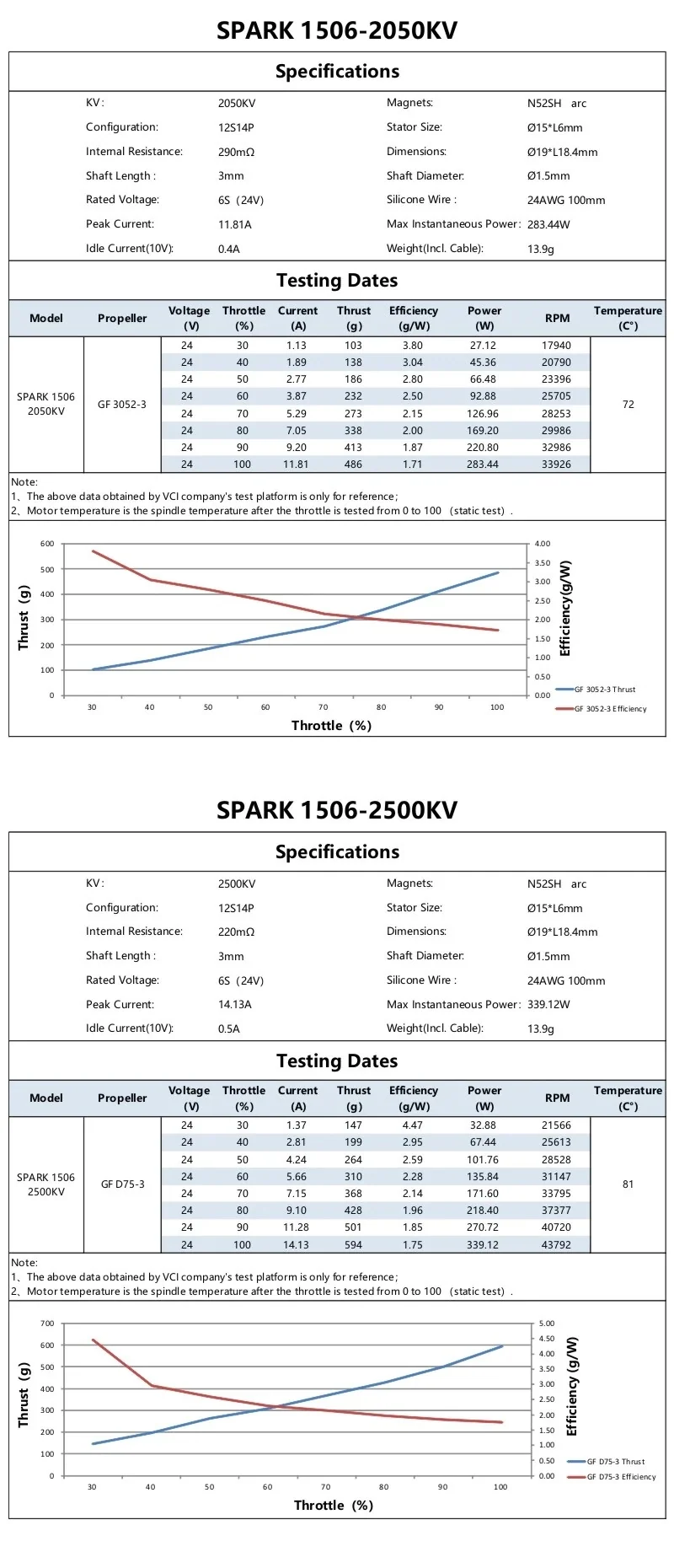

SPARK 1506-2050KV

KV	2050KV
Rated Voltage	6S (24V)
Internal Resistance	290mΩ
Idle Current (10V)	0.4A
Peak Current	11.81A
Max Instantaneous Power	283.44W
Weight (Incl. Cable)	13.9g
Test Propeller	GF 3052-3
Test Voltage	24V
Max Thrust (Test)	486g
Max RPM (Test)	33926
Temperature (Test)	72°C

SPARK 1506-2500KV

KV	2500KV
Rated Voltage	6S (24V)
Internal Resistance	220mΩ
Idle Current (10V)	0.5A
Peak Current	14.13A
Max Instantaneous Power	339.12W
Weight (Incl. Cable)	13.9g
Test Propeller	GF D75-3
Test Voltage	24V
Max Thrust (Test)	594g
Max RPM (Test)	43792
Temperature (Test)	81°C

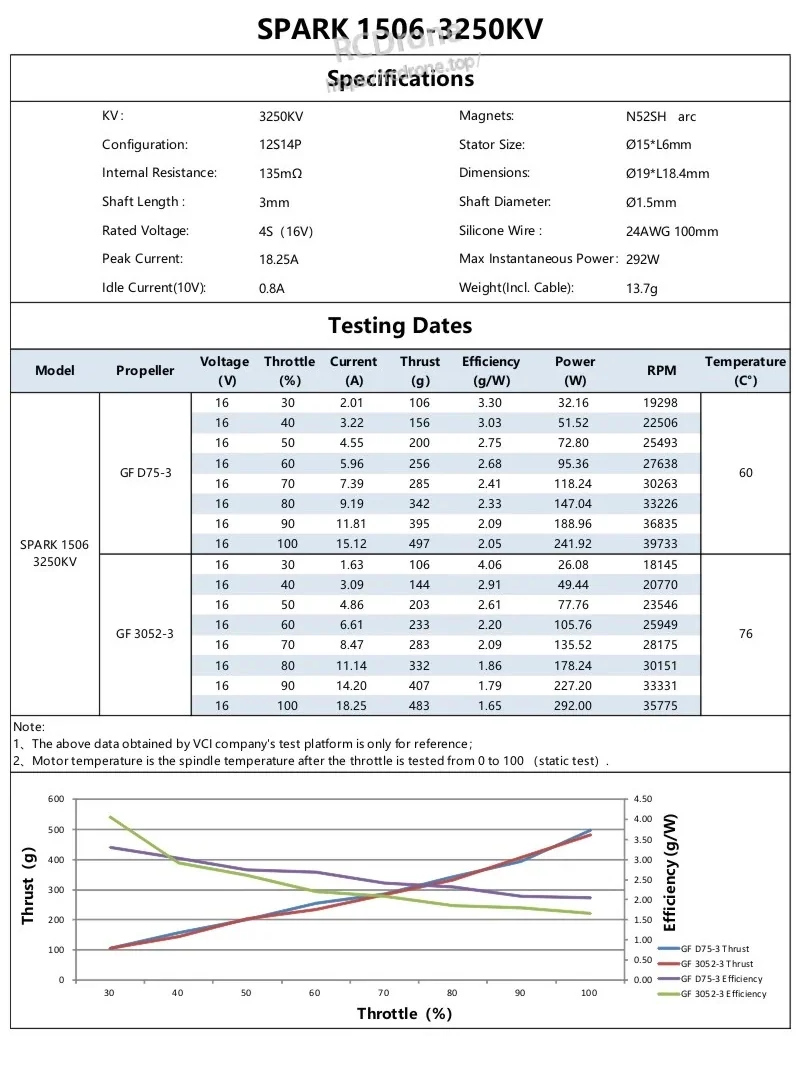

SPARK 1506-3250KV

KV	3250KV
Rated Voltage	4S (16V)
Internal Resistance	135mΩ
Idle Current (10V)	0.8A
Peak Current	18.25A
Max Instantaneous Power	292W
Weight (Incl. Cable)	13.7g
Test Voltage	16V
Test Propeller	GF D75-3
Max Thrust (Test)	497g
Max RPM (Test)	39733
Temperature (Test)	60°C
Test Propeller	GF 3052-3
Max Thrust (Test)	483g
Max RPM (Test)	35775
Temperature (Test)	76°C

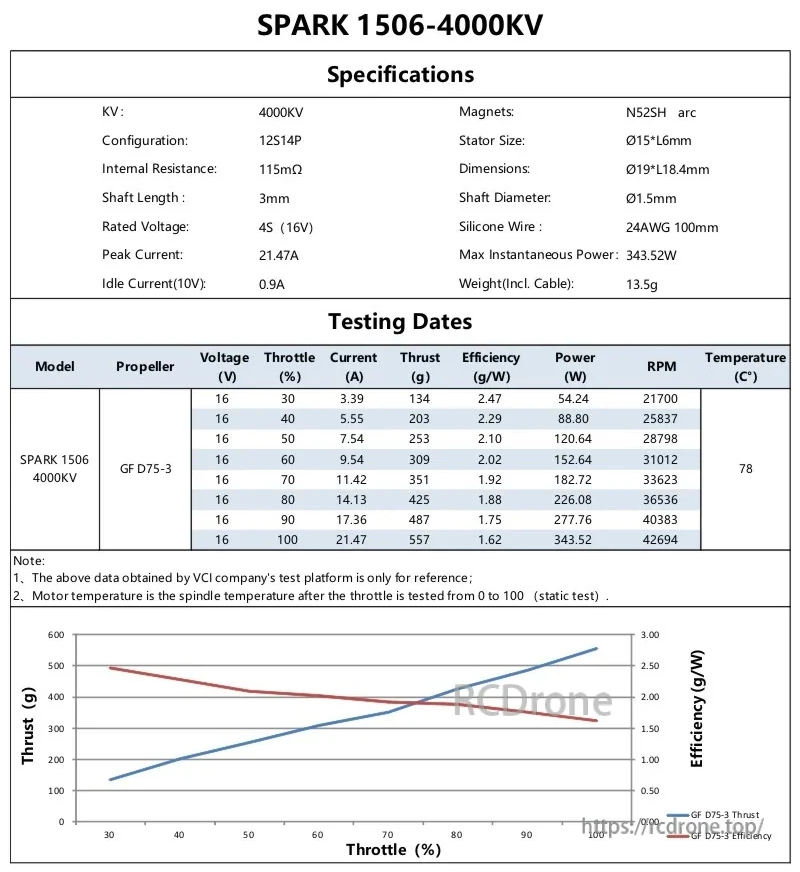

SPARK 1506-4000KV

KV	4000KV
Rated Voltage	4S (16V)
Internal Resistance	115mΩ
Idle Current (10V)	0.9A
Peak Current	21.47A
Max Instantaneous Power	343.52W
Weight (Incl. Cable)	13.5g
Test Propeller	GF D75-3
Test Voltage	16V
Max Thrust (Test)	557g
Max RPM (Test)	42694
Temperature (Test)	78°C

Applications

1506-class multirotor and FPV drone builds where tested thrust/current data is required
Custom lightweight RC propulsion projects using 4-M2 motor mounting

Notes

Test data is measured on the manufacturer test platform and provided for reference. Motor temperature values are spindle temperature after throttle testing from 0 to 100 (static test).

For selection help (KV choice, voltage matching, prop recommendations), contact [email protected] or visit https://rcdrone.top/.
