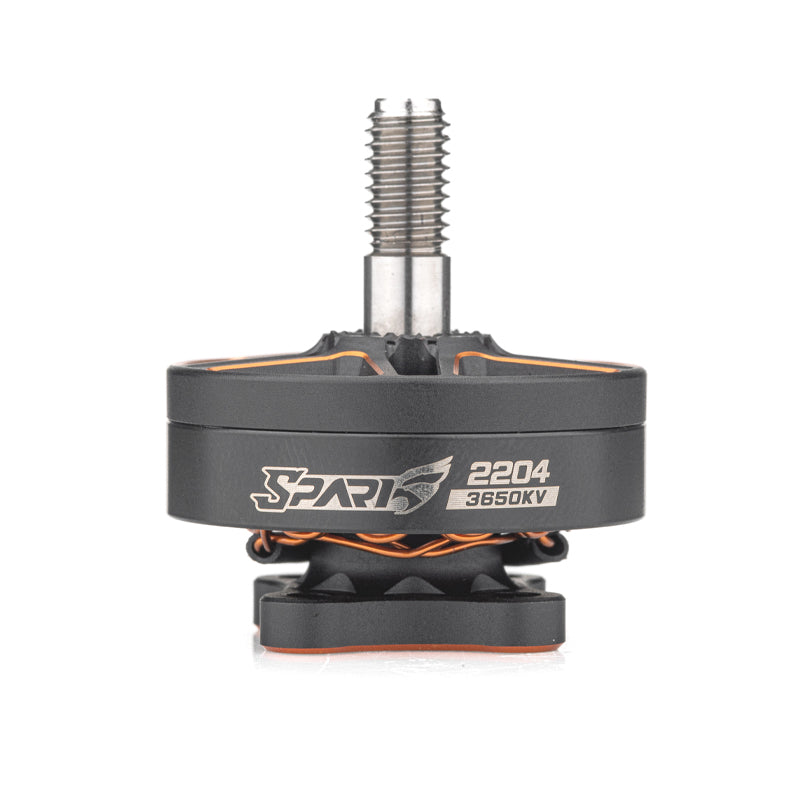

• VCI SPARK 2204 brushless motor side profile with threaded shaft and SPARK 2204 3650KV marking

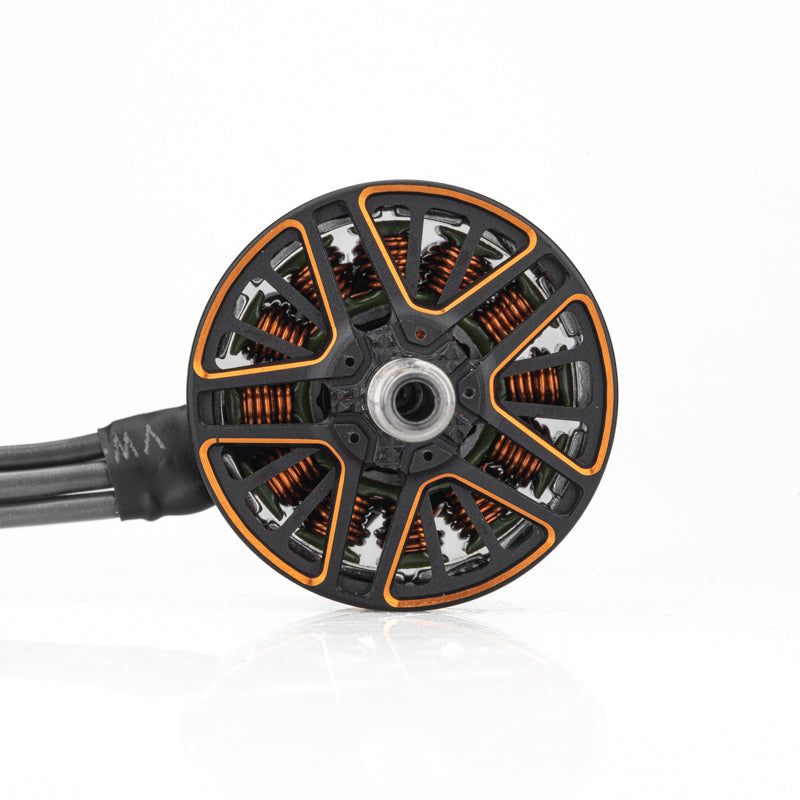

  • Top view of motor bell showing open-frame design, copper windings, and center mounting hole

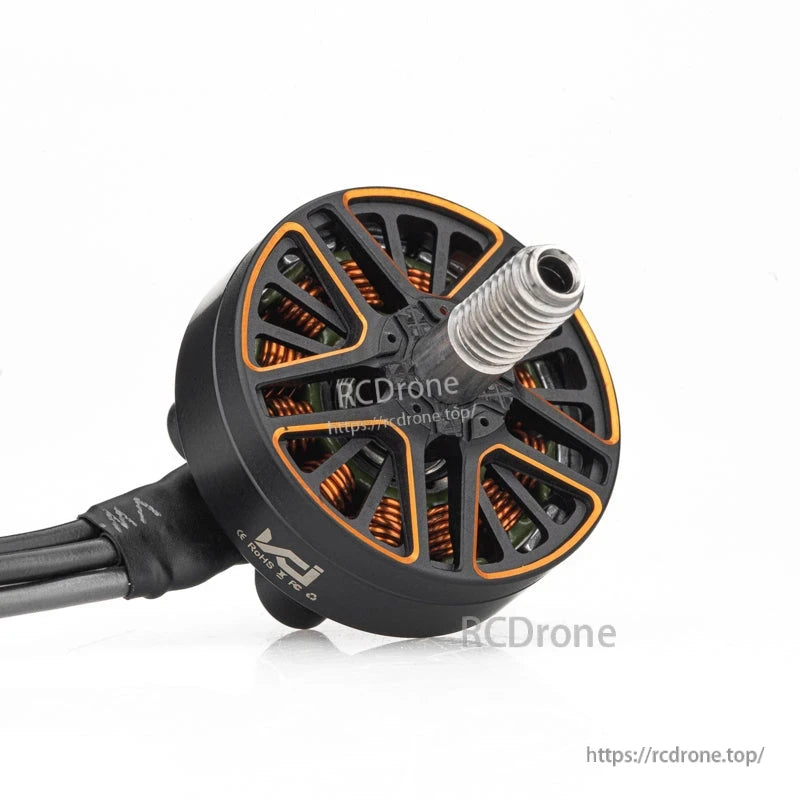

  • Angled view of VCI SPARK 2204 brushless motor showing threaded shaft, open bell, and lead wires

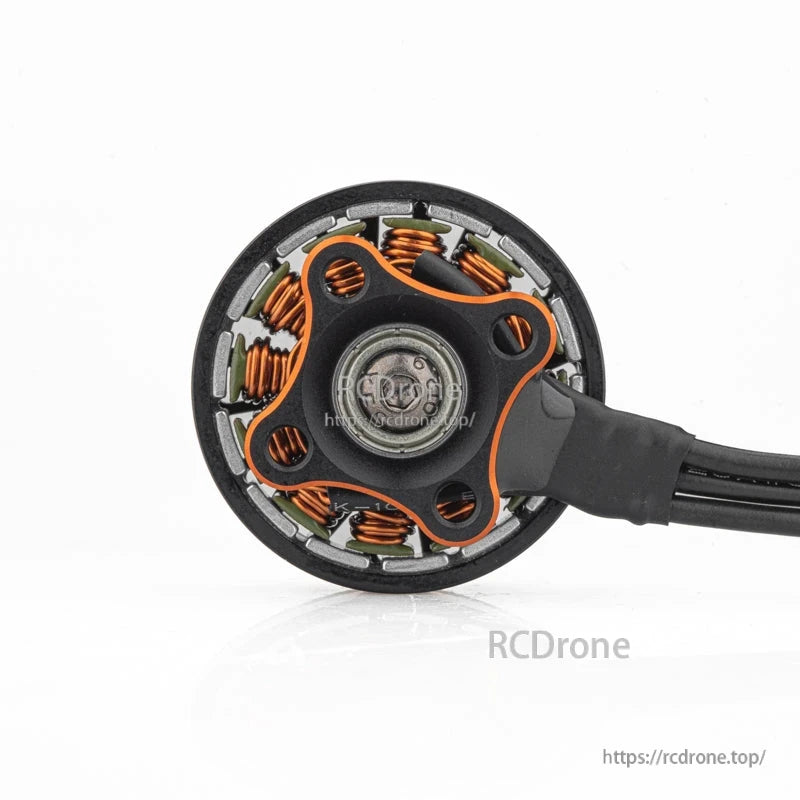

  • Bottom view showing motor base, stator windings, and wire exit point for the brushless motor

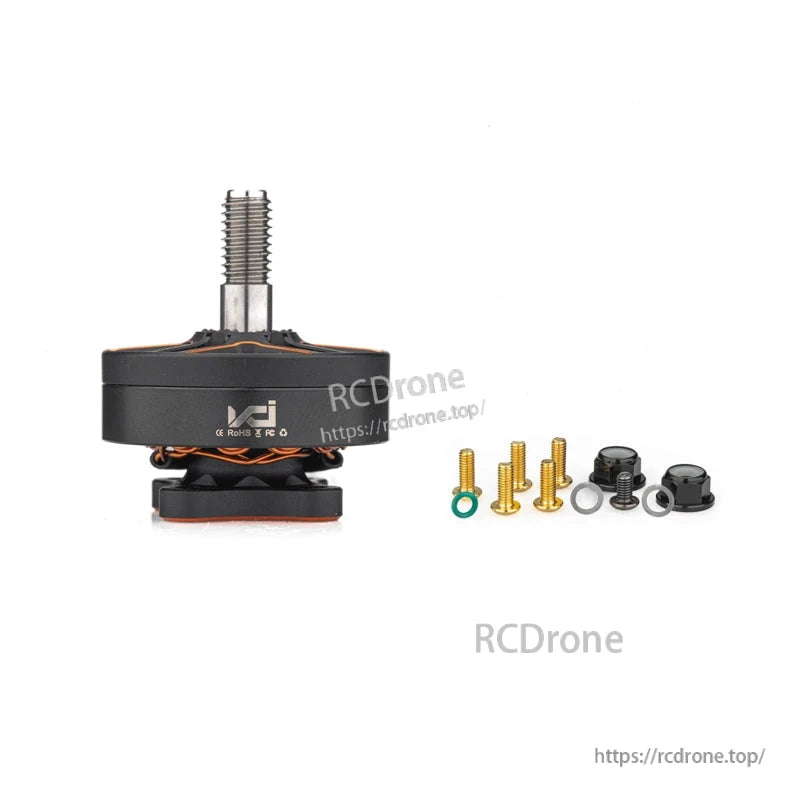

  • VCI SPARK 2204 motor with included mounting screws, washers, and prop nuts accessory set
1 5

VCI SPARK 2204 Brushless Motor 2100KV/2550KV/2950KV/3650KV for FPV Quadcopter Builds

VCI SPARK 2204 Brushless Motor 2100KV/2550KV/2950KV/3650KV for FPV Quadcopter Builds

VCI

$34.55 USD
$34.55 USD
أُوكَازيُون نفذ
Taxes included. الشحن محسوب عند السداد.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
عرض التفاصيل الكاملة

Overview

The VCI SPARK 2204 is a brushless motor designed for RC multirotor/FPV quadcopter builds. Select the KV option that matches the target battery voltage and propeller setup: 2100KV, 2550KV, 2950KV, or 3650KV.

Key Features

  • 2204 size motor with 12S14P configuration
  • N52SH arc magnets
  • M5 shaft with 13.1 mm shaft length
  • 20AWG silicone wire, 150 mm length
  • Compact 27 mm class motor body for space-conscious builds

Specifications

Mechanical

Motor size 2204
Stator size Ø22*L4mm
Dimensions Ø27*L30.2mm
Shaft diameter M5
Shaft length 13.1mm
Mounting 4-M3

Electrical (by KV option)

KV Rated voltage Internal resistance Peak current Idle current (10V) Max instantaneous power Weight (incl. cable)
2100KV 6S (24V) 110mΩ 24.63A 0.5A 591.2W 23.2g
2550KV 6S (24V) 85mΩ 29.54A 0.5A 708.96W 23.3g
2950KV 4S (16V) 60mΩ 33.66A 0.9A 538.56W 23.2g
3650KV 4S (16V) 60mΩ 39.01A 1.5A 624.16W 23.1g

Common configuration

Configuration 12S14P
Magnets N52SH arc
Silicone wire 20AWG 150mm

Test Data (Reference)

Static test data is for reference. Temperature values are spindle temperature after throttle is tested from 0 to 100.

KV Propeller Voltage Max thrust Max current Max power Max RPM Temperature
2100KV GF D90-5 24V 961g 24.62A 590.88W 34418 86°C
2550KV GF D90-3 24V 1128g 29.54A 708.96W 44399 89°C
2950KV GF D90-5 16V 879g 33.66A 538.56W 32498 76°C
3650KV GF D90-3 16V 1017g 39.01A 624.16W 41408 66°C

Support

For compatibility and build-selection help (KV choice, voltage, and prop matching), contact [email protected] or visit https://rcdrone.top/.

Details

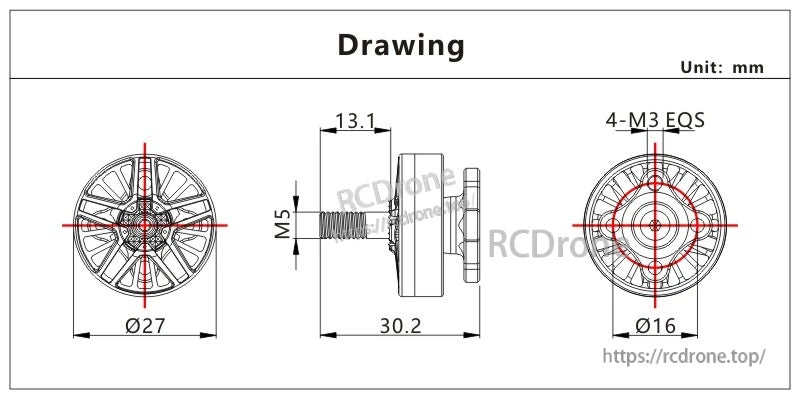

VCI SPARK 2204 brushless motor dimension drawing with Ø27 mm body, 30.2 mm length, M5 shaft and 4×M3 mount

Compact 27 mm-class 2204 motor dimensions with an M5 shaft and a 4×M3 mounting pattern for tight FPV builds.

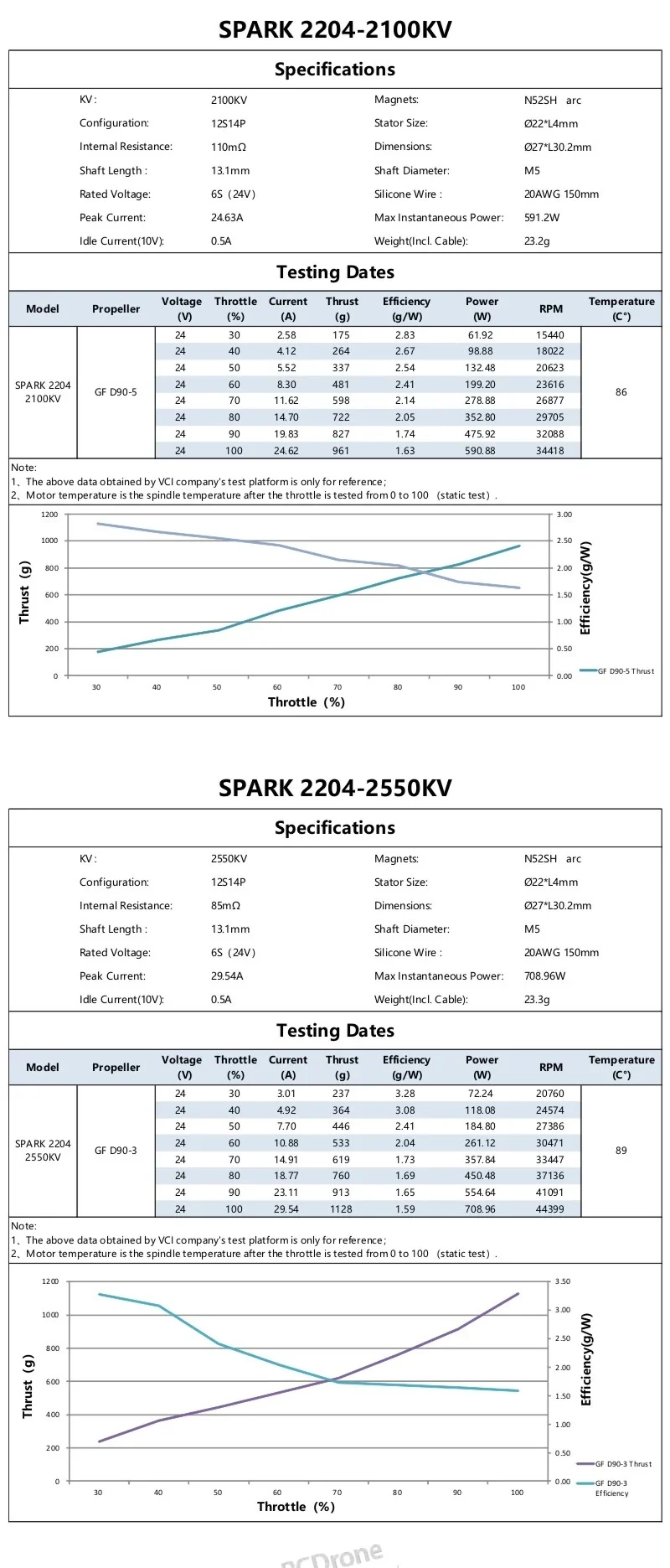

SPARK 2204 2100KV and 2550KV specification tables with static thrust, current, RPM and temperature test charts

Reference test data for the 2100KV and 2550KV options to help match KV to your prop and battery setup.

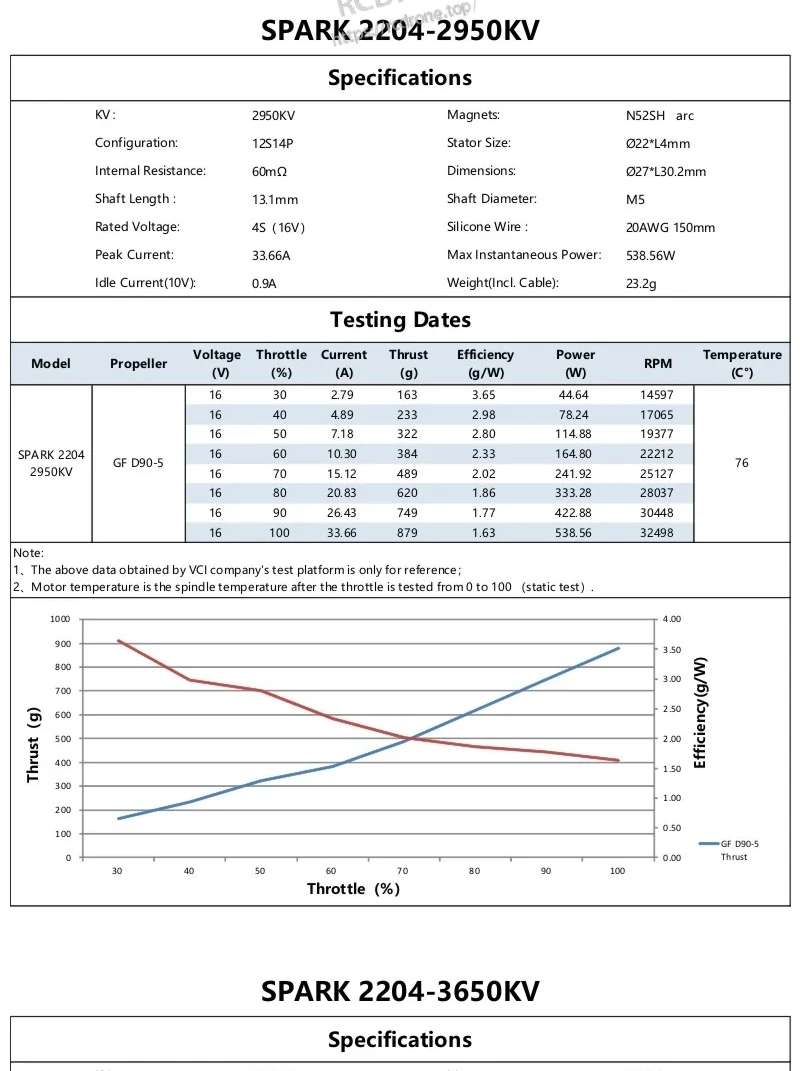

SPARK 2204 2950KV specifications and test data table with thrust/current/RPM results and efficiency graph

The 2950KV option includes a full spec sheet and static test table for quick performance comparisons.

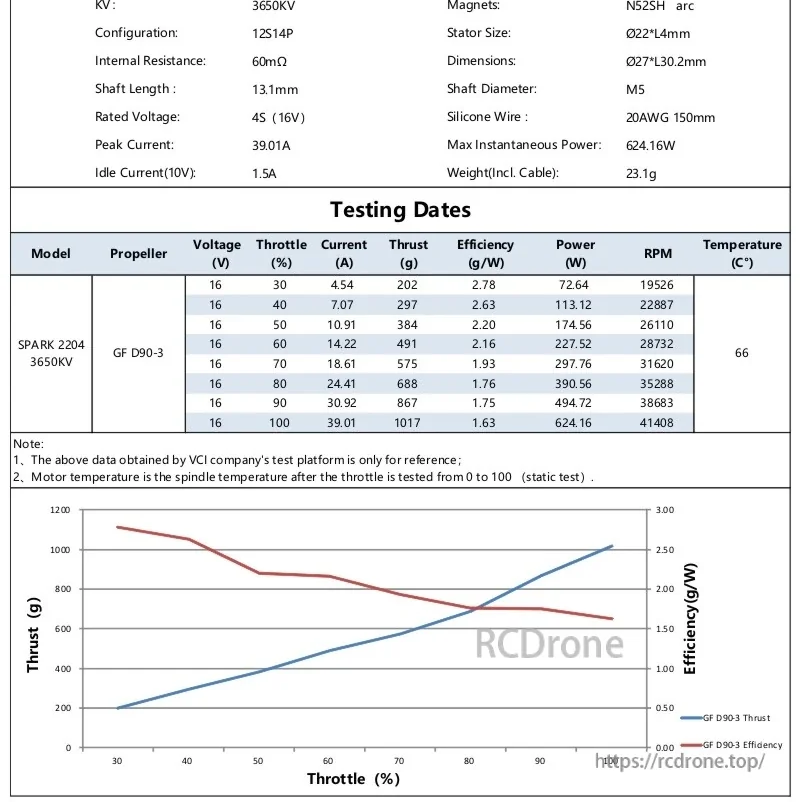

SPARK 2204 3650KV specification and static test data table with thrust, current, RPM and temperature chart

3650KV performance reference data for 4S builds, including thrust, current draw, and temperature results.
